Sherman Wetland: 2017-06-23 09:15:00 (DOY 174)
Author: Ada Chang
Others: Daphne Szutu, Elke Eichelmann, Joe Verfaillie, Dennis Baldocchi, Sam Chamberlain, Kyle Hemes

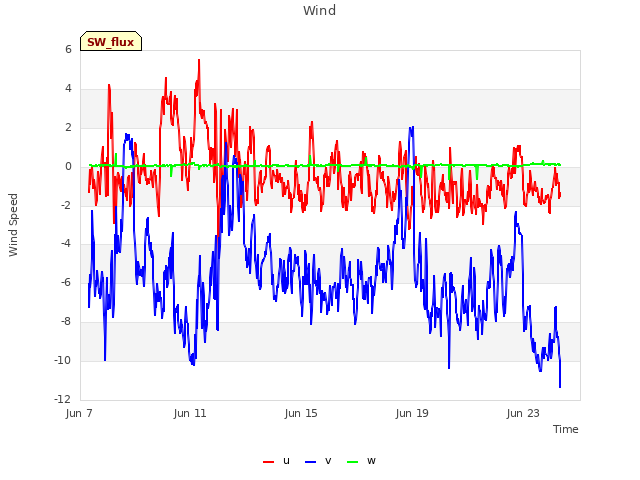

Summary: There was a lot of wind. Swap 7500, water level sensor and NDVI_out sensor.

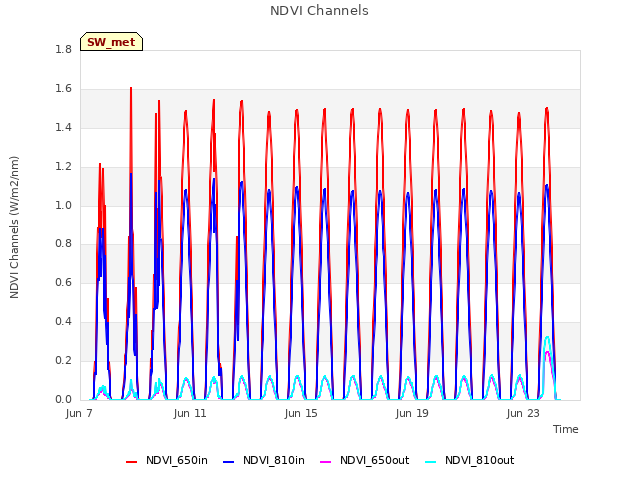

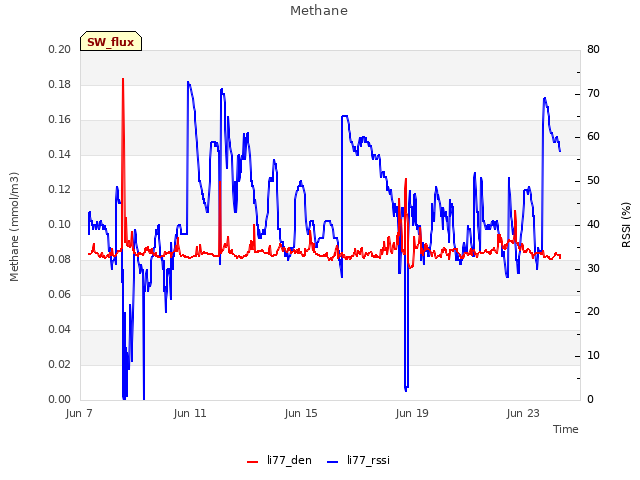

| Arrived at 9:15. The weather was super windy, clear and sunny. Joe, Dennis, Sam and Kyle took measurements for Isotope laser setup, then left. Refilled wash reservoir—4/5 filled upon arrival. Collected USB MET data. Swapped CAMCARD. Swapped water level sensor. Put in same place as the previous sensor. Reading was confirmed to be the same. New sensor is sn 20010026, old sensor is sn 70011234. Swapped NDVI_out field stop sensor for a hemispherical sensor. New sensor: sn 2046503404, Old sensor: sn 943203022 Received warning sign on 7700: “DATA NOT SYNCED—CHECK CLOCK SETTINGS.†Reset box, but warning remained. Swapped 7500. Coming down: sn 75H-2669 Going up: sn 75H-2514 LI7500 readings: CO2 397.69 (2669) -> 413.47 (2514) H2O 804.0 -> 396.3 SS 100.3 -> 102.18 T 21.08 -> 21.13 P 101.05 -> 101.04 LI7700 readings: CH4: 2.05 RSSI: 34 -> 70 after cleaning Left at: 10:20 |
0 photos found
7 sets found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

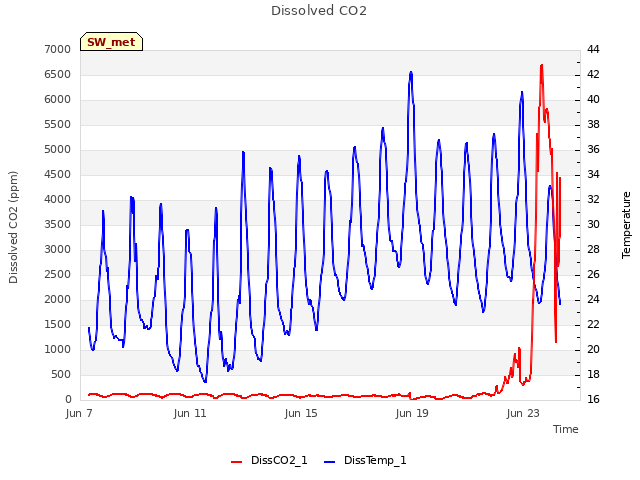

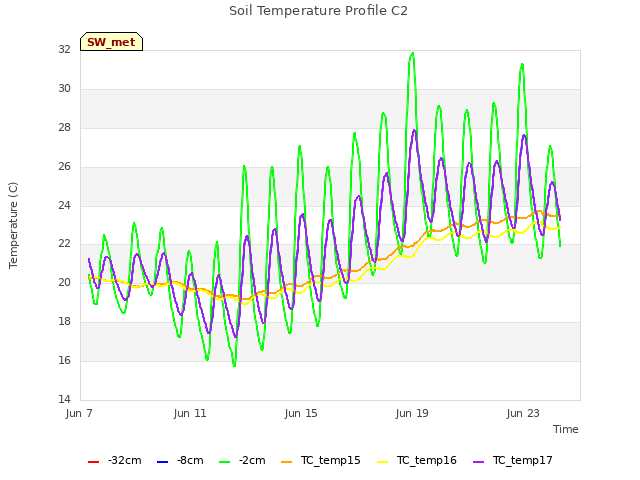

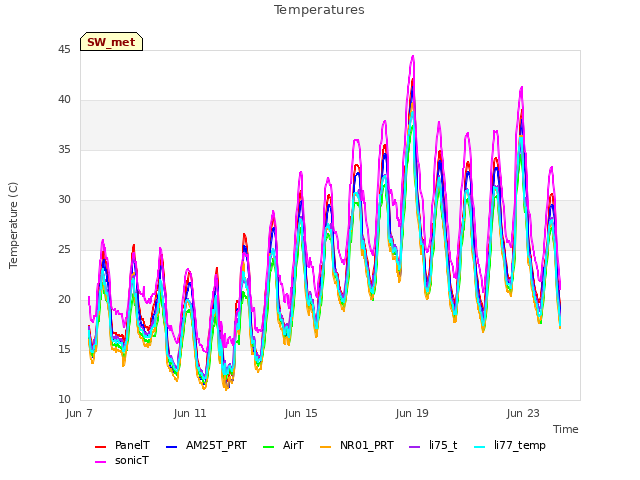

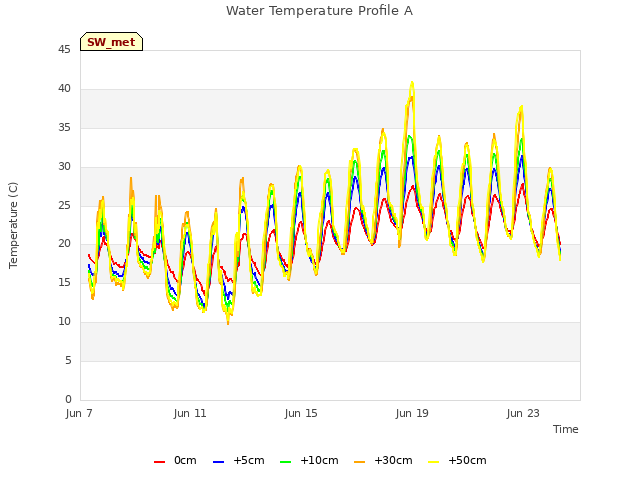

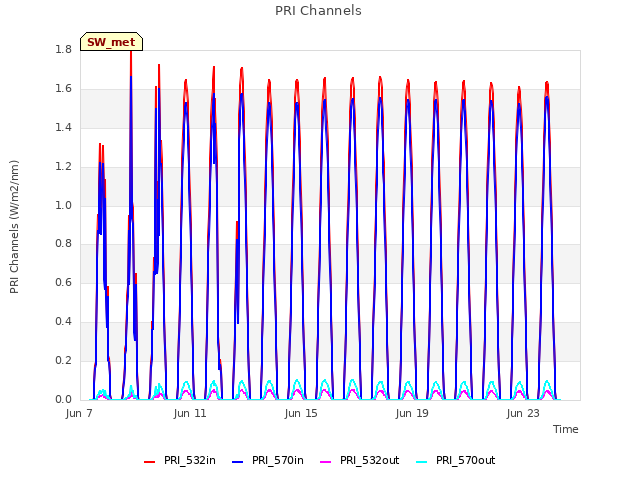

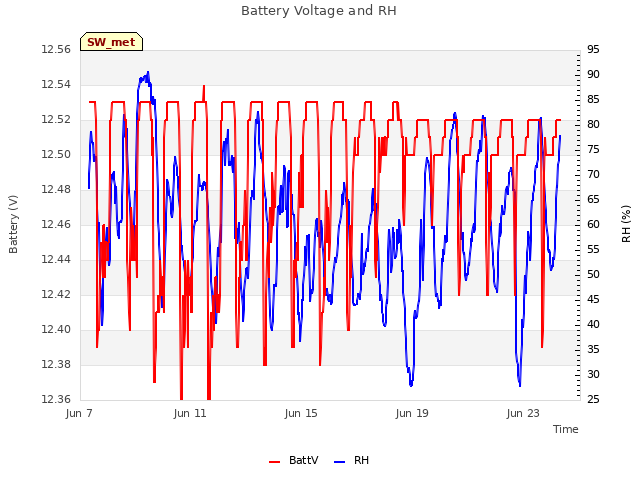

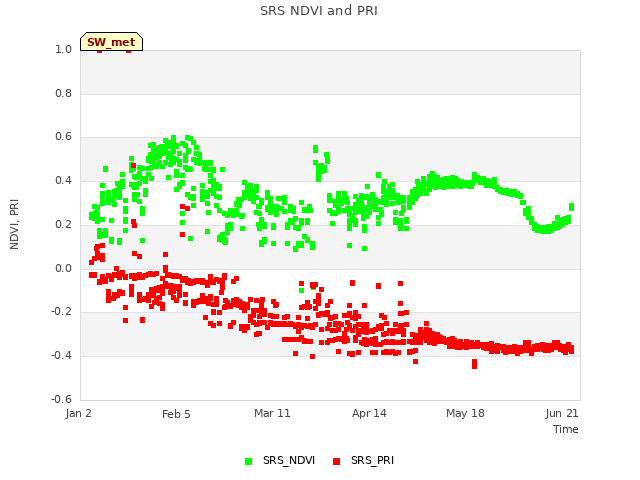

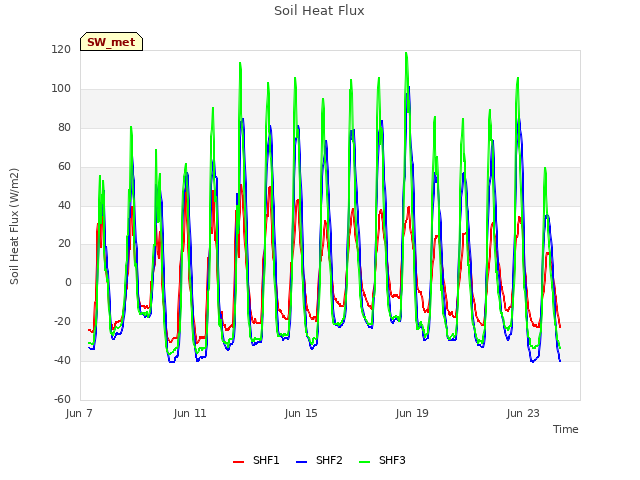

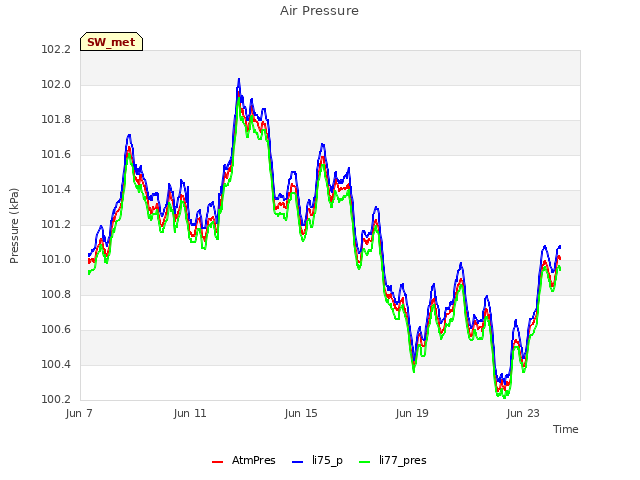

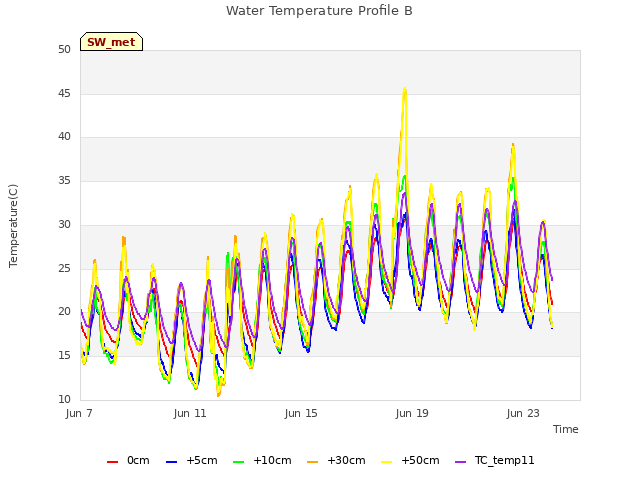

15 SW_met graphs found

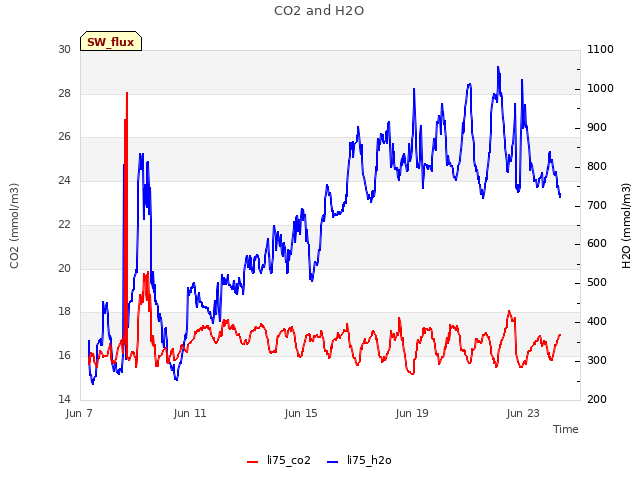

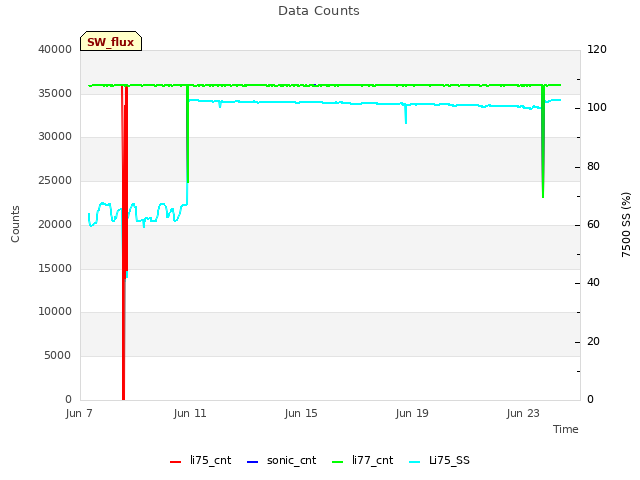

4 SW_flux graphs found
Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found
No data found for SW_arable.
