Field Notes

Sherman Wetland: 2016-10-26 09:10:00 (DOY 300)
Author: Elke Eichelmann
Others: Joe Verfaillie, Sam Chamberlain

Summary: Regular data collection, one of the "water" TC rods mowed down

Arrived at 9:10. It was sunny with a light breeze and a few fluffy clouds. There was a hawk sitting on our camera when we first got to the site.
There was lots of bird goop everywhere, mouse entrails etc. pretty gross. Hopefully this will get washed away with some rain and will get better once the wetland is flooded and not as much of a hunting ground for small rodents anymoreâ€¦

Refilled wash reservoir, was half empty. There were lots of wasps in the reservoir box.
Cleaned GHG sensors. LI7700 RSSI was really low when we got there but went back up after cleaning. Probably caused by the recent rains.

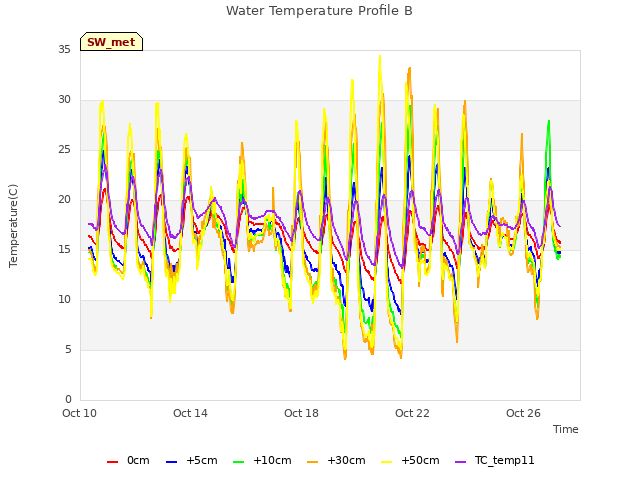

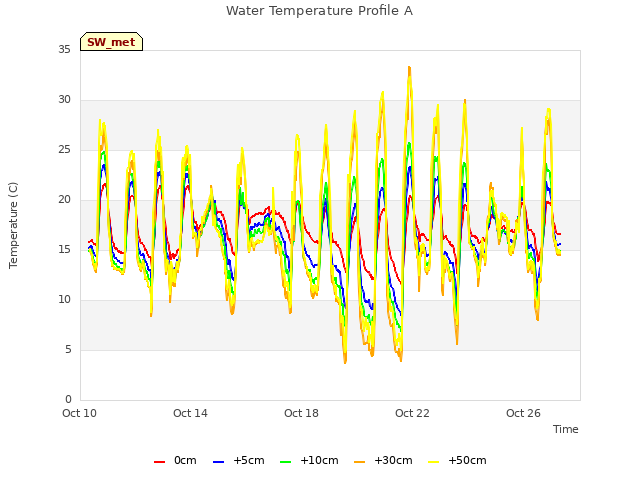

Changed CF card, â€œSWâ€ out, â€œSWâ€ in. Collected USB GHG data, collected met data from CR1000. One of the TC rods for above ground (water) sensors was mowed down. Probably set â€œAâ€ but not entirely clear. Top 2 TC sensors are affected (Maybe TC9 and TC10 in code). They are still working but were torn from the rod. Need new rod and retape everything.

Added bolt do secure solar scaffolding.

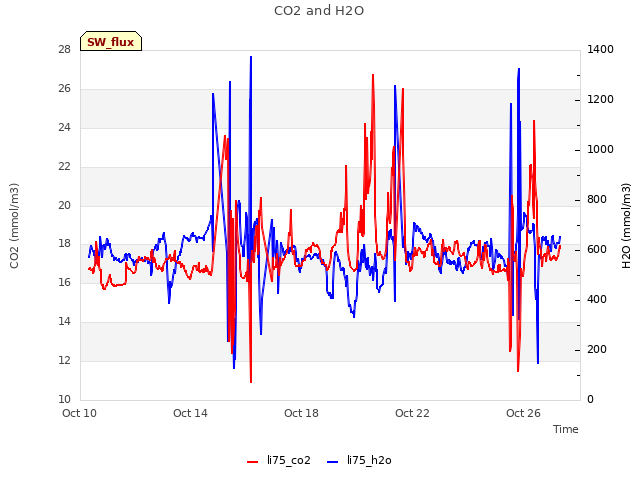

LI7500 readings:
CO2 403.81 umol/mol
H2O 644.0 mmol/m3
T 16.20 Celsius

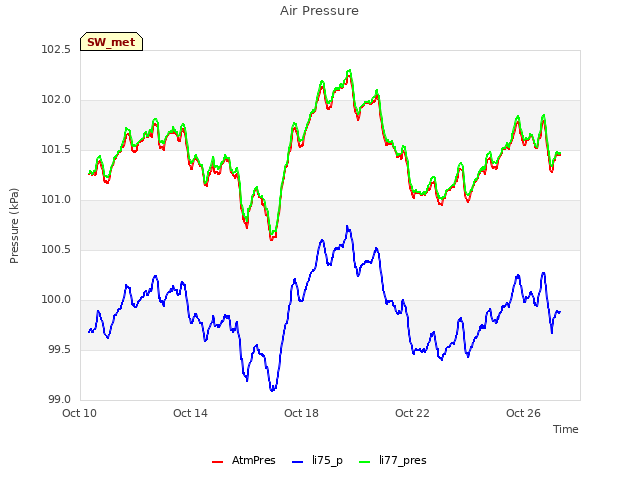

P 100.24 kPa
SS 97.4 -> 101.24 after cleaning

LI7700 readings:
CH4: 2.34
RSSI: 4.0 -> 72 after cleaning

Left at 9:40

0 photos found

7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

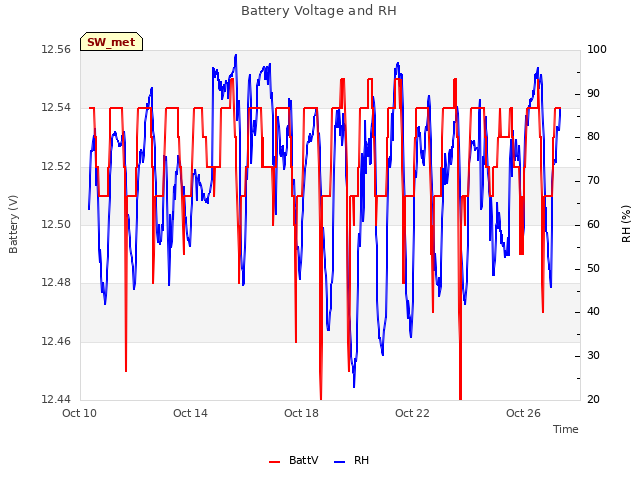

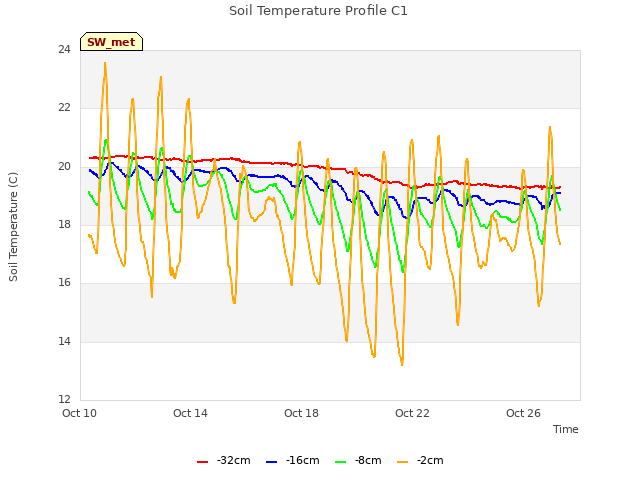

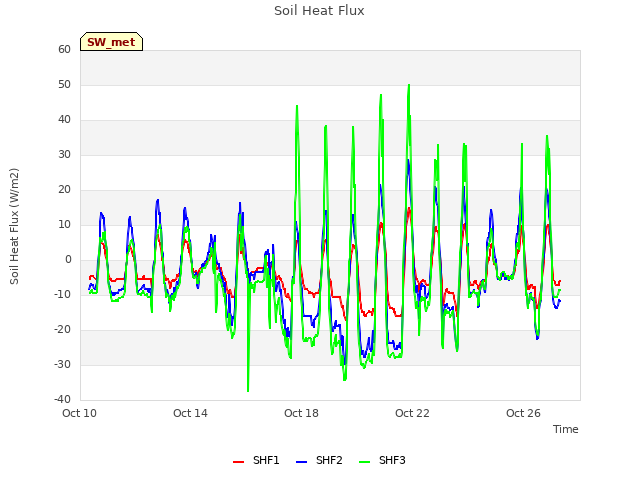

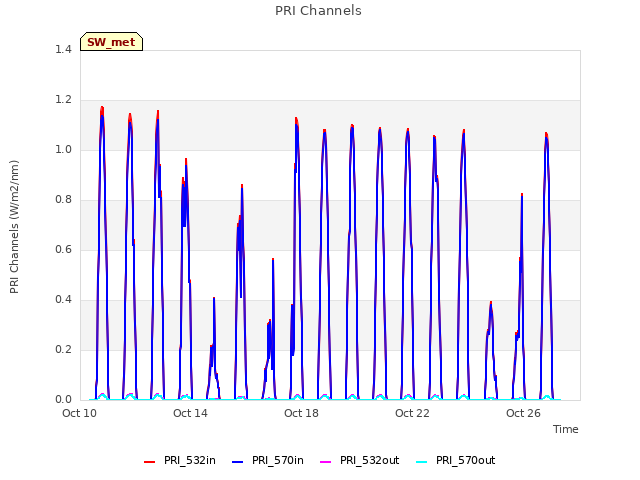

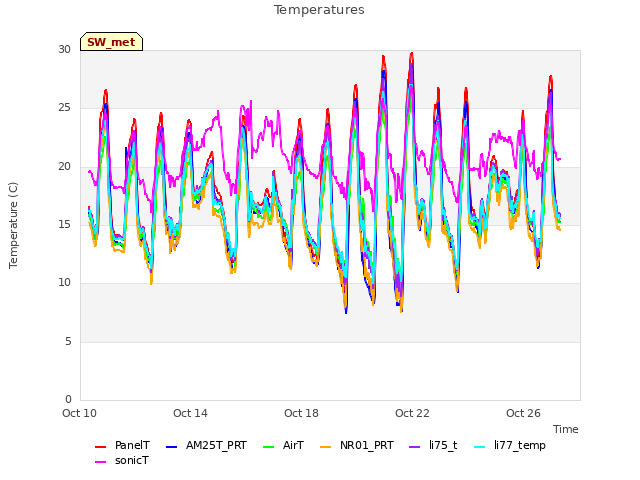

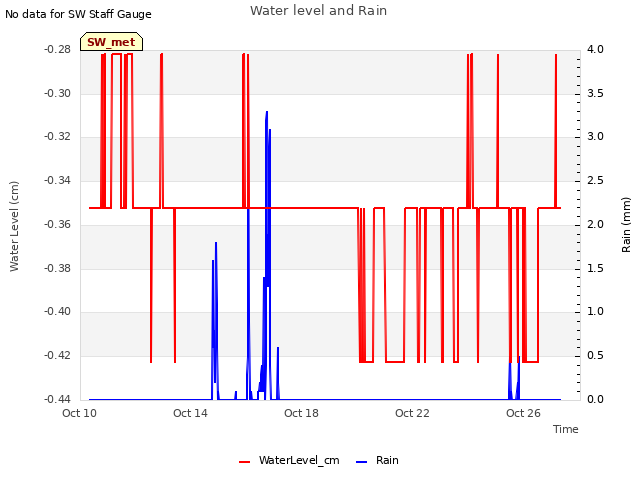

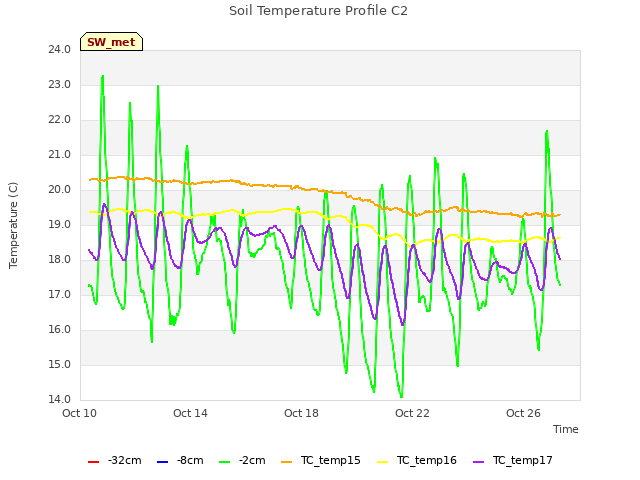

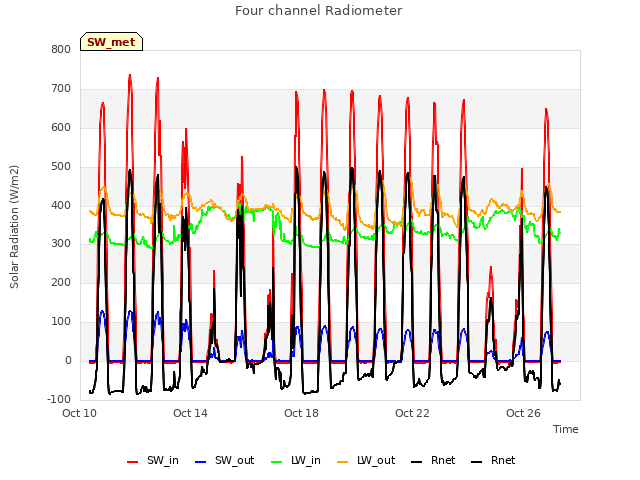

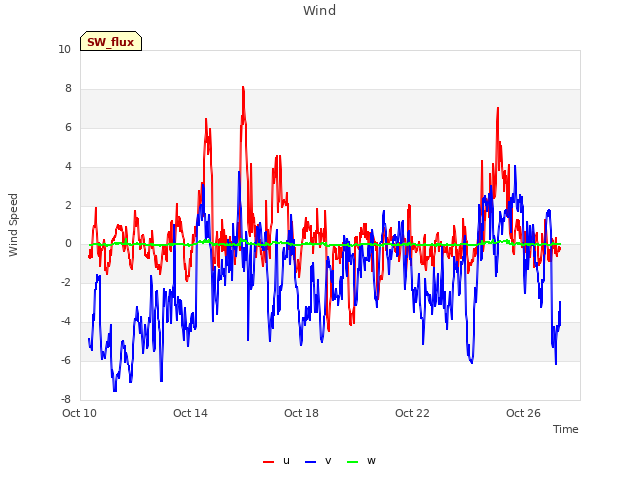

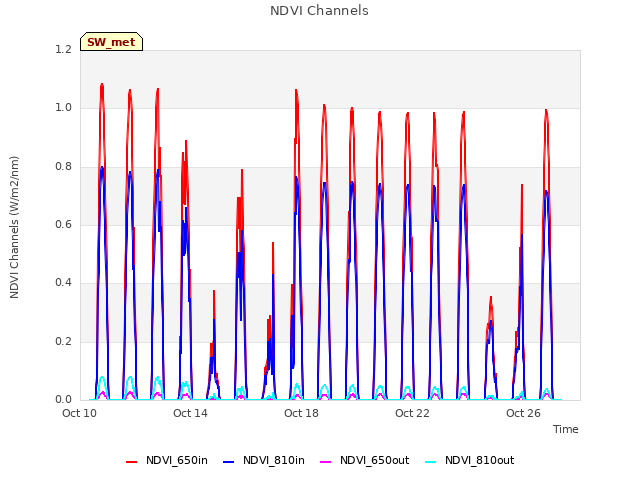

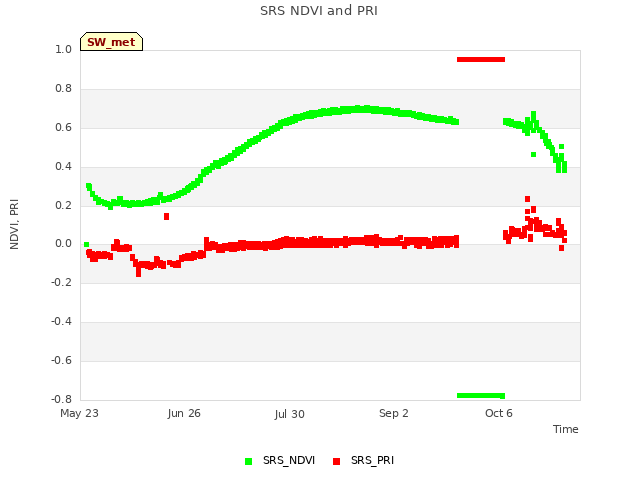

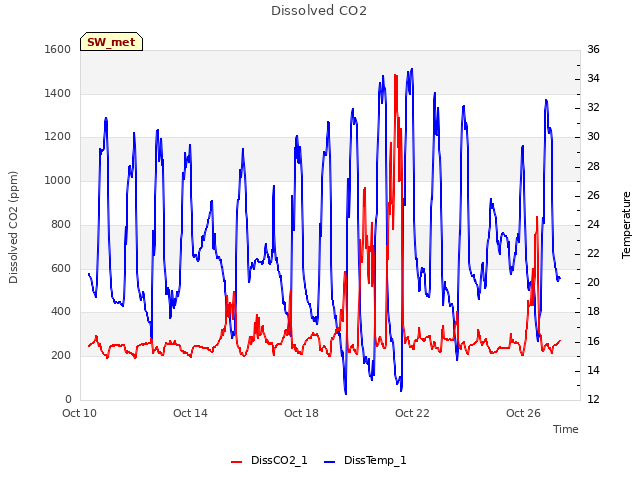

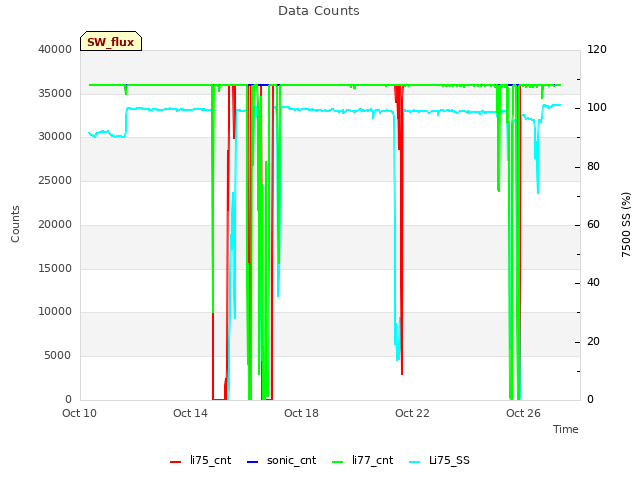

15 SW_met graphs found
