Sherman Wetland: 2016-10-11 09:15:00 (DOY 285)
Author: Joe Verfaillie
Others: Kyle, Sam
Summary: Calibrated 7700, tested rain gauge, regular data collection.

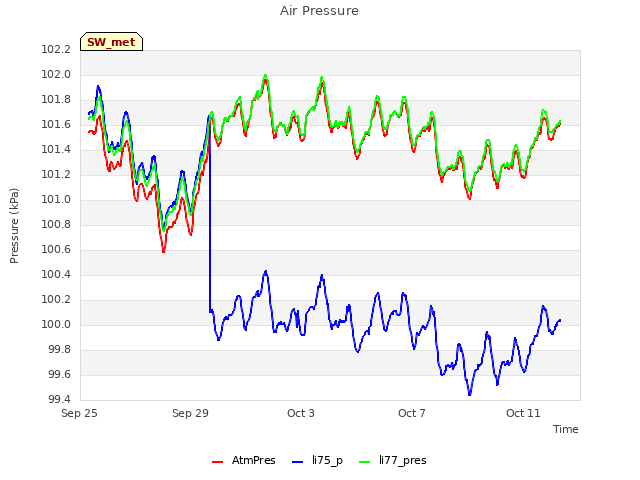

| We arrived about 9:15. It was sunny, windy and cool. Very few wasps around compared to the afternoon last time. Topped off wash reservoir. Collected USB GHG data; collected met data from CR1000; collected camera data. I bolted a board to the boardwalk to support the solar scaffolding. It still needs a u-bolt on the scaffolding end. We tested the rain gauge. 237mL of water should result in 50 tips. We got 49 tips - did not adjust. LI7500 readings CO2 383 H2O 603 T 16.57 P 100 ss 91.1 -> 100 after cleaning LI770 readings CH4 1.97 rssi 40->78 after cleaning Calibrated 7700. left around 10:00. |
0 photos found
7 sets found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

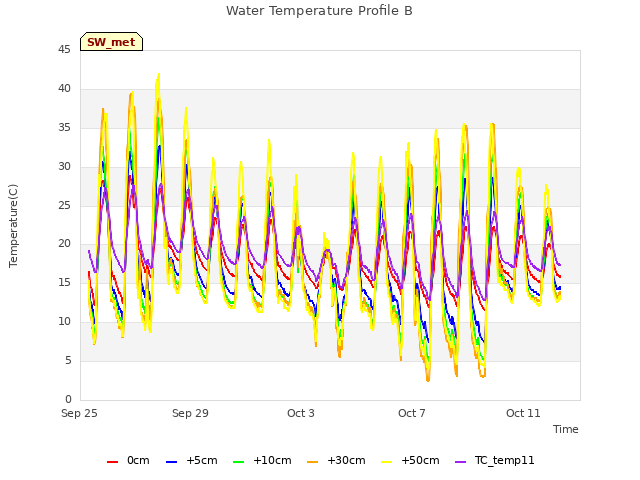

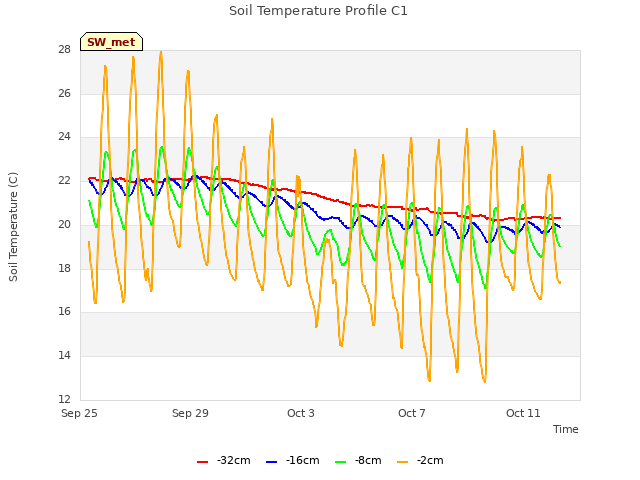

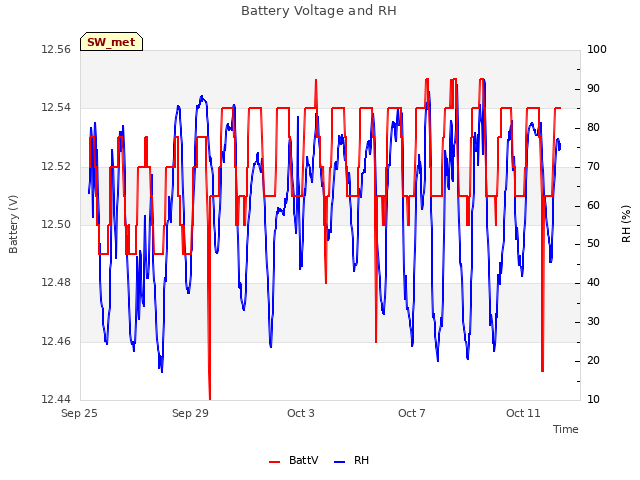

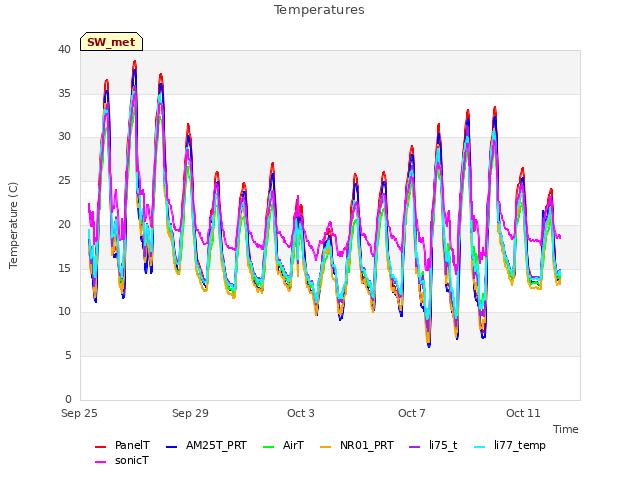

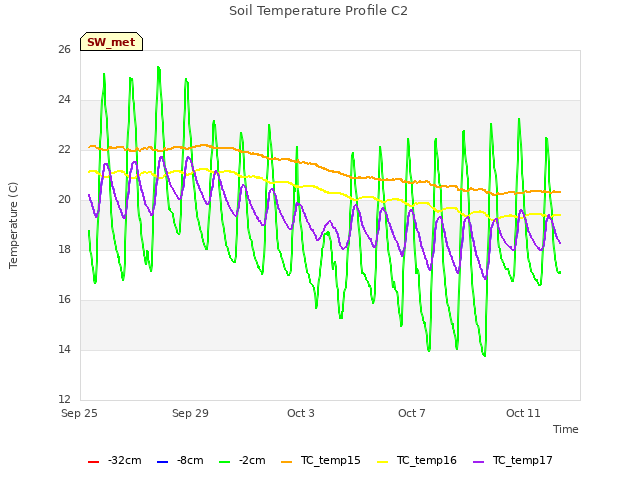

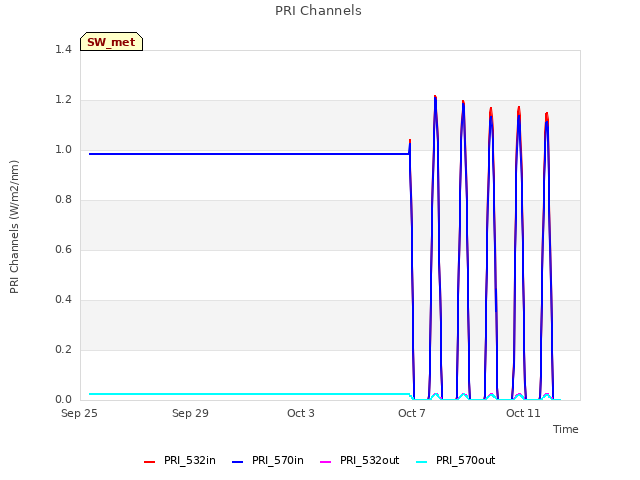

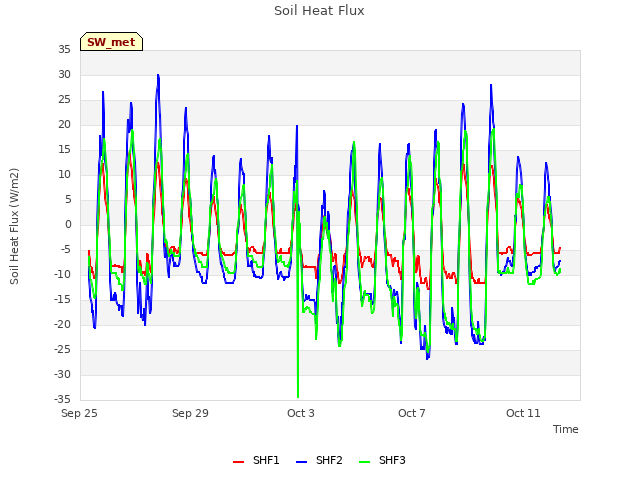

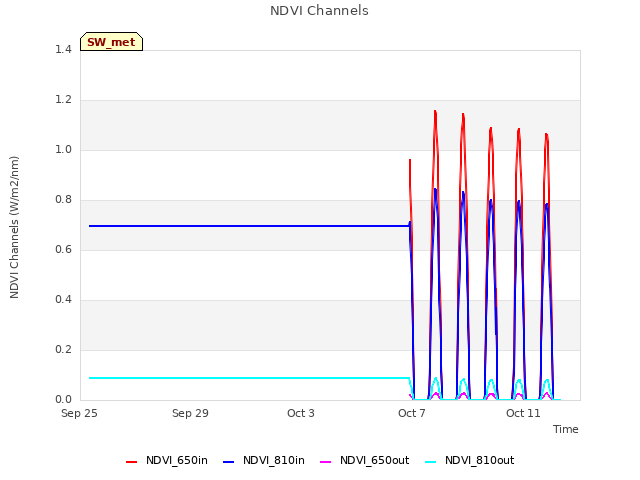

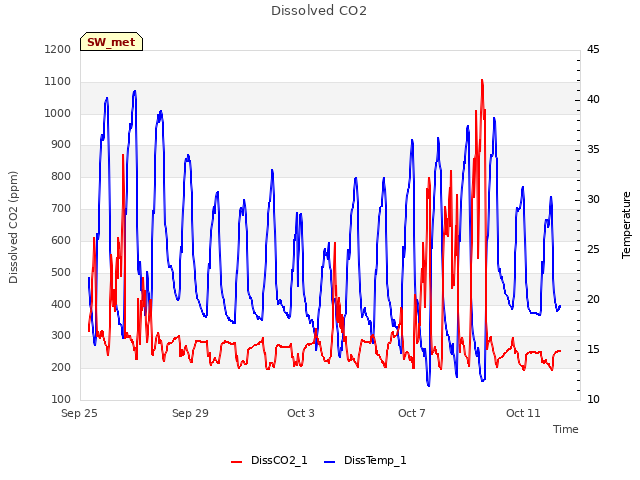

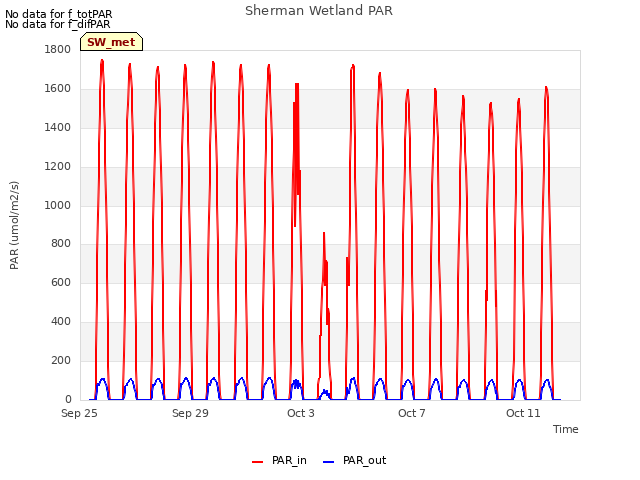

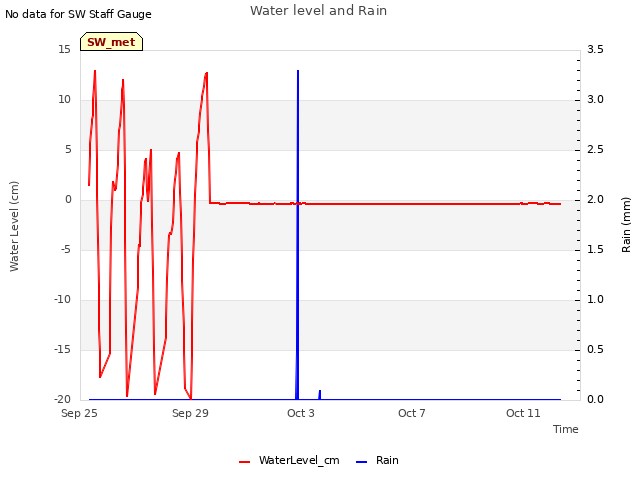

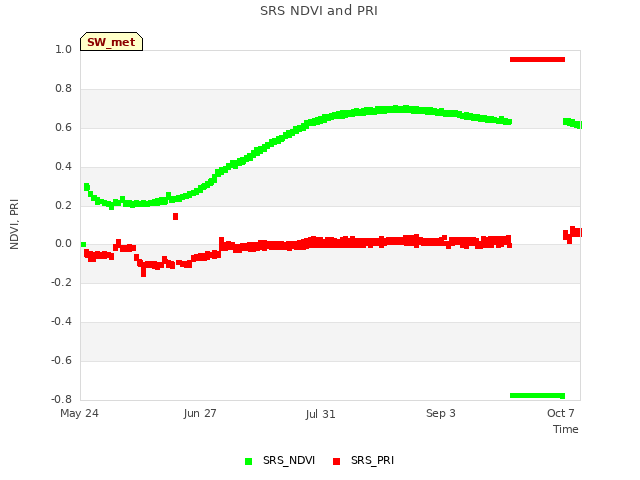

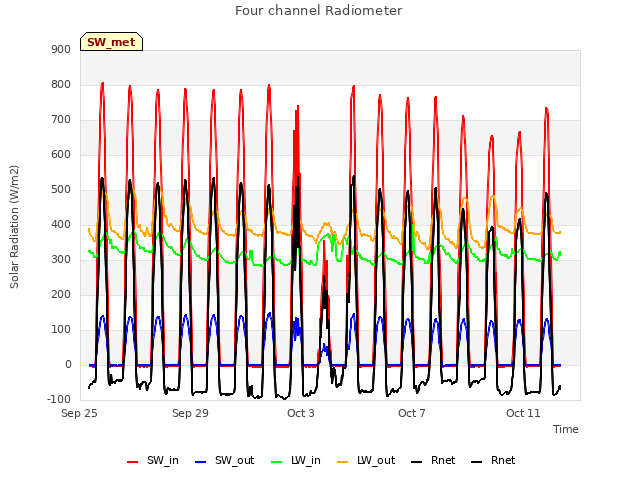

15 SW_met graphs found

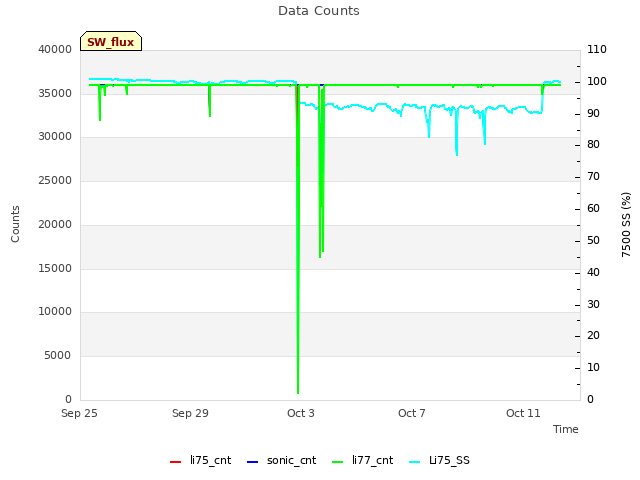

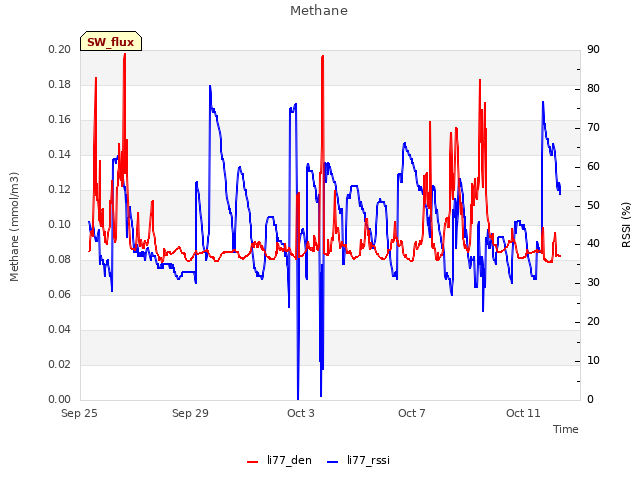

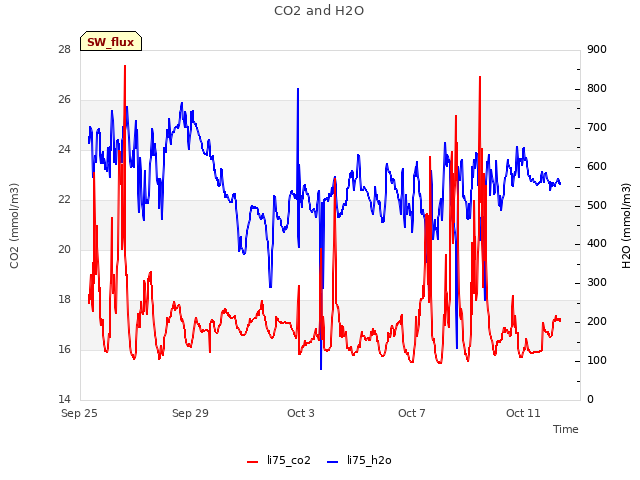

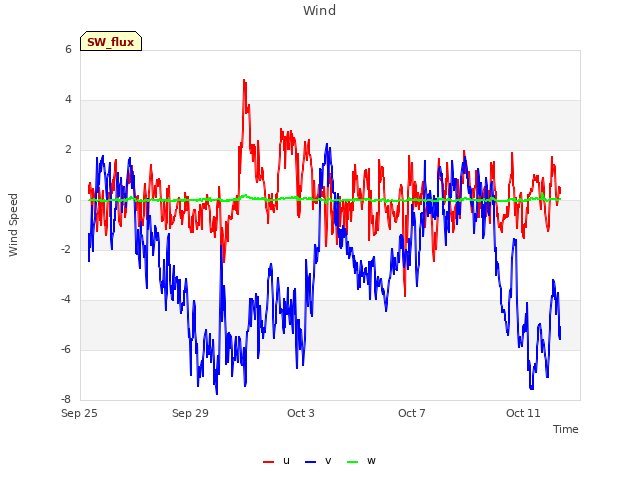

4 SW_flux graphs found
Can't check MBSWEEWPBCBA
Can't check SW_Temp

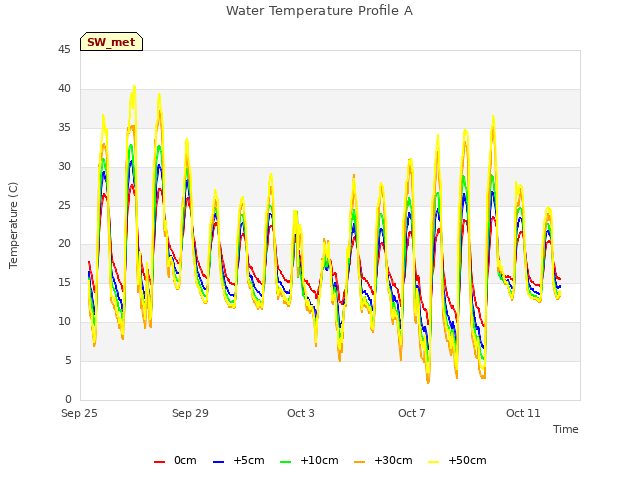

14 SW_Temp graphs found
No data found for SW_arable.
