Field Notes

<--2016-09-29 14:00:00 | 2016-10-26 13:20:00-->
Other sites visited today: Sherman Wetland | Mayberry | East End | Twitchell Rice | West Pond

Twitchell Alfalfa: 2016-10-11 14:05:00 (DOY 285)
Author: Joe Verfaillie
Others: Kyle, Sam

Summary: Alfalfa recently cut, did spectral and veg height

Arrived 14:05. Sunny, breezy, alfalfa recently cut.

Did soil respiration, collar 3 (third set) not a good measurement: might want to play with set point measuring for ~100 seconds each time.

Measured veg height (cm): 10, 4, 8, 5, 12, 19, 11, 14, 9, 22, 22, 23, 17, 20, 17, 16, 16, 14, 11, 12

Took spectral: 3 sets of 2 down, 1 up.

LI7500 readings
CO2 389
H2O 558
T 21.15
P 101.37
ss 82.4 -> 86.6 after cleaning

Old Canon camera seems to be dead - removed.

Did not collect FD chamber data.

Veg Height (cm): Tape measure from ground to top of plant
10, 4, 8, 5, 12, 19, 11, 14, 9, 22, 22, 23, 17, 20, 17, 16, 16, 14, 11, 12, avg = 14.1, stdev = 5.52

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

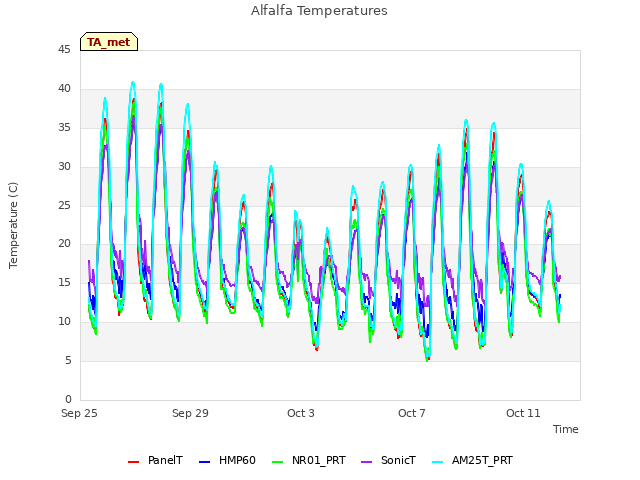

Alfalfa Temperatures

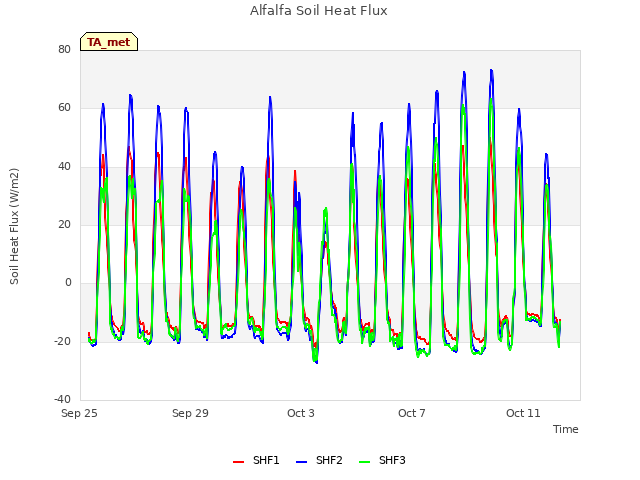

Alfalfa Soil Heat Flux

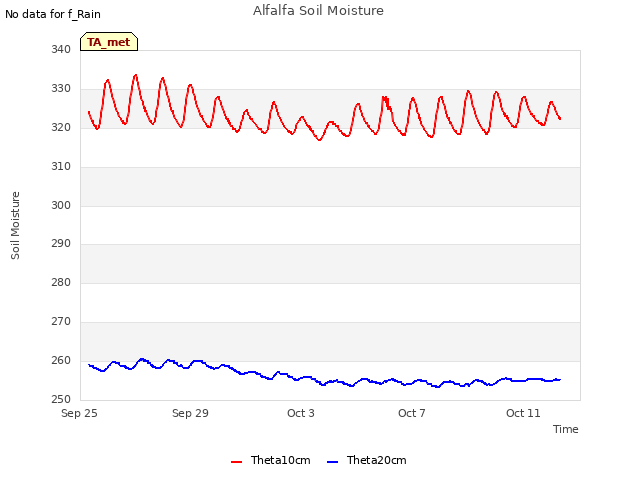

Alfalfa Soil Moisture

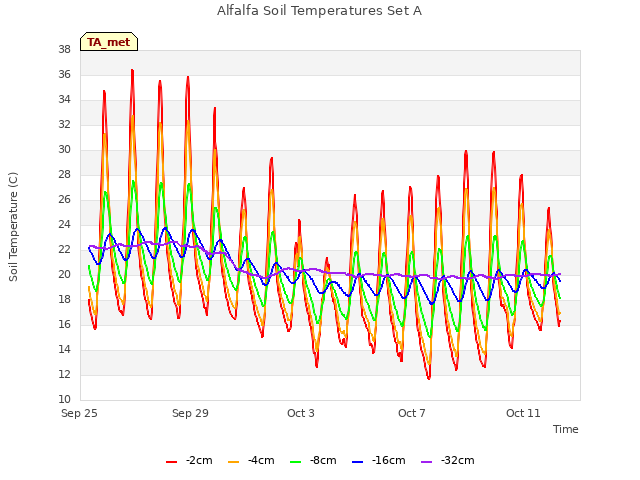

Alfalfa Soil Temperatures Set A

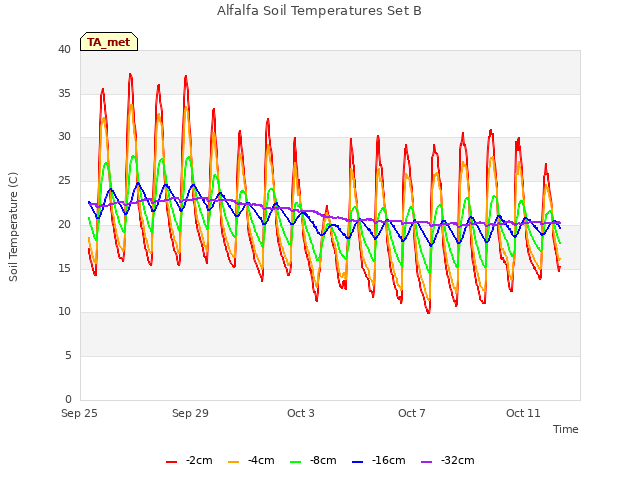

Alfalfa Soil Temperatures Set B

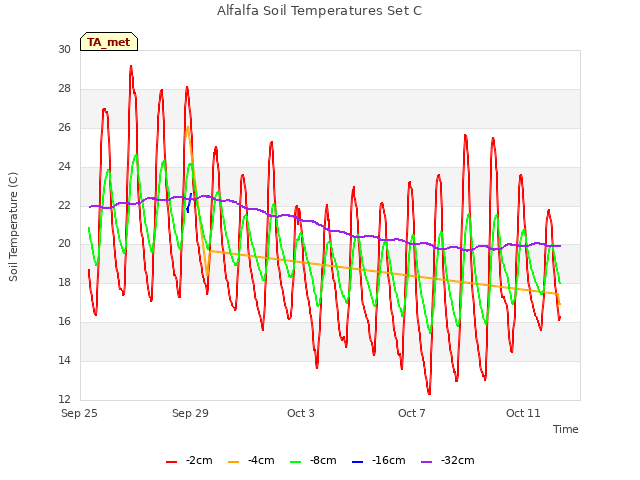

Alfalfa Soil Temperatures Set C

NDVI Narrow Band Radiation

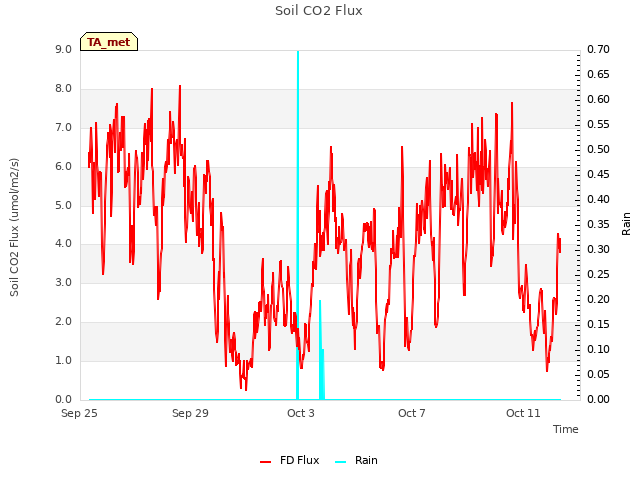

Soil CO2 Flux

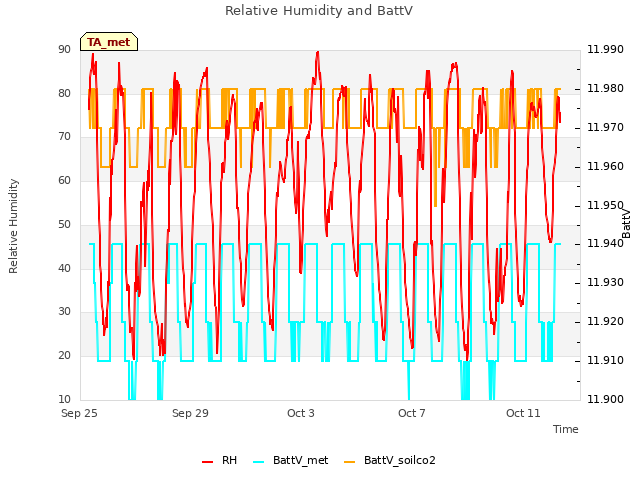

Relative Humidity and BattV

SRS NDVI and PRI

PRI Narrow Band Channels

Can't check TA_rad
3 TA_rad graphs found

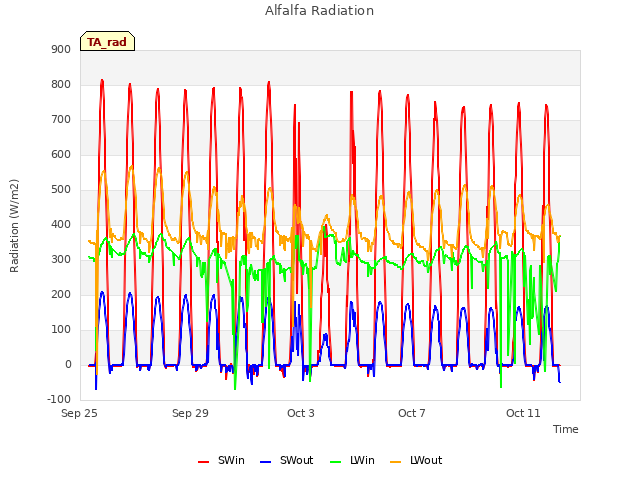

Alfalfa Radiation

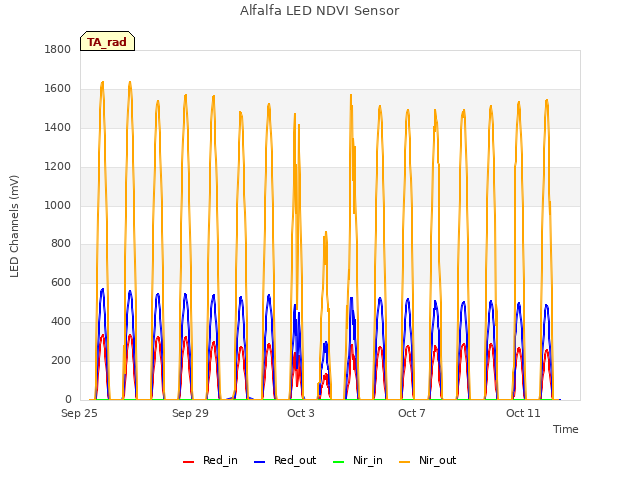

Alfalfa LED NDVI Sensor

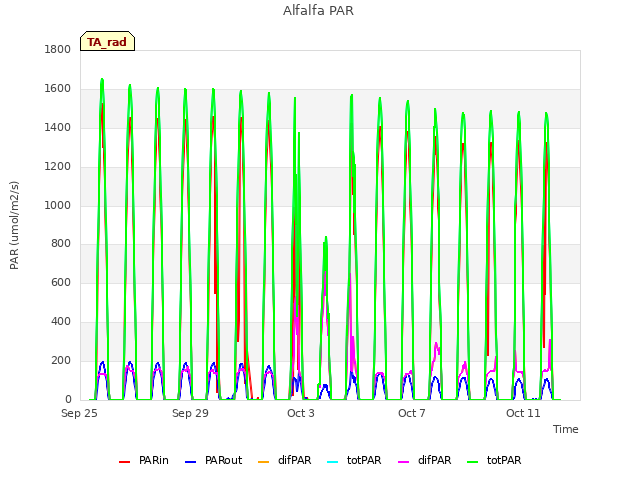

Alfalfa PAR

Can't check TA_flux
5 TA_flux graphs found

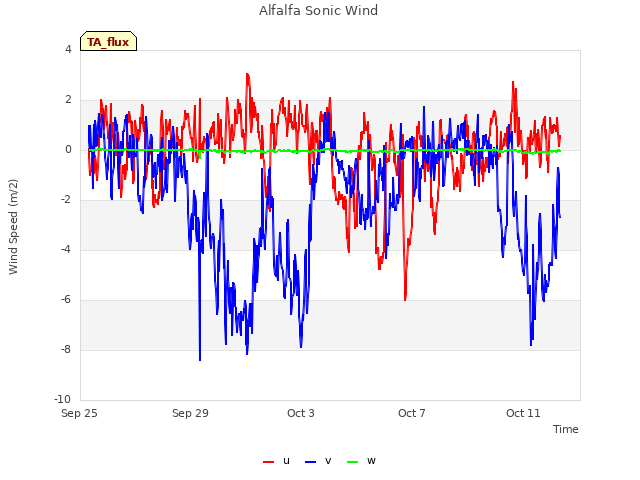

Alfalfa Sonic Wind

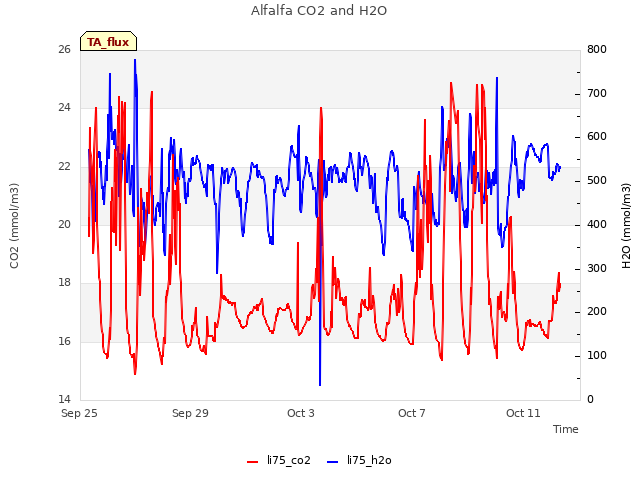

Alfalfa CO2 and H2O

Alfalfa Methane

Alfalfa Pressure

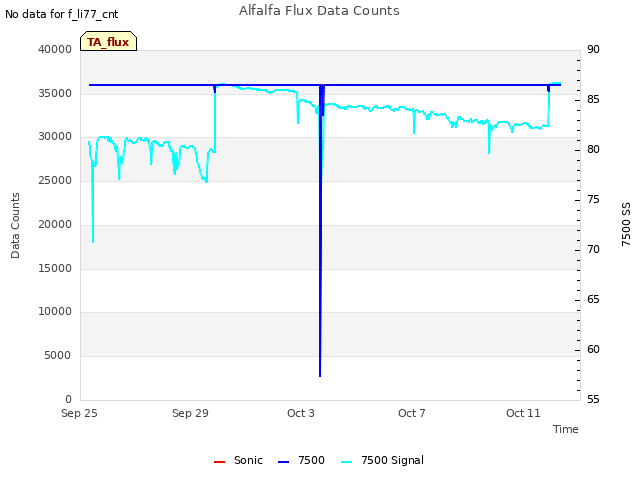

Alfalfa Flux Data Counts

Can't check TA_soilco2
7 TA_soilco2 graphs found

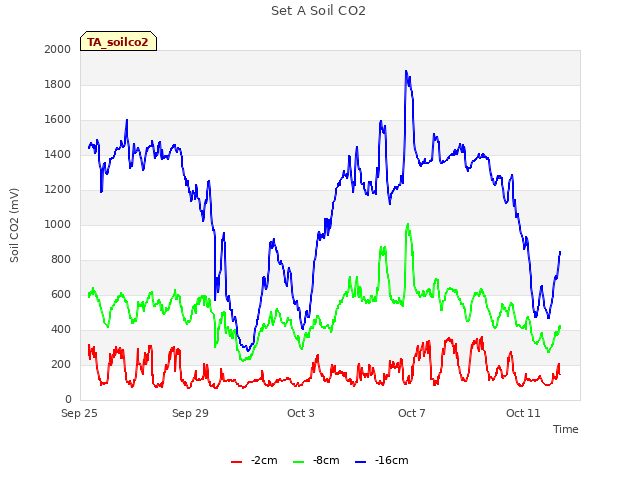

Set A Soil CO2

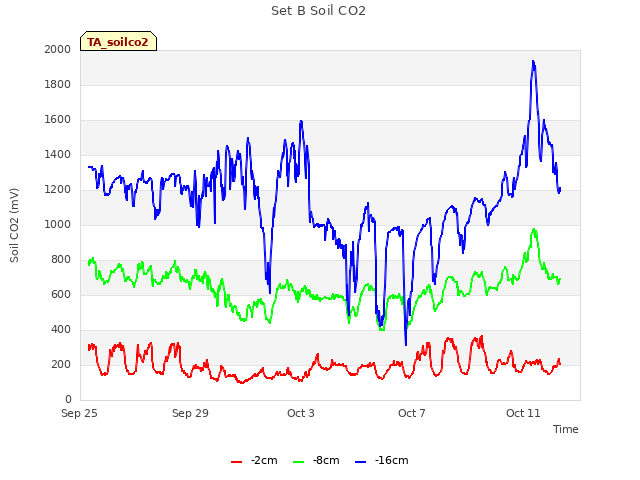

Set B Soil CO2

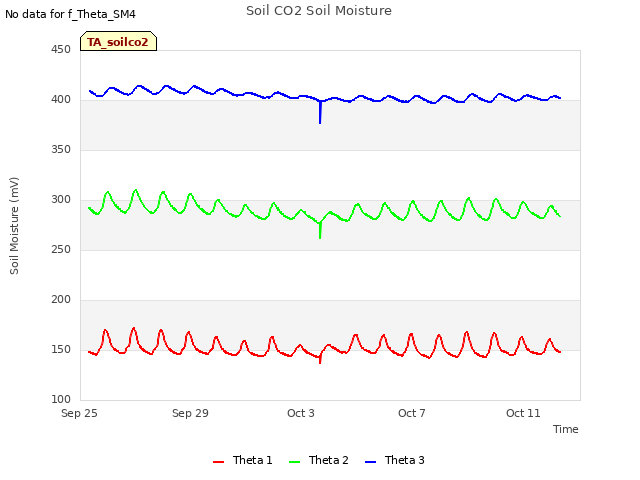

Soil CO2 Soil Moisture

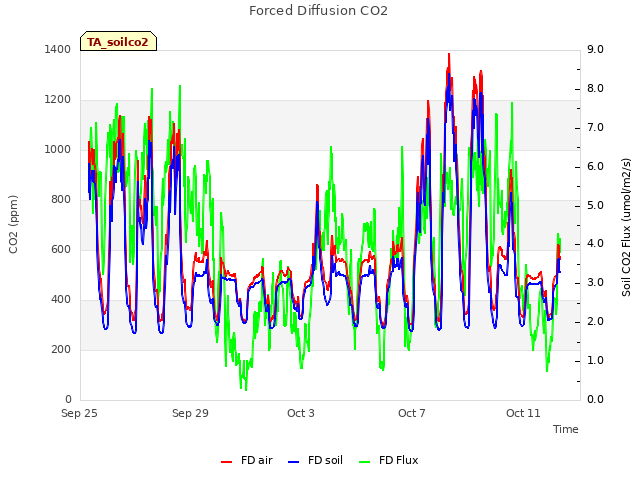

Forced Diffusion CO2

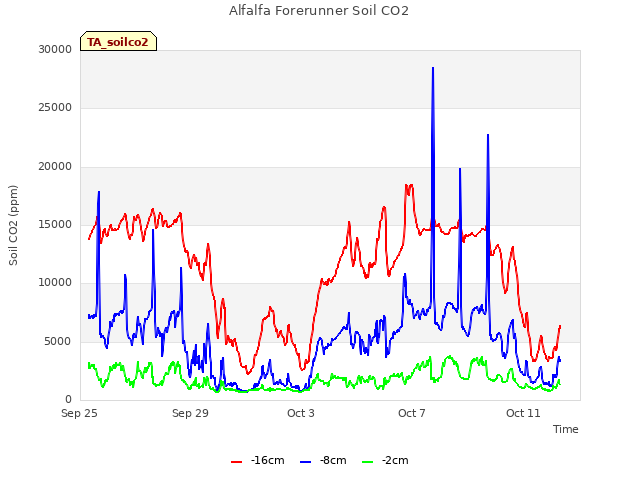

Alfalfa Forerunner Soil CO2

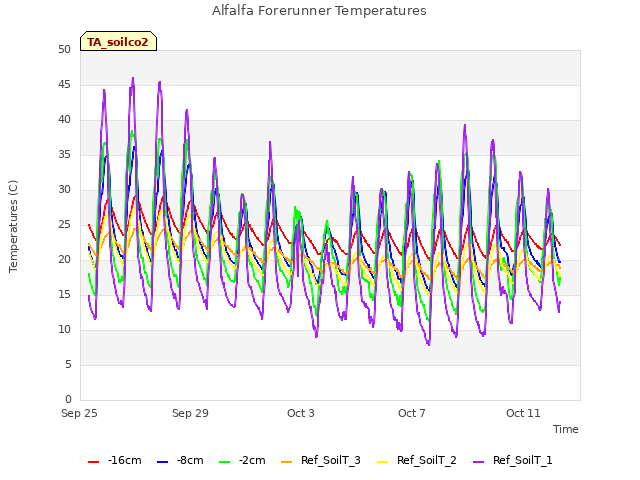

Alfalfa Forerunner Temperatures

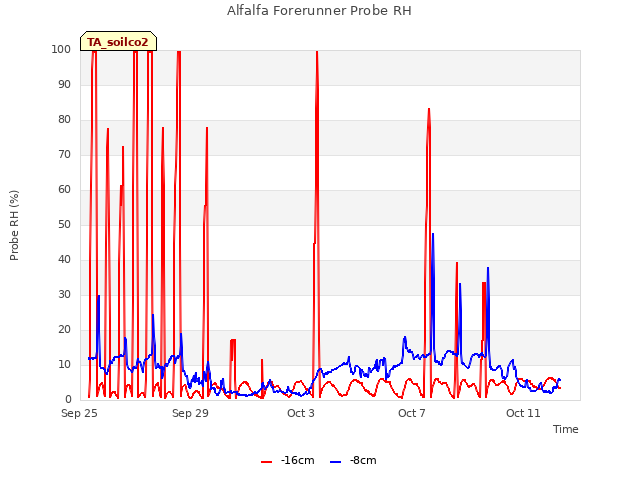

Alfalfa Forerunner Probe RH

No data found for TA_arable.
1 TA_cam graphs found

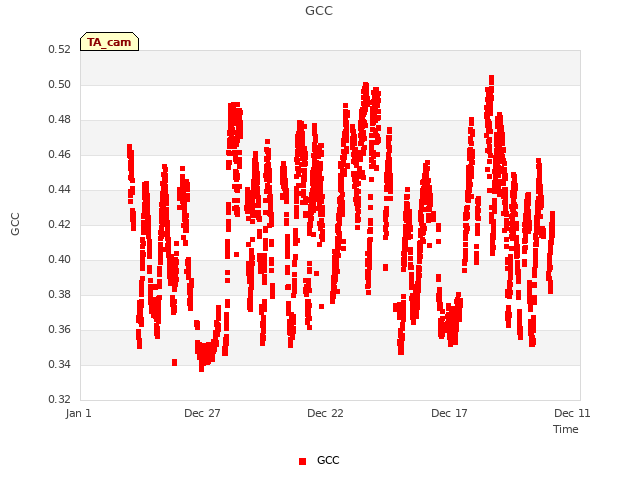

GCC
