Field Notes
<--2016-09-29 11:20:00 | 2016-10-26 12:05:00-->Other sites visited today: Sherman Wetland | Mayberry | Twitchell Alfalfa | Twitchell Rice | West Pond
East End: 2016-10-11 12:30:00 (DOY 285)
Author: Joe Verfaillie
Others: Kyle, Sam
Summary: Calibrated 7700, examined PAR and DO sensors, water level low, normal data collection, tested rain sensor

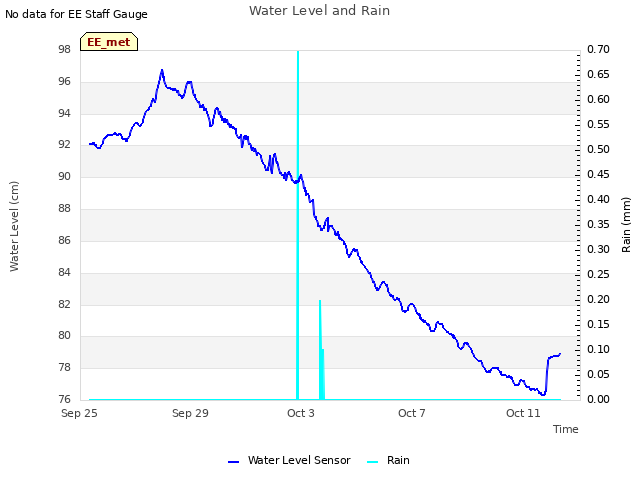

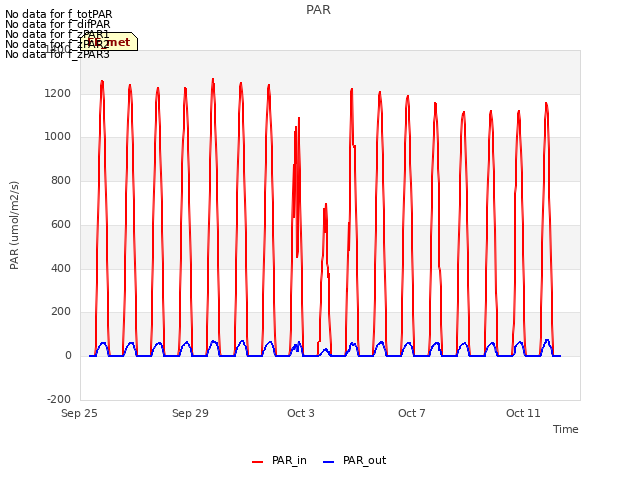

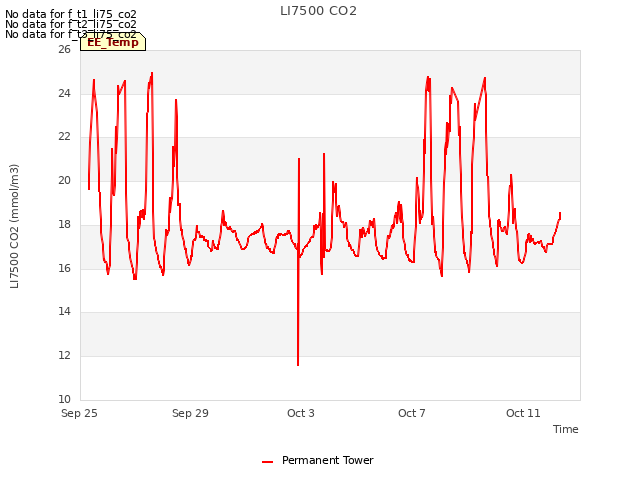

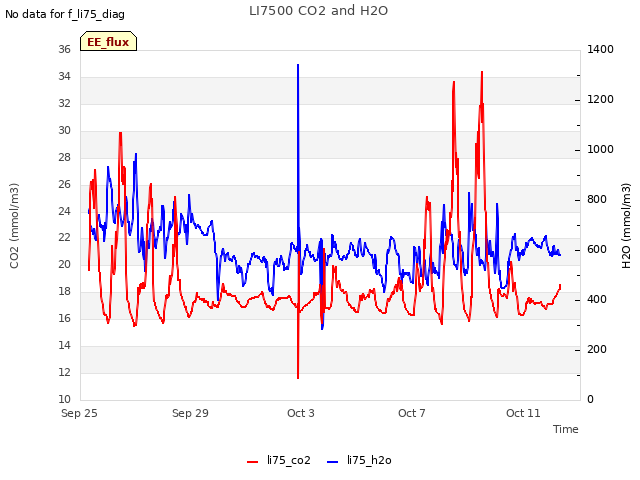

| Arrived 12:30. Light wind, sunny, water level low, greener than Mayberry canopy-wise. Collected USB GHG data; collected met data from 23X; collected camera data. Calibrated 7700. Checked shading of PAR and SW sensors: discoloration on reflected PAR out. Brown spots—alcohol doesn’t remove it. We tested the rain bucket by running 237mL of water through it which should result in 50 tips. we got 56 tips. I turned the sets screws a half turn CCW which should reduce the tips by about 3%. Checked on DO sensor: reading 113 raw output. Both the DO and CO2 probe were out of the water. There was about 10cm of water at the tower. The CO2 sensor was lowered into the water. The DO sensor sn DO-06 was removed for testing and service in the lab. Its cable has chew marks on it. (Note 2020-09-28 Daphne: Water level sensor also probably lowered). LI7500 readings CO2 404.1 H2O 669 T 20.79 P 101.66 ss 96.8 -> 100.7 after cleaning LI7700 readings CH4 2.01 rssi 50 -> 83 after cleaning The compute stick seemed to be running fine. I moved the Stardot images off. I installed the solid state switch to turn the Stardot off at night. All seemed well. left: 13:20 |
0 photos found
11 sets found

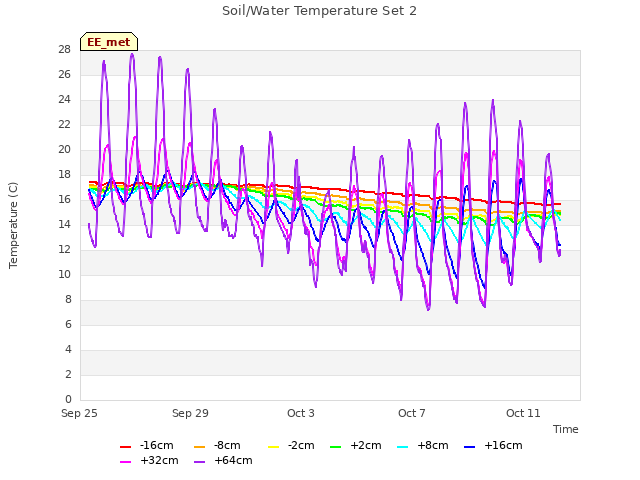

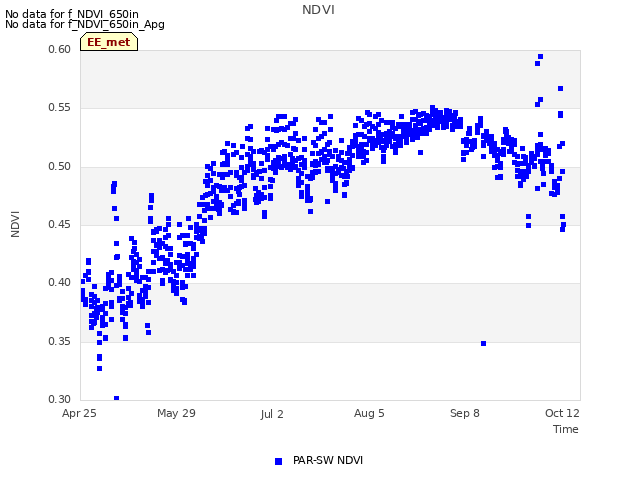

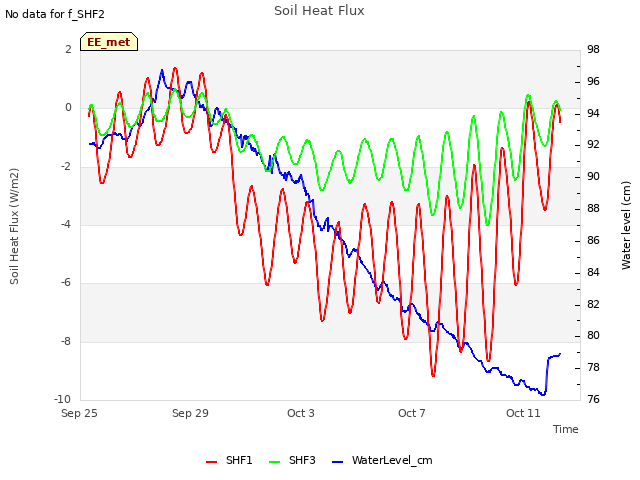

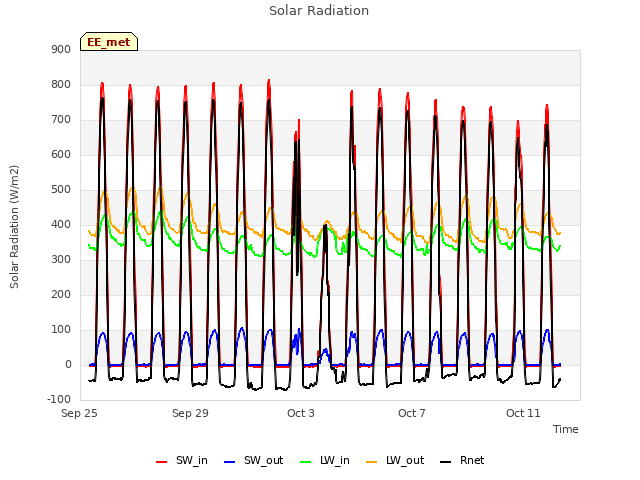

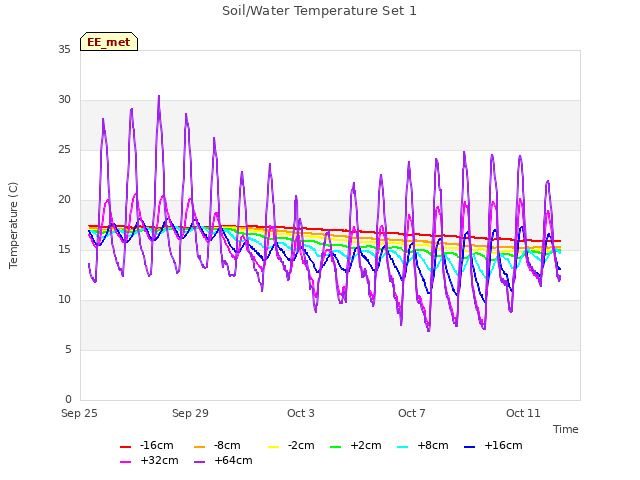

14 EE_met graphs found
Can't check EE_mixed

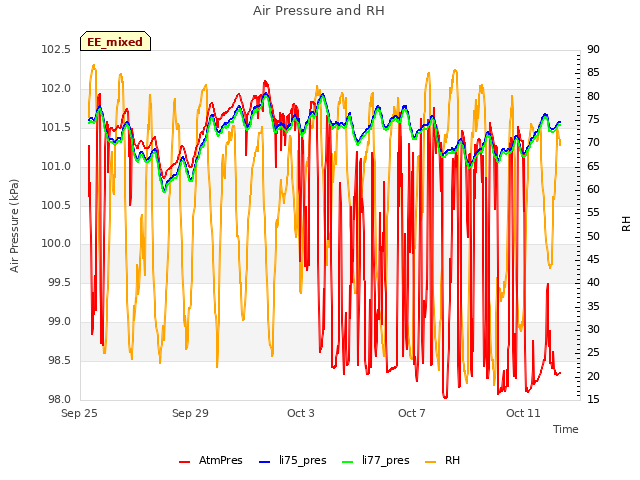

1 EE_mixed graphs found

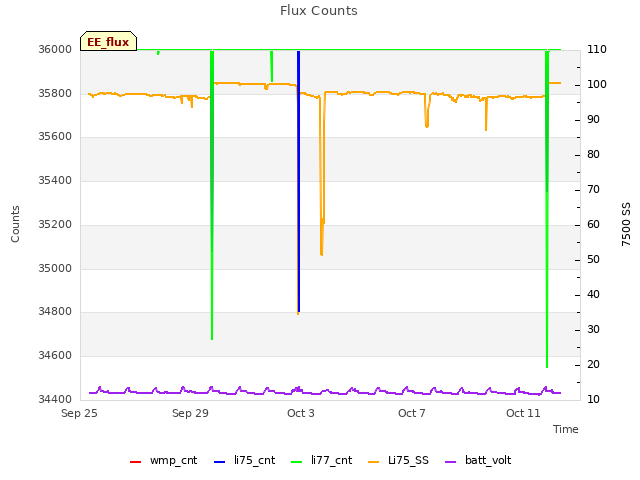

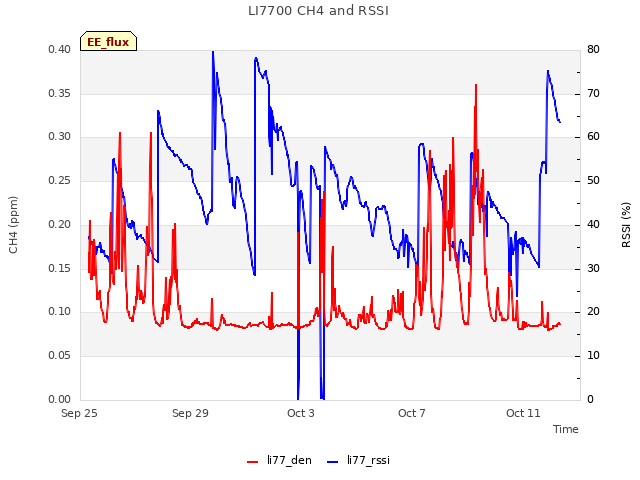

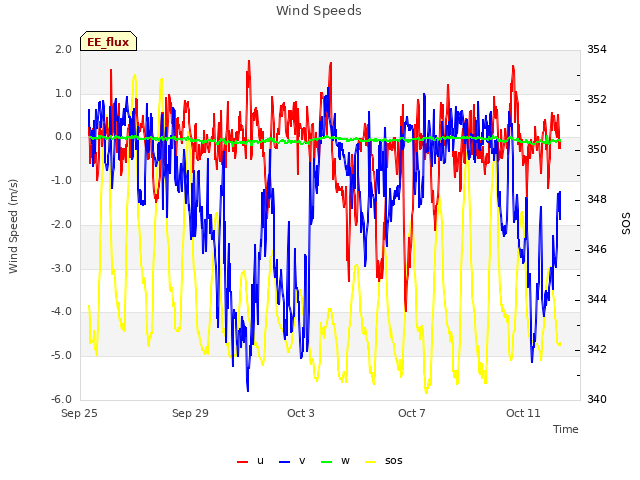

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed
1 EE_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

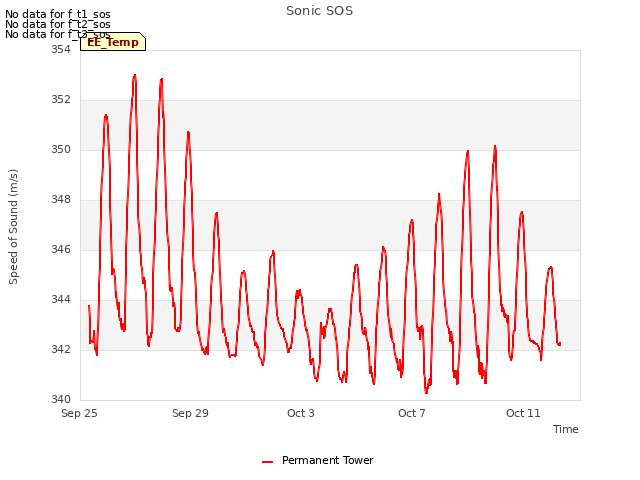

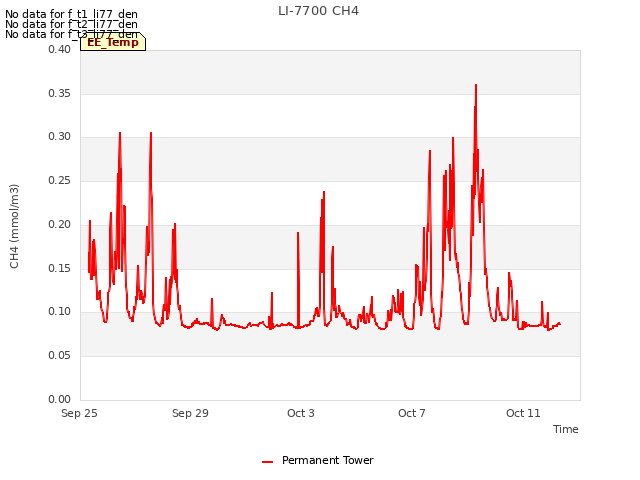

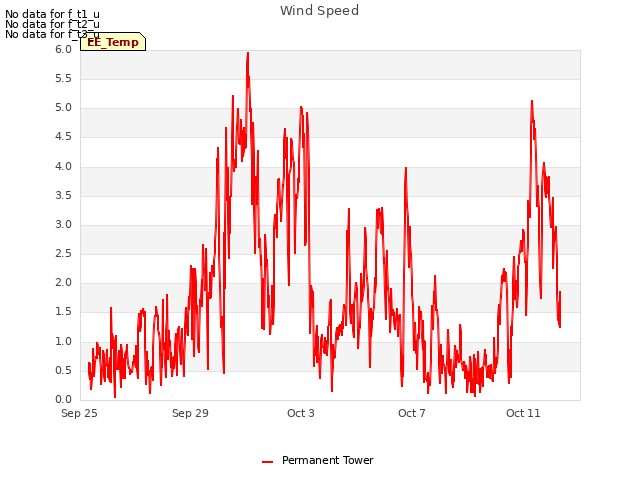

5 EE_Temp graphs found
Can't check EE_minidot
1 EE_minidot graphs found
Can't check MBSWEEWPBCBA

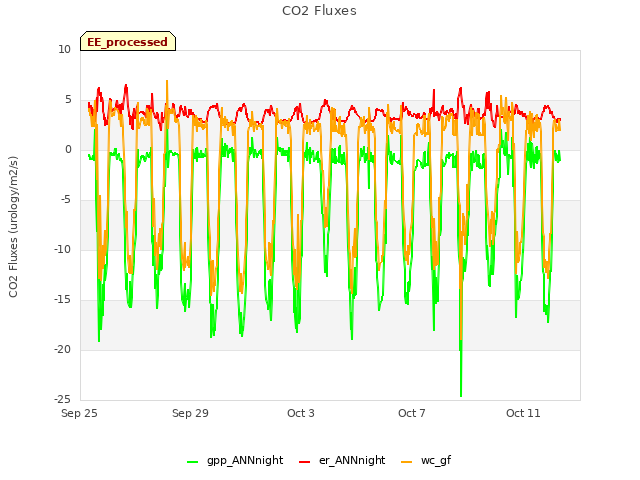

1 EE_processed graphs found
