Sherman Island: 2007-09-20 16:20:00 (DOY 263)
Author: Matteo Detto
Others: Ted Hehn

Summary: 3 TC probes were not working; datalogger reset at 14:53; cleaned radiometers; installed new 60 micron filter; swapped pump; downloaded Sherman Island data.

Sherman Island - Methane Study

Date: 20 Sept 2007

Day: 263

Standard Time in: 9:40 Out: 16:20

Who: MD & TH

Weather: overcast, drizzly in the morning, open in the afternoon, no wind

Phenology: peeper weed dry on top, renewing greenness from the bottom

Tasks

  1. check and download data at Sherman Island
  2. Swap pump
  3. new filer 60 micron
  4. cleaning radiometers

Check list

  1. Fence and gate power: OK
  2. Datalogger Solar Panel and Batteries: 12.9
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)

Time

Path/File name

D:\Data\SI07 .raw

mean

std

mean

std

w

0.1

Ts

15.8

u

-0.9

H2O

2.8

v

0.6

CO2

1.8

CH4

2.22

  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

2.240 – 1.945 * (in the afternoon)

Cell Pressure – near 159

156.5 – 153.7*

Cell Temperature

24.59

Mirror time

14.9

Sample rate

10Hz

Methane low flow put back in high flow !

Pump status

Filter Status

Water traps

  1. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

3 TC are not working : TC1_2cm, TC2_16cm, TC2_32cm

14:53 reset datalogger

Remember next time to:

Large heat shrink in tool belt (pens too)

Study diff band program

Need a net cable 40’

Need Ethernet card

Buy plastic box for fittings ete

Take ¼” compression fittings

Replace low flow exhaust

Order 60 micron filter element or larger SS-8F-K4-60

14” wire-tighters

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

Explore the graph:Solar Radiation in a new window

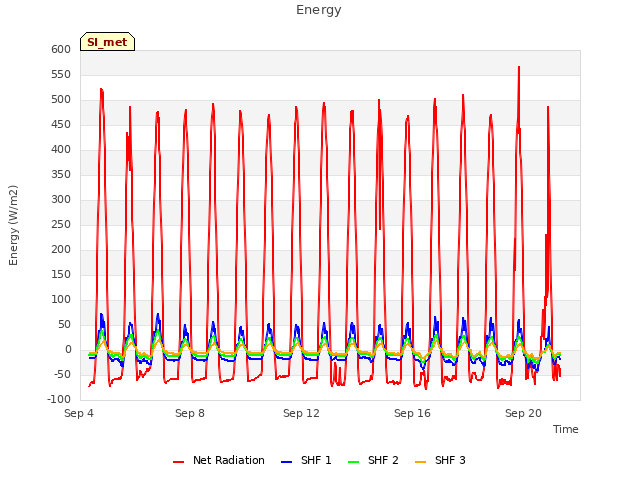

Explore the graph:Energy in a new window

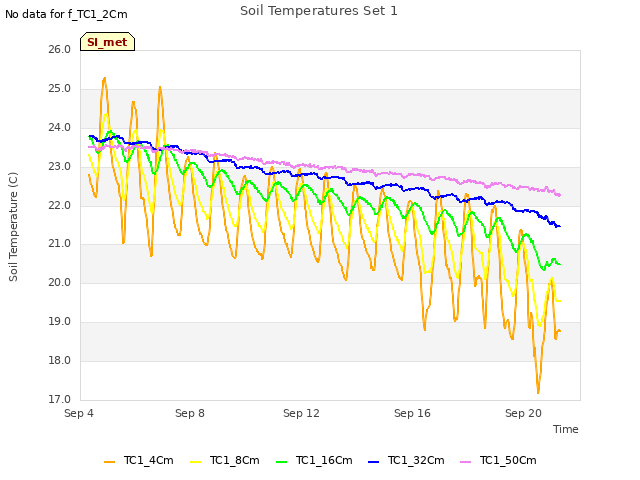

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

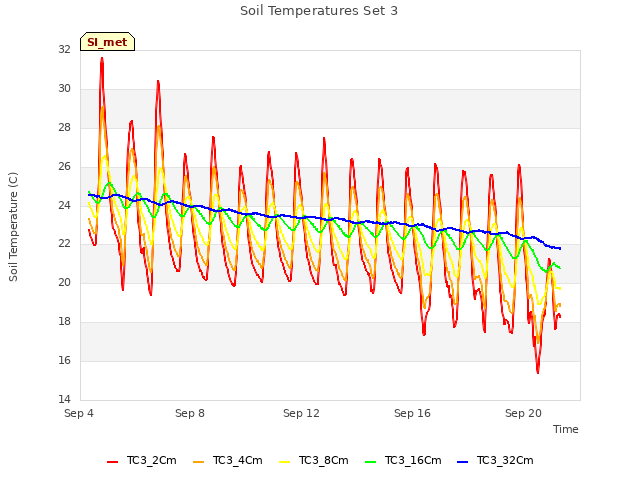

Explore the graph:Soil Temperatures Set 3 in a new window

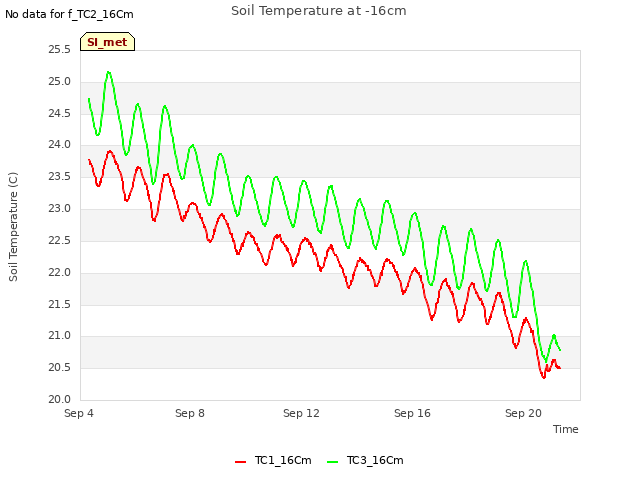

Explore the graph:Soil Temperature at -16cm in a new window

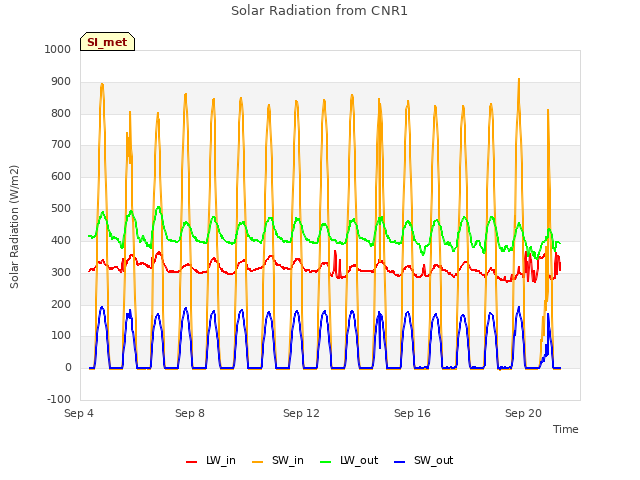

Explore the graph:Solar Radiation from CNR1 in a new window

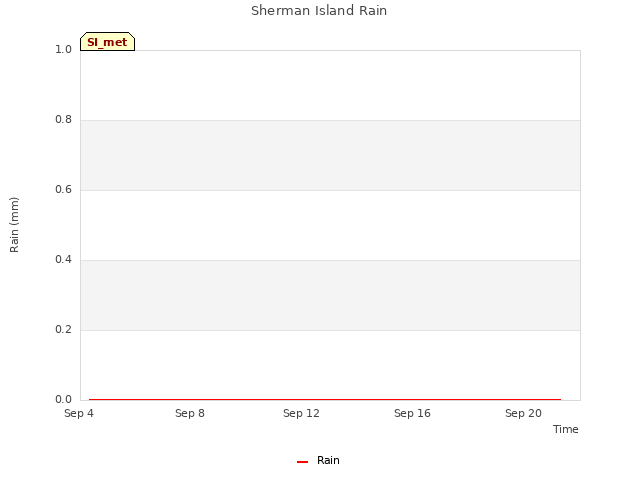

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

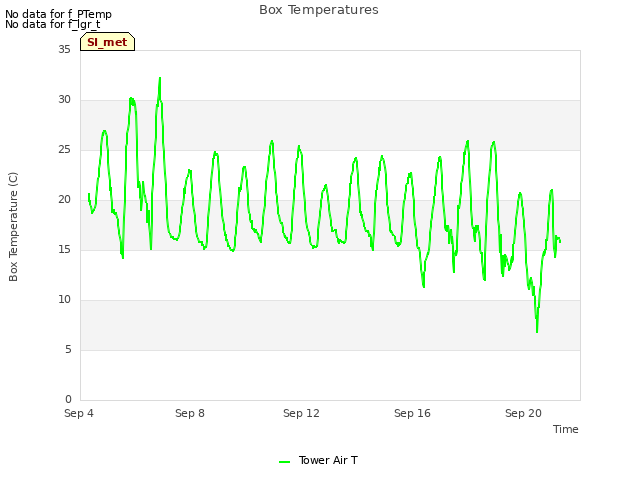

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

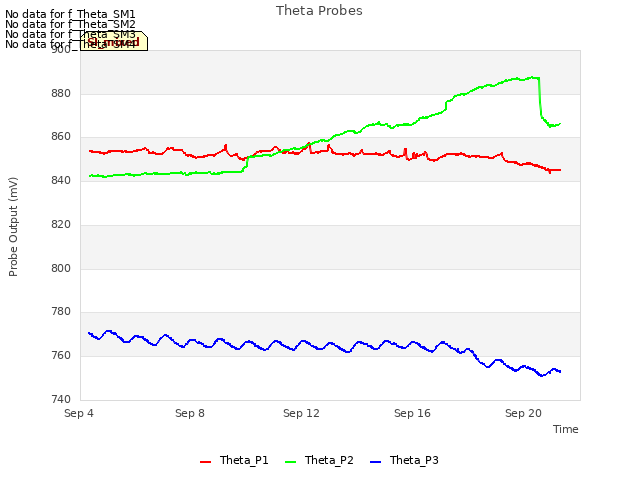

Explore the graph:Theta Probes in a new window

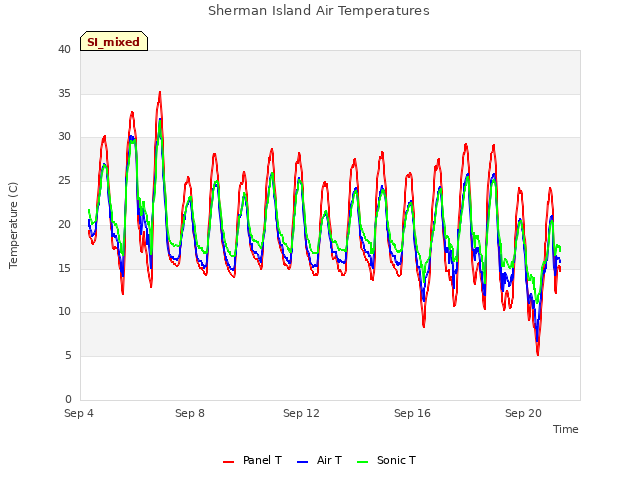

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

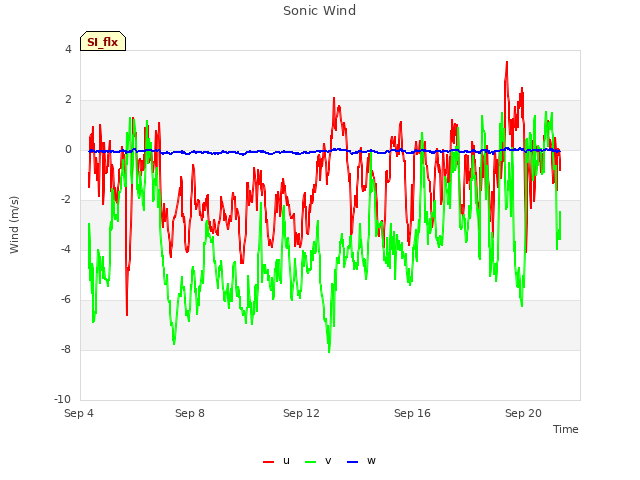

Explore the graph:Sonic Wind in a new window

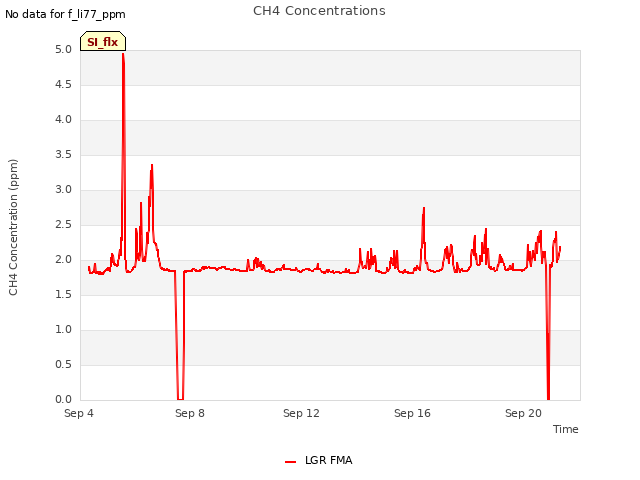

Explore the graph:CH4 Concentrations in a new window

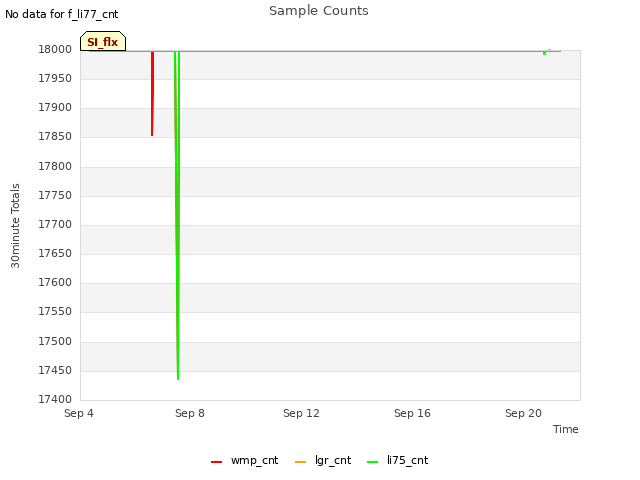

Explore the graph:Sample Counts in a new window

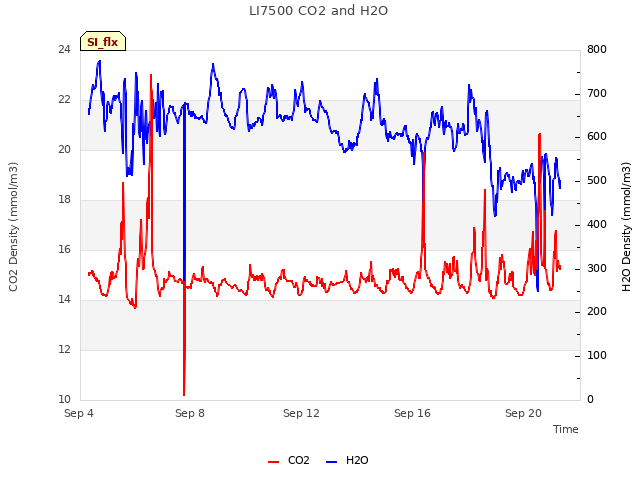

Explore the graph:LI7500 CO2 and H2O in a new window
