Sherman Island: 2007-08-31 10:40:00 (DOY 243)
Author: Matteo Detto
Others:

Summary: TC2_32 was not working; replaced inlet filter; took soil moisture; downloaded data from laser and for Sherman Island.

Sherman Island - Methane Study

Date: 31 August 2007

Day: 243

Standard Time in: 10:40 Out: 12:30

Who: MD

Weather: few clouds, windy

Phenology: almost dry peeper grass; some green still in flower, smaller green weed appears

Tasks

  1. check and download data at Sherman Island
  2. download data from laser
  3. Take soil moisture
  4. replace inlet filter

Check list

  1. Fence and gate power: OK
  2. Datalogger Solar Panel and Batteries: 13.8
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)

Time

Path/File name

D:\Data\SI07 .raw

mean

std

mean

std

w

0.3

Ts

30

u

3.2

H2O

3.7

v

1.23

CO2

1.5

CH4

1.83

  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

1.832

Cell Pressure – near 159

144.9 - 159 (after replacing filter)

Cell Temperature

38.53

Mirror time

15.2

Sample rate

10Hz

Methane low flow put back in high flow !

Pump status

Filter Status

Dirty

Water traps

  1. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

another TC is not working TC2_32

Remember next time to:

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

Explore the graph:Solar Radiation in a new window

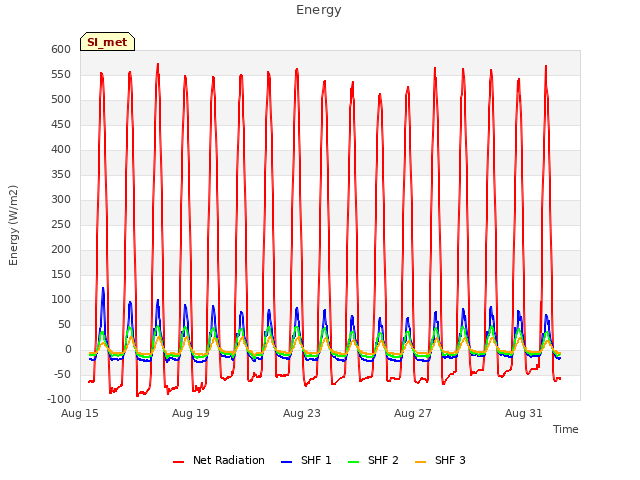

Explore the graph:Energy in a new window

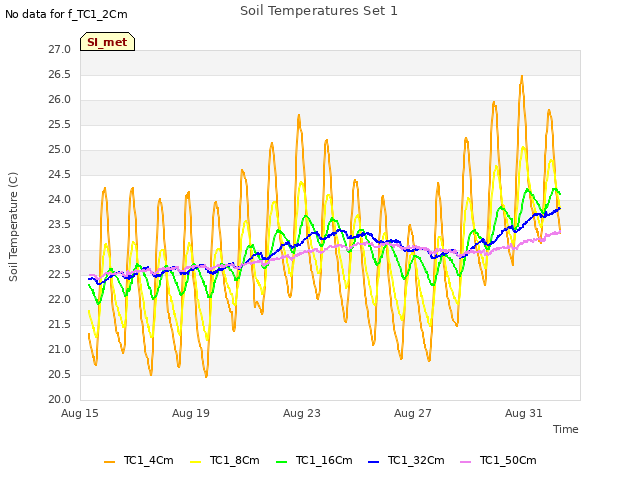

Explore the graph:Soil Temperatures Set 1 in a new window

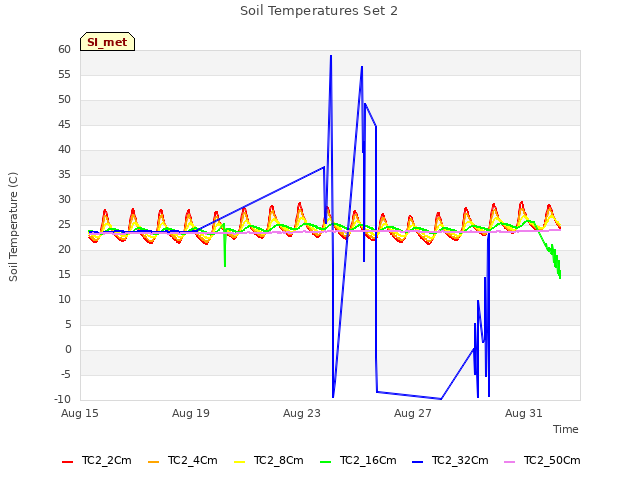

Explore the graph:Soil Temperatures Set 2 in a new window

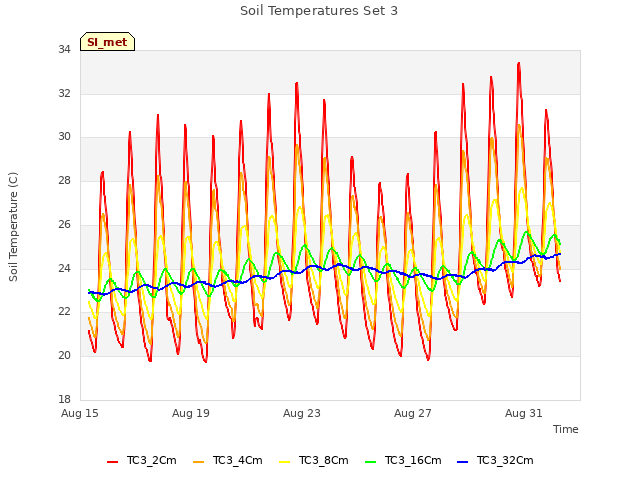

Explore the graph:Soil Temperatures Set 3 in a new window

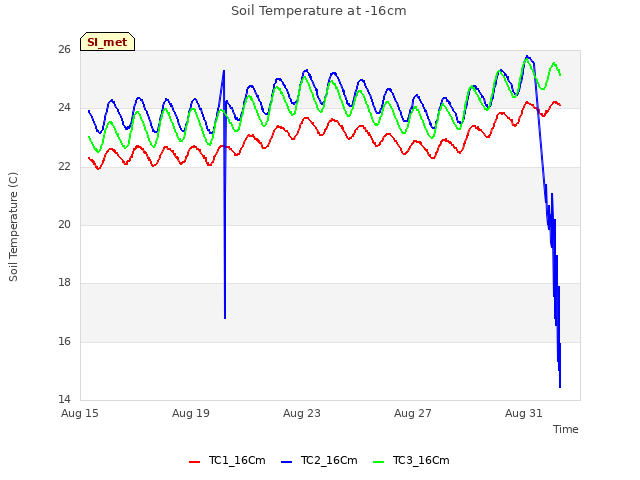

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

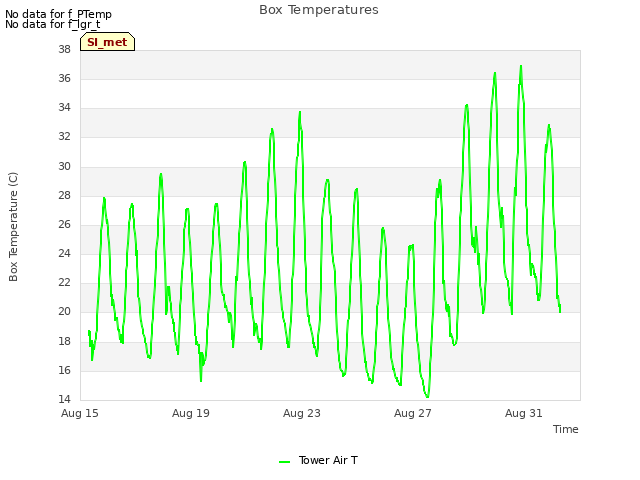

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

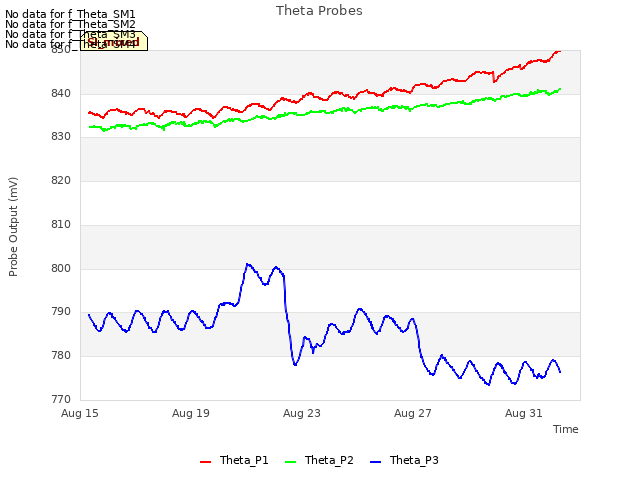

Explore the graph:Theta Probes in a new window

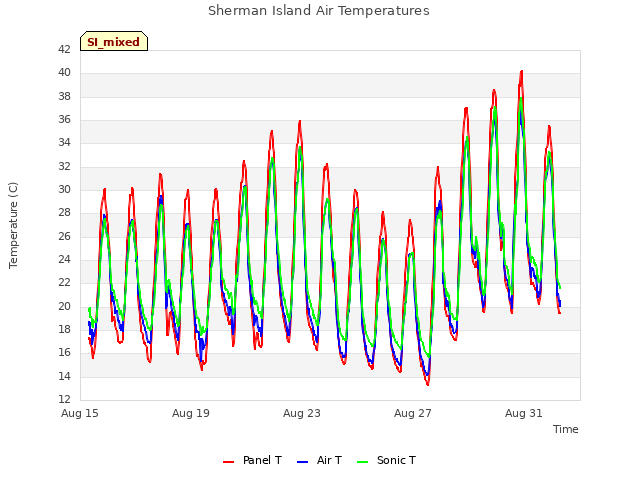

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

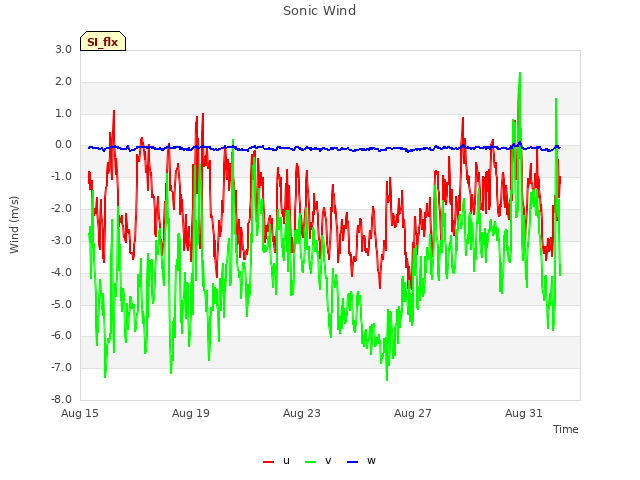

Explore the graph:Sonic Wind in a new window

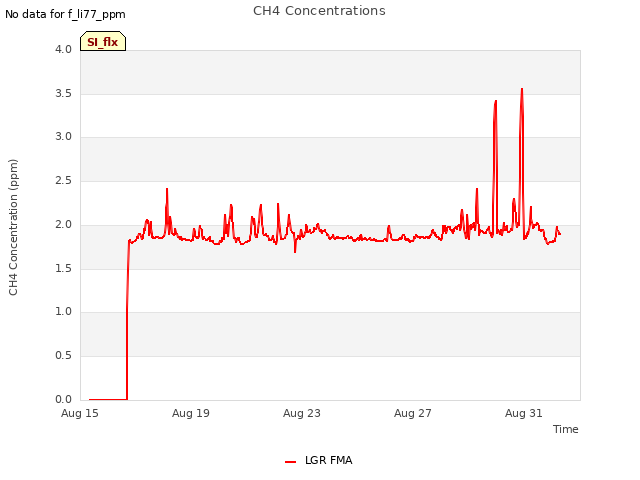

Explore the graph:CH4 Concentrations in a new window

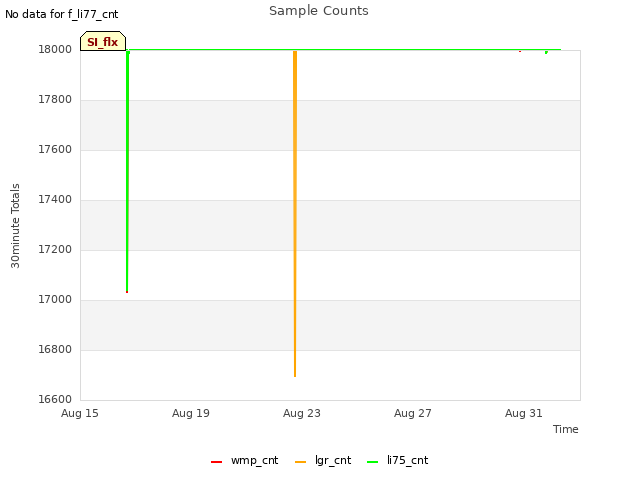

Explore the graph:Sample Counts in a new window

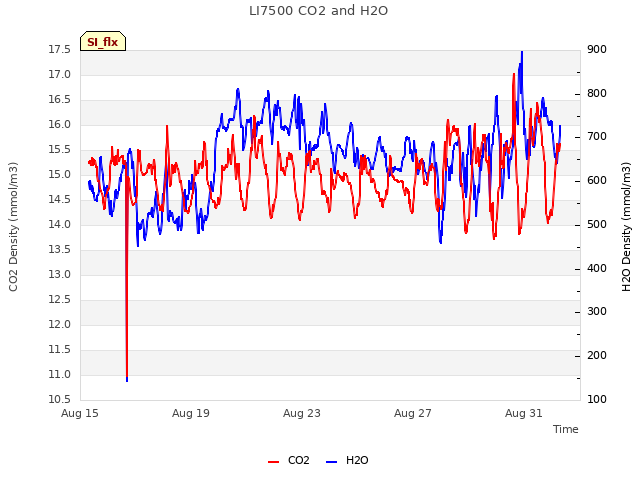

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
