Field Notes

<--2008-01-29 12:00:00 | 2008-02-20 11:58:00-->

Sherman Island: 2008-02-14 11:30:00 (DOY 45)
Author: Matteo Detto
Others: Ben

Summary: Checked and downloaded data at Sherman Island; downloaded data from laser and calibrated.

Sherman Island - Methane Study

Date 14 Feb 2008

Day 45

Standard Time 11:30 in: Out:

Who: MD Ben

Weather: clear sky sunny and very windy

Phenology: patches of short green grass

Tasks

  1. check and download data at Sherman Island
  2. download data from laser and calibrate

Check list

  1. Fence and gate power: OK
  2. Datalogger Solar Panel and Batteries: 10.71
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)
Time Path/File D:\Data\SI07 .raw mean std mean std w 0.2 Ts 14.2 u 8.4 H2O 1.4 v -2.2 CO2 1.35 CH4 1.89
  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

1.895

Cell Pressure – near 159

135

Cell Temperature

20.2

Mirror time

15.7

Sample rate

It was at 1Hz, set up a10 Hz again

Methane low flow put back in high flow !

Pump status

Filter Status

Water traps

  1. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

Water table 2.71 feet above the well

Remember next time to:

1 photos found

People in the field
People in the field

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

Solar Radiation

Energy

Soil Temperatures Set 1

Soil Temperatures Set 2

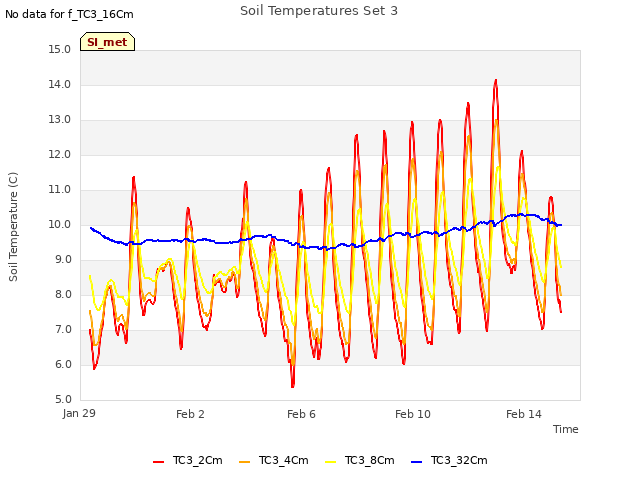

Soil Temperatures Set 3

Soil Temperature at -16cm

Solar Radiation from CNR1

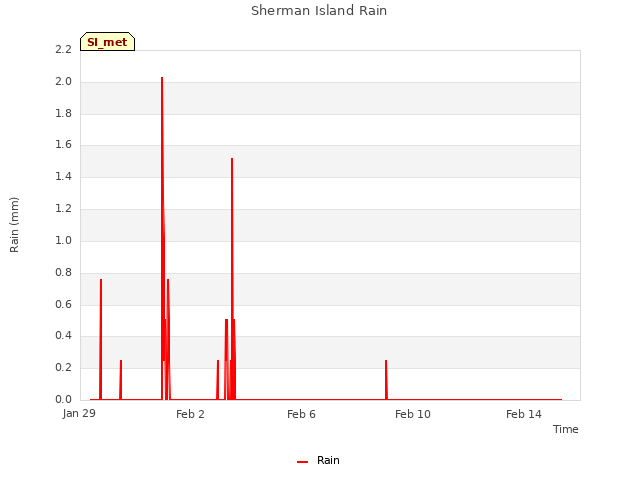

Sherman Island Rain

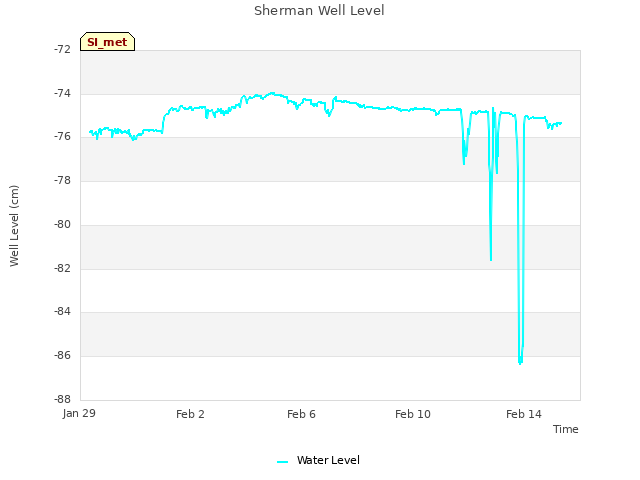

Sherman Well Level

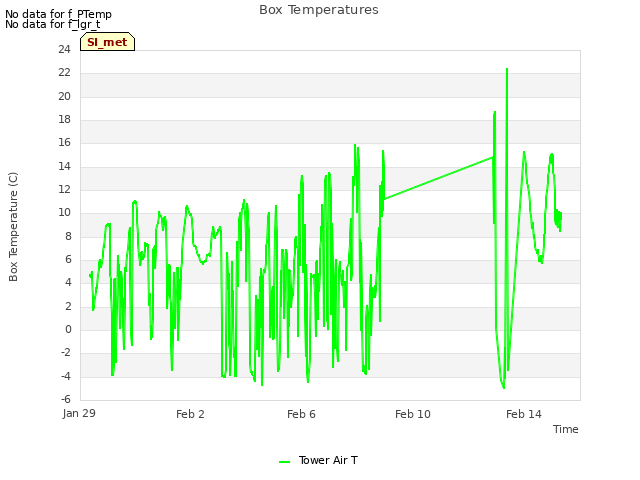

Box Temperatures

Can't check SI_mixed
2 SI_mixed graphs found

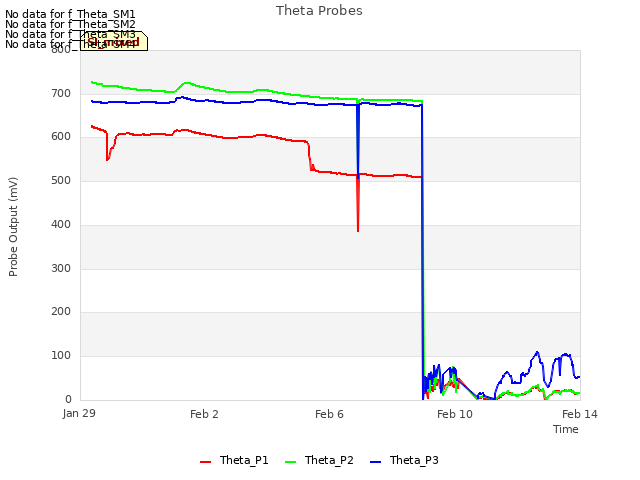

Theta Probes

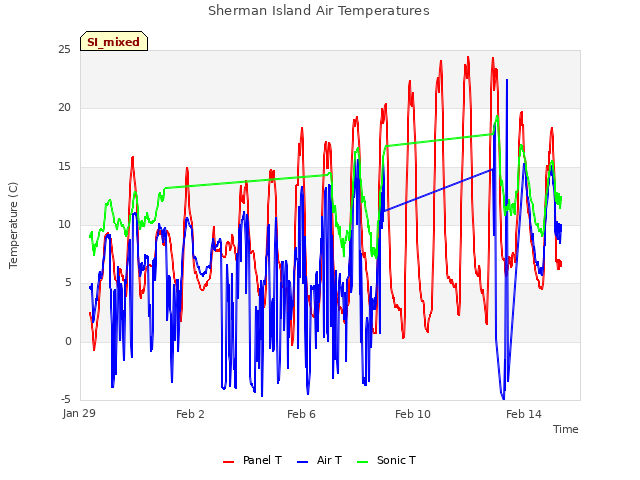

Sherman Island Air Temperatures

4 SI_flx graphs found

Sonic Wind

CH4 Concentrations

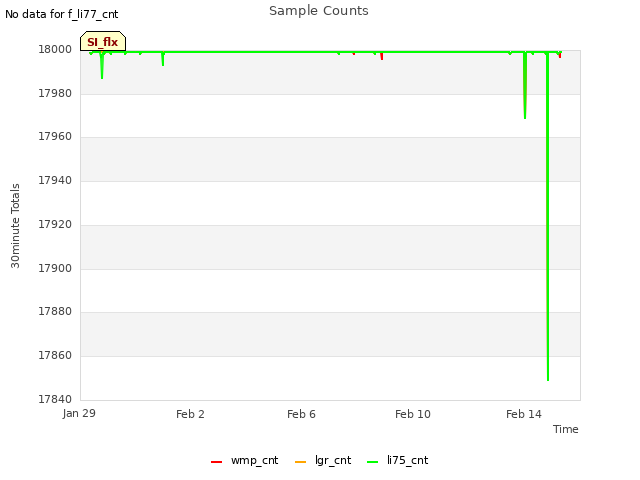

Sample Counts

LI7500 CO2 and H2O

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
