Tonzi: 2015-09-17 10:45:00 (DOY 260)
Author: Joe Verfaillie
Others: Ana

Summary: Tried to replace Tower computer, reset Tower computer, removed pressure controller from co2 profile, cleaned LI-820, Cows broke fences again.

Tonzi
2015-09-17

I arrived about 10:45 with Ana. It was clear, sunny and warm with a nice breeze. Lots of cows along the road near the tower. The cows broke the fences again and we repaired the fences again. Most trees have some brown leaves.

The tower computer was running but seems to have restarted several times. One of these restarts killed the Loggernet settings so it had not collected data from the tram or co2 profile system for several days.

I tried to install the compute stick, but I could not get it to connect to the Pheoncam. The network connection was good to the laptop and the laptop could connect to the Phenocam, but the compute stick could not connect to the Phenocam. Might be something to do with the Ethernet adapter and the length or wiring of the cable to the Pheoncam. I will test it with a long cable in the lab. I rebuilt the Loggernet settings in the old computer and got it running again.

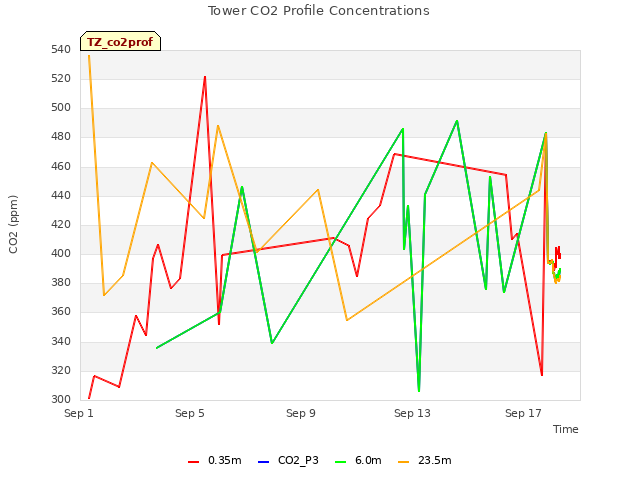

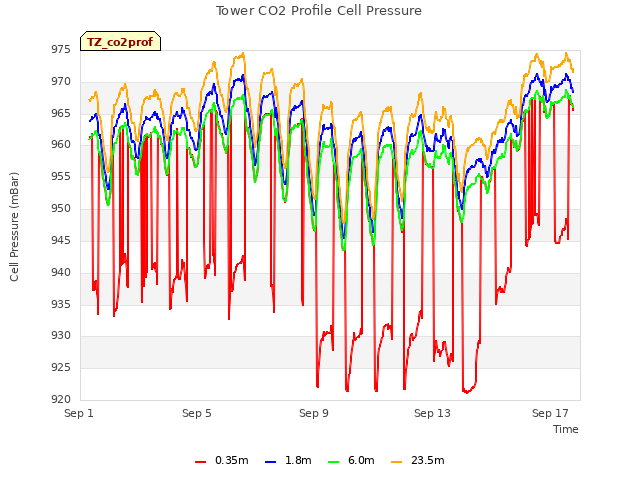

The LI-820 was dirty again and when I went to clean it I notice it had almost no flow. I traced the blockage to the pressure controller. I removed the pressure controller, patched the tubing together and cleaned the LI-820. Afterwards I was able to calibrate the system and the flow was okay around 1.5 on the flow meter.

Before cal zero = 0.9362, span = 0.8338 on 2015-09-01
Zero -52.9ppm
Span 399.8 (5.2) ppm
After cal zero = 0.9477, span = 0.8394

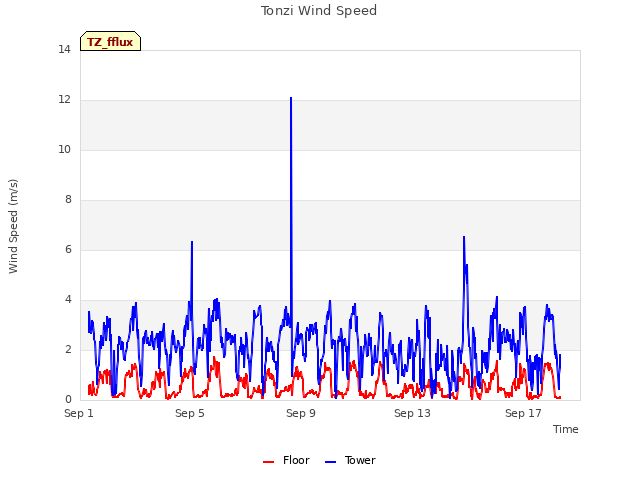

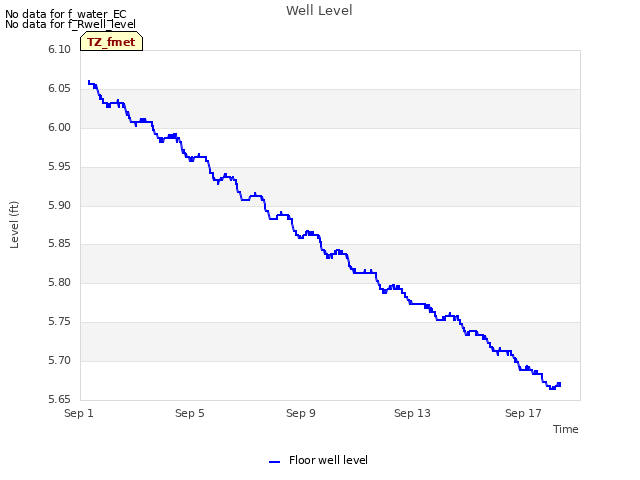

Ana did moisture point, well depth and collected data from the Floor site, wind profile, IRT system and z-cams.

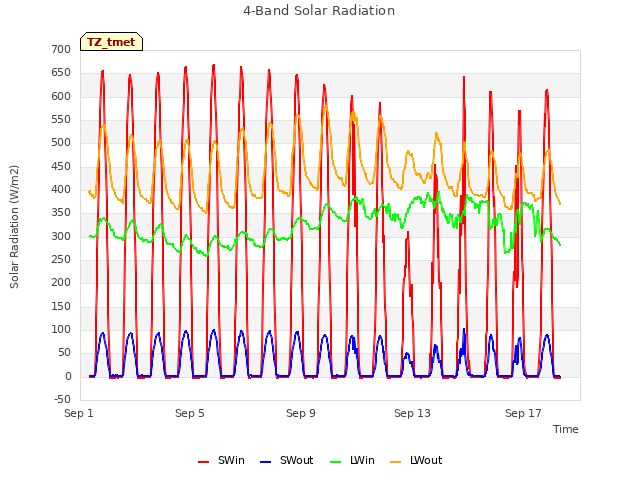

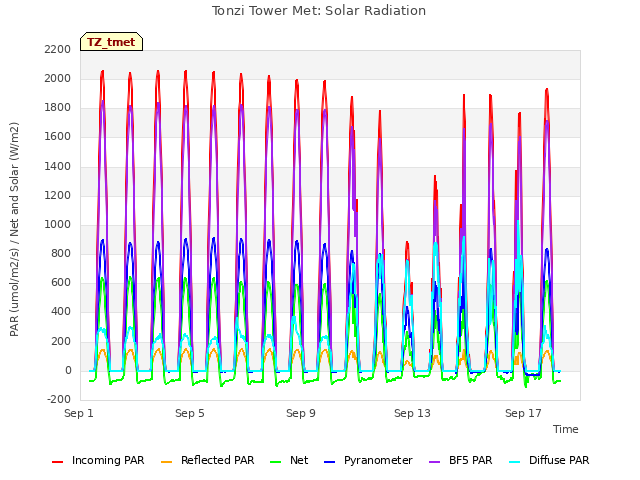

I cleaned the tower top radiometers and read dendrometers

Field Data

CO2 Profile Tanks

Date	Tank	Pressure (psi)	ppm
2015-09-17	CO2	1000	405
2015-09-17	N2	2350	0

No TZ Well data found

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2015-09-17	260	0	nan	4.5	6.3	8	1.6	5.6	0.1	1.5	3.3	3.6	8.6	4.2	1.8	9	7.2	9.3	8.7	14.5	7.8	12.7	10.9	3.9	7.2	0	11.5	14.8	7	6.7	11.2	11.1	8.7	12	15.6	12.9	14.8	14.5	12.6	8.5	3.9	16.5	25.6	11.1	10.5	14.5	23.1	10.7	15.9	14.5	19
2015-09-17	260	1	nan	4.2	4.5									3.9		9.3	9.3									0.2		15.1	7.6									14		8.2	2.7									14.5
2015-09-17	260	Avg	0-15cm																																																	0
2015-09-17	260	Avg	15-30cm																																																	0
2015-09-17	260	Avg	30-45cm																																																	0
2015-09-17	260	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2015-09-17	260	0	nan	0.6	0.1	2.4	0.7	8.1	11.5	6.6	3.2	5	15.4	10.6	12.9	13.3	27.6	10.2	16.5
2015-09-17	260	1	nan	1.5	0.3	2.7	0.7	8.1	11.2	6.9	3.5	4.5	15.6	10.1	12.9	14.2	27.6	10.2	16.5
2015-09-17	260	Avg	0-15cm																	0
2015-09-17	260	Avg	15-30cm																	0
2015-09-17	260	Avg	30-45cm																	0
2015-09-17	260	Avg	45-60cm																	0
