Field Notes
<--2015-08-06 12:30:00 | 2015-09-02 12:00:00-->Other sites visited today: Mayberry | Twitchell Rice | West Pond | Twitchell Alfalfa
East End: 2015-08-19 11:30:00 (DOY 231)
Author: Joe Verfaillie
Others: Patty
Summary: Standard data collection, Removed last of old flux hardware, all well.
| East End 2015-08-19 I arrived about 11:30 with Patty. It was clear, sunny and warm with a breeze from the west. Field conditions have not changed much. The vegetation might be getting a little yellow. The 7700 read: 1.91ppm CH4, 42.3RSSI – 87 after cleaning The 7500 read: 365.5ppm CO2, 756.9mmol/m3 H2O, 79.7SS, 22.43C, 101.2kPa The 7700 reservoir was okay. The 7700 hat was missing some bird spikes – swap out next time. We collected the autocam images, met data and picam photos. We removed the last of the old CR1000 flux hardware including CR1000 sn 38212 and CFM interface sn 6763. Also some cables for the sonic and Licor analog channels. We cleaned the radiation sensors and cleaned seeds out of the tipping bucket funnel. |
2 photos found
Birds at sunste
Crescent moon at dusk
11 sets found

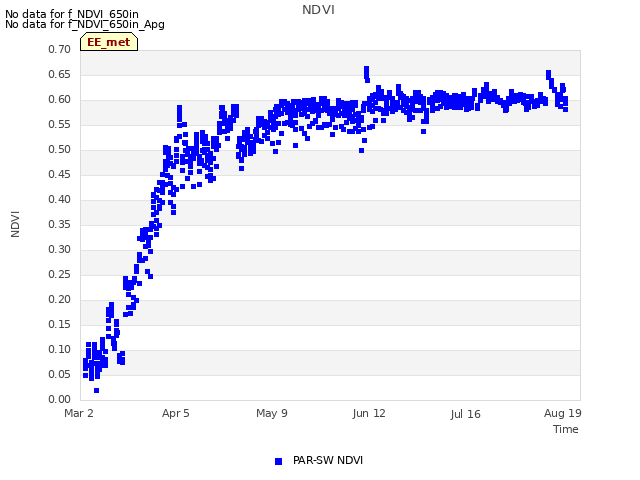

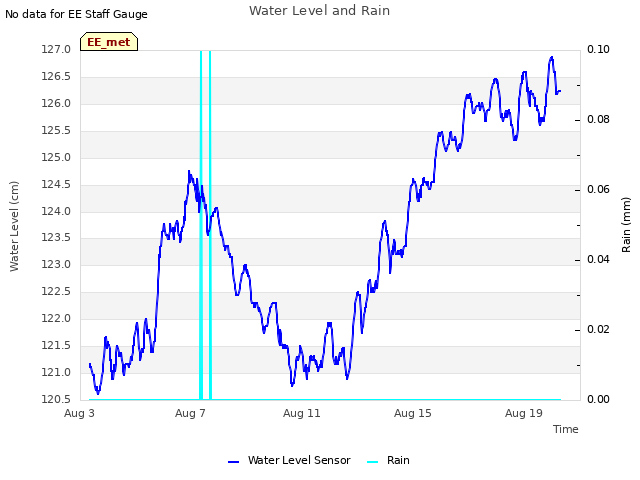

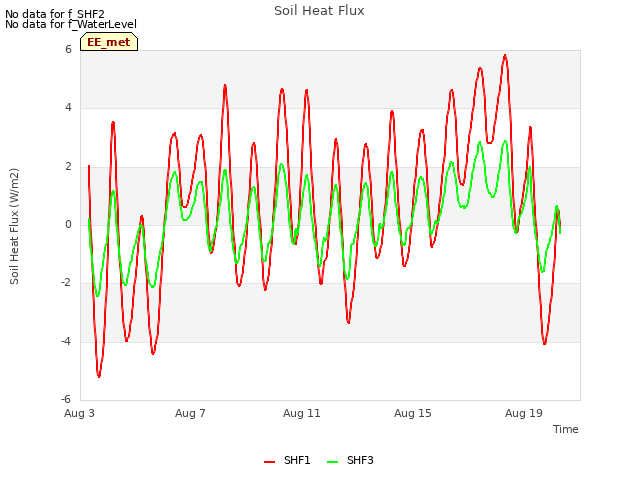

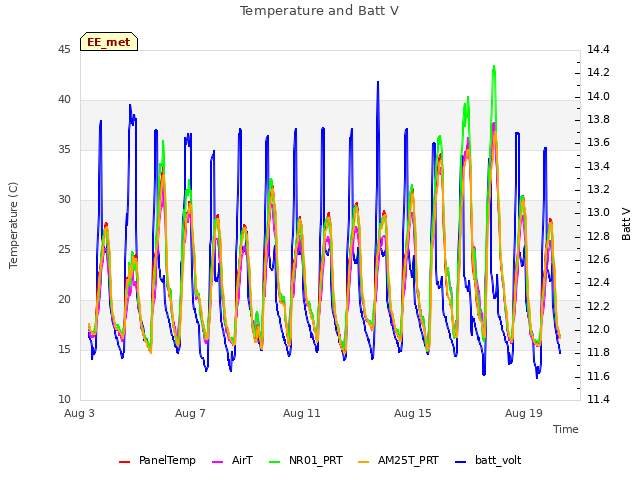

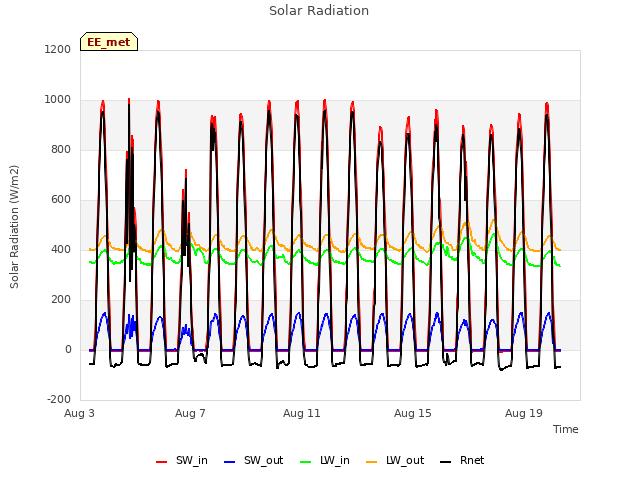

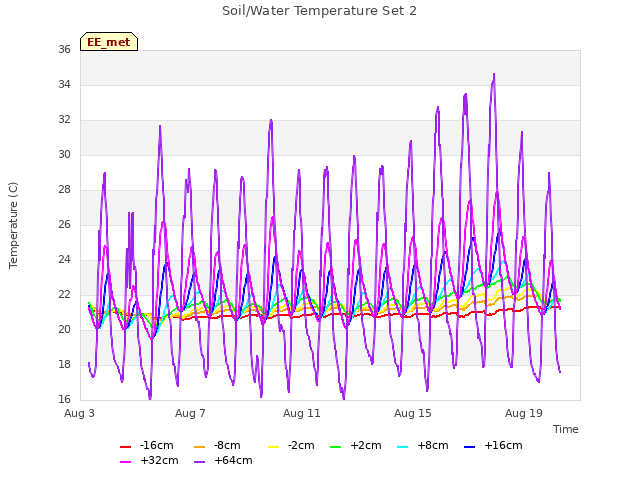

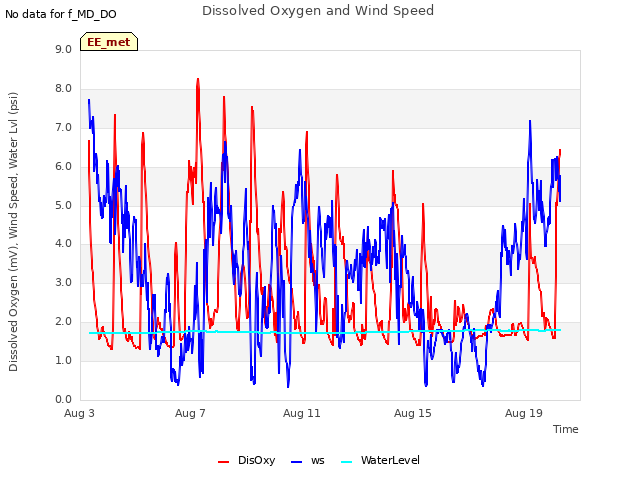

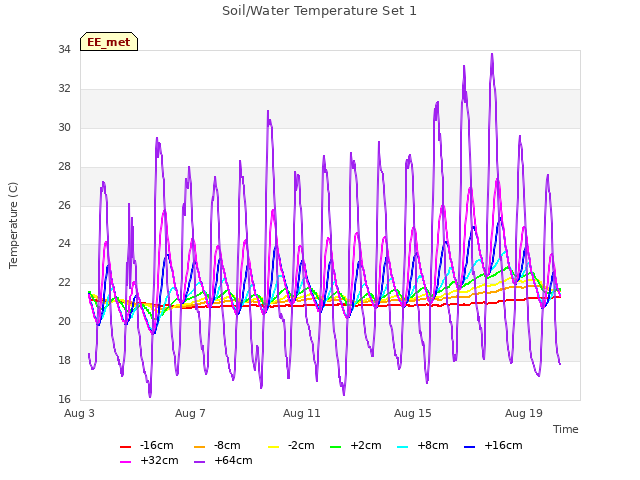

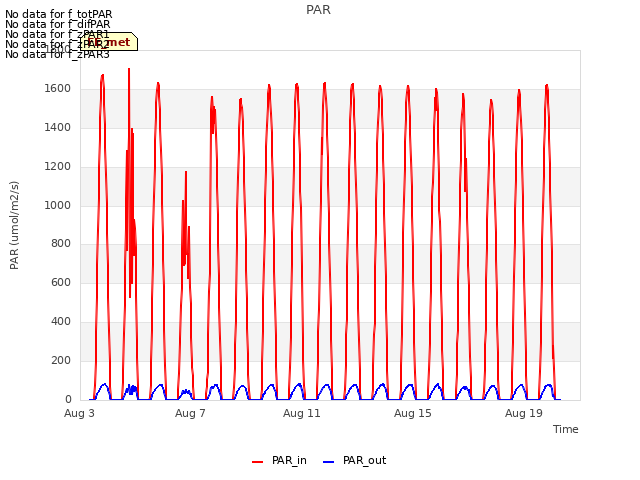

14 EE_met graphs found
Can't check EE_mixed

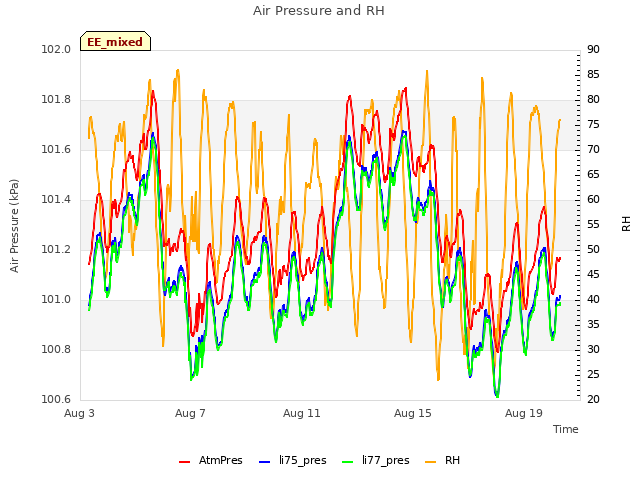

1 EE_mixed graphs found

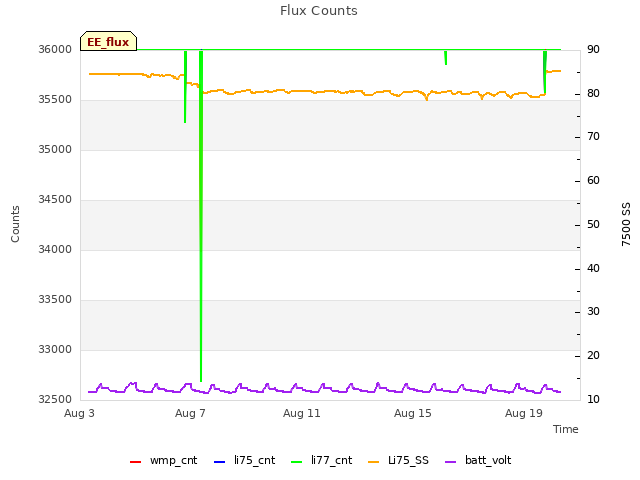

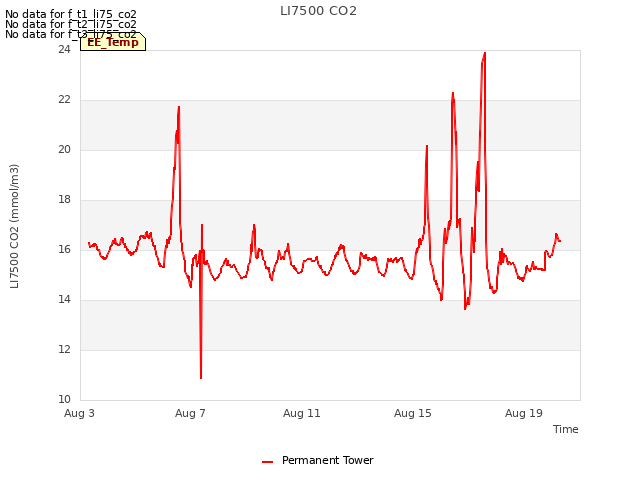

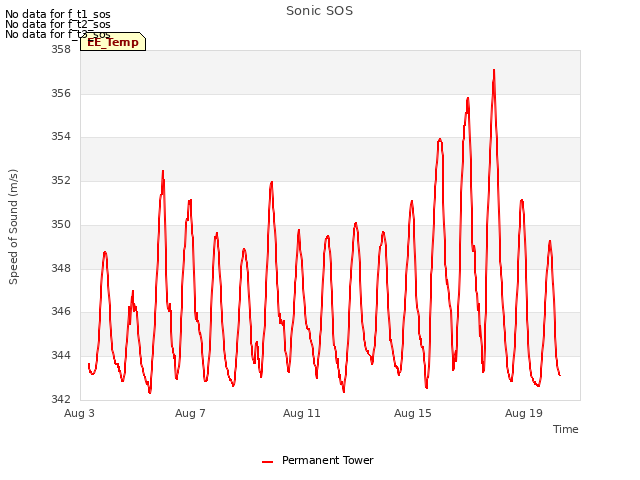

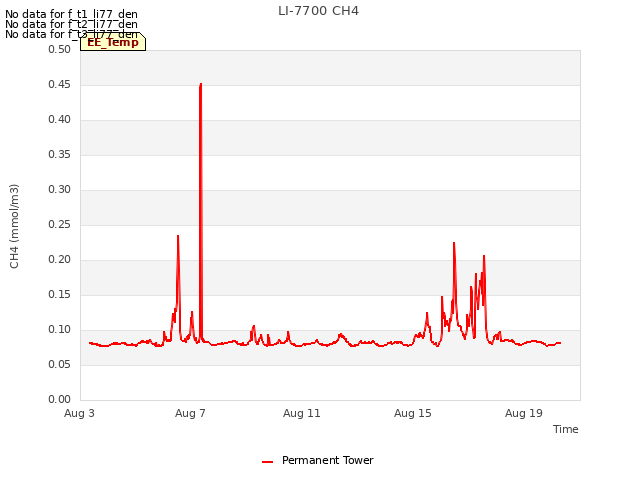

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed

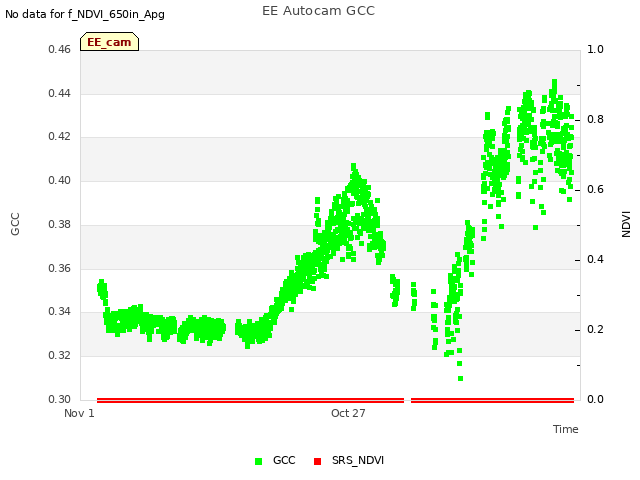

1 EE_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found
Can't check EE_minidot
1 EE_minidot graphs found
Can't check MBSWEEWPBCBA

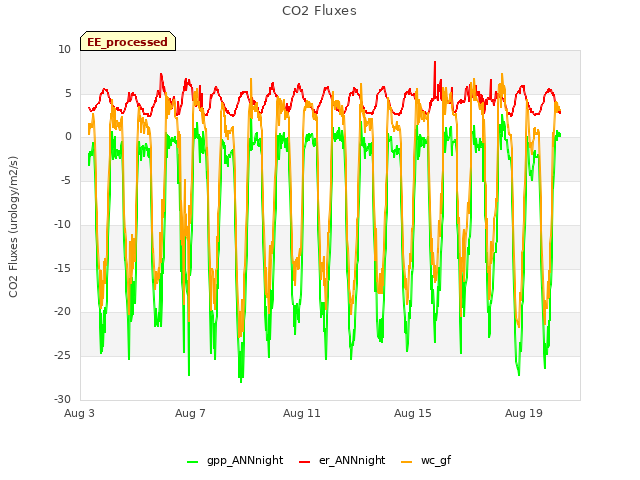

1 EE_processed graphs found
