East End: 2015-09-02 12:00:00 (DOY 245)
Author: Joe Verfaillie
Others: Sara, Kyle
Summary: Leak in 7700 wash tubing repaired, standard data collection, sensor cleaning.

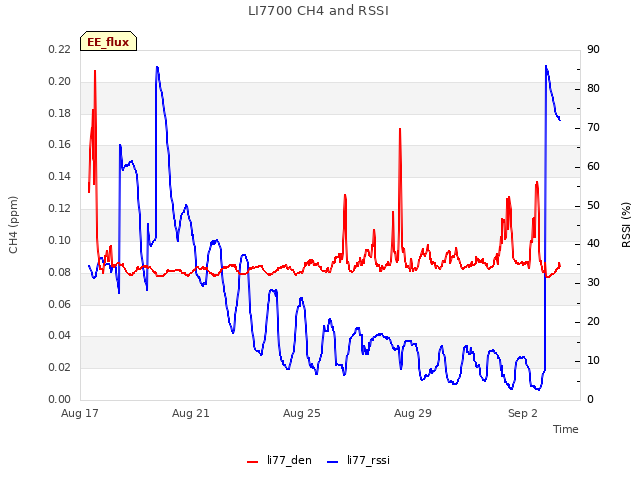

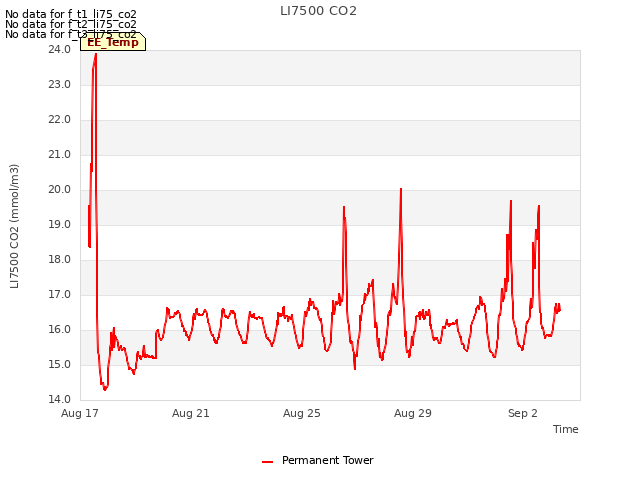

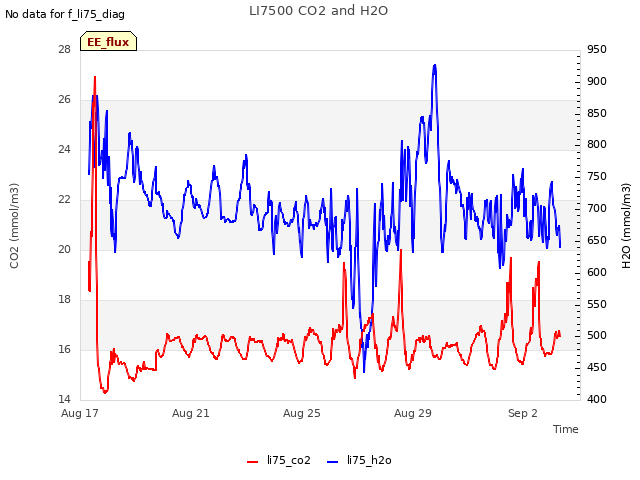

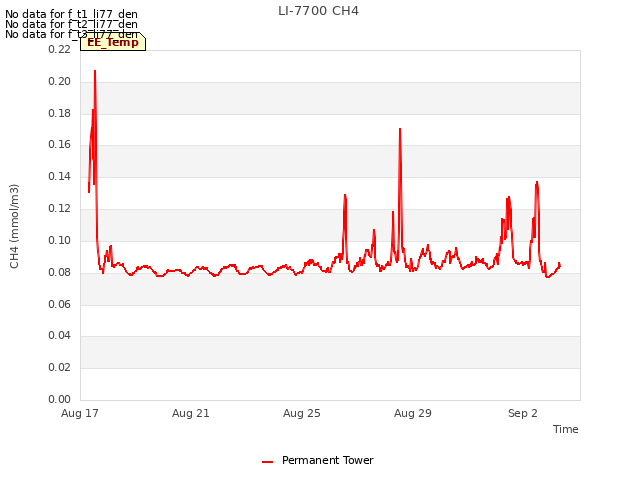

| East End 2015-09-02 I arrived about 12:00 with Sara and Kyle. It was clear, sunny and hot with little wind. Site conditions remain mostly unchanged. The cattails might be a little more yellow. The 7700 read: 2.193ppm CH4, 7.80RSSI – after cleaning about 80 RSSI The wash reservoir was almost empty and we found a leak in the tubing right at the reservoir fitting. We fixed the leak and manually tested the auto cleaning. The 7500 read: 386.5ppm CO2, 607.8mol/m3 H2O, 85.0SS, 23.61C, 101.2kPa Kyle cleaned the radiation sensors and Sara cleaned the water sensors. I did not check the raspberry Pi |
0 photos found
11 sets found

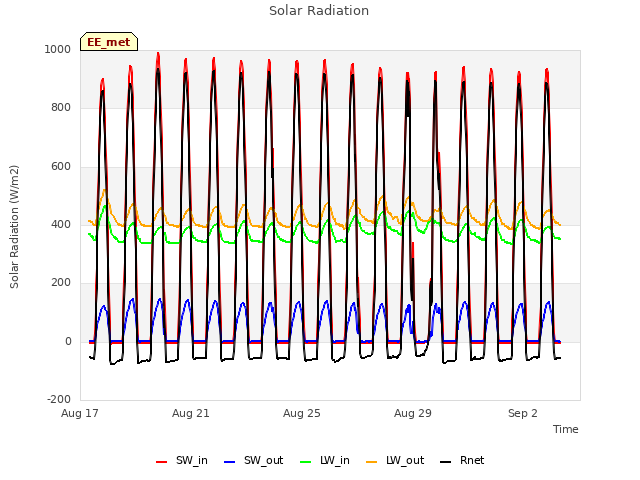

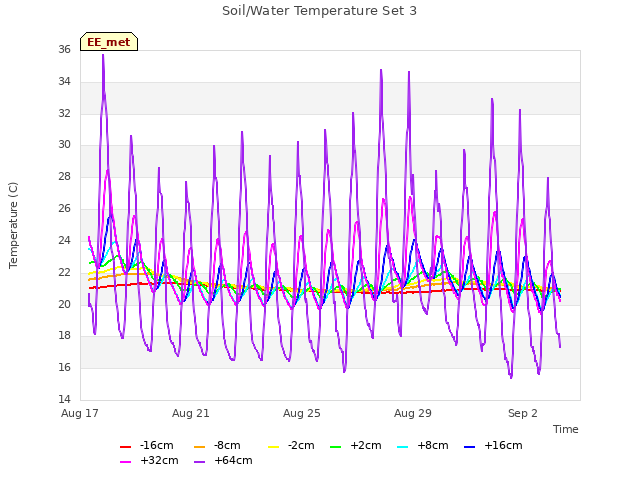

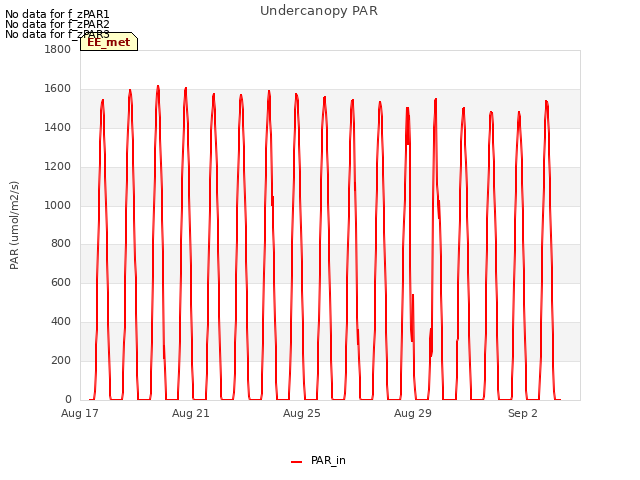

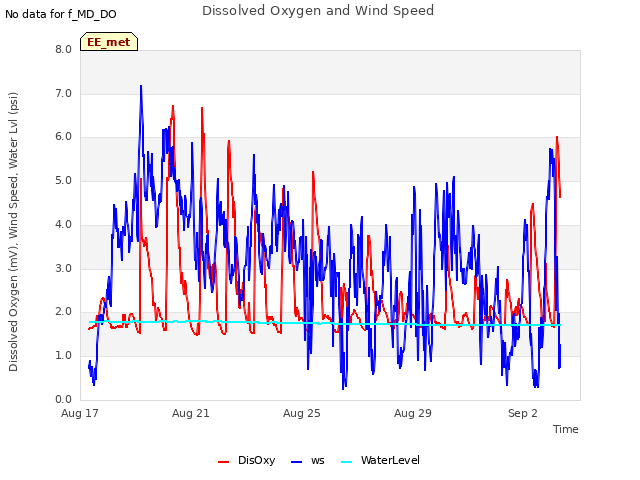

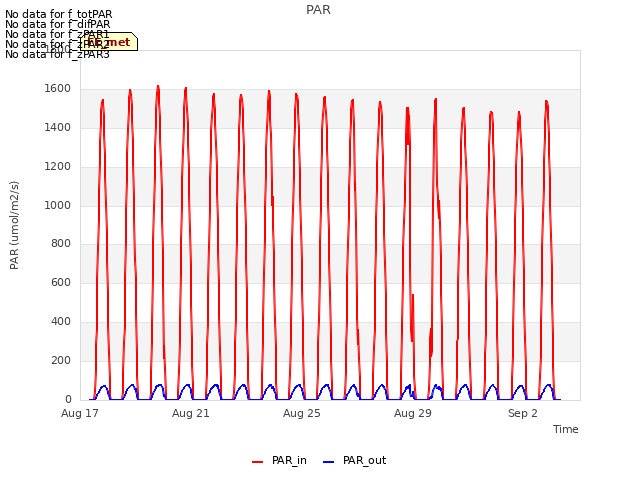

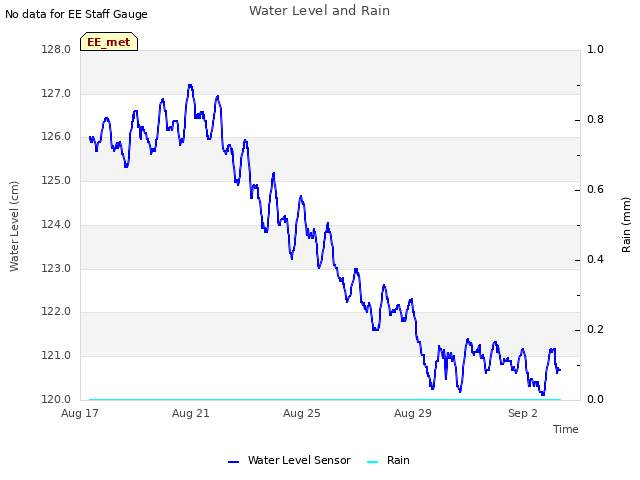

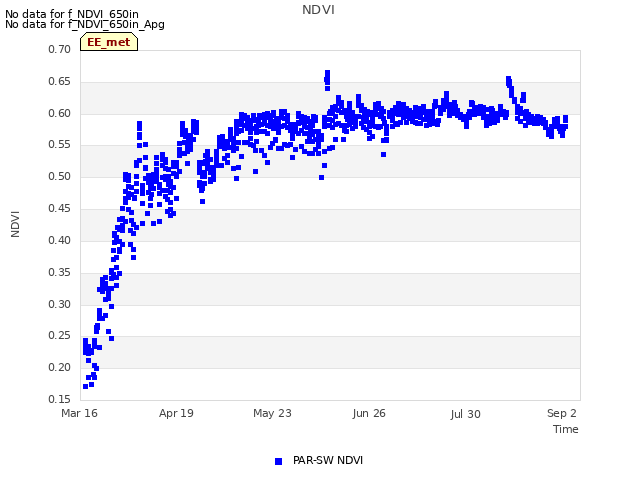

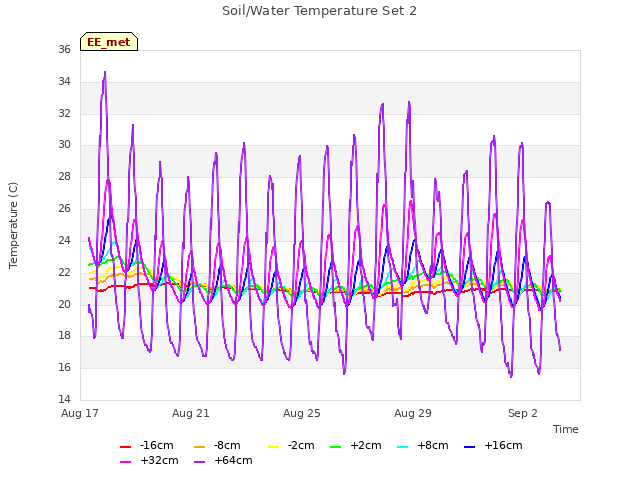

14 EE_met graphs found
Can't check EE_mixed

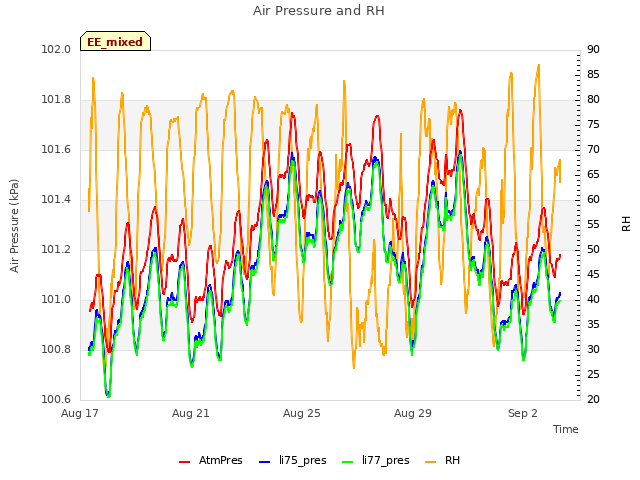

1 EE_mixed graphs found

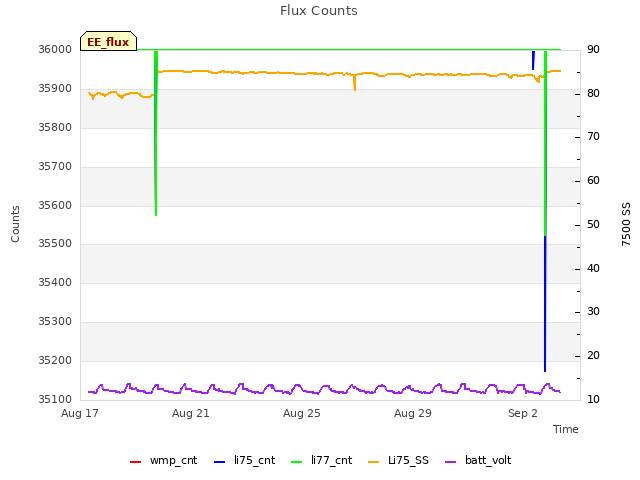

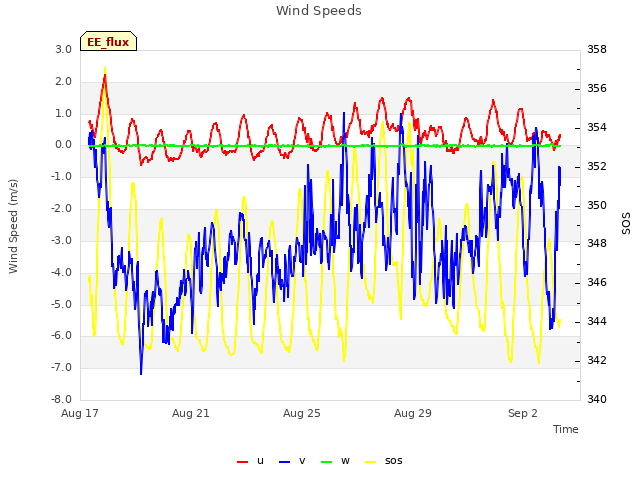

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed
1 EE_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

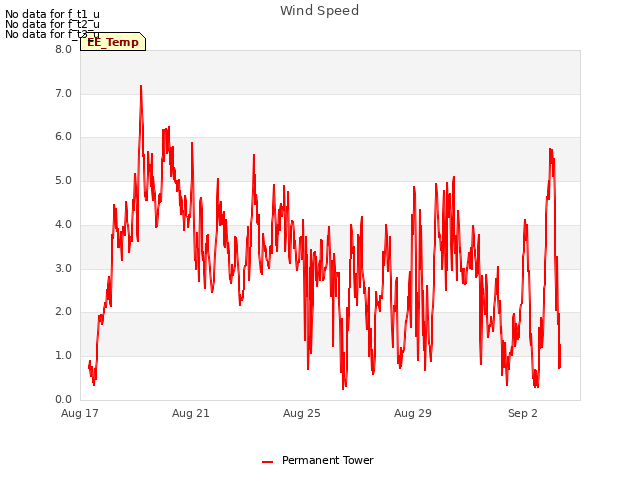

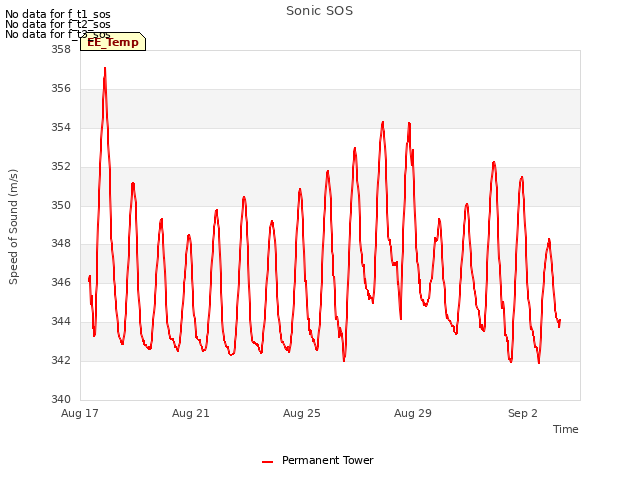

5 EE_Temp graphs found
Can't check EE_minidot
1 EE_minidot graphs found
Can't check MBSWEEWPBCBA
1 EE_processed graphs found
