West Pond: 2015-08-19 12:15:00 (DOY 231)
Author: Joe Verfaillie
Others: Patty

Summary: Standard data collection, water level low but inlet running, reinstalled autocam, swapped 7700 wash tubing

West Pond
2015-08-19

I arrived about 12:15 with Patty. It was clear, sunny and warm with a nice breeze. The water level was very low but the inlet was running. The CO2 sensor was almost out of the water. The vegetation looks like it is beginning to yellow.

The 7700 read: 1.93ppm CH4, 32.1RSSI – 84.1 after cleaning
The 7500 read: 381.1ppm CO2, 779.1mmol/m3 H2O, 86.9SS, 24.4C, 100.8kPa

We tested the 7700 wash spray and found a leak in the tubing. We swapped out the entire length of tubing.

We reinstalled the autocam. I did not have the screw to mount the camera so it is just sitting loose in the enclosure. Be careful not to bang the power connector with the enclosure top when you close it.

Wasps were taking interest in some bolt holes in the scaffolding. I shove some pieces of Tule into the holes.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

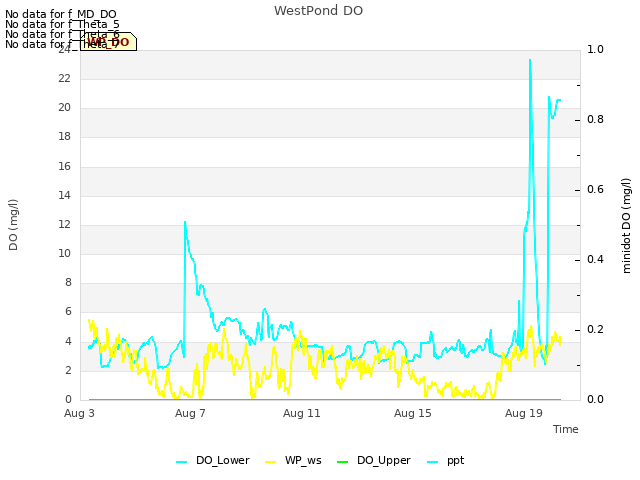

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

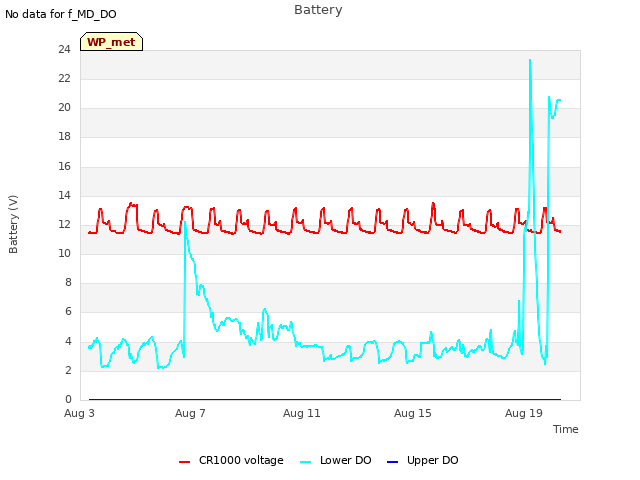

Explore the graph:Battery in a new window

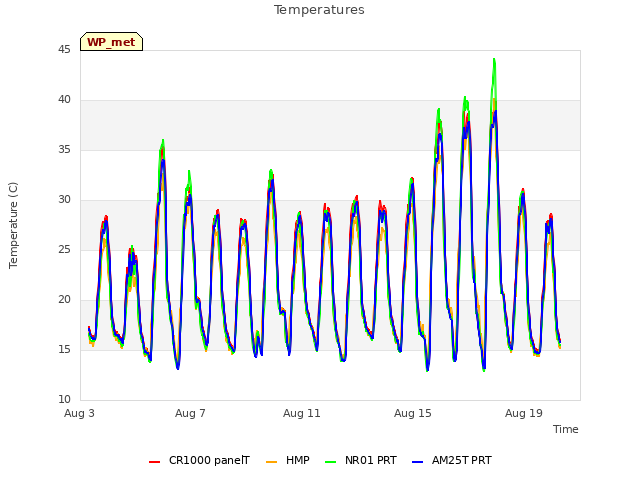

Explore the graph:Temperatures in a new window

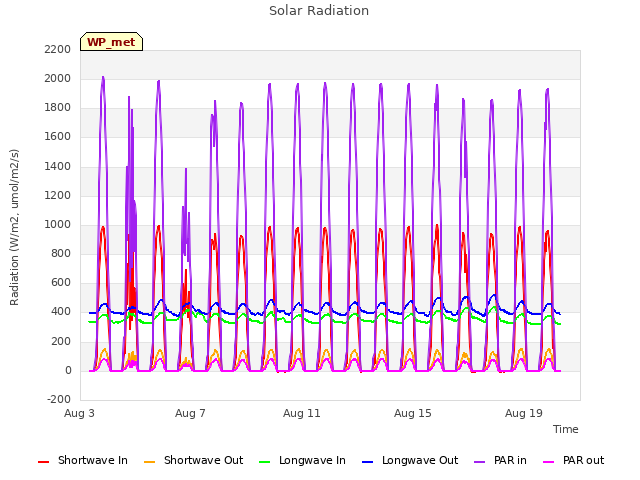

Explore the graph:Solar Radiation in a new window

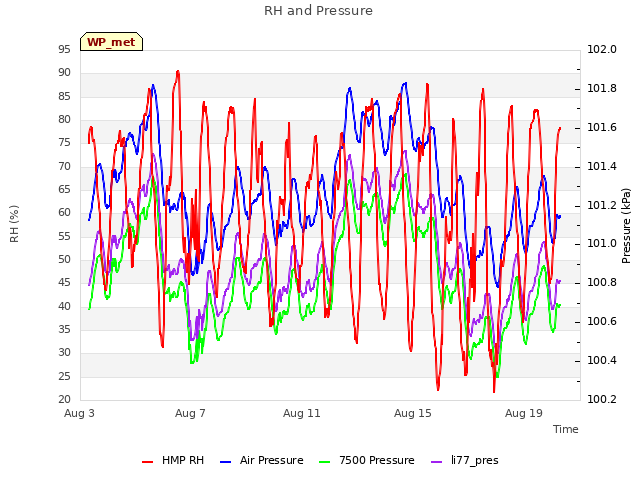

Explore the graph:RH and Pressure in a new window

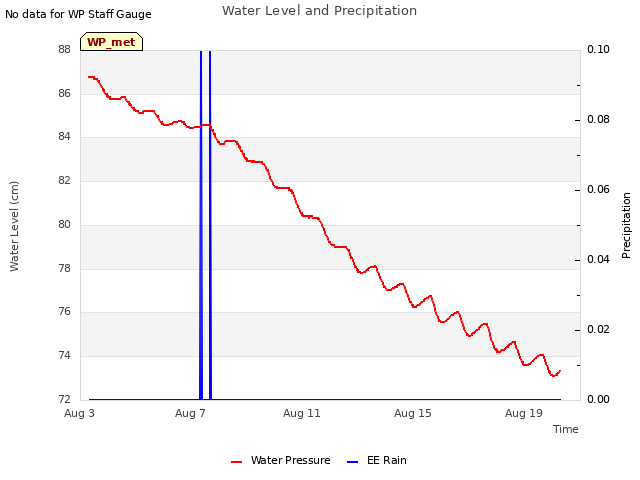

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

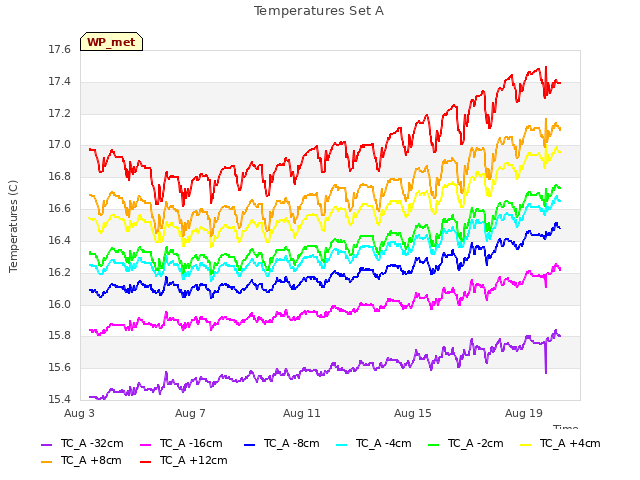

Explore the graph:Temperatures Set A in a new window

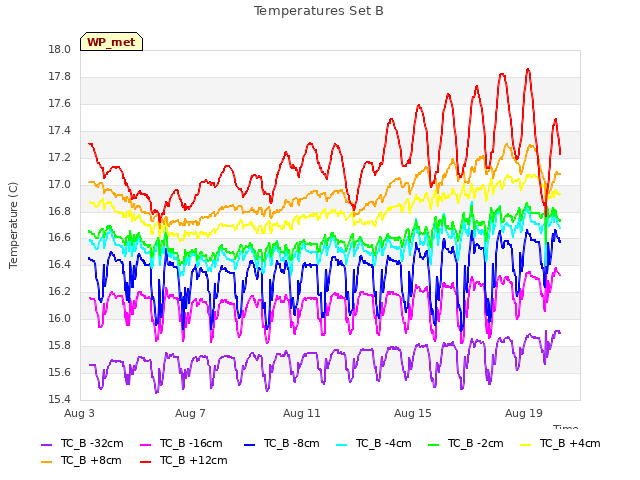

Explore the graph:Temperatures Set B in a new window

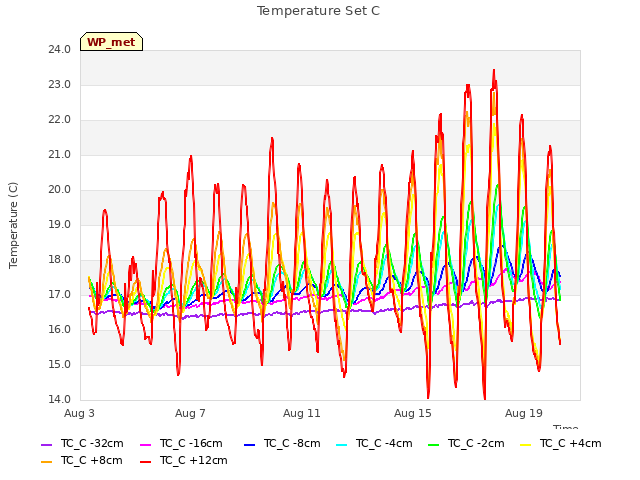

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

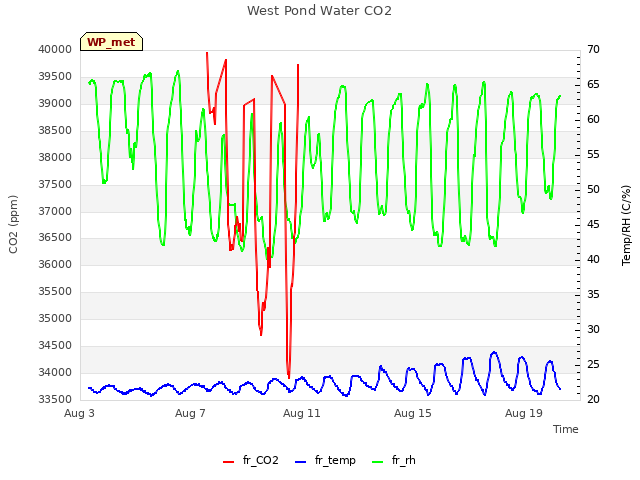

Explore the graph:West Pond Water CO2 in a new window

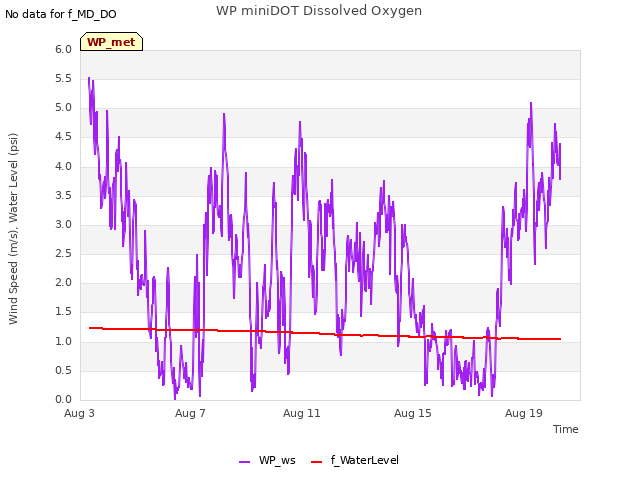

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

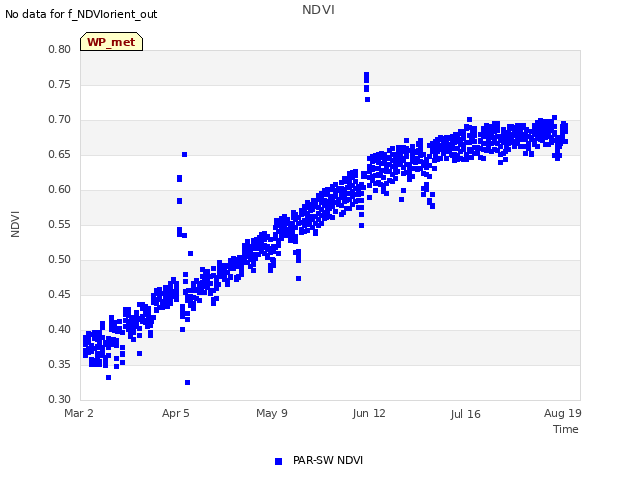

Explore the graph:NDVI in a new window

5 WP_flux graphs found

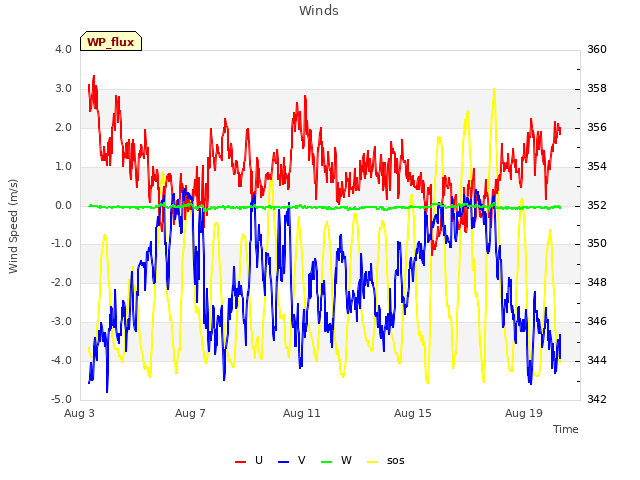

Explore the graph:Winds in a new window

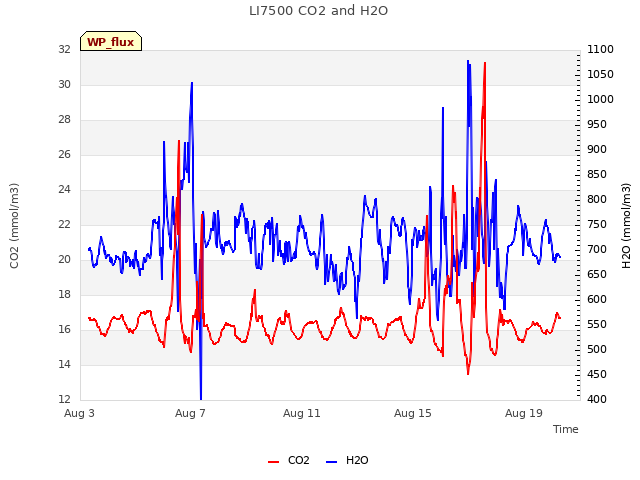

Explore the graph:LI7500 CO2 and H2O in a new window

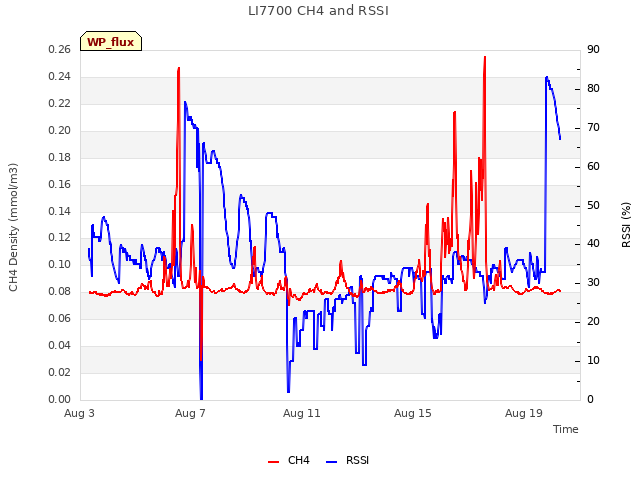

Explore the graph:LI7700 CH4 and RSSI in a new window

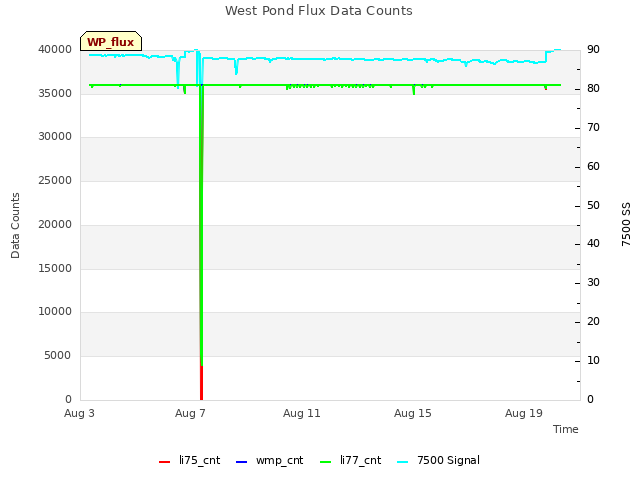

Explore the graph:West Pond Flux Data Counts in a new window

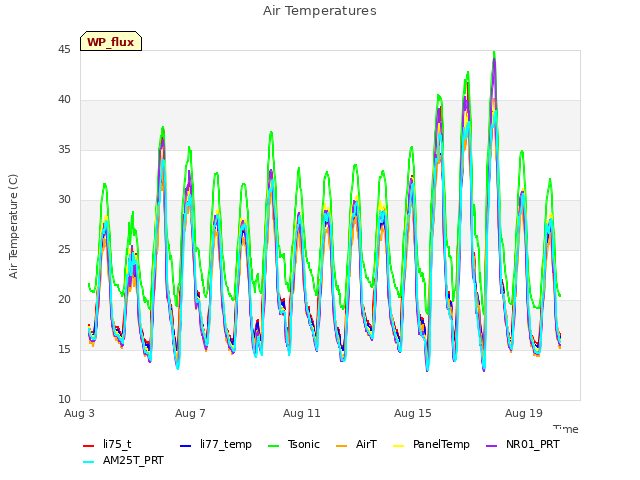

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

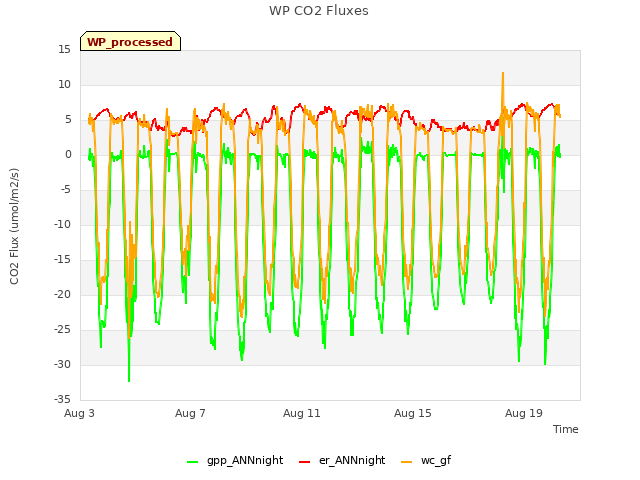

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
