Twitchell Rice: 2015-08-19 10:50:00 (DOY 231)
Author: Joe Verfaillie
Others: Patty

Summary: Field is drained, rice developing nicely, 7700 optics RH getting high, spectral and veg height.

Twitchell Rice
2015-08-19

I arrived about 10:50 with Patty. It was clear, sunny and warm with a strong breeze from the west. The field has been drained. The surface is damp but not muddy. The rice seeds are developing but still milky.

Patty did veg height and spectral measurements.

The 7700 read: 1.967ppm CH4, 38.3RSSI – 72.1 after cleaning
The 7500 read: 375.0ppm CO2, 708.1mmol/m3 H2O, 74.8SS, 22.98C, 101.65kPa

The 7700 optic RH was 29%. It is supposed to be good below 30%. We need to calibrate the 7700 in the next month or so and should swap it out with the one in the lab. We can change the desiccant in the lab.

I cut the weeds around the boxes and the tipping bucket.

I topped off the 7700 wash box.

Patty washed the solar panels.

Veg Height (cm): Tape measure from ground to top of plant - Lots of weeds; starting to seed
110, 75, 70, 72, 74, 100, 110, 120, 90, 100, 80, 90, 80, 68, 80, 70, 70, 75, 70, 65, avg = 83.5, stdev = 16.35

0 photos found

Graphs display:
6 sets found

12 TW_met graphs found

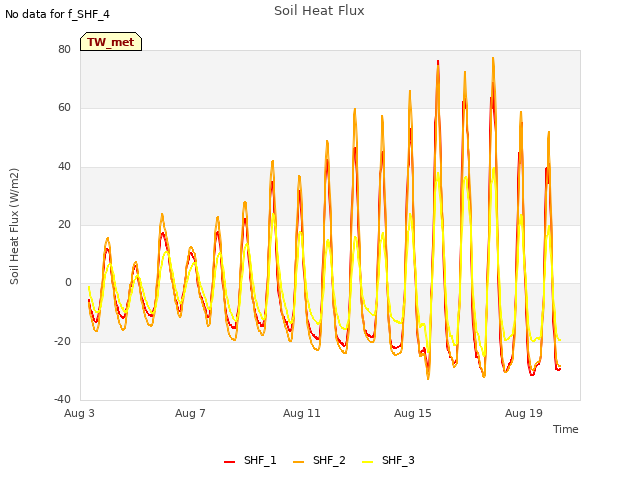

Explore the graph:Soil Heat Flux in a new window

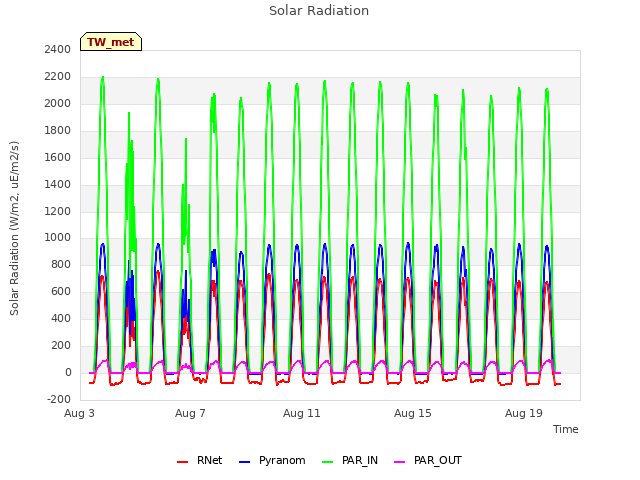

Explore the graph:Solar Radiation in a new window

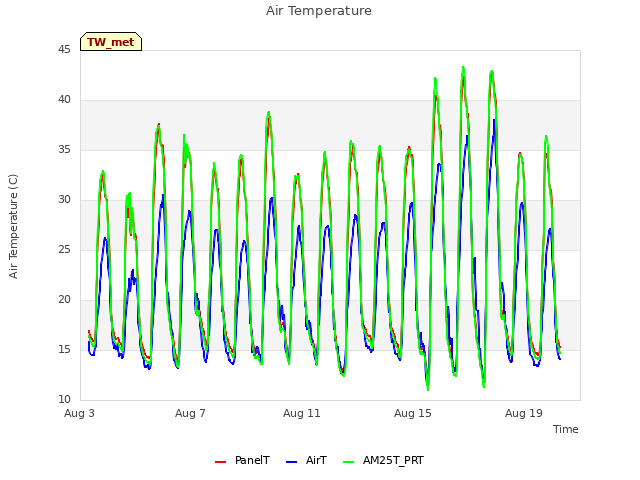

Explore the graph:Air Temperature in a new window

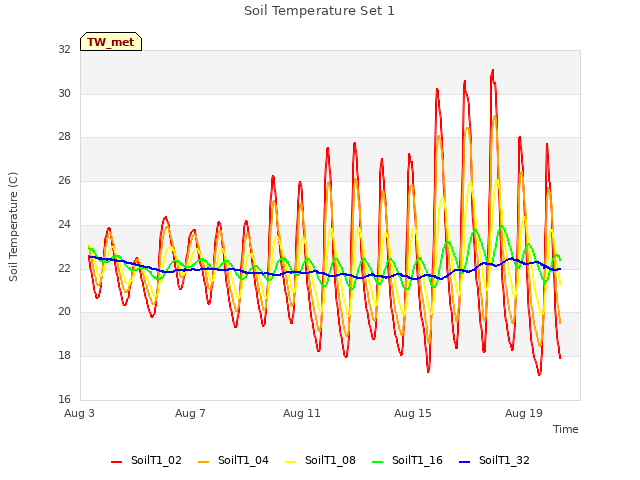

Explore the graph:Soil Temperature Set 1 in a new window

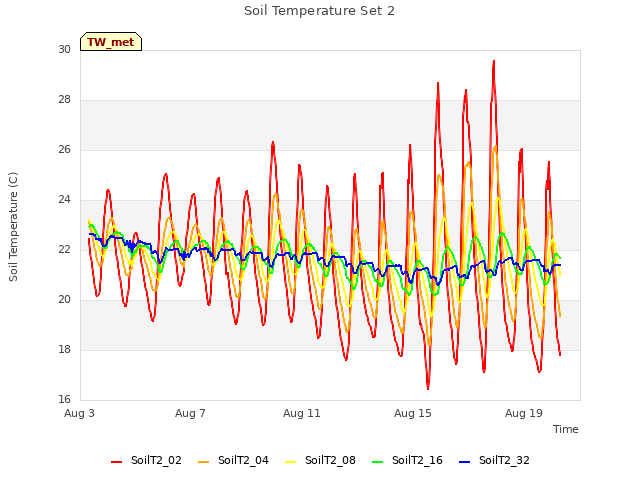

Explore the graph:Soil Temperature Set 2 in a new window

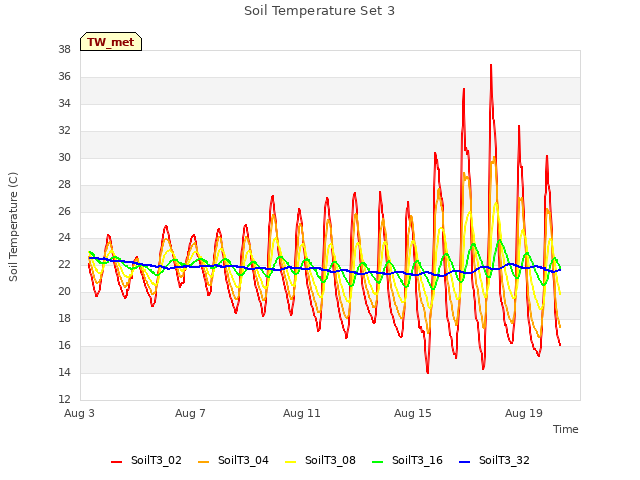

Explore the graph:Soil Temperature Set 3 in a new window

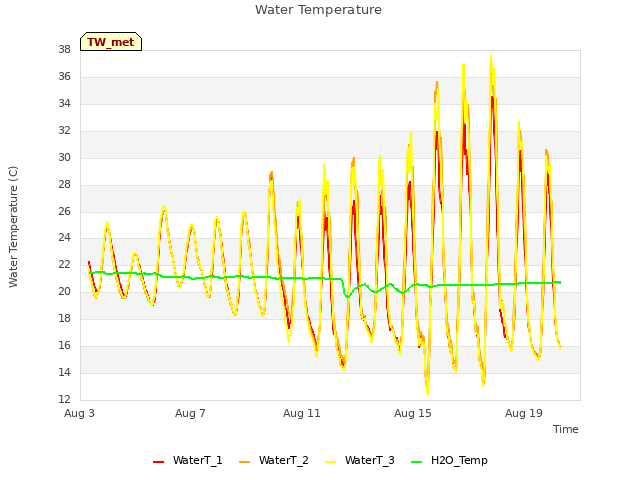

Explore the graph:Water Temperature in a new window

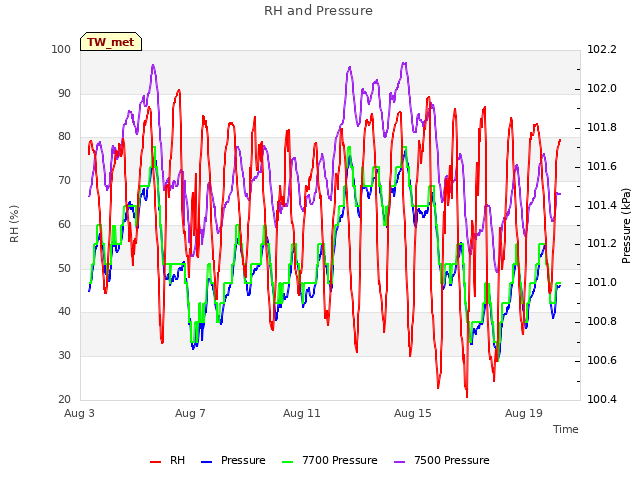

Explore the graph:RH and Pressure in a new window

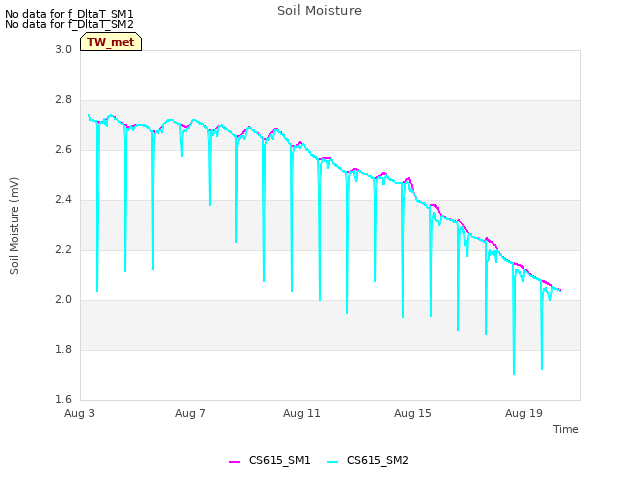

Explore the graph:Soil Moisture in a new window

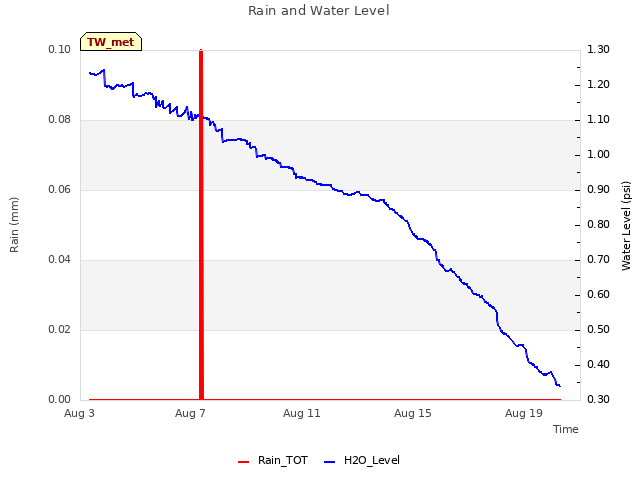

Explore the graph:Rain and Water Level in a new window

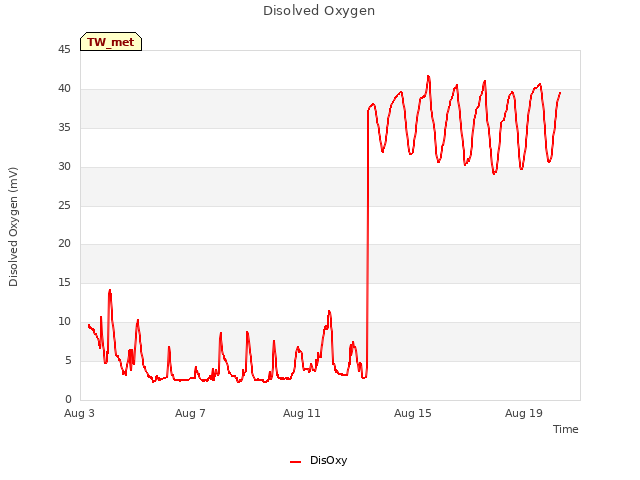

Explore the graph:Disolved Oxygen in a new window

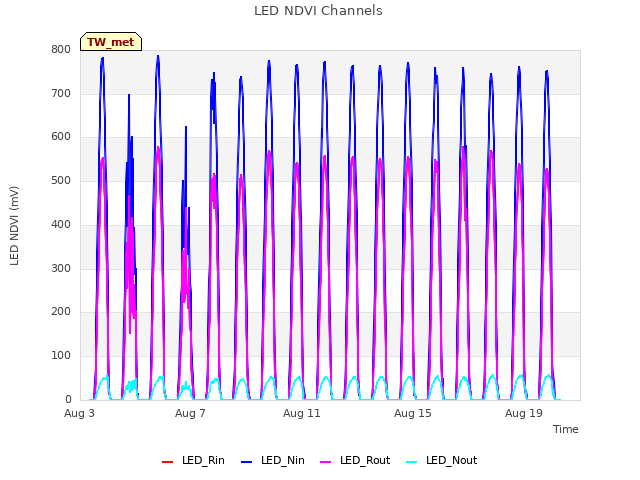

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

Explore the graph:Sonic Anemometer Winds in a new window

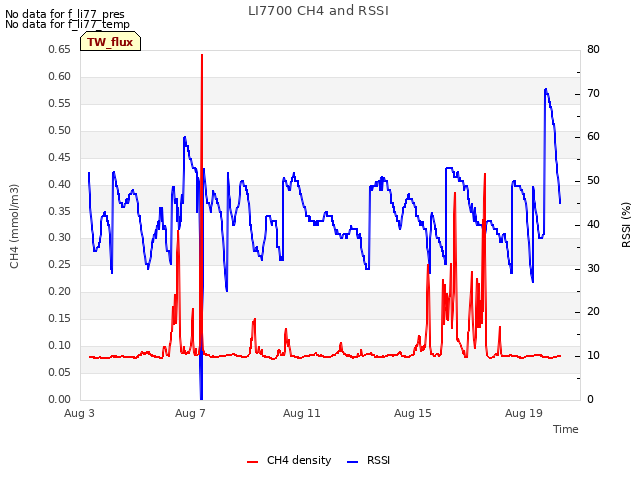

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Twitchell CH4 in a new window

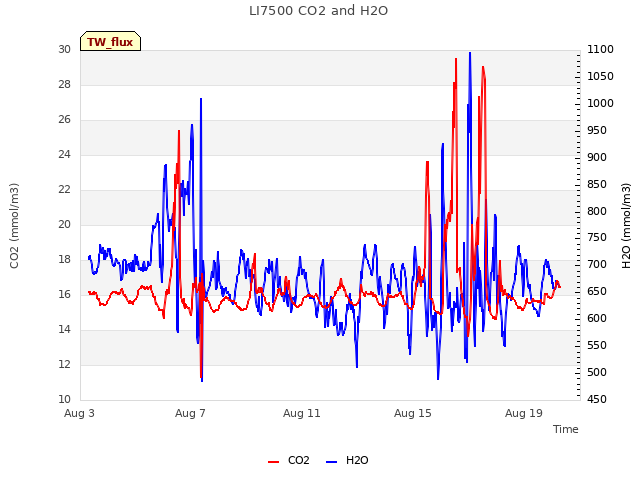

Explore the graph:LI7500 CO2 and H2O in a new window

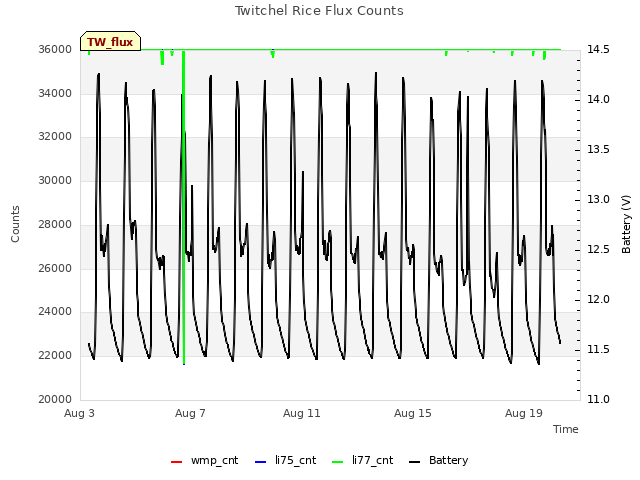

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

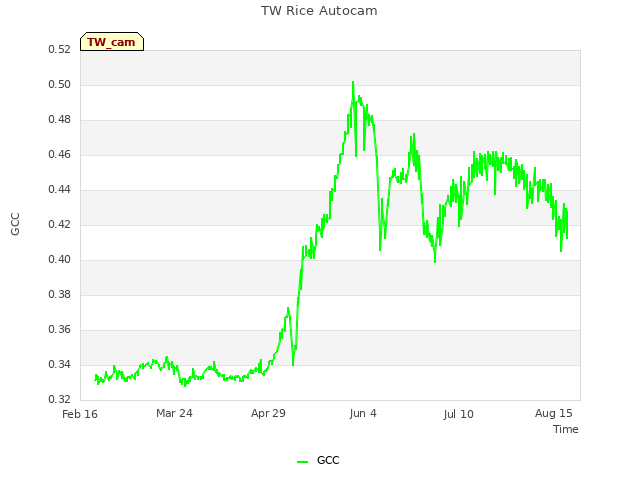

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
