Sherman Island: 2008-12-08 16:00:00 (DOY 343)
Author: Joe Verfaillie
Others: Dennis

Summary: Computer locked up two days.

Sherman Island 12-8-2008 (343)

Arrived about 4pm, partly sunny, calm, cold. Pepper weed more dead than my last visit and more trampled by cows. Cows in the area around the tower site.

Dennis cleaned the radiometers, RN Lite was full of bird droppings. The computer was locked up since late on 341. Data files copied and moved to archive section except for CH4 files. Verizon software reporting connected and reconnecting properly but not linked to computer�s network. Maybe trouble with USB ports.

LGR reporting

2.336 ppm, 19.15 C, 137.6 Torr, 15.9 usec, @ 10Hz

Edited Windows registry to allow changes to Automatic updates. Notify but do not download set.

Fixed problem with secondary tower files getting overwritten due to 12hr clock. Changes to 24hr clock.

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

Explore the graph:Solar Radiation in a new window

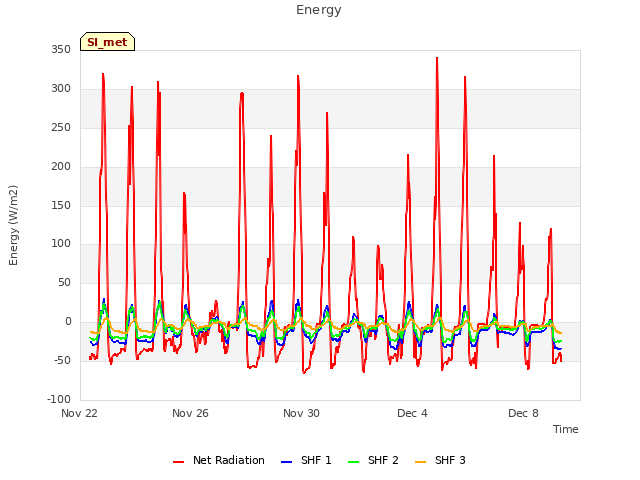

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

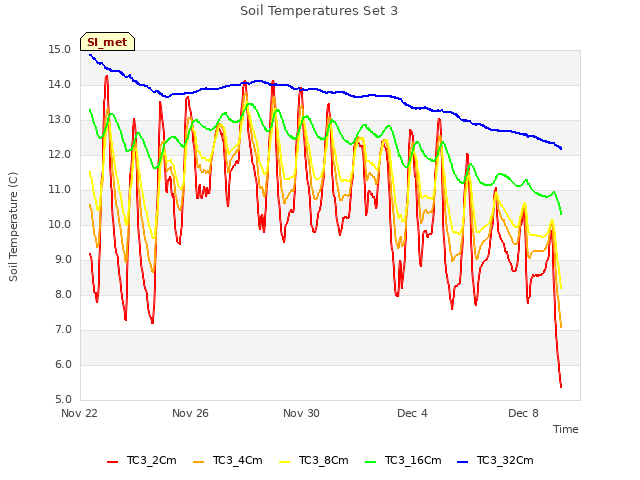

Explore the graph:Soil Temperatures Set 3 in a new window

Explore the graph:Soil Temperature at -16cm in a new window

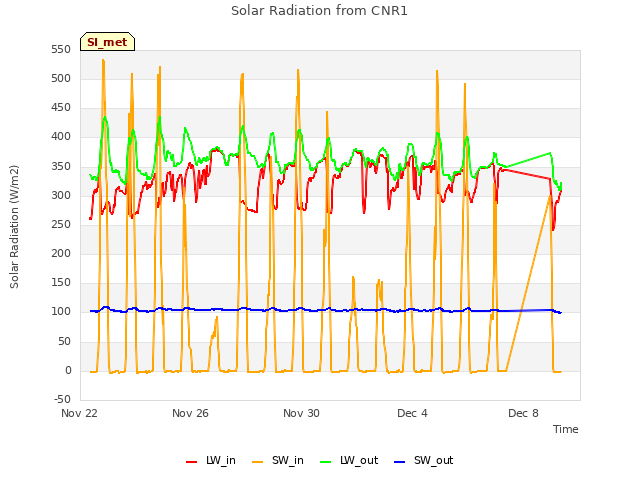

Explore the graph:Solar Radiation from CNR1 in a new window

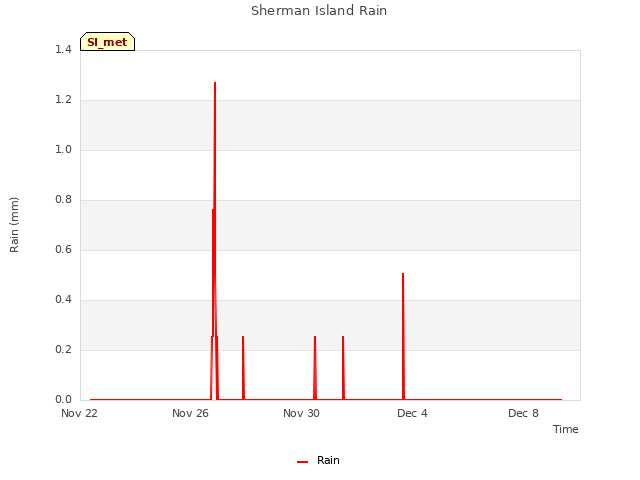

Explore the graph:Sherman Island Rain in a new window

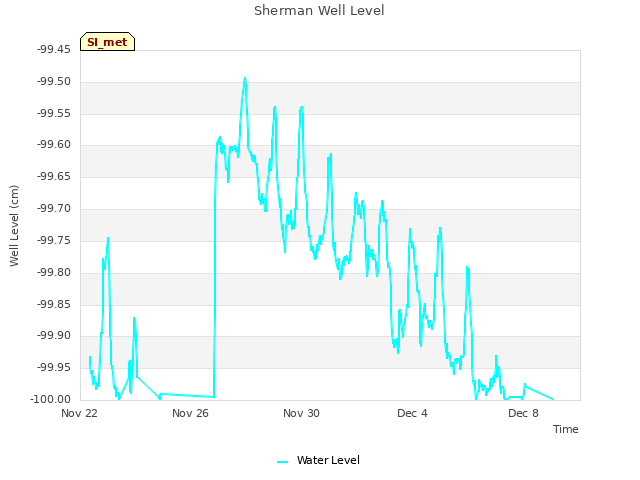

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

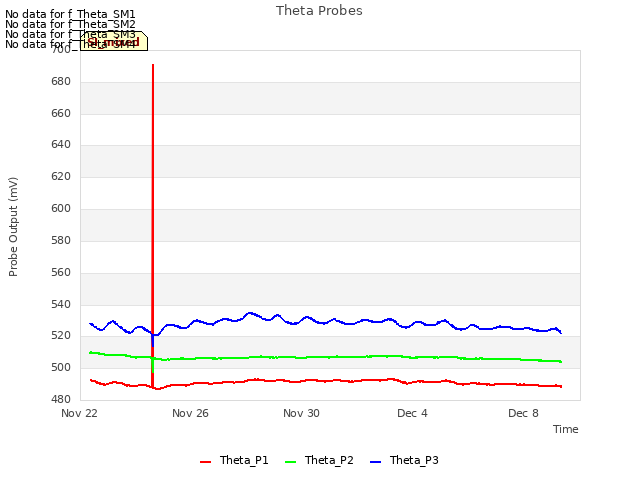

Explore the graph:Theta Probes in a new window

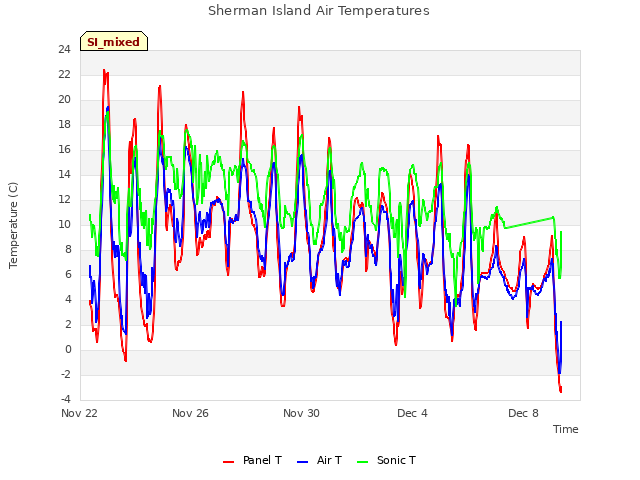

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

Explore the graph:Sonic Wind in a new window

Explore the graph:CH4 Concentrations in a new window

Explore the graph:Sample Counts in a new window

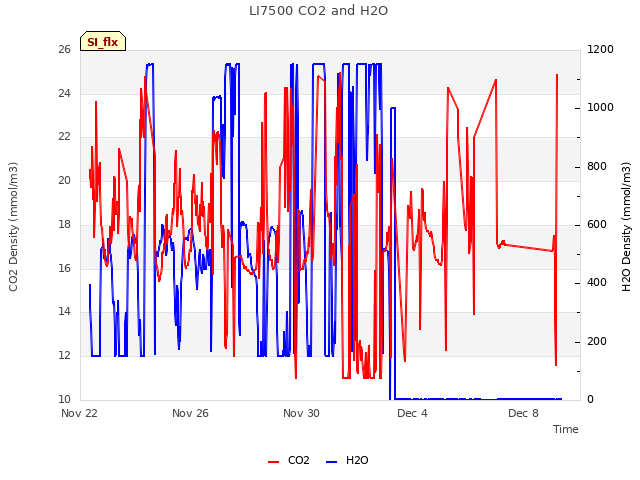

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
