Field Notes

<--2014-09-25 09:30:00 | 2014-10-09 13:00:00-->
Other sites visited today: Mayberry | Twitchell Rice | East End | West Pond | Twitchell Alfalfa | Tonzi

Sherman Island: 2014-10-02 14:05:00 (DOY 275)
Author: Cove Sturtevant
Others: Sara

Summary: Tons of spider webs. Data download. Regular fieldwork.

Sherman
2014-10-02

We arrived around 14:05 PDT. It was hot and sunny with a light breeze. There were tons of spider webs everywhere. I could see spider webs spiraling about 100 m in the air glinting in the sun. I removed three big wind spiders jumping off the 7500, sonic, and LGR inlet. There were also tons of wasps about. Sara did spectral and veg height while I checked the tower and downloaded data. Did not download camera data due to the wasp activity.

I forgot to switch over to check the LGR readings, but from what I remember from Loggernet the CH4 concentration was about 2 ppm and the pressure about 143 Torr.

7500 readings:
CO2: 15.9 mmol m-3 (16.1 after cleaning)
H2O: 380 mmol m-3 (440 after cleaning)
P = 101.8 kPa
T = 32 C
Diag: 248
Sos: 348.0 m s-1

Met looked good.

Veg Height (cm): Tape measure from ground to top of plant
29, 22, 10, 19, 13, 55, 76, 7, 76, 29, 12, 82, 15, 22, 20, 53, 39, 40, 50, 40, avg = 35.5, stdev = 23.28

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

Solar Radiation

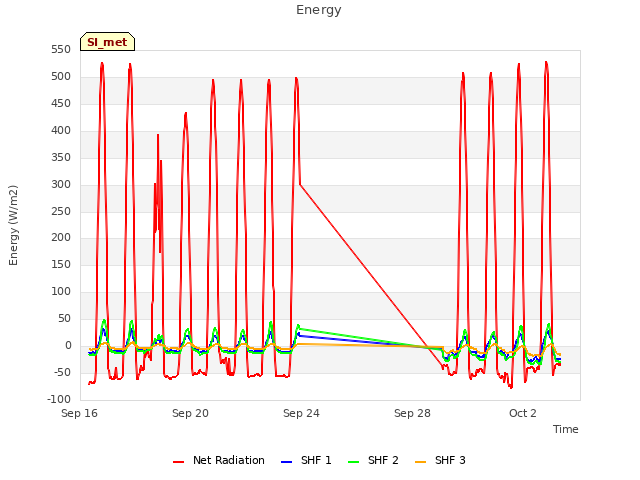

Energy

Soil Temperatures Set 1

Soil Temperatures Set 2

Soil Temperatures Set 3

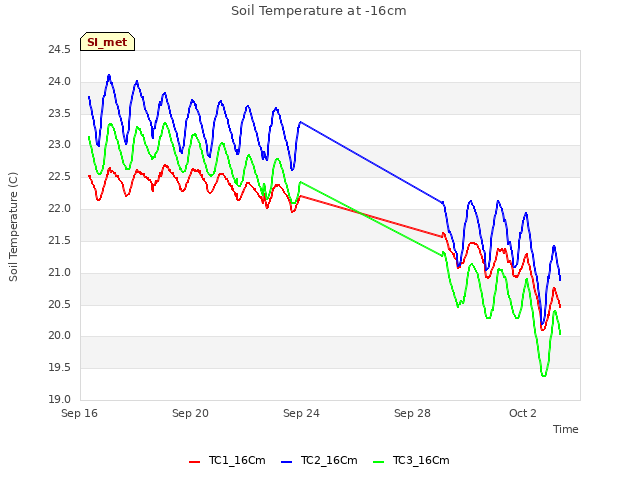

Soil Temperature at -16cm

LED NDVI Sensor Output

Solar Radiation from CNR1

Sherman Island Rain

Sherman Well Level

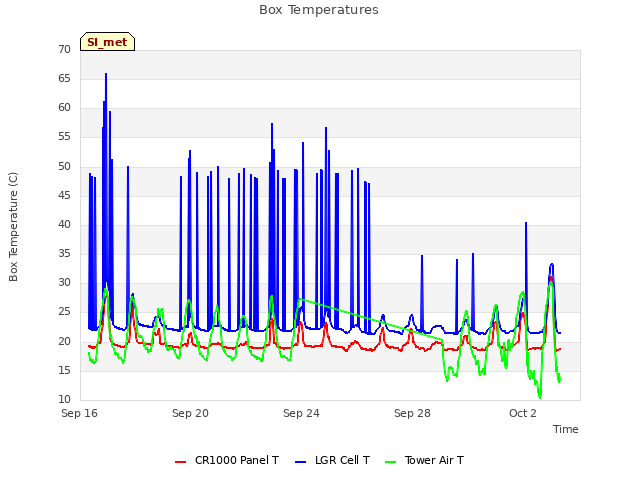

Box Temperatures

Can't check SI_mixed
2 SI_mixed graphs found

Theta Probes

Sherman Island Air Temperatures

4 SI_flx graphs found

Sonic Wind

CH4 Concentrations

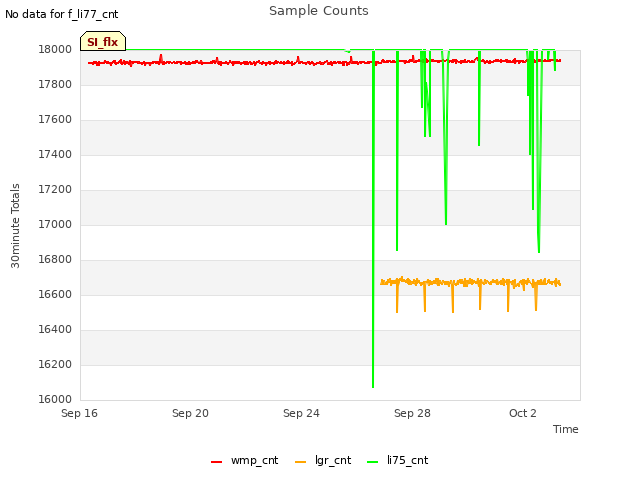

Sample Counts

LI7500 CO2 and H2O

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
