West Pond: 2014-09-04 15:00:00 (DOY 247)
Author: Joe Verfaillie
Others: Patty

Summary: Lots of mosquitos, 7550 quit on head swap - flux down until next Monday.

WestPond
2014-09-04

I arrived about 3pm. Water levels were normal and the inlet was running. There was a swarm of mosquitos at the bottom of the tower where it is protected from the wind. Beware of West Nile.

Patty took water samples at the inlet, outlet and tower.

The 7700 read: 1.95ppm, 53.1 RSSI – the 7700 was cleaned but I failed to note the new value, but this is moot – see below.
The 7500 read: 389ppm CO2, 667mmol/m3 H2O, 82.1SS, 100.23kPa, 30.50C

We were going to swap the 7500 head, but when the new head was installed, the 7550 box became unresponsive. We cycled power with one or the other head attached several time with no luck. The box seemed to be caught in a cycle of rebooting. This is the one box that has not been upgraded to prevent the condensation problem on the connector pins at the bottom of the box. Since it was not working, we pulled the box to swap with the spare in the lab next Monday.

7550 sn AIU-0614 and head sn 0065 came off.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

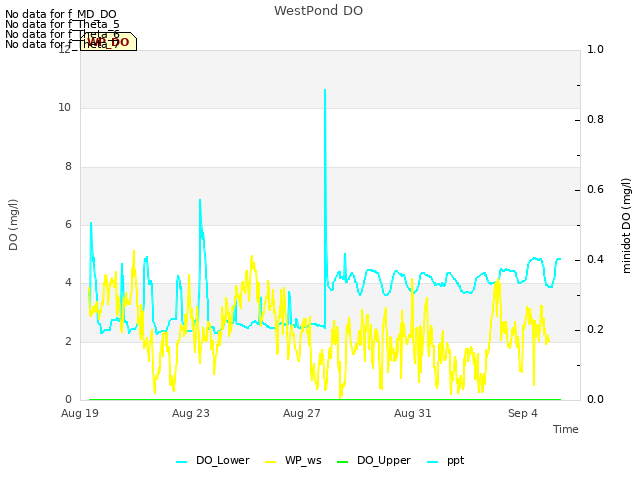

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

Explore the graph:Battery in a new window

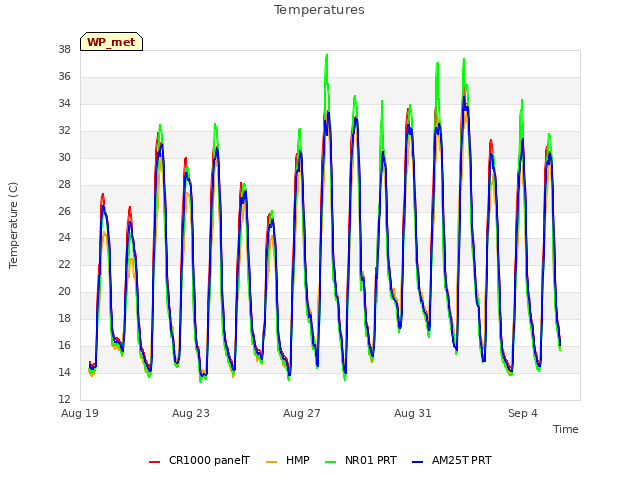

Explore the graph:Temperatures in a new window

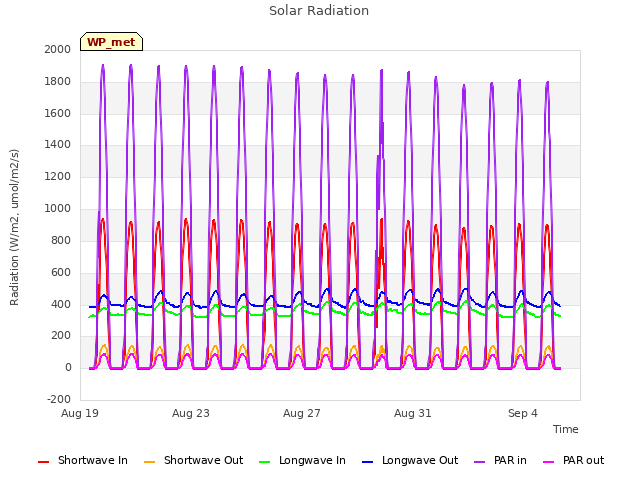

Explore the graph:Solar Radiation in a new window

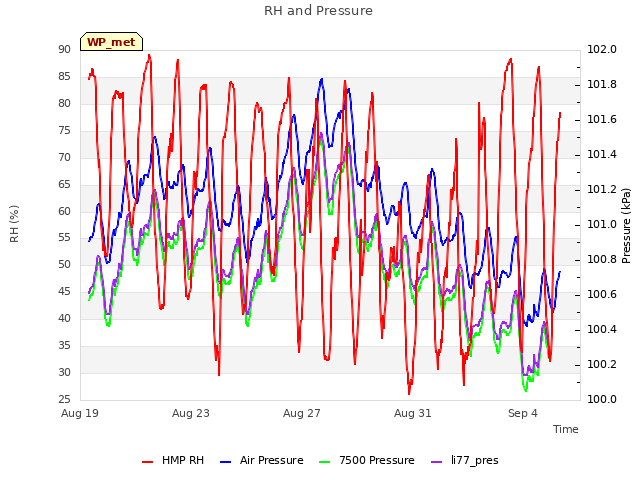

Explore the graph:RH and Pressure in a new window

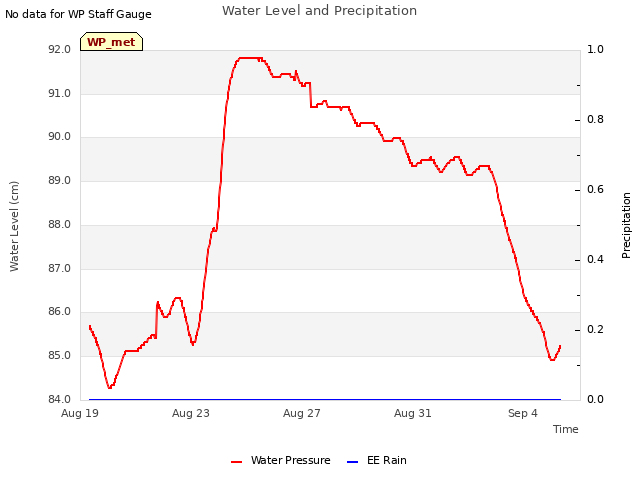

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

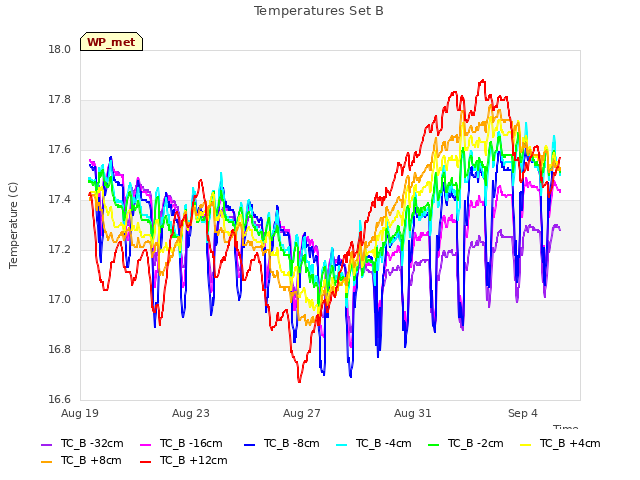

Explore the graph:Temperatures Set B in a new window

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

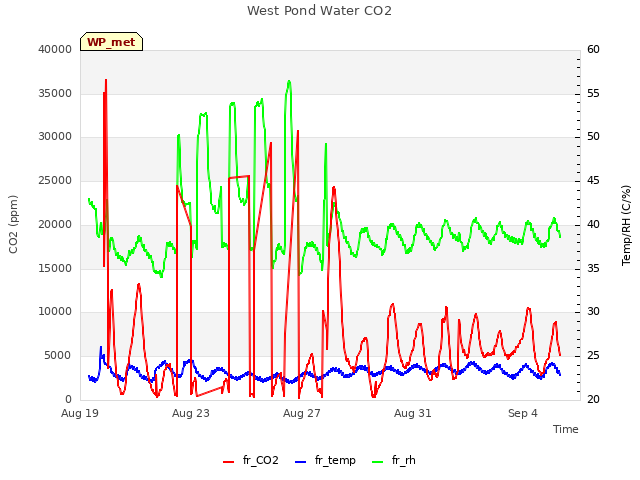

Explore the graph:West Pond Water CO2 in a new window

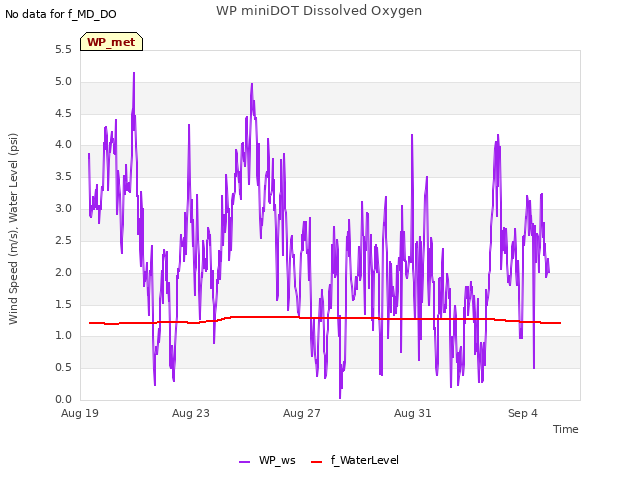

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

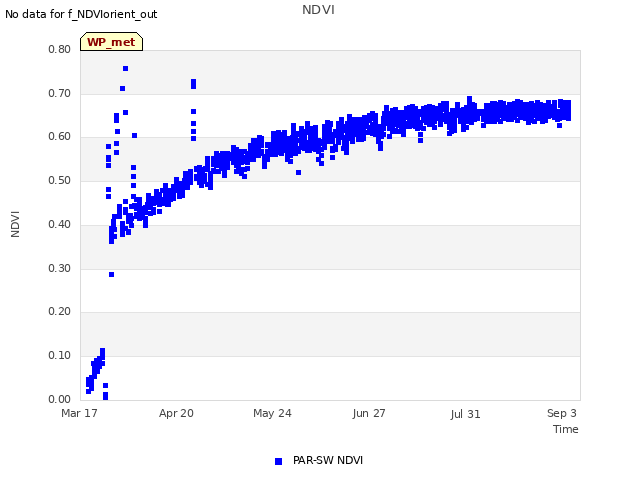

Explore the graph:NDVI in a new window

5 WP_flux graphs found

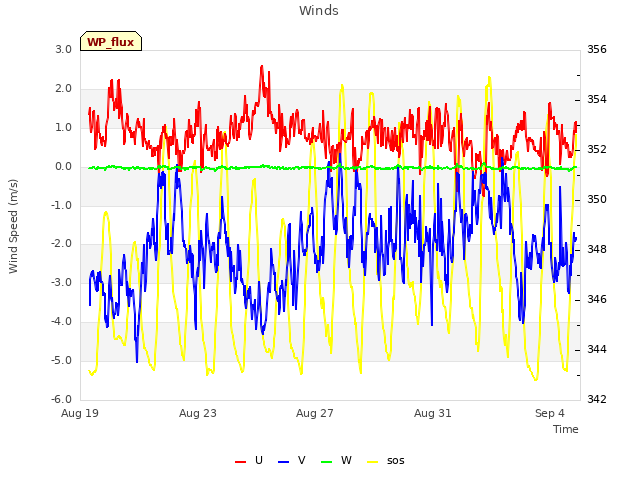

Explore the graph:Winds in a new window

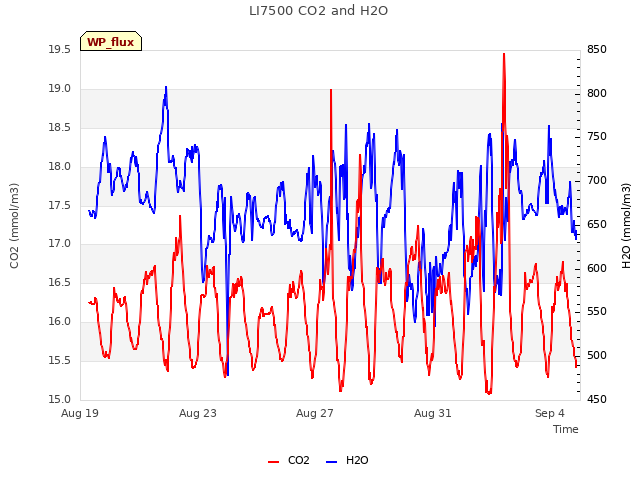

Explore the graph:LI7500 CO2 and H2O in a new window

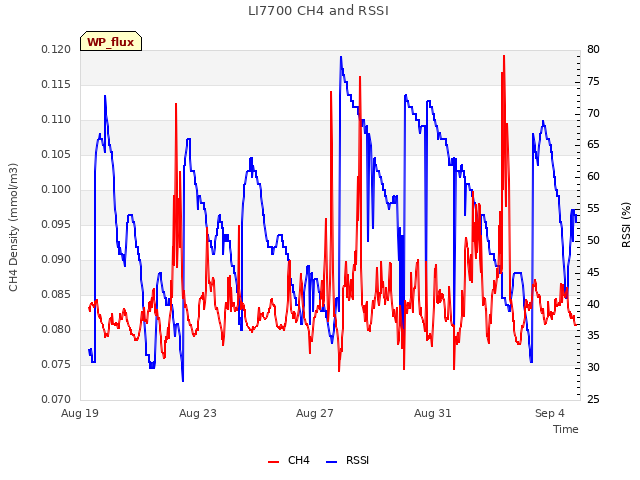

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:West Pond Flux Data Counts in a new window

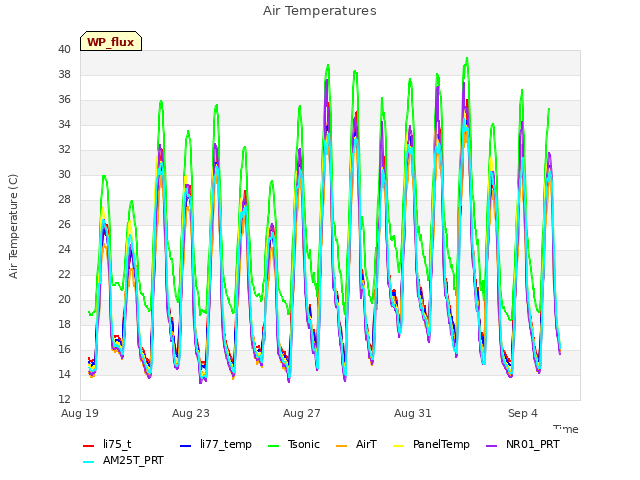

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

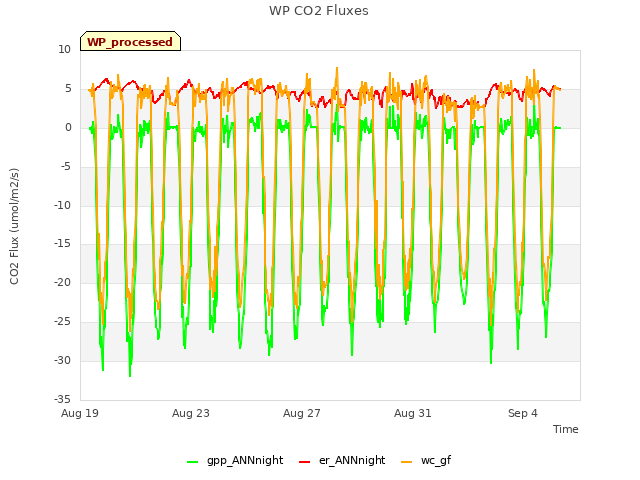

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
