Twitchell Rice: 2014-09-04 13:15:00 (DOY 247)
Author: Joe Verfaillie
Others: Patty

Summary: field drained, standard fieldwork, 23x clock reset by 17min, power issues.

Twitchell Rice
2014-09-04

I arrived about 1:15 with Patty. It was clear, sunny and warm with a light breeze from the west. The field is drained and the rice is yellow with seed in most places. Automatic propane canons are set up in a couple of places to scare birds.

Patty did LAI, veg height, and clip plots.
I did spectra, and serviced the tower.

The 7700 read: 1.98ppm, 45.6 RSSI – 73.6 after cleaning.
I tested the auto spray cleaning system and it worked well.

The 7500 read: 390ppm CO2, 678mmol/m3 H2O, 94.9SS, 100.99kPa, 29.12C

The 23x clock was behind by 17min. I reset it from 12:20 to 12:37. The 7550 clock was okay.

The camera had only 65 images. It looks like there might have been an overnight drop out in the data systems at a later date. Time to swap out the battery bank.

Veg Height (cm): Tape measure from ground to top of plant - seeding heavily
70, 70, 70, 68, 66, 67, 67, 67, 70, 65, 70, 65, 70, 70, 66, 67, 78, 76, 75, 70, avg = 69.4, stdev = 3.54

0 photos found

Graphs display:
6 sets found

12 TW_met graphs found

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Temperature in a new window

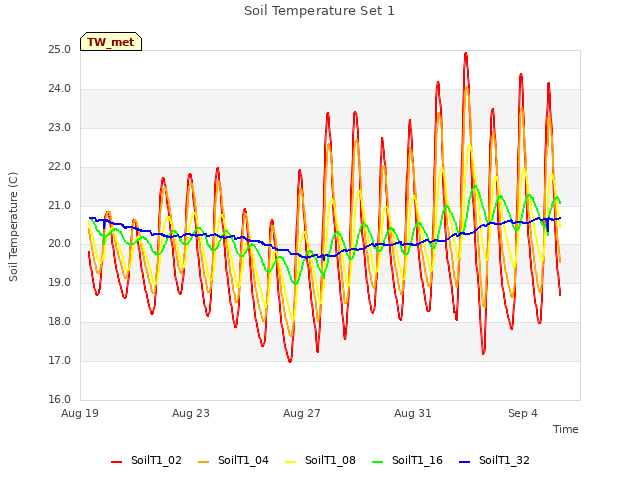

Explore the graph:Soil Temperature Set 1 in a new window

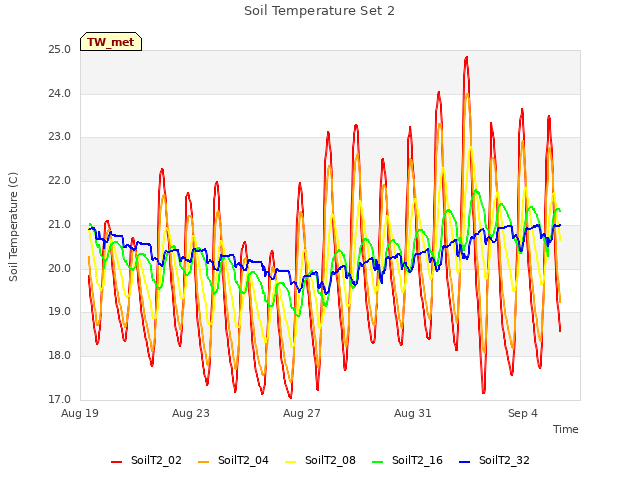

Explore the graph:Soil Temperature Set 2 in a new window

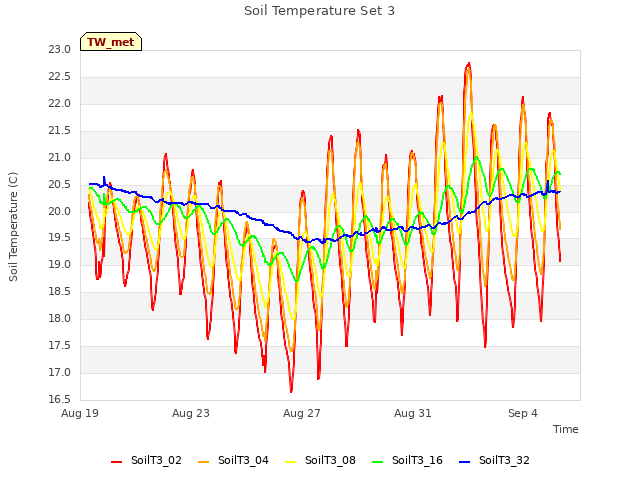

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Water Temperature in a new window

Explore the graph:RH and Pressure in a new window

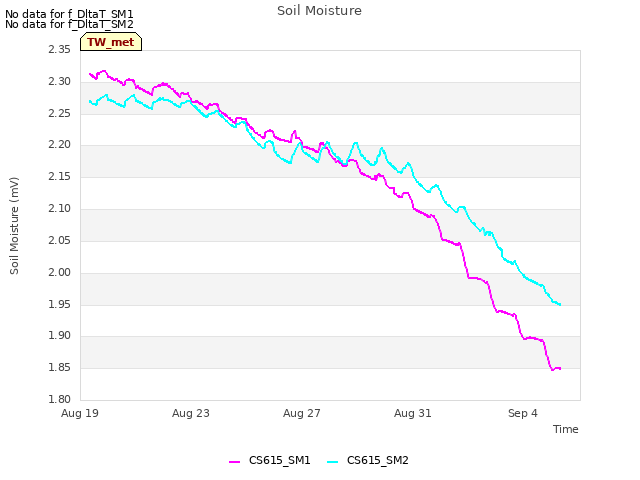

Explore the graph:Soil Moisture in a new window

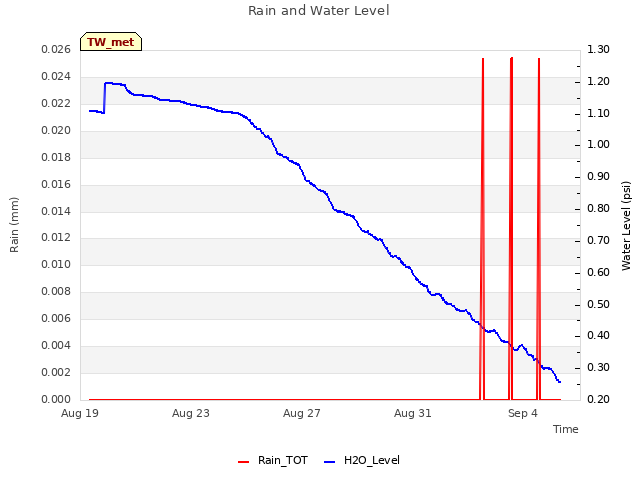

Explore the graph:Rain and Water Level in a new window

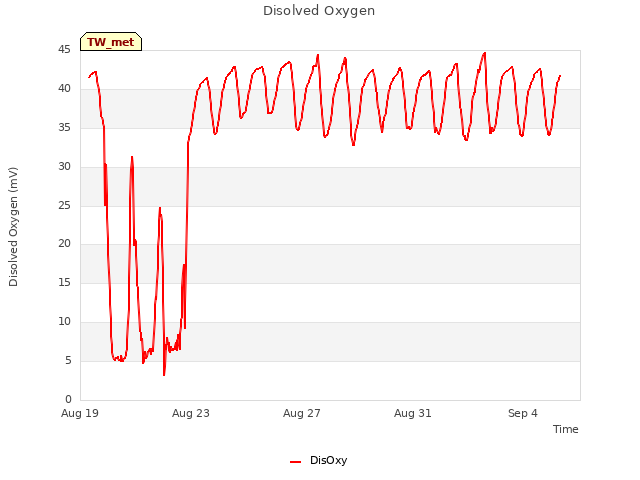

Explore the graph:Disolved Oxygen in a new window

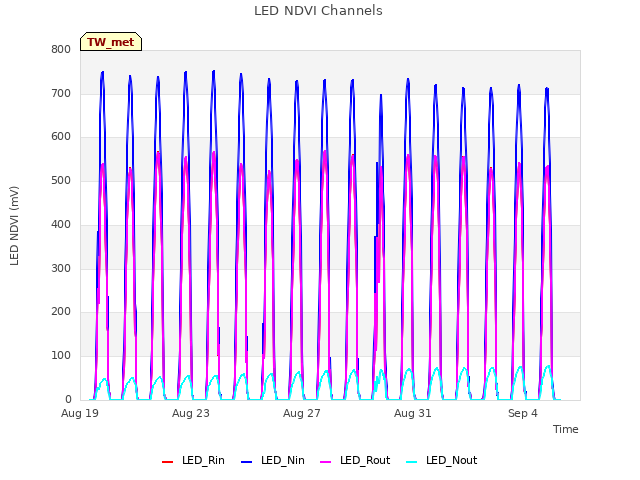

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

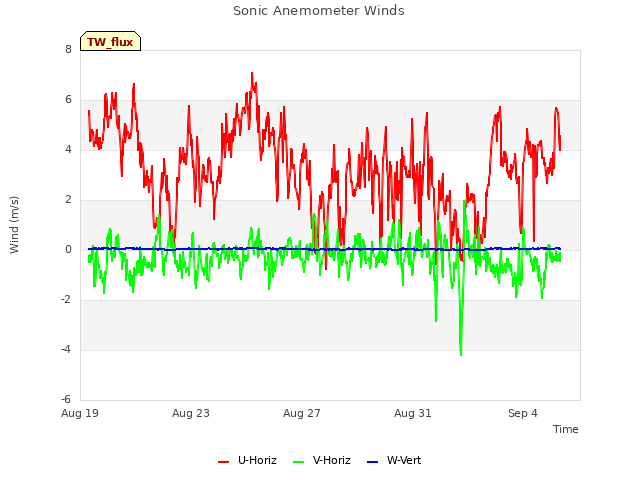

Explore the graph:Sonic Anemometer Winds in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Twitchell CH4 in a new window

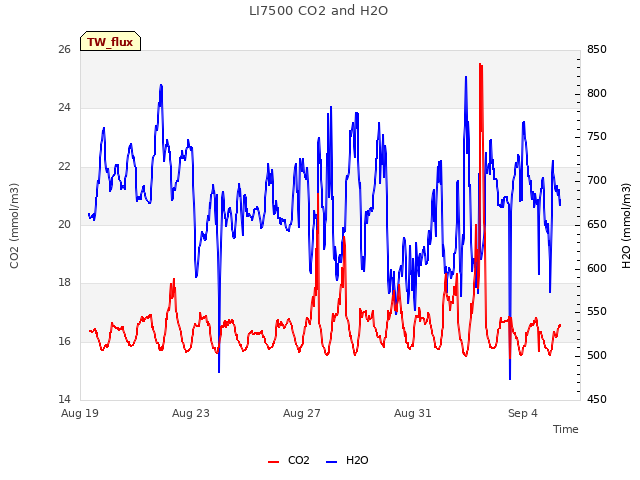

Explore the graph:LI7500 CO2 and H2O in a new window

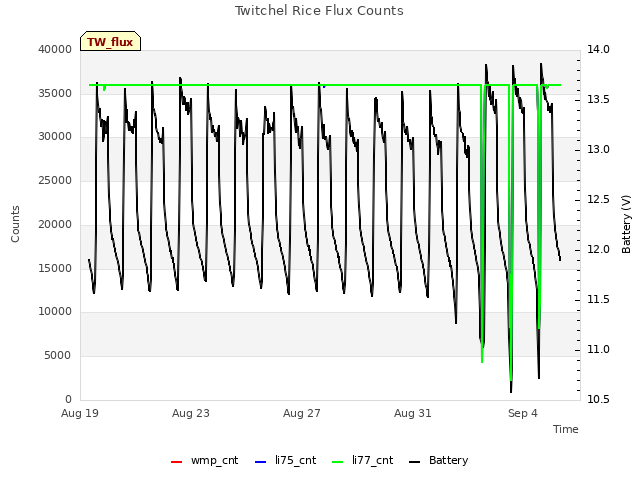

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

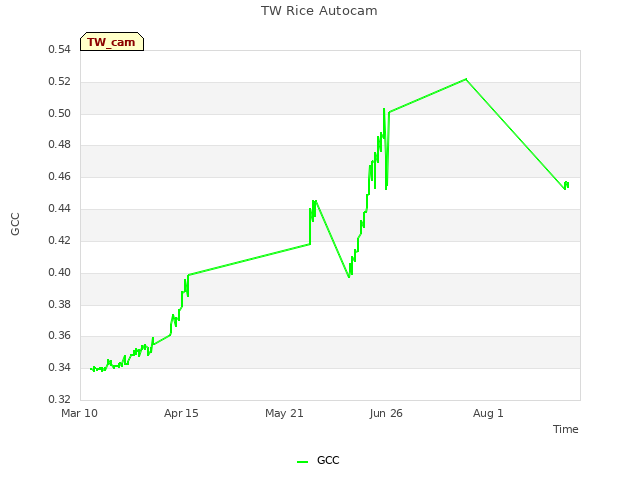

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
