Sherman Island: 2014-08-27 09:20:00 (DOY 239)
Author: Cove Sturtevant
Others: Sara

Summary: Regular site visit. All well.

Sherman
2014-08-27

We arrived around 09:20 PDT. It was sunny, breezy, and cool. The site is mostly tan and brown but there are still patches of green and a patchy green grass understory. I attended to the tower while Sara did spectral and LAI 2000. I did a veg height transect later.

LGR readings: 1.89 ppm, 09:22, 22.4 C, 144.5 Torr, 14.71 us, 10 Hz

7500 readings:
CO2: 16.1 mmol m-3 (same after cleaning)
H2O: 780 mmol m-3 (same after cleaning)
P = 101.9 kPa
T = 24.8 C
Diag: 248 (same after cleaning)
Sos: 345.3 m s-1

Met looked good.
There was no water in the wells.
Cleaned rad.

Veg Height (cm): Tape measure from ground to top of plant - patchy green, mostly brown, grass seems fairly tall
30, 42, 43, 44, 40, 74, 52, 89, 30, 80, 37, 36, 61, 72, 30, 30, 58, 40, 79, 90, avg = 52.9, stdev = 20.85

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

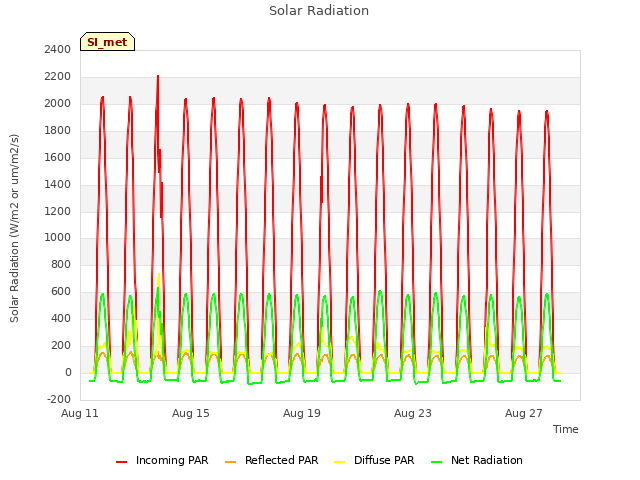

Explore the graph:Solar Radiation in a new window

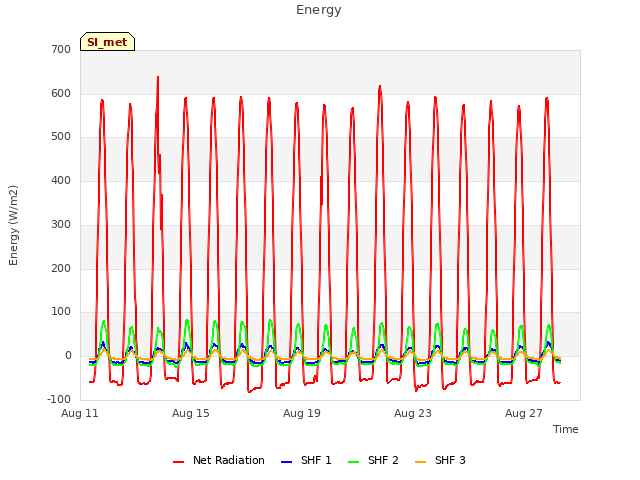

Explore the graph:Energy in a new window

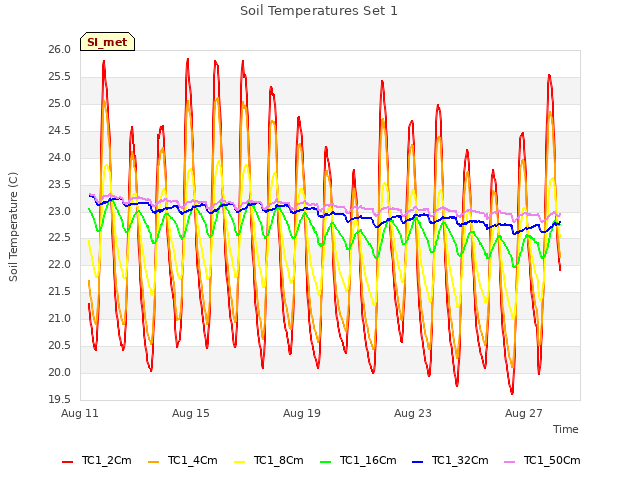

Explore the graph:Soil Temperatures Set 1 in a new window

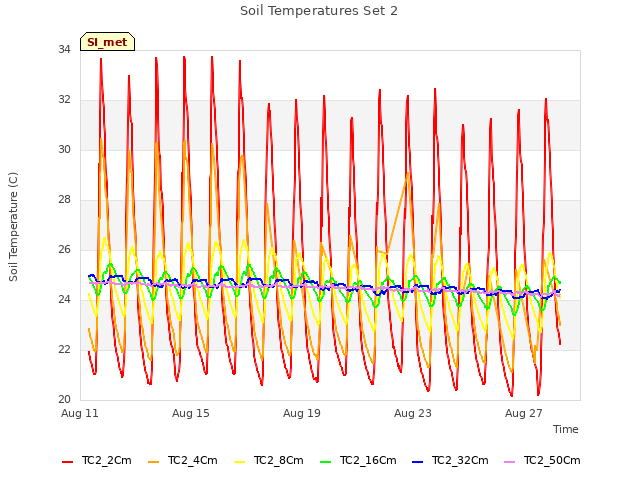

Explore the graph:Soil Temperatures Set 2 in a new window

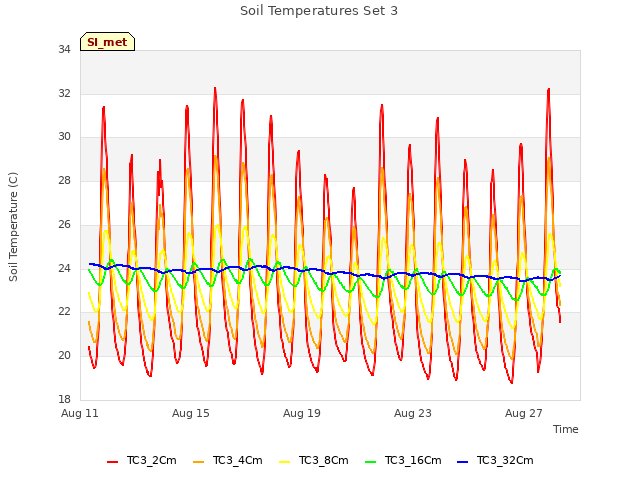

Explore the graph:Soil Temperatures Set 3 in a new window

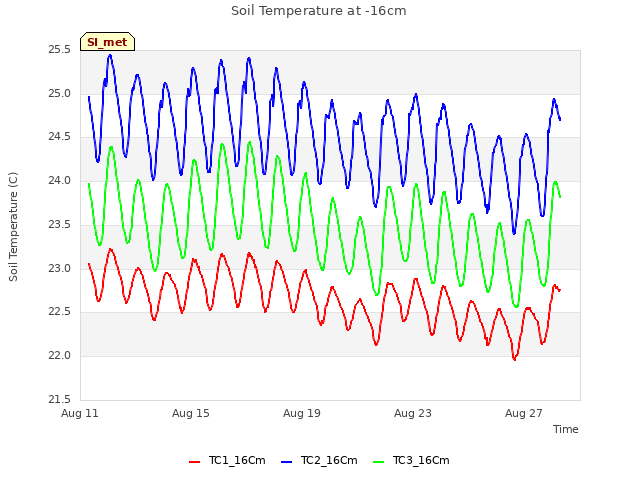

Explore the graph:Soil Temperature at -16cm in a new window

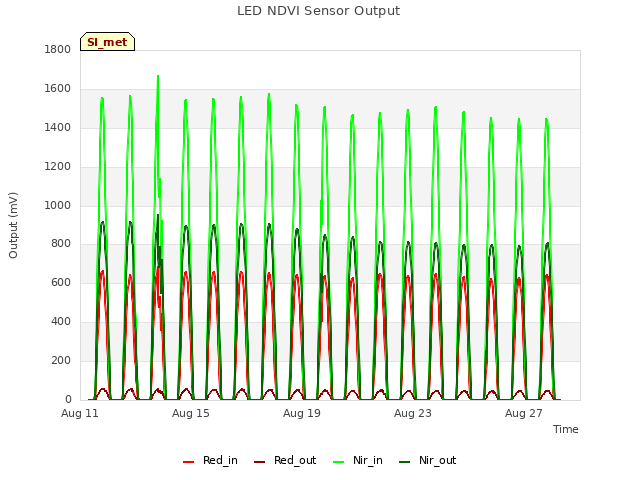

Explore the graph:LED NDVI Sensor Output in a new window

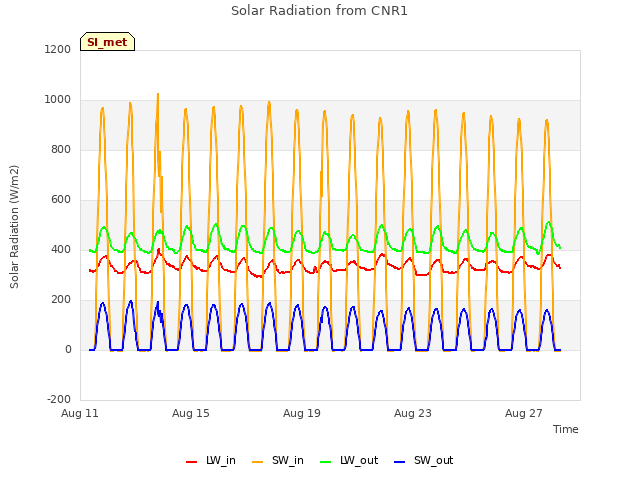

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

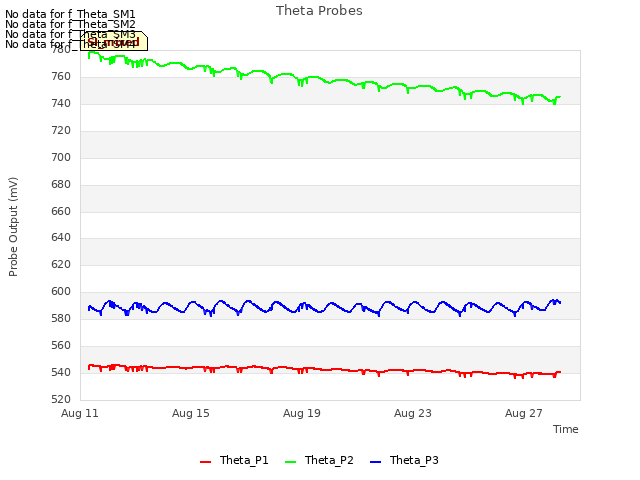

Explore the graph:Theta Probes in a new window

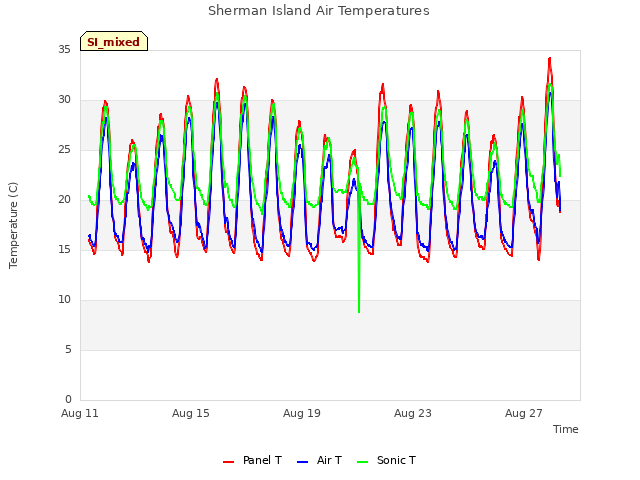

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

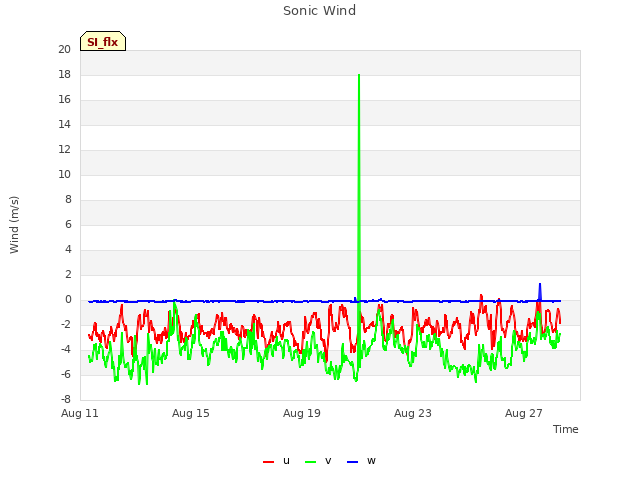

Explore the graph:Sonic Wind in a new window

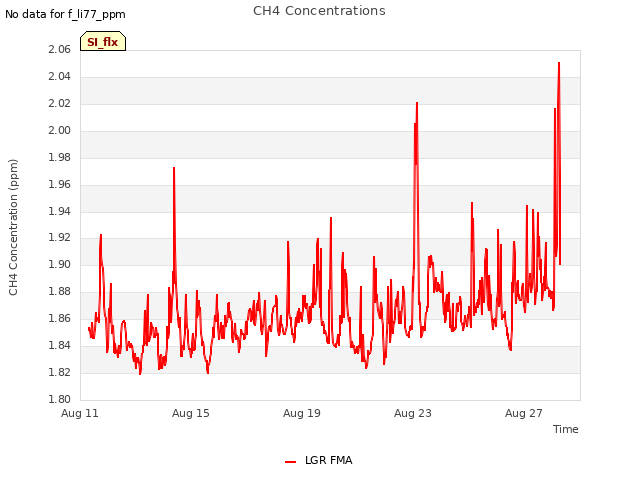

Explore the graph:CH4 Concentrations in a new window

Explore the graph:Sample Counts in a new window

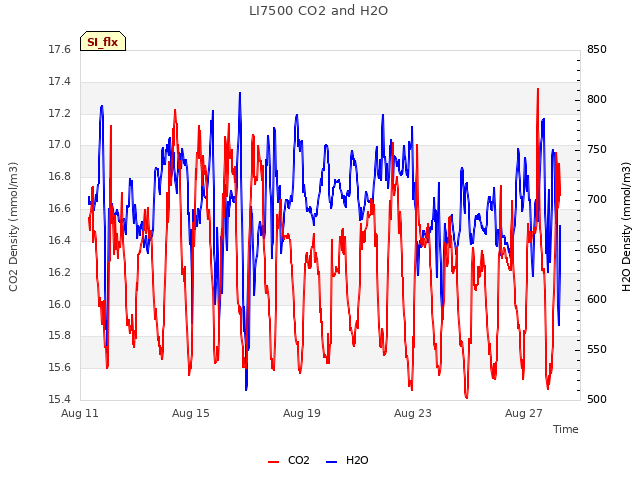

Explore the graph:LI7500 CO2 and H2O in a new window
