East End: 2014-08-27 13:00:00 (DOY 239)
Author: Cove Sturtevant
Others: Sara

Summary: Cattails continuing to fill in, water becoming muckier. Regular site visit. Cut back veg near boardwalk. Need wasp blockers for instrument booms.

East End Wetland
2014-08-27

We arrived about 13:00 PDT. It was sunny and hot with a very light breeze. Cattails continue to fill in the site. The dead bird and rat we saw in the water last time were gone. There was mucky stuff sitting on top of the water and starting to collect around the cattails stems.

Sara took water samples, cleaned the water instruments, and cut back the tall grass that was intruding upon the boardwalk to the tower. I attended to the tower and cleaned the flux and radiation instruments. We need caps for the instrument booms, wasps are becoming interested in making a home.

7500 readings:
CO2 = 15.4 mmol m-3 (same after cleaning)
H2O = 500 mmol m-3 (same after cleaning)
p = 101.6 kPa
t = 33.4 C
Diag: 248 (same after cleaning)

7700 readings:
CH4: 1.9 ppm
RSSI: 43% (87% after cleaning)
Reservoir was full.

MET looked good, although TC 24 was reading high, at 42 C.
Radiometers were dirty.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

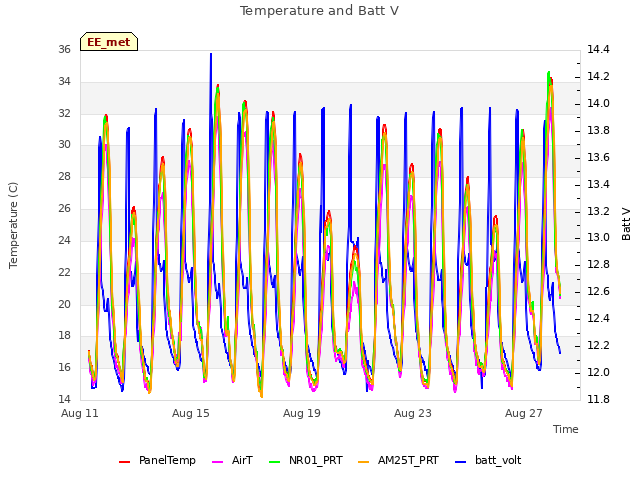

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

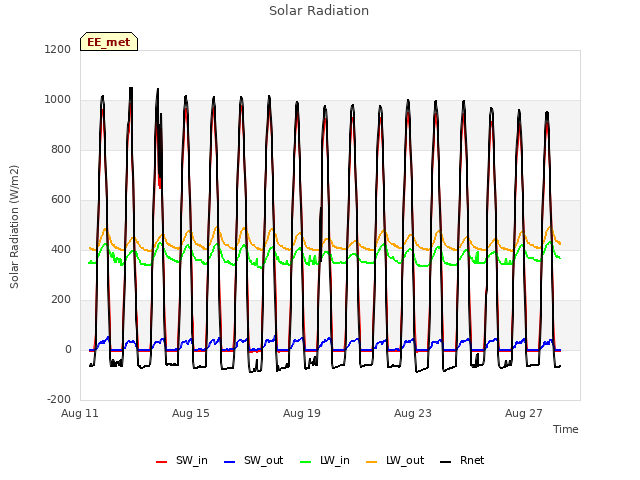

Explore the graph:Solar Radiation in a new window

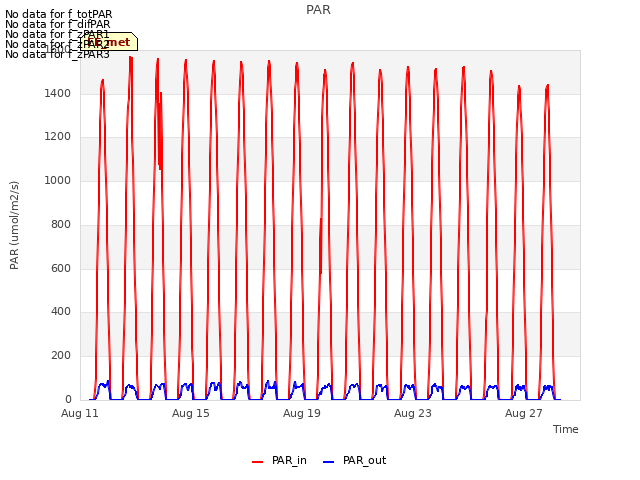

Explore the graph:PAR in a new window

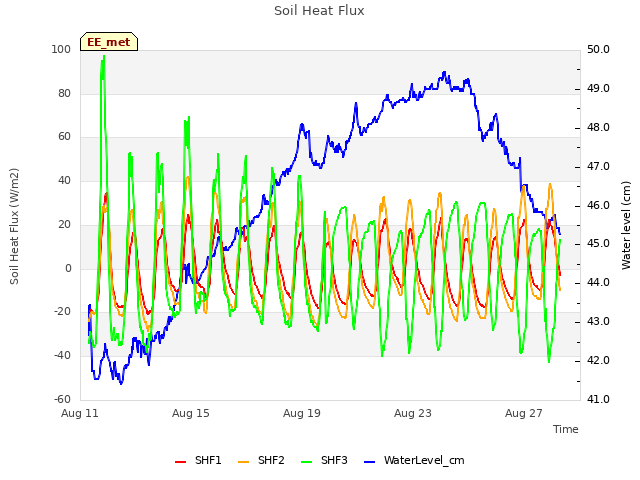

Explore the graph:Soil Heat Flux in a new window

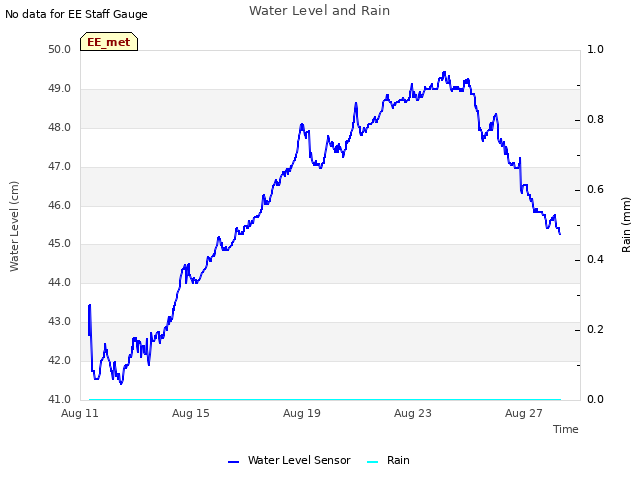

Explore the graph:Water Level and Rain in a new window

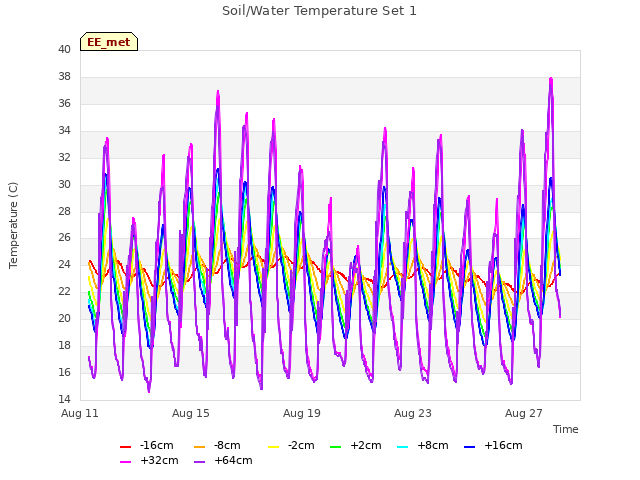

Explore the graph:Soil/Water Temperature Set 1 in a new window

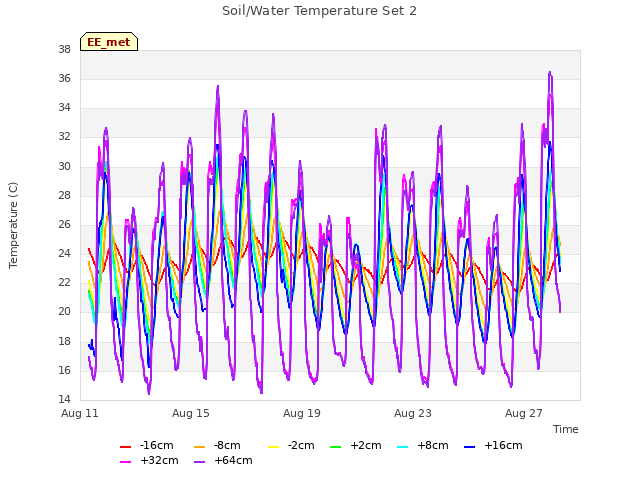

Explore the graph:Soil/Water Temperature Set 2 in a new window

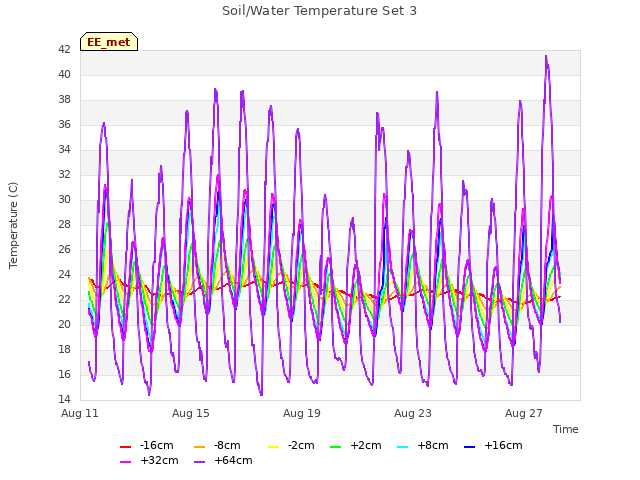

Explore the graph:Soil/Water Temperature Set 3 in a new window

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

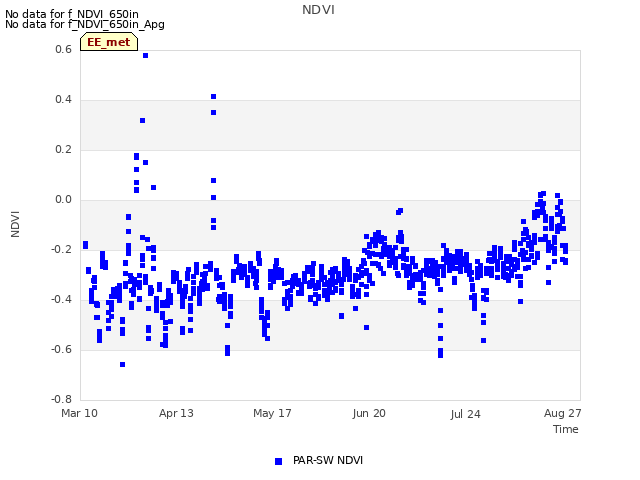

Explore the graph:NDVI in a new window

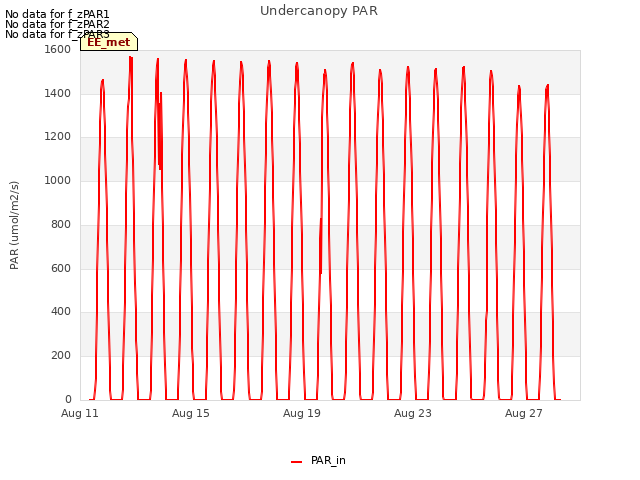

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

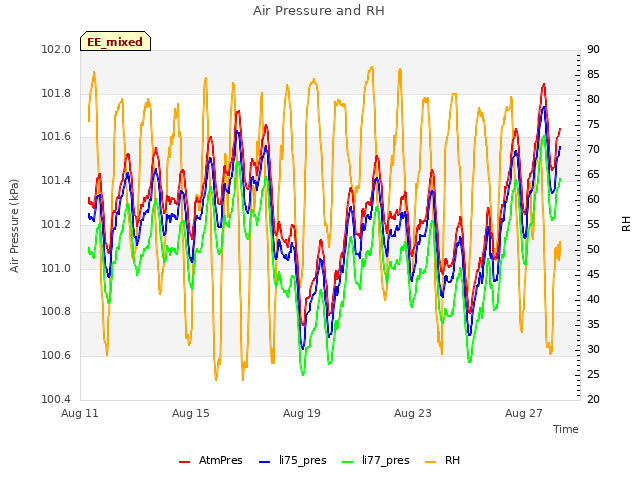

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

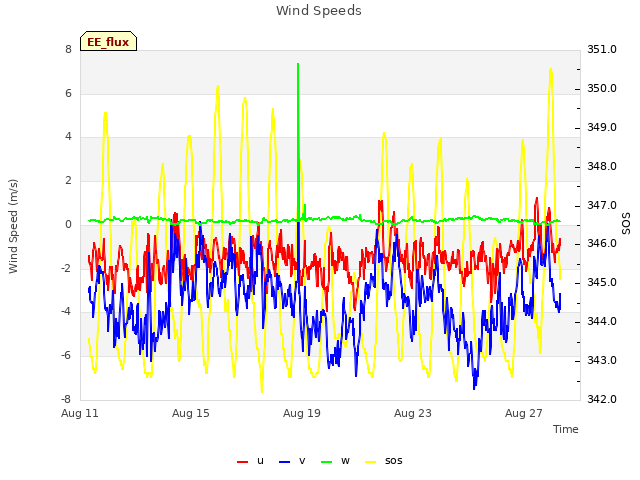

Explore the graph:Wind Speeds in a new window

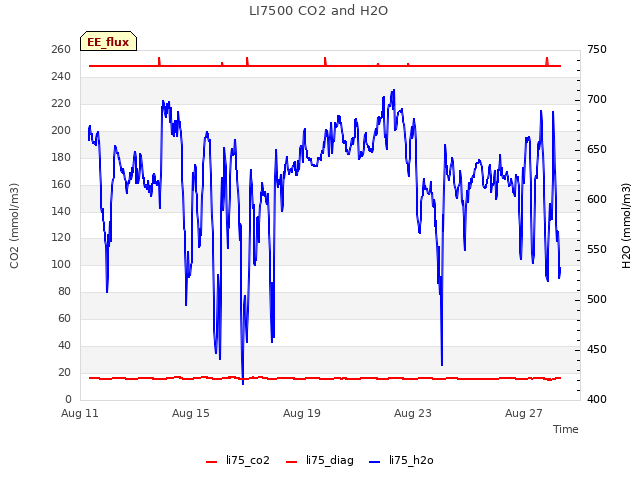

Explore the graph:LI7500 CO2 and H2O in a new window

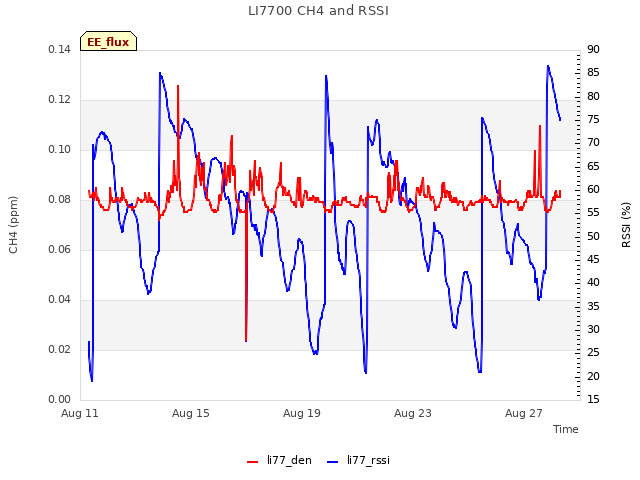

Explore the graph:LI7700 CH4 and RSSI in a new window

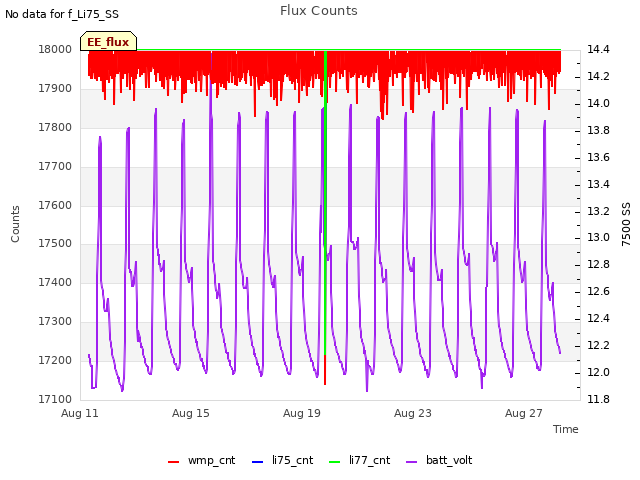

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

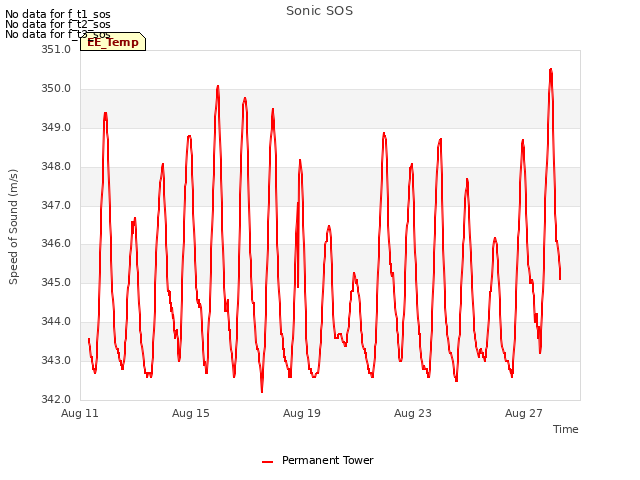

Explore the graph:Sonic SOS in a new window

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

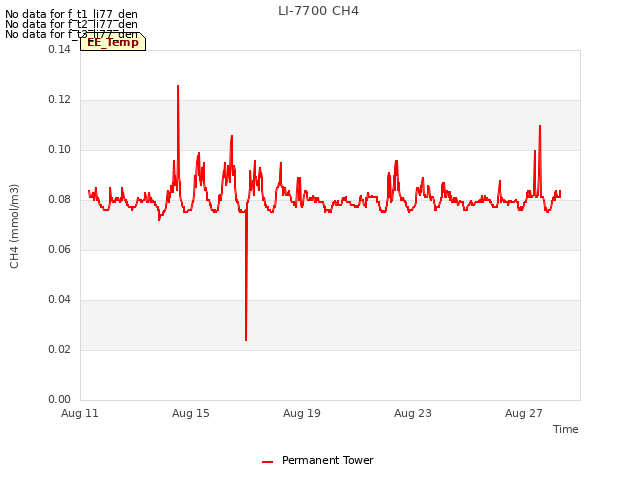

Explore the graph:LI-7700 CH4 in a new window

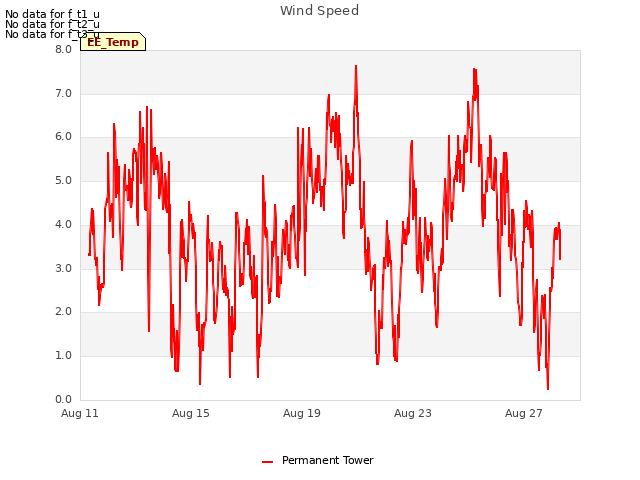

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

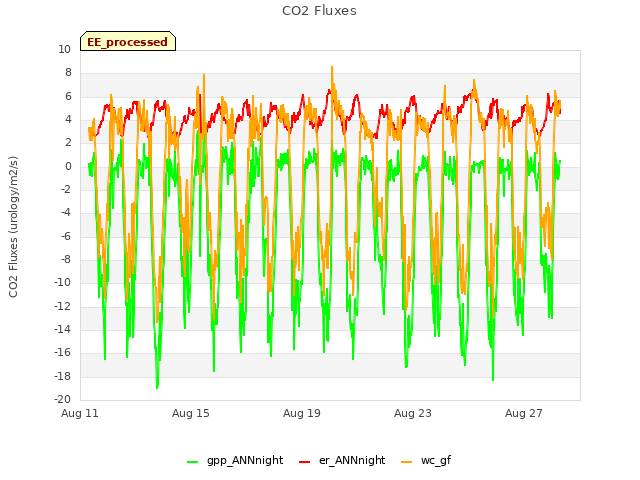

Explore the graph:CO2 Fluxes in a new window
