Mayberry: 2014-07-15 10:00:00 (DOY 196)
Author: Cove Sturtevant
Others: Sara, Kathleen
Summary: Moved portable tower to Low Veg site. Replaced 10x internal battery. Replaced tower car batteries. Water samples at all tower locations.

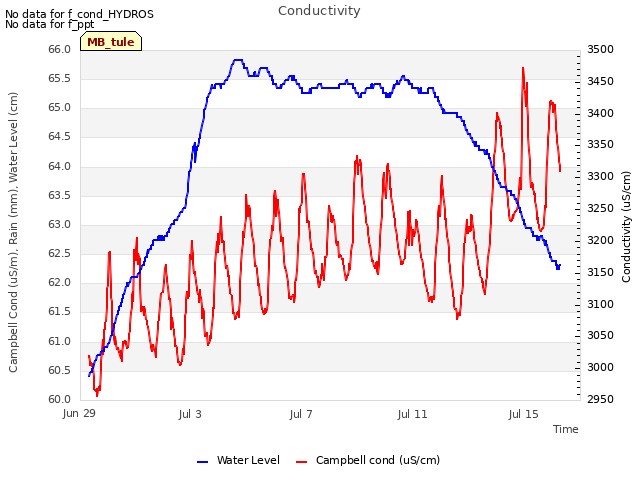

| Mayberry 2014-07-15 Portable Tower We arrived at the High Veg portable tower site at about 10:00 PDT. Downloaded the data. Kathleen took water samples at High Veg. Took pictures of High Veg footprint. Only a few data points from conductivity and TC measurements on 10x due to internal battery failure. Replaced internal battery in 10x and reset station clock. The tower has been losing power in the wee hours of the morning so we also replaced the 2 car batteries on the tower with 2 newer batteries. Moved tower to Low Veg site. Installed tc rod and conductivity probe about 17 m into footprint in open water (~30 cm deep) about halfway to the point where the “inlet†expands into the wider channel. Took photos of Low Veg footprint. Kathleen took water samples at Low Veg. Sonic N at Low Veg site: 315° N magnetic. Tower height (Low Veg): 4.83 m above berm (~ 60 cm from berm to water) Readings after install at Low Veg CO2: 395 ppm H2O: 750 mmol m-3 signal strength = 90.0% t: 22.5 °C p = 101.4 kPa sos = 346.2 m s-1 CH4: 1.92 ppm RSSI: 50.2% (69% after cleaning) Topped off reservoir. Permanent Tower All well. Collected data. Took water samples. Re-leveled upward PAR sensor, was tilted. Sara took spectral measurements from tower – 2 over veg to the west, 1 over the water to the north. Readings: CO2: 393 ppm (same after cleaning) H2O: 860 mmol m-3 (same after cleaning) signal strength = 95.2 after cleaning t: 24.8 °C p = 101.3 kPa sos = 347.5 m s-1 CH4 = 2.0 ppm (same after cleaning) RSSI = 39% (71% after cleaning) Topped off reservoir. Met looked good. Cleaned rad.  |
0 photos found
11 sets found

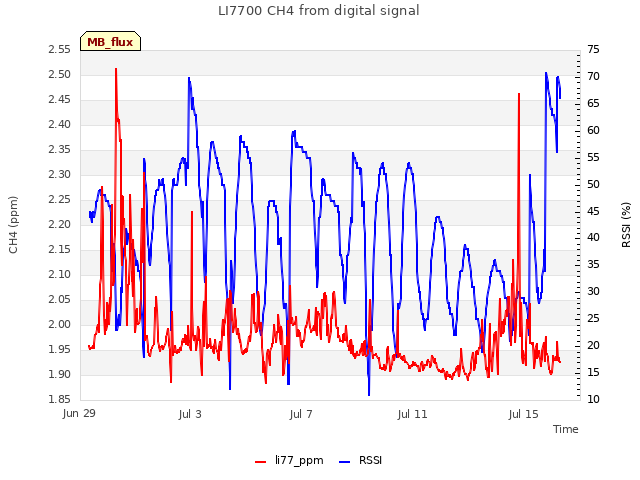

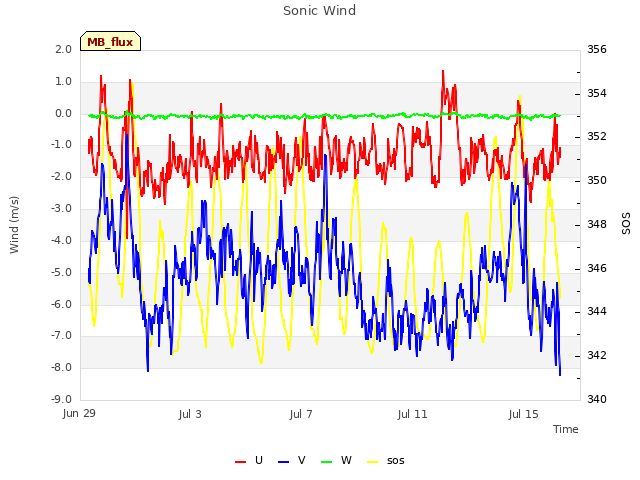

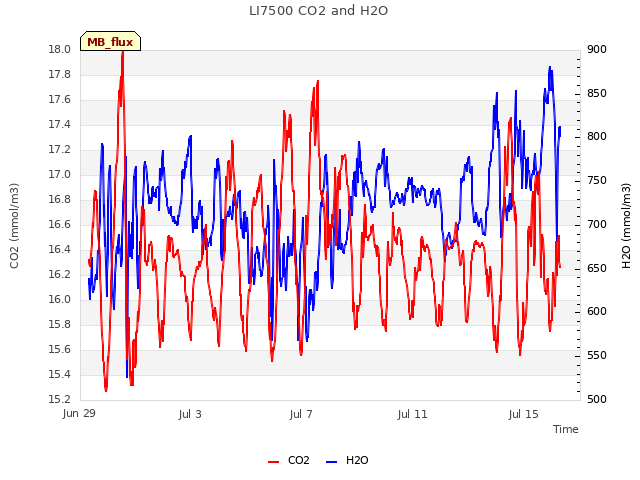

7 MB_flux graphs found
No data found for MB_met.

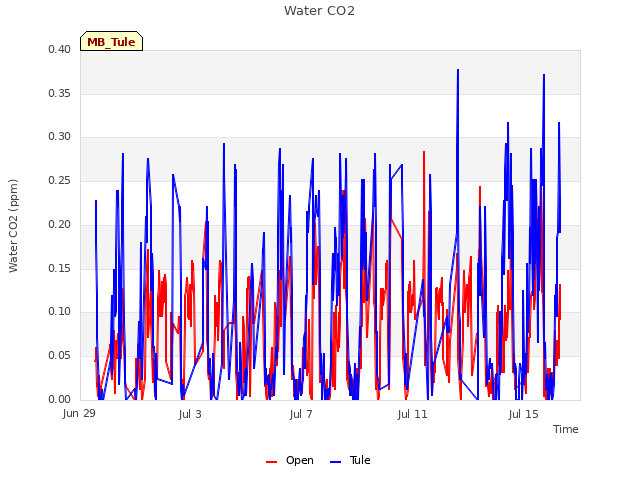

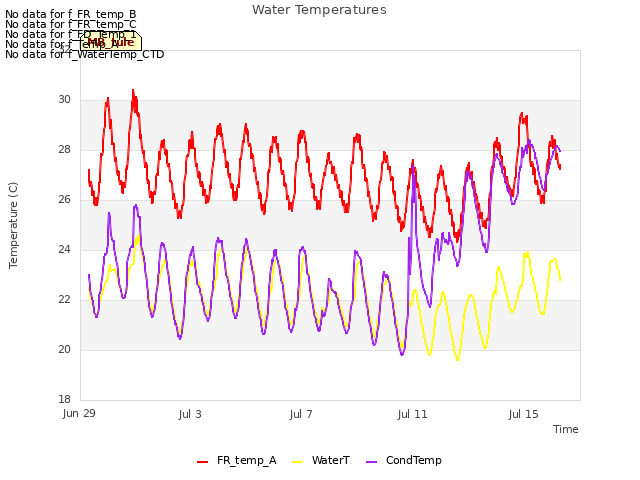

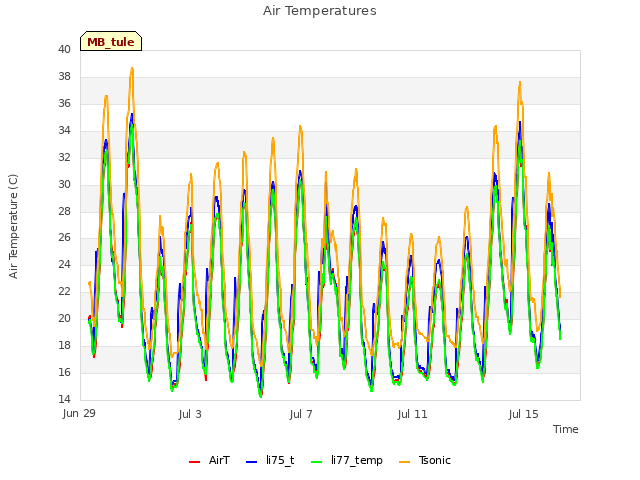

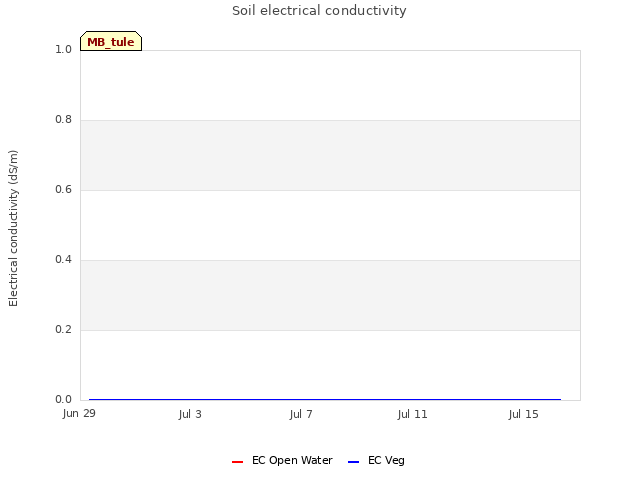

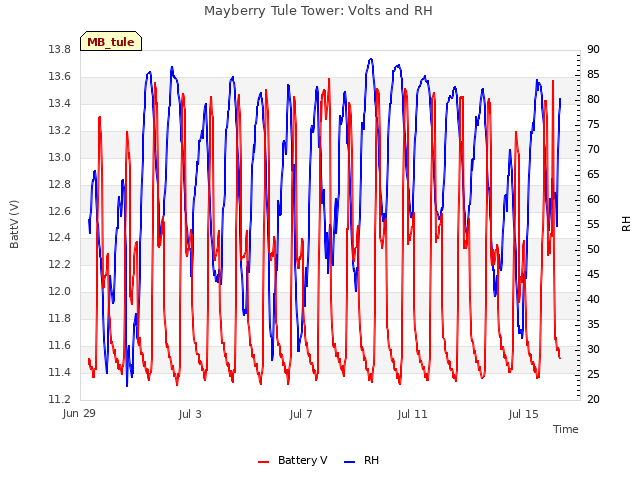

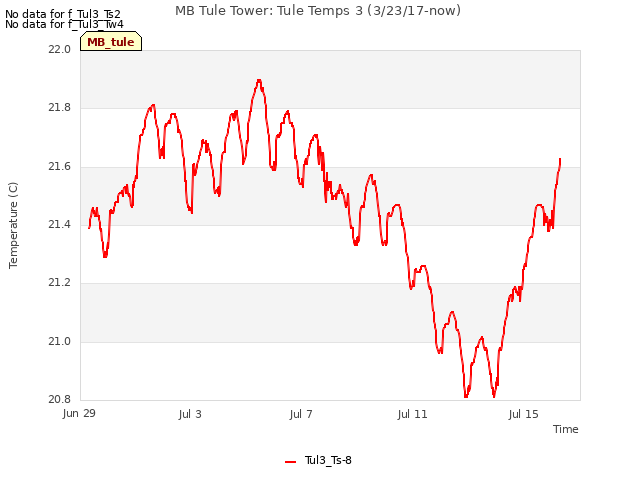

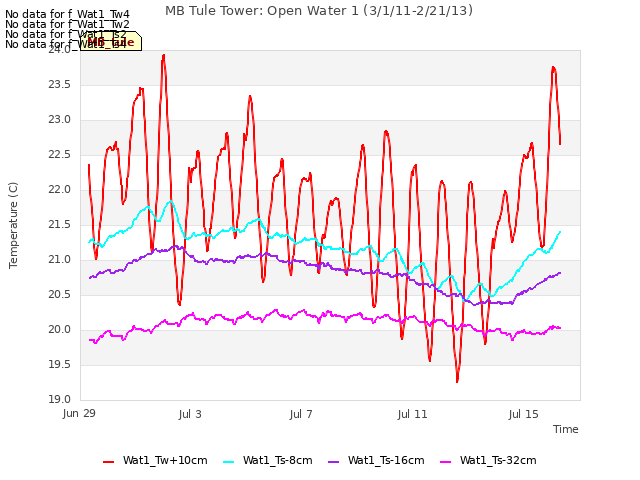

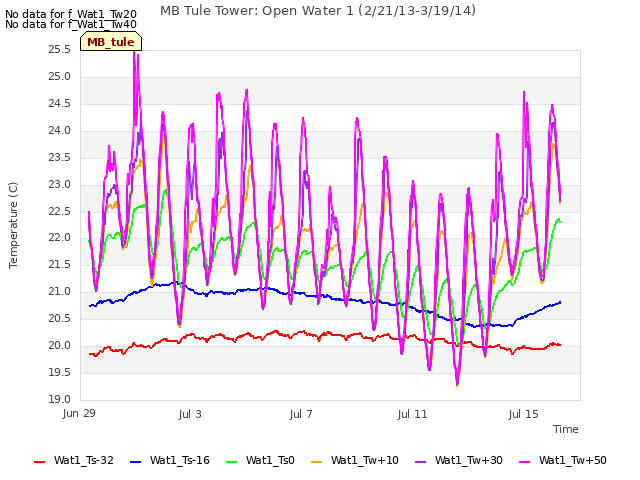

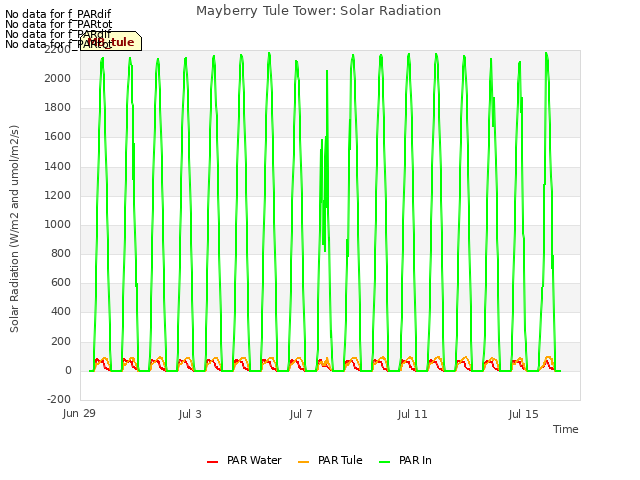

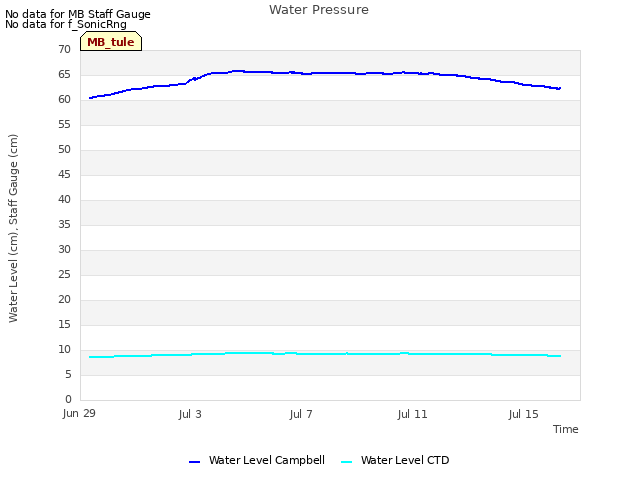

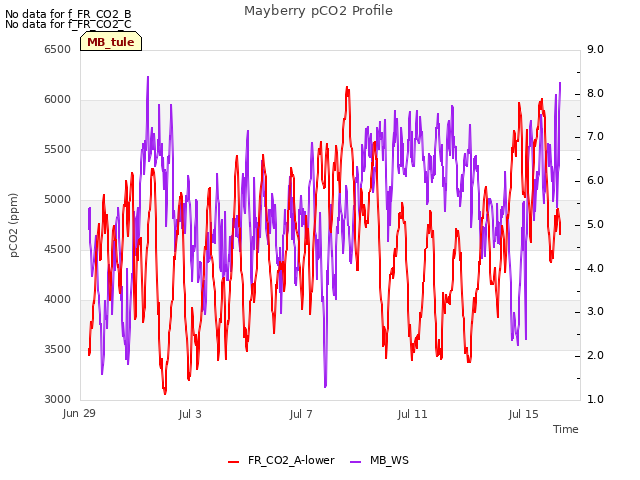

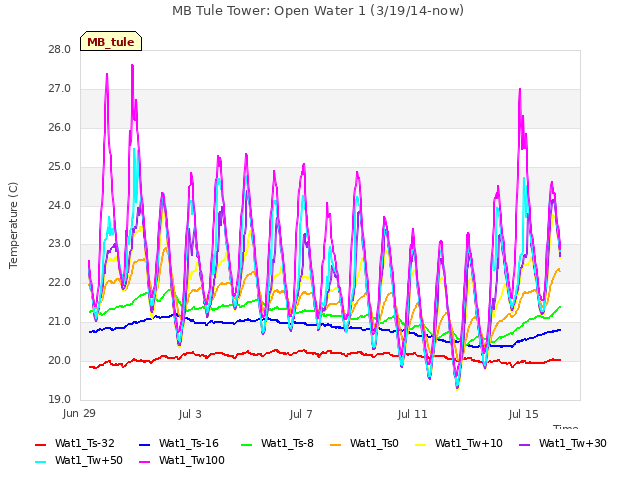

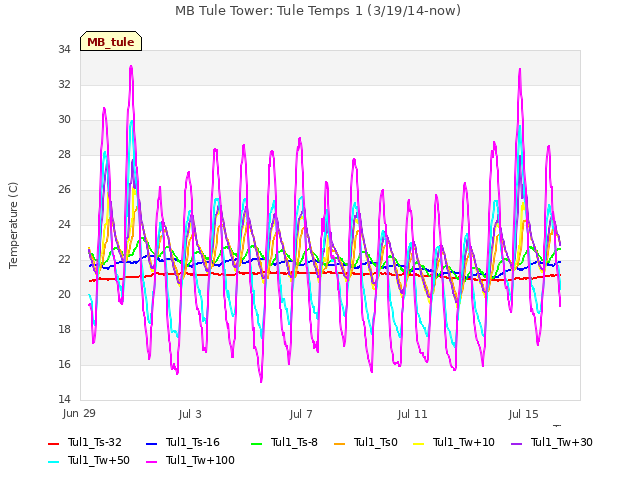

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

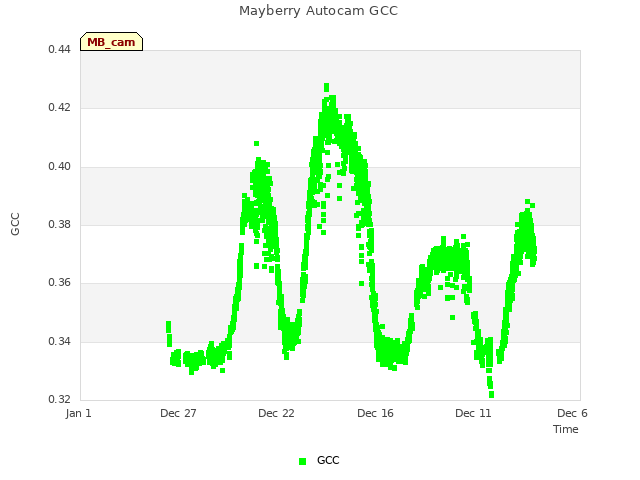

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA

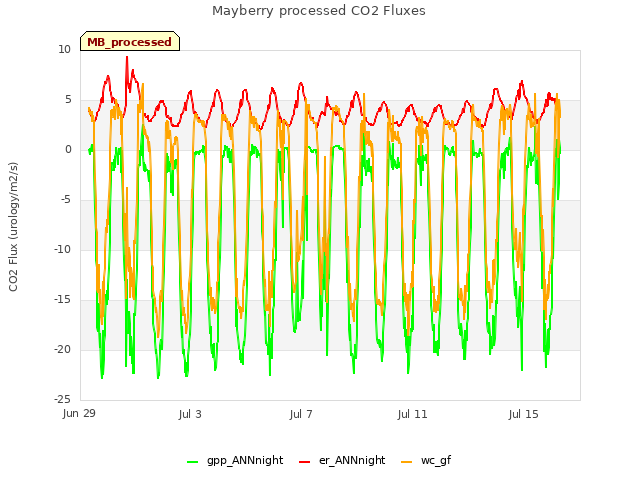

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
