Sherman Island: 2014-07-15 09:00:00 (DOY 196)
Author: Cove Sturtevant
Others: Sara, Kathleen

Summary: Regular field work and site check. All good.

Sherman
2014-07-15

We arrived around 09:00 PDT. It was overcast, cool, and windy. The site is mostly golden but there are some green pepperweed and other forbs mixed in. I attended to the tower while Kathleen did a veg height transect and moisture point. Sara did soil respiration and spectral. I did well depth.

LGR readings: 1.85 ppm, 09:11, 22.5 C, 136.5 Torr (adjusted to 143.5 Torr), 14.72 us, 10 Hz

7500 readings:
CO2: 16.3 mmol m-3 (same after cleaning)
H2O: 750 mmol m-3 (same after cleaning)
P = 101.5 kPa
T = 22.8 C
Diag: 248
Sos = 345 m s-1

Soil CO2 looked good.
Met looked good.
Cleaned rad.

Veg Height (cm): Tape measure from ground to top of plant - pepperweed mostly dried out.Grass dry.
65, 50, 6, 12, 80, 100, 14, 85, 70, 80, 90, 10, 5, 88, 62, 45, 70, 73, 22, 80, avg = 55.4, stdev = 32.2

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

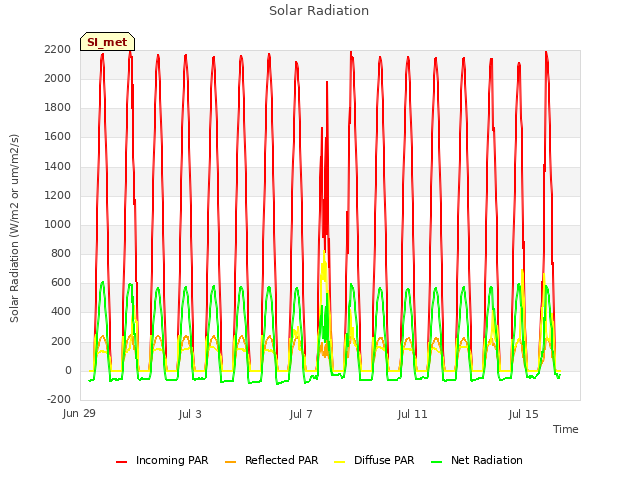

Explore the graph:Solar Radiation in a new window

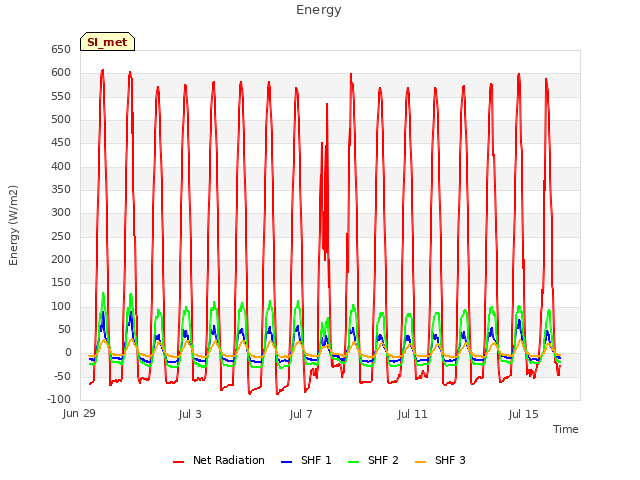

Explore the graph:Energy in a new window

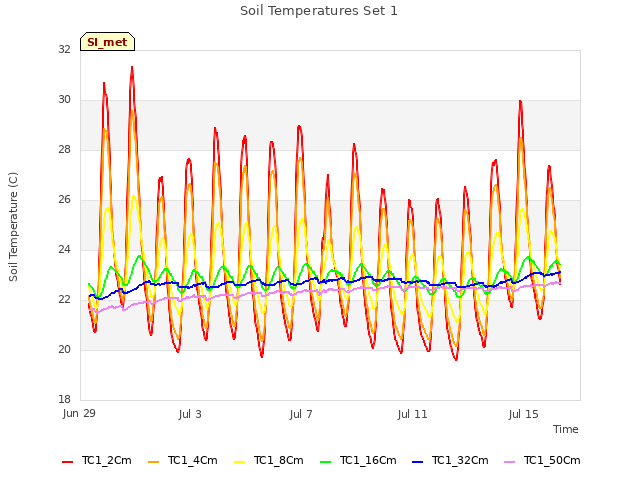

Explore the graph:Soil Temperatures Set 1 in a new window

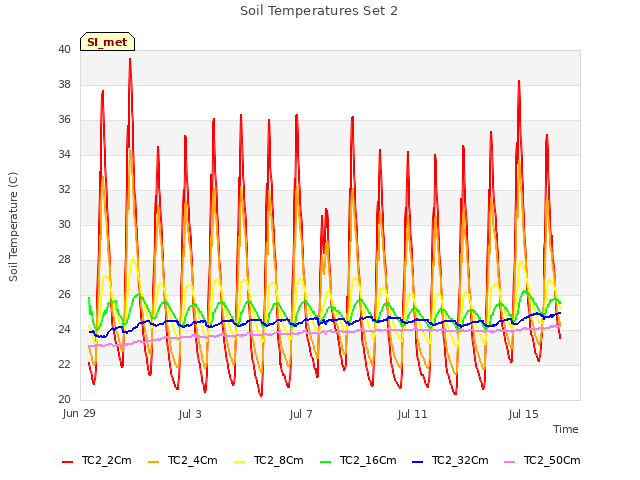

Explore the graph:Soil Temperatures Set 2 in a new window

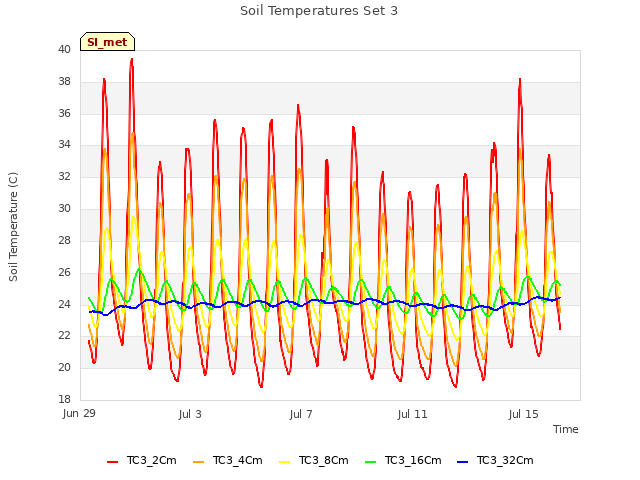

Explore the graph:Soil Temperatures Set 3 in a new window

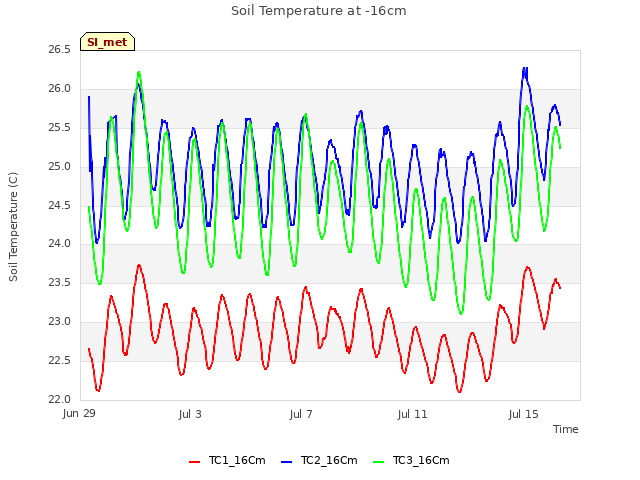

Explore the graph:Soil Temperature at -16cm in a new window

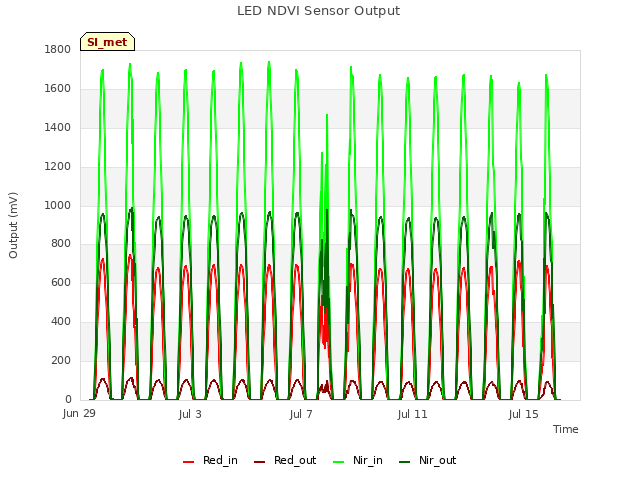

Explore the graph:LED NDVI Sensor Output in a new window

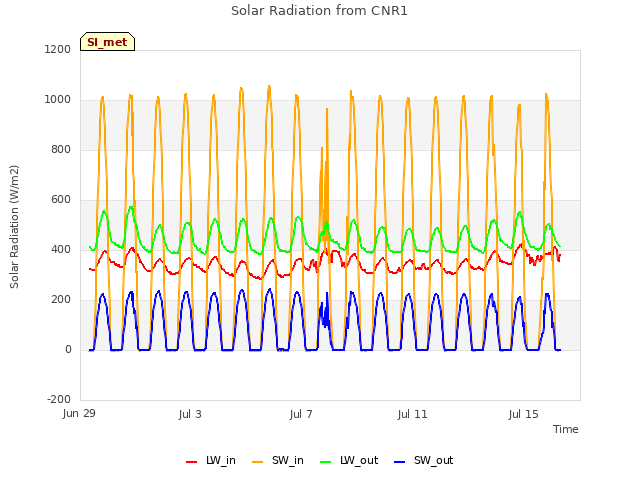

Explore the graph:Solar Radiation from CNR1 in a new window

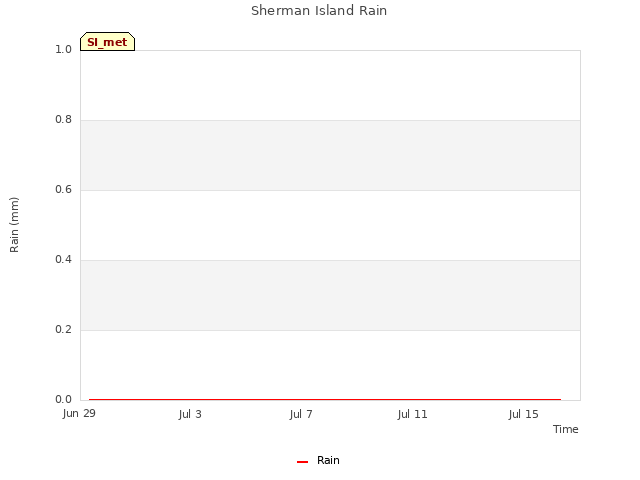

Explore the graph:Sherman Island Rain in a new window

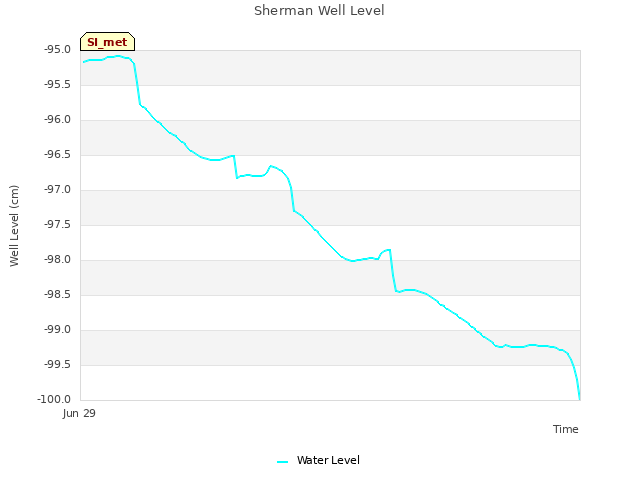

Explore the graph:Sherman Well Level in a new window

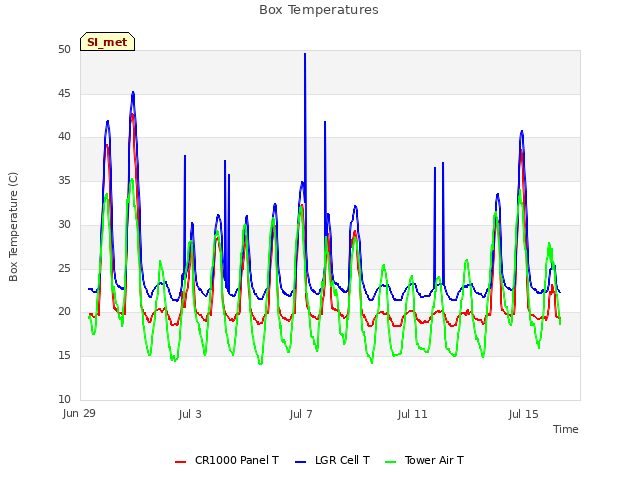

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

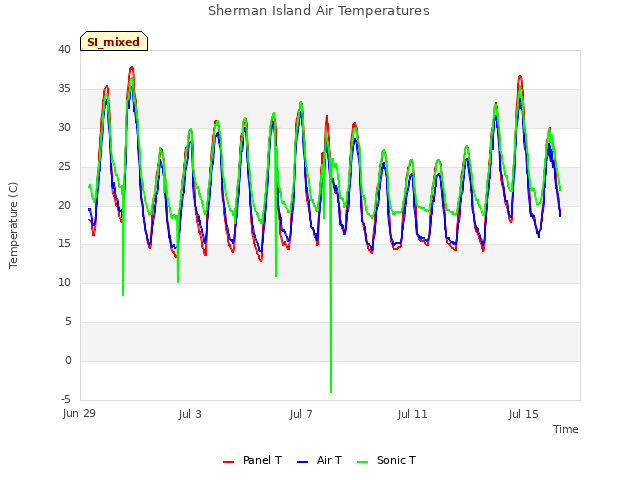

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

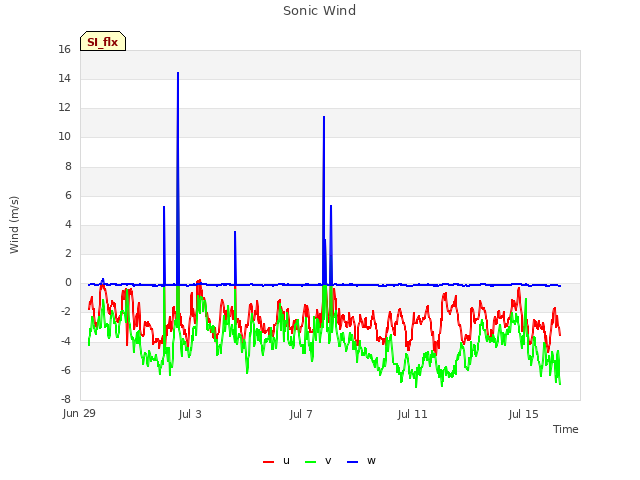

Explore the graph:Sonic Wind in a new window

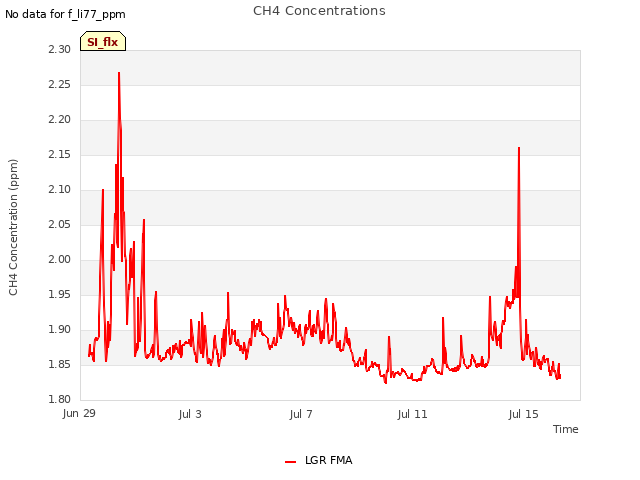

Explore the graph:CH4 Concentrations in a new window

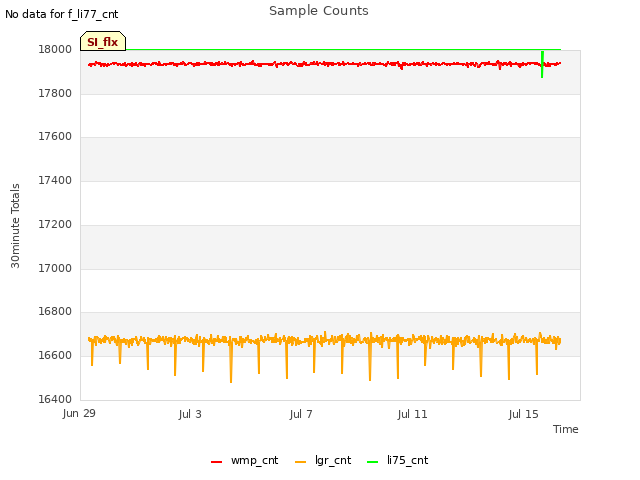

Explore the graph:Sample Counts in a new window

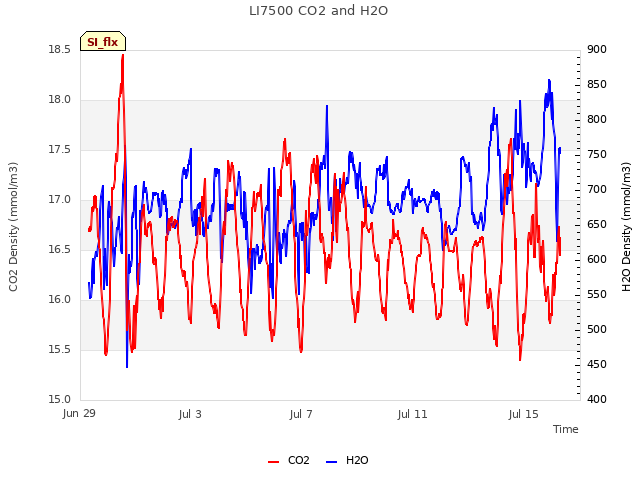

Explore the graph:LI7500 CO2 and H2O in a new window

4 SI_soilco2 graphs found

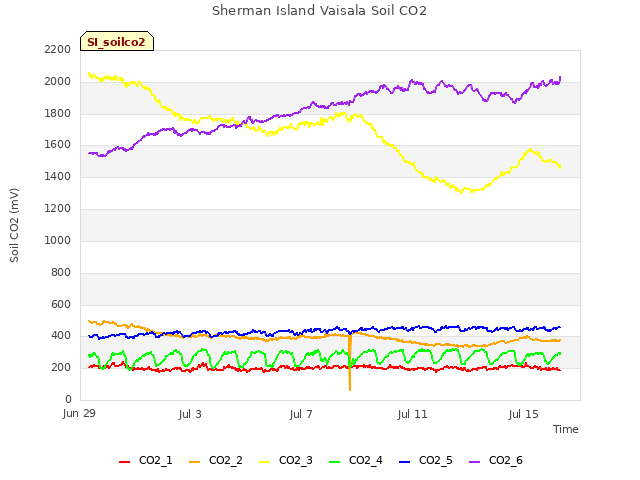

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

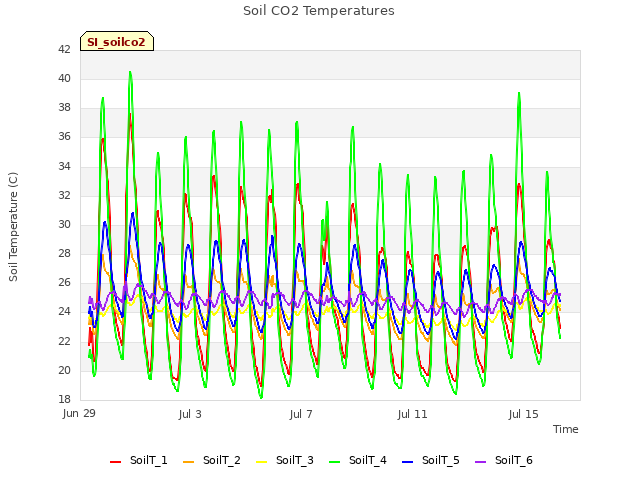

Explore the graph:Soil CO2 Temperatures in a new window

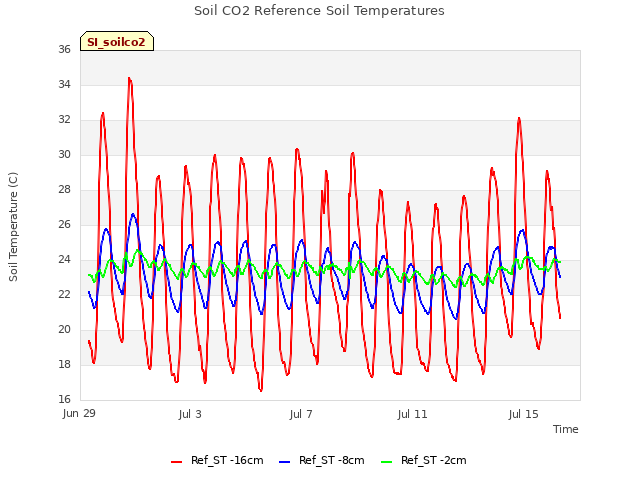

Explore the graph:Soil CO2 Reference Soil Temperatures in a new window

Explore the graph:Forced Diffusion Chambers in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
