Field Notes

<--2014-07-02 13:45:00 | 2014-07-15 14:30:00-->
Other sites visited today: Sherman Island | Mayberry | Twitchell Rice | East End | Twitchell Alfalfa

West Pond: 2014-07-08 15:07:00 (DOY 189)
Author: Patty Oikawa
Others: Madeleine, Kathleen

Summary: Cleaned sensors, downloaded data, CO2 probe almost out of water

We arrived at 15:07. It was sunny and warm, the water was fairly high. As we left we saw the inlet was on. Kathleen cleaned the sensors as Mad and I were too scared to go up there. Kathleen didn’t move the boom and the wasps didn’t seem to notice she was there. No stings this week!
I downloaded data. The forerunner CO2 probe sn: GP20140009. This probe is just barely submerged (~1cm of bottom of probe submerged)—we may want to lower this next week.

7500
CO2: 392.57 umol/mol
H2O: 611.5 mmol/m3
SS: 80.65% (81.37 after cleaning)
Pressure: 101.72 kPa
Temperature: 32.45ËšC
SOS: 353.26 m s-1

7700
CH4: 1.92ppm (1.94 after cleaning)
RSSI: 38.63% (78.34 after cleaning)

Reservoir: OK
Met: OK

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

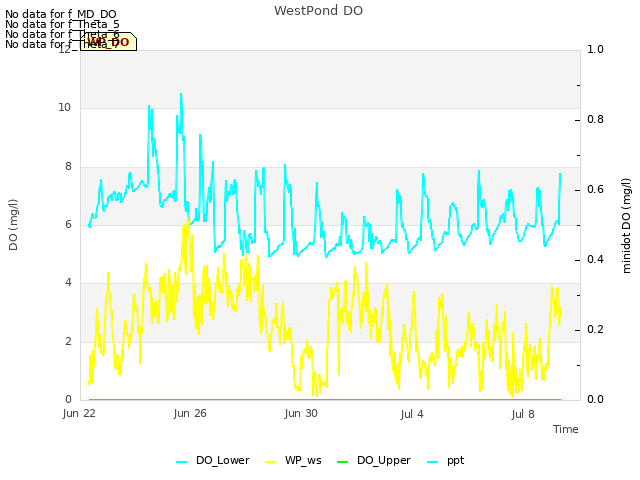

WestPond DO

14 WP_met graphs found

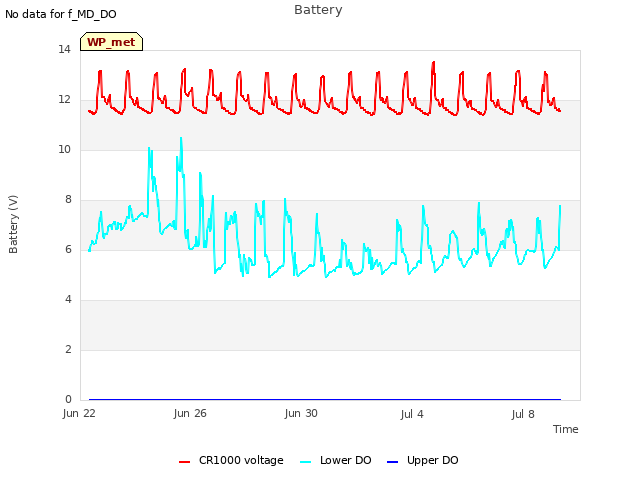

Battery

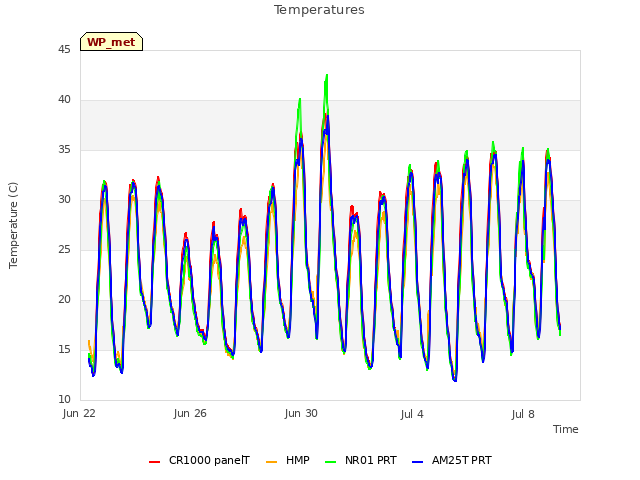

Temperatures

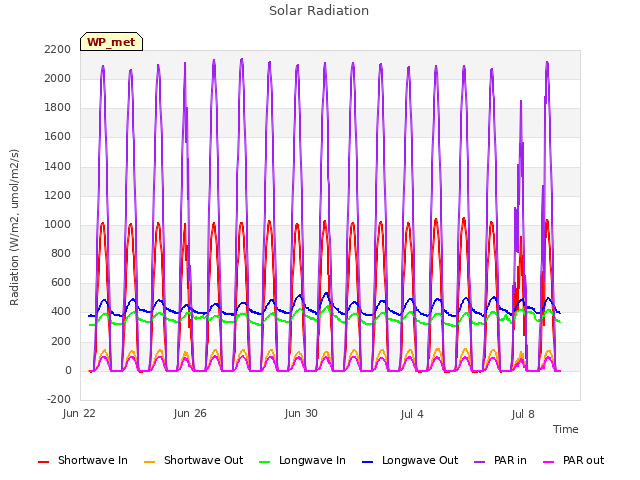

Solar Radiation

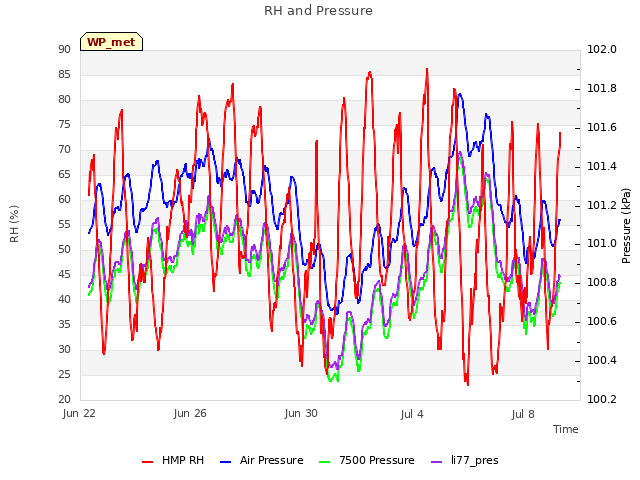

RH and Pressure

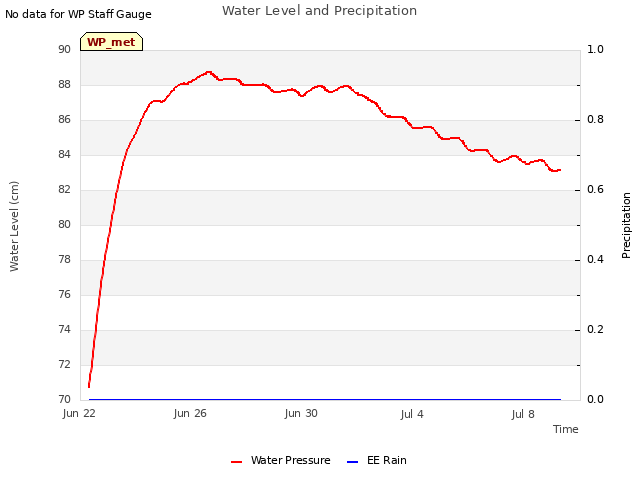

Water Level and Precipitation

Conductivity

Temperatures Set A

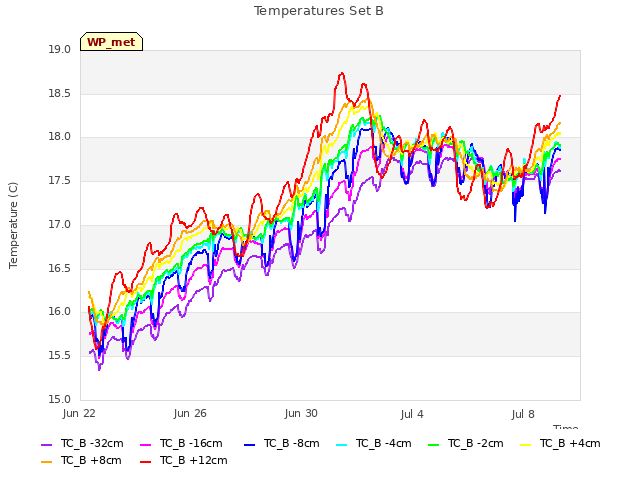

Temperatures Set B

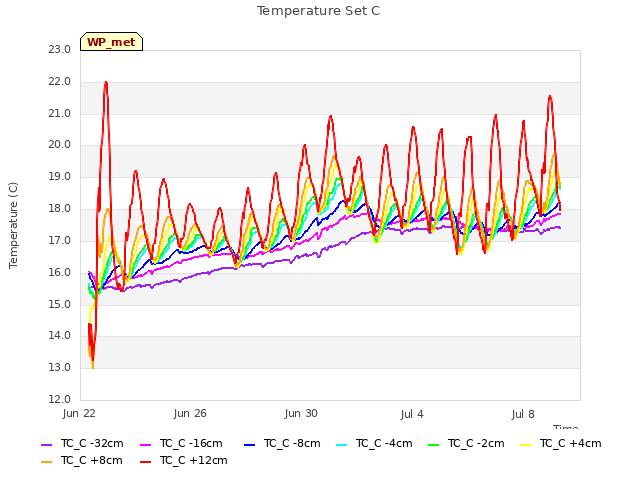

Temperature Set C

Water CO2 and Temp

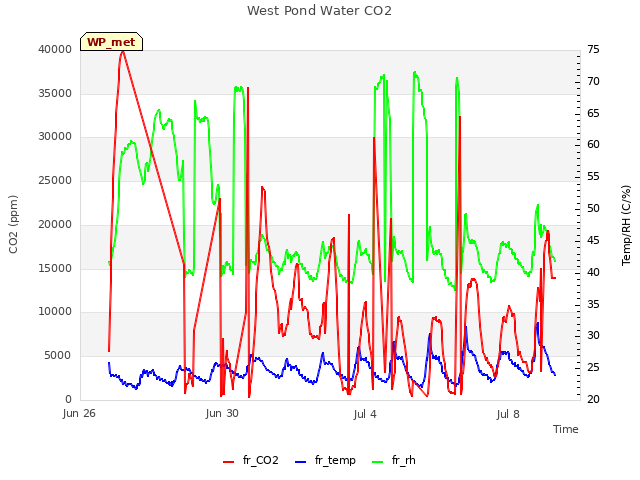

West Pond Water CO2

WP miniDOT Dissolved Oxygen

SRS NDVI Channels

NDVI

5 WP_flux graphs found

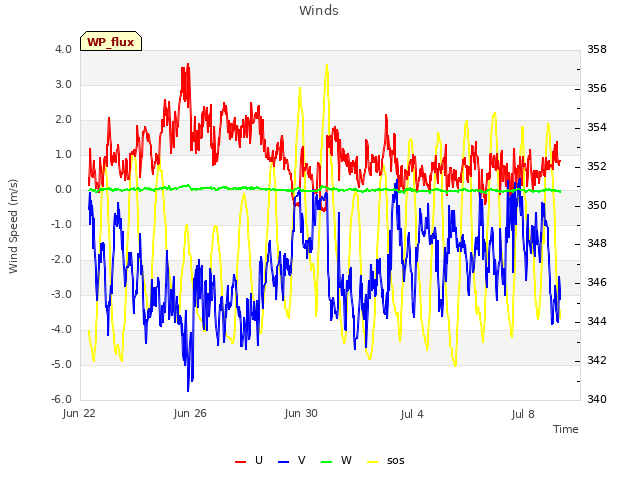

Winds

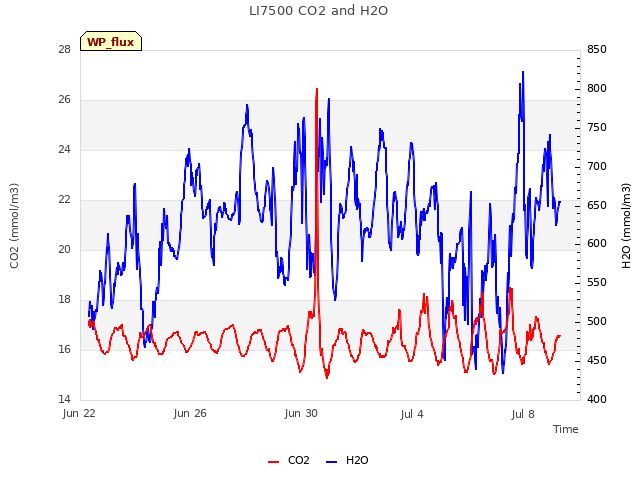

LI7500 CO2 and H2O

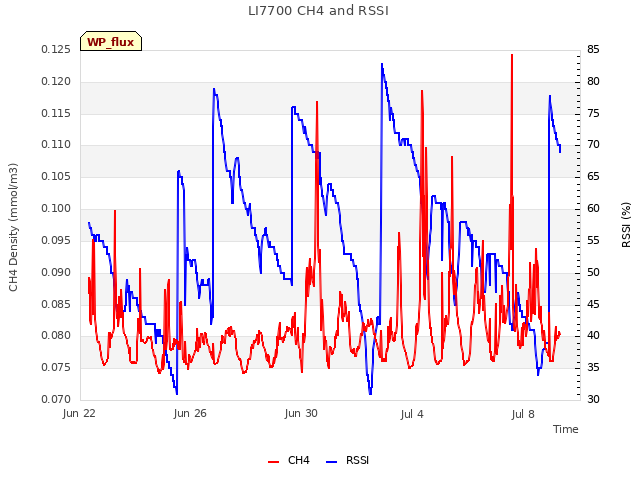

LI7700 CH4 and RSSI

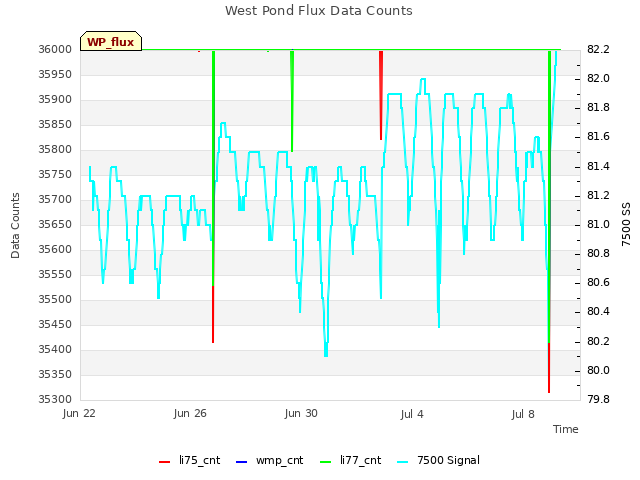

West Pond Flux Data Counts

Air Temperatures

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

WP CO2 Fluxes

No data found for WP_arable.
