East End: 2014-07-08 14:30:00 (DOY 189)
Author: Patty Oikawa
Others: Madeleine, Kathleen

Summary: Cleaned sensors, data download, things look good

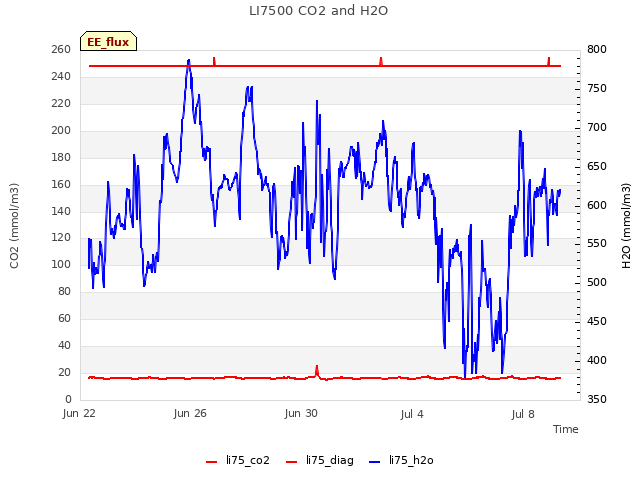

We arrived at 14:30. The water was high; it was sunny and breezy. Mad cleaned the sensors and Kathleen went in the water to check the sn of the co2 forerunner probe: sn GP20140011. I downloaded data. I couldn’t delete old photos from the camera card so I just reinstalled it with the old photos on it—hope that’s ok. Otherwise everything else looked good. 7500 CO2: 15.67 mmol m-3 H2O: 657.24 mmol/m3 Pressure: 101.03 kPa Temperature: 34.55˚C SOS: 350.0 m s-1 7700 CH4: 1.92ppm (1.87 after cleaning) RSSI: 57.34% (85.41 after cleaning) Reservoir: OK Met: OK

0 photos found

Graphs display: days

11 sets found

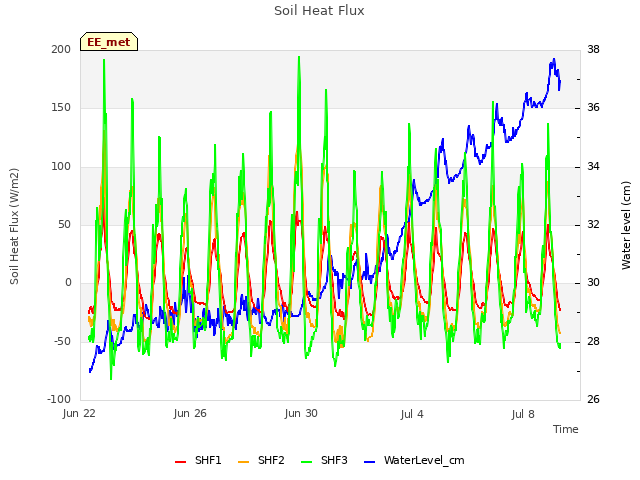

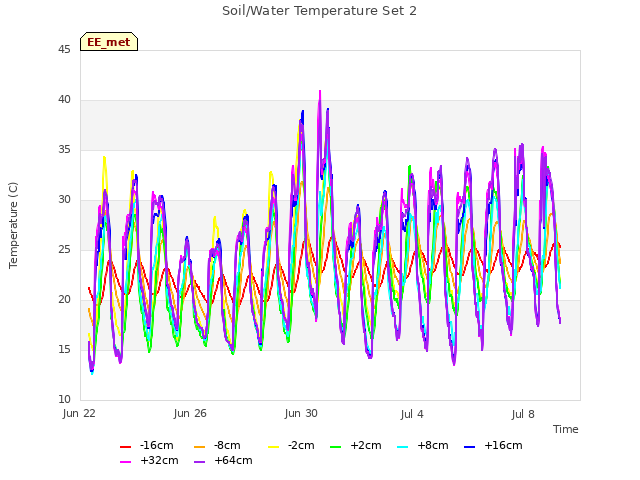

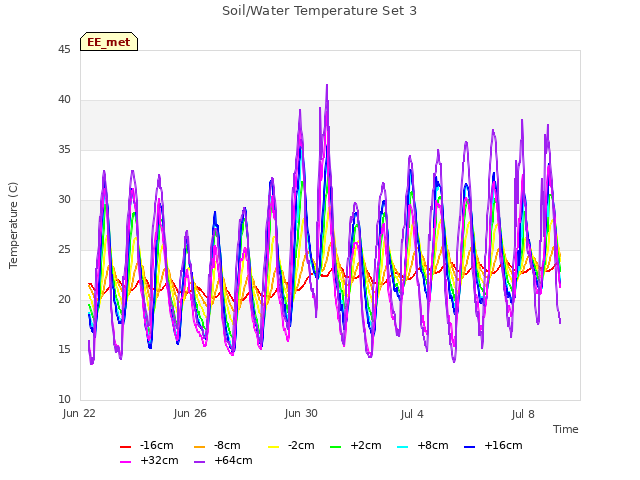

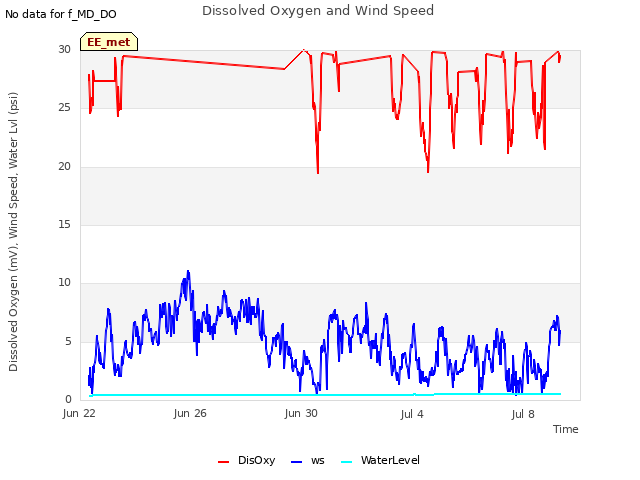

14 EE_met graphs found

Can't check EE_mixed
1 EE_mixed graphs found

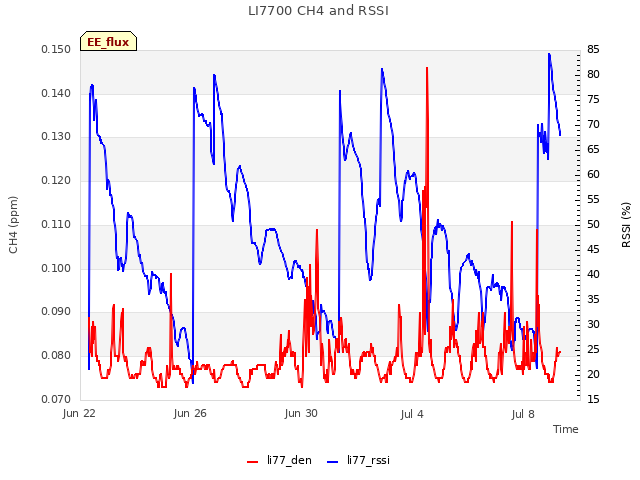

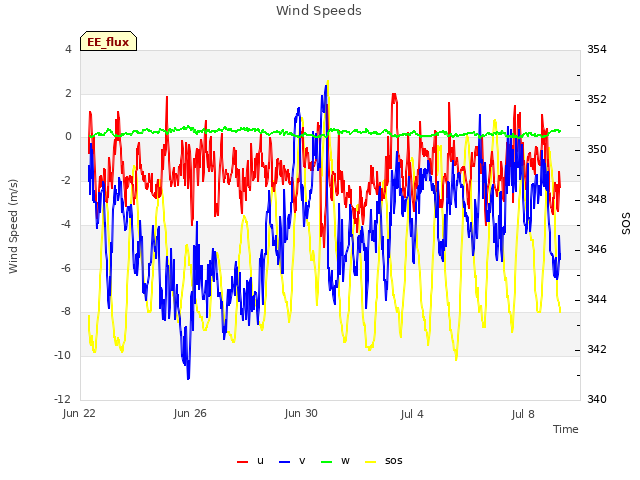

8 EE_flux graphs found

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

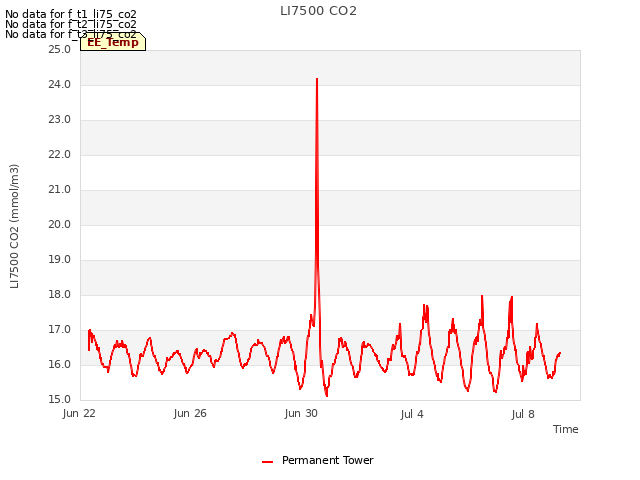

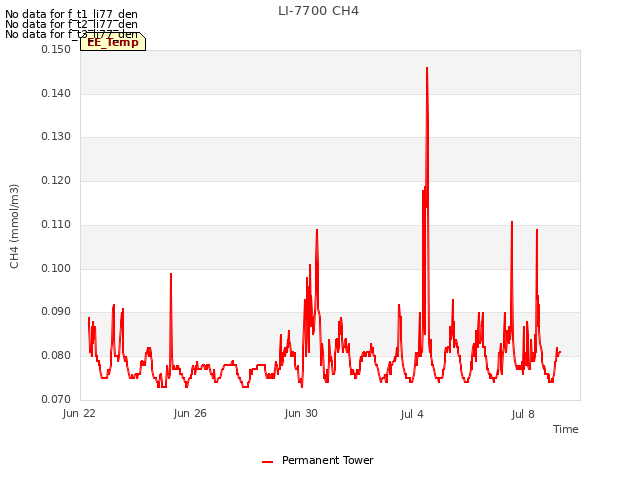

5 EE_Temp graphs found

Can't check EE_minidot
1 EE_minidot graphs found

Can't check MBSWEEWPBCBA

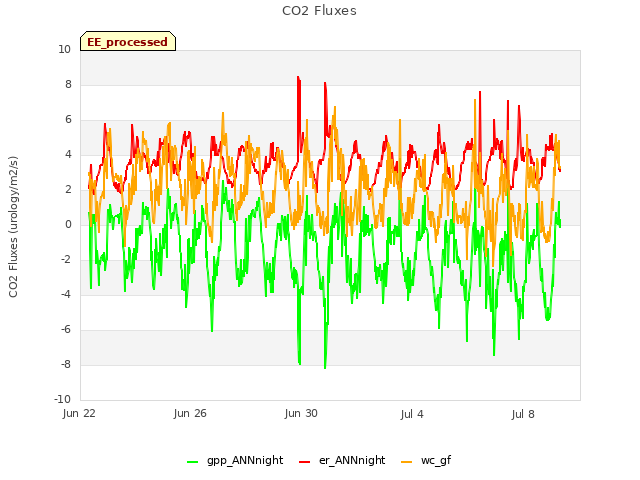

1 EE_processed graphs found
