Field Notes

Sherman Island: 2014-03-13 09:30:00 (DOY 72)
Author: Sara Knox
Others: Patty, Cove, Joe

Summary: Plants growing. Regular fieldwork. Data download. Troubleshoot soil CO2. Swapped 7500

We arrived about 9:30 PDT. It was sunny, warm, and breezy. There is still a nice green grass layer and the pepperweed continues to grow.

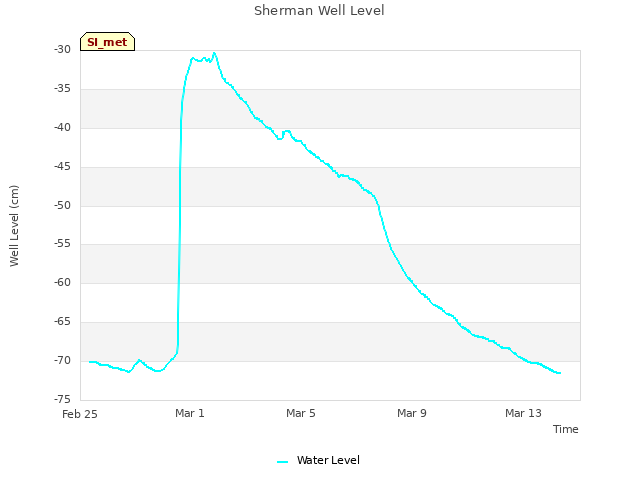

I did spectral and moisture point while Cove did well depth and a vegetation height survey. Patty measured soil respiration and Joe and Patty worked on troubleshooting the soil CO2 system since readings from Profile A seemed strange. Joe changed the soil CO2 program so that setting flag 8 high will turn on and read the probes continuously instead of only for two minutes in the middle of the half hour. After Joe changed to program, I drove Cove and Joe to Mayberry so that they could finish the boardwalk and move the scaffold. I then drove back to Sherman to finish up the remaining tasks with Patty.

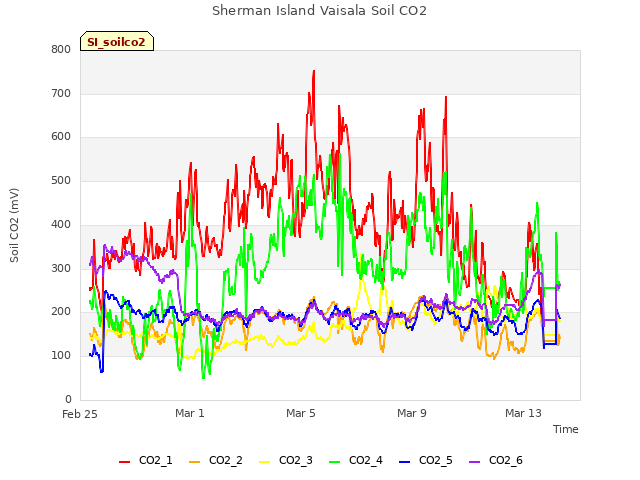

Patty removed all the Vaisala probes to test them at ambient CO2. All probes dropped to ~50-70mV while the 2cm profile A probe remained high at about 220mV. Patty deemed the 2cm probe (sn Z2720014) from Profile A dead. She re-buried the other probes and plans to replace profile A 2cm next week with new probe.

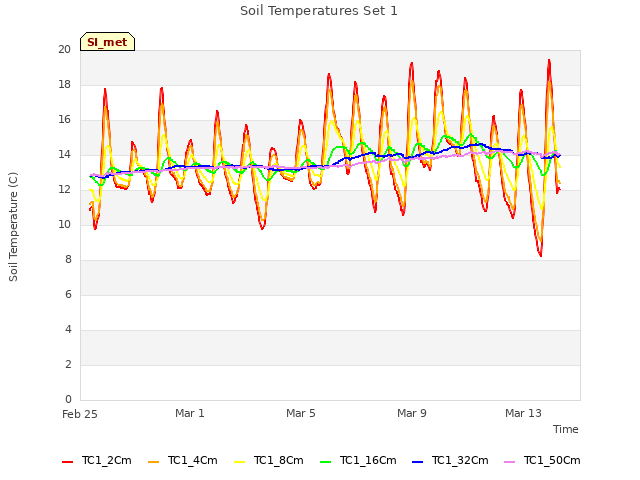

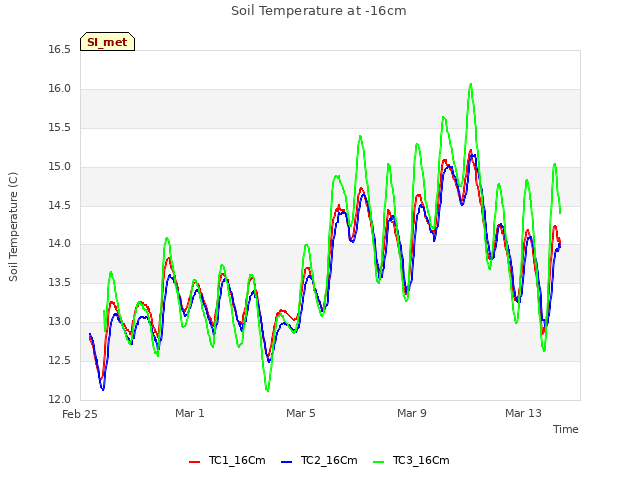

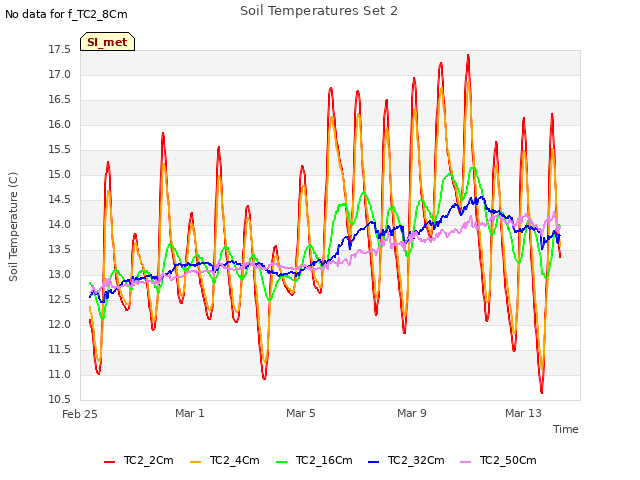

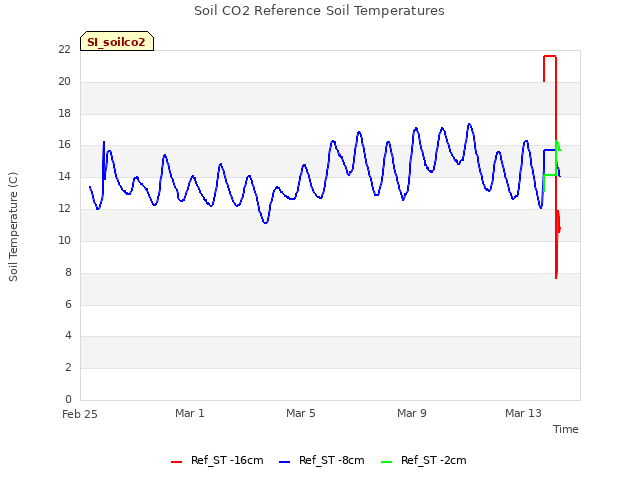

Patty also replaced the remaining broken thermocouples that had been chewed by cows. This included the 2cm depth at Profile B and the 2 and 16cm depth reference temps.

I downloaded all the data and measured the height of the 7500:

7500 height: 280 cm

I also swapped 7500s â€“ I removed sn 0418 and replaced it with sn 0976

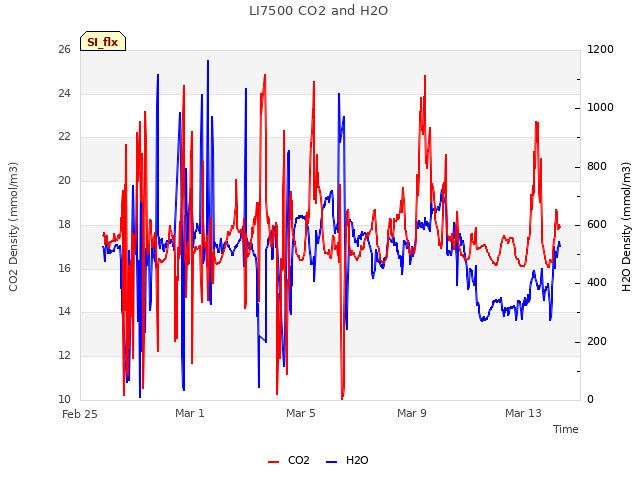

7500 readings:
CO2: 17.01 mmol m-3 (16.83 after swapping the 7500)
H2O: 435 mmol m-3 (390 after swapping the 7500)
Diag: 247 (247 after swapping the 7500)
P = 102.3 kPa
T = 19.9 C
Sos: 342.2 m s-1 (same after swapping the 7500)

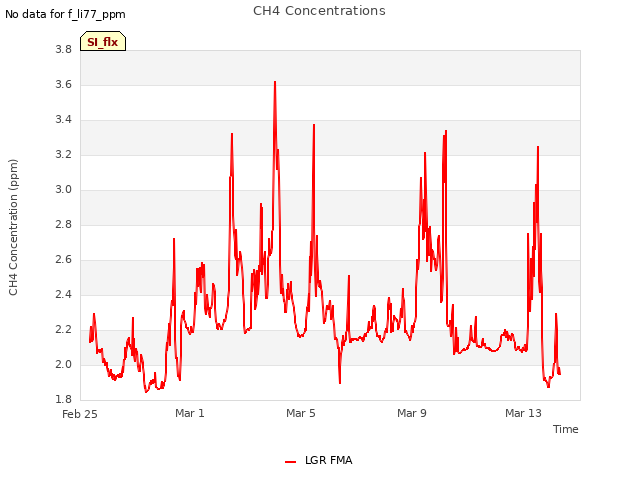

LGR readings: 2.25 ppm, 20.79 C, 155.10 Torr (adjusted to 144.25), 14.77 us, 10 Hz

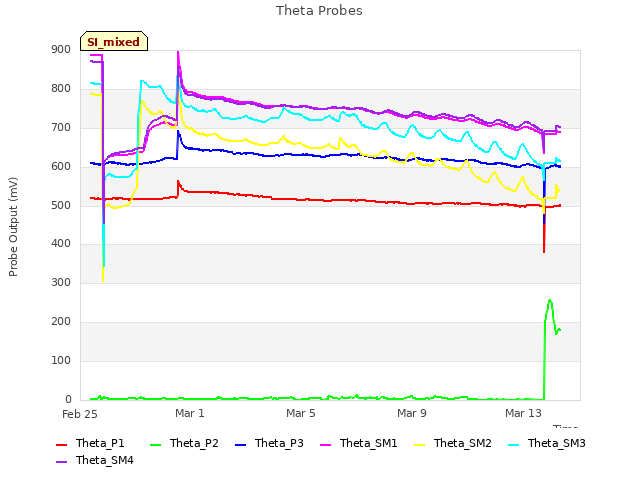

Patty also installed a 20 cm theta probe sn 139/052 to replace the one that we pulled previously.

Veg Height (cm): Tape measure from ground to top of plant - short green grass layer and pepperweed srtating to grow again
2, 6, 20, 7, 3, 10, 3, 18, 15, 1, 20, 10, 8, 15, 14, 1, 2, 1, 10, 23, avg = 9.5, stdev = 7.22

0 photos found

7 sets found

No data found for SI_mp.

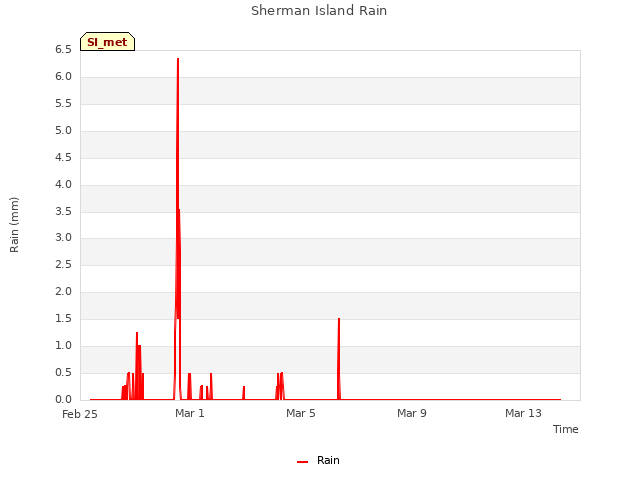

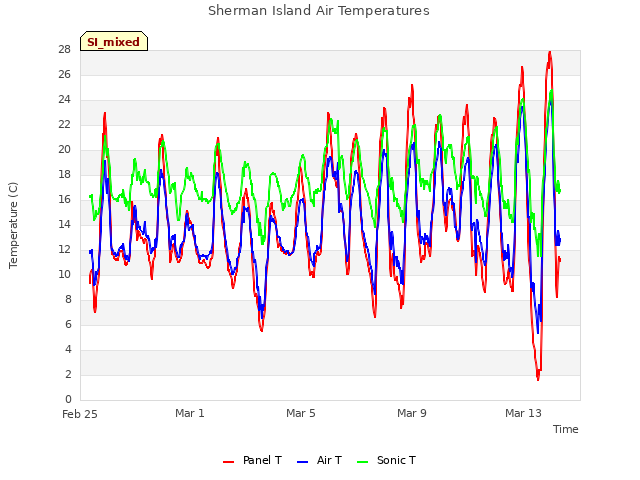

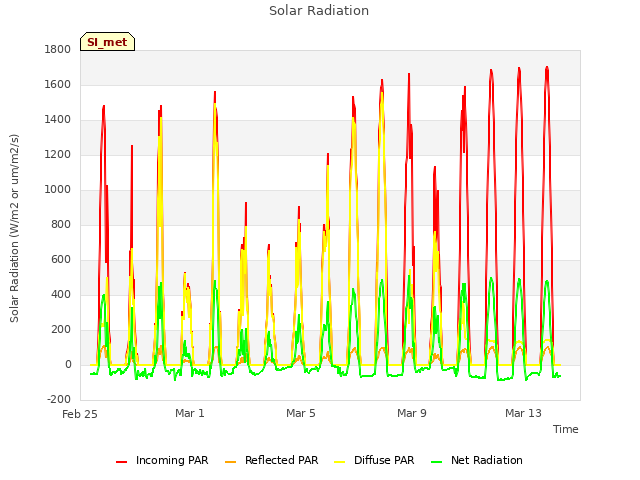

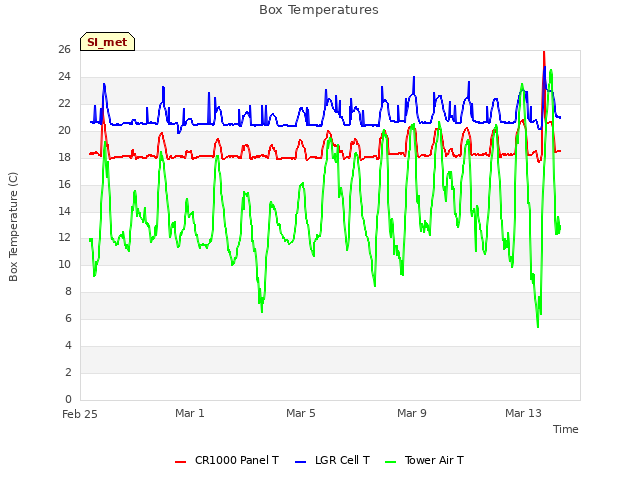

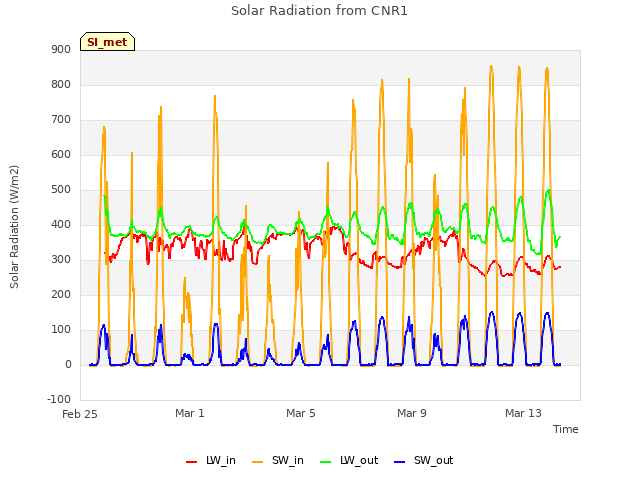

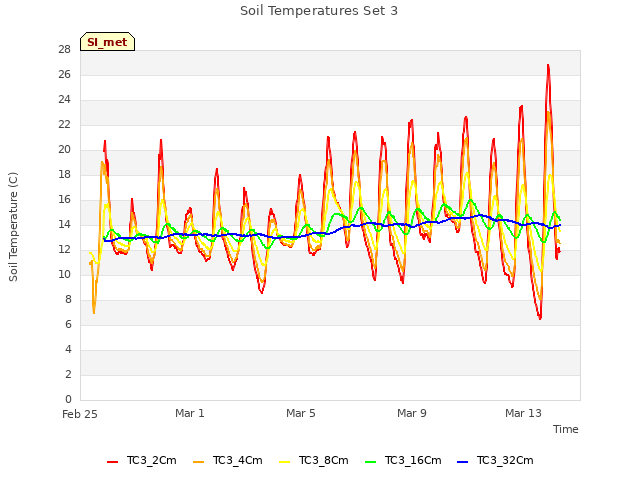

11 SI_met graphs found
