Field Notes
<--2014-01-07 09:00:00 | 2014-02-10 09:00:00-->Other sites visited today: Sherman Island | Twitchell Rice | Tonzi
Phenocam link: Searching...
Vaira: 2014-01-29 14:30:00 (DOY 29)
Author: Joe Verfaillie
Others: Patty
Summary: Reinstalled Vaisala CO2 soil profiles. Raining!

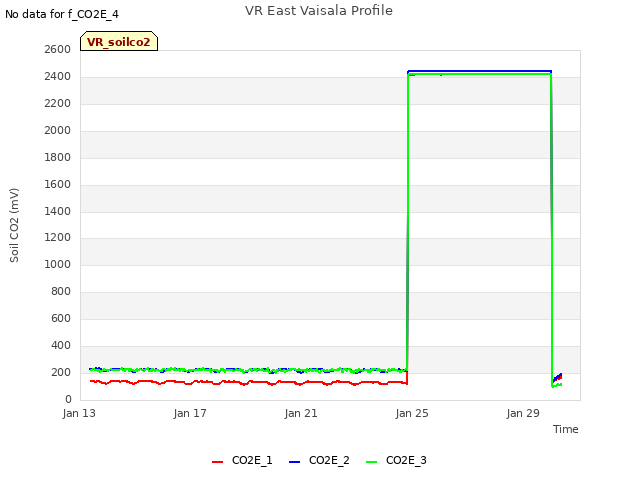

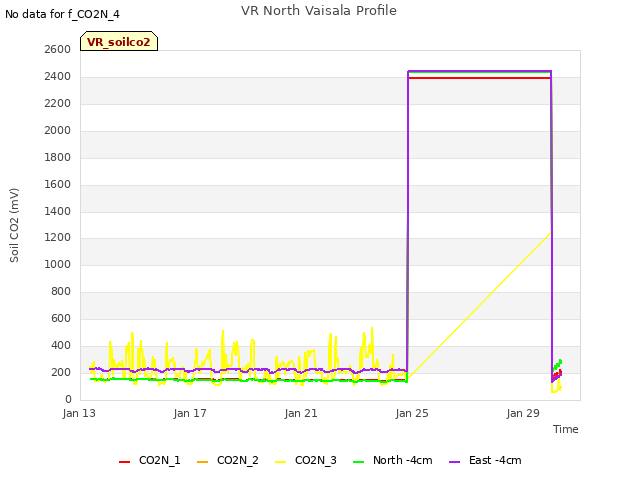

| Varia 2014-01-29 I arrived about 2:30pm with Patty. It was overcast, warm and raining lightly. There was little to no wind. We reinstalled the Vaisala CO2 soil profiles. The PVC enclosures got new U-shaped fitting on top so the opening is pointed down. The existing rubber plugs don’t fit the new fittings tightly. We need to cut some pipe inserts to improve the fit. The 2 and 4cm PVC enclosures on the North profile did not seem to have a very tight connection to the ground. These may need to be reinstalled. The North profile got: 2cm, sn G0230061, 1% 4cm, sn Y1950005, 1%, 8cm, sn Y0710013, 3% The East profile got: 2cm, sn Y2030049, 1% 4cm, sn Z2720015, 1% 8cm, sn Y2009100, 3% The West (sometimes called South) profile got: 2cm, sn G0230062, 1% 4cm, sn Y0850004, 1% 8cm, sn Y1720006, 2% We did not check the functioning of the system. The probes tested okay in the lab, it was raining, the system only runs a few minute each half hour, and I did not have a computer handy to connect to the 10X. I should update the program so that you can turn everything one whenever you want. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

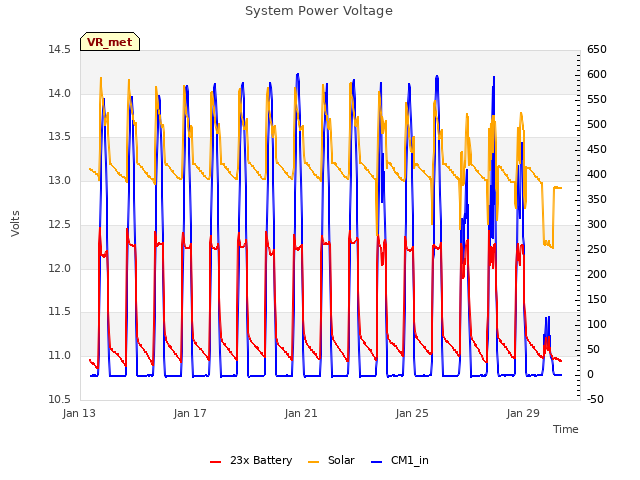

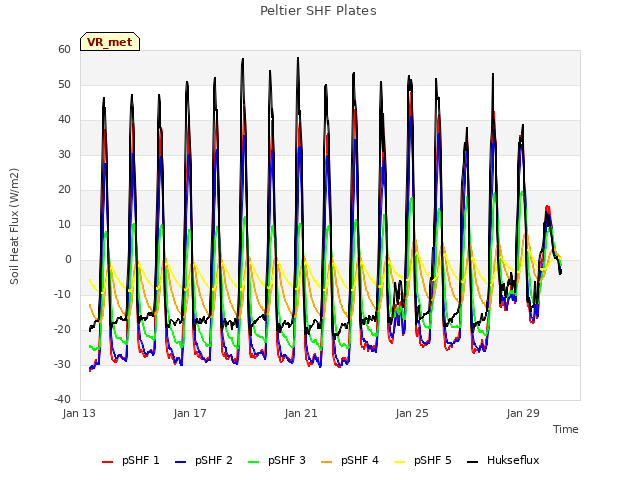

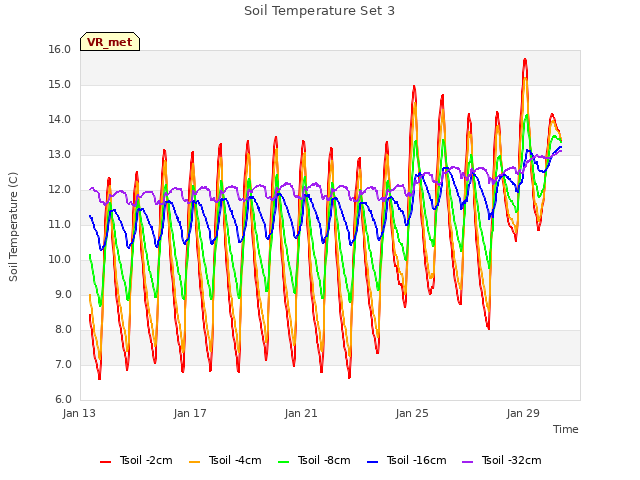

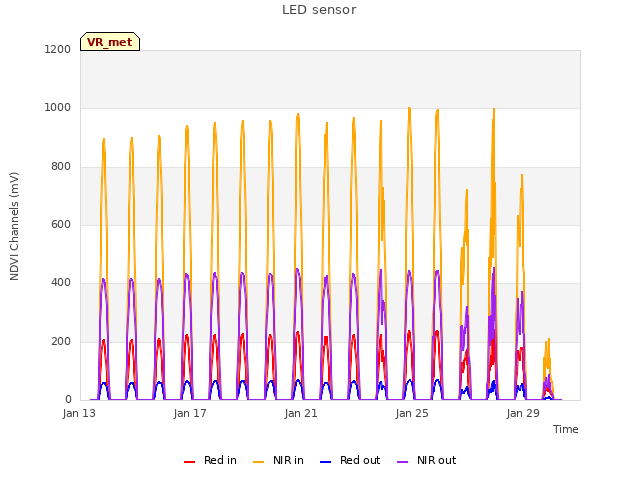

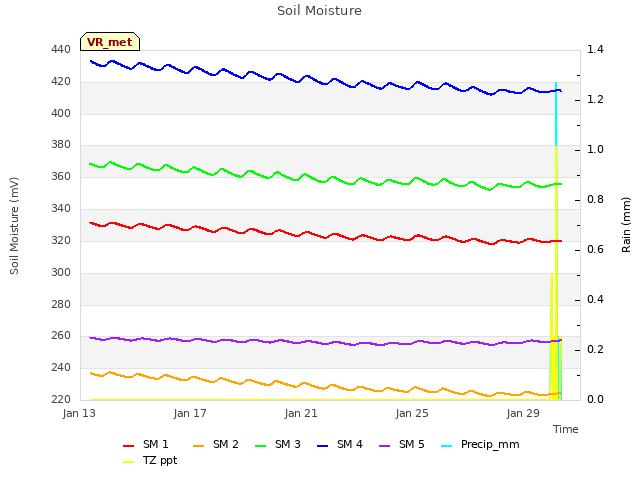

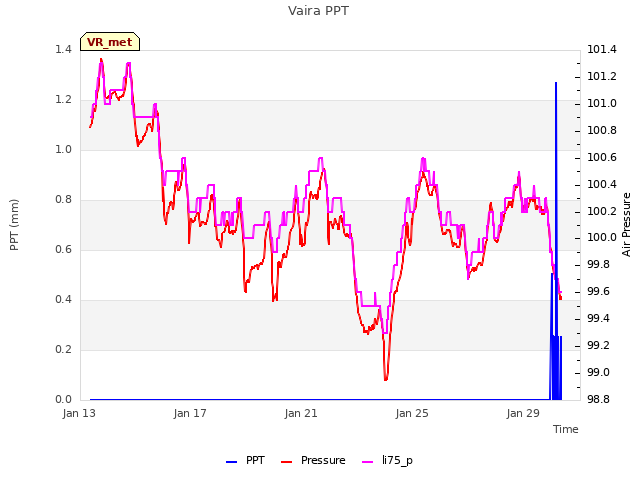

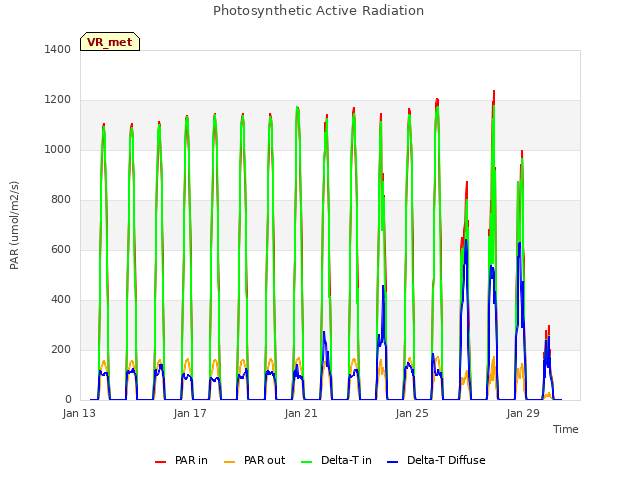

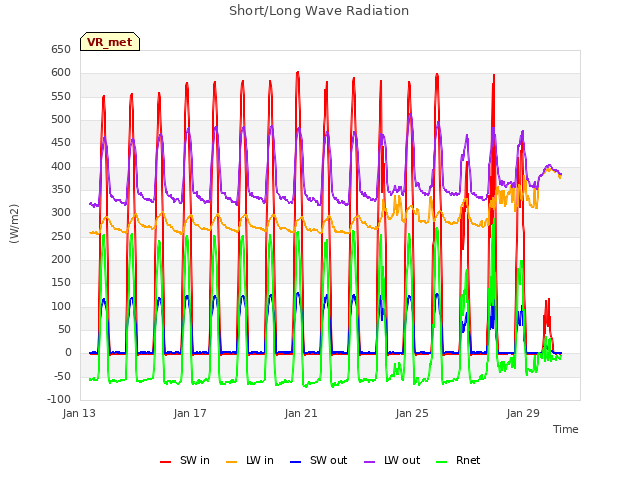

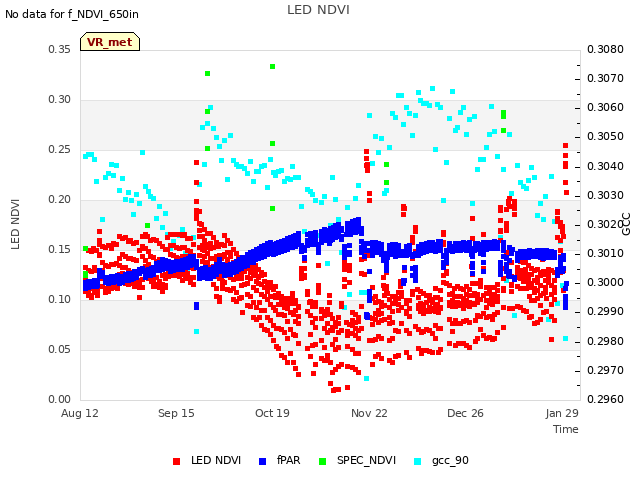

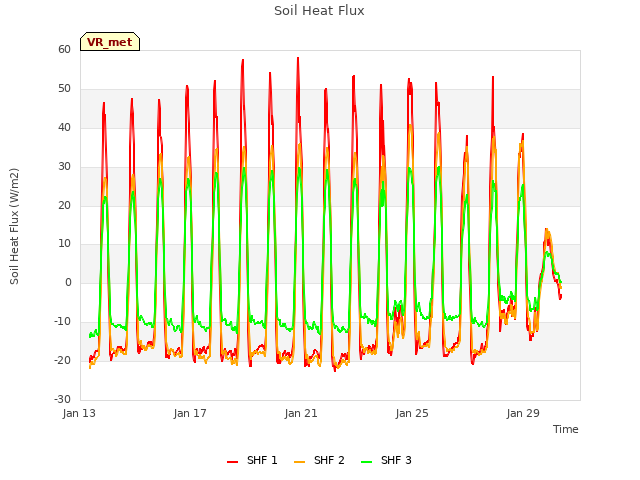

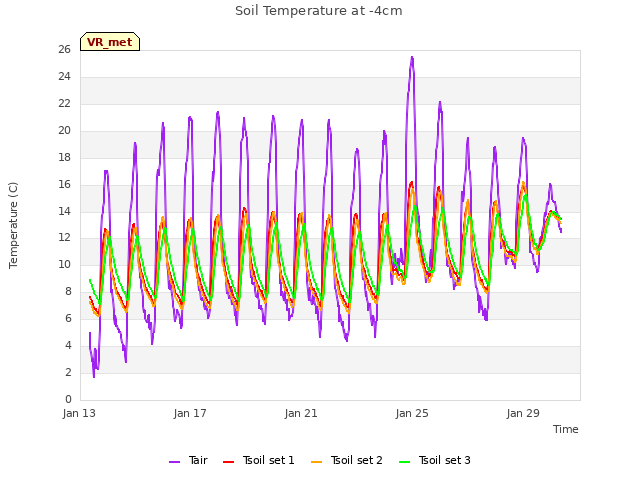

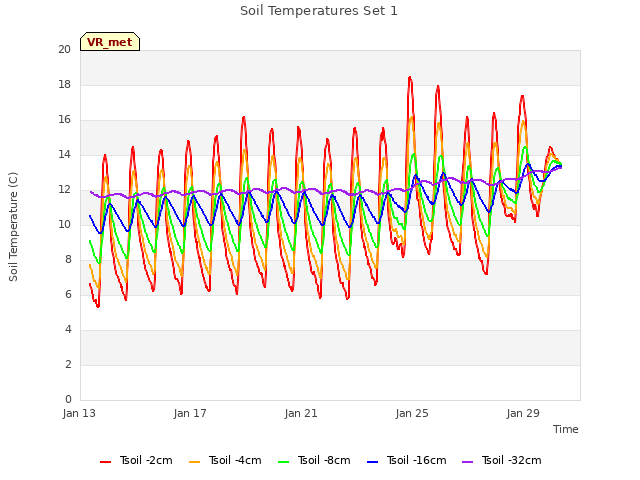

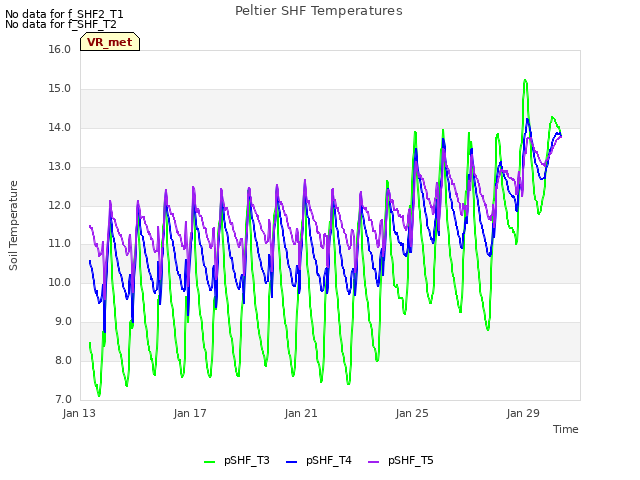

16 VR_met graphs found

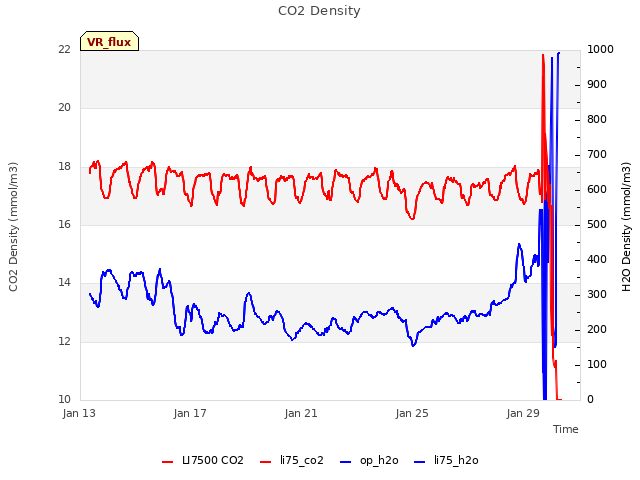

2 VR_flux graphs found

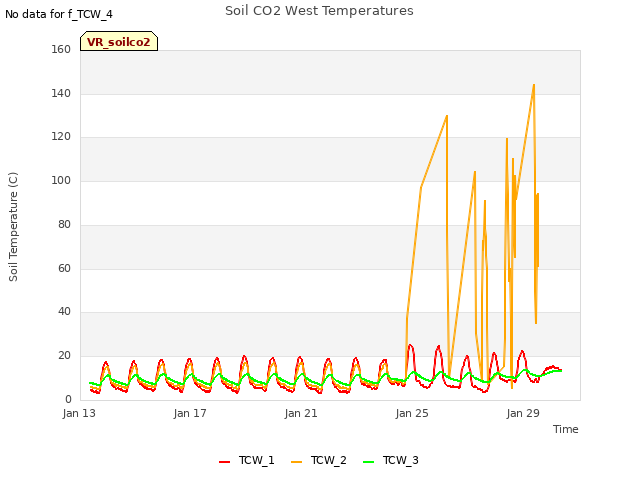

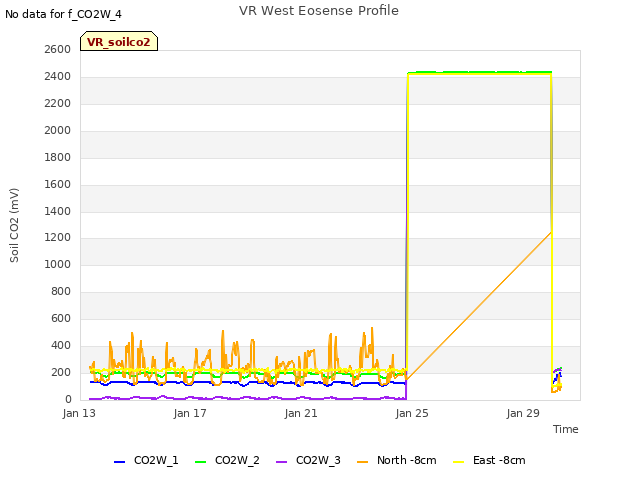

6 VR_soilco2 graphs found
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
