Mayberry: 2013-08-05 13:30:00 (DOY 217)
Author: Cove Sturtevant
Others: Laurie
Summary: Standard site visit. All generally well.
| Mayberry 2013-08-05 We arrived about 13:30 PDT. It was breezy, sunny, and cool. The site looks the same, very green with a bit of standing old plant material mixed throughout. Laurie went out and grabbed water samples while I checked the tower readings and cleaned the solar panels. I double checked that the 7700 was communicating at 20 Hz (in the 7700 program settings). It was. 7500 readings: CO2: 388 ppm (same after cleaning) H2O: 660 mmol m-3 (same after cleaning) signal strength = 96.3% (96.6% after cleaning) p = 101.5 kPa t: 23.3 C sos = 346.3 m s-1 Current 7700 readings: CH4 = 1.9 ppm variable +- 0.2 ppm (1.9 and more stable after cleaning) RSSI = 11.7 (88 after cleaning) The reservoir was 2/3 full. Topped off to 100%. There was a small piece of cottony plant material fluttering in the path, contributing to the variability in CH4 signal. MET looked good. |
1 photos found
Fieldwork
11 sets found

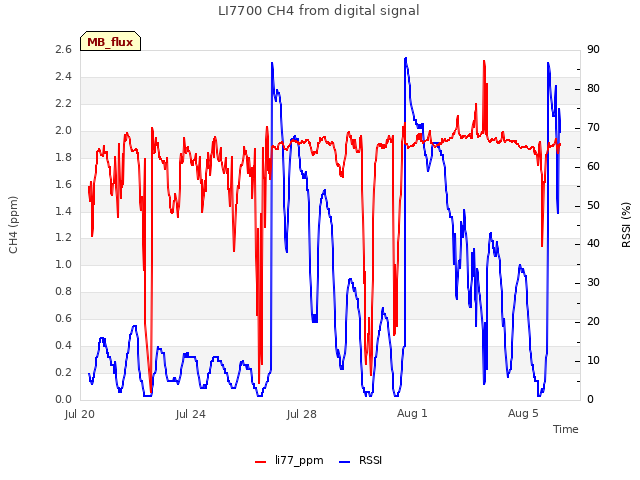

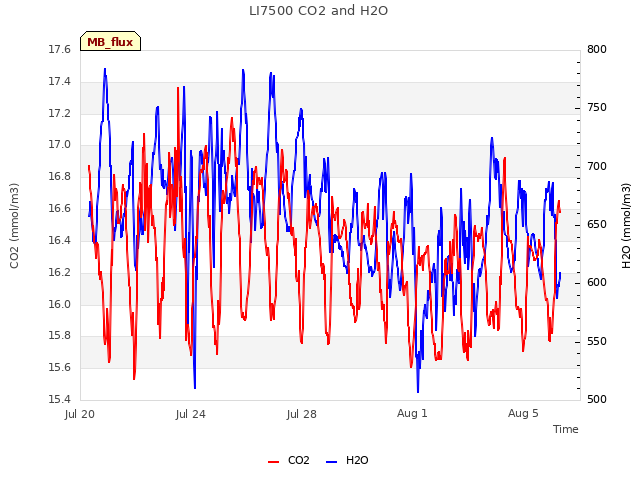

7 MB_flux graphs found
No data found for MB_met.

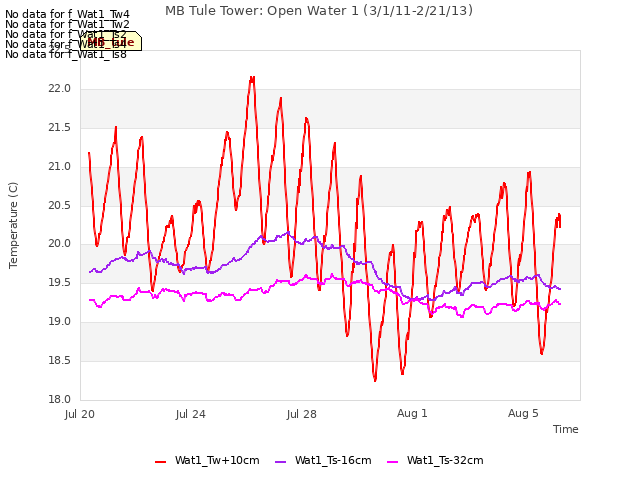

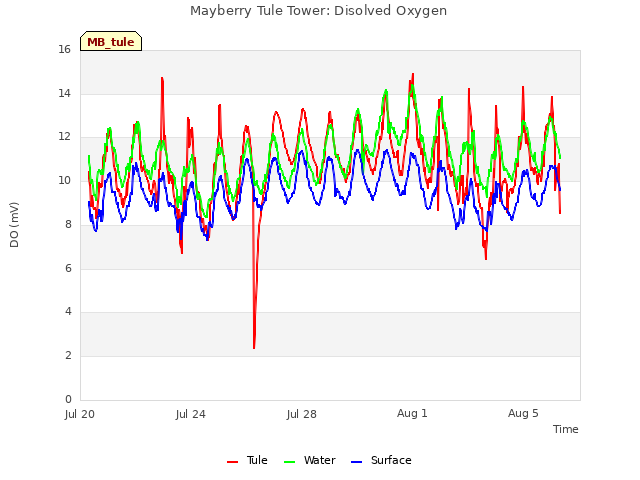

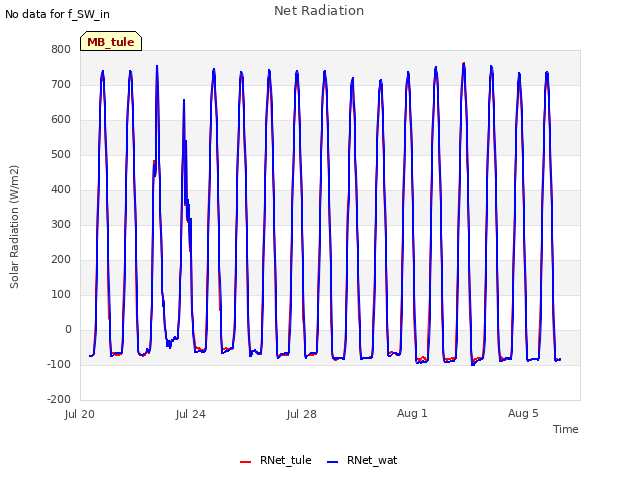

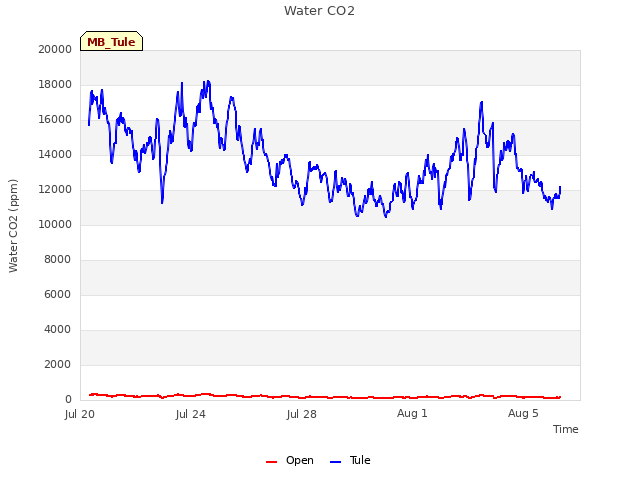

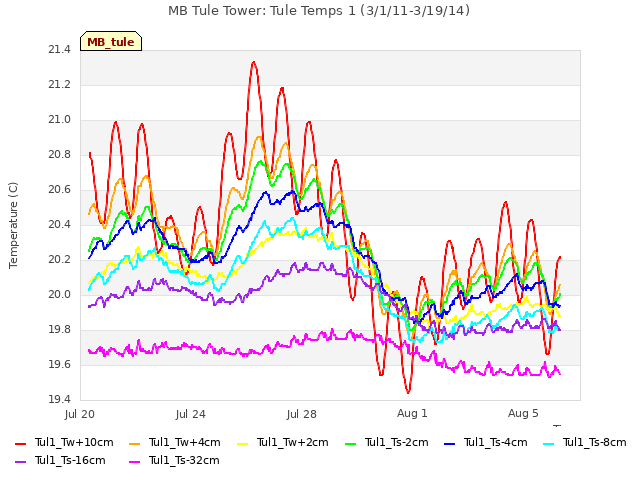

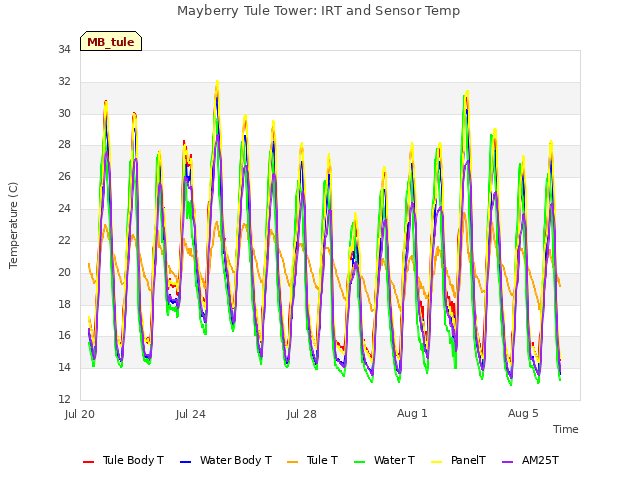

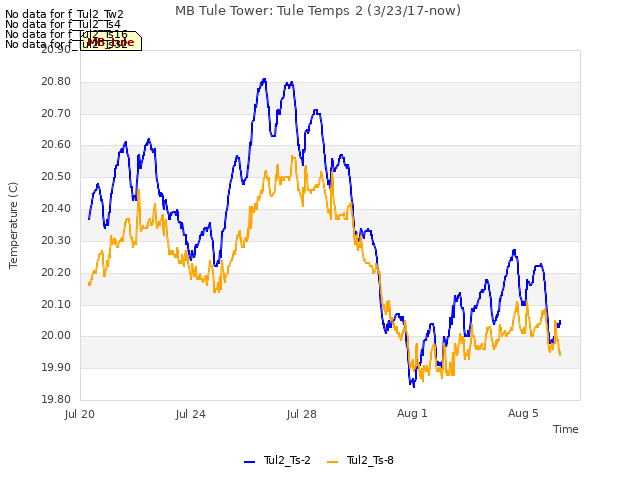

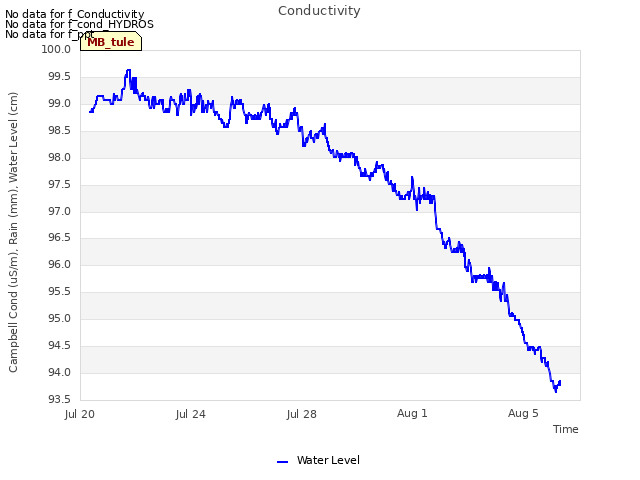

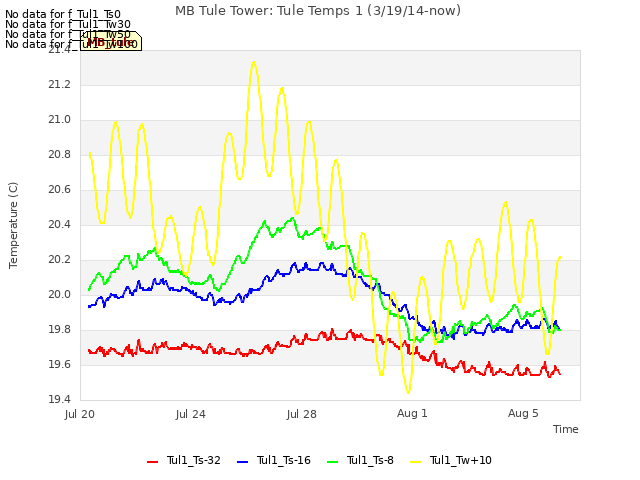

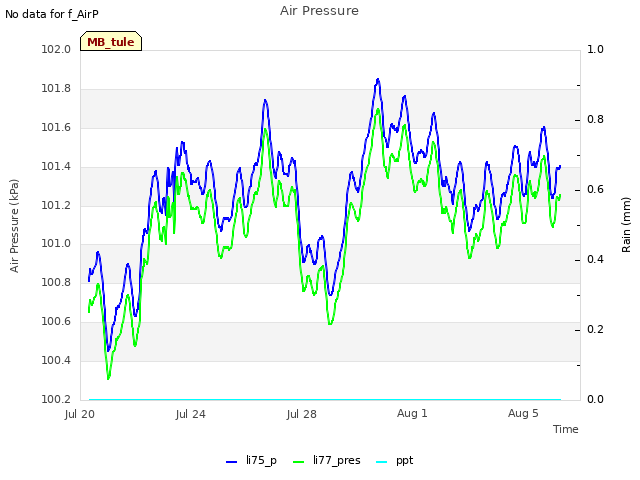

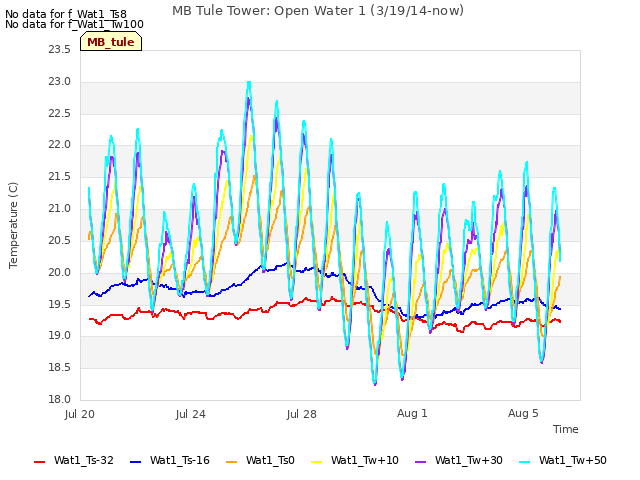

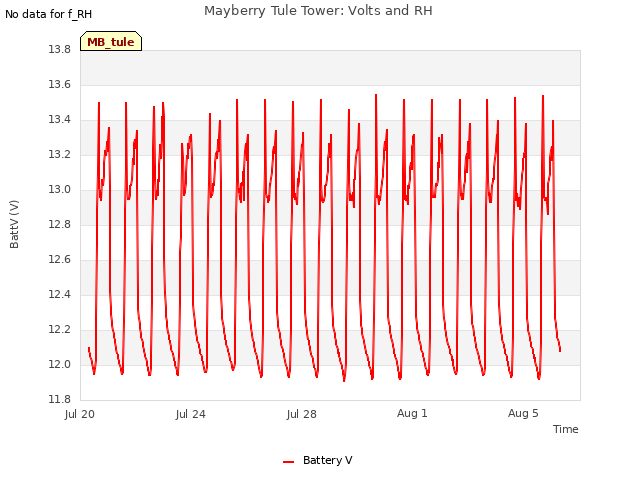

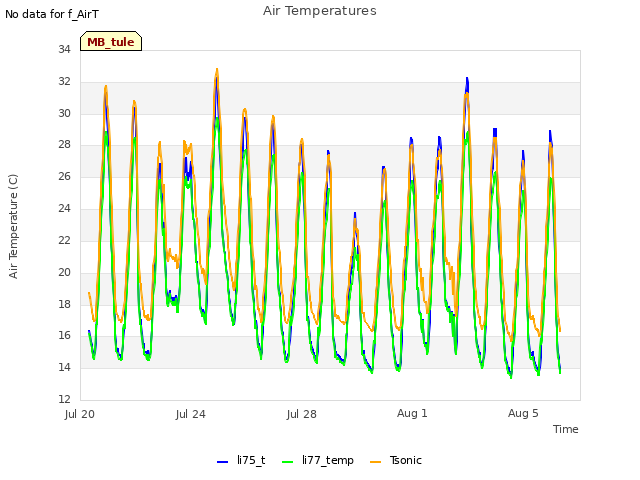

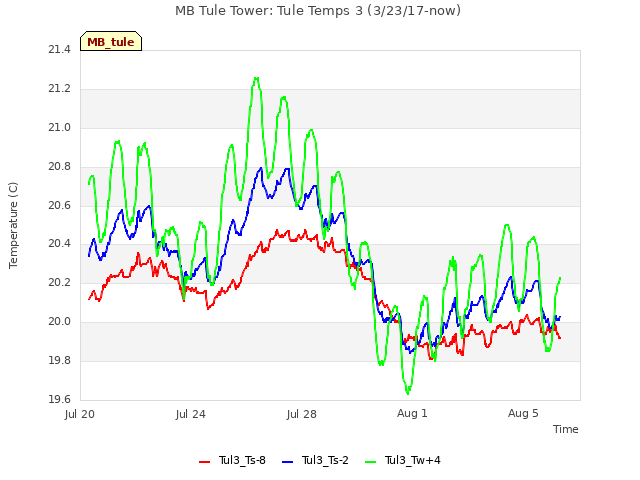

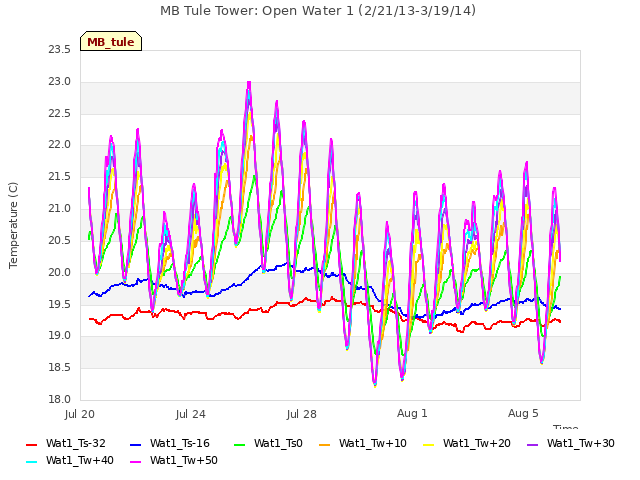

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

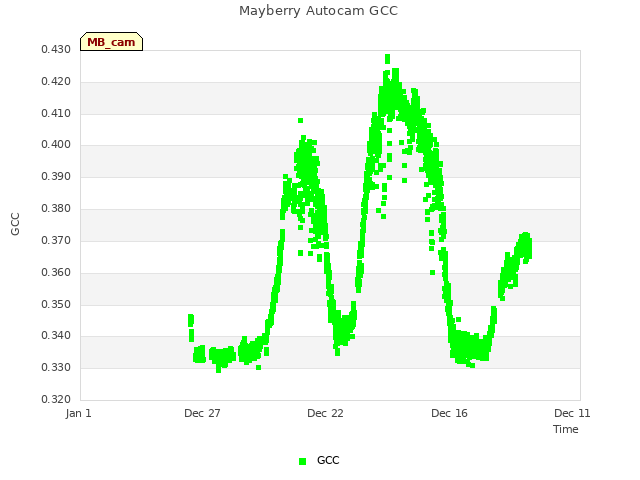

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA

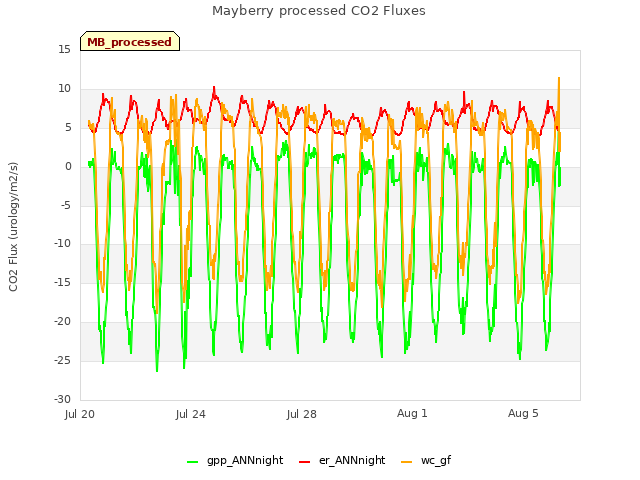

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
