Vaira: 2013-01-24 09:15:00 (DOY 24)
Author: Joe Verfaillie
Others: Cove
Summary: Cleaned Phenocam, added CR1000 to collect Phenocam images.
| Varia
2013-01-24 I arrived about 9:15 with Cove. It was cool and overcast with little to no wind and slightly foggy. Cove took the camera lens apart and tried to clean some spots that are showing up in the images. I think he got the major ones. I added another CR1000 to the box in the computer’s place. This CR1000 is running as an ftp server and collecting images from the camera on its CF card. The data logger is using IP 192.168.2.1 and the camera is at 192.168.2.101. I had to slightly change the ftp scripts in the camera for the CR1000 IP address, to use the CRD directory and not to use passive command. I collected the data from the soil CO2 CR10X but it seems it has space for about 40 days of data, so none should be lost while the computer is out. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
2 photos found
Joe on site
Joe and Cove on site
9 sets found

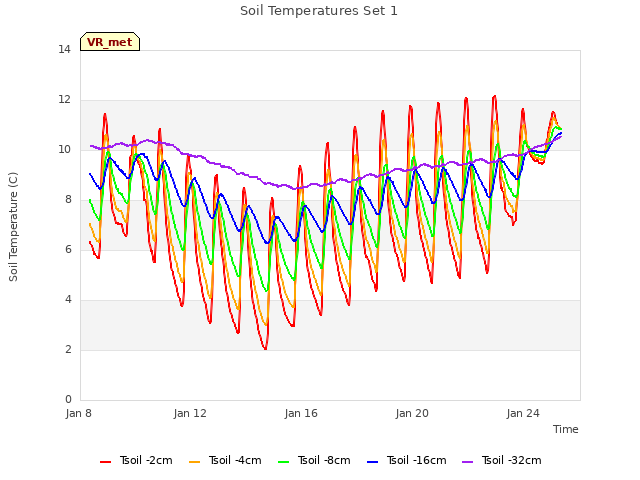

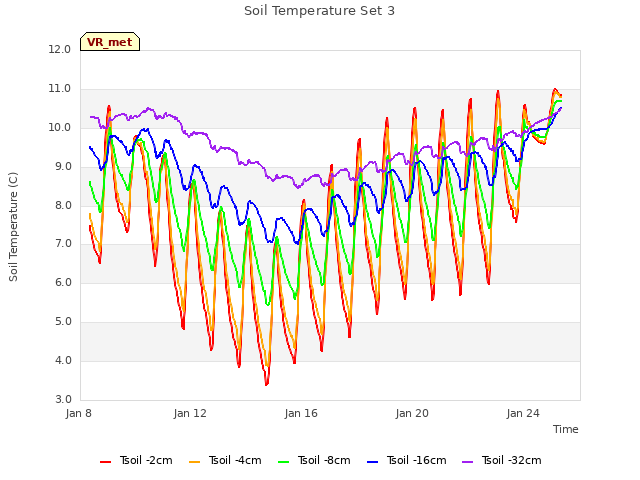

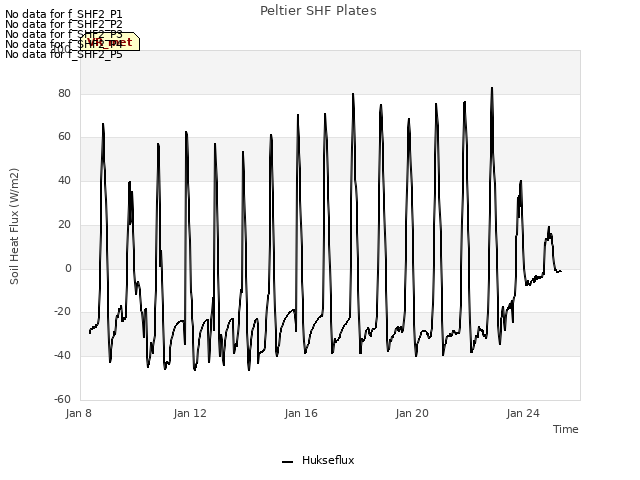

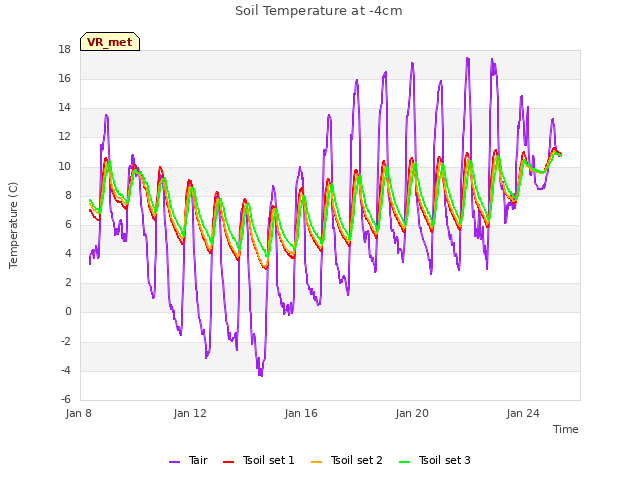

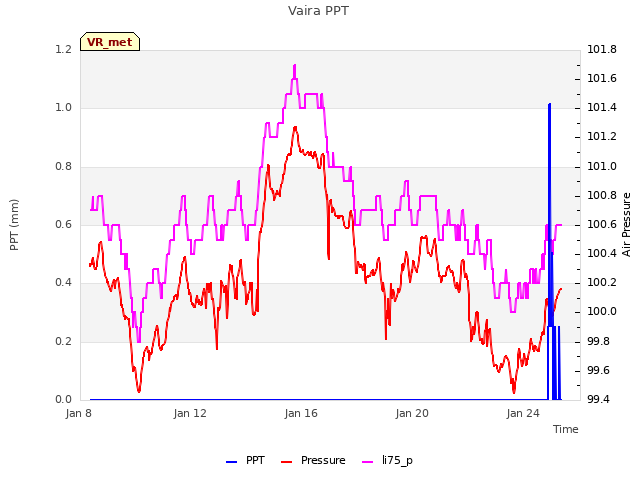

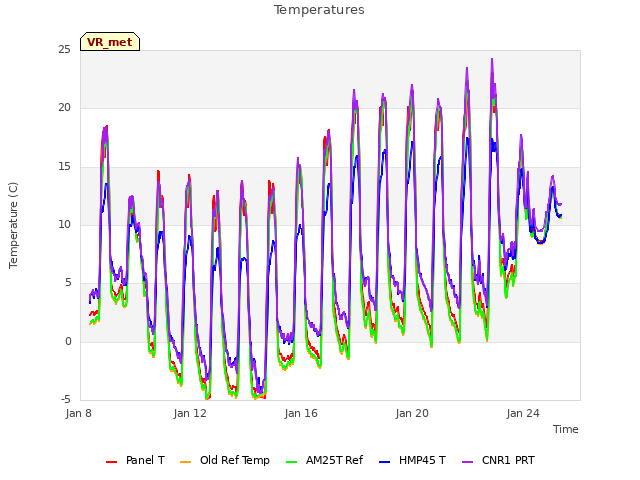

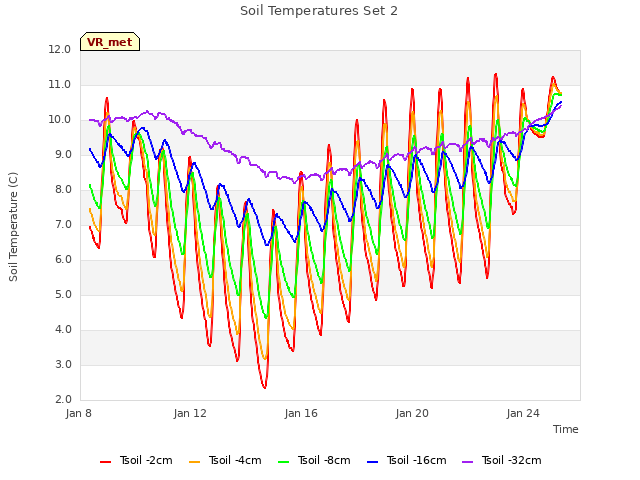

16 VR_met graphs found

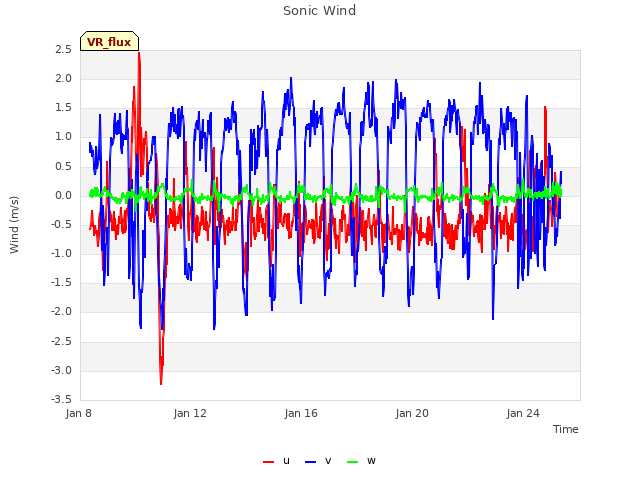

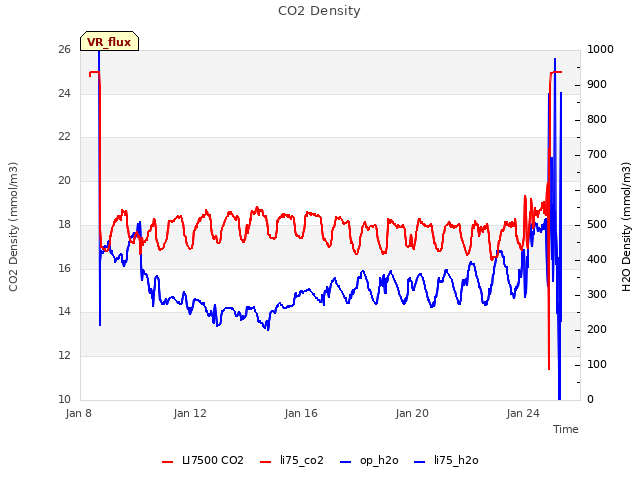

2 VR_flux graphs found
6 VR_soilco2 graphs found
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
