Field Notes
<--2010-07-16 09:00:00 | 2010-08-19 07:50:00-->Other sites visited today: Tonzi | Twitchell Rice | Sherman Island
Phenocam link: Searching...
Vaira: 2010-08-05 08:00:00 (DOY 217)
Author: Joe Verfaillie
Others: Jaclyn
| Vaira
2010/8/5 Arrived about 8am after dropping Jaclyn off at Tonzi. Clear, warm, sunny. Light wind from a southerly direction. Standing litter may have been knocked down a bit by weather. I worked on fixing the rain bucket again. I rewrote the program from scratch – no luck. I tried a rain bucket only program again and it seemed to have the same problem. Individual tips are recorded on the 10sec interval, but totalized final storage doesn’t get them. Campbell says use shortcut to write tipping bucket only program. In *B mode check error codes reset with 88. Check lithium battery > 2.5V. Other things looked okay. I copied data. Focus on web cam images looks better. In rushing from the tipping bucket to the computer screen, I tripped over one of the tower guy wires pulling its anchor from the ground. The tower is still firmly in place and the guy can be fixed when the ground gets softer after the first rains. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
1 photos found
Tower and tree to the south.
9 sets found

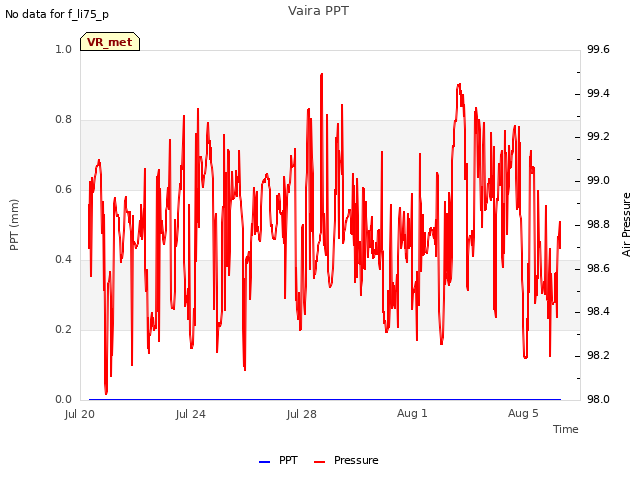

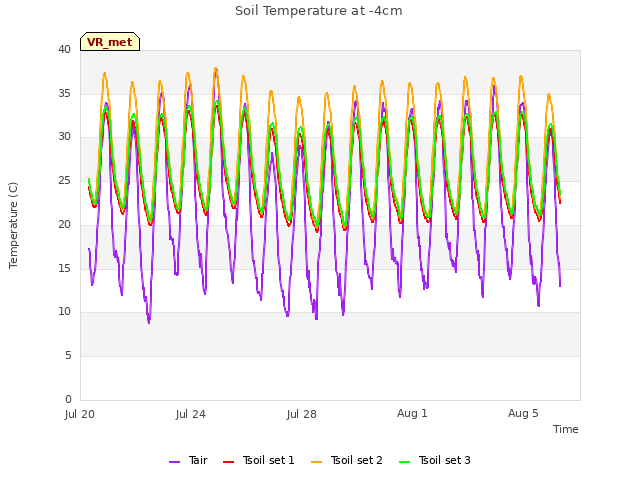

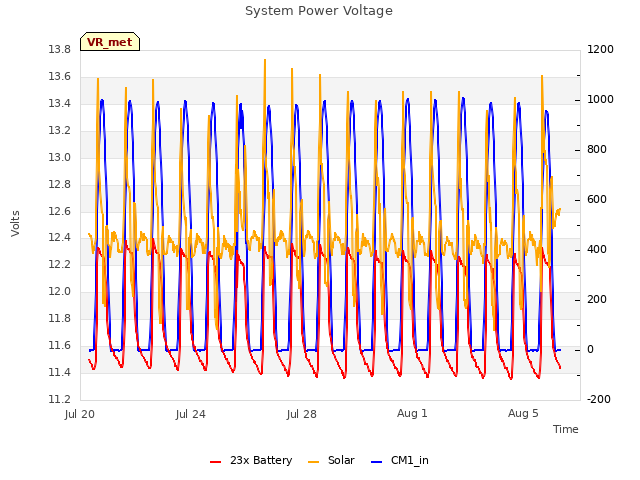

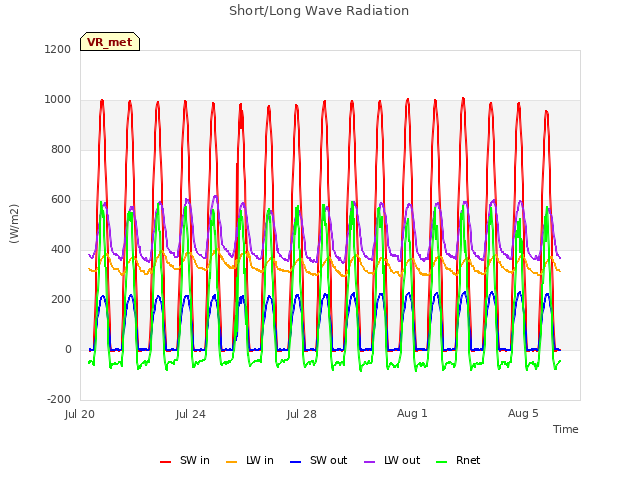

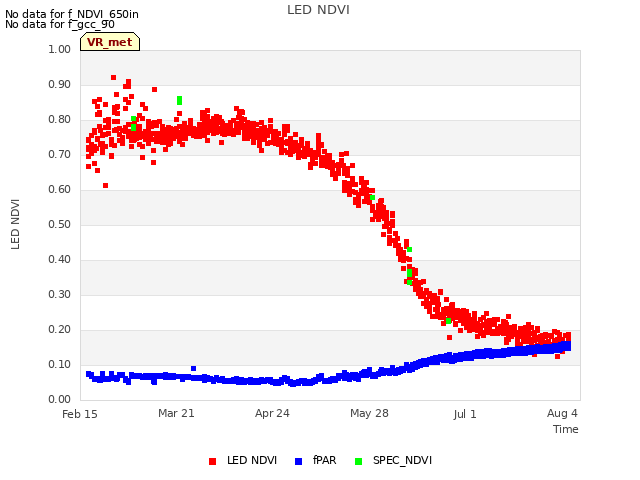

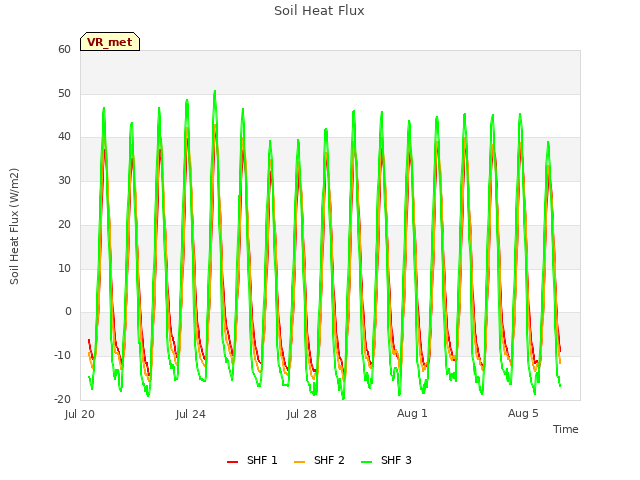

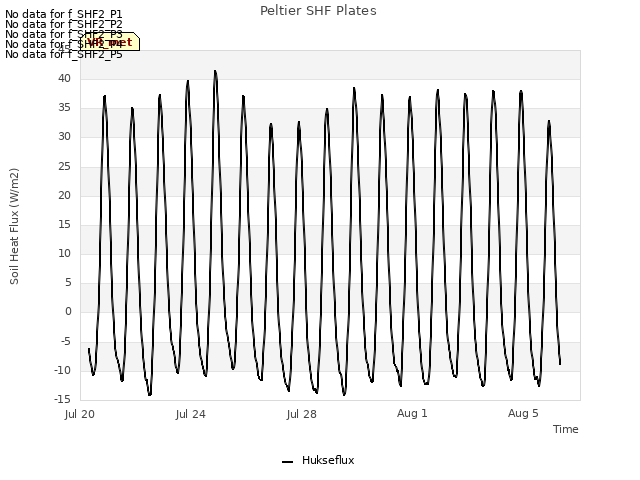

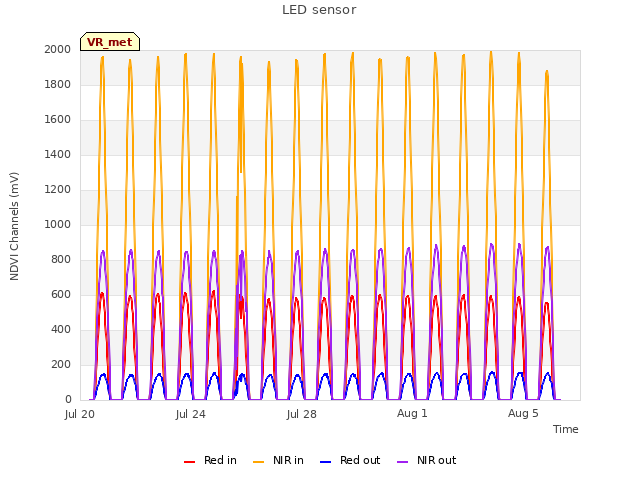

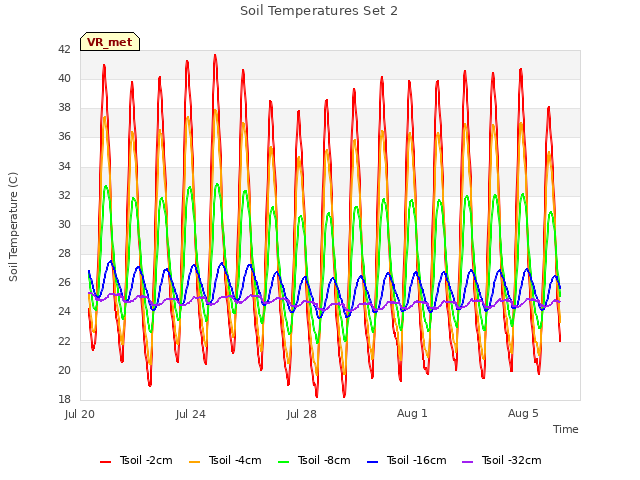

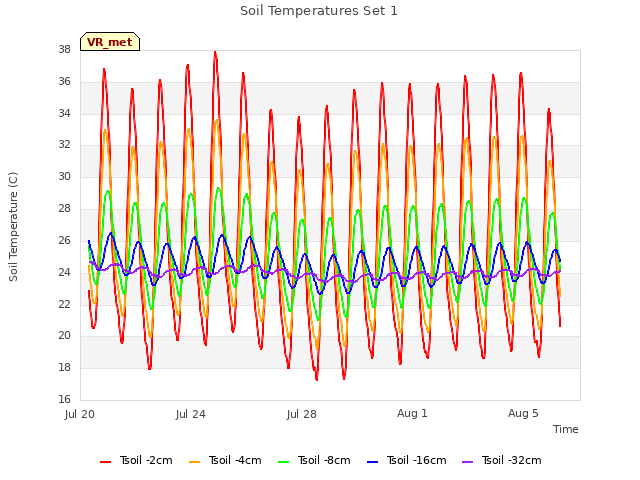

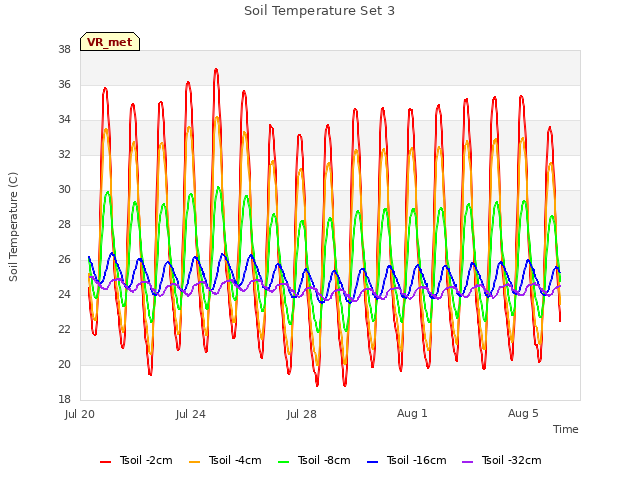

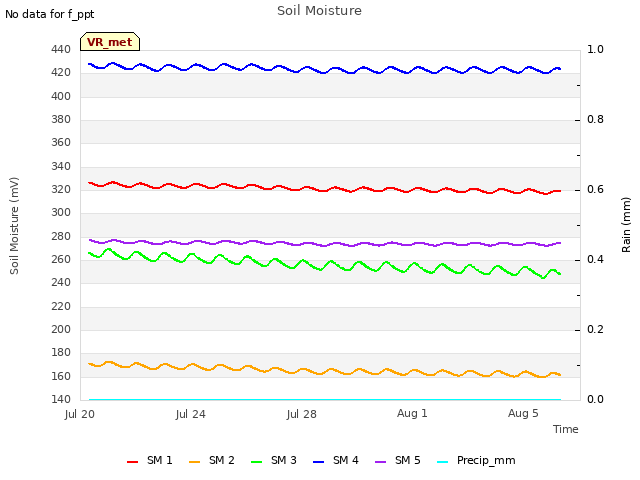

16 VR_met graphs found

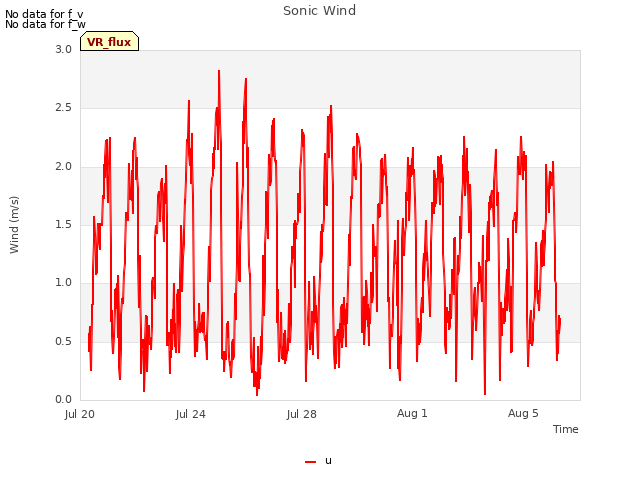

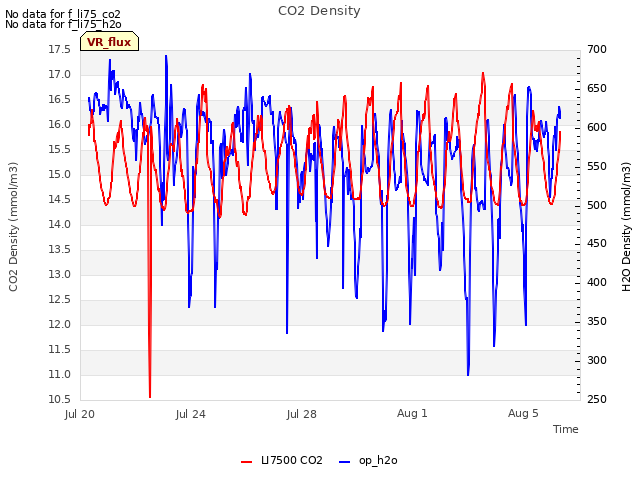

2 VR_flux graphs found
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
