Field Notes

<--2012-10-25 14:35:00 | 2012-11-08 12:30:00-->
Other sites visited today: Sherman Island | Mayberry | Twitchell Rice | West Pond
Phenocam link: Searching...

DWR Corn: 2012-10-30 11:45:00 (DOY 304)
Author: Jaclyn Hatala
Others: Joe

Summary: Hundreds of ants and a few wasps in datalogger box

We arrived around 11:30 local time to warm and still conditions. The corn looks very dry and a few rows of corn in the field next to the main road had been harvested, and Bruce said that our field will be harvested this week or the next. The fields to the north have the pond have been almost completely harvested, chopped and bailed.

We discovered that some critters had dug up the soil heat flux plates from where they had be re-installed under the tower so we reburied them. There were lots of ants and a few wasps in the datalogger box, and Joe discovered more ants than you could ever imagine inside the small sonic serial converter box. Joe cleaned out all of this and put lots more putty around the hole where the wires pass into the box to keep out insects.

Joe also changed the number of photos taken per day by the autocam from 36 to 30.

CO2 = 16.2 mmol/m3
H2O = 750 mmol/m3
SOS = 343 m/s

0 photos found

Graphs display:
3 sets found

Can't check DC_mixed
3 DC_mixed graphs found

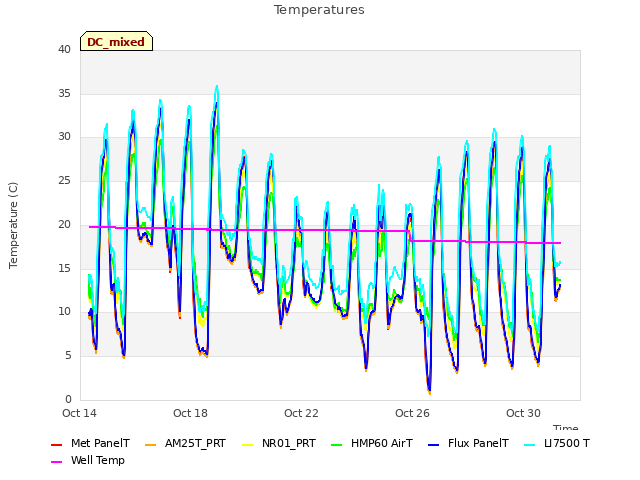

Explore the graph:Temperatures in a new window

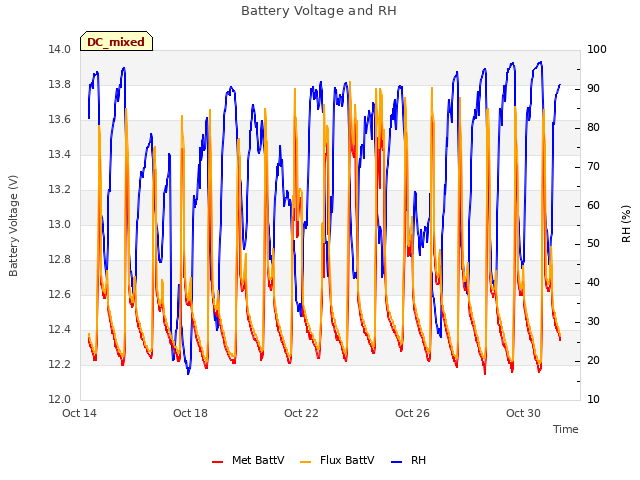

Explore the graph:Battery Voltage and RH in a new window

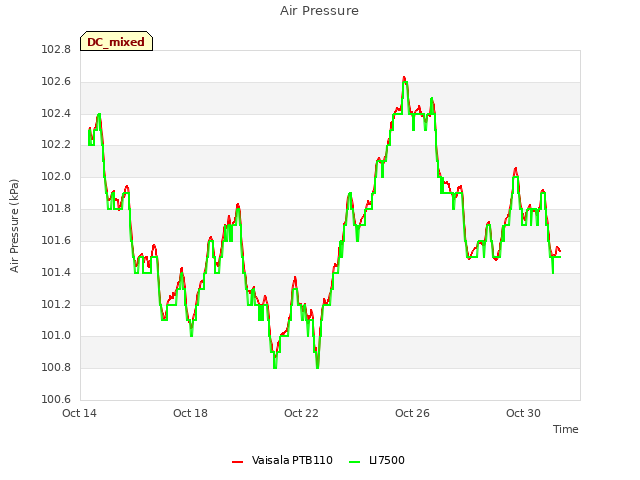

Explore the graph:Air Pressure in a new window

7 DC_met graphs found

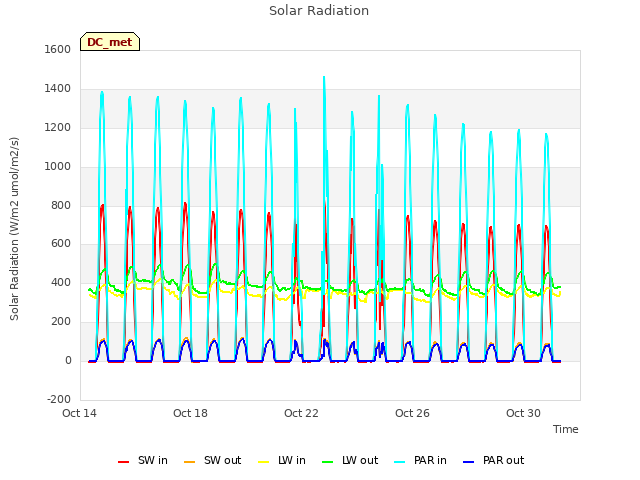

Explore the graph:Solar Radiation in a new window

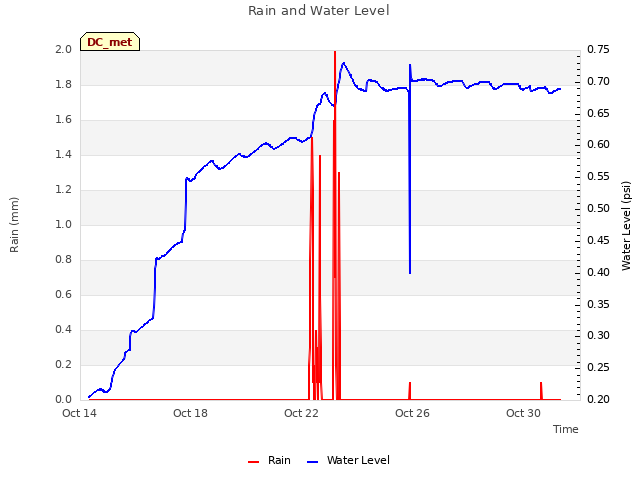

Explore the graph:Rain and Water Level in a new window

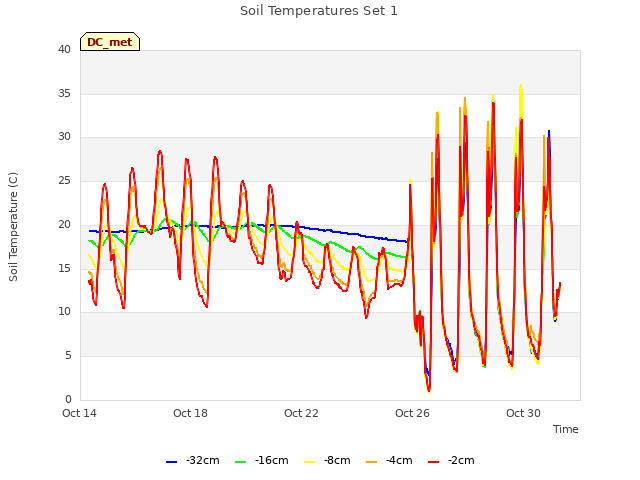

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

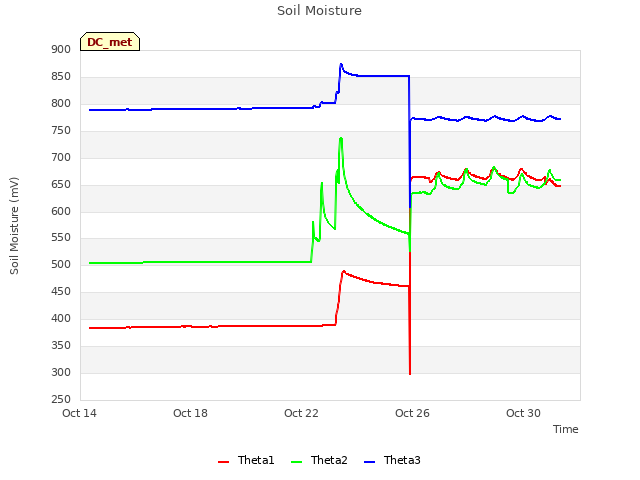

Explore the graph:Soil Moisture in a new window

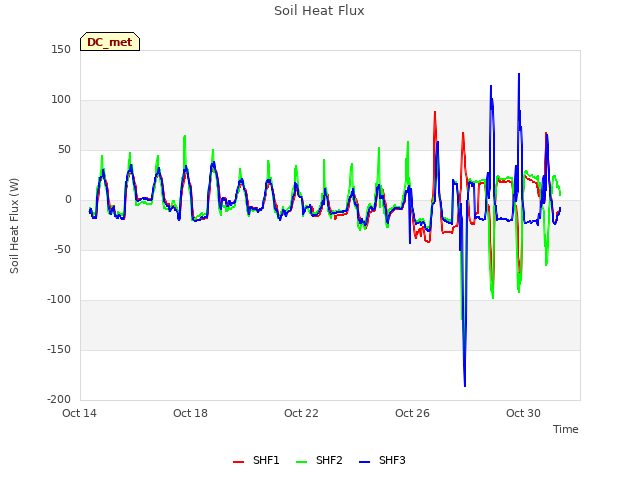

Explore the graph:Soil Heat Flux in a new window

3 DC_flux graphs found

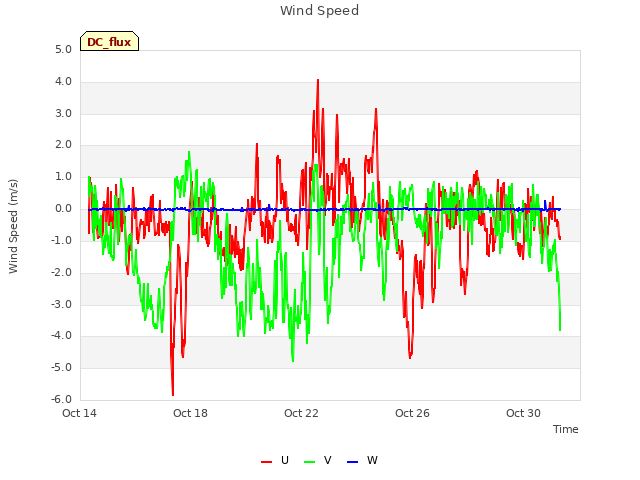

Explore the graph:Wind Speed in a new window

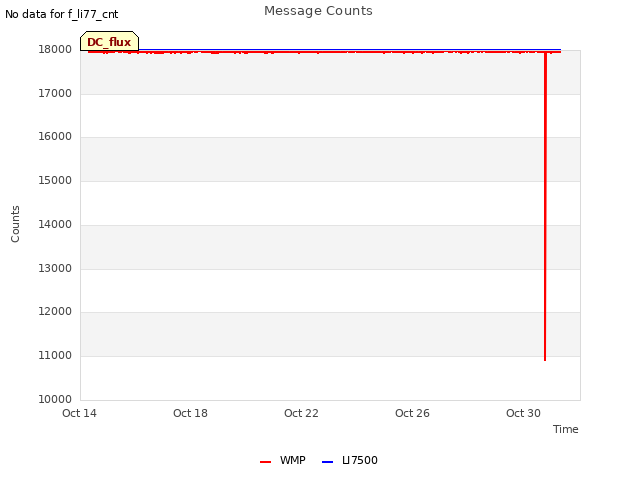

Explore the graph:Message Counts in a new window

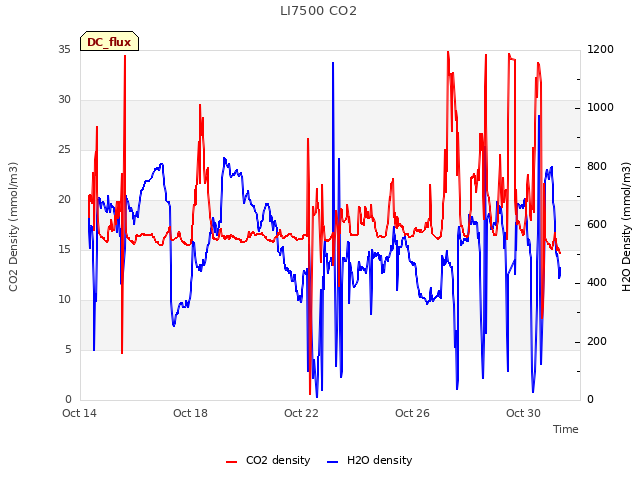

Explore the graph:LI7500 CO2 in a new window
