Mayberry: 2011-09-02 11:00:00 (DOY 245)
Author: Joe Verfaillie
Others: Jaclyn, Cristina
Summary: Continue to move Tule Tower to new Scaffold tower. Main tower okay.
| Mayberry
2011-09-02 I arrived about 12 noon PDT with Jaclyn and Cristina. It was clear, sunny and hot. There was a light breeze from the west. The weeds are getting tall around the tower and solar panels again. We continued to work on moving the Tule tower sensors from the tripod to the new scaffolding. Jaclyn unwired everything and I moved the radiometers to the scaffold. One of the TC stings was recovered whole and rewired, but not reinstalled in the soil/water column. The radiometers were all reconnected as were the two DO sensors. One of the IRT sensors was reconnected, but the other was brought to lengthen the cable. A soil heat flux plate was brought in because the cable insulation was rotting away. One string of TCs was brought in because the dowel broke and the wires might be too short. The Tule TCs were left in place but need to be lengthened before they can be reconnected. The solar panel and battery was moved to the scaffolding and reconnected. Things at the main tower were okay. Auto cam was running. |
11 photos found
"Chorus frog (Genus Pseudacris)", says iNaturalist
Datalogger enclosure on new scaffolding tower
Old tule tripod tower getting engulfed by tules
Open water radiometers on new scaffolding tower
Tule/veg radiometers on new scaffolding tower
Small solar panel next to open water radiometers
Work at Tule Tower.
Work at Tule tower
Work at Tule tower
Work at Tule tower
Work at Tule Tower.
11 sets found

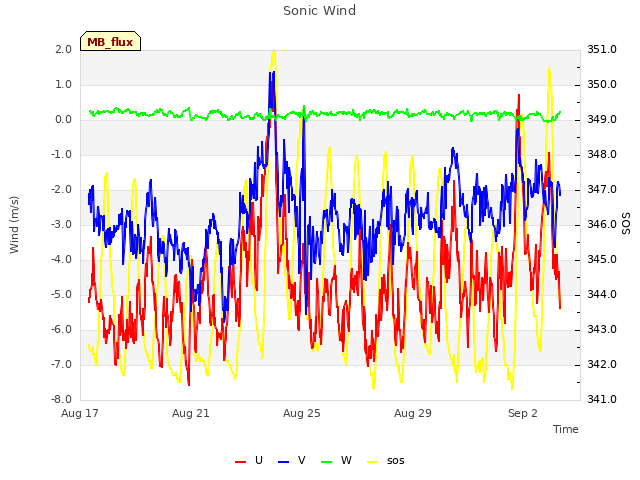

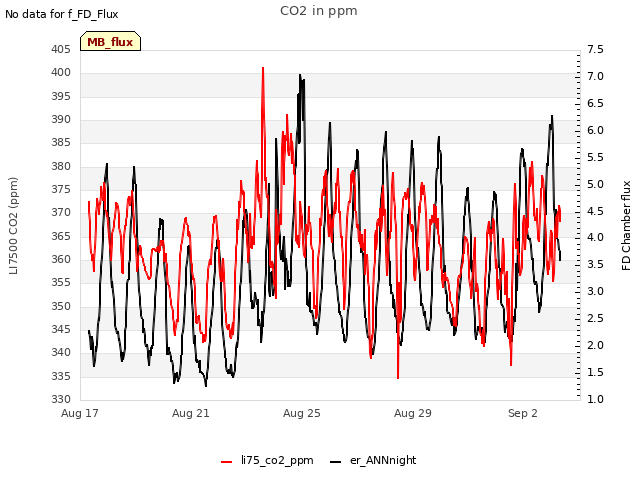

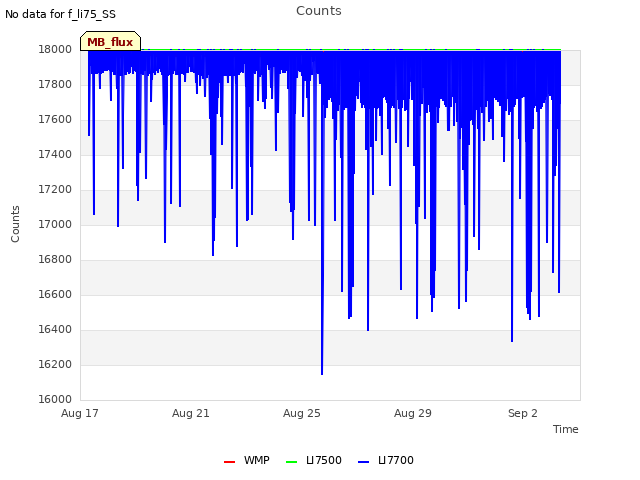

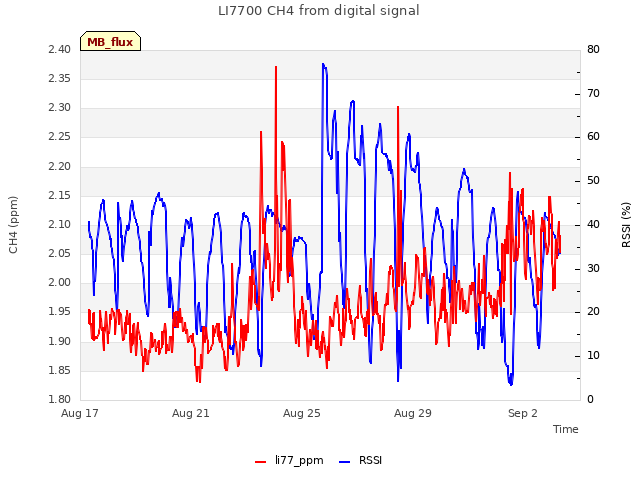

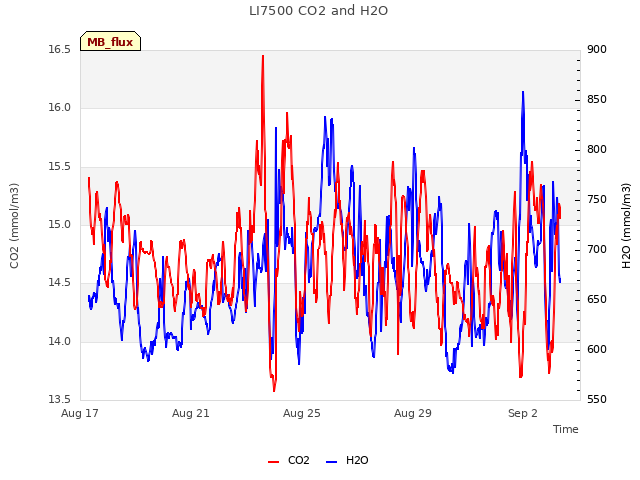

7 MB_flux graphs found

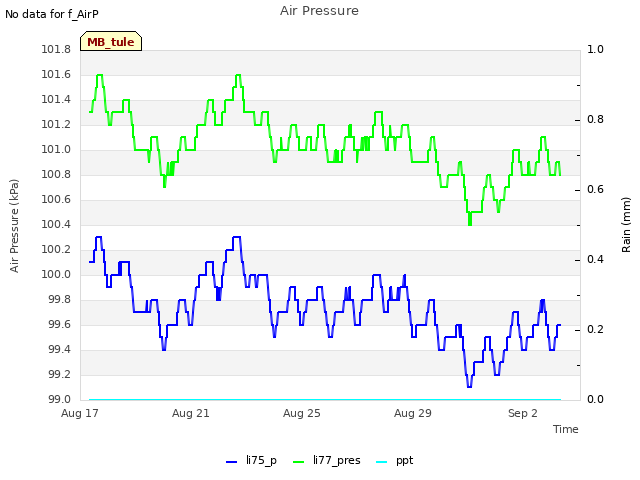

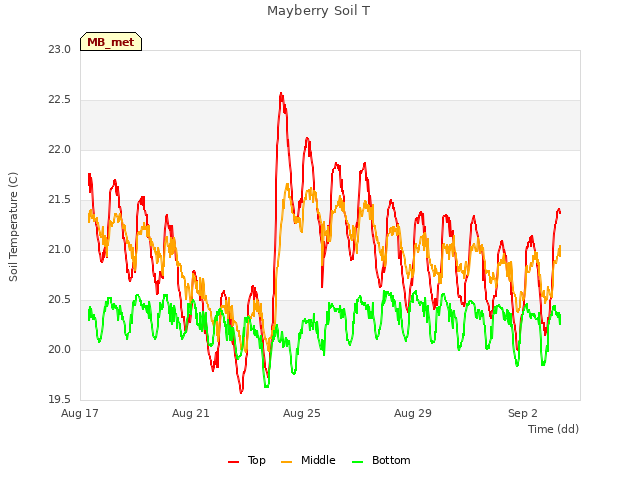

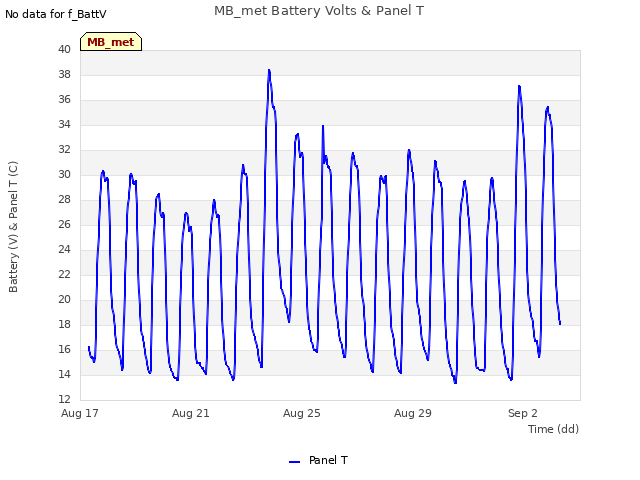

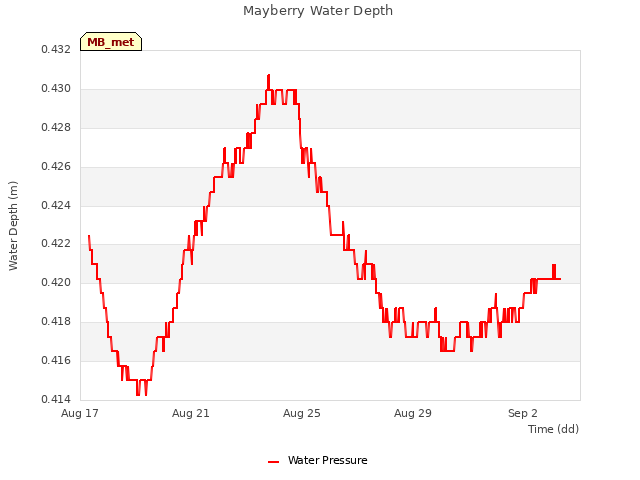

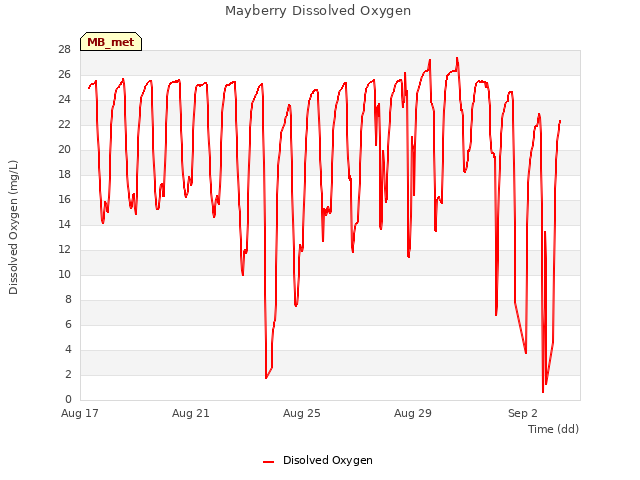

5 MB_met graphs found

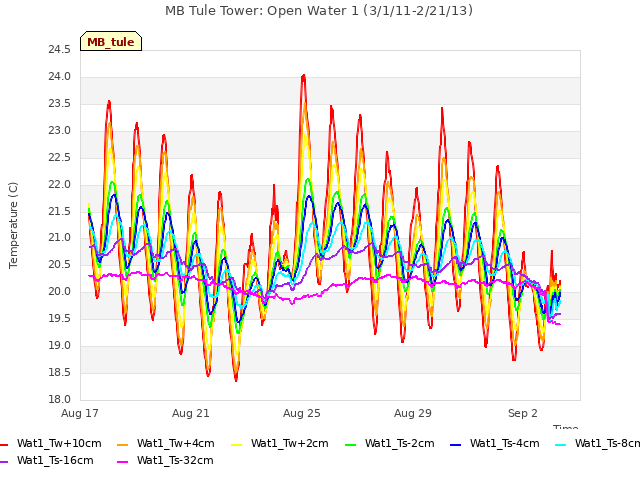

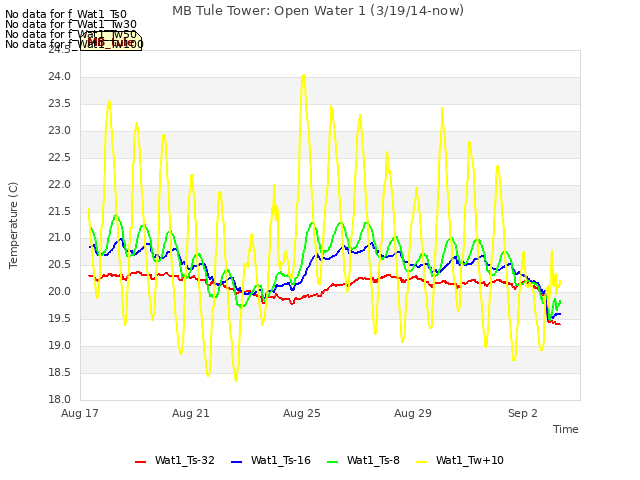

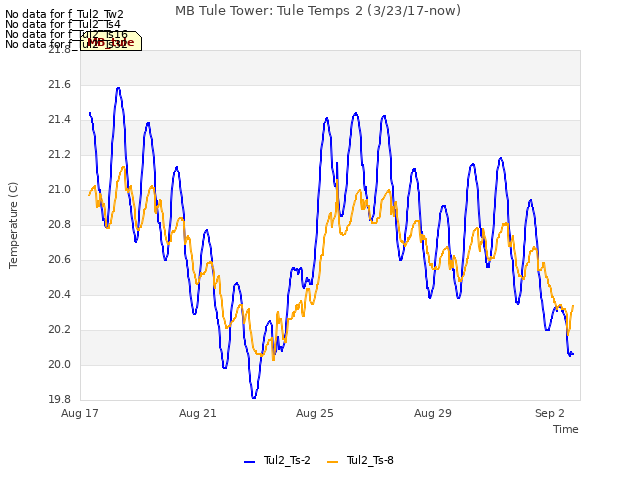

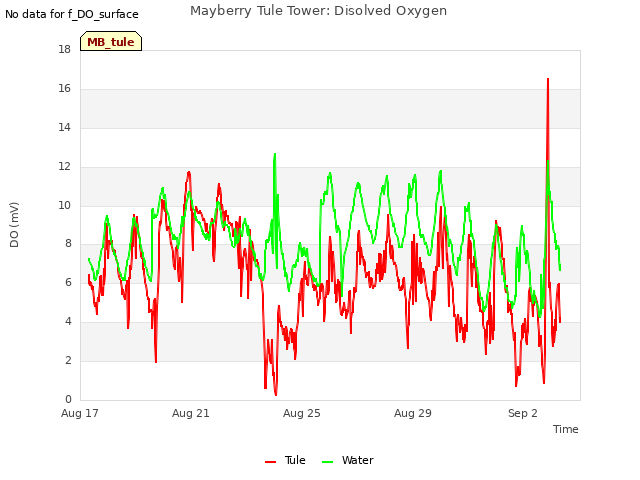

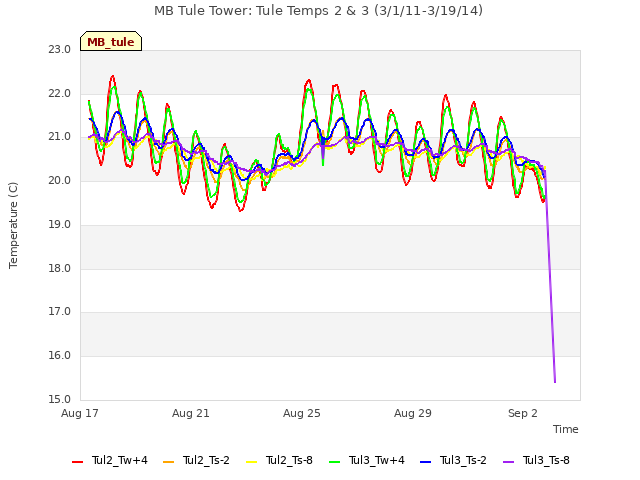

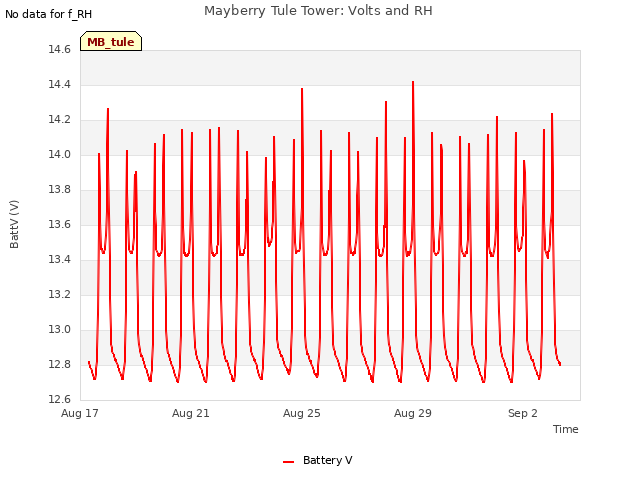

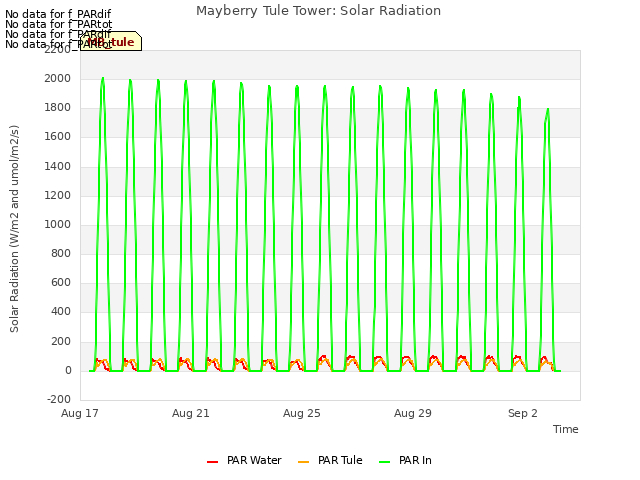

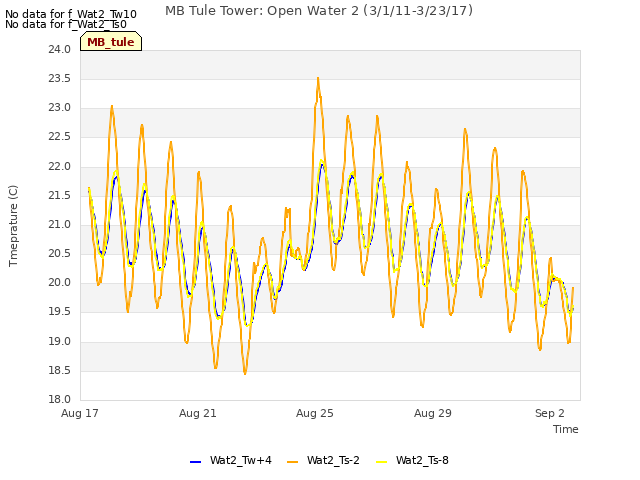

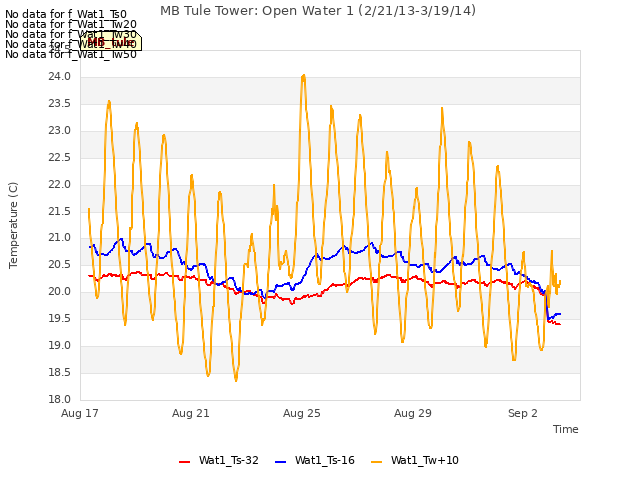

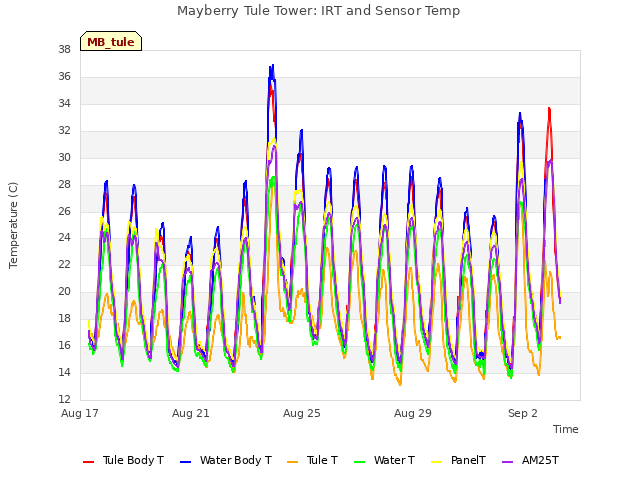

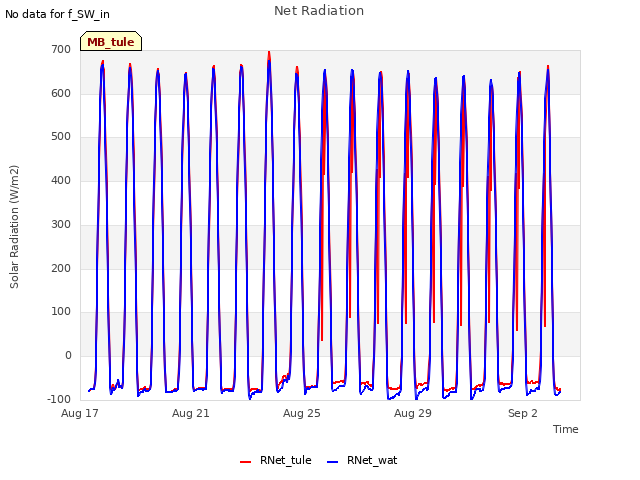

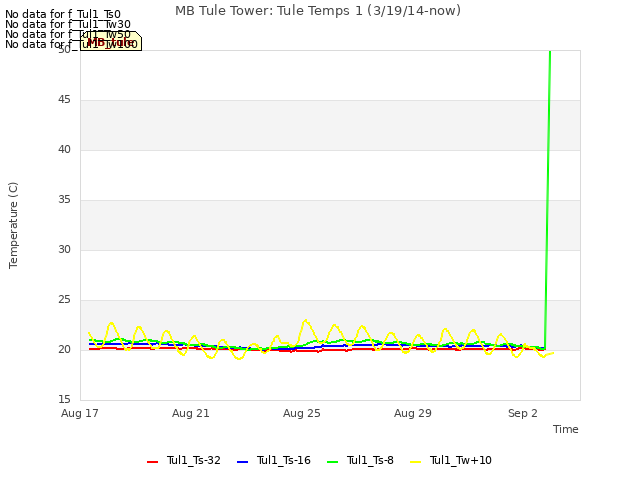

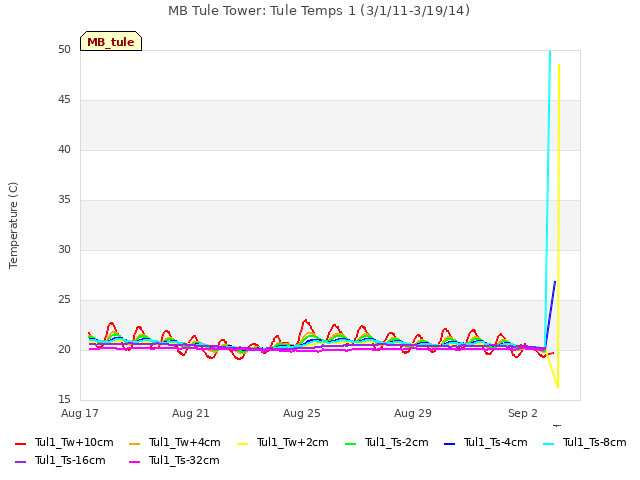

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

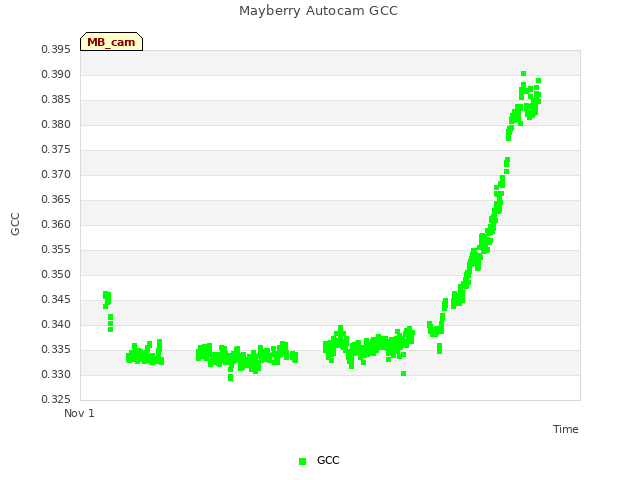

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA

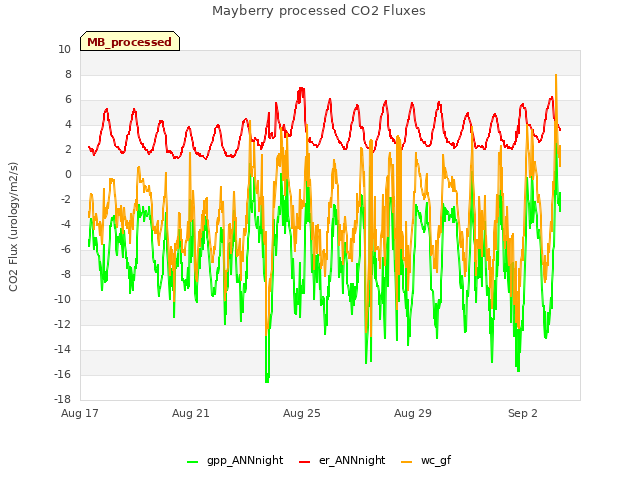

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
