Twitchell Rice: 2011-05-13 08:30:00 (DOY 133)
Author: Joe Verfaillie
Others: Jaclyn, Dennis, Emily

Summary: Field beginning to flood, fixed soil heat flux plate #2, Calibrated LGR.

Twitchell
2011/5/13

I arrived about 8:30 with Jaclyn, Dennis and Emily. It was cool, sunny and breezy but warming quickly. The north most check of field one was mostly full of water and still being flooded. Our check had water to the surface in most places. The rice is up maybe to 5cm.

The LGR was reporting:
8:27PDT, 22.89C, 120.58Torr, 16.781usec, 10Hz, 1.858ppm

I adjusted the bypass valve to correct the pressure. I calibrated the LGR with 3.276ppm tank with 700psi. Last cal was March 22, 2011
Precal: 8:47PDT. 24.11C, 156.50Torr, 16.776usec, 1Hz, 3.290ppm
After cal 3.276ppm
Before I left the LGR read:
8:52PDT, 24.49C, 150.77Torr, 16.774usec, 10Hz, 1.883ppm

I collected data, swapped the CR1000 card and moved images off the Plantcam.

The ground lead for the HMP45 fan had been pulled loose, but reconnecting it did not start the fan. Probably need to replace the fan next time out.

Dennis measured the height of the well and radiation boom. The 1m mark on the well pressure transducer is 17cm above the ground and there is 2cm of water on the ground. The radiation boom is 240cm above the ground.

Soil Heatflux plate #2 was upside down. It was righted.

Dennis reinstalled the DO sensor next to the well.

65 photos found

Ground sensors reinstalled at the rice site
Ground sensors reinstalled at the rice site

Dennis admiring eddy tower and rice field
Dennis admiring eddy tower and rice field

Equipment box and tower with Mt Diablo in the background
Equipment box and tower with Mt Diablo in the background

Flooding sequence 06
Flooding sequence 06

Flooding sequence 07
Flooding sequence 07

Flooding sequence 08
Flooding sequence 08

Flooding sequence 09
Flooding sequence 09

Flooding sequence 10
Flooding sequence 10

Flooding sequence 11
Flooding sequence 11

Flooding sequence 12
Flooding sequence 12

Flooding sequence 13
Flooding sequence 13

Flooding sequence 14
Flooding sequence 14

Flooding sequence 15
Flooding sequence 15

Flooding sequence 16
Flooding sequence 16

Flooding sequence 17
Flooding sequence 17

Flooding sequence 18
Flooding sequence 18

Flooding sequence 19
Flooding sequence 19

Flooding sequence 20
Flooding sequence 20

Flooding sequence 21
Flooding sequence 21

Flooding sequence 22
Flooding sequence 22

Flooding sequence 23
Flooding sequence 23

Flooding sequence 24
Flooding sequence 24

Flooding sequence 25
Flooding sequence 25

Flooding sequence 26
Flooding sequence 26

Flooding sequence 27
Flooding sequence 27

Flooding sequence 28
Flooding sequence 28

Flooding sequence 29
Flooding sequence 29

Flooding sequence 30
Flooding sequence 30

Flooding sequence 31
Flooding sequence 31

Flooding sequence 32
Flooding sequence 32

Flooding sequence 33
Flooding sequence 33

Flooding sequence 34
Flooding sequence 34

Flooding sequence 35
Flooding sequence 35

Flooding sequence 36
Flooding sequence 36

Flooding sequence 37
Flooding sequence 37

Flooding sequence 38
Flooding sequence 38

Flooding sequence 39
Flooding sequence 39

Flooding sequence 40
Flooding sequence 40

Changing camera card
Changing camera card

Flooding sequence 41
Flooding sequence 41

Flooding sequence 42
Flooding sequence 42

Flooding sequence 43
Flooding sequence 43

Flooding sequence 44
Flooding sequence 44

Flooding sequence 45
Flooding sequence 45

Flooding sequence 46
Flooding sequence 46

Flooding sequence 47
Flooding sequence 47

Flooding sequence 48
Flooding sequence 48

Flooding sequence 49
Flooding sequence 49

Flooding sequence 50
Flooding sequence 50

Flooding sequence 51
Flooding sequence 51

Flooding sequence 52
Flooding sequence 52

Flooding sequence 53
Flooding sequence 53

Flooding sequence 54
Flooding sequence 54

Flooding sequence 55
Flooding sequence 55

Flooding sequence 56
Flooding sequence 56

Flooding sequence 57
Flooding sequence 57

Flooding sequence 58
Flooding sequence 58

Flooding sequence 59
Flooding sequence 59

Flooding sequence 60
Flooding sequence 60

Flooding sequence 61
Flooding sequence 61

Flooding sequence 62
Flooding sequence 62

Flooding sequence 63
Flooding sequence 63

Flooding sequence 64
Flooding sequence 64

Draining sequence 01
Draining sequence 01

Nice clouds
Nice clouds

Graphs display:
6 sets found

12 TW_met graphs found

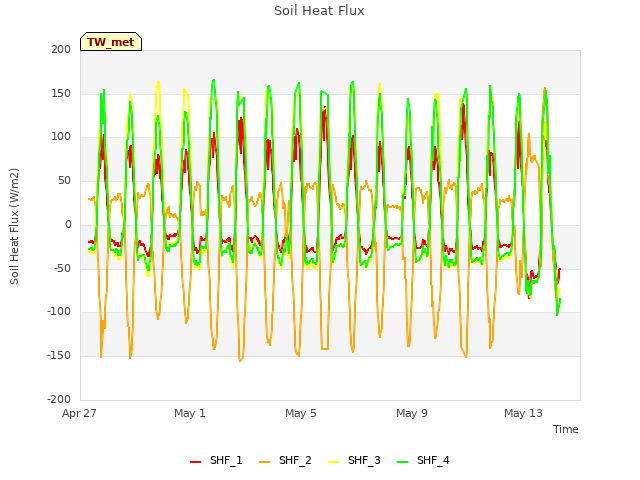

Explore the graph:Soil Heat Flux in a new window

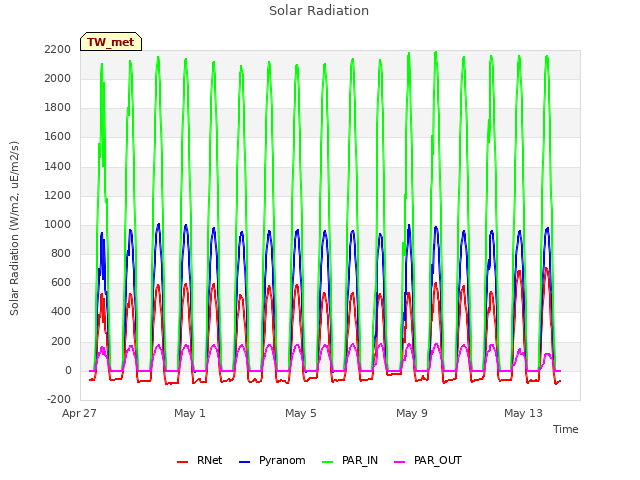

Explore the graph:Solar Radiation in a new window

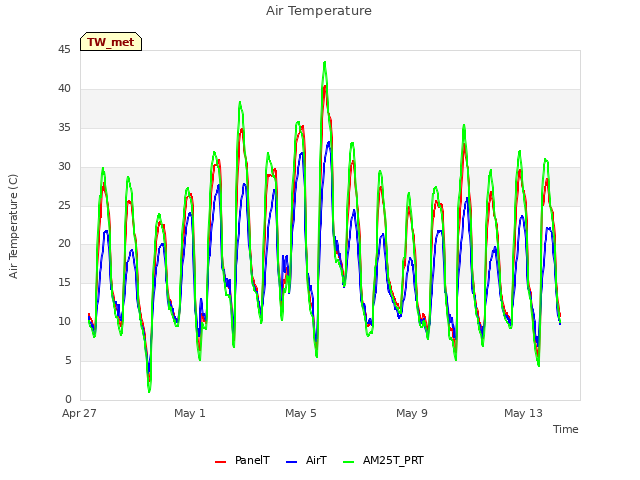

Explore the graph:Air Temperature in a new window

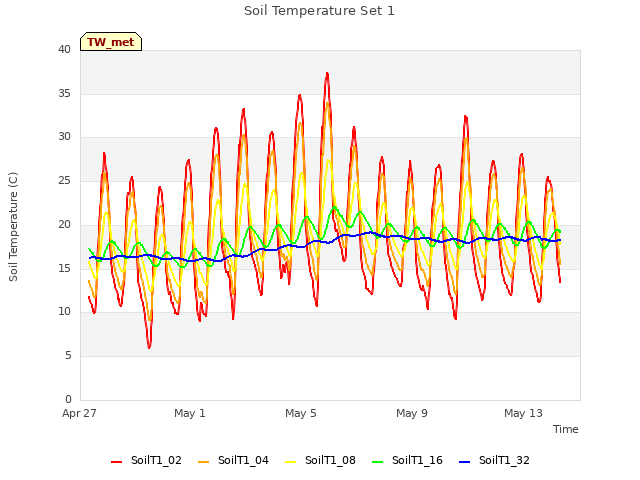

Explore the graph:Soil Temperature Set 1 in a new window

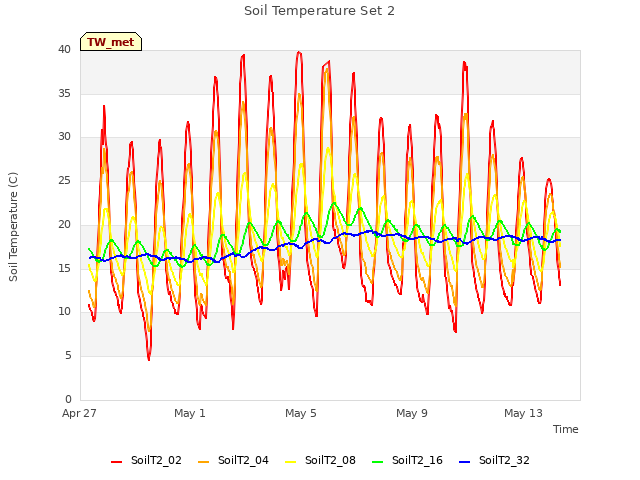

Explore the graph:Soil Temperature Set 2 in a new window

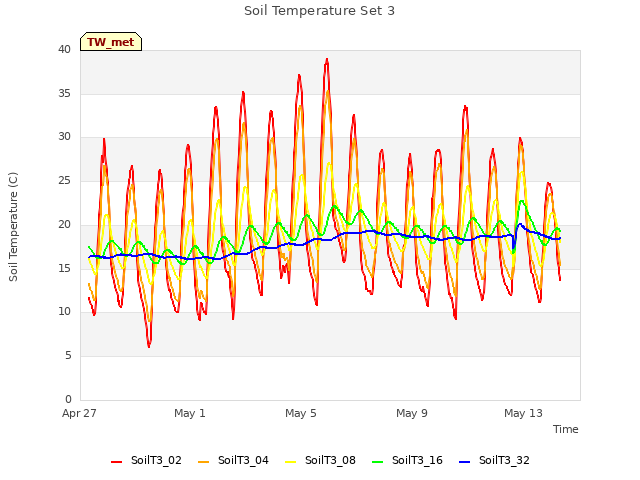

Explore the graph:Soil Temperature Set 3 in a new window

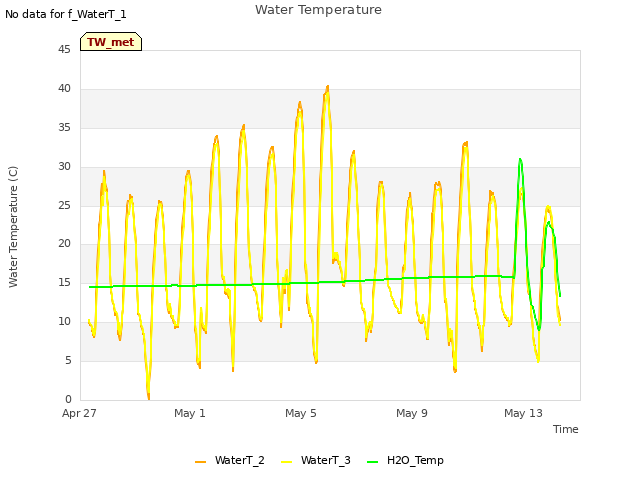

Explore the graph:Water Temperature in a new window

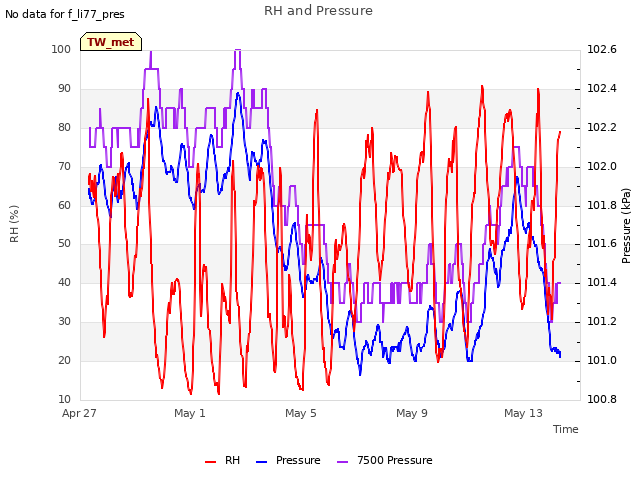

Explore the graph:RH and Pressure in a new window

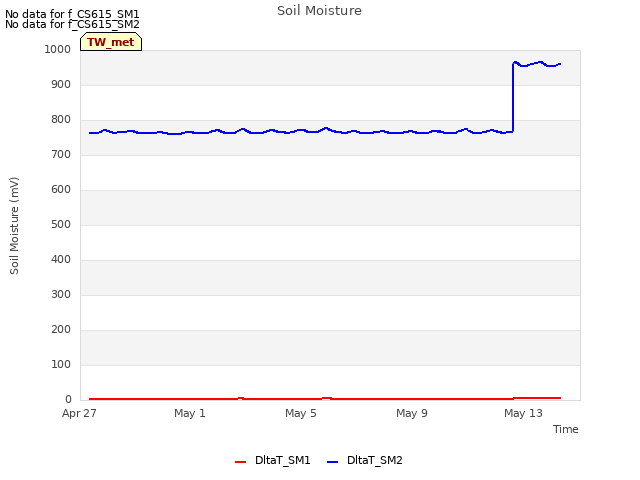

Explore the graph:Soil Moisture in a new window

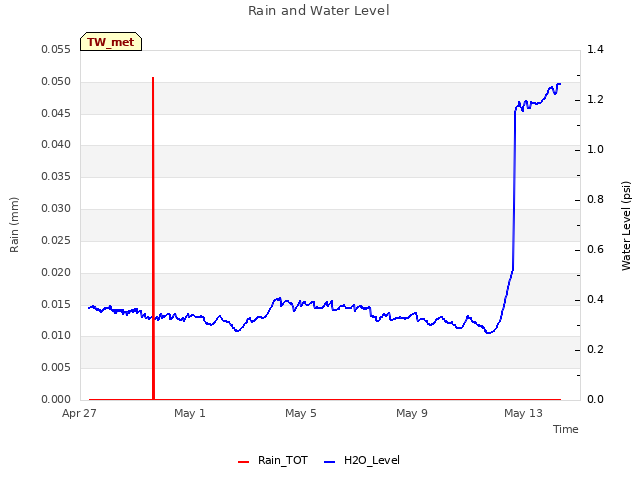

Explore the graph:Rain and Water Level in a new window

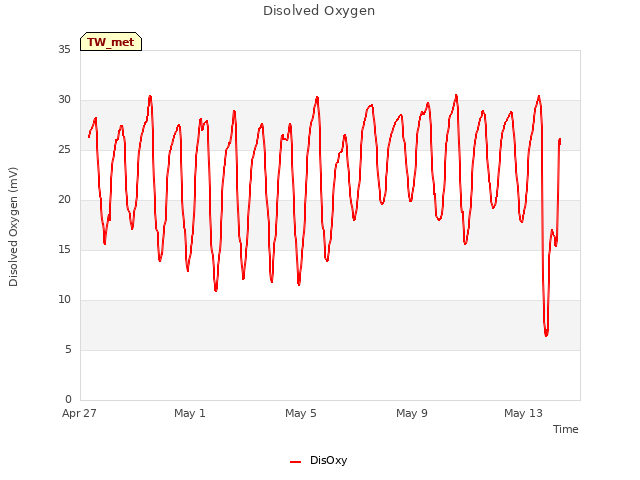

Explore the graph:Disolved Oxygen in a new window

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

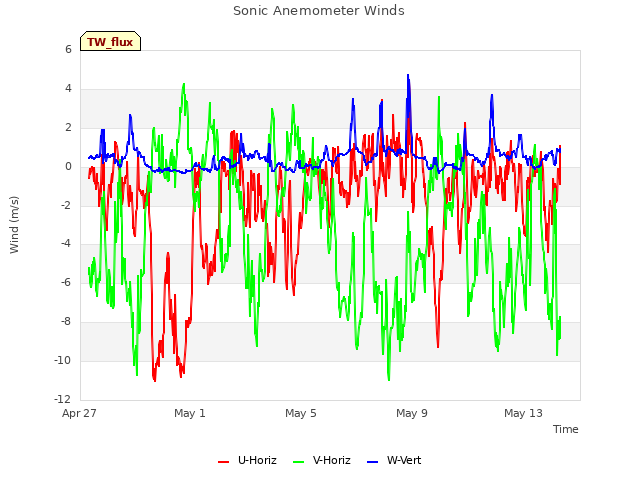

Explore the graph:Sonic Anemometer Winds in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

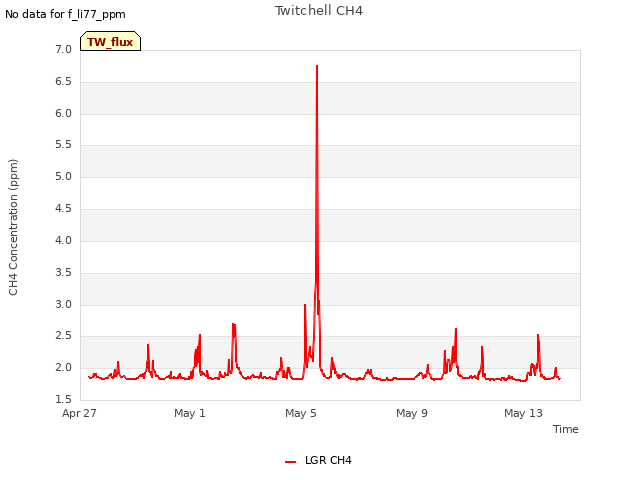

Explore the graph:Twitchell CH4 in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

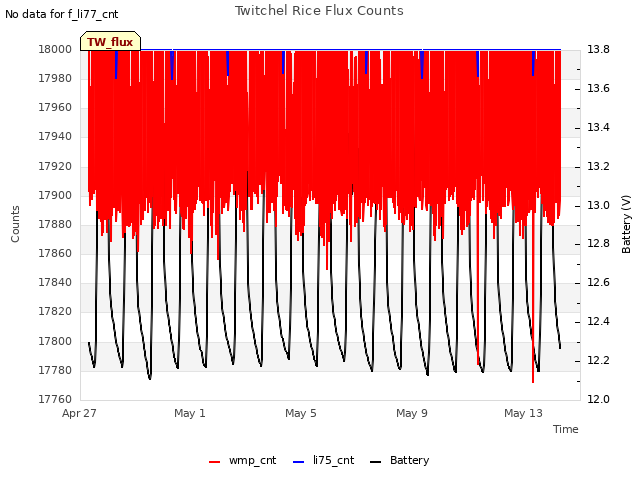

Explore the graph:Twitchel Rice Flux Counts in a new window
