Field Notes

<--2011-03-30 09:30:00 | 2011-05-12 00:00:00-->
Other sites visited today: Tonzi | Mayberry | Tonzi
Phenocam link: Searching...

Vaira: 2011-04-15 11:00:00 (DOY 105)
Author: Joe Verfaillie
Others: Siyan (Sunny, Alex)

Summary: Removed 2007 data from computer, standard field work.

Vaira
4/15/2011

I arrived at Vaira with Siyan (and Sunny and Alex) about 11am. It was warm and sunny with a little breeze from the northwest. There were high thin clouds. Things have dried off quite a bit. Puddles in the road are now dry. The trees have put on leaves fast maybe close to 80% complete now. Some of the grass has seed heads. The grass doesn’t seem to be as big and abundant as last year, maybe due to cooler and wetter spring?

I moved the 2007 archived data of the computer and there is now 13GB of free space on the drive. I left the zipping software in the 2008 folders, but I don’t think I will remove more archived data until the disk space get small again.

I also copied the latest data.

I did the Moisture Point measurements. A couple of the new probes are still reporting low values for some segments. Maybe rocky areas are reducing the soil moisture?

I checked the computer clock against my cell phone and rest the time from 10:41 to 10:37.

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2011-04-15TZ_floor10.09
2011-04-15TZ_road19.4
2011-04-15TZ_tower13.9

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

12 photos found

Purple flower at varia
Purple flower at varia

Boys and pretty tree at Vaira
Boys and pretty tree at Vaira

Boys and pretty tree at Vaira
Boys and pretty tree at Vaira

People doing fieldwork at Vaira
People doing fieldwork at Vaira

Close up of green grass
Close up of green grass

Close up of green grass
Close up of green grass

Purple flowers in green grass
Purple flowers in green grass

Close up of green grass and clover
Close up of green grass and clover

Cow poop on green grass
Cow poop on green grass

Cow poop on green grass
Cow poop on green grass

Dirt road green grass and trees at Vaira
Dirt road green grass and trees at Vaira

Green pasture at Vaira
Green pasture at Vaira

Graphs display:
9 sets found

16 VR_met graphs found

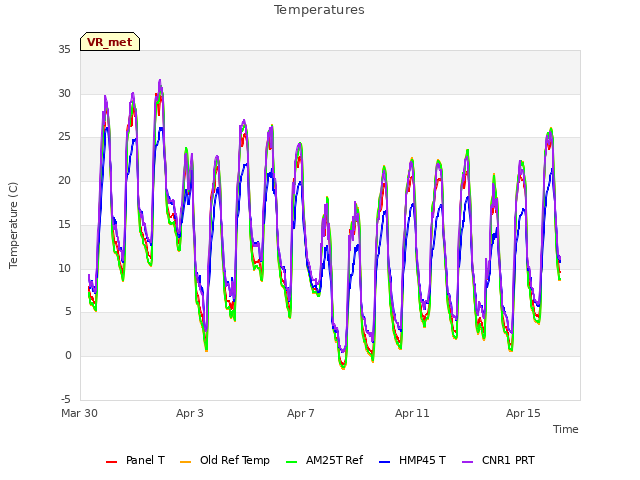

Explore the graph:Temperatures in a new window

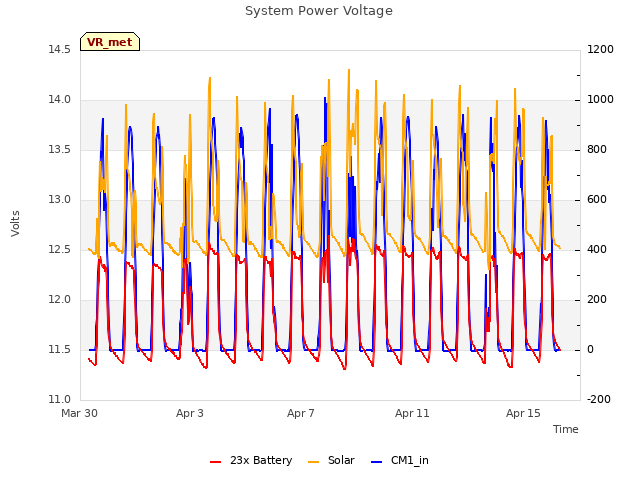

Explore the graph:System Power Voltage in a new window

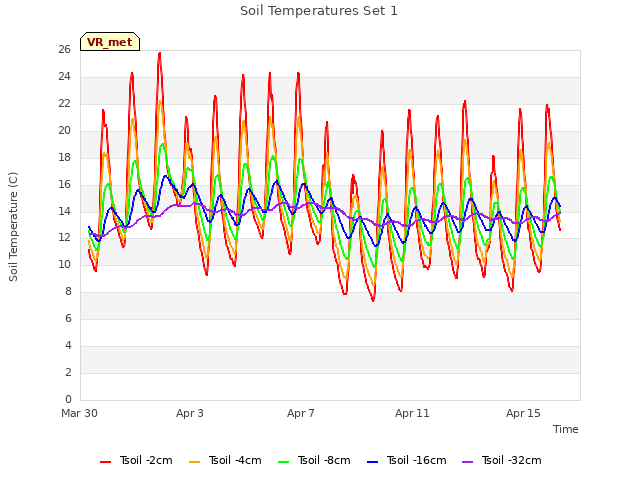

Explore the graph:Soil Temperatures Set 1 in a new window

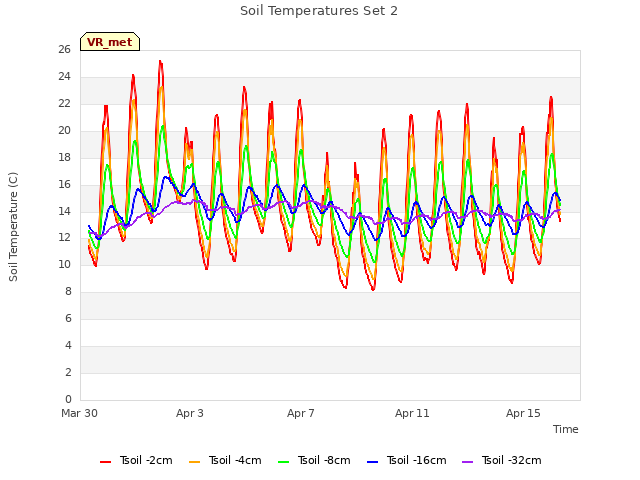

Explore the graph:Soil Temperatures Set 2 in a new window

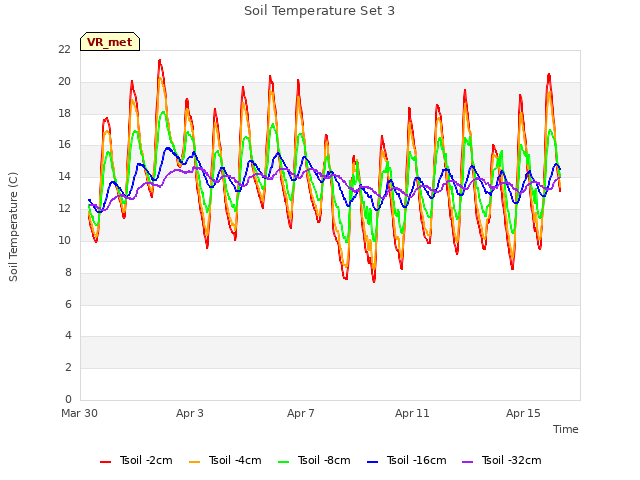

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Soil Temperature at -4cm in a new window

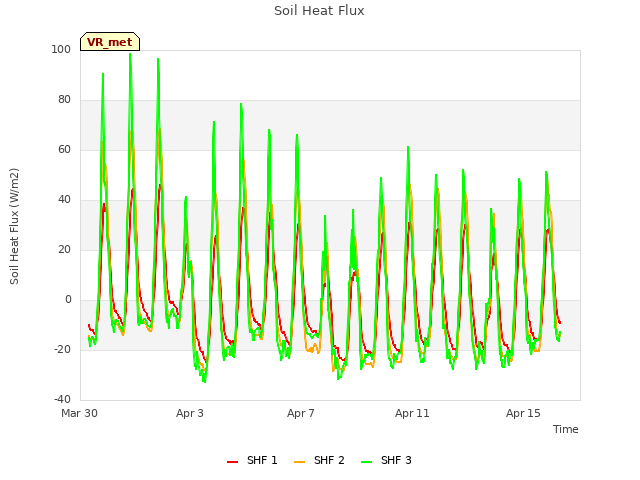

Explore the graph:Soil Heat Flux in a new window

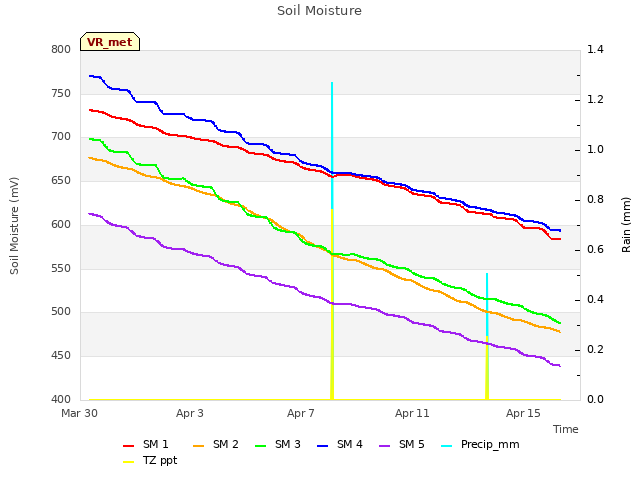

Explore the graph:Soil Moisture in a new window

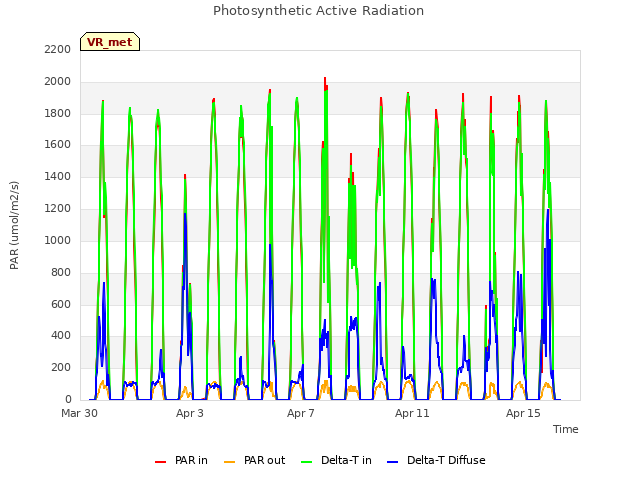

Explore the graph:Photosynthetic Active Radiation in a new window

Explore the graph:Short/Long Wave Radiation in a new window

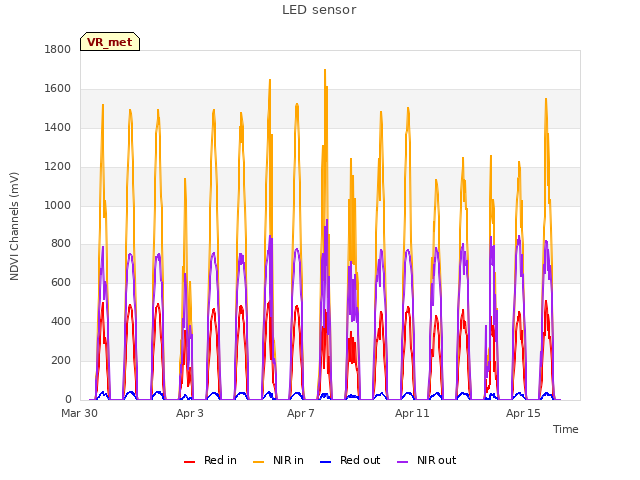

Explore the graph:LED sensor in a new window

Explore the graph:Vaira PPT in a new window

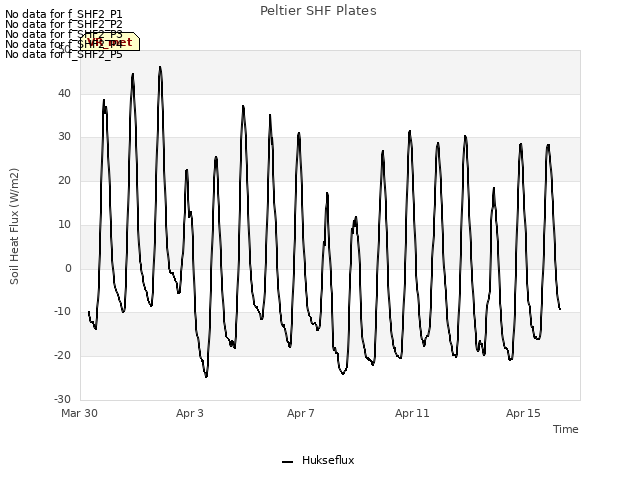

Explore the graph:Peltier SHF Plates in a new window

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
