Field Notes
<--2011-02-22 00:00:00 | 2011-03-30 09:30:00-->Other sites visited today: Tonzi | Mayberry
Phenocam link: Searching...
Vaira: 2011-03-08 09:30:00 (DOY 67)
Author: Joe Verfaillie
Others: Dennis, Siyan, Laurie, Naama
Summary: Check multiplexor, compress remove 2006 archive data.
| Vaira
2011-03-08 I arrived about 9:30 with Siyan, Dennis, Naama and Laurie. It was sunny and cool with a few clouds. There was a very light breeze from the south. There is a lot of water around. All the usual water holes are full and overflowing. Water was running and pooling in the road ruts. The rivers at Cosumnes River Reserve were as high as I have ever seen them. The grass is still growing slowly and the trees do not have any leaves yet. The am16/32 multiplexor was running and the data looked okay. I checked all the screw terminals between the data logger and the multiplexor – they were all tight. The cause of this problem will remain a mystery. I copied the data for Siyan and then began compressing and moving the archived 2006 data to make more room on the hard drive. I removed the 2006 flux, met and pic folders. These have been added to the Data PC in the lab. I left a batch file running that was compressing the raw data files in to daily zip archives. We left for Tonzi probably around 10:30 |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2011-03-08 | TZ_floor | 17.7 |
| 2011-03-08 | TZ_road | 26.2 |
| 2011-03-08 | TZ_tower | 21 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
4 photos found
Dennis talking while leaning on biomass fence
Dennis and Naama at Vaira biomass fence
Laurie doing soil moisture measurements
Joe waiting at Vaira site
9 sets found

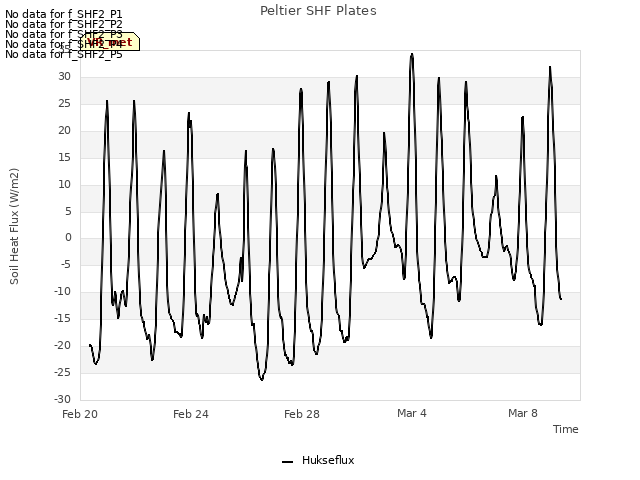

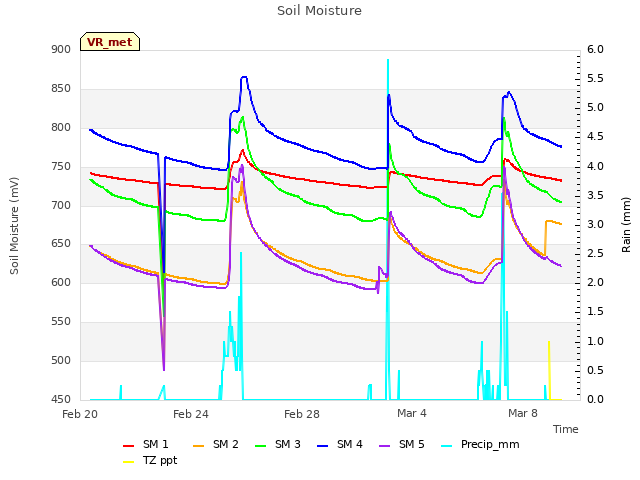

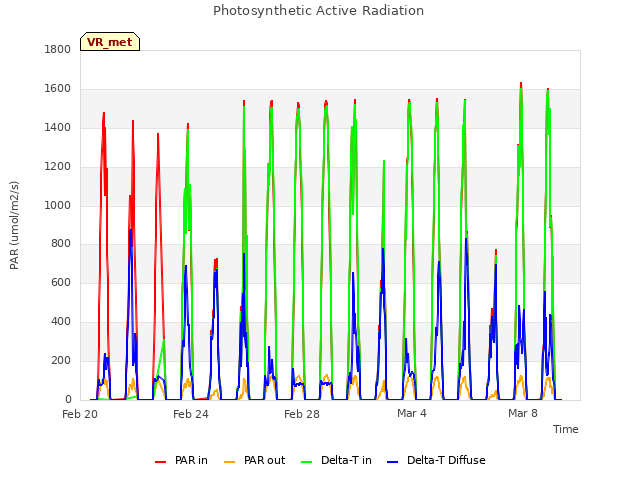

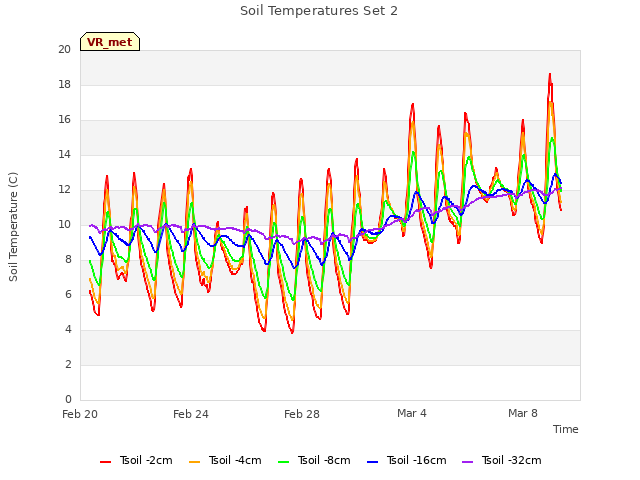

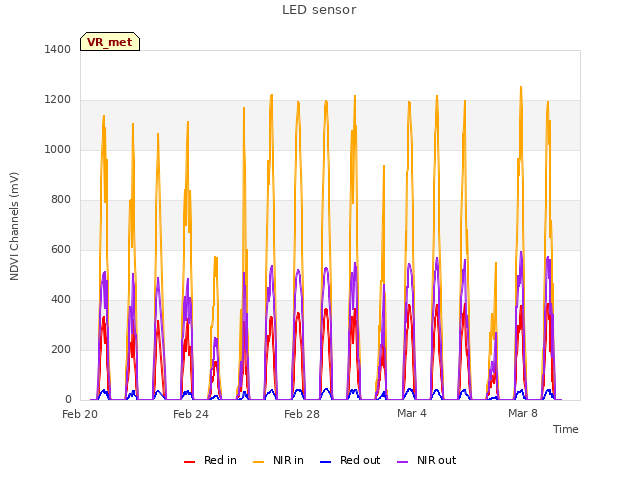

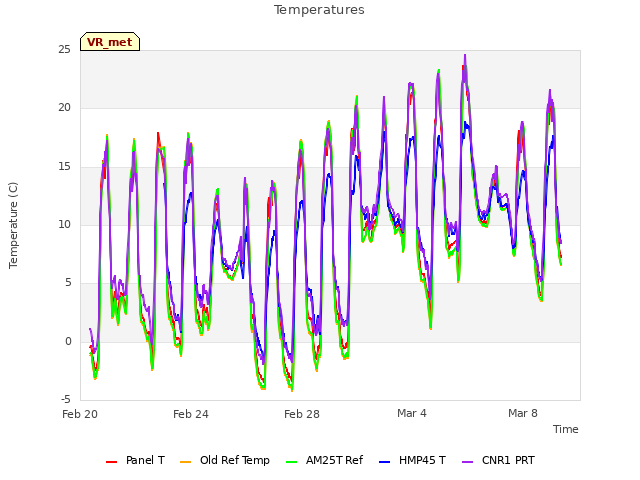

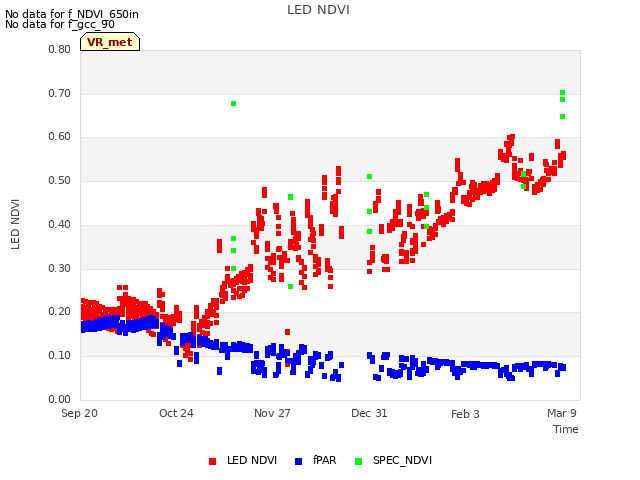

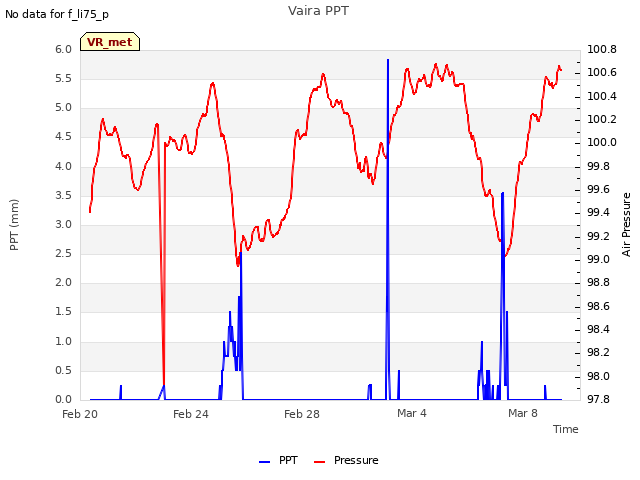

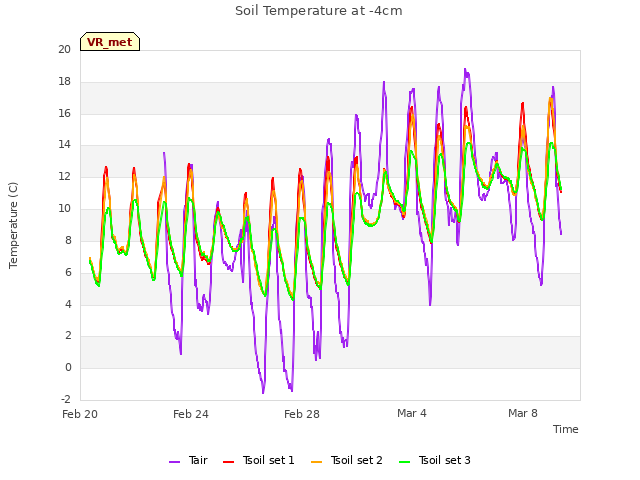

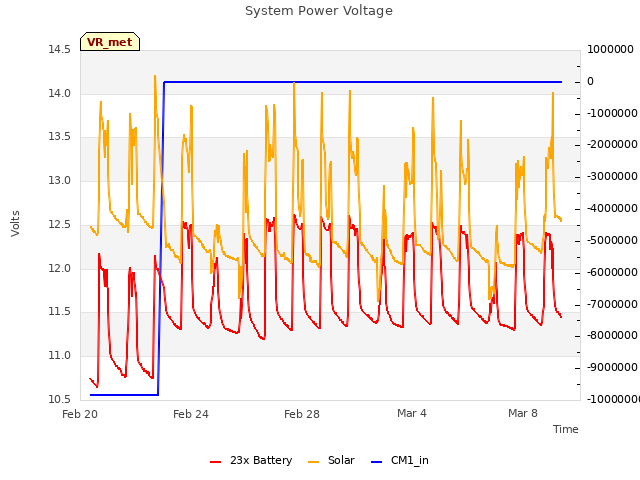

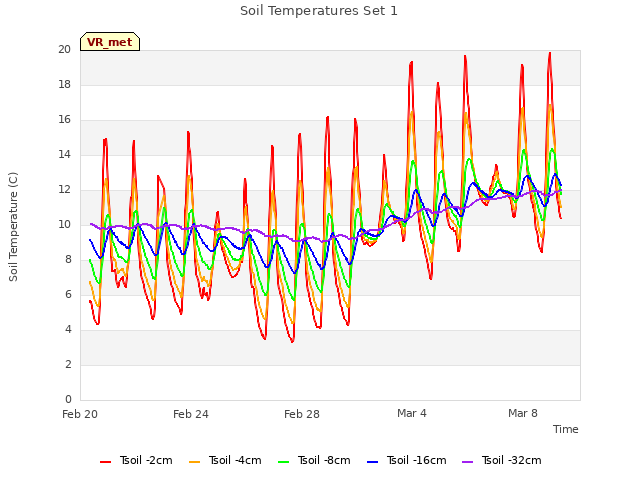

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
