Twitchell Rice: 2011-02-08 11:30:00 (DOY 39)
Author: Joe Verfaillie
Others: Jaclyn, Dennis, Naama

Summary: New generator, Keyboard/mouse still don't work, radiation boom rotated, field water draining, DO dry - reposisitoned.

Twitchell
2/8/2011

I arrived about 11:30 with Dennis, Jaclyn, and Naama. It was blowing like crazy from the northwest. Average wind speed was around 12m/s and gusts to 20m/s. The sky was clear and sunny. The field still had water on it, but the level had fallen by about 10cm. Seems they are draining the field in preparation for spring planting.

The radiation boom had swung to the south over the berm. We turned it back west and tightened the set screws in the rail fitting, which were loose. I hope it sticks as the wind was doing its best to turn it back to the south.

The systems were running. The LGR reported:

11:36PST, 24.56C, 103.89Torr, 17.395usec, 10Hz, 1.857ppm

I adjusted the bypass valve to set the pressure to 145.82Torr.

I restarted the LGR to get a keyboard and mouse connected, but they didn’t work. I left them in the field.

The netbook was off. I started it and it collected data correctly.

Jaclyn swapped cards on the CR1000.

I moved the images off the plantcam card.

The DO sensor was above the water. I think Jaclyn moved it to inside the well.

2 photos found

Dawn - water level dropping.
Dawn - water level dropping.

Midday - water level dropping.
Midday - water level dropping.

Graphs display:
6 sets found

12 TW_met graphs found

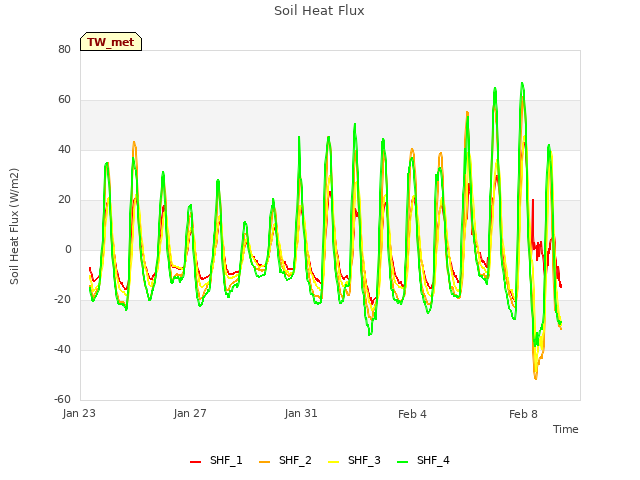

Soil Heat Flux

Solar Radiation

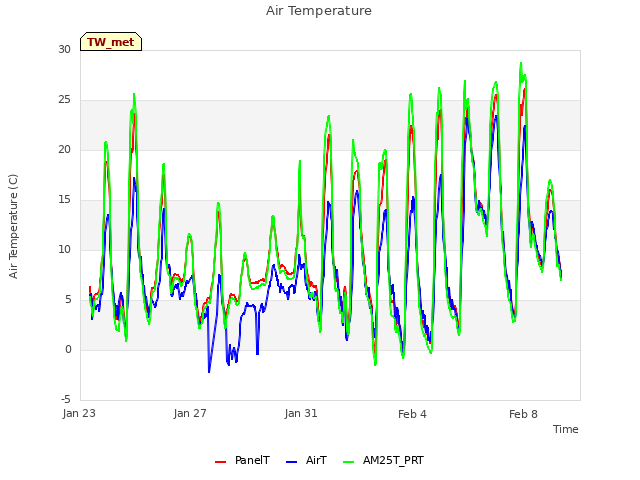

Air Temperature

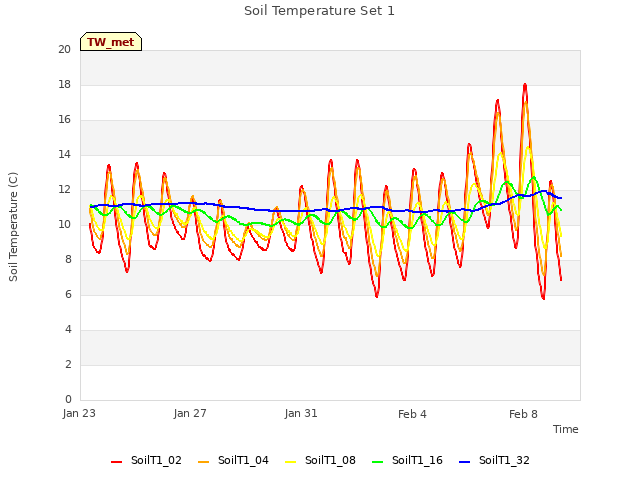

Soil Temperature Set 1

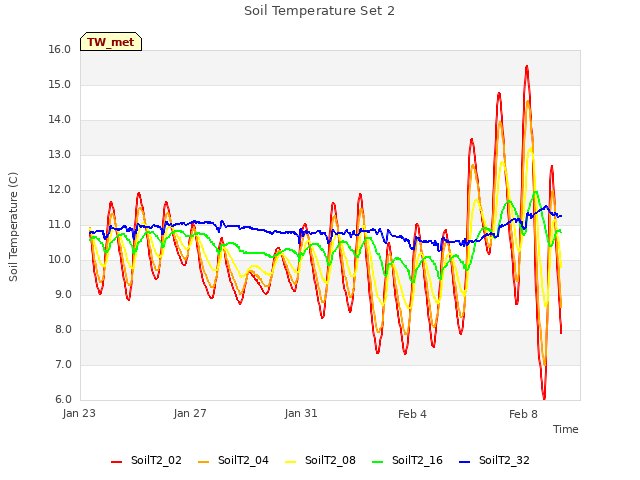

Soil Temperature Set 2

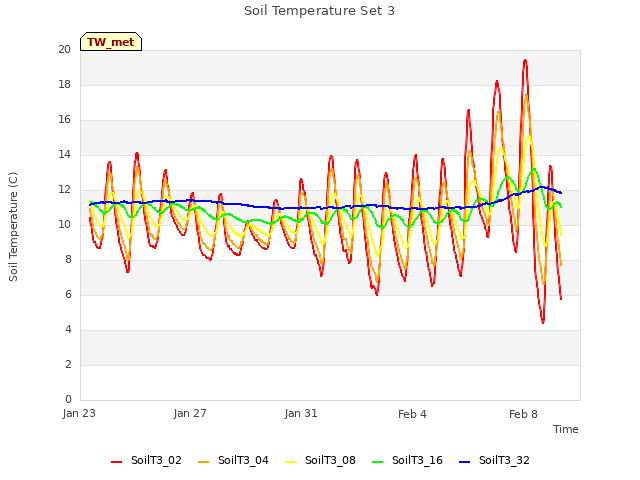

Soil Temperature Set 3

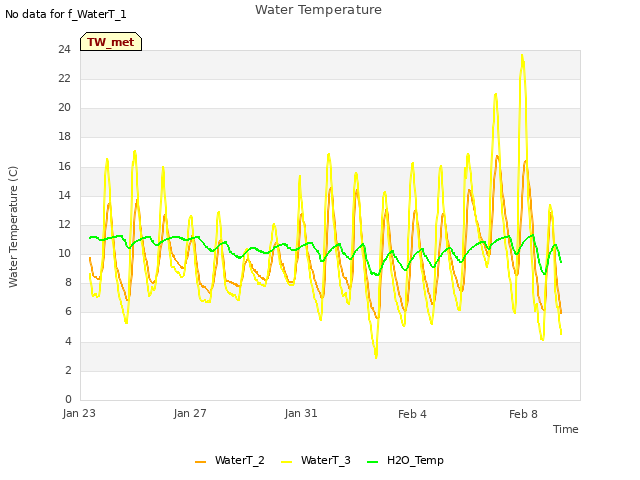

Water Temperature

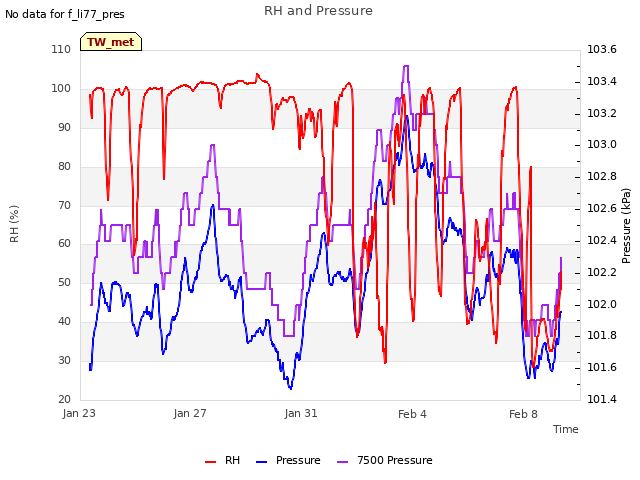

RH and Pressure

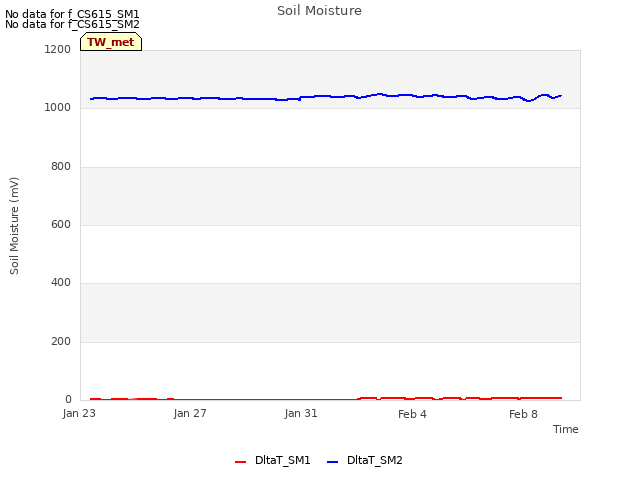

Soil Moisture

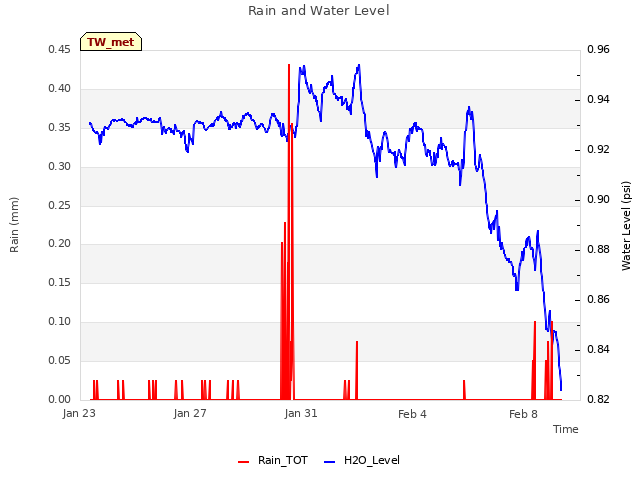

Rain and Water Level

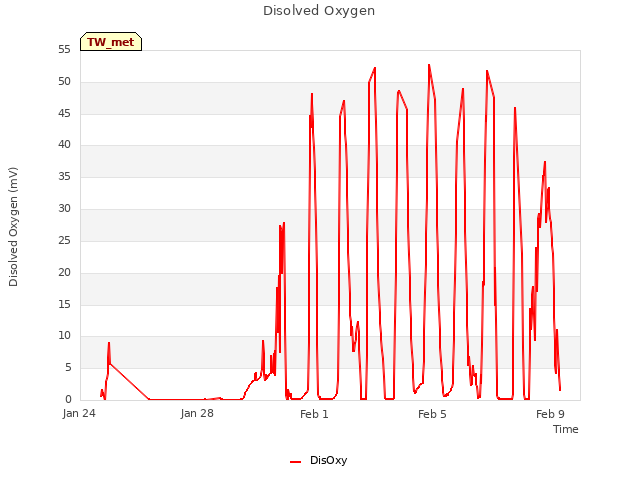

Disolved Oxygen

LED NDVI Channels

5 TW_flux graphs found

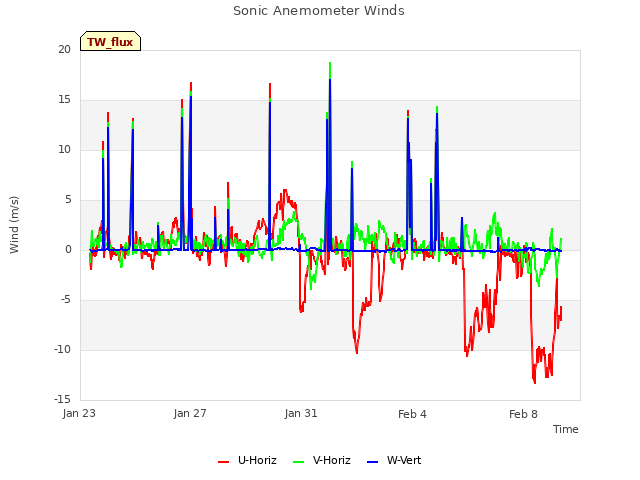

Sonic Anemometer Winds

LI7700 CH4 and RSSI

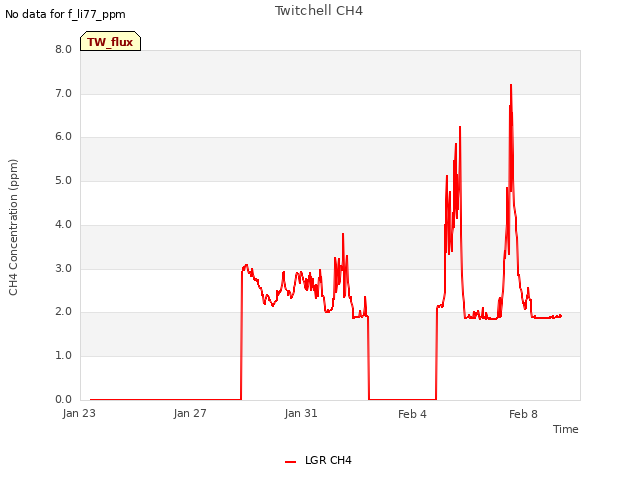

Twitchell CH4

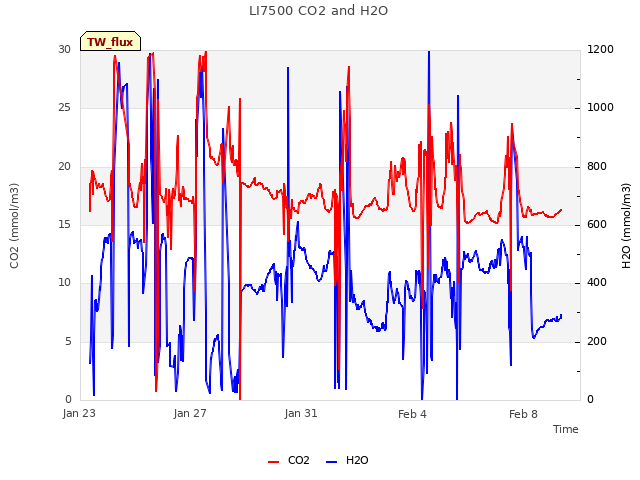

LI7500 CO2 and H2O

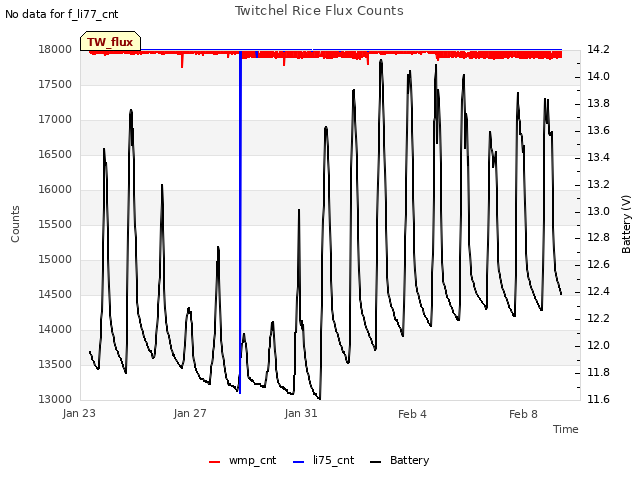

Twitchel Rice Flux Counts

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

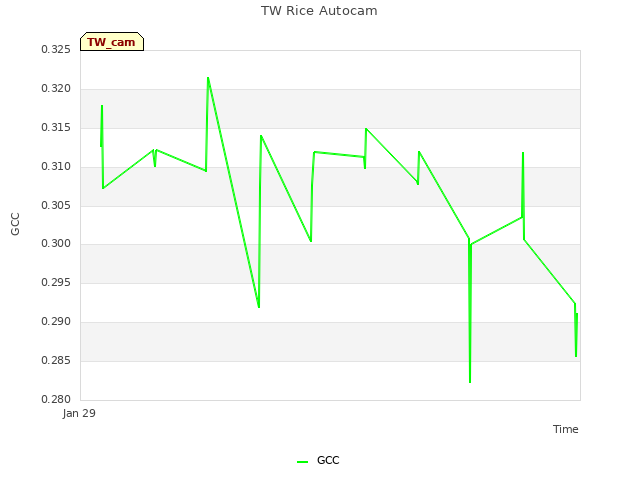

TW Rice Autocam

Can't check TATWBABCSB_cam
