West Pond: 2023-10-27 13:00:00 (DOY 300)
Author: Joe Verfaillie
Others: Daphne

Summary: Standard data collection, batteries still holding up, old boardwalk and well pipe uncovered by goats

West Pond
2023-10-27

Daphne and I arrived at about 13:00 PDT in the land yacht (Ford Expedition MAX - 17 mpg). It was clear sunny and mild with a light cool breeze. Goats have done a good job of clearing vegetation from the levees. They also seem to have eaten the willows hiding the old boardwalk and well pipe. There was a wasp nest near the old well pipe so we didn’t mess with it today. The inlet was not running and the water level was 55cm.

The data is complete, even with a full set of camera photos. Batteries seems to be surviving so far.
The 7500 read: 384ppm CO2, 594mmol/m3 H2O, 20.3C, 101.8kPa, 86SS – 105 after cleaning
The 7700 read: 2.15ppm CH4, 63RSSI – 90 after cleaning.
The was reservoir was 90% full and was refilled

Daphne collected the flux, met and camera data. The pi-cam quit partway through the download but completed after a power cycle and retry. I cleaned the eddy sensors and radiometers.

Wasps were our constant company and one tried to come home with us.

We left at about 13:30 PDT

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

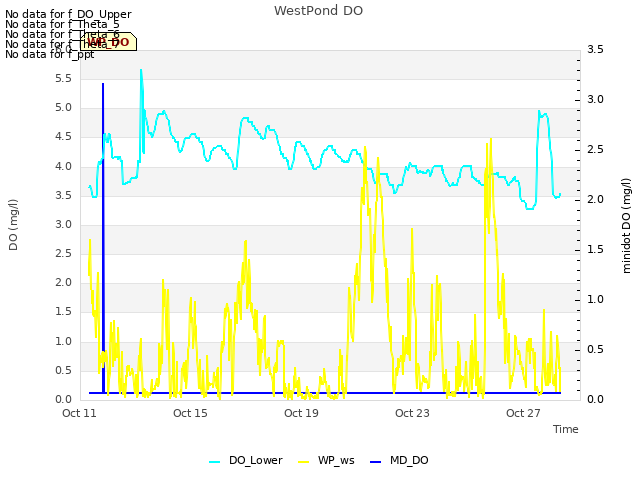

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

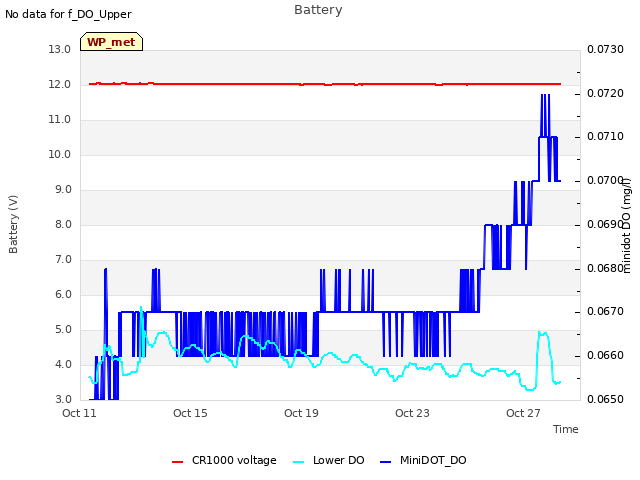

Explore the graph:Battery in a new window

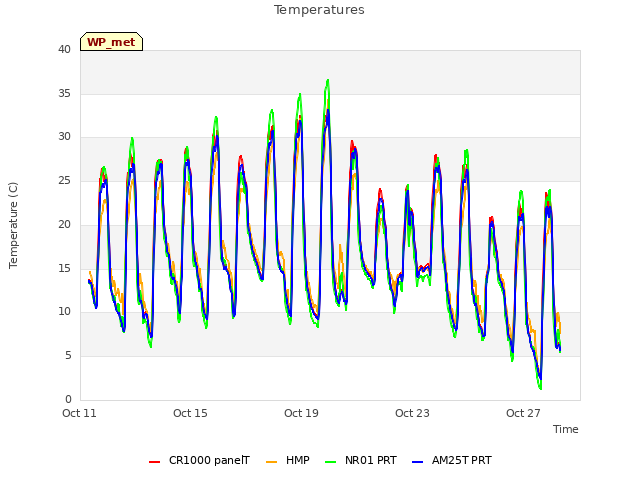

Explore the graph:Temperatures in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:RH and Pressure in a new window

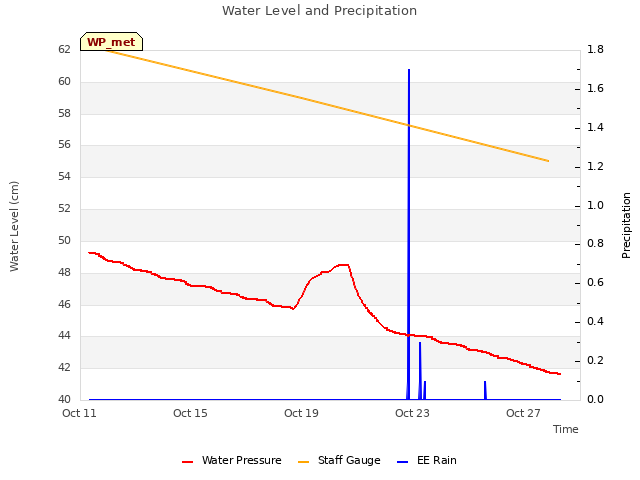

Explore the graph:Water Level and Precipitation in a new window

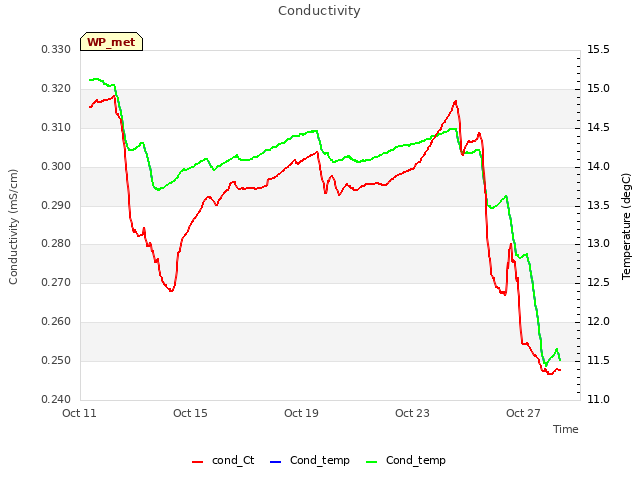

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

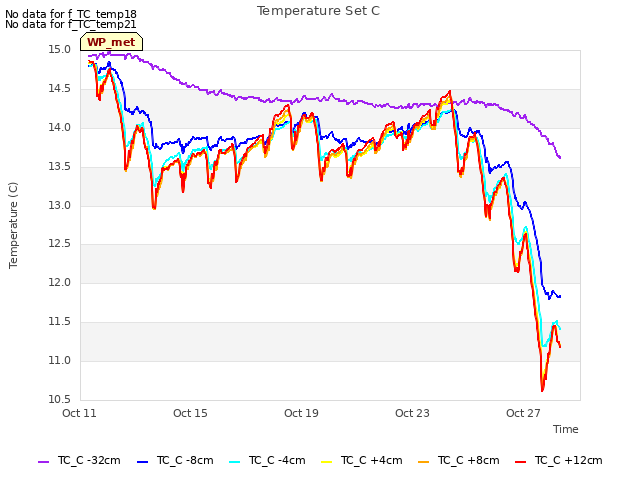

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

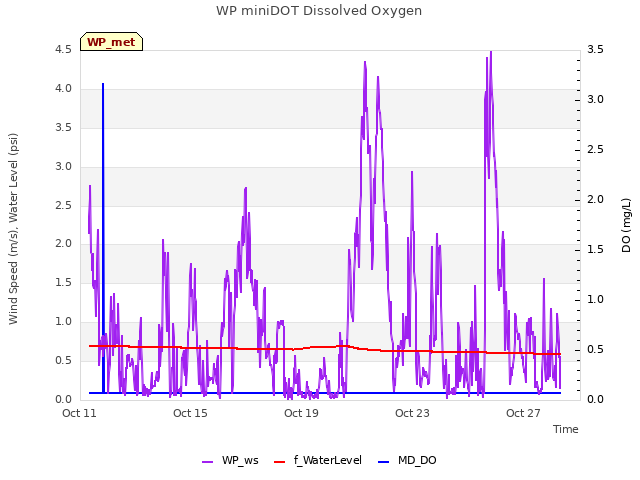

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:NDVI in a new window

5 WP_flux graphs found

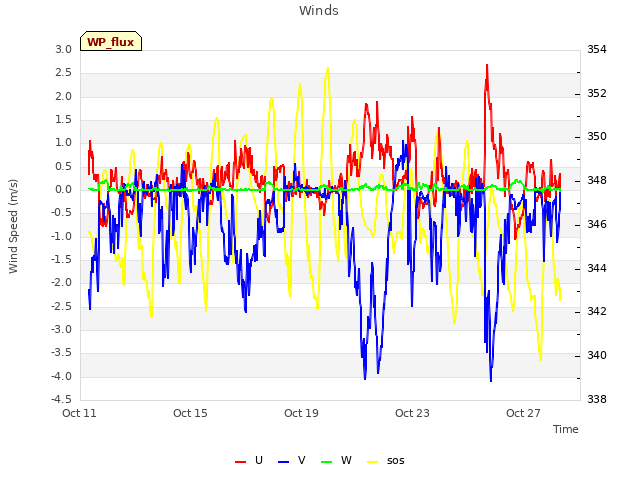

Explore the graph:Winds in a new window

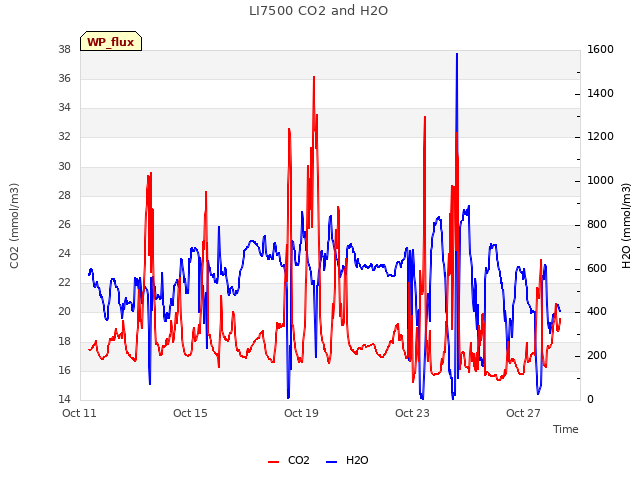

Explore the graph:LI7500 CO2 and H2O in a new window

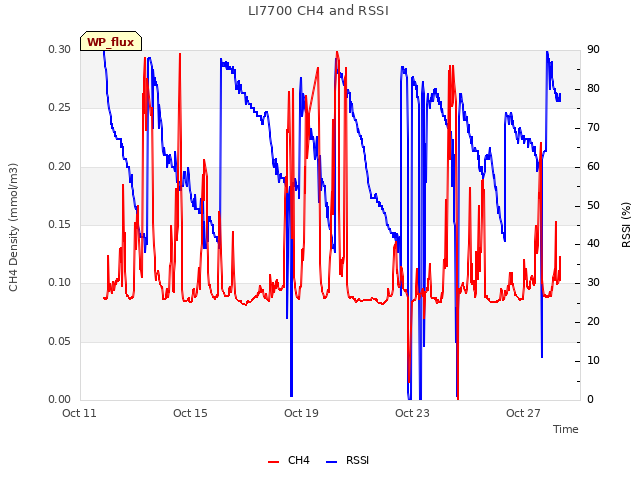

Explore the graph:LI7700 CH4 and RSSI in a new window

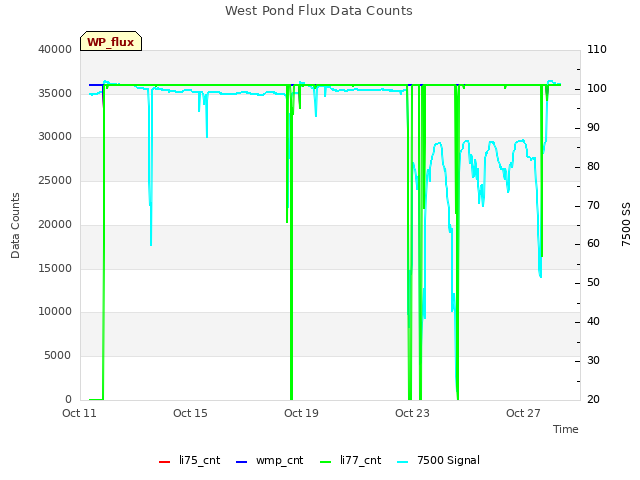

Explore the graph:West Pond Flux Data Counts in a new window

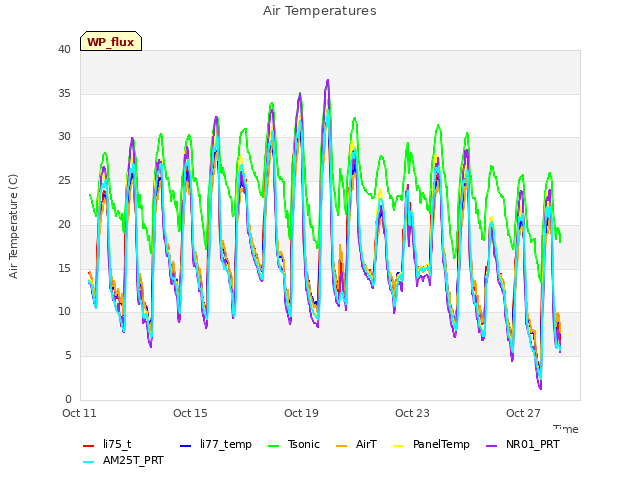

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

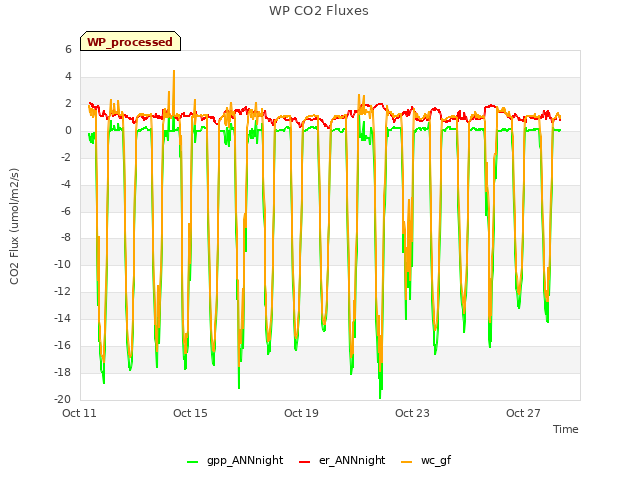

Explore the graph:WP CO2 Fluxes in a new window

4 WP_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

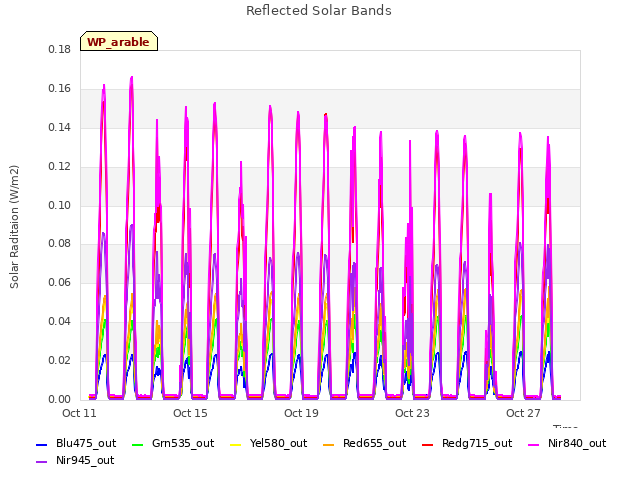

Explore the graph:Reflected Solar Bands in a new window

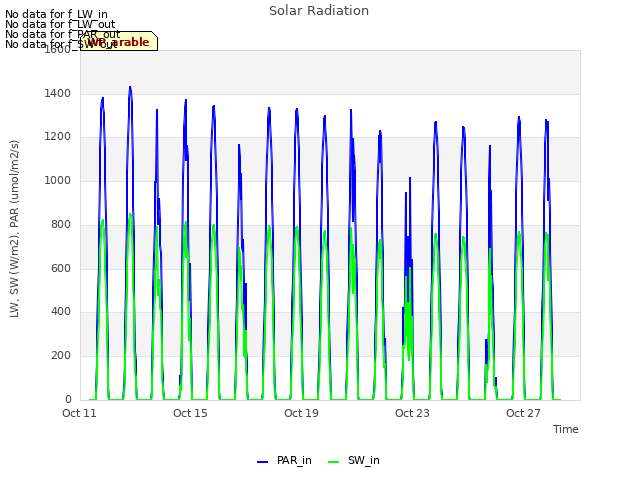

Explore the graph:Solar Radiation in a new window

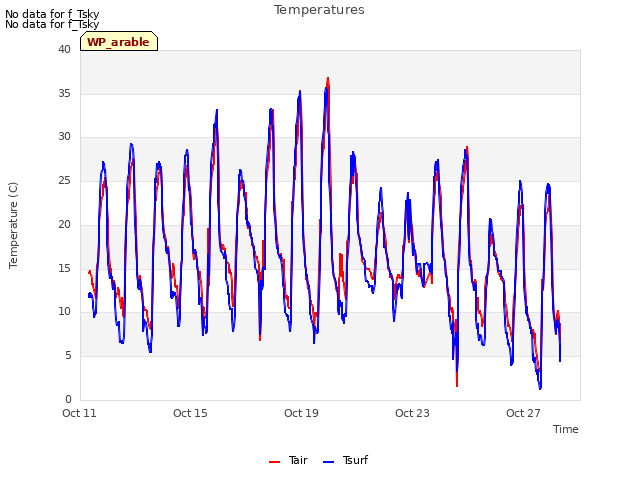

Explore the graph:Temperatures in a new window
