West Pond: 2023-03-17 13:10:00 (DOY 76)
Author: Daphne Szutu
Others: Luna, J.J.

Summary: Regular data collection/cleaning, visitors from UCSC, a few small plants coming up, lots of water

2023-03-17
West Pond

I arrived at 13:10 PDT with Luna and J.J. from UCSC, who are technicians responsible for the Elkhorn Slough towers. It was mild with a cool breeze. We’ve had more rain in the past two weeks and more to come. There are a few tiny tules coming up through the thatch, and the water level is still pretty high. The platform is flooded and the water level is touching the bottom of the “temporary” plank/boardwalk pathway that Joe set up over the platform. The staff gauge read 89cm.

There were a few ants in the met box—I left them some mothballs. Luna and J.J. cleaned flux and rad sensors. The reservoir was mostly full and I did not top it off. There are some wasps in the wash box.

I downloaded met, cam, and USB GHG data. The picam download failed halfway through, and then I couldn’t reconnect to the camera. All seemed ok after I power-cycled the camera. I downloaded all of the photos and cleared its memory. Maybe just a random hiccup. I want to leave both the Canon and picam cameras up for a few more months so I can analyze the intercomparison through the green-up period.

I changed the eddy clock +1min to match the laptop time and restarted logging afterwards.

The 7500 read: 430ppm CO2, 468mmol/m3 H2O, 19.9C, 101.8kPa, 109SS--111 after cleaning
The 7700 read: 2.0ppm CH4, 35RSSI--86 after cleaning

We left at 13:50 PDT.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

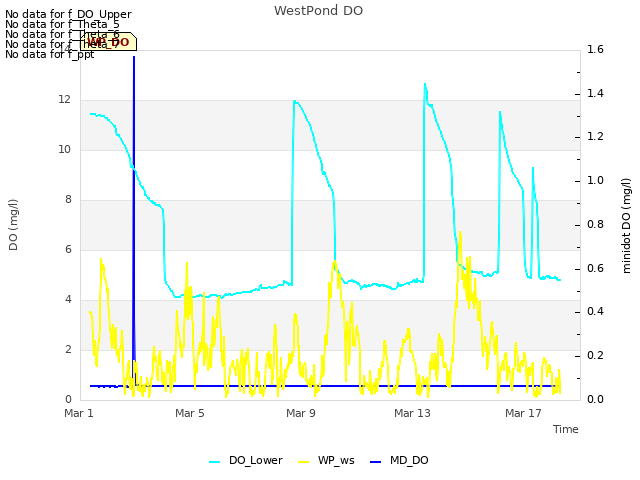

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

Explore the graph:Battery in a new window

Explore the graph:Temperatures in a new window

Explore the graph:Solar Radiation in a new window

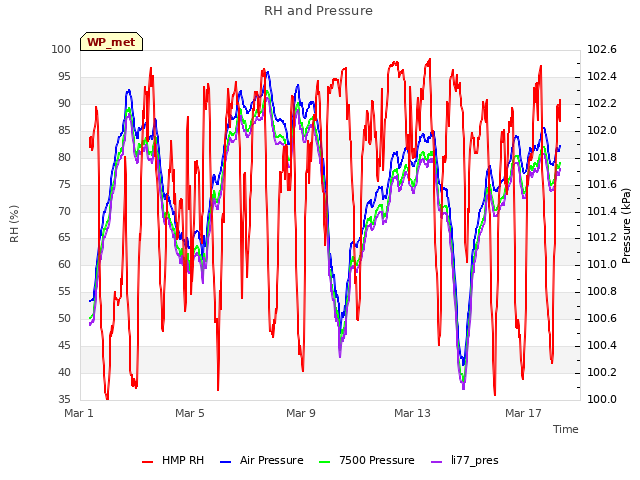

Explore the graph:RH and Pressure in a new window

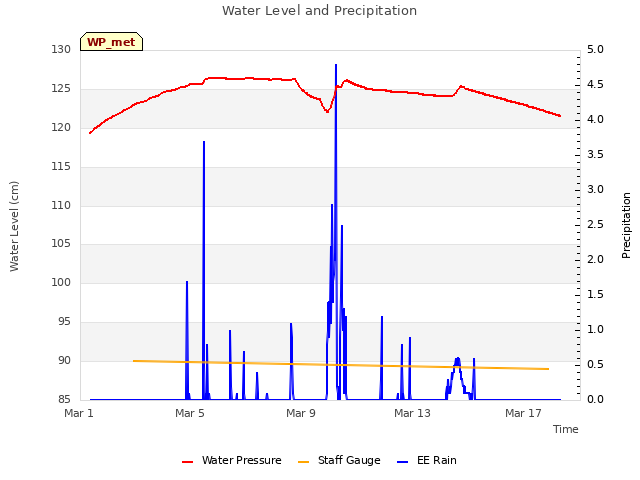

Explore the graph:Water Level and Precipitation in a new window

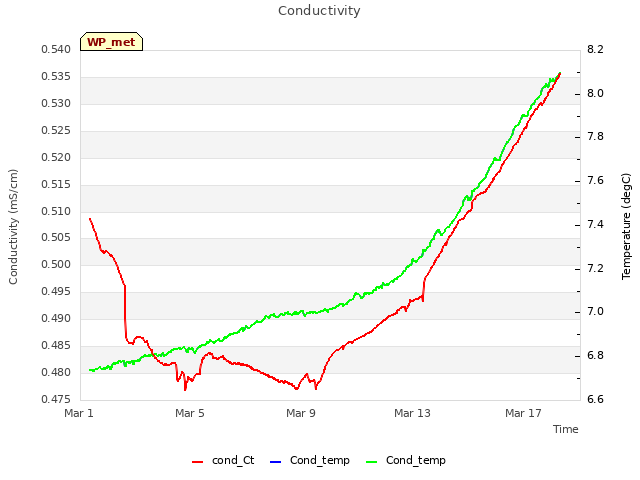

Explore the graph:Conductivity in a new window

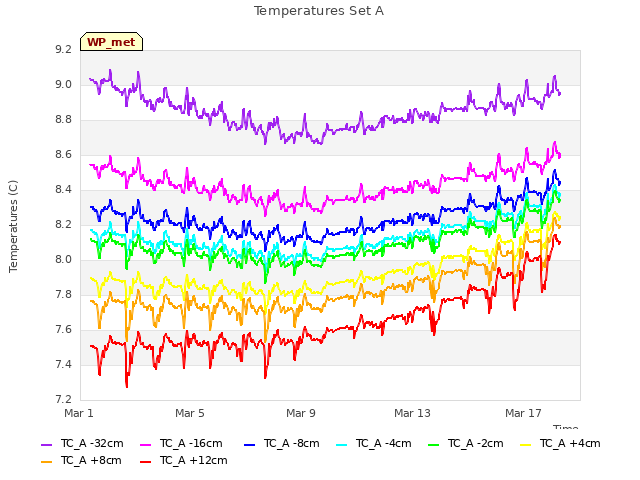

Explore the graph:Temperatures Set A in a new window

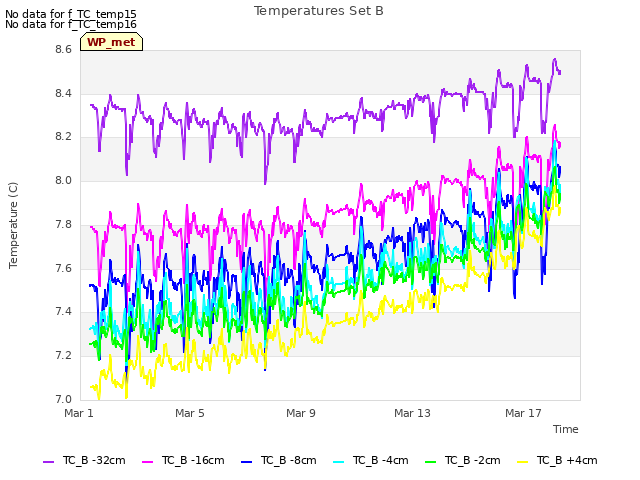

Explore the graph:Temperatures Set B in a new window

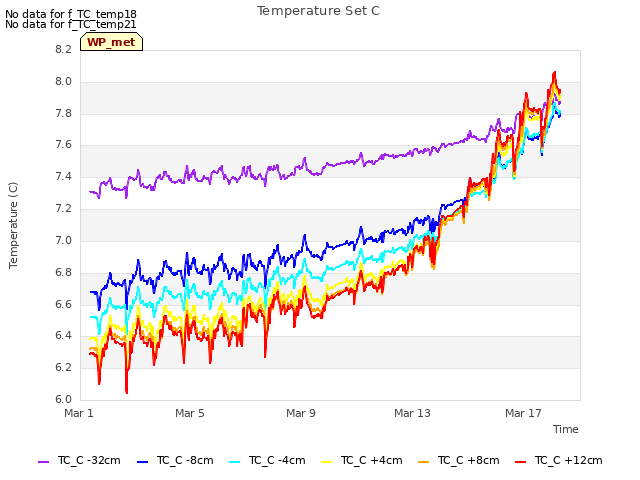

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

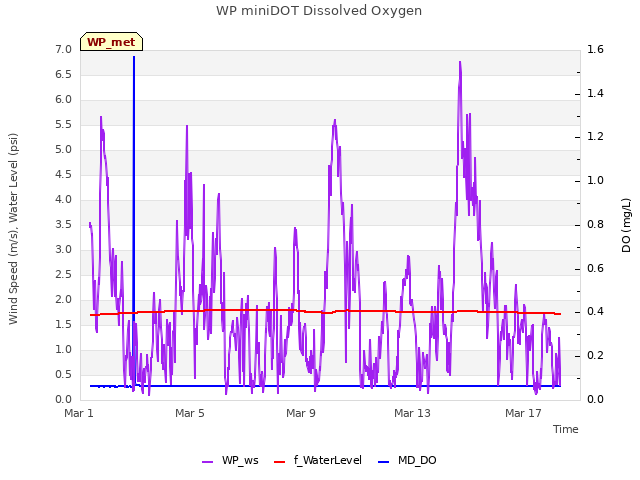

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

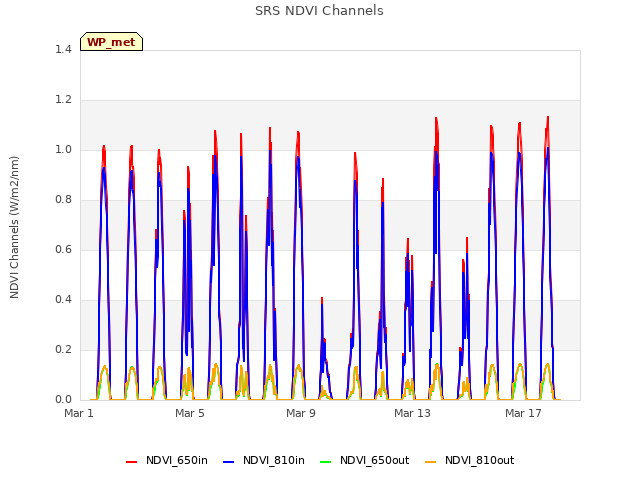

Explore the graph:SRS NDVI Channels in a new window

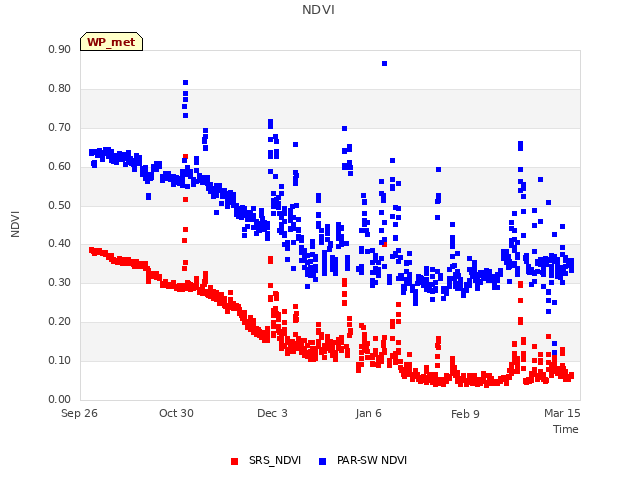

Explore the graph:NDVI in a new window

5 WP_flux graphs found

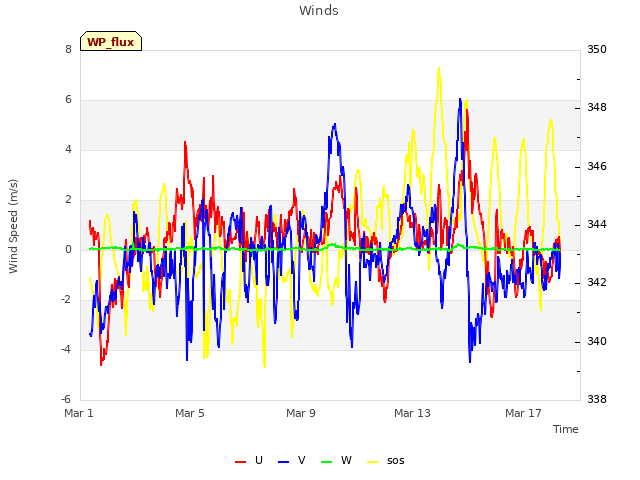

Explore the graph:Winds in a new window

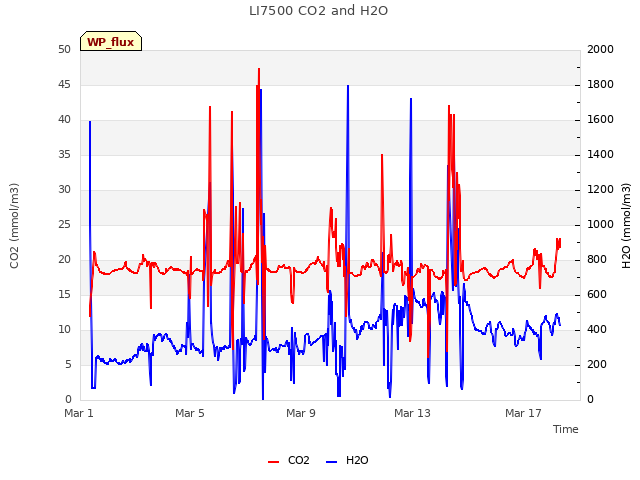

Explore the graph:LI7500 CO2 and H2O in a new window

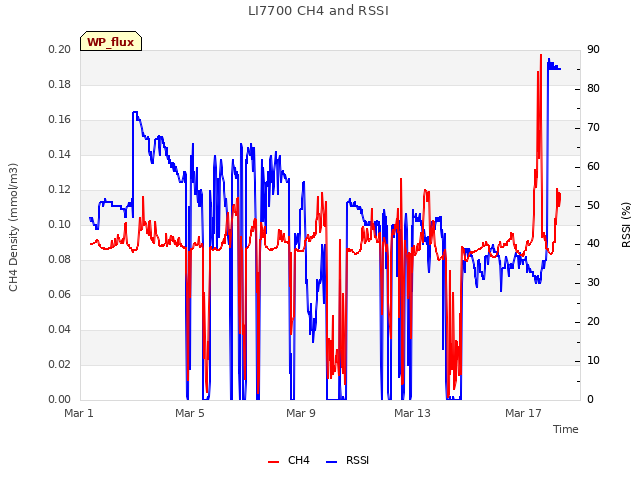

Explore the graph:LI7700 CH4 and RSSI in a new window

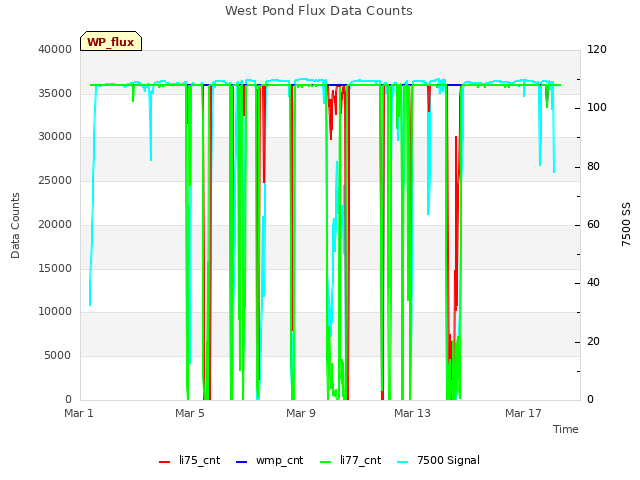

Explore the graph:West Pond Flux Data Counts in a new window

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

Explore the graph:WP CO2 Fluxes in a new window

4 WP_arable graphs found

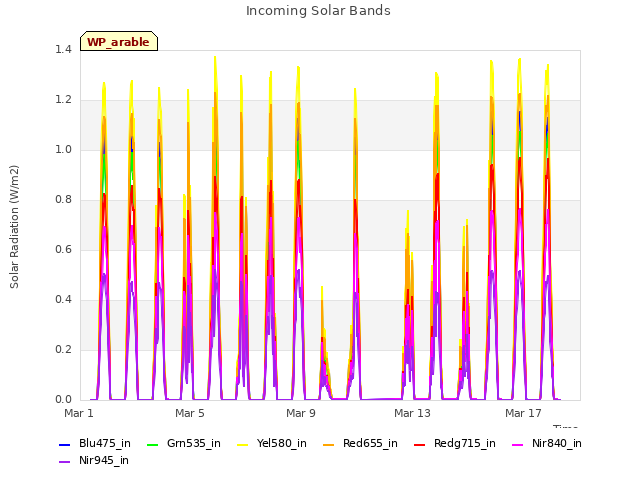

Explore the graph:Incoming Solar Bands in a new window

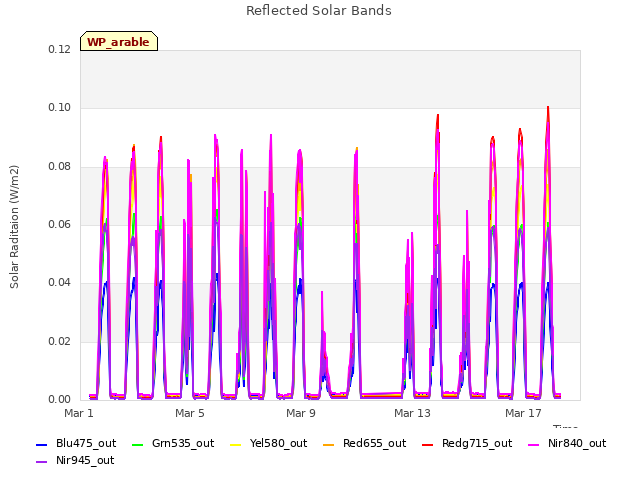

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window

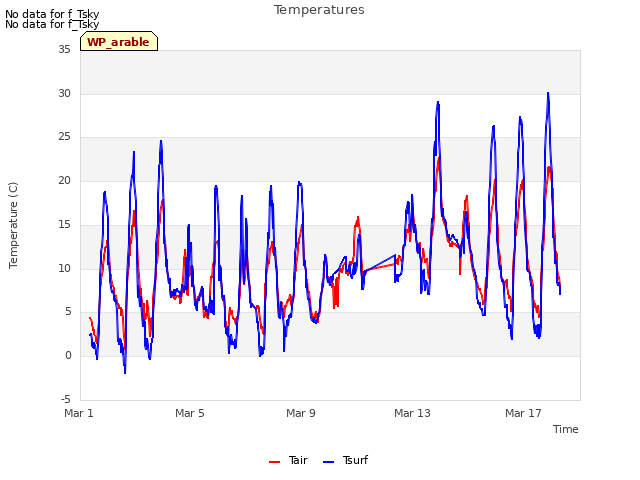

Explore the graph:Temperatures in a new window
