Bouldin Alfalfa: 2022-12-13 16:30:00 (DOY 347)
Author: Joe Verfaillie
Others:

Summary: No change in plowed fields, camera clock off by 8 months, quick data collection

Bouldin Alfalfa
2022-12-13

I arrived at about 16:30. The sun was going down as I arrived. No change in the fields being plowed. The levee road has a bunch of fresh soft gravel on it – passable but not in great shape. The alfalfa was clumpy with veg height from 0 to 20cm but the clumps looks green and healthy.

I collected USB, met, camera, FD and IRT data. I did not clear the FD chamber’s memory.
The 7500 read: 429.3ppm CO2, 353.0mmol/m3 H2O, 9.6C, 101.9kPa, 105.0SS
The Stardot camera had adjusted is clock by 8 months. I changed 2022-04-13 16:44:00 to 2022-12-13 16:45:33

I cleaned the outside and inside of the camera window. There might be a small change in the FOV since I had to slide the camera back and forth.

I have just noticed that the reflected PAR sensor is not in a great location. It’s right next to the big square tube of the radiation boom. I don’t think there is enough cable length to move it much, but a new mount on the bottom of the boom would work.

I left at 16:53


Next Mowing: 2022-12-18

2 photos found

Winter sunset
Winter sunset

Foggy, frosty morning
Foggy, frosty morning

Graphs display:
7 sets found

4 BA_flux graphs found

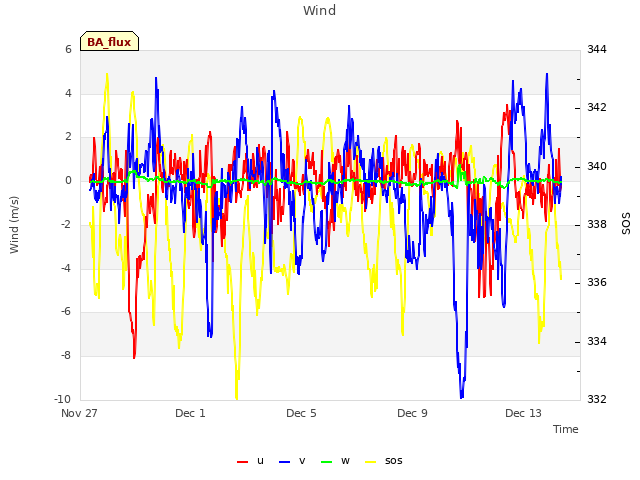

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

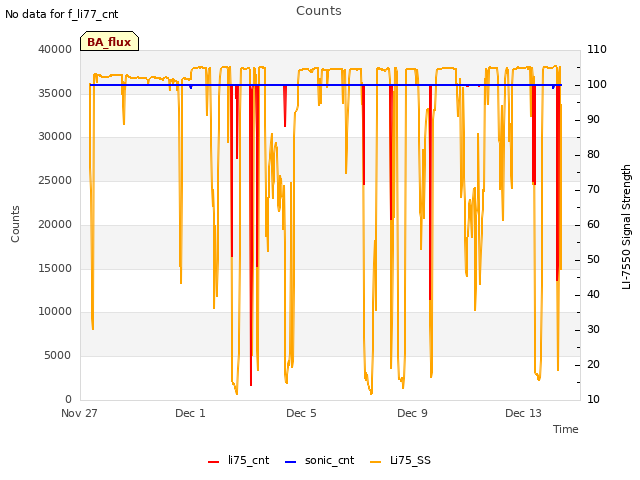

Explore the graph:Counts in a new window

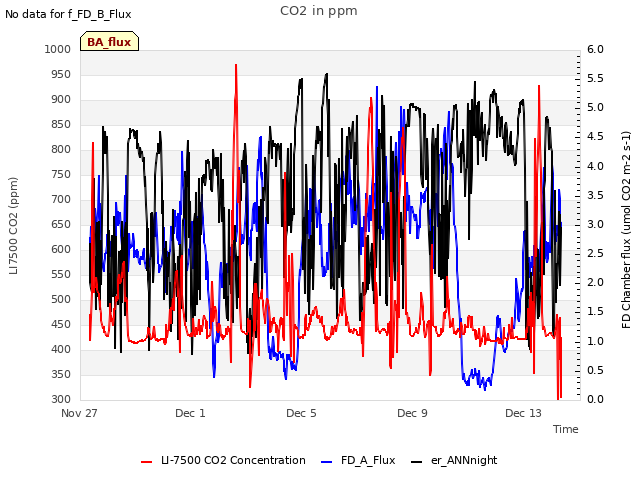

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

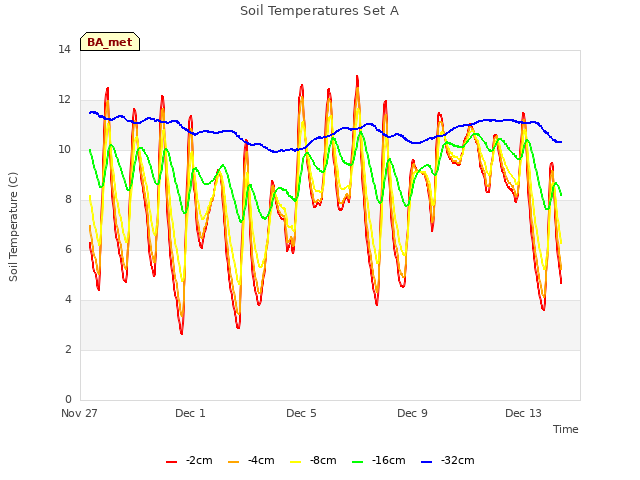

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

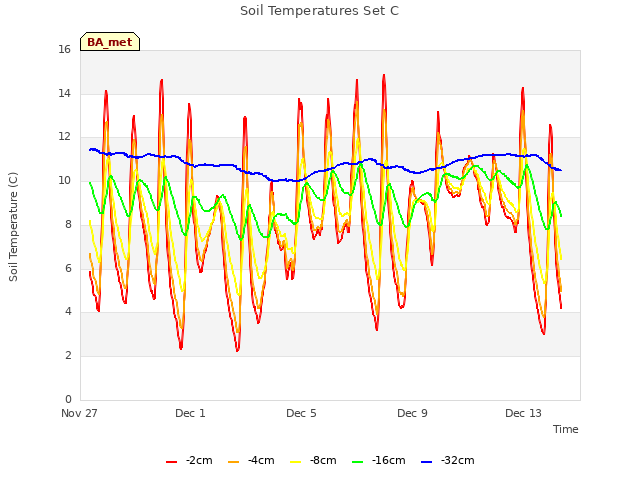

Explore the graph:Soil Temperatures Set C in a new window

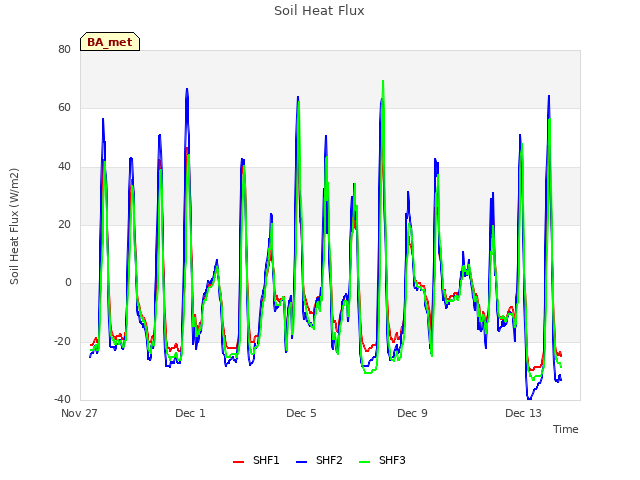

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

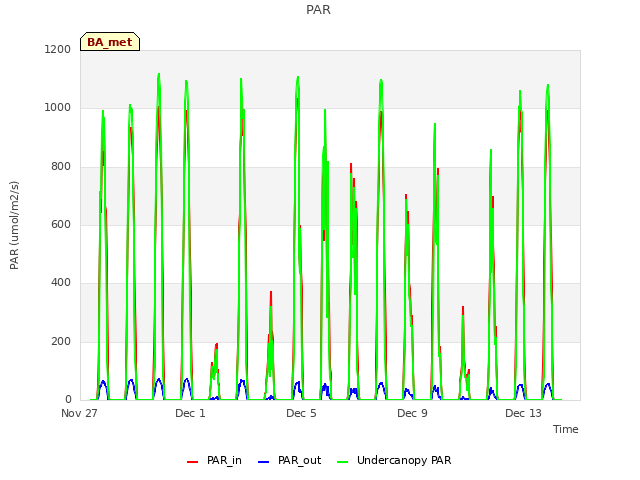

Explore the graph:PAR in a new window

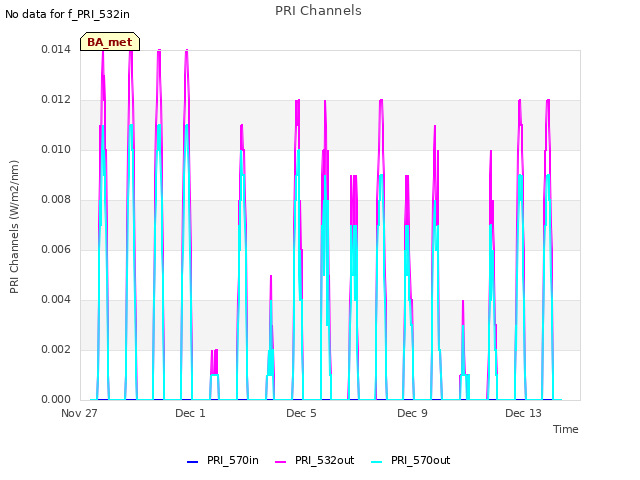

Explore the graph:PRI Channels in a new window

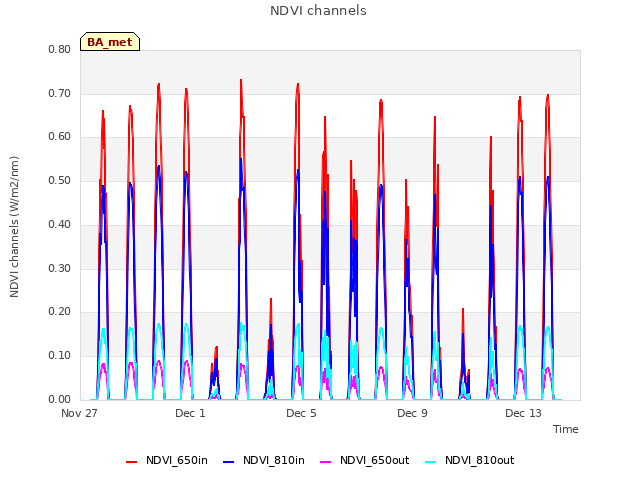

Explore the graph:NDVI channels in a new window

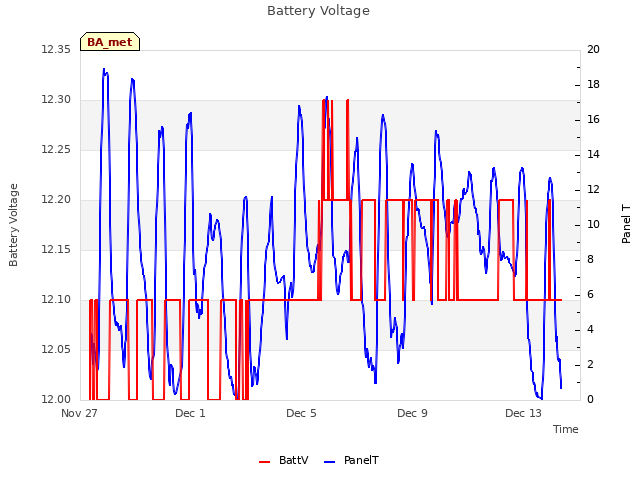

Explore the graph:Battery Voltage in a new window

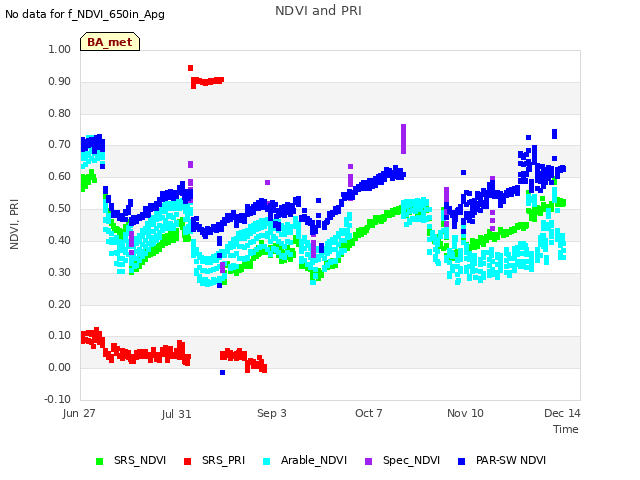

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

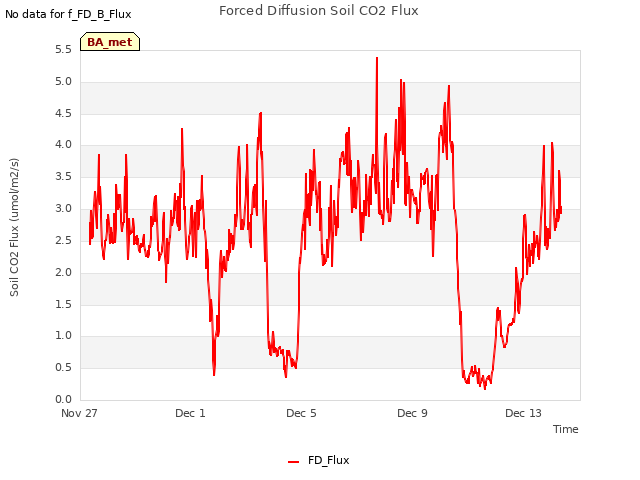

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

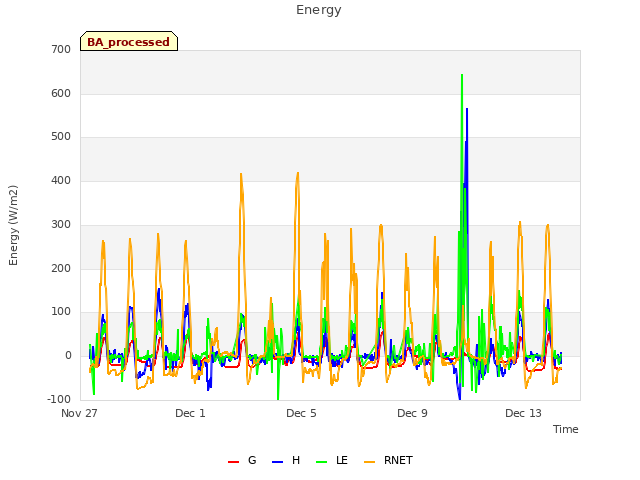

Explore the graph:Energy in a new window

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
