Vaira: 2022-11-03 14:30:00 (DOY 307)
Author: Joe Verfaillie
Others: Dennis
Summary: Standard data collection, a little rain, more rain to come
| Vaira 2022-11-03 Dennis and I arrived at about 14:30. It was a clear and cool fall day. A little rain the previous two days but only enough to wet the surface, but maybe enough to cause a CO2 pulse. More rain coming. I collected the flux, met, camera and FD data. All seemed well. The 7500 read: 430.3ppm CO2, 261.7mmol/m3 H2O, 19.6C, 100.2kPa, 111.5SS Dennis read the well. We looked at the ground sensor cables and conduit some more but really didn’t have time to do anything. I don’t think the disturbance has affected the measurements much – no obvious puddles around any of the probe location. We left at about 15:05 |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2022-11-03 | GT | 0.72 |
| 2022-11-03 | TZ_road | 39 |
| 2022-11-03 | TZ_tower | 37.8 |
| 2022-11-03 | TZ_floor | 31.25 |
| 2022-11-03 | VR_well | 60.45 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

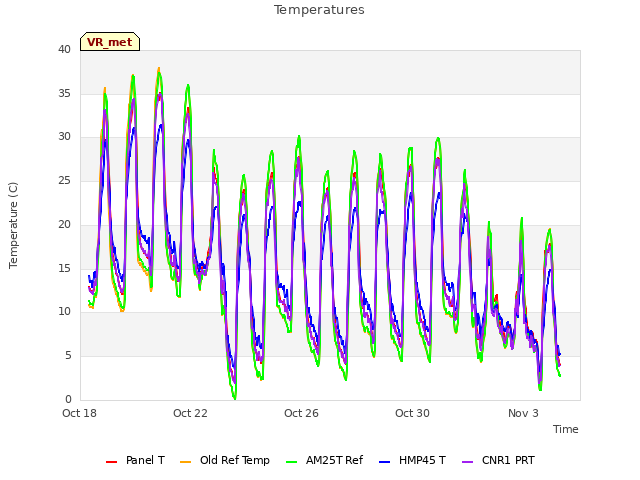

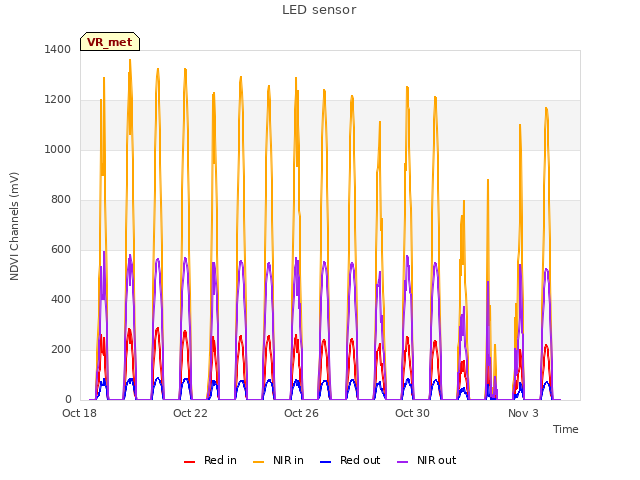

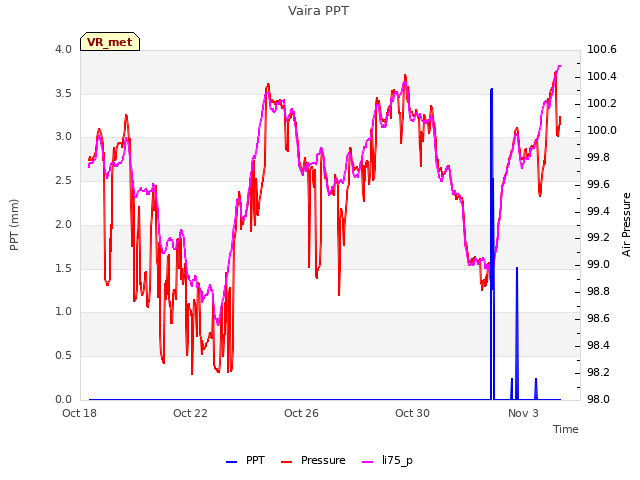

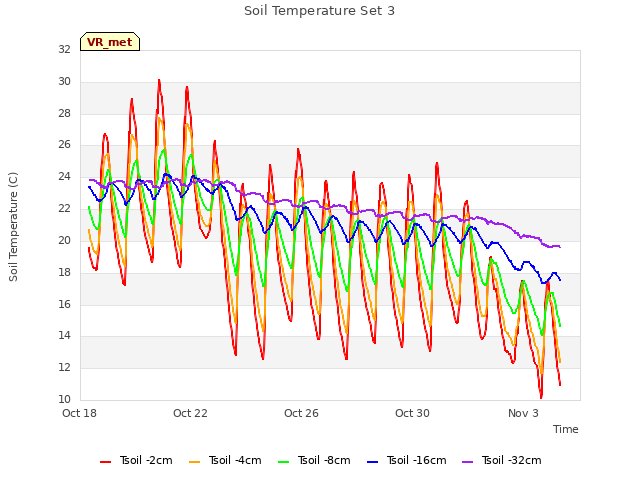

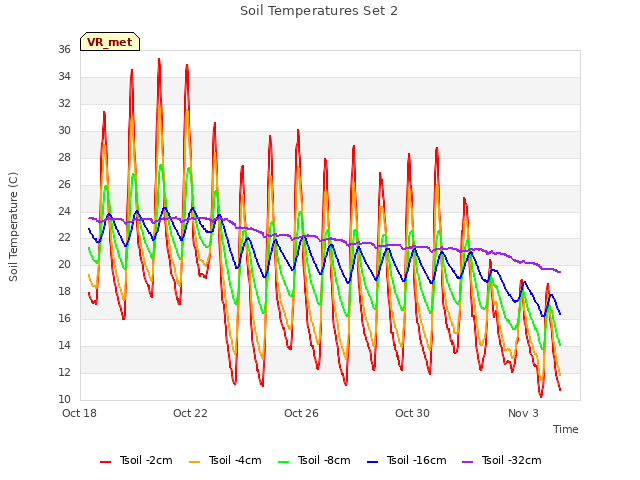

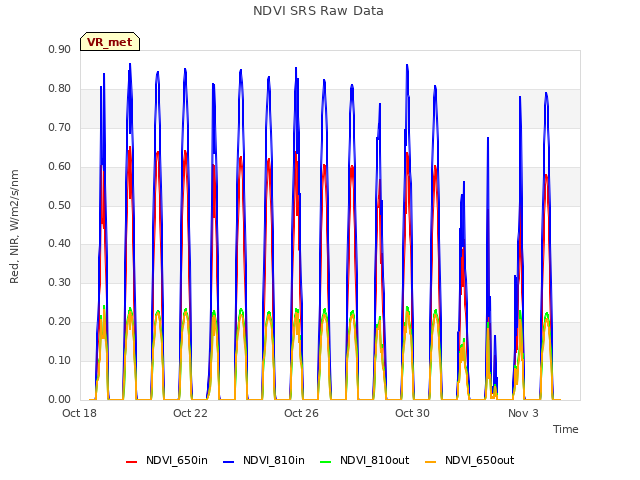

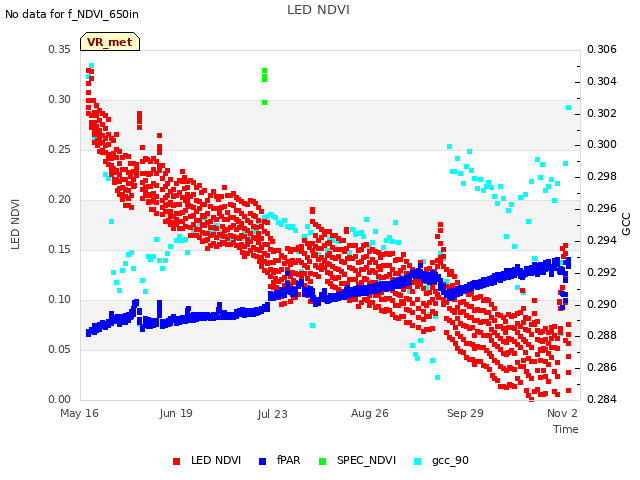

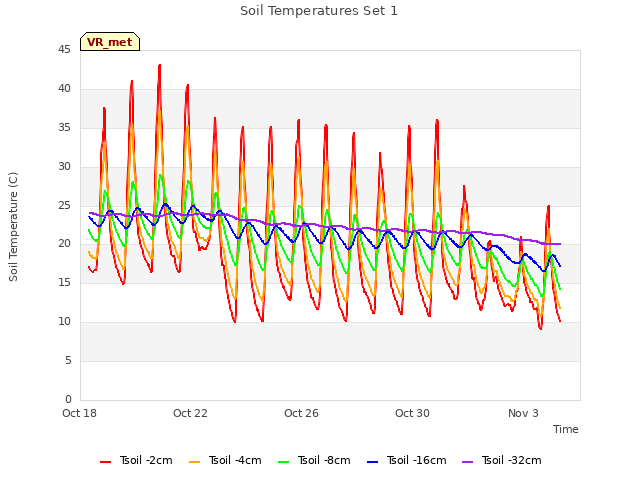

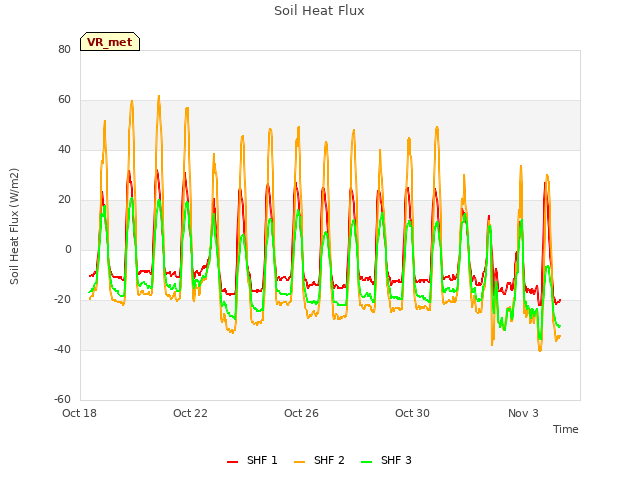

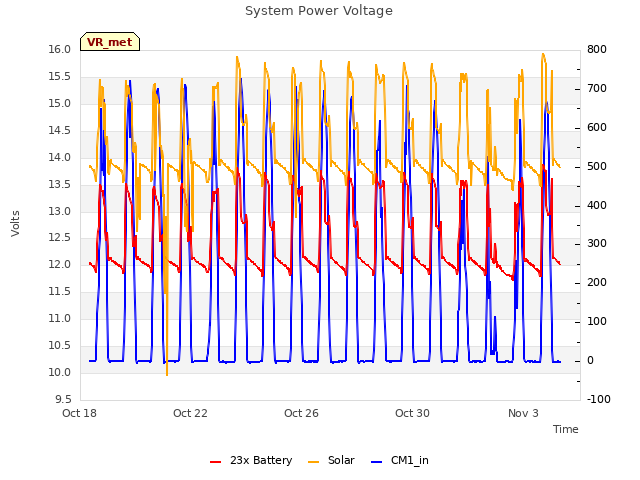

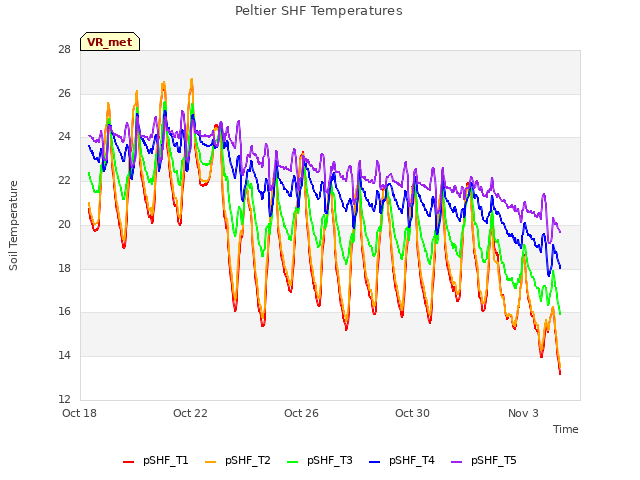

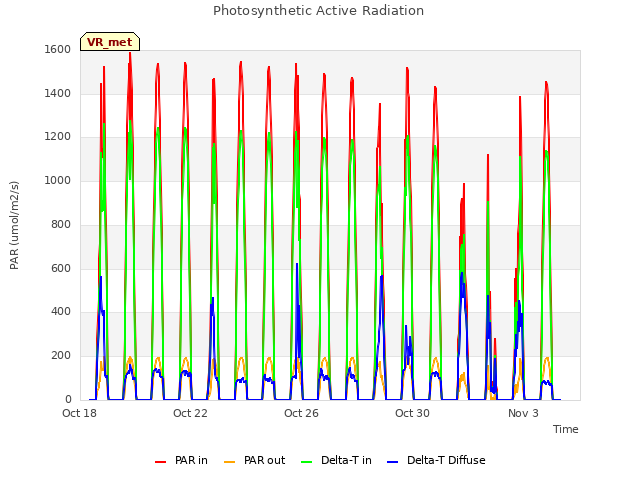

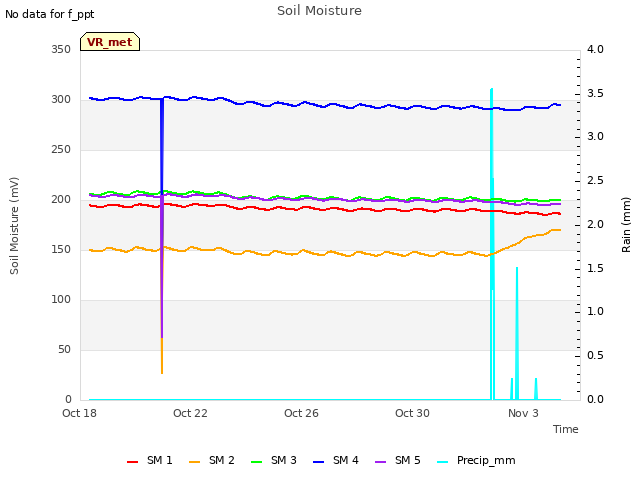

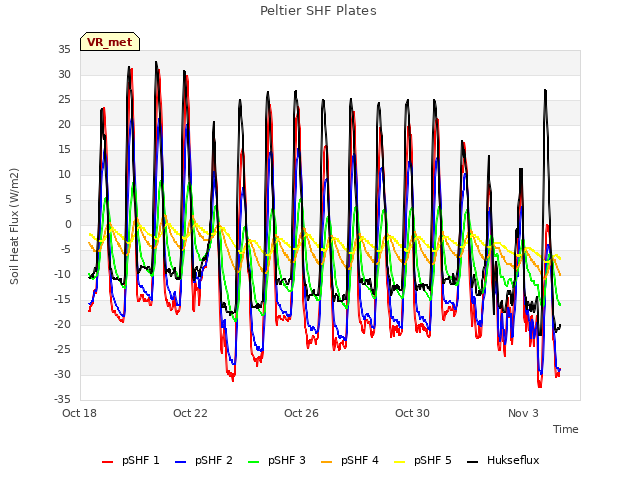

16 VR_met graphs found

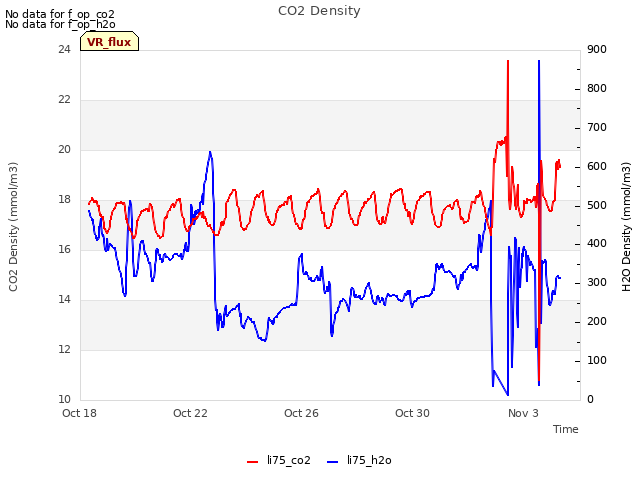

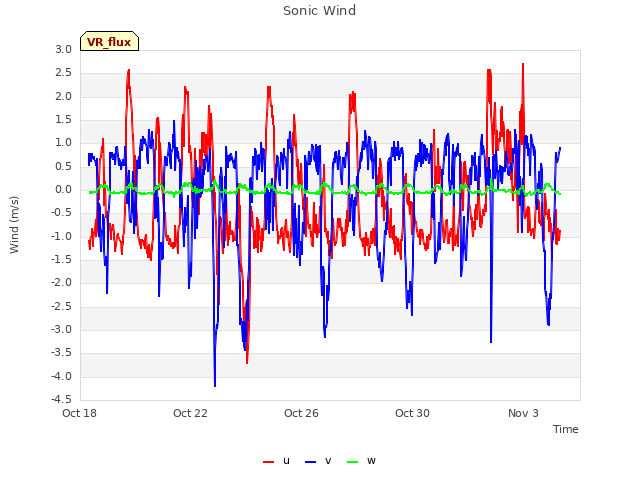

2 VR_flux graphs found
No data found for VR_soilco2.

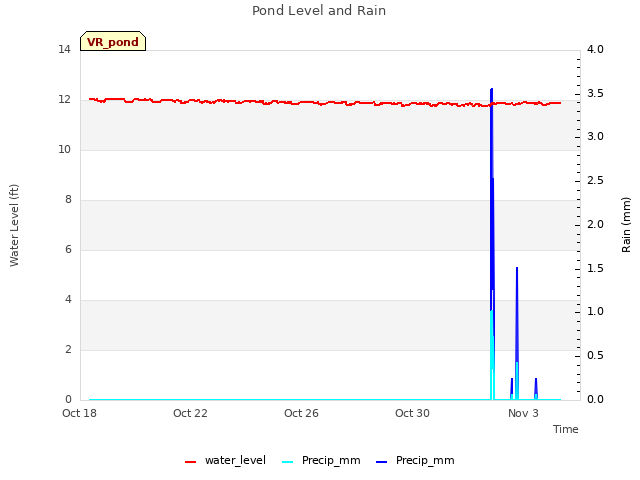

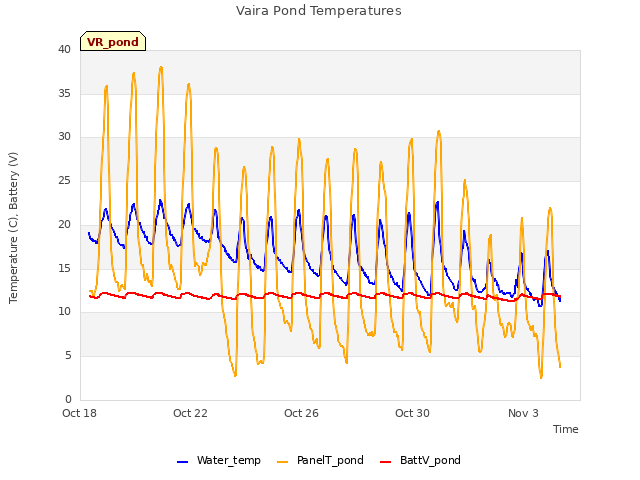

2 VR_pond graphs found
Can't check TZVR_mixed

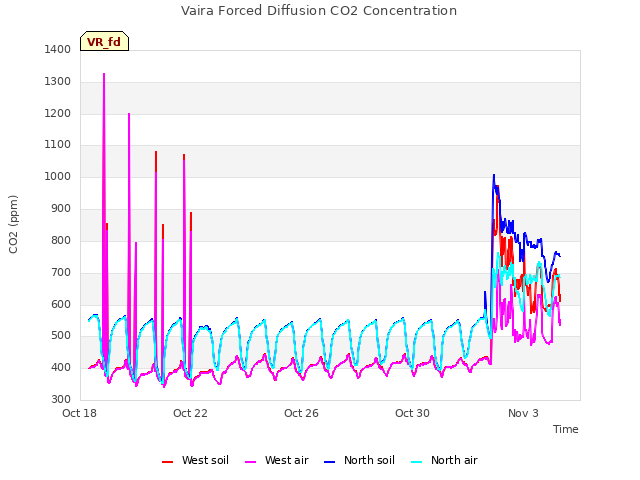

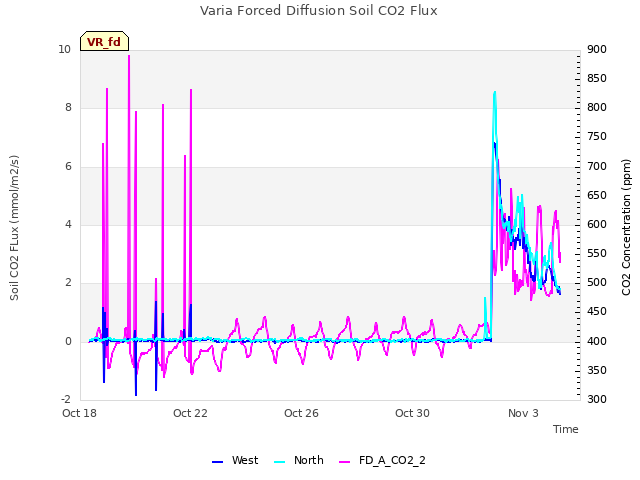

3 VR_fd graphs found
4 VR_processed graphs found

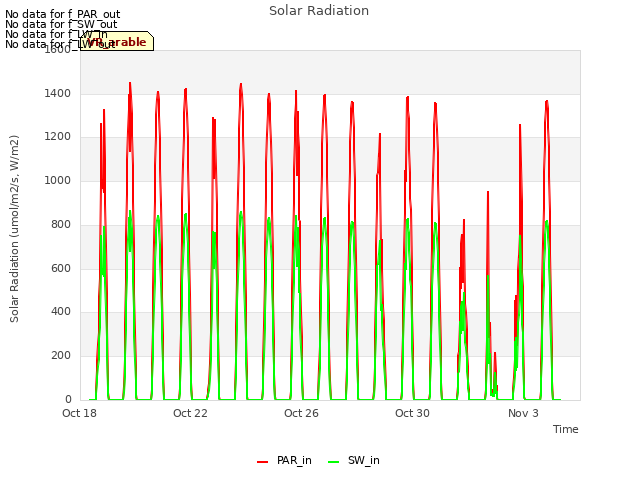

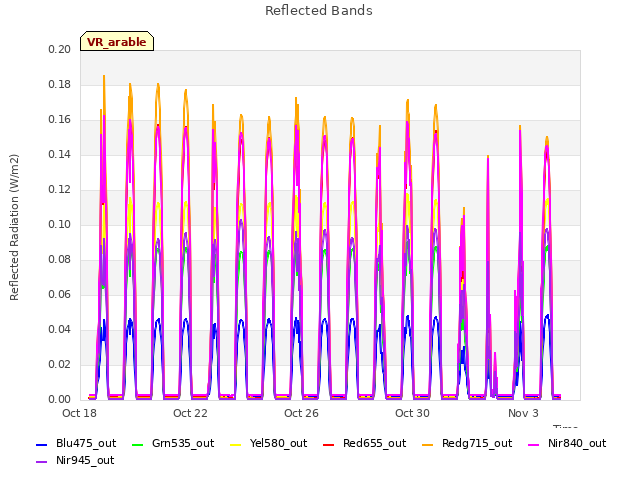

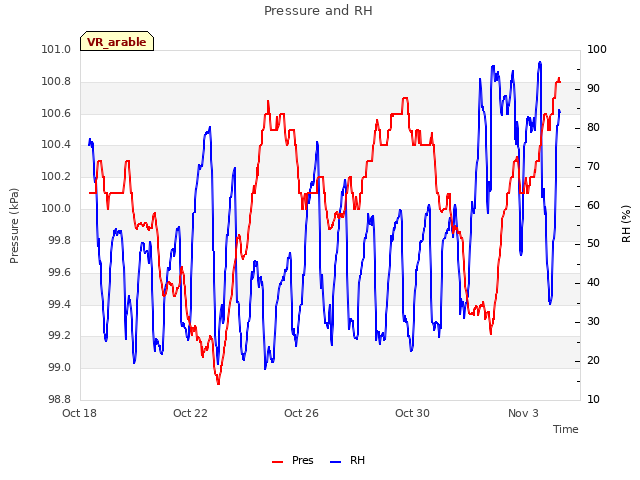

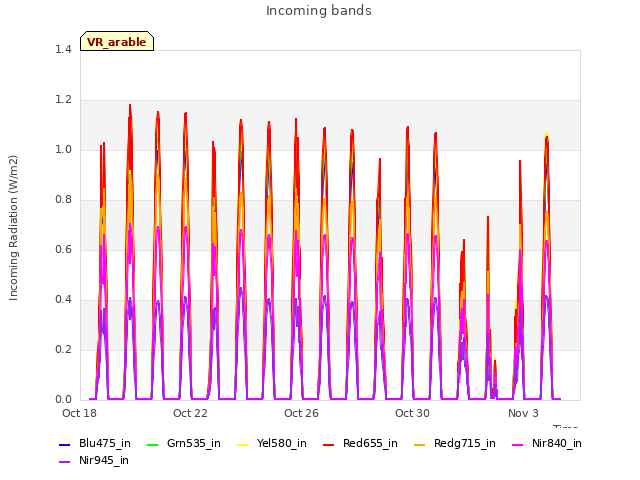

4 VR_arable graphs found

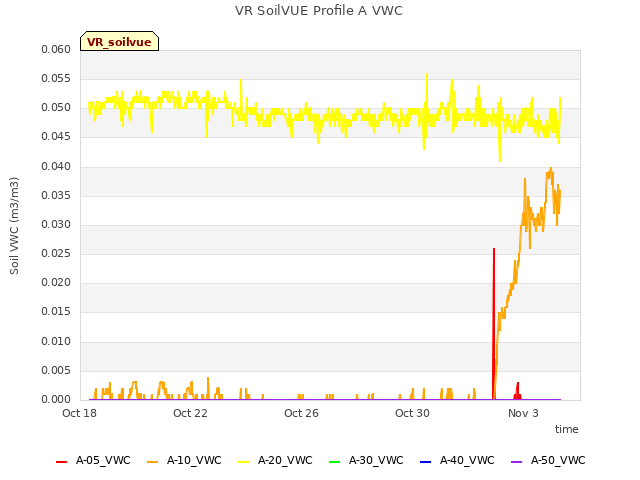

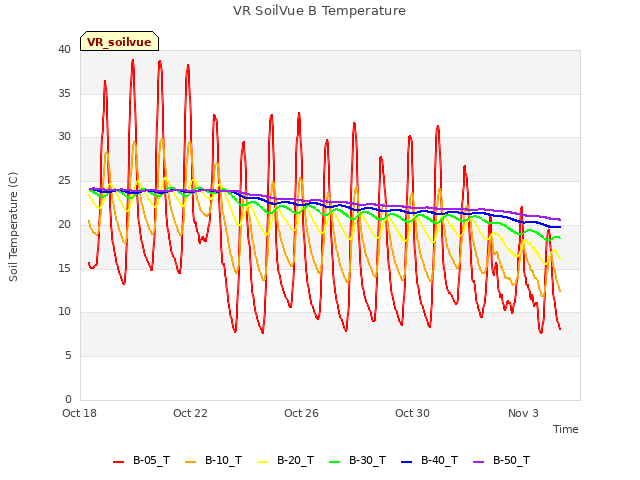

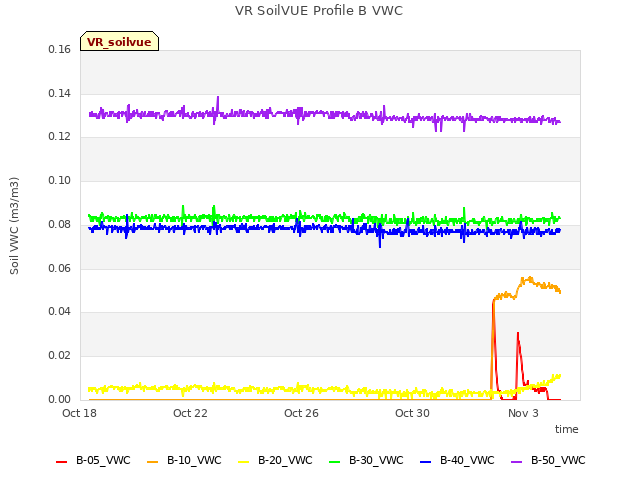

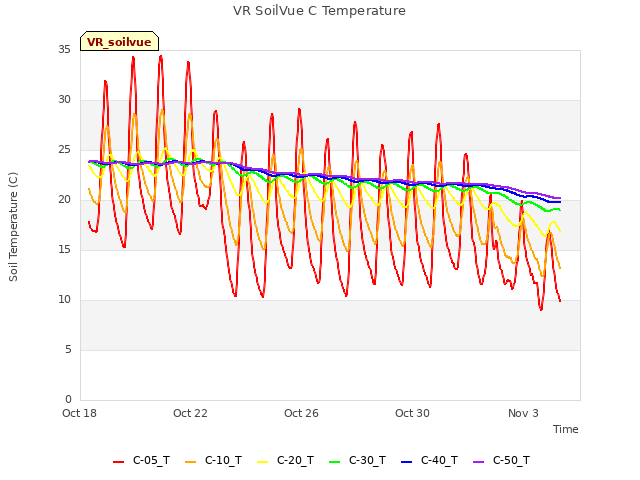

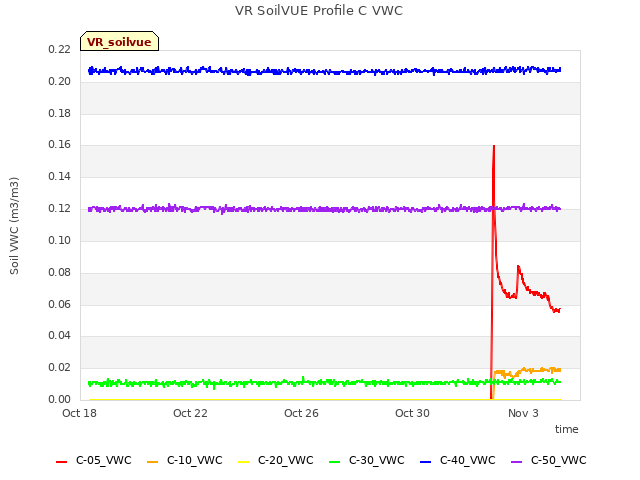

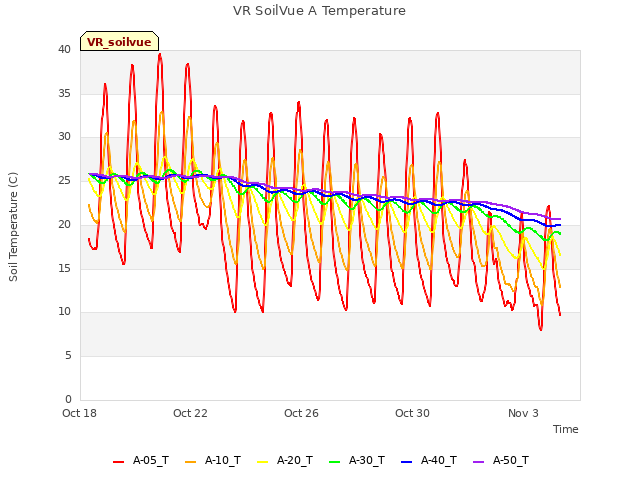

6 VR_soilvue graphs found
