Vaira: 2022-04-27 16:20:00 (DOY 117)
Author: Joe Verfaillie
Others:

Summary: Standard data collection, removed one of the two Arable units, more solar power outages - need maintenance

Vaira
2022-04-27

I arrived at about 16:20 PDT. It was cool, clear and sunny. The grasses here are browner than Tonzi and the number of flowers has declined. The water hole was still full.

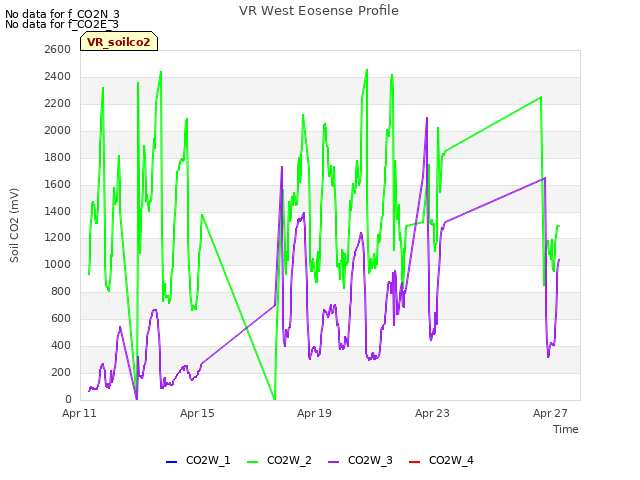

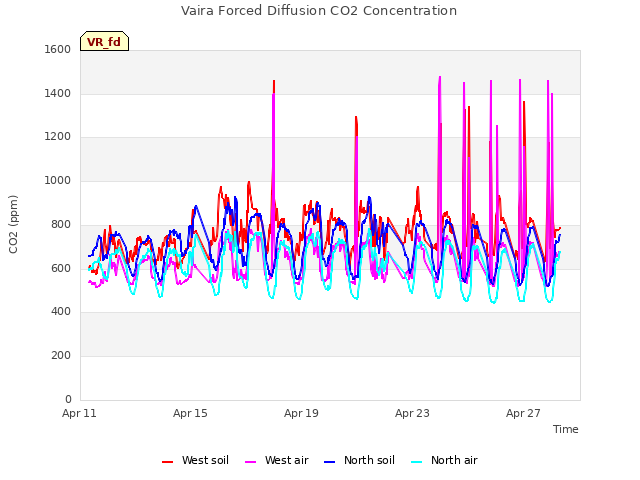

I measured the well and collected the data. I had some issues with the serial port on the laptop. It kept getting different port numbers and the Eosense software couldn’t find it. Restarting the laptop a couple of times managed to get the data collected.

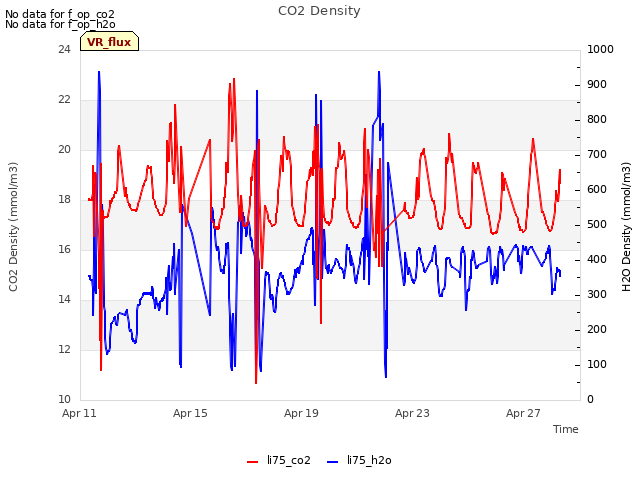

The 7500 read: 416.6ppm CO2, 391.7mmol/m2 H2O, 99.7kPa, 25.6C, 103.0SS

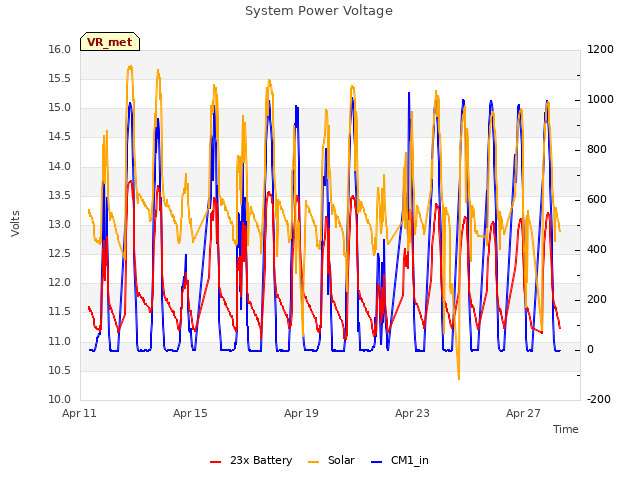

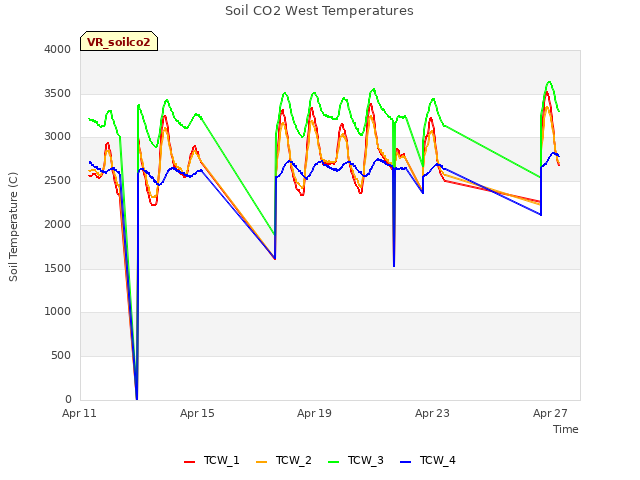

I was in a bit of a rush and didn’t expect more drop outs so didn’t check for them in the field. But in the lab I noticed that the solar power is rapidly going downhill at Vaira. I could have unplugged the soil co2 stuff to reduce the load a bit. As it is I think we will just have to deal with it until I get out there next time.

The Stardot reset its clock because of the failing solar power.

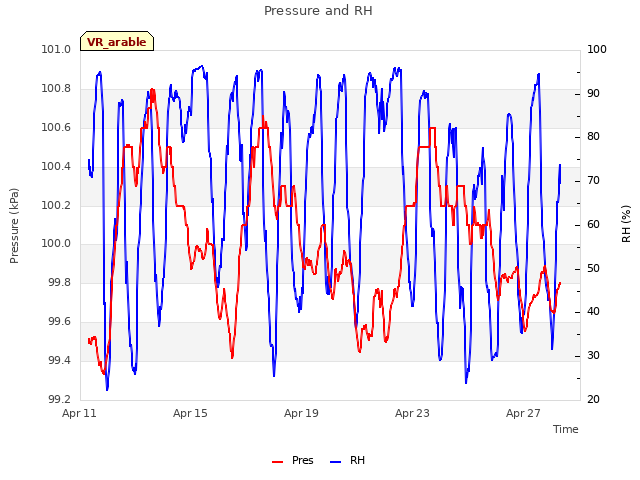

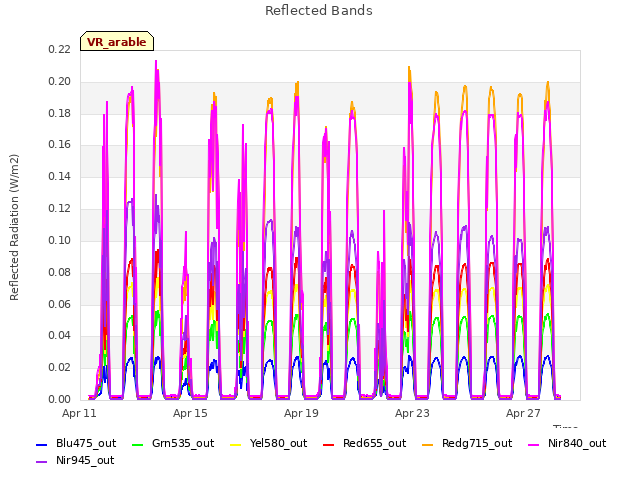

I removed Arable sn C003231 as it has been failing. I connected the anemometer/vane set to the other Arable and hope it automatically figures the change out. That arable had a red light next to the thermometer (sensors) symbol on top.

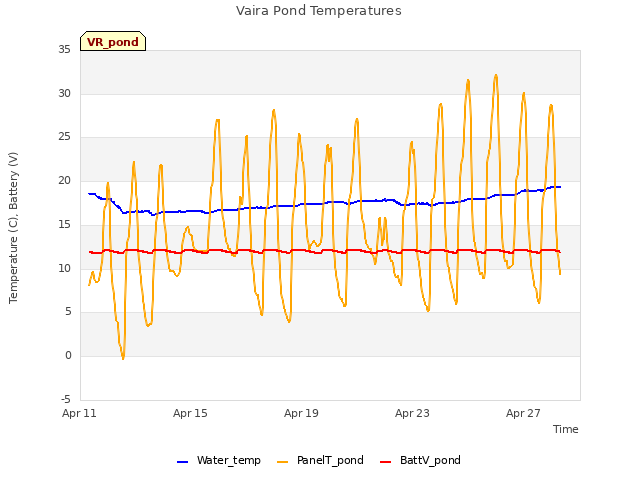

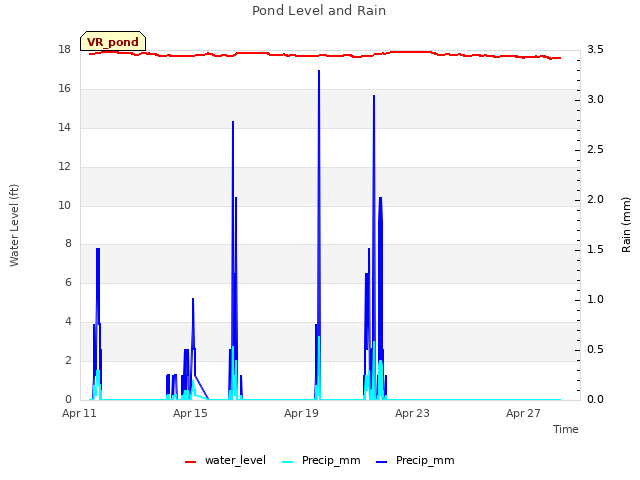

I went to the pond.

I did veg height and spectra. Much of the grass is about knee high with a few spots of sparse waste stems and more spots of very short plants.

I left at about 17:20 PDT

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2022-04-27	TZ_floor	24.95
2022-04-27	TZ_road	33.5
2022-04-27	TZ_tower	28.6
2022-04-27	VR_well	54.25
2022-04-27	VR_pond	17.75

mode = both

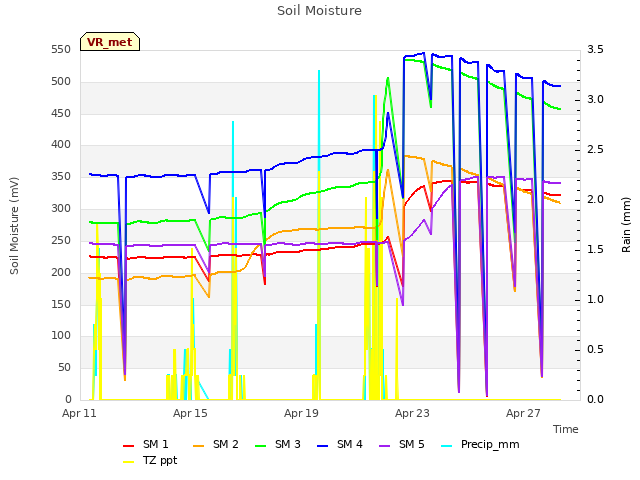

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_3_1 [3] => Soil_Transect_2_1 [4] => Soil_Transect_1_1 [5] => SoilCO2_West_A_1 [6] => SoilCO2_West_B_1 [7] => SoilCO2_West_C_1 [8] => Tower_2 [9] => Soil_Transect_3_2 [10] => Soil_Transect_2_2 [11] => Soil_Transect_1_2 [12] => SoilCO2_West_A_2 [13] => SoilCO2_West_B_2 [14] => SoilCO2_West_C_2 [15] => Tower_3 [16] => Floor_South_3 [17] => Soil_Transect_4_3 [18] => Soil_Transect_3_3 [19] => Soil_Transect_2_3 [20] => Soil_Transect_1_3 [21] => SoilCO2_West_A_3 [22] => SoilCO2_West_B_3 [23] => SoilCO2_West_C_3 [24] => Tower_4 [25] => Floor_South_4 [26] => Soil_Transect_4_4 [27] => Soil_Transect_3_4 [28] => Soil_Transect_2_4 [29] => Soil_Transect_1_4 [30] => SoilCO2_West_A_4 [31] => SoilCO2_West_B_4 [32] => SoilCO2_West_C_4 [33] => Soil_Transect_4_1 [34] => Floor_South_2 [35] => Soil_Transect_4_2 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Soil_Transect_4_1	Floor_South_2	Soil_Transect_4_2	Spacial Count
2022-04-27	117	0	nan	15.3	8.6	12.4	14.1	6.5	23.2	15.6	7.8	18.2	25.2	24.9	7.2	18.8	9	22.8	19	21.5	17	17.9	25.4	18.7	20.1	23.2	15.4	27.4	20.2	16.8	20.5	41.7	17.9	25.4	16.2	19.3
2022-04-27	117	1	nan	15.6	13	13.5	12.7	6.8	22.6	15.3	8.3	17.6	24.9	24.3	7.2	18.2	9.3	23.4	19.3	21.5	17.3	17.9	25.1	19	20.9	22.9	15.6	25.9	19.9	17	20.2	36	18.2	25.6	17	18.8	13	7.7	10.3
2022-04-27	117	2	nan																		16.2																12.7		16.8
2022-04-27	117	Avg	0-15cm																																					0
2022-04-27	117	Avg	15-30cm																																					0
2022-04-27	117	Avg	30-45cm																																					0
2022-04-27	117	Avg	45-60cm																																					0
