Field Notes

<--2021-11-17 12:20:00 | 2022-01-06 11:50:00-->
Other sites visited today: Vaira | Hill Slough
Phenocam link: Searching...

Tonzi: 2021-12-02 10:15:00 (DOY 336)
Author: Joe Verfaillie
Others:

Summary: Swapped 7500s, open soil co2 profile not powering up, soil co2 cow fence dead.

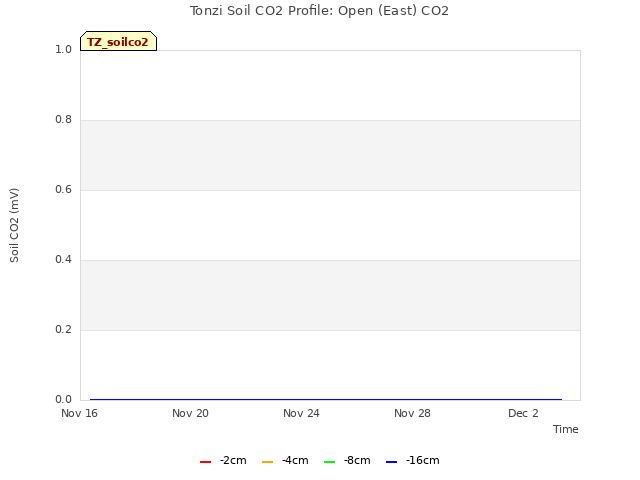

Tonzi 2021-12-02 I arrived at 10:15 PST. It was clear, sunny and mild with little to no breeze. The Delta had heavy fog and here there was dew on the grass. The ground is still moist but the puddles on the road have dried up. The remaining leaves on the trees are mostly brown and I could hear them falling most of the day. I swapped the 7500s for calibration. At the Tower sn 75H-2514 came off and sn 75H-2180 went on. 2514 read: 437.0ppm CO2, 406.0mmol/m3 H2O, 99.5kPa, 17.7C, 102.7SS 2180 read: 435.5ppm CO2, 405.3mmol/m3 H2O, 99.5kPa, 17.7C, 101.2SS I set the pressure coefficients and reset the box. At the Floor sn 75H-2669 came off and sn 0073 went on – 0073 is fresh from factory refurbishment. 2669 read: 431.6ppm CO2, 438.0mmol/m3 H2O, 99.6kPa, 17.1C, 101.8SS I didn’t copy the new readings from 0073 but I’m sure they were good. I updated the pressure coefficients and reset the box. I measured the Moisture Points, DBH and the wells. I collected the flux, met, FD data and the camera images. The Open soil co2 profile seemed to have a power problem. When I forced the Vaisala probes to power up they were all reporting errors anyway. I’m planning to pull this system out so I left it as is. There are soil heat flux plates and a tipping bucket still on this data logger. I think I’ll migrate these to the OSU SP1 system. I tried to turn on the fence charger at the soil co2 plot but the battery seems dead ~7V. The solar panel cable was broken at the panel – I brought the cable in for repair. The fence at the main tower is powered. I left at about 13:00

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2021-12-02	VR_well	57.6
2021-12-02	TZ_floor	32.15
2021-12-02	TZ_road	39.75
2021-12-02	TZ_tower	36.15
2021-12-02	HS	6.38

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Soil_Transect_4_1 [2] => Soil_Transect_3_1 [3] => Soil_Transect_2_1 [4] => Soil_Transect_1_1 [5] => SoilCO2_West_A_1 [6] => SoilCO2_West_B_1 [7] => SoilCO2_West_C_1 [8] => Tower_2 [9] => Soil_Transect_4_2 [10] => Soil_Transect_3_2 [11] => Soil_Transect_2_2 [12] => Soil_Transect_1_2 [13] => SoilCO2_West_A_2 [14] => SoilCO2_West_B_2 [15] => SoilCO2_West_C_2 [16] => Tower_3 [17] => Soil_Transect_4_3 [18] => Soil_Transect_3_3 [19] => Soil_Transect_2_3 [20] => Soil_Transect_1_3 [21] => SoilCO2_West_A_3 [22] => SoilCO2_West_B_3 [23] => SoilCO2_West_C_3 [24] => Tower_4 [25] => Soil_Transect_4_4 [26] => Soil_Transect_3_4 [27] => Soil_Transect_2_4 [28] => Soil_Transect_1_4 [29] => SoilCO2_West_A_4 [30] => SoilCO2_West_B_4 [31] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2021-12-02	336	0	nan	28.8	11.8	19.4	21.2	14.7	24.7	26.1	19.4	30.4	23.7	30.4	29.5	14.5	32.3	17.9	27.7	31.3	23.5	29.9	32.1	29.9	39.9	33.2	34.9	40.8	29.7	40	48	30.9	37.7	48	48
2021-12-02	336	1	nan	29.1	11.8	15	20.9	14.7	25.6	26.4	19.7	30.1	21.3	30.1	28.9	14.8	31	18.2	28	30.4	22.6	29.9	31.5	29.6	39.6	33.8	34.9	41.1	29.1	40	47.7	30.2	39.7	47.7	48.6
2021-12-02	336	Avg	0-15cm																																		0
2021-12-02	336	Avg	15-30cm																																		0
2021-12-02	336	Avg	30-45cm																																		0
2021-12-02	336	Avg	45-60cm																																		0

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2021-12-02	1	16.4
2021-12-02	102	14.0
2021-12-02	2	14.2
2021-12-02	245	4.0
2021-12-02	3	19.3
2021-12-02	4	14.9
2021-12-02	5	8.2
2021-12-02	6	19.7
2021-12-02	7	8.3
2021-12-02	72	12.8
2021-12-02	79	12.5

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display: days

16 sets found

No data found for TZ_Fenergy.

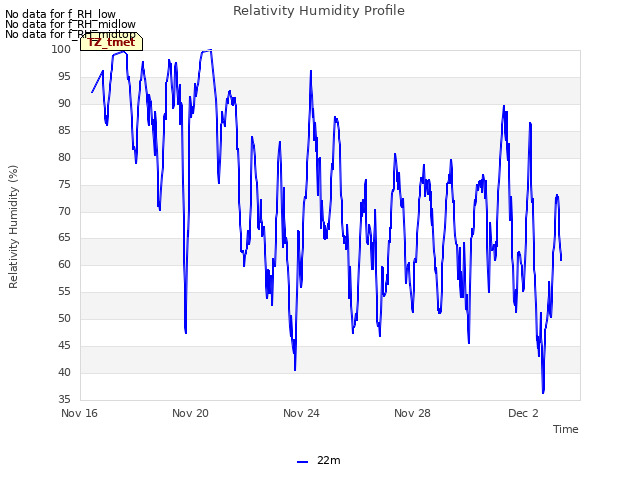

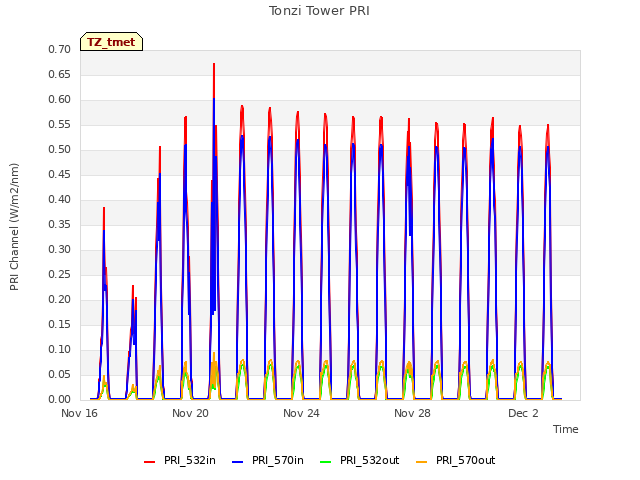

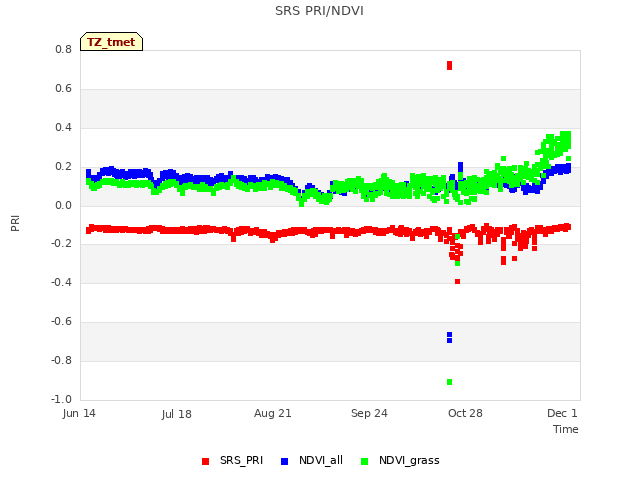

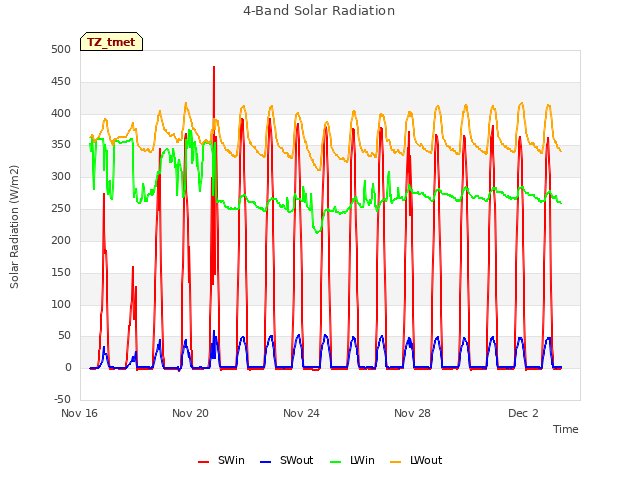

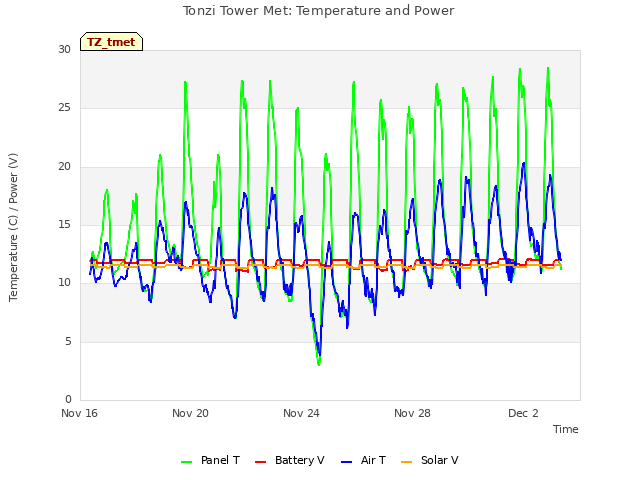

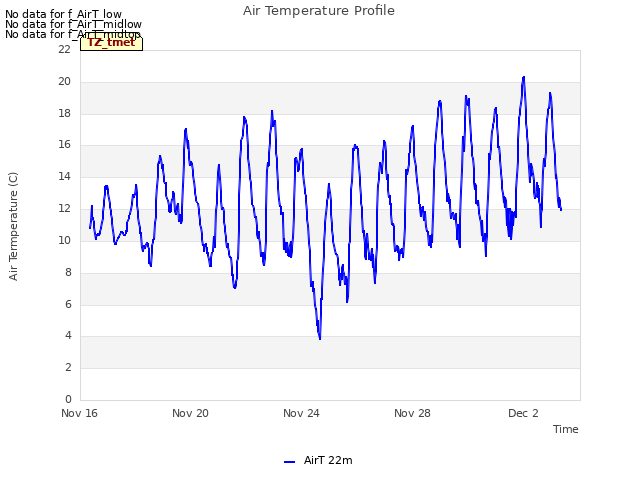

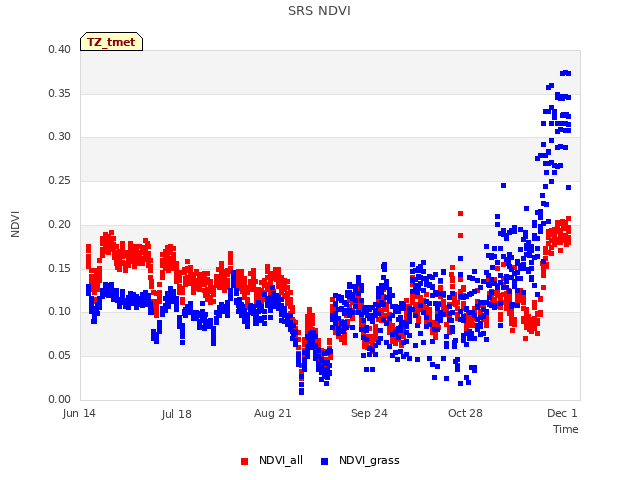

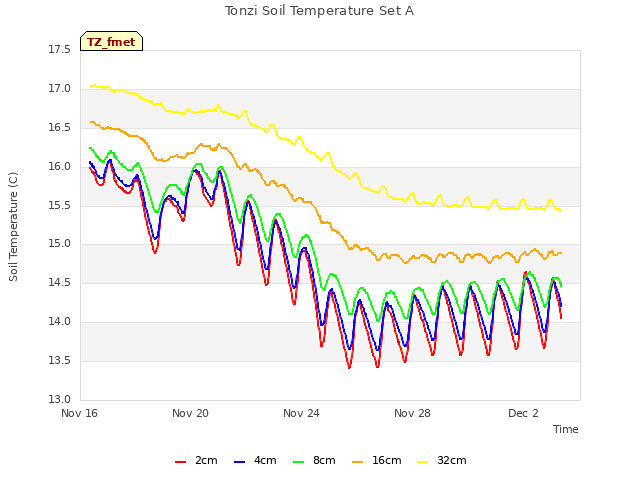

11 TZ_tmet graphs found

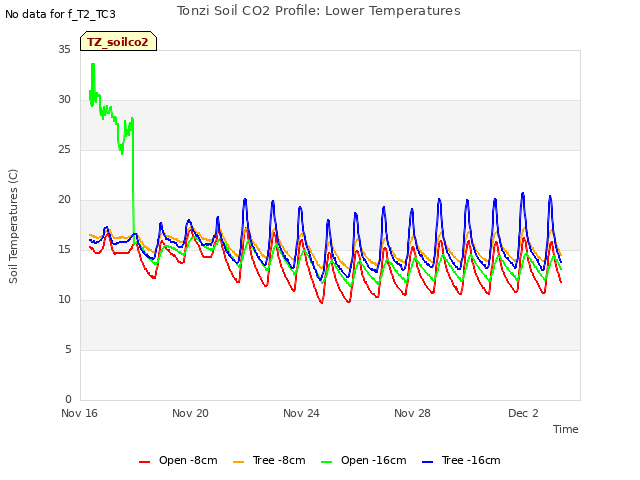

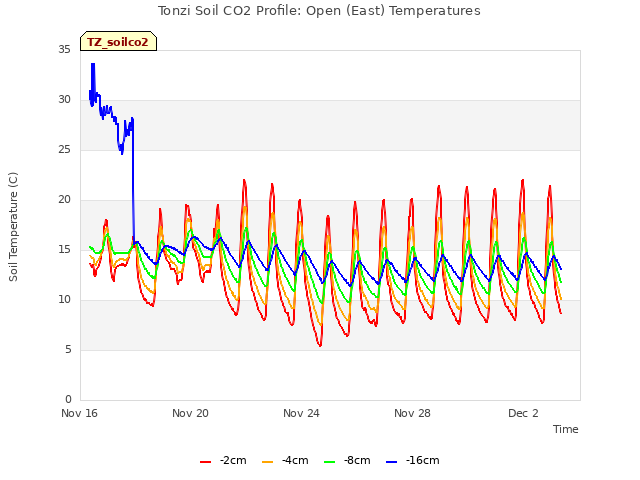

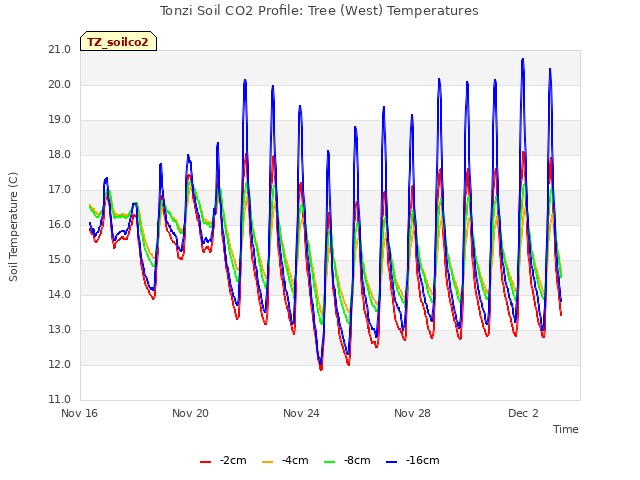

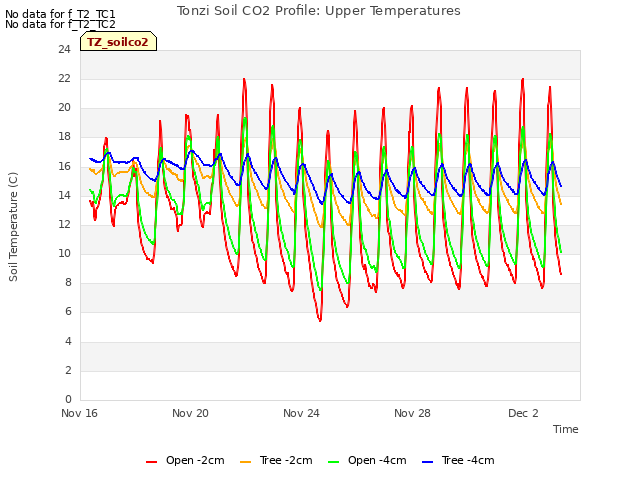

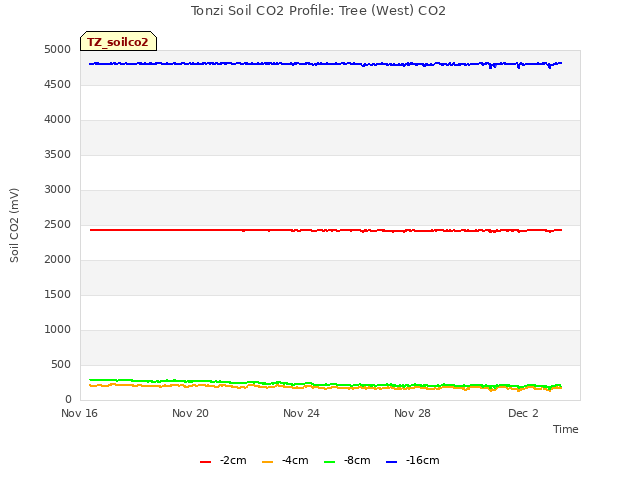

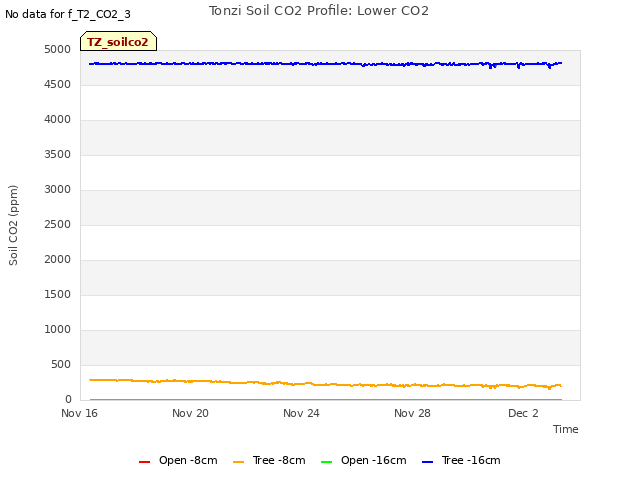

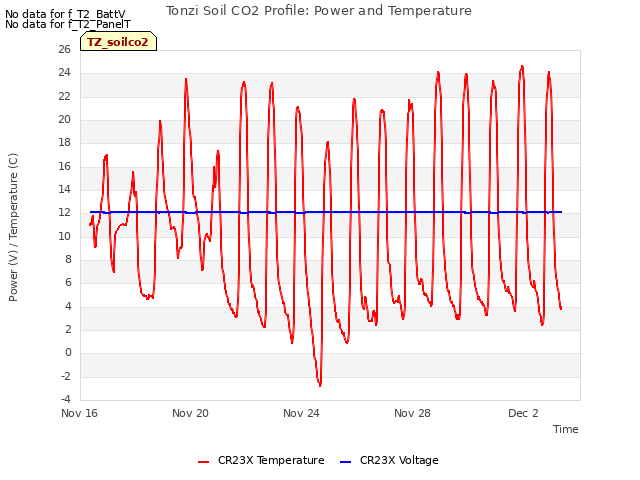

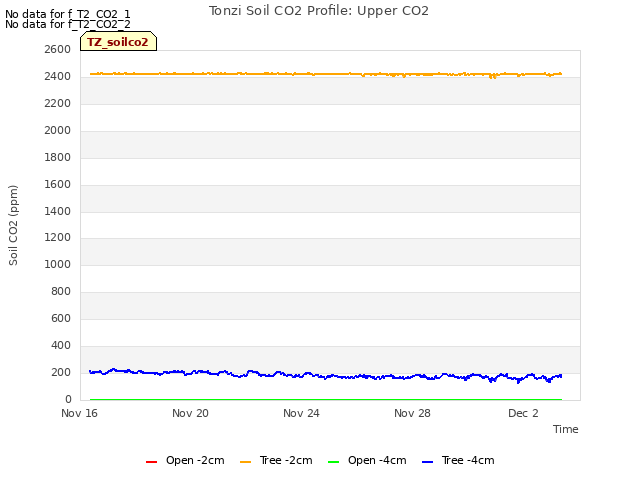

11 TZ_soilco2 graphs found

Can't check TZ_mixed

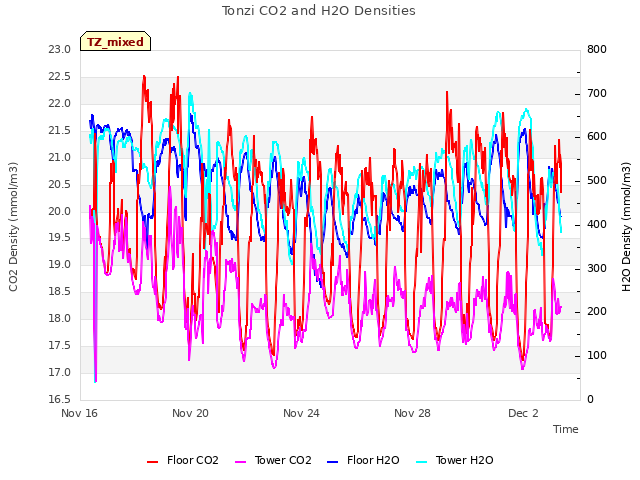

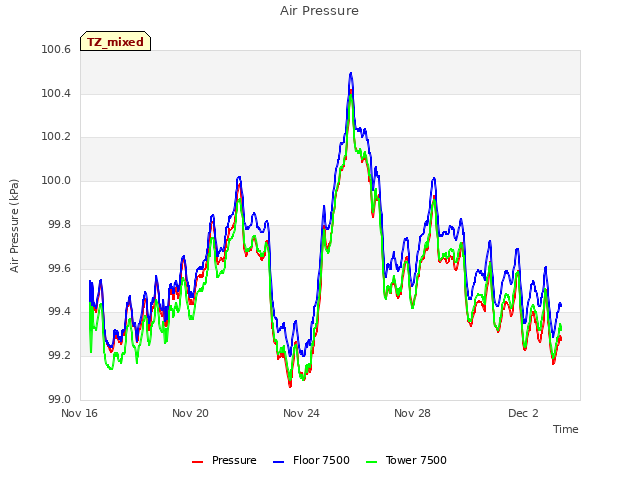

3 TZ_mixed graphs found

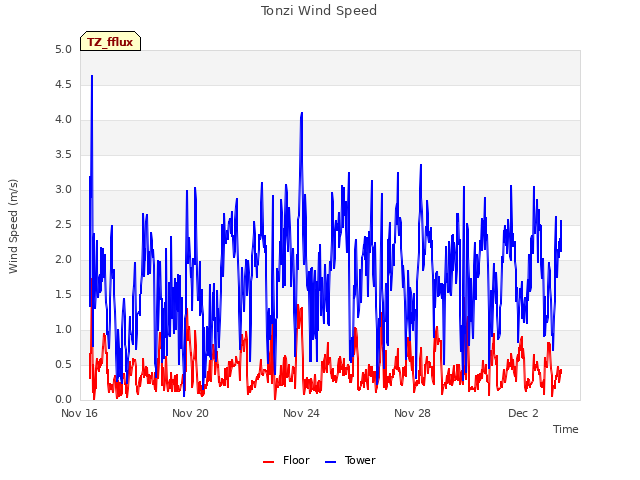

1 TZ_fflux graphs found

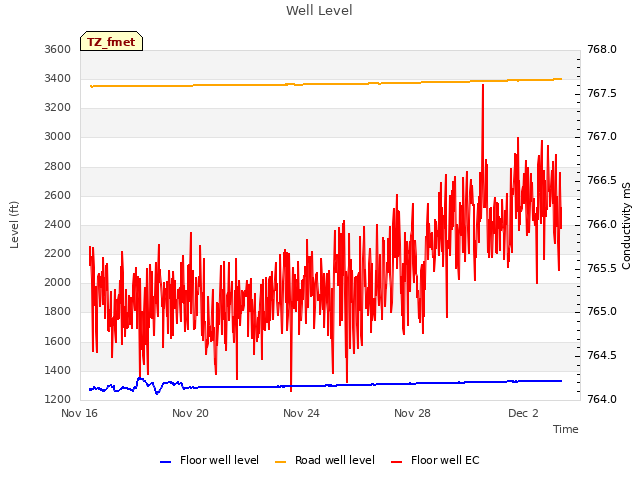

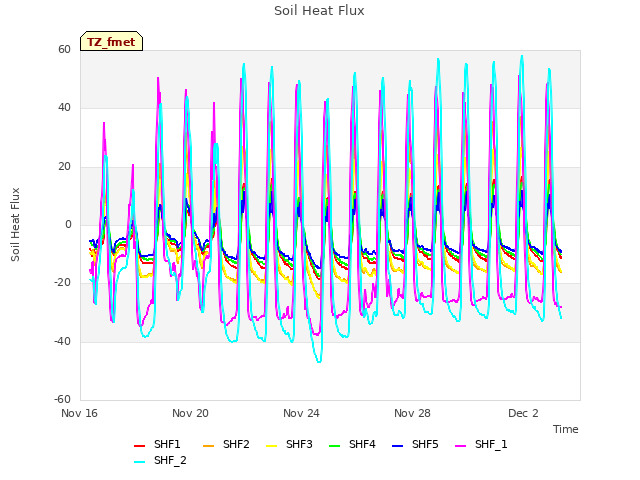

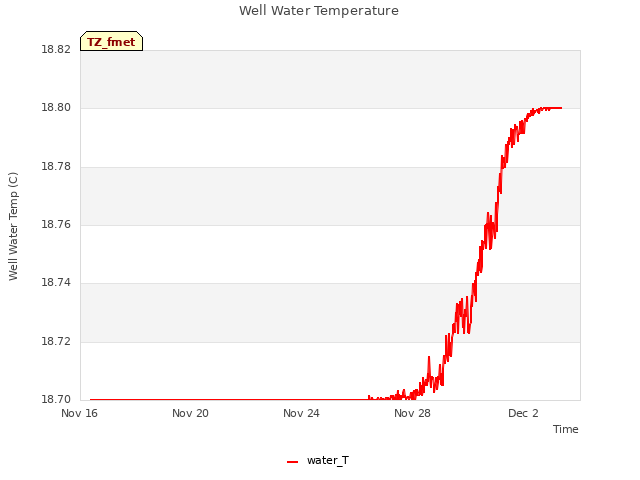

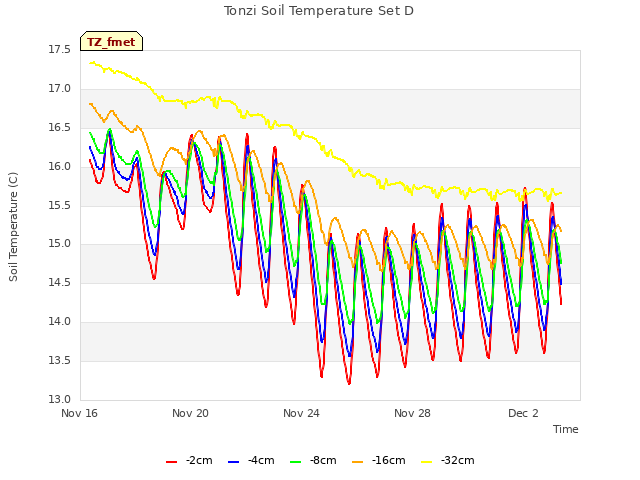

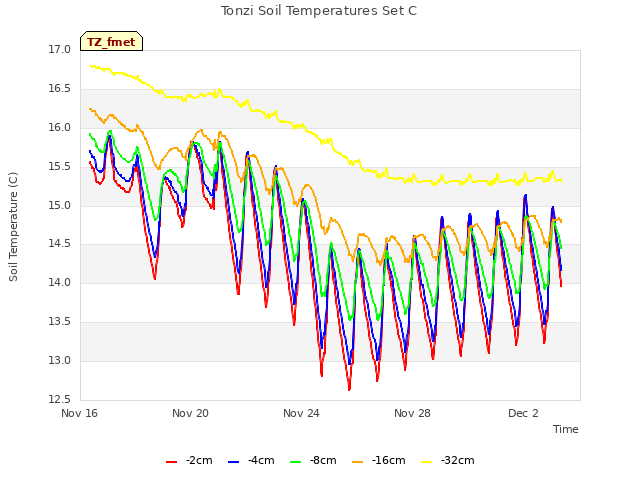

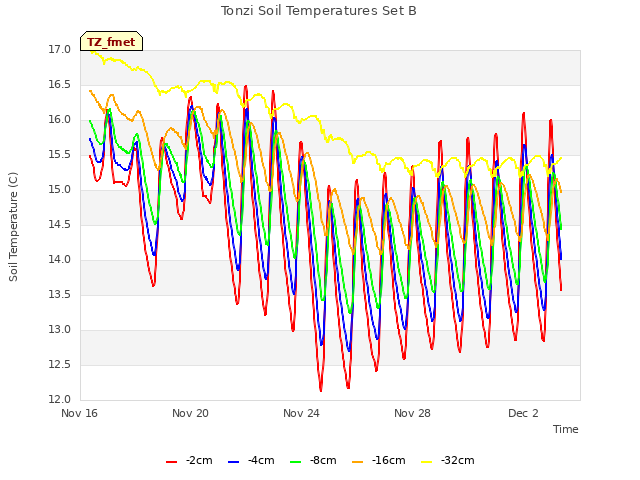

8 TZ_fmet graphs found

No data found for TZ_tram.

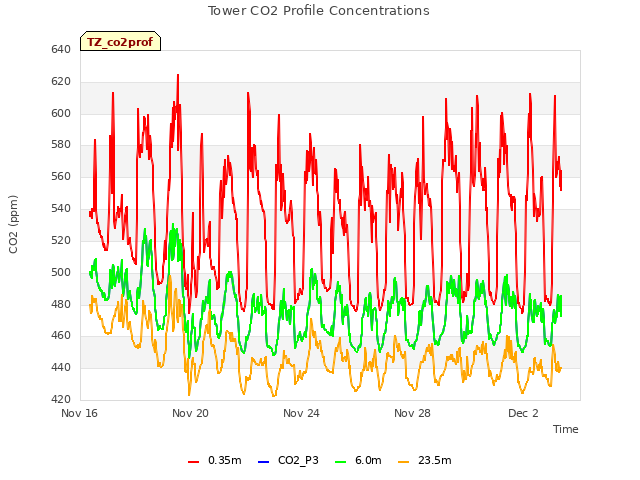

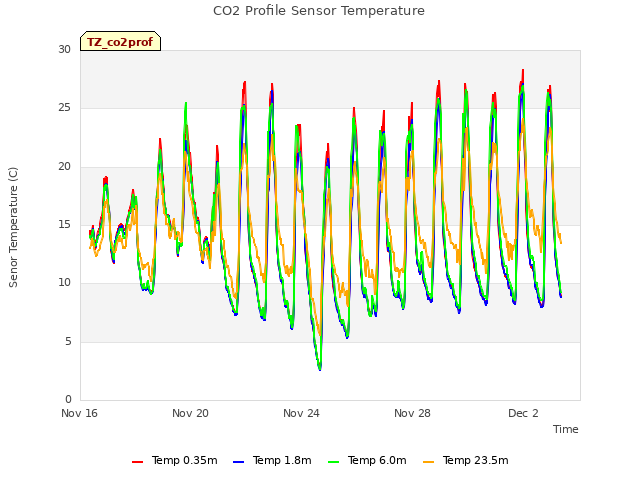

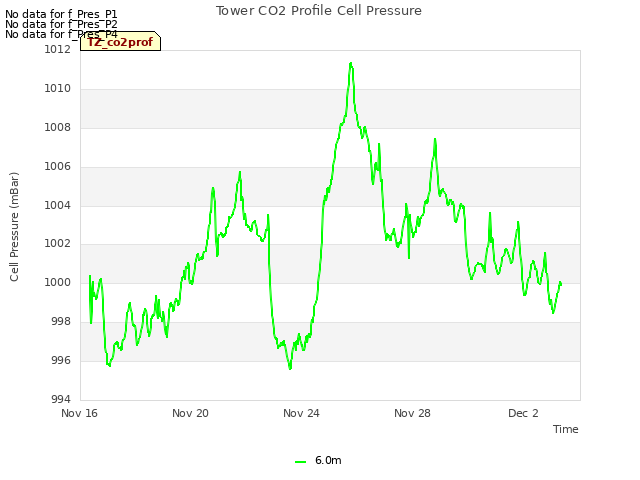

3 TZ_co2prof graphs found

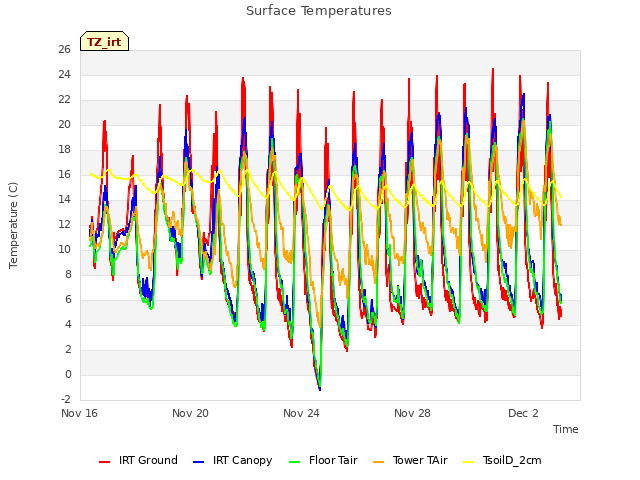

1 TZ_irt graphs found

No data found for TZ_windprof.

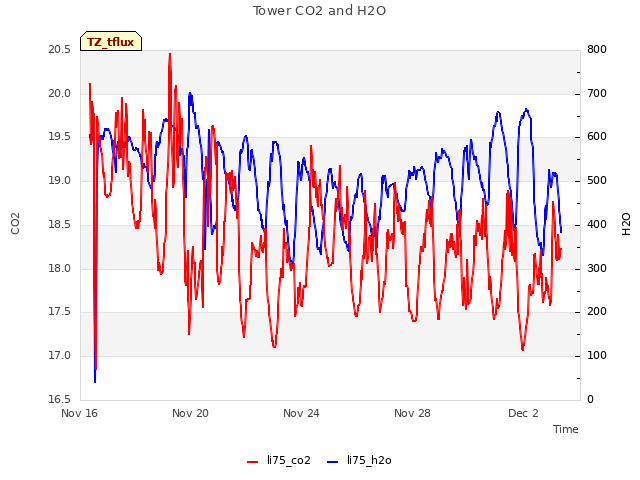

1 TZ_tflux graphs found

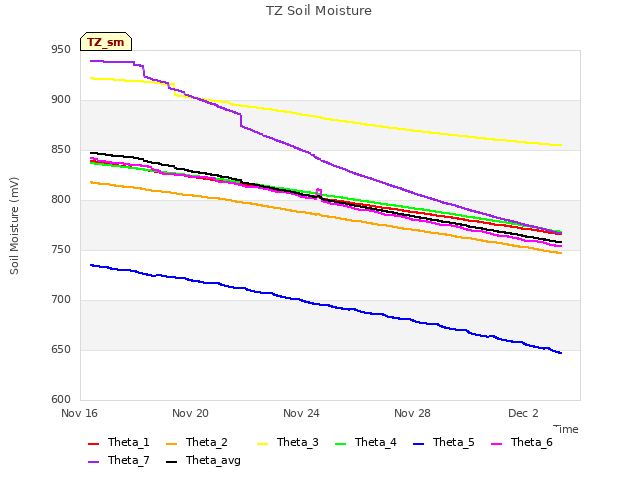

2 TZ_sm graphs found

Can't check TZ_met

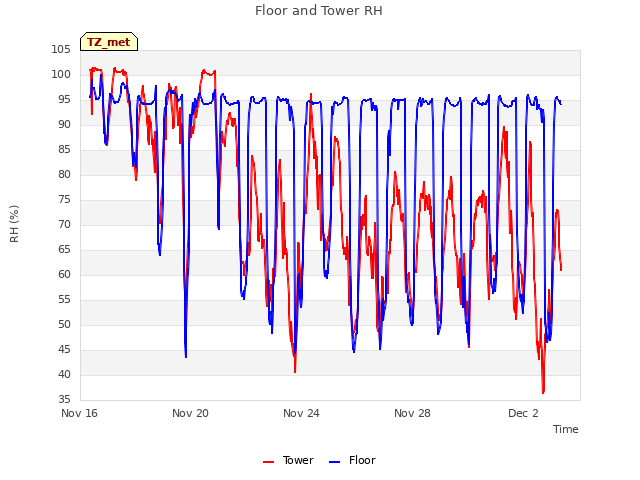

1 TZ_met graphs found

Can't check TZVR_mixed

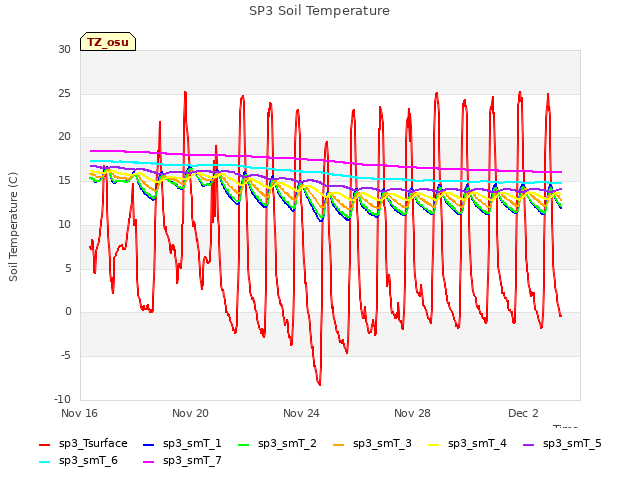

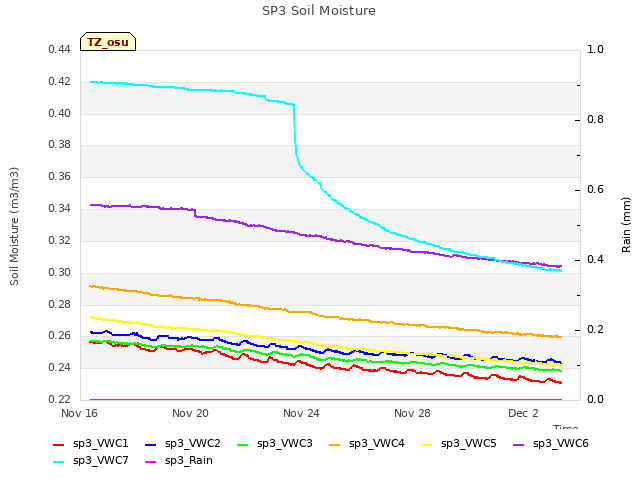

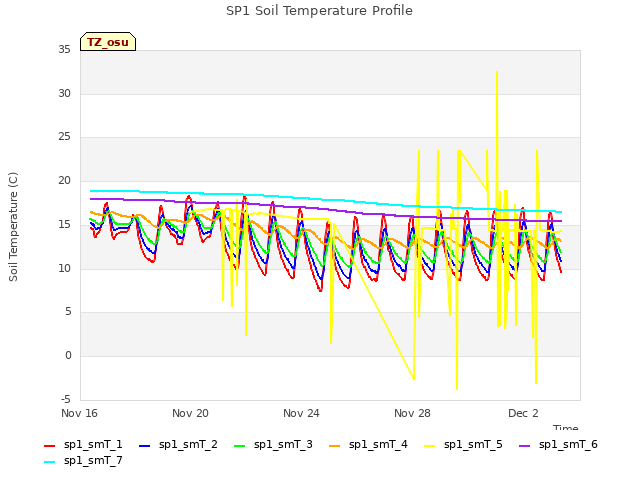

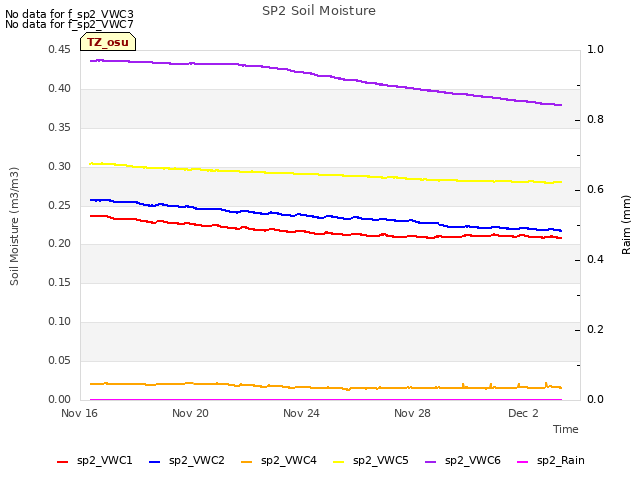

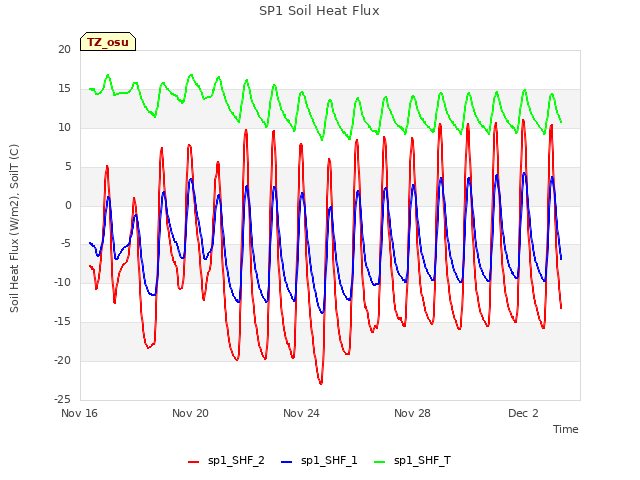

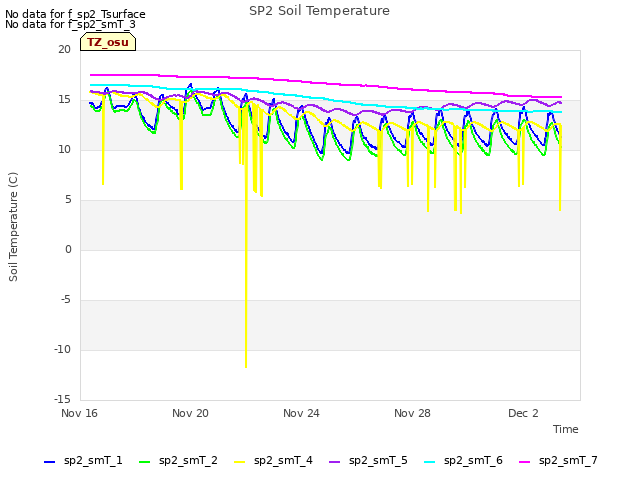

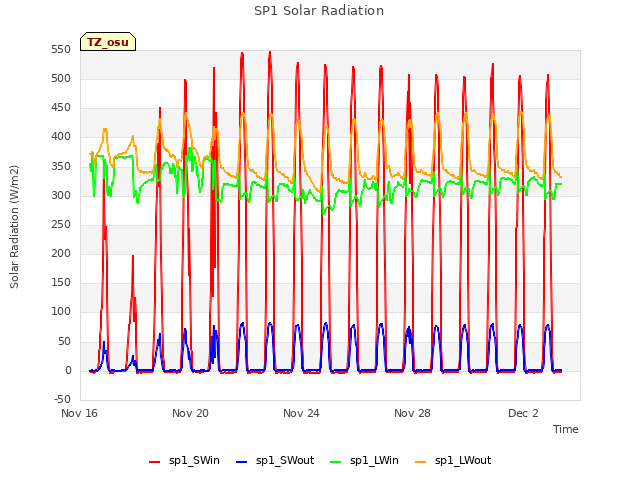

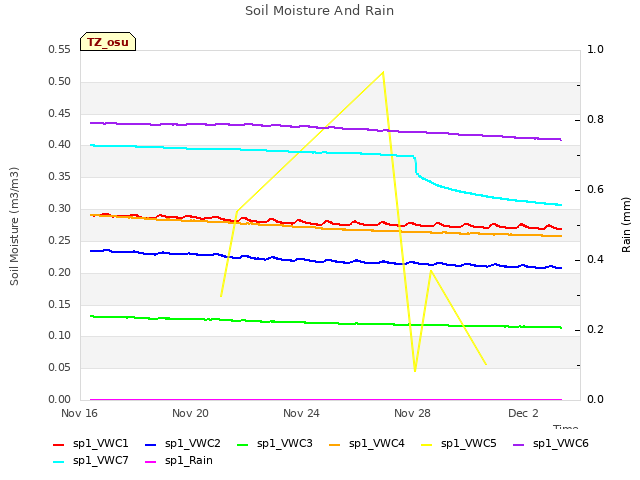

8 TZ_osu graphs found

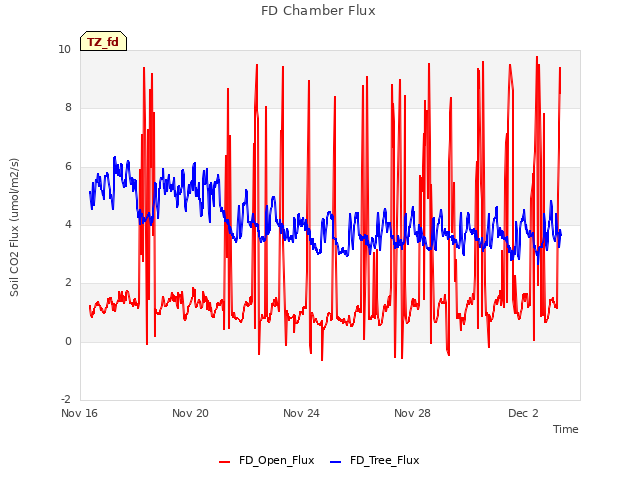

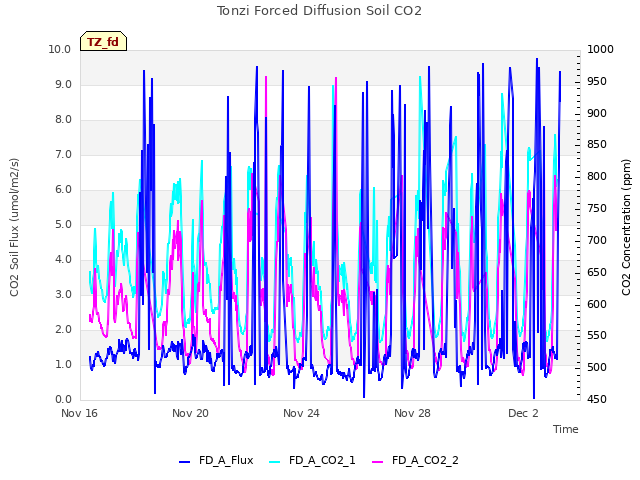

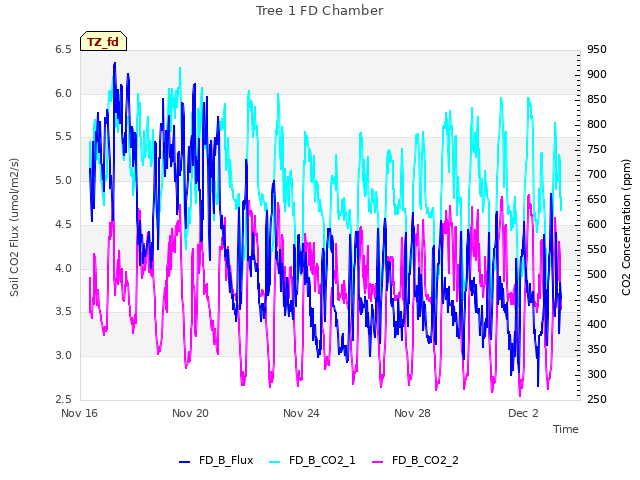

3 TZ_fd graphs found

Tonzi Z-cam data
