Tonzi: 2021-10-26 12:00:00 (DOY 299)
Author: Joe Verfaillie
Others:

Summary: Floor HMP45 fell on the ground - replaced but needs new fan, soil wet all the way down, Tree 1 FD performance check, replace CR1000 IRT SLA battery, retested tipping buckets, swapped road well power pack

Tonzi
2021-10-26

I arrived at about 12:00 noon PDT. I met Rob on the way in â€“ he said his mail is getting vandalized and he has a new PO Box. It was mostly overcast and cool but when the sun did break through it was almost hot. Record breaking rains a couple days ago. The pond is now about 2/3 full. The ground is thoroughly wet but not soggy yet. There are large puddles in the road. The trees look greener â€“ mostly because the storm knocked all the brown leaves off. There are quite a few broad leaf sprouts coming up but little grass and not enough to add a tinge of green yet.

All seemed well. I collected the flux, met, phenocam, z-cam, DBH, well levels, soil moisture and FD data.

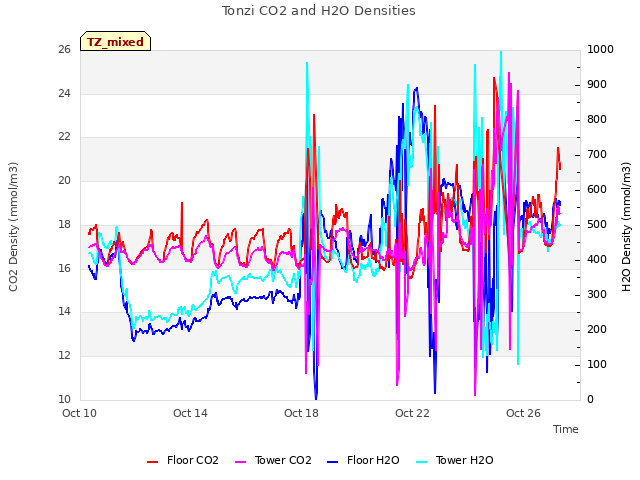

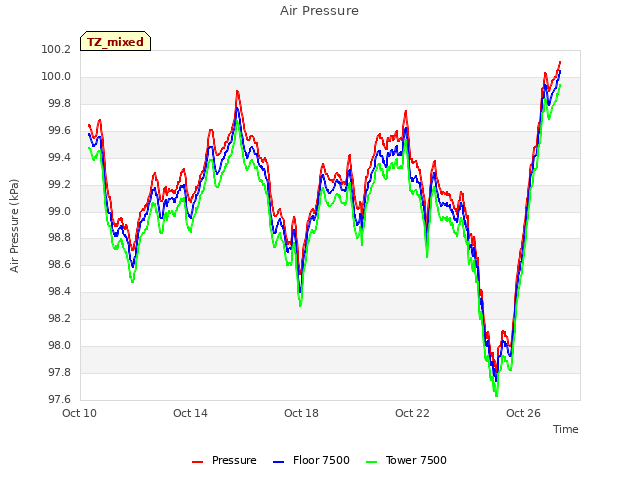

The Tower 7500: 415.5ppm CO2, 469.5mmol/m3 H2O, 99.8kPa, 16.3C, 102.6SS
The Floor 7500: 413.5ppm CO2, 501.3mmol/m3 H2O, 99.9kPa, 17.1C, 100.7SS
The storm washed everything clean.

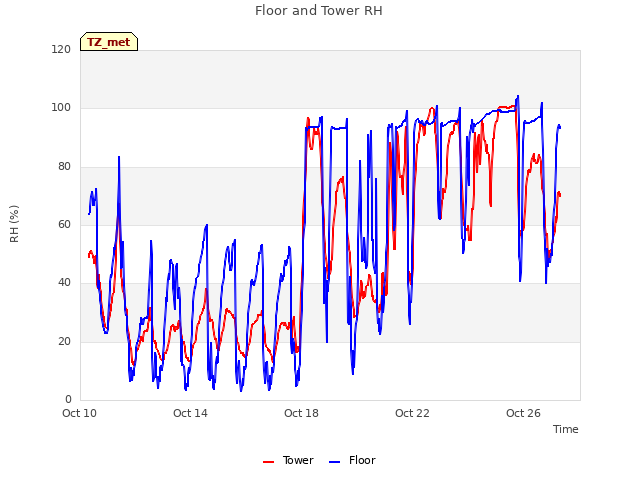

The Floor HMP45 had fallen out of its solar shield and was laying on the ground. I put in back in place but the fan was dead and I didnâ€™t have a spar (forgot the blue bag). Need to swap the fan next time.

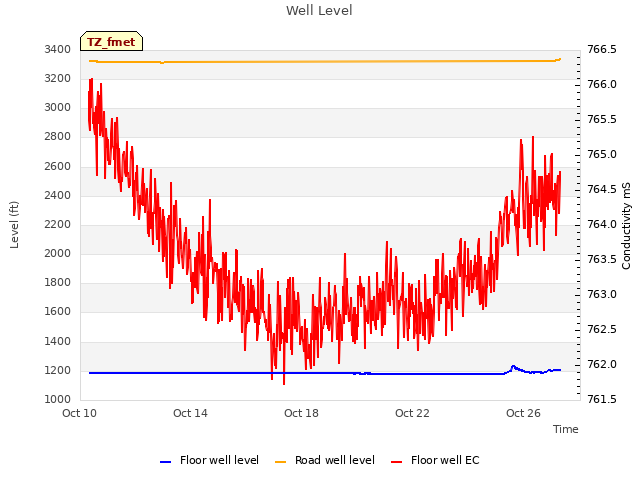

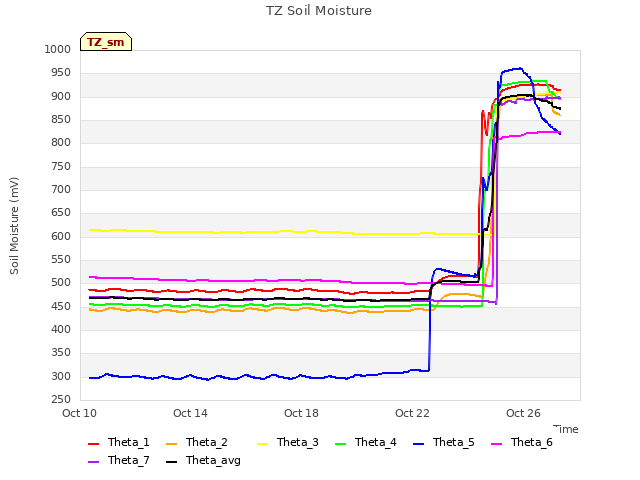

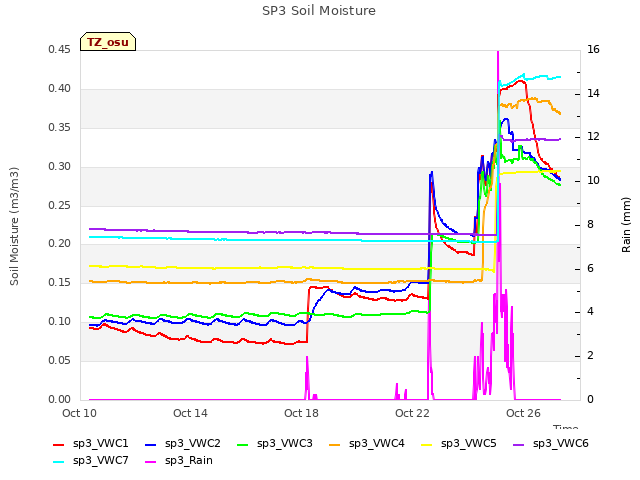

The soil was saturated all the way down to 60cm. The well levels have stayed steady or fallen a bit still so all the water has been soaked up by the surface.

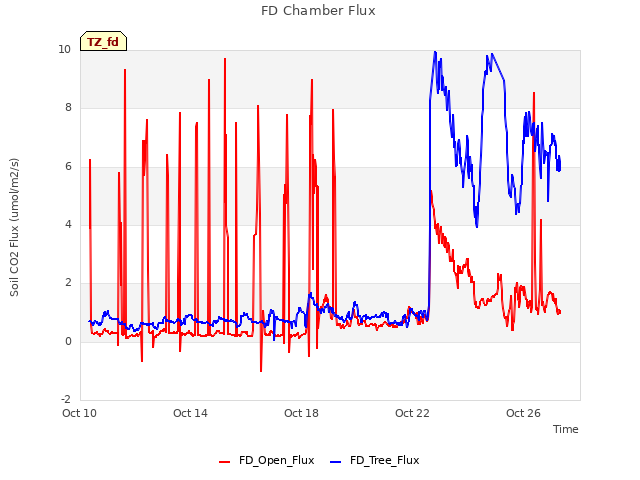

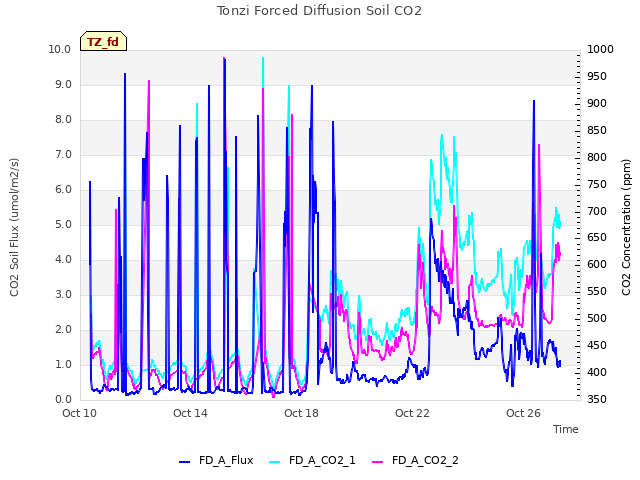

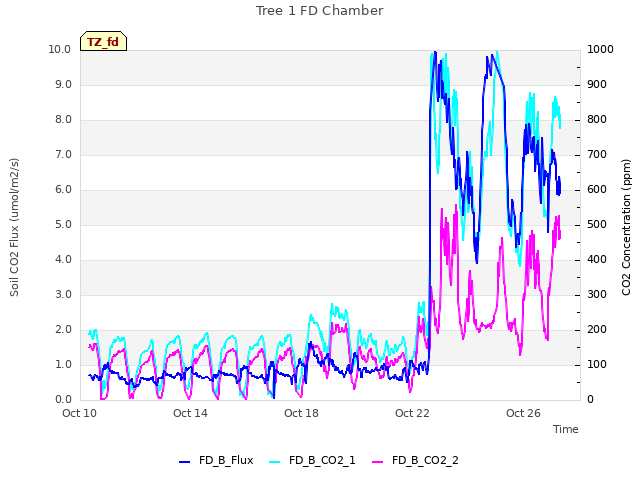

Resetting the CO2 concentration on the Open FD chamber seemed to work last time. I did another performance check on the Tree1 FD chamber and it acknowledged that I reset its CO2 concentration but it was a bit hard to tell. The flux data looks okay though.

I replaced the SLA battery on the IRT CR1000 that has been failing.

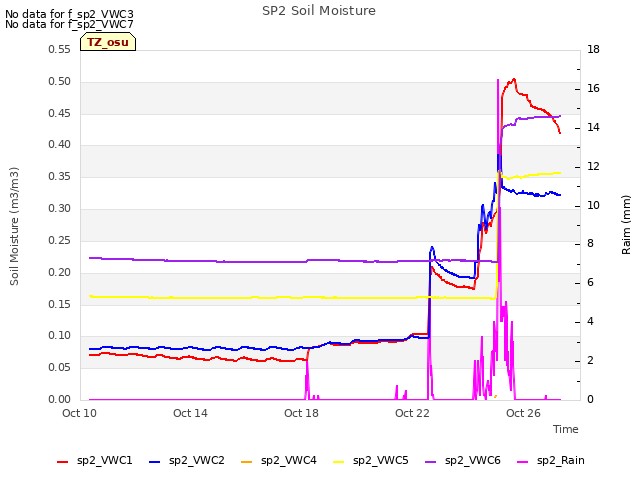

I retested the two tipping buckets that were slightly off last time. SP2 got 50/50 tips and the Main bucket got 49/50 tips. The adjustments last time were good and the data is correct for the most recent rain.

The power pack on the road well was dead. I swapped it with the one I was using for the tipping bucket test pump.

I left for Vaira at about 15:00 PDT

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2021-10-26	TZ_floor	32.4
2021-10-26	TZ_road	40
2021-10-26	TZ_tower	37.2
2021-10-26	VR_well	60.5
2021-10-26	VR_pond	22.28
2021-10-26	HS	5.29

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Soil_Transect_3_1 [2] => Soil_Transect_2_1 [3] => Soil_Transect_1_1 [4] => SoilCO2_West_A_1 [5] => SoilCO2_West_B_1 [6] => SoilCO2_West_C_1 [7] => Tower_2 [8] => Soil_Transect_4_2 [9] => Soil_Transect_3_2 [10] => Soil_Transect_2_2 [11] => Soil_Transect_1_2 [12] => SoilCO2_West_A_2 [13] => SoilCO2_West_B_2 [14] => SoilCO2_West_C_2 [15] => Tower_3 [16] => Soil_Transect_4_3 [17] => Soil_Transect_3_3 [18] => Soil_Transect_2_3 [19] => Soil_Transect_1_3 [20] => SoilCO2_West_A_3 [21] => SoilCO2_West_B_3 [22] => SoilCO2_West_C_3 [23] => Tower_4 [24] => Soil_Transect_4_4 [25] => Soil_Transect_3_4 [26] => Soil_Transect_2_4 [27] => Soil_Transect_1_4 [28] => SoilCO2_West_A_4 [29] => SoilCO2_West_B_4 [30] => SoilCO2_West_C_4 [31] => Soil_Transect_4_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Soil_Transect_4_1	Spacial Count
2021-10-26	299	0	nan	46.4	24.7	29.9	21.4	43.4	36.7	36.1	35	43.3	35.9	34.7	32.6	31.3	46.3	32.9	31.8	39.1	32.7	31.8	36.3	35.2	38	36.8	40	34.9	46	48.6	39.4	44	49.4	46.6
2021-10-26	299	1	nan	46.1	24.1	29.4	21.7	43.7	37.3	35.8	35.6	43.3	35	34.7	32.6	31.6	46.9	34.4	31.5	39.1	32.4	32.4	36.8	35.4	36	36.3	42.3	35.4	45.1	48.3	39.7	44.3	48.3	48.8	20
2021-10-26	299	Avg	0-15cm																																	0
2021-10-26	299	Avg	15-30cm																																	0
2021-10-26	299	Avg	30-45cm																																	0
2021-10-26	299	Avg	45-60cm																																	0

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2021-10-26	1	15.1
2021-10-26	102	14.0
2021-10-26	2	13.5
2021-10-26	245	4.2
2021-10-26	3	19.0
2021-10-26	4	14.0
2021-10-26	5	8.4
2021-10-26	6	19.6
2021-10-26	7	7.7
2021-10-26	72	11.9
2021-10-26	79	12.3
