Tonzi: 2021-10-06 12:35:00 (DOY 279)
Author: Joe Verfaillie
Others:

Summary: Tested tipping buckets, swapped incoming PAR on tower top, IRT CR1000 needs new battery, performance check on FDs - both need recheck next time, updated co2prof CR6 fixing pressure, cleaned Tower battery lugs.

Tonzi
2021-10-06

I arrived at about 12:35 PDT. It was mild and mostly cloudy with gray puffy clouds moving in from the south. It is still super dry but there was a little rain â€“ enough to warp the cardboard solar shields on the FD chambers. The trees still look brown and sparse here. The road in has been improved with a gravel topping.

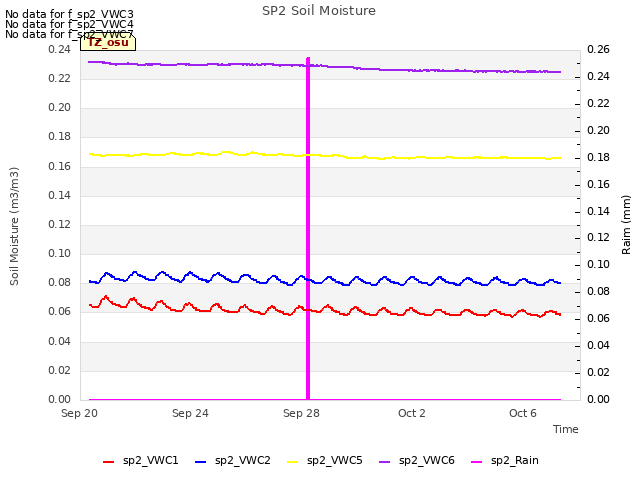

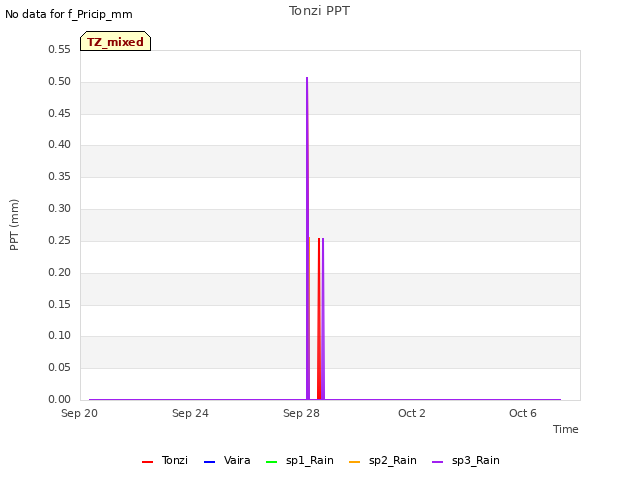

I tested the tipping buckets here with our new method using the peristaltic pump and 237ml of water which should result in 50 tips. 1/2 turn of the screws (CW+, CCW-) should adjust the number of tips by 2-3% (1-1.5 tips).
SP2 bucket sn 48132-611 got 52 tips â€“ I turned the screws one turn CCW.

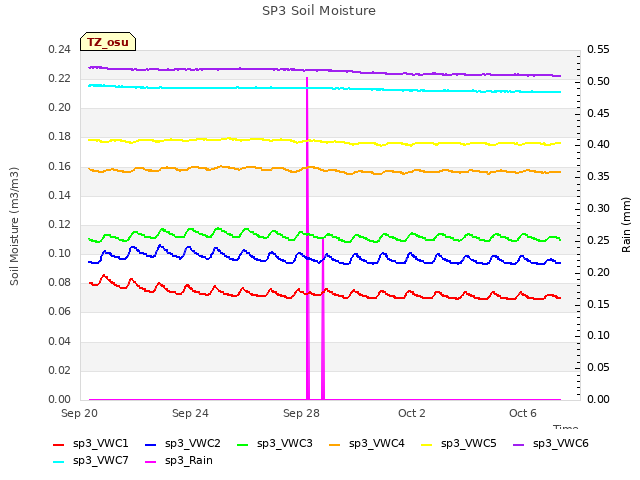

SP3 bucket sn 48102-611 got 50 tips â€“ No adjustment
The main bucket sn 24872-999 got 54 tips â€“ I turned the screws two turns CCW

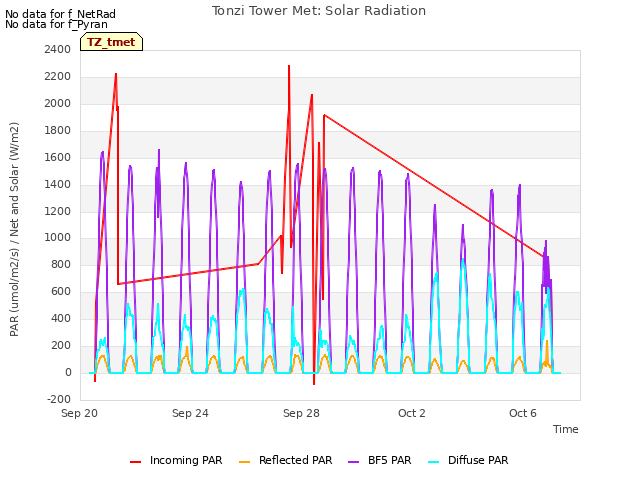

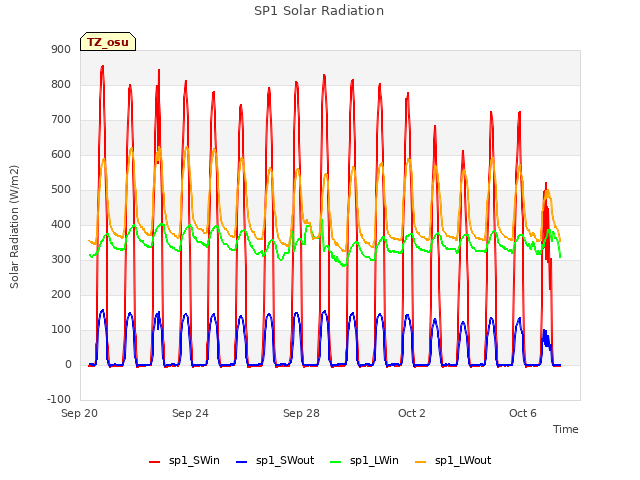

I swapped the incoming PAR sensor on the Tower top, sn 010164 came off and sn 110340 went on. Incoming PAR has been reading bad for the last month or so. I think the wires at the PAR sensors are broken.

I collected met, flux, camera, FD data, moisture point, wells and DBH data. All seemed well.

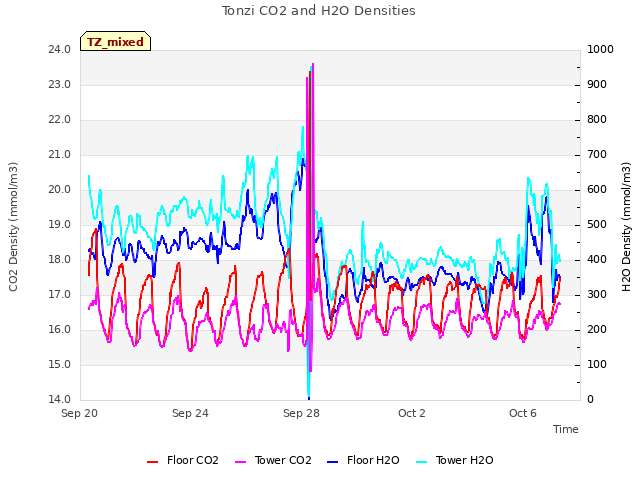

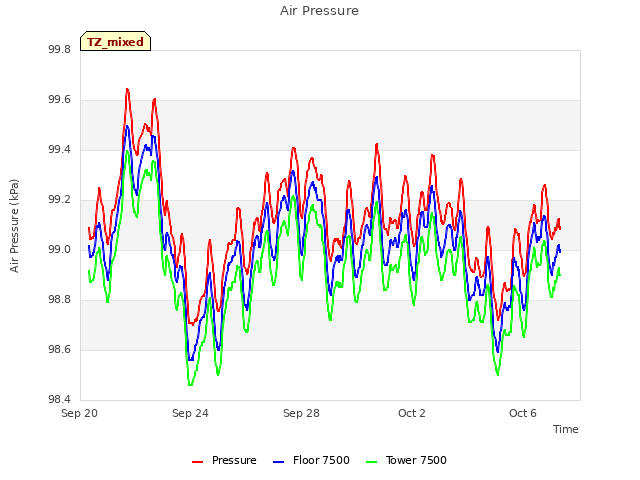

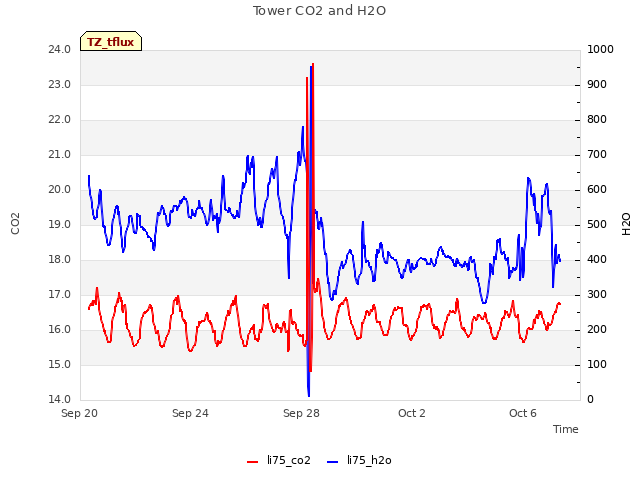

The Tower 7500 read: 404.1ppm CO2, 572.0mmol/m3 H2O, 98.9kPa, 21.8C, 102.1SS
The Floor 7500 read: 410.2ppm CO2, 505.8mmol/m3 H2O, 98.0kPa, 25.1C, 101.4SS
The IRT CR1000 was nearly up to date which is unusual (radio link usually needs a restart). In the lab I discovered that the CR1000 is losing power at night and getting restarted every day. It needs a new battery.

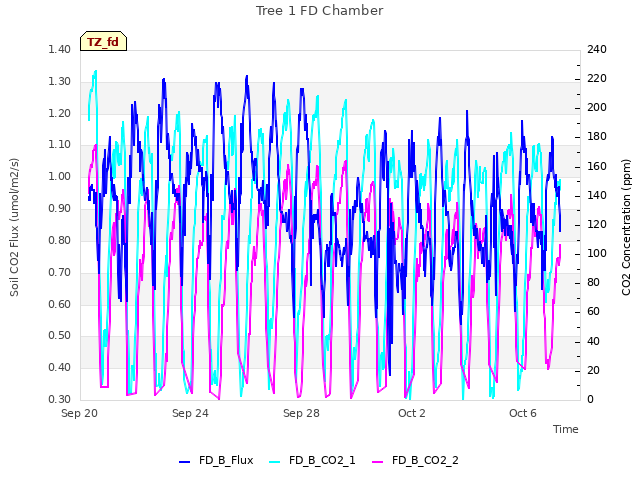

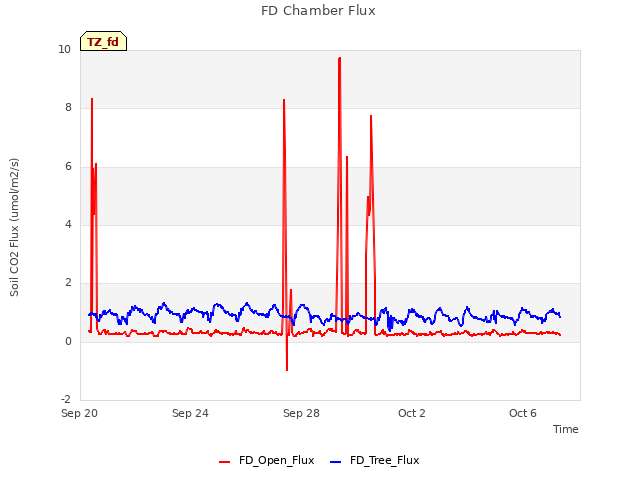

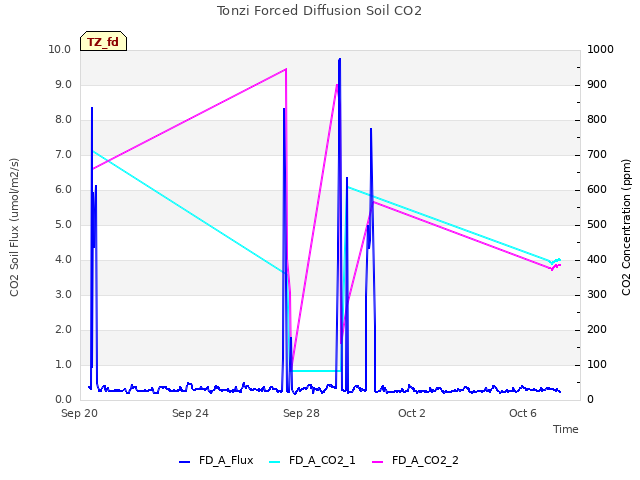

I did a performance check on the Open FD chamber â€“ its CO2 concentration was offset reading negative. The performance check reset it to 400ppm and it seemed to be okay afterwards. I did the same for the Tree1 chamber and its CO2 concentration was offset reading about 70ppm. I tried to reset it to 400 but returned too late after the performance check had finished, the chamber had reverted to measuring and would not perform the reset â€“ try again next time.

I cleaned corrosion off the positive lugs on the Tower battery bank sn BB-TT. I sprayed them with sealer. The sealer ran out at the end but I think I covered them all sufficiently.

Someoneâ€™s built a lean to up be the Tower well. Looks like just for fun.

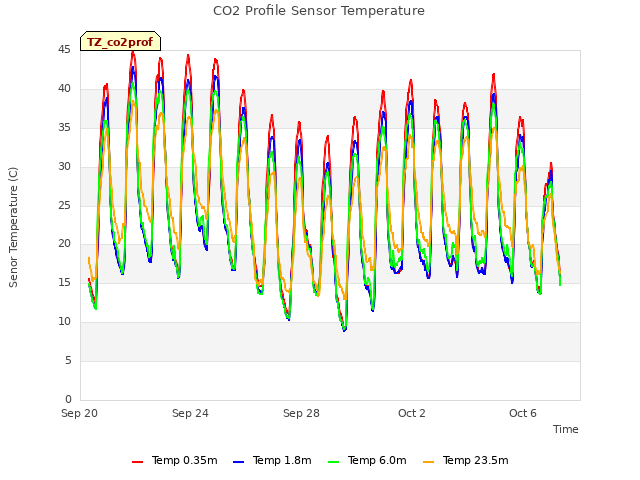

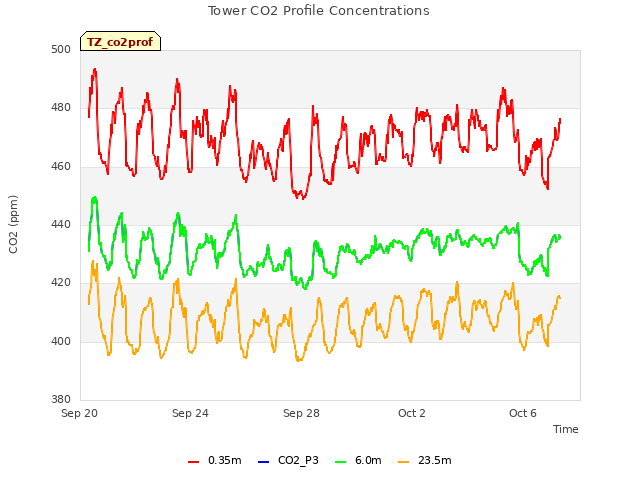

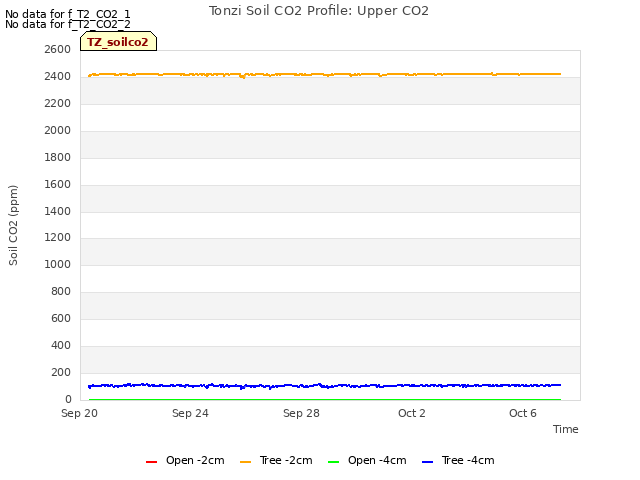

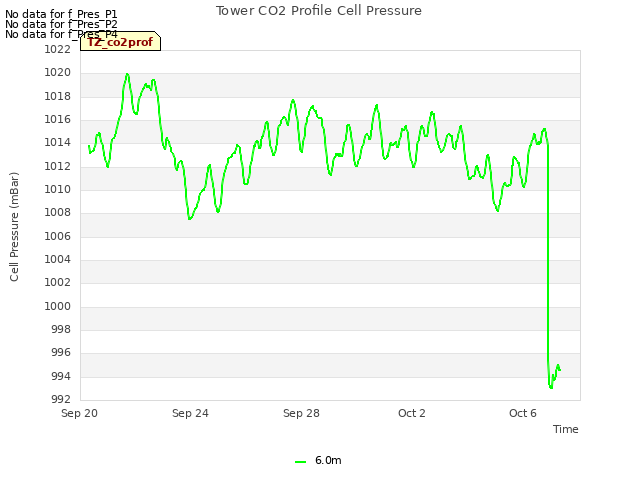

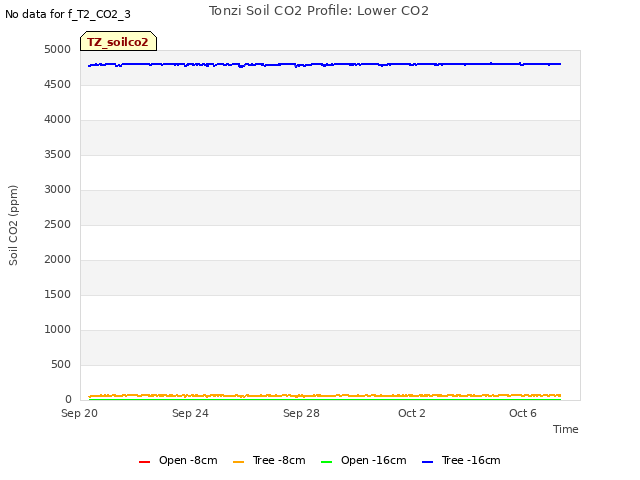

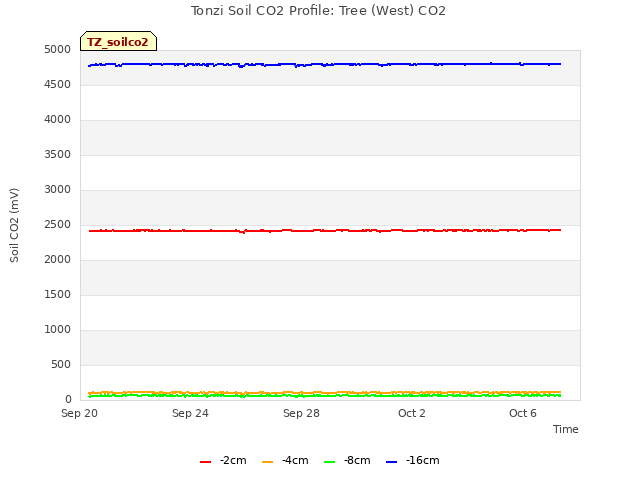

I updated the co2 profile CR6 program. The original program had coefficients for a PBT110 barometer (0.240, 500) but it was using a PTB101B barometer which had different coefficients (0.184, 600). The pressure was reading 1013.26mBar (too high). After the update is was 993.3mBar which matched other pressures at Tonzi (99.13kPa). This pressure is used to calculate CO2 in ppm from the GMP343 sensors. Iâ€™ll have to investigate if this pressure offset makes a difference or not.

I left a 16:00 PDT

Field Data

No tank data

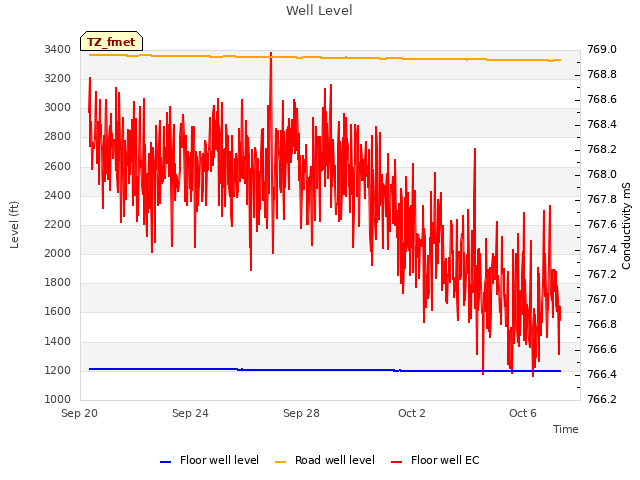

Well Depth

Date	Location	Depth (feet)
2021-10-06	VR_well	60.95
2021-10-06	VR_pond	12.16
2021-10-06	TZ_floor	32.35
2021-10-06	TZ_road	40
2021-10-06	TZ_tower	37.05

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Soil_Transect_4_1 [2] => Soil_Transect_3_1 [3] => Soil_Transect_2_1 [4] => Soil_Transect_1_1 [5] => SoilCO2_West_A_1 [6] => SoilCO2_West_B_1 [7] => SoilCO2_West_C_1 [8] => Tower_2 [9] => Soil_Transect_4_2 [10] => Soil_Transect_3_2 [11] => Soil_Transect_2_2 [12] => Soil_Transect_1_2 [13] => SoilCO2_West_A_2 [14] => SoilCO2_West_B_2 [15] => SoilCO2_West_C_2 [16] => Tower_3 [17] => Soil_Transect_4_3 [18] => Soil_Transect_3_3 [19] => Soil_Transect_2_3 [20] => Soil_Transect_1_3 [21] => SoilCO2_West_A_3 [22] => SoilCO2_West_B_3 [23] => SoilCO2_West_C_3 [24] => Tower_4 [25] => Soil_Transect_4_4 [26] => Soil_Transect_3_4 [27] => Soil_Transect_2_4 [28] => Soil_Transect_1_4 [29] => SoilCO2_West_A_4 [30] => SoilCO2_West_B_4 [31] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2021-10-06	279	0	nan	3.3	6.6	2.1	3	5.3	7.1	3.7	0.1	10.6	5.7	11.8	10.6	4.2	5.7	0.2	10.9	12.9	9.2	10.6	15.1	12.9	14.8	14.3	10.6	16.5	10.7	14.8	25.1	13.6	14.2	8.7	10.2
2021-10-06	279	1	nan	3.6	5.4	1.6	3.3	5	6.2	3	0.7	9.7	6	11.5	10.6	3.9	6	0.2	10.6	12.3	9	11.2	14.8	12.9	14.3	12.9	9.8	15.6	11	19.3	25.6	12.8	15.9	10.5	10.5
2021-10-06	279	Avg	0-15cm																																	0
2021-10-06	279	Avg	15-30cm																																	0
2021-10-06	279	Avg	30-45cm																																	0
2021-10-06	279	Avg	45-60cm																																	0

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2021-10-06	1	12.6
2021-10-06	102	7.3
2021-10-06	2	11.3
2021-10-06	245	2.6
2021-10-06	3	17.0
2021-10-06	4	11.9
2021-10-06	5	7.6
2021-10-06	6	19.4
2021-10-06	7	6.9
2021-10-06	72	10.2
2021-10-06	79	11.4
