Mayberry: 2021-05-26 16:15:00 (DOY 146)
Author: Daphne Szutu
Others: Dennis, Robert

Summary: Regular data collection/cleaning, swapped 7500 for calibration, calibrated 7700, upgraded 7550 firmware, Rnet sensor surface looks damaged

2021-05-26
Mayberry

Dennis, Robert, and I arrived at 16:15 PDT. It was a breezy, gusty, sunny day. The water level is still going up and the staff gauge read 85cm. We damaged one of the plank boardwalks when Dennis and Robert dropped the big gas tank on it.

I collected met, camera, pi cam, and USB GHG data. Robert cleaned flux and rad sensors. Robert noticed that the Rnet water sensor had a lot of bird crap on it, and after he cleaned it he noticed the sensor surface had a lot of divots in it, so we should double check the data from this sensor. The wash reservoir was 90% full; we refilled.

We calibrated LI-7700 sn TG1-0223 with 2 AMP tanks. The Zero cal gas was a baby tank of N2 that Sebastien B. had dropped off to us in the lab this morning. The Span cal gas is also an AMP tank with CH4 concentration of 4.223 ppm. The zero and span offsets were small. After the calibration, we reattached the 7700 spray nozzle.

We also swapped the LI-7500 for calibration: sn 0418 came off and sn 0042 went on the tower. I uploaded a new configuration file, updated the pressure coefficients, and reset the box.

I upgraded the 7550 sn AIU-1285 firmware from 8.5.0 to 8.8.32. After the upgrade, I checked that the GHG columns looked good, the clock was correct, and the USB was logging.

LI-7500 readings (sn 0418 --> sn 0042 --> sn 0042 with upgraded 7550 firmware):
CO2 407ppm --> 428 --> 426
H2O 520ppm --> 547 --> 575
T 28.6C --> 27.5 --> 27.1
P 101.2kPa --> 99.3 --> 99.3
SS 98--> 98 --> 98
LI7700 readings:
CH4 1.96ppm
RSSI 56--> 77 after cleaning

We left at 17:20 PDT.

1 photos found

Boardwalk crossbrace broke when Dennis and Robert dropped a big gas tank on it
Boardwalk crossbrace broke when Dennis and Robert dropped a big gas tank on it

Graphs display:
11 sets found

7 MB_flux graphs found

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

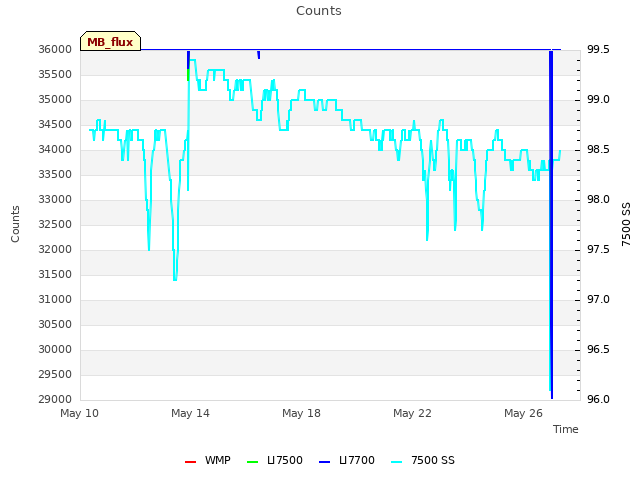

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

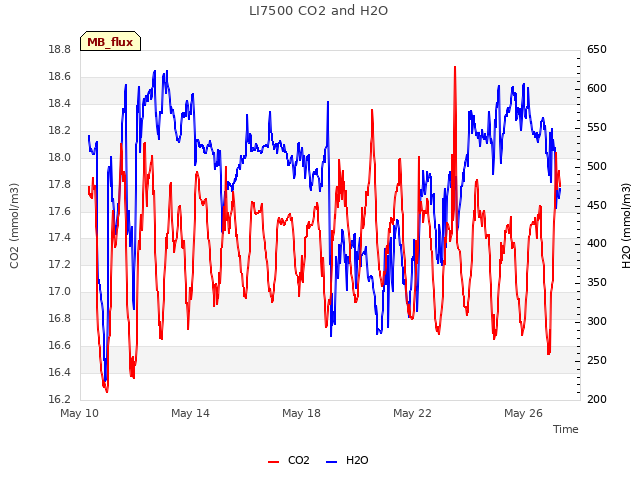

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 from digital signal in a new window

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

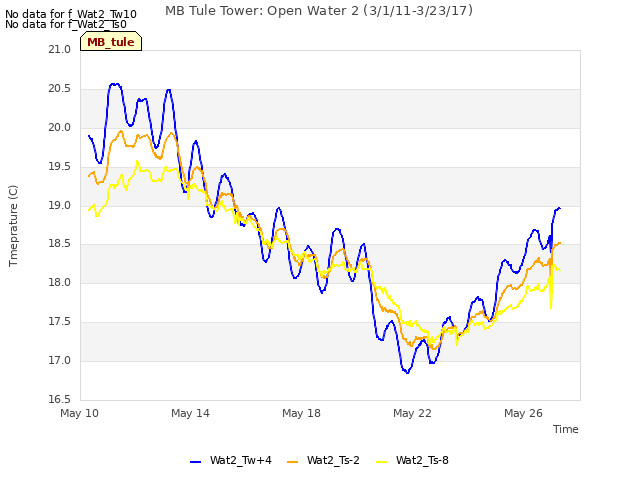

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

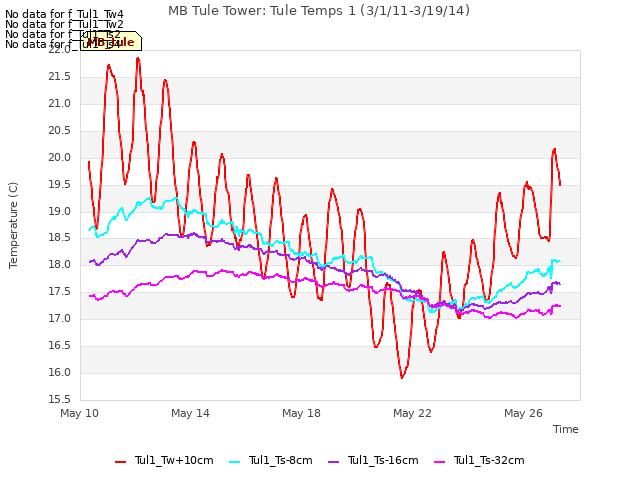

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

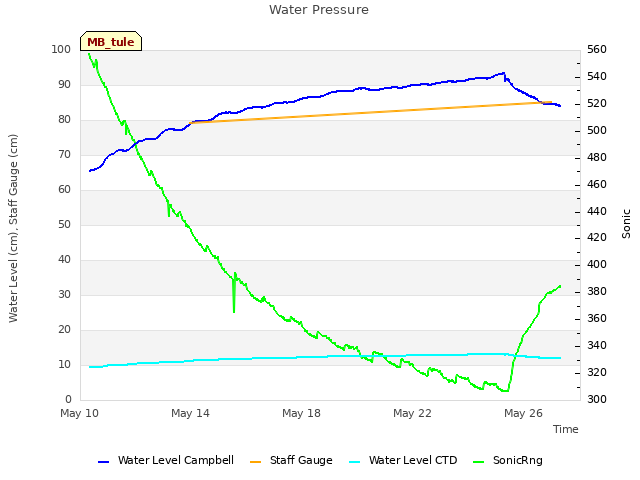

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

Explore the graph:Water Temperatures in a new window

Explore the graph:Air Temperatures in a new window

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

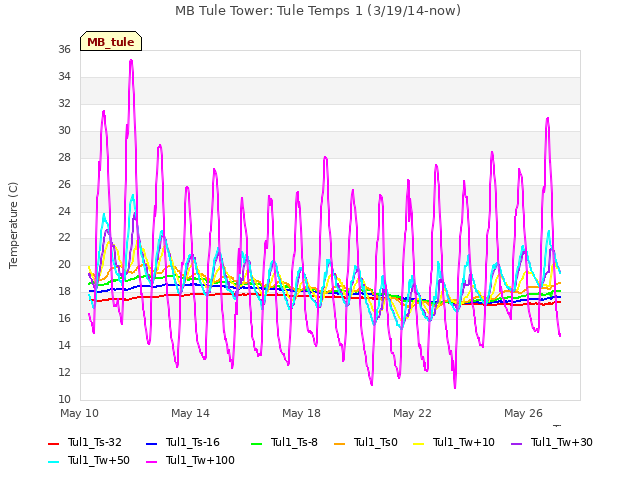

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

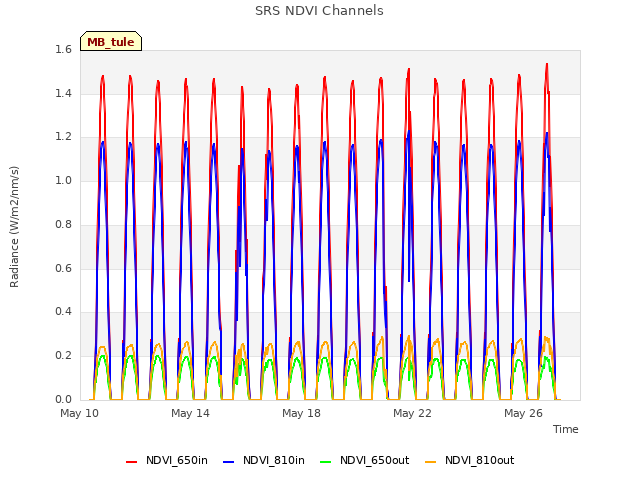

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

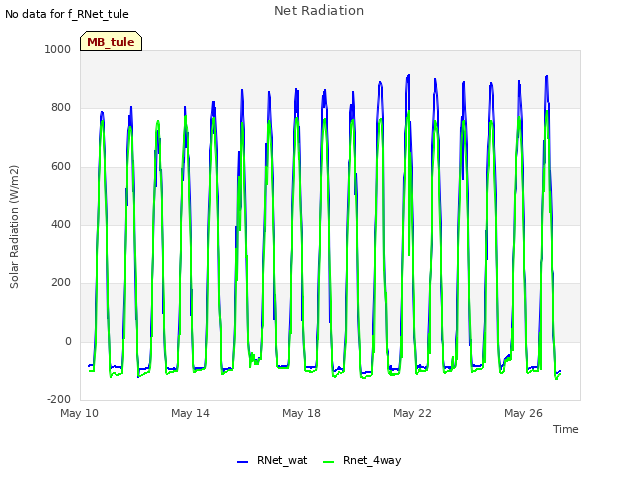

Explore the graph:Net Radiation in a new window

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

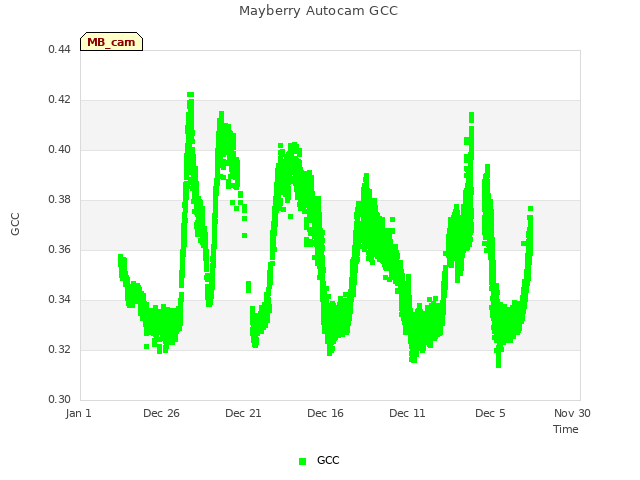

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

Explore the graph:Mayberry processed CO2 Fluxes in a new window

Can't check MB_fd
1 MB_fd graphs found

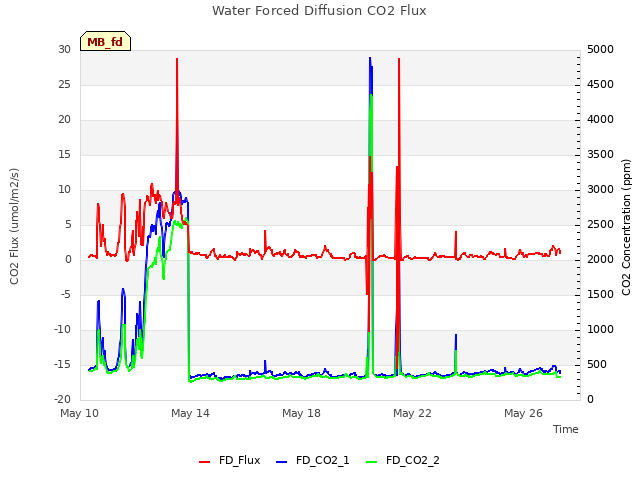

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
