Bouldin Alfalfa: 2020-12-16 15:25:00 (DOY 351)
Author: Daphne Szutu
Others:

Summary: Regular data collection/cleaning, sheep/lambs right around the tower, Arable Mark tilted--fixed

2020-12-16
Bouldin Alfalfa

I arrived at 15:25 PST. It was an overcast and cool day. There were ewes and lambs (and their guard dog) right around the tower when I arrived. The dog barked diligently , backing itself and the sheep away from the tower, until the shepherd approached on his ATV.

I downloaded met, camera, and USB GHG data. I re-used the same camera card since we might be having problems with the other card and the next site visit will be in 3 weeks after winter break. I downloaded and cleared the FD chamber. I cleaned the flux and rad sensors. The older Arable Mark (with the black rim) was tilting at an angle, so I straightened it. The reservoir was 10% empty; I refilled it. I skipped spectral because it was getting late.

LI-7500 readings:
CO2 470ppm
H2O 490ppm
T 13.4C
P 102.1kPa
SS 99--> 100 after cleaning
LI7700 readings:
CH4 2.8 ppm
RSSI 47-->73 after cleaning

I left at 15:40 PST. By this time the sheep had backed up all the way south to the levee road. The lambs were running in a pack in a circle.

Next Mowing: 2021-01-12

4 photos found

Sheep, lambs, and their livestock guardian dog at alfalfa
Sheep, lambs, and their livestock guardian dog at alfalfa

Experimental NFDs installed
Experimental NFDs installed

Sheep
Sheep

Sheep on a foggy morning, some lambs are in a different enclosure
Sheep on a foggy morning, some lambs are in a different enclosure

Graphs display:
7 sets found

5 BA_flux graphs found

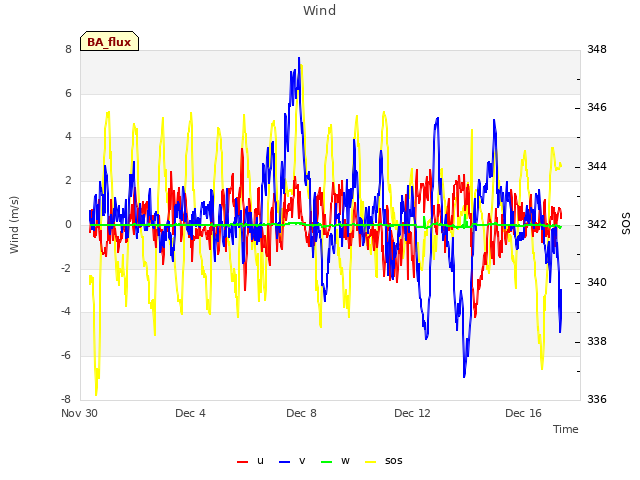

Explore the graph:Wind in a new window

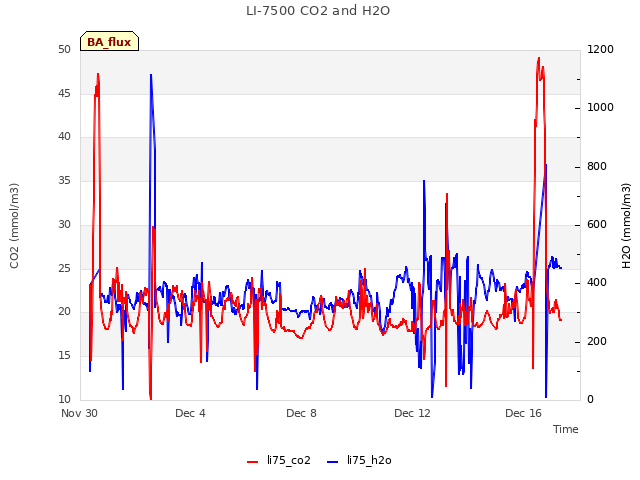

Explore the graph:LI-7500 CO2 and H2O in a new window

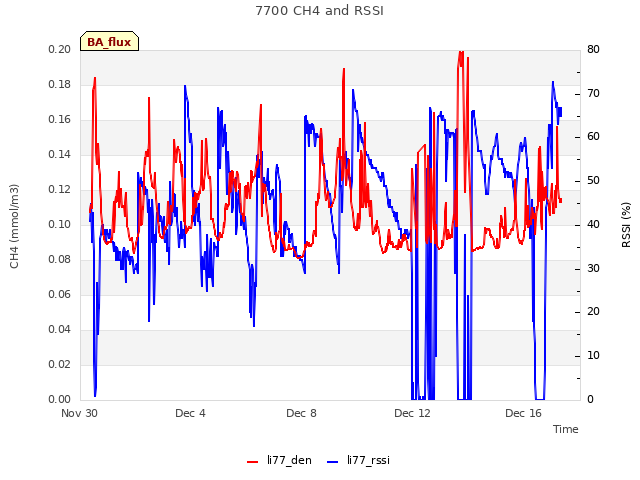

Explore the graph:7700 CH4 and RSSI in a new window

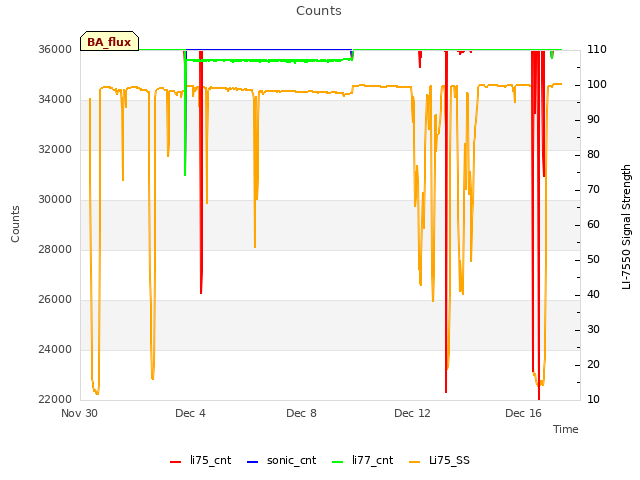

Explore the graph:Counts in a new window

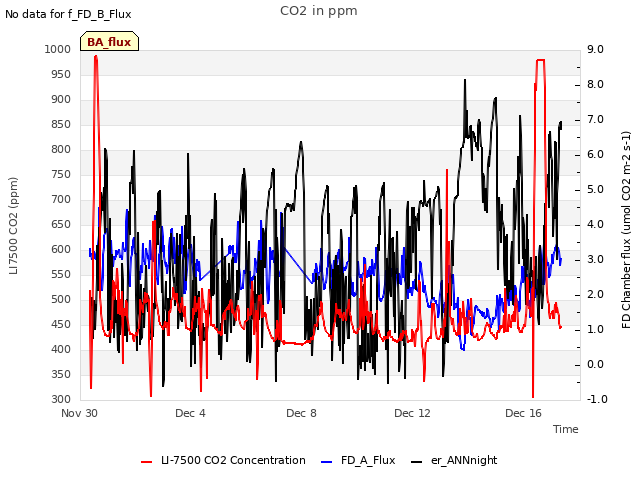

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

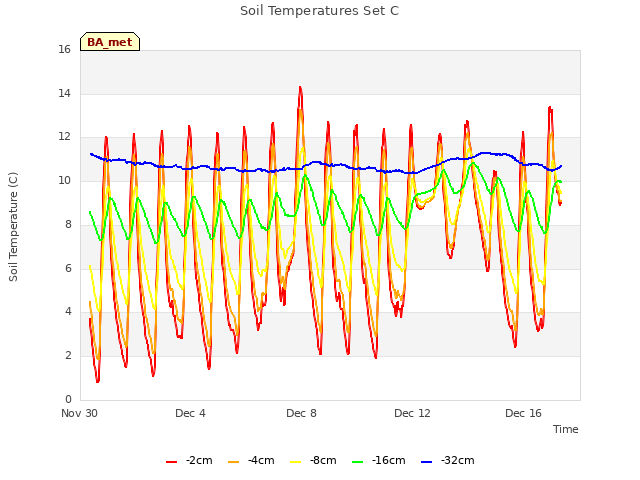

Explore the graph:Soil Temperatures Set C in a new window

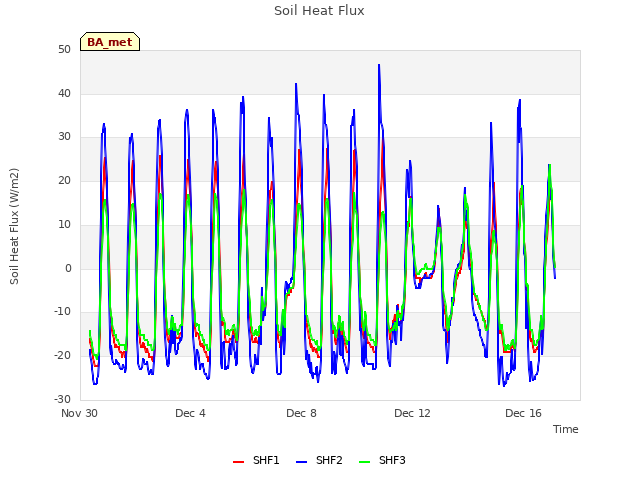

Explore the graph:Soil Heat Flux in a new window

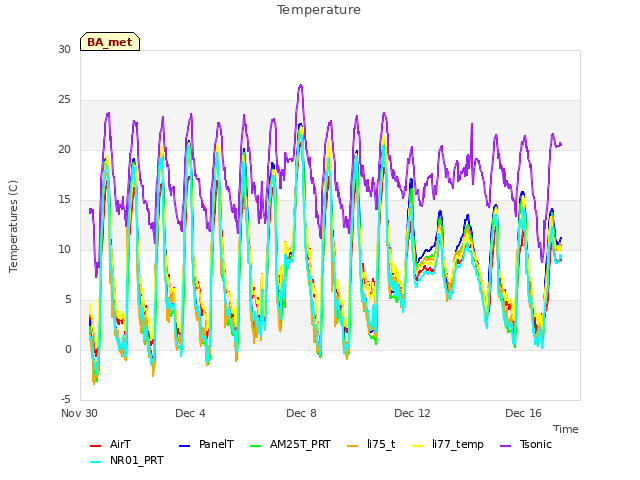

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

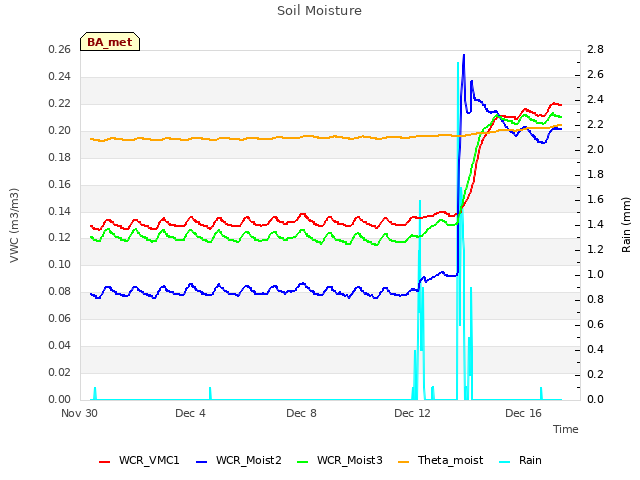

Explore the graph:Soil Moisture in a new window

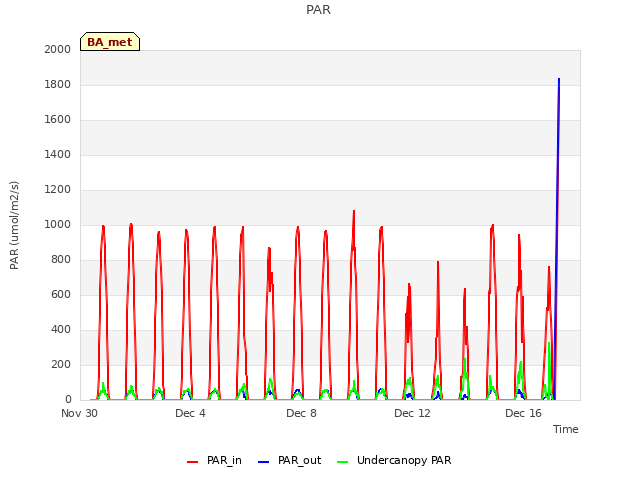

Explore the graph:PAR in a new window

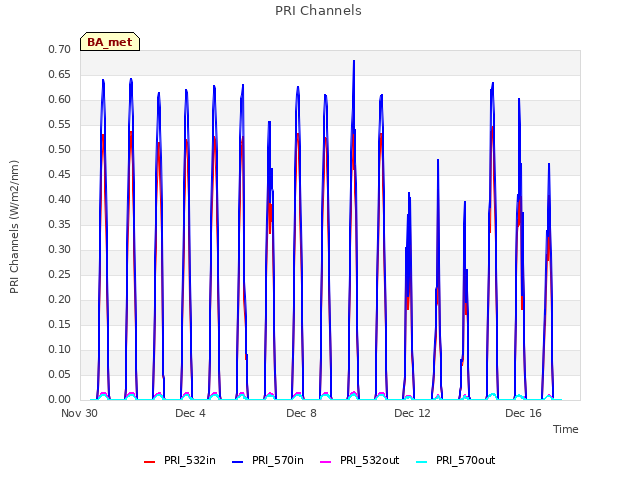

Explore the graph:PRI Channels in a new window

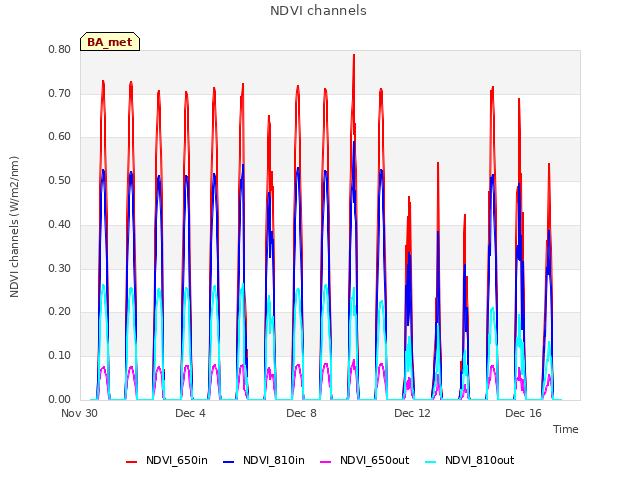

Explore the graph:NDVI channels in a new window

Explore the graph:Battery Voltage in a new window

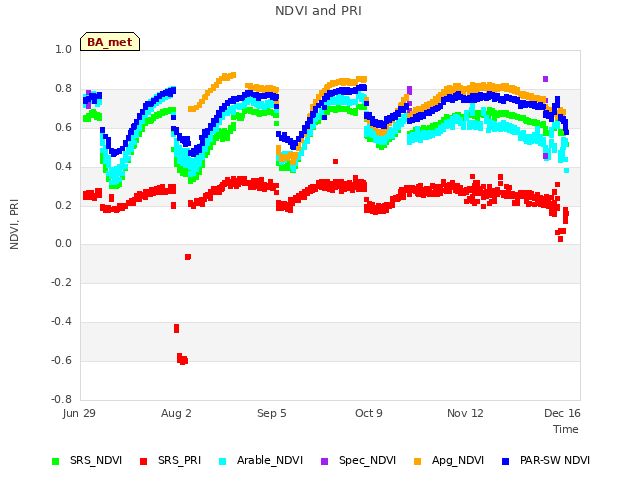

Explore the graph:NDVI and PRI in a new window

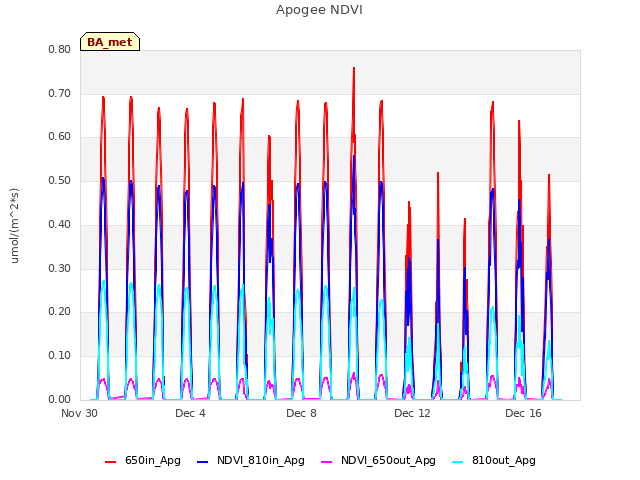

Explore the graph:Apogee NDVI in a new window

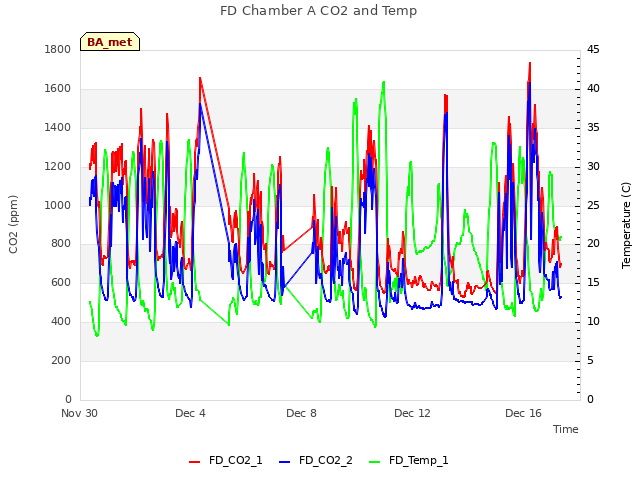

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

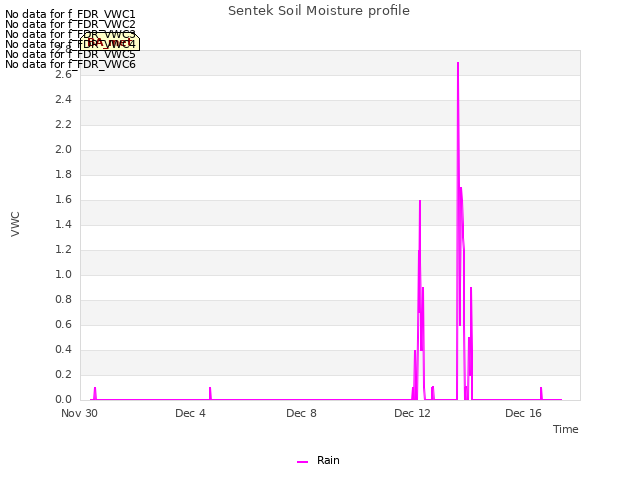

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

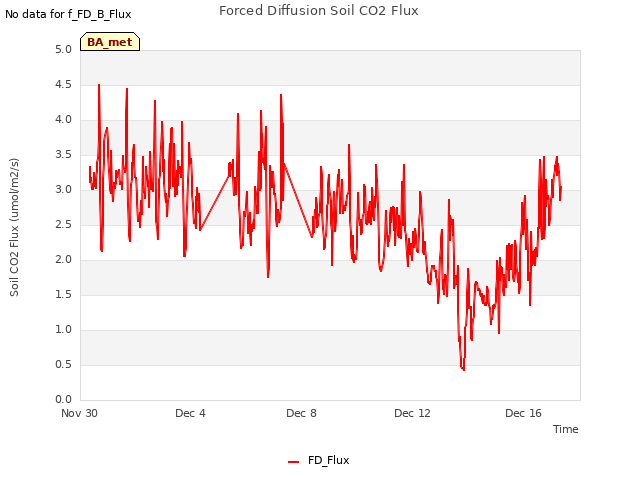

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

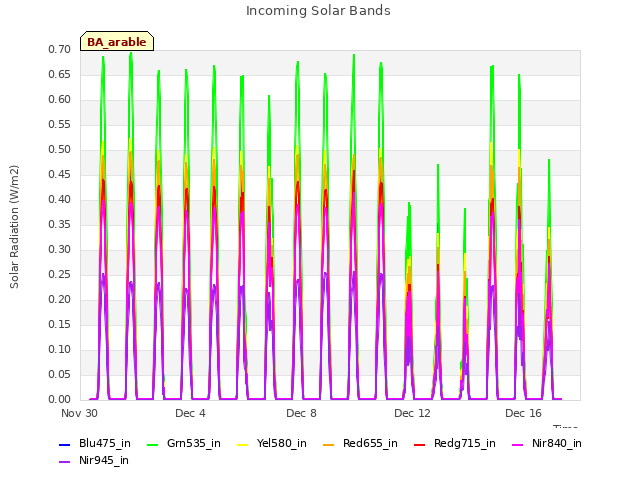

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

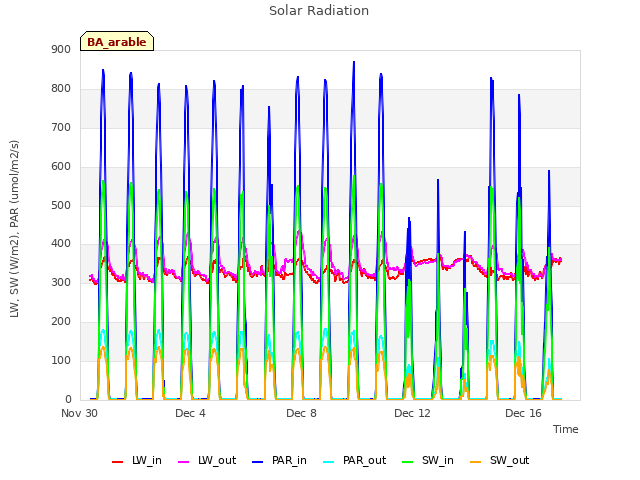

Explore the graph:Solar Radiation in a new window

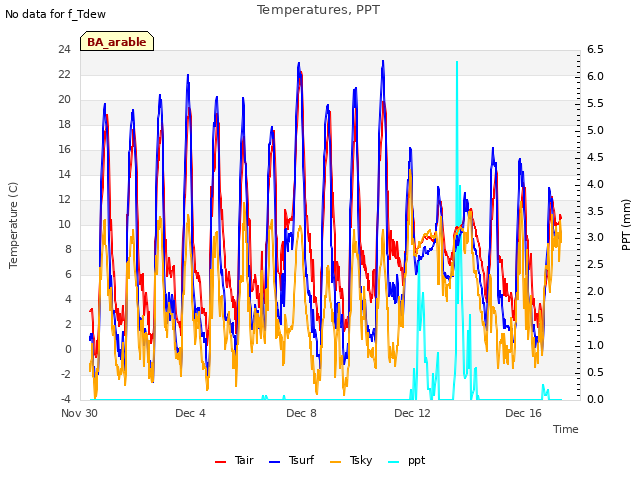

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

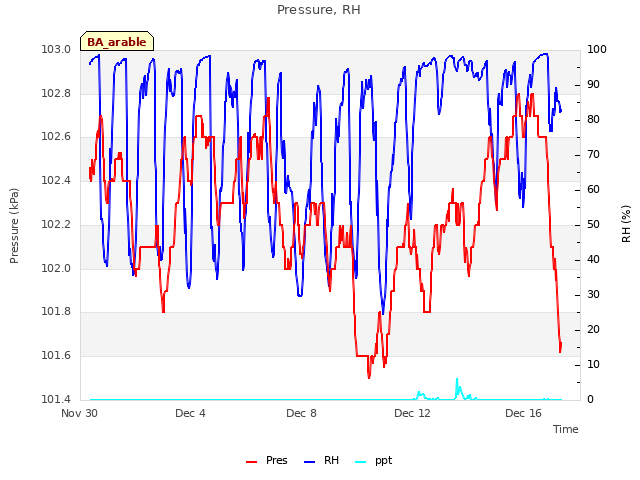

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

Explore the graph:Energy in a new window

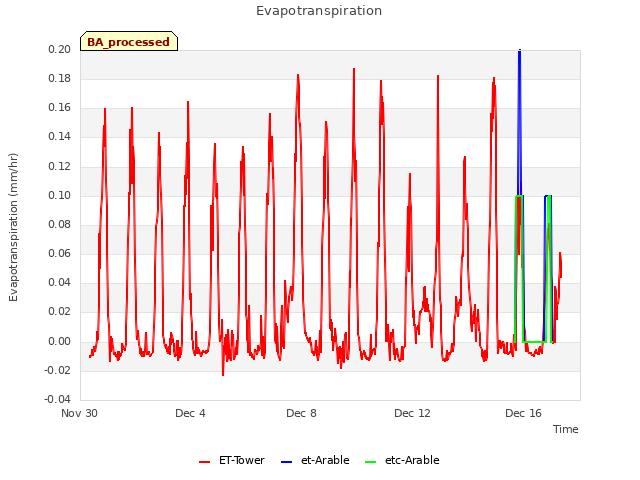

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
