Mayberry: 2020-12-01 08:45:00 (DOY 336)
Author: Ariane Arias-Ortiz
Others: Erin

Summary: Regular surface and porewater collection

Erin and I arrived at Mayberry at around 8:45 am. It was a sunny day, no clouds in the sky. The water level keeps decreasing; the staff gauge reading was 28 cm.

We collected surface waters in the channels, inlet and outlet location there was no standing water in vegetated areas.

Conductivity/Salinity keeps increasing although slightly in surface waters +0.4 ppt, likely due to decreasing water levels. Porewaters were collected at the channel at -10, -30 and -50 cm. At the 0.7 footprint site (Phragmites site), we could pull porewaters from -20 cm to -50 cm (-10 cm was dry). At the 0.5 footprint site (Cattail), we sampled at -10 to -30 cm. The sippers are less clogged with lower water levels.

Salinity in the channel's porewater keeps stable, with little changes throughout the last 8 months. Porewater salinities in vegetated soils are similar than last month and increased slightly. pH is decreasing in channel porewaters but stable in wetland porewaters.

Readings at the tower (surface water)
Conductivity: 3073 uS
Salinity: 1.6 ppt
pH: 6.22
T: 11.7 C

Porewaters (average all depths)
Conductivity: 7785 uS
Salinity: 4.3 ppt
pH: 6.53
T: 12 C

We processed the samples at the site and left at 4.45 pm

1 photos found

Moonset at dawn
Moonset at dawn

Graphs display:
11 sets found

7 MB_flux graphs found

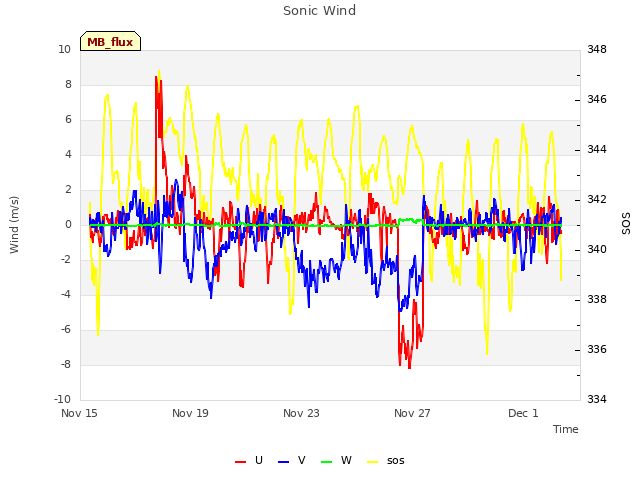

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

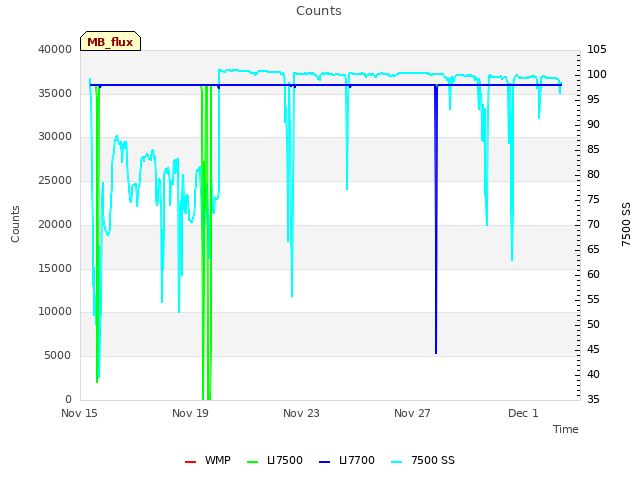

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 from digital signal in a new window

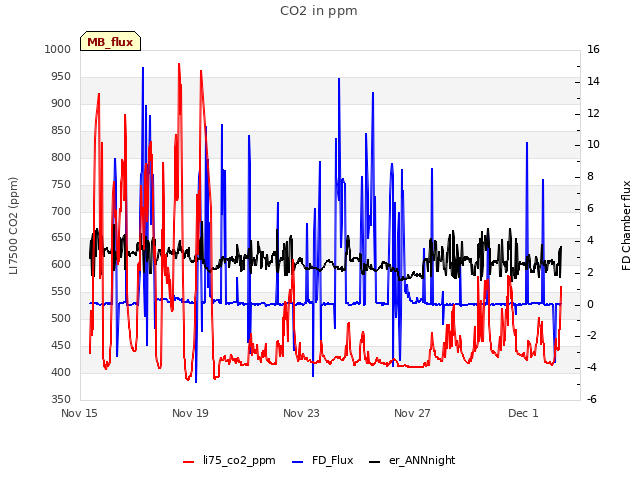

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

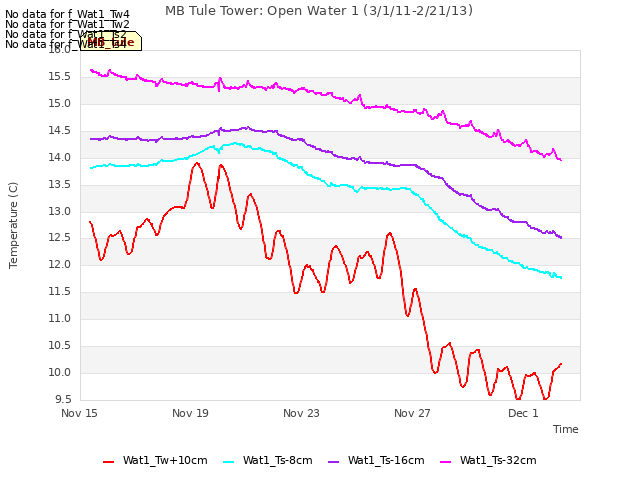

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

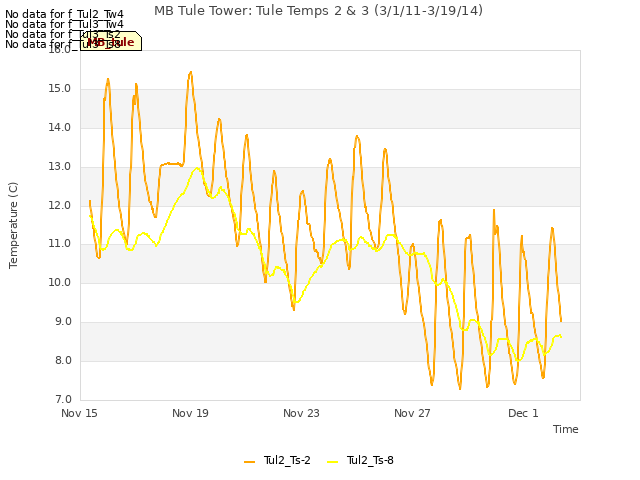

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

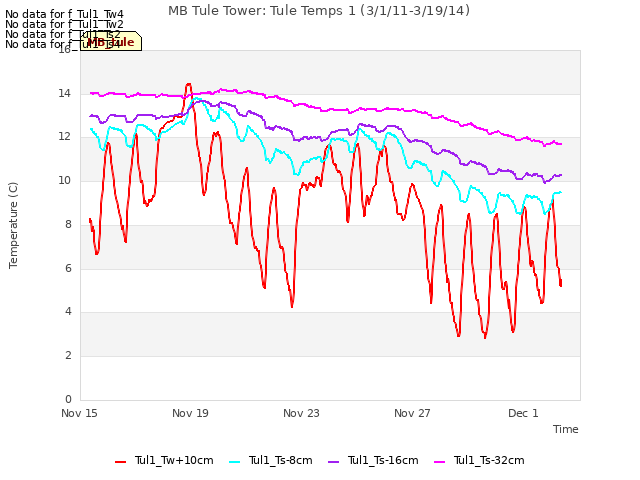

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

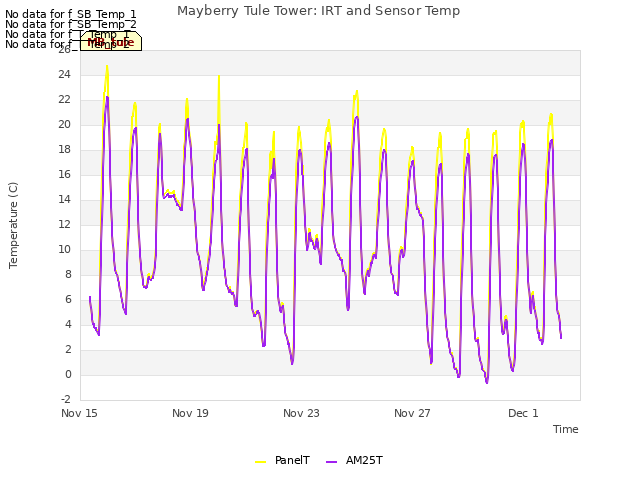

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

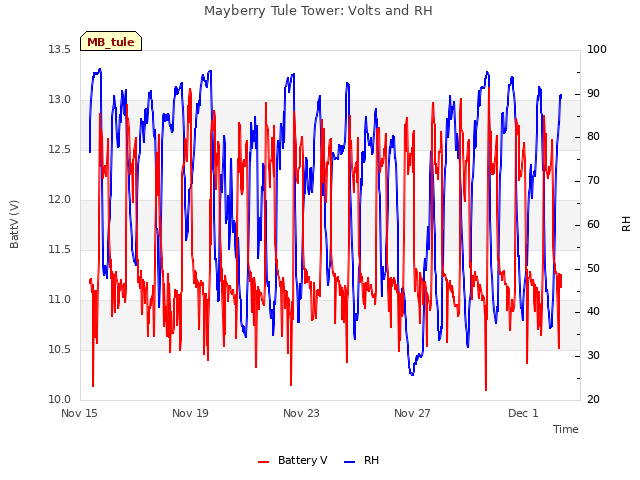

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

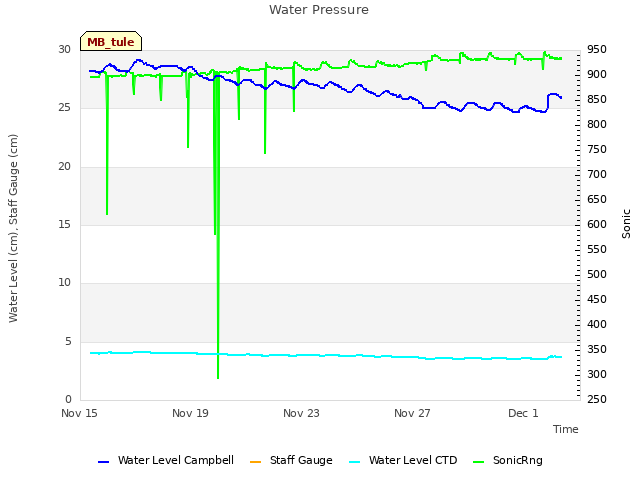

Explore the graph:Water Pressure in a new window

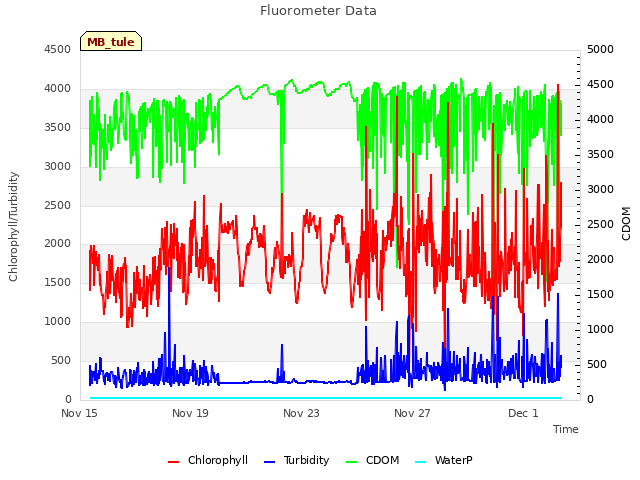

Explore the graph:Fluorometer Data in a new window

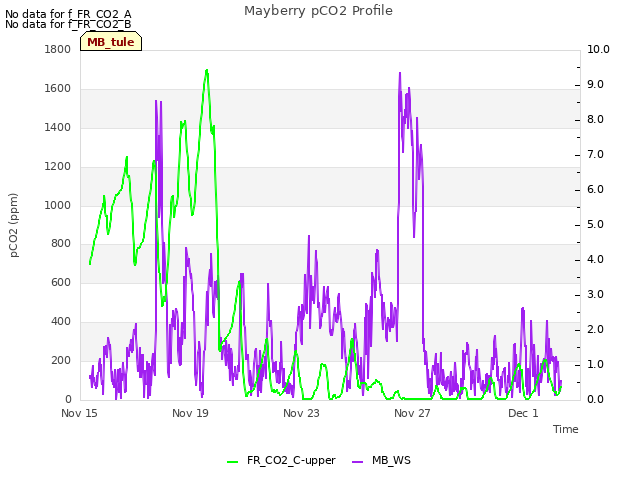

Explore the graph:Mayberry pCO2 Profile in a new window

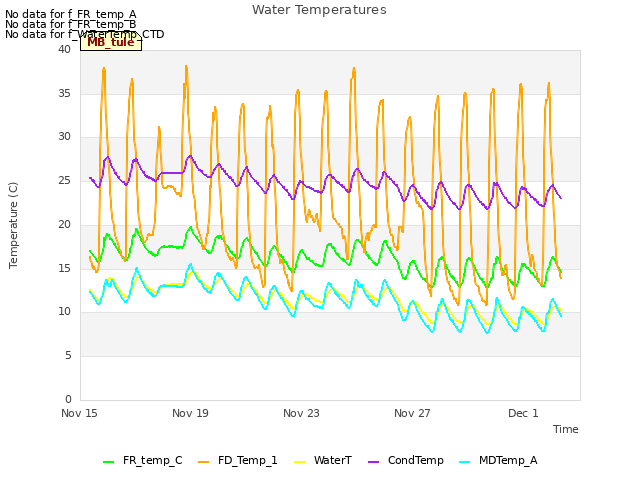

Explore the graph:Water Temperatures in a new window

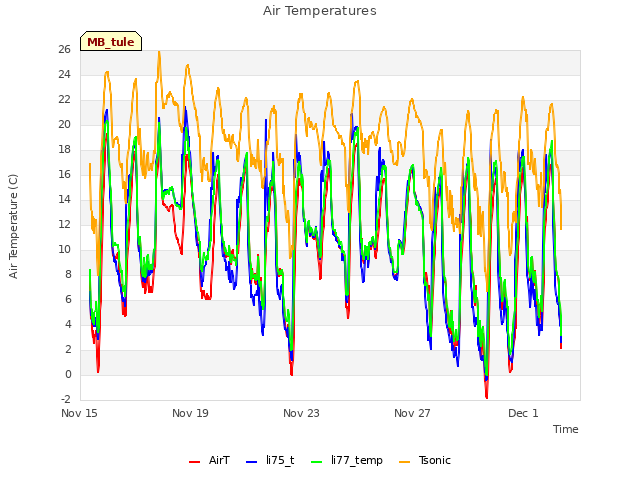

Explore the graph:Air Temperatures in a new window

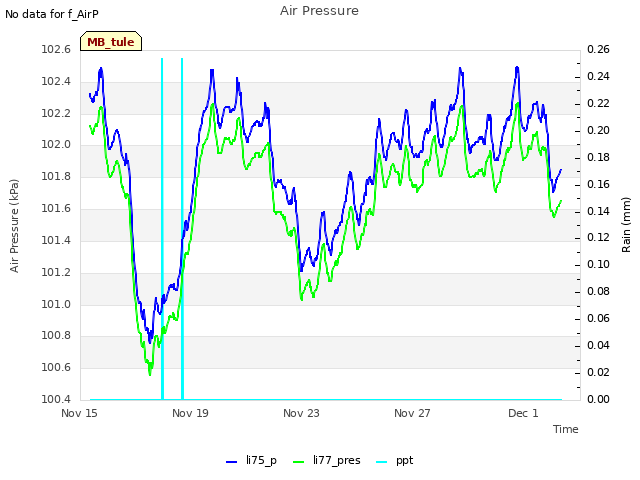

Explore the graph:Air Pressure in a new window

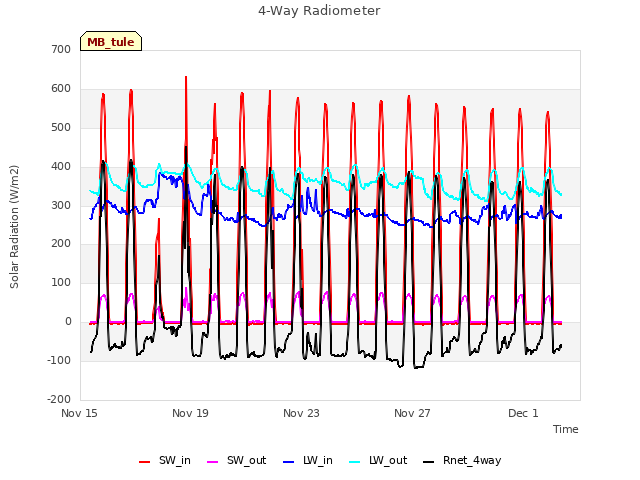

Explore the graph:4-Way Radiometer in a new window

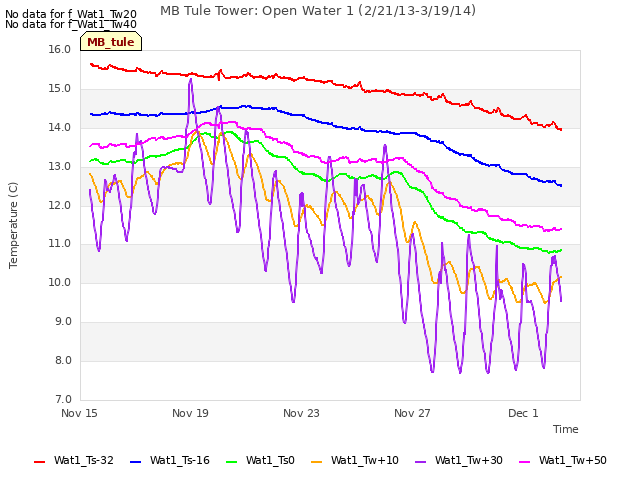

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

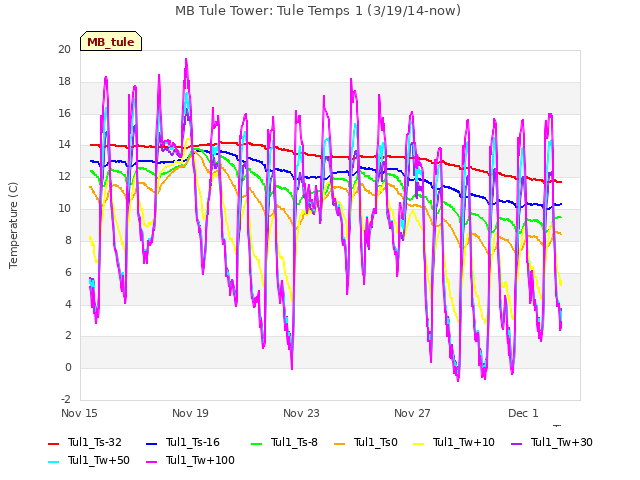

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

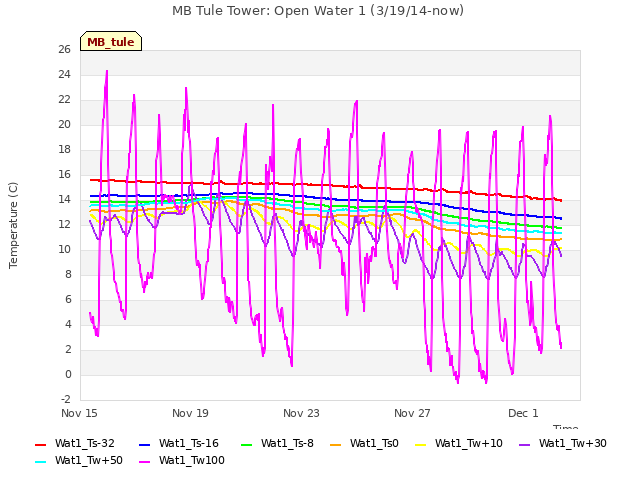

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

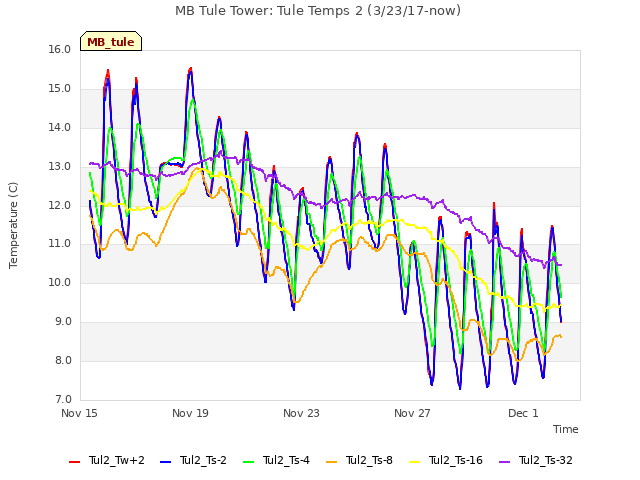

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

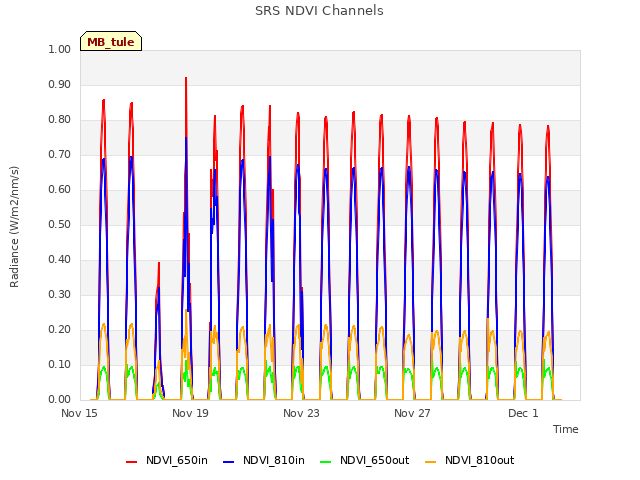

Explore the graph:SRS NDVI Channels in a new window

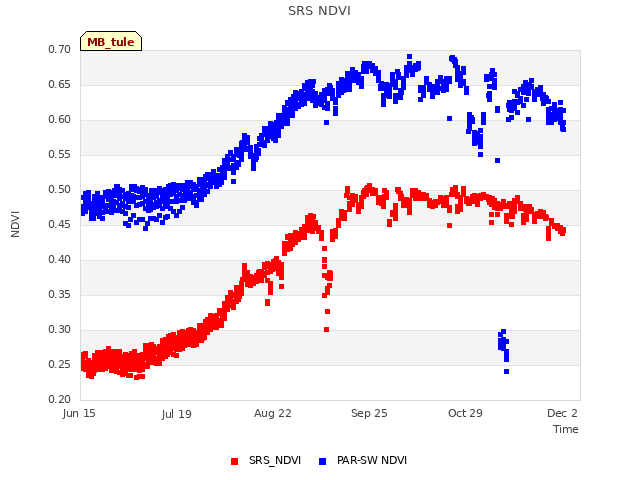

Explore the graph:SRS NDVI in a new window

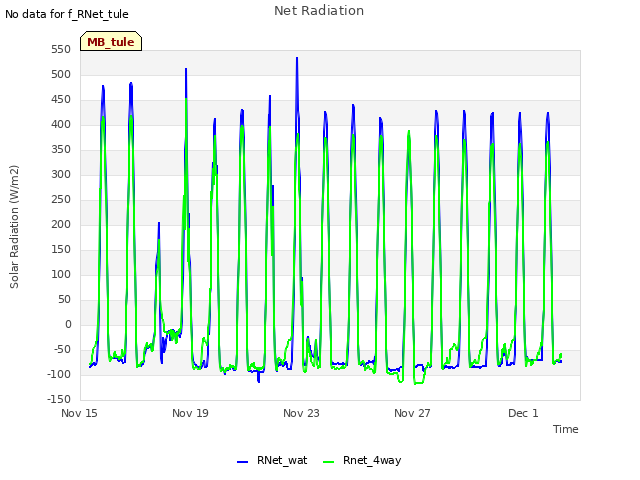

Explore the graph:Net Radiation in a new window

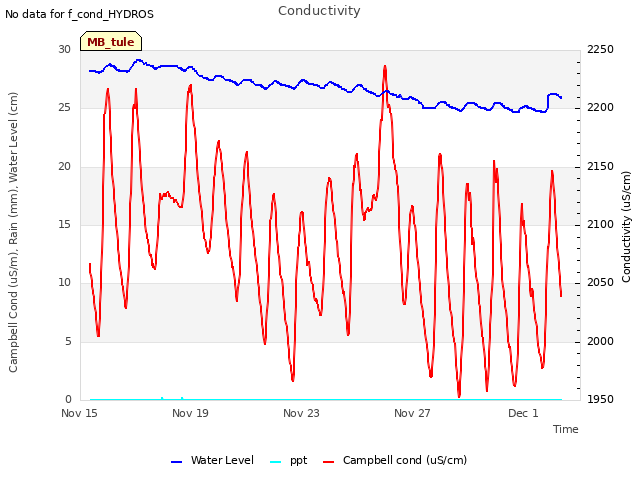

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

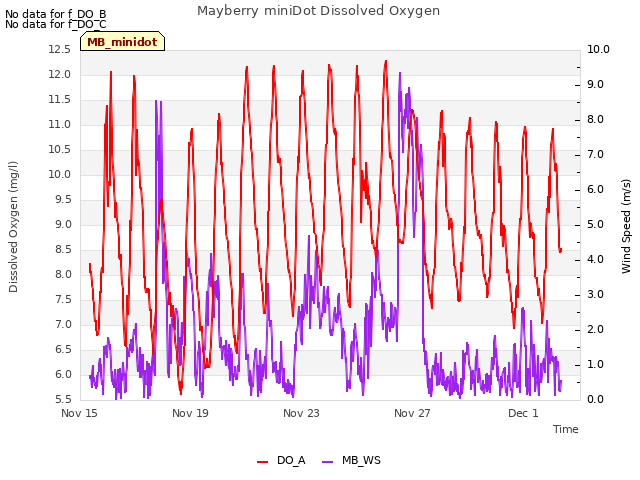

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

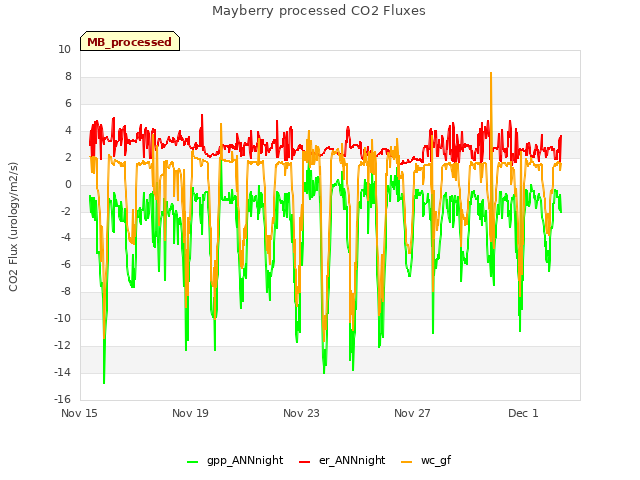

Explore the graph:Mayberry processed CO2 Fluxes in a new window

Can't check MB_fd
1 MB_fd graphs found

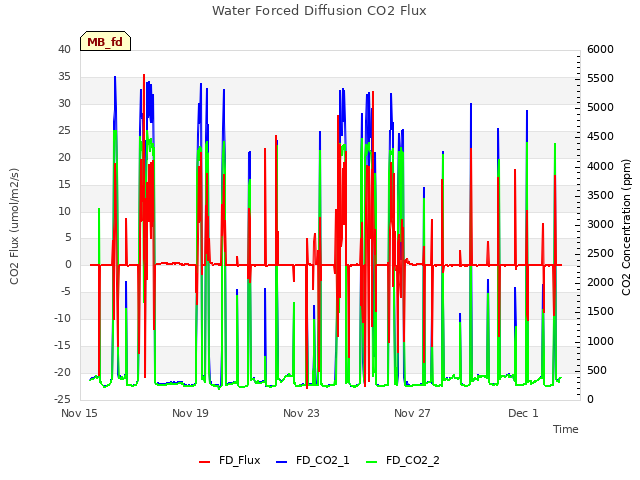

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
