Tonzi: 2003-10-07 09:50:00 (DOY 280)
Author: Jianwu Tang
Others: Qi Chen

Summary: Seconds rain pulse experiment by adding water - Oct 7, 8 and 11

Trip note On Oct. 7-8, and Oct. 11, 2003
Who: Jianwu Tang and Qi Chen
Weather: clear

I measured soil CO2 efflux along the transect and checked and downloaded the soil CO2 profile measurements.

CO2 efflux averaged 0.8 mmol m-2 s-1 under trees, while 0.3 mmol m-2 s-1 in the open areas.

At 9:50 am I watered two small plots (the second time watering), one mimicking 10mm rain and the other 5mm rain. Soil respiration immediately increased from 0.2 to as high as 12 mmol m-2 s-1, and then gradually declined until 2.4 mmol m-2 s-1on the late Oct. 11.

In order to see how fast the enhanced soil respiration decreases, I measured again on Oct. 11. Soil respiration dropped to 0.35 mmol m-2 s-1 (after 5mm rain) and 0.75 mmol m-2 s-1 (after 10mm rain), still above the background values 4 days after “rain”.

Soil moisture probe reading:

Tonzi 7931AFE 402165 574B4B 402FF3 57632
10/7/2003 canopy Canopy open drip line open
Tang tower understory solar panel sap flow resp trans
0-15cm 5.20 2.90 5.40 0.40 2.15
15-30cm 11.2 12.10 13.40 10.95 11.70
30-45cm 16.65 4.60 12.90 11.60 0.1
45-60cm 10.60 5.60 10.20 7.85 8.55
7A432E 7A3C6E 7A3B40 7A4AAA
0-15cm 6.3 5.60 4.70 0.9
15-30cm 5.25 11.1 10.20 1.45
30-45cm 8.15 12.20 15.60 11.40
45-60cm 9.90 5.75 13.80 6.95

Qi’s log: 10/07

To collect LAI, I chosen 15 isolated trees and designed one screening plot under each trees. The edge of each screening plot is curled up for preventing leaves from blowing away. The size of each plot is 48in * 84in.

I also helped Jianwu to setup the large plot for his tree.

10/08

I got 4 leaf samples for each tree (since there are 15 trees, there are 60 leave samples). The samples are put into ziplock bags and kept in cooler for keeping fresh.

After returning to lab, I measured the leaf reflectance using ASD spectroradiometer and weighted the fresh leaves.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

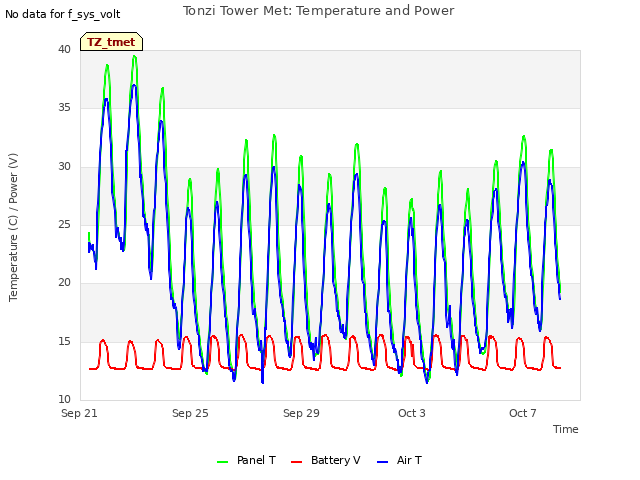

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

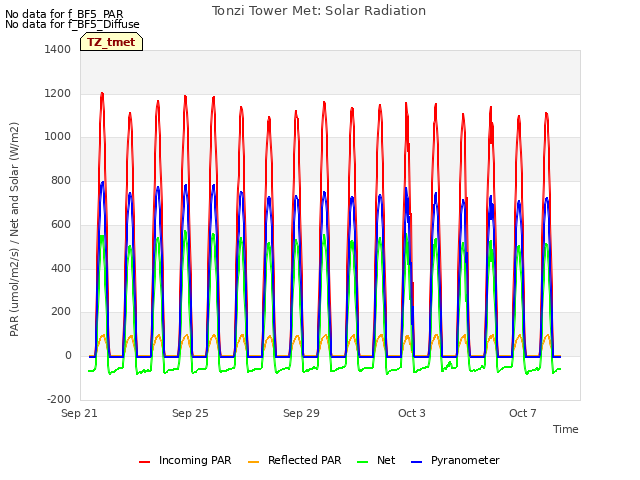

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

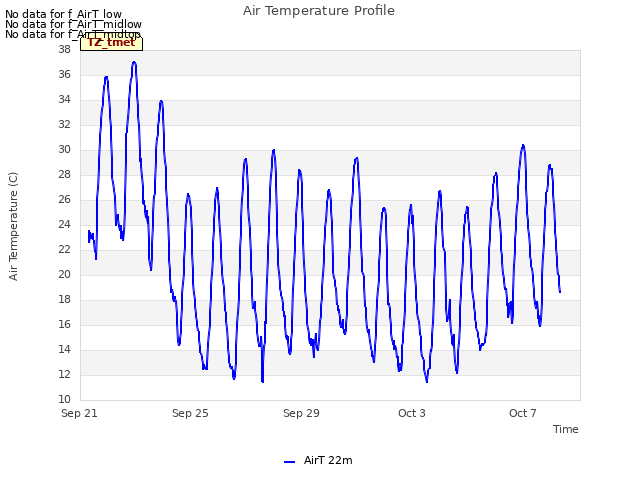

Explore the graph:Air Temperature Profile in a new window

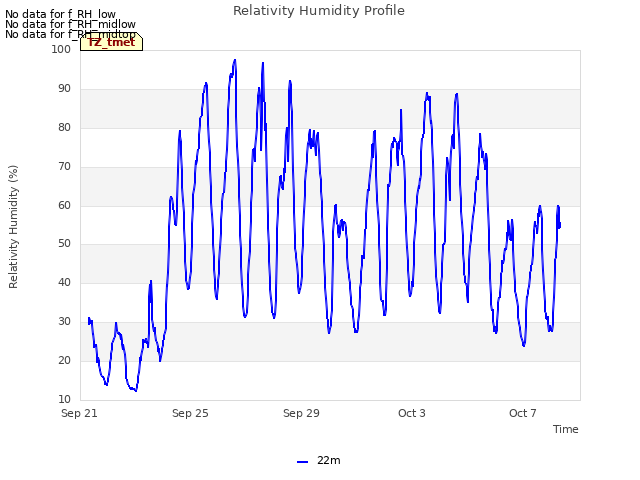

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

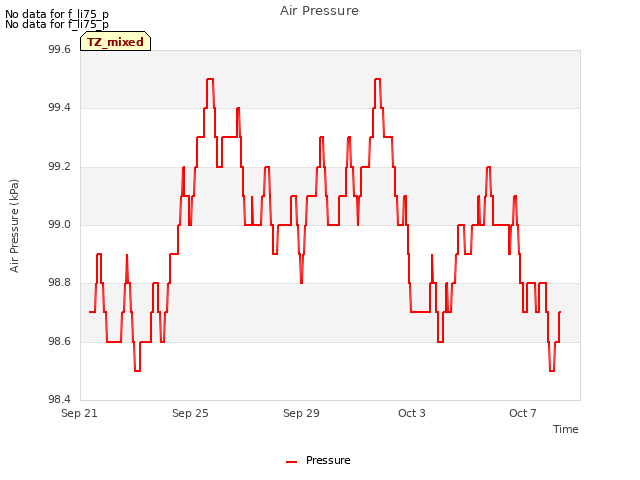

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

Explore the graph:Soil Heat Flux in a new window

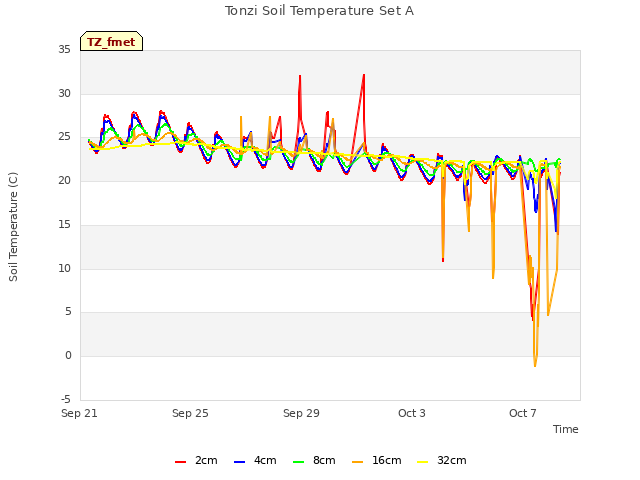

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

Explore the graph:Tonzi Soil Temperatures Set C in a new window

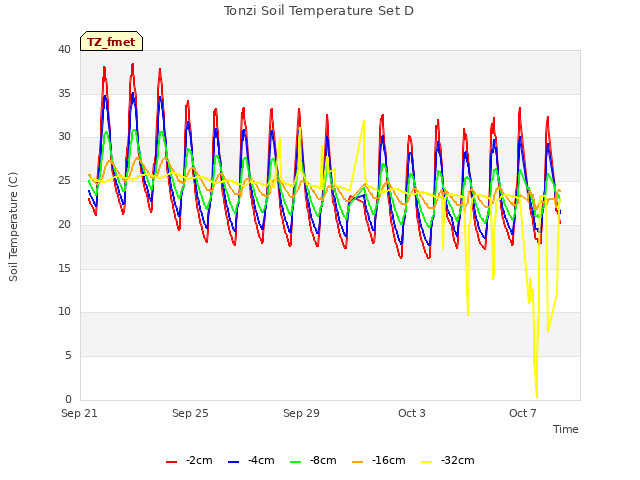

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
1 TZ_windprof graphs found

Explore the graph:Wind Speed Profile in a new window

No data found for TZ_tflux.
2 TZ_sm graphs found

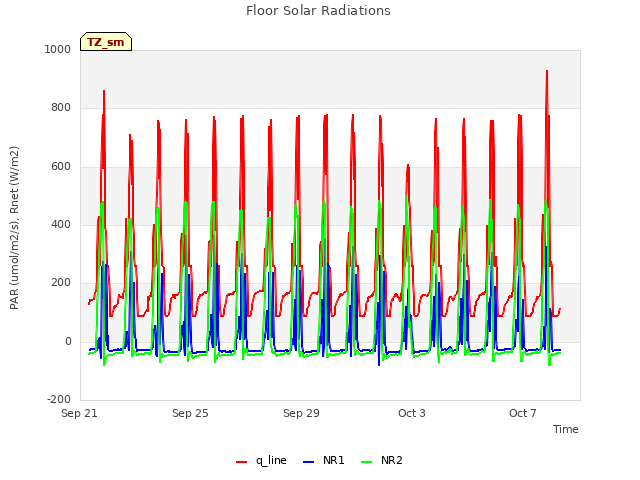

Explore the graph:Floor Solar Radiations in a new window

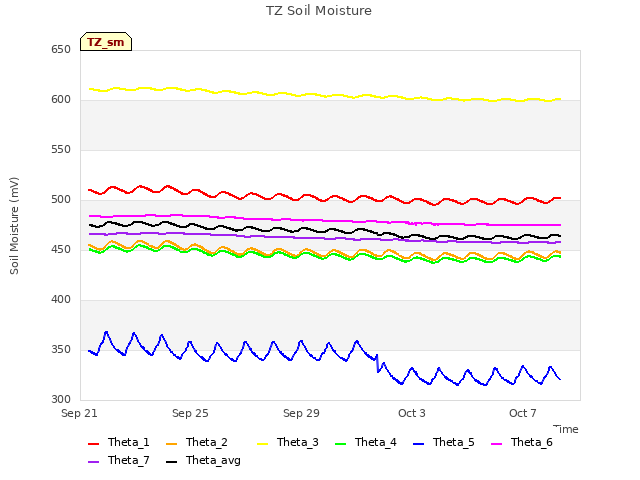

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

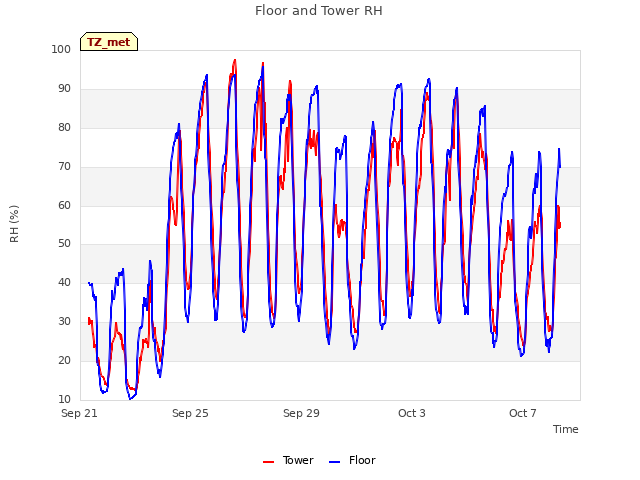

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
