Sherman Barn: 2020-07-09 08:40:00 (DOY 191)
Author: Daphne Szutu
Others: Joe

Summary: Decommissioning of site, equipment hand off to Sabina

2020-07-09
Sherman Barn

Joe and I arrived at 8:40 PDT. It was a warm and breezy day with clear skies. The field in front of our tower is disked, and there were a few trucks, tractors, and other large machinery trundling about kicking up dust. They are starting to build up the levee road surrounding the new wetland area. Sabina and Nick from Hydrofocus came around 9:00.

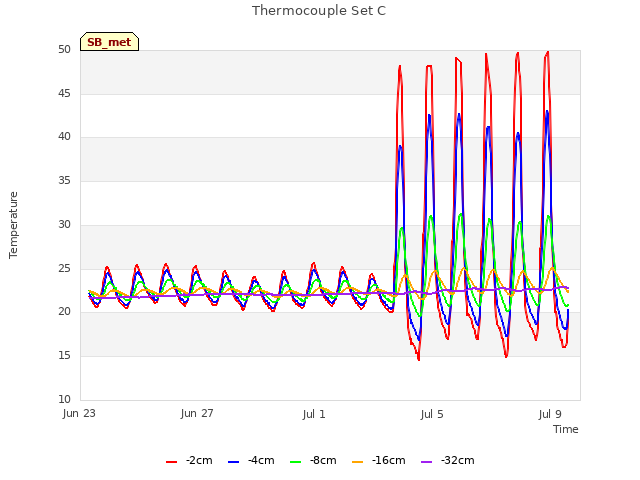

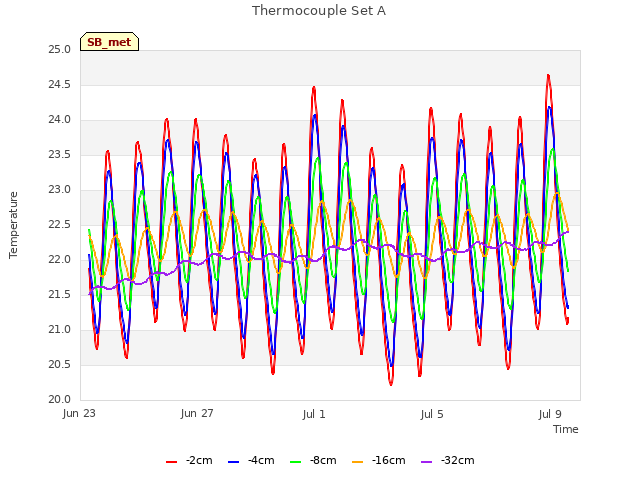

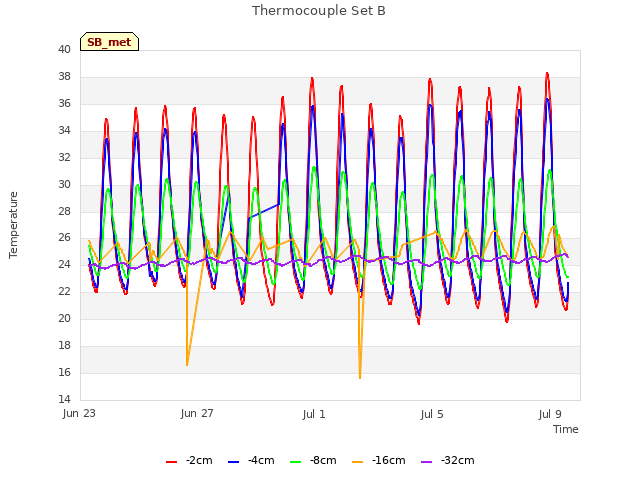

We did a final data download and decommissioned the site to hand off to Sabina for a rice field on Staten. I downloaded met, camera, and USB GHG data. TC7 and TC9 had some NANs. The flux sensors were dirtier than usual from all the construction dust. Some of the bird spikes on the sonic had been knocked downward.

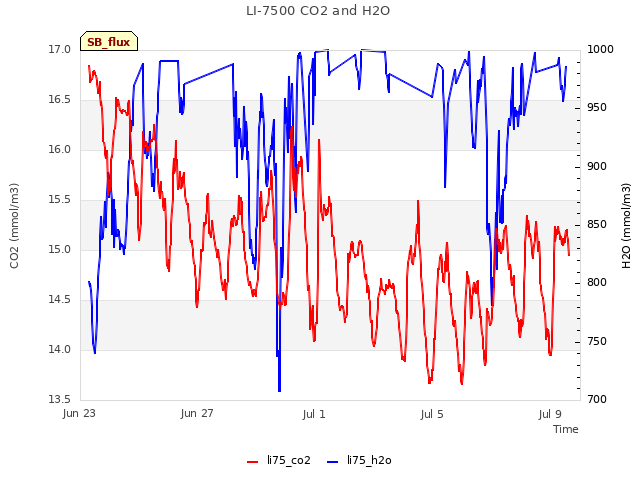

LI-7500 readings:
CO2 361ppm
H2O 1058ppm (seems high)
T 22.1C

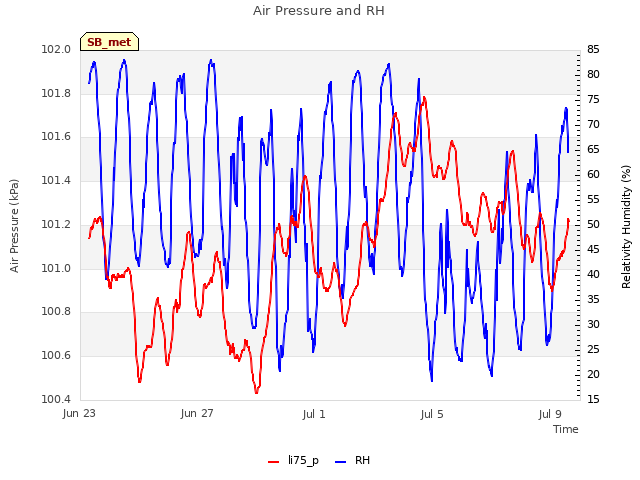

P 101.2kPa
SS 90--> 101 after cleaning

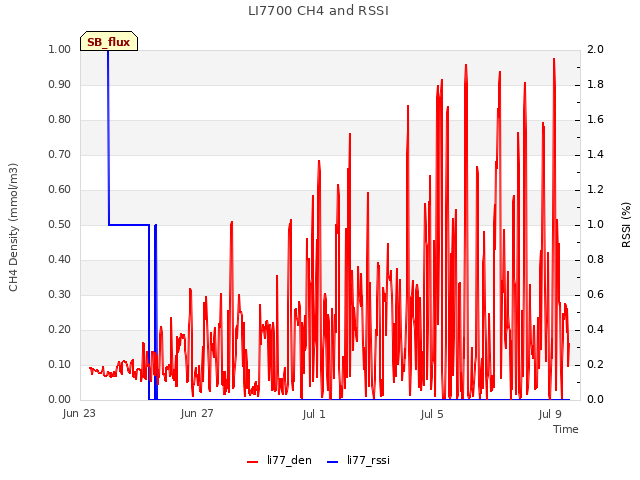

LI7700 readings:
CH4 2.3ppm
RSSI 0-->66 after cleaning

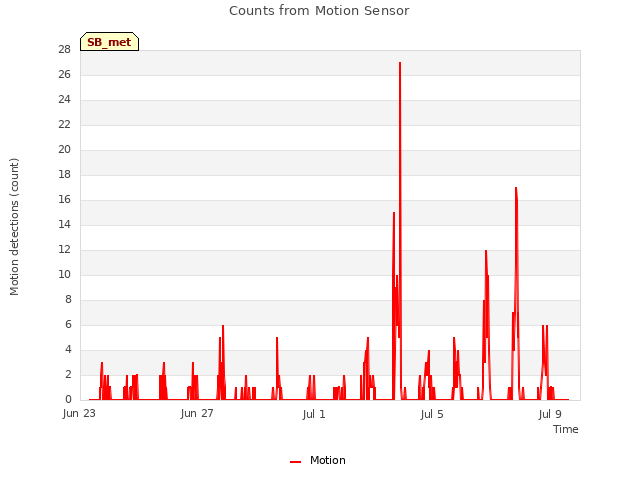

We brought a game camera and the motion sensor back to the lab; all the other sensors went with them.

Phenocam sn 0030F4D2148D
NL115 sn 6763
AM16/32 sn 11662
CR1000 sn 47108
AM25T sn 6767
LI-7550 sn AIU-1557
LI-7500 sn 75H-2668
LI-7700 sn TG1-0357
Sonic sn 153802
CS451 well sn 20010046

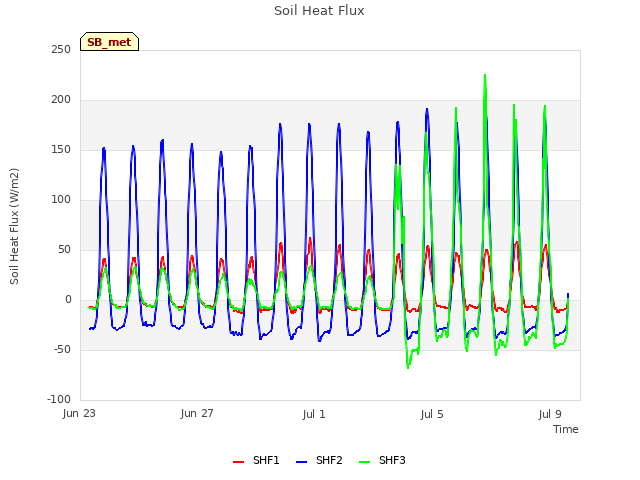

SHF Plate A sn 6342 - North
SHF Plate B sn 6491 - Mid very near the surface maybe only litter covering it.
SHF plate C sn 6498 - south

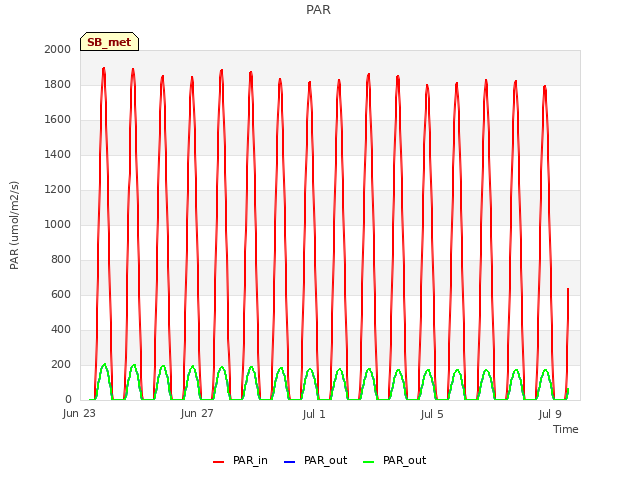

PAR in sn 110339
PAR out sn 110338

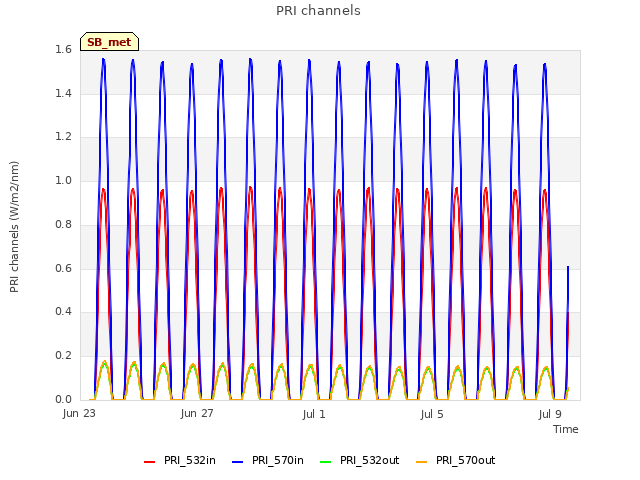

PRI in sn 913003006
PRI out sn 913003007

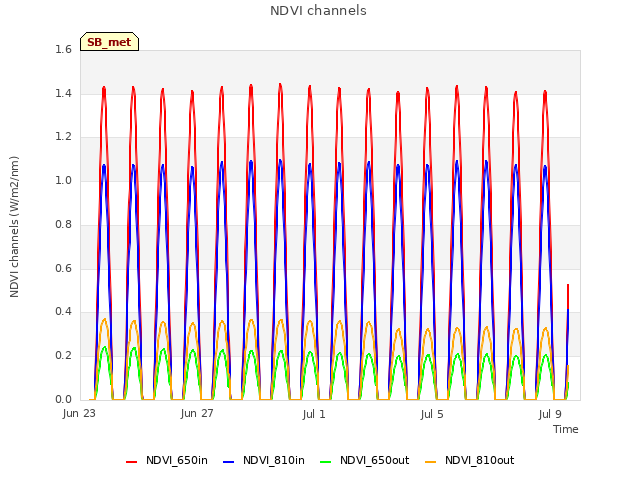

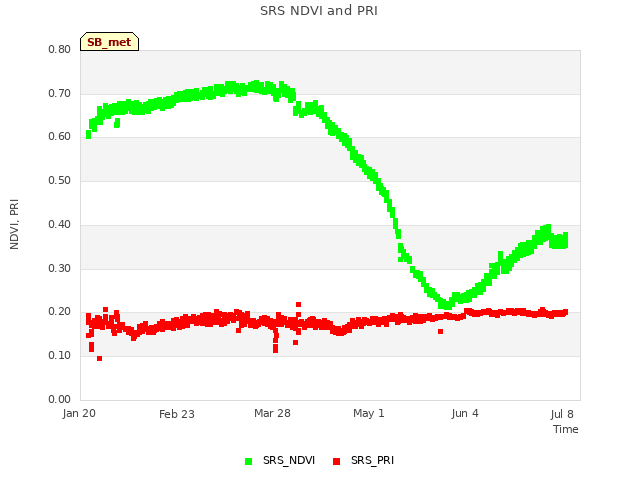

NDVI in sn 882103036
NDVI out sn 882103061
4-way radiometer sn 1570

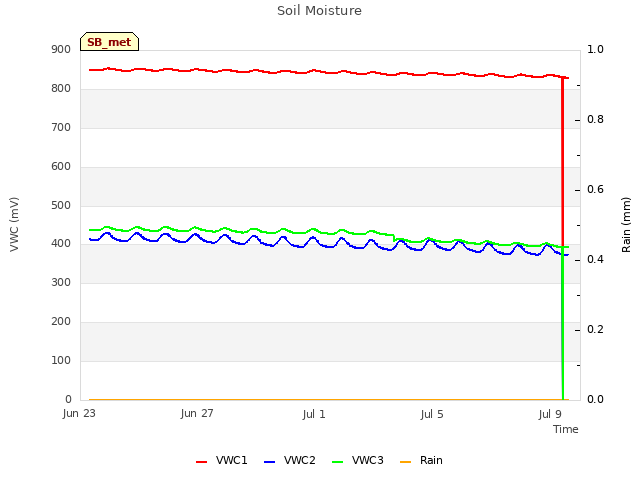

Theta probe A sn 377/008 - North just below surface
Theta probe B sn 54/016 - Mid just below surface
Theta probe C sn 377/010 - South just below surface
Rain bucket sn 49187-109
HMP45 sn T2130005

Other equipment we handed off to Sabina:
Solar panels sn 11ZV0M0860, sn 11ZV0M0861, sn 11ZV0M0862
Solar charge controller sn 0127000A
Battery box
AM16/32B sn 27703 - extra to replace old failing mux at site
7700 wash reservoir (the one with the spliced power cable)
7700 calibration hood
7500 calibration hood
One layer of scaffolding and a boardwalk
Eddy post
Camera post and radiometer mount
Well pipe

Joe and I left at 11:05 PDT. Sabina and Nick continued packing up the tower into their truck.
