Field Notes

<--2020-06-09 12:50:00 | 2020-06-19 00:00:00-->
Phenocam link: Searching...

Bouldin Corn: 2020-06-15 00:00:00 (DOY 167)
Author: Camilo Rey-Sanchez
Others: Cassie

Summary: A Ci curves, LAI and biomass measurements

Cassie and I arrived at 8:30 AM. We set up the machine for measurements and started the first leaf at 9:00 AM. The sky fluctuated between partially cloudy and overcast throughout the day. The sky became fully overcast around 11 AM, the time at which I took LAI measurements. Because it was fairly overcast no scattering file was created. Five leaves were sampled with the LI-6400 following the normal procedure with concentrations of CO2 being used: 400,300,200,150,100,75,40,10,400,500,600,800,1000,1300 ppm. The light was kept at 1800 umol m-2 s-1. After the curve was completed, chlorophyll content was measured and the leaf was harvested and brought to the lab. The machine was recalibrated around 11:30 AM due to an observable offset in CO2 concentrations. The lowest CO2 values for leaf 3 may not be very accurate. I finished doing curves at 1 PM, and after this biomass was collected. 5 plants were harvested and taken to the lab following the standard procedure. We left around 2 pm.

Veg Height (cm): Tape measure from ground to top of plant
96, 92, 119, 113, 99, 119, 109, 110, 114, 112, 115, 116, 113, avg = 109.8, stdev = 8.67

0 photos found

Graphs display:
6 sets found

17 BC_met graphs found

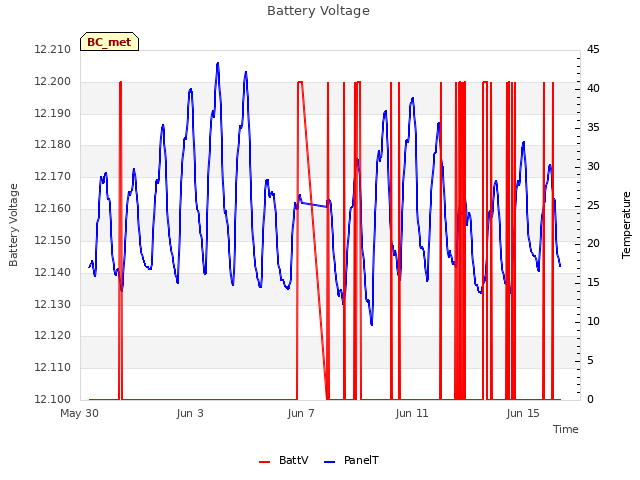

Explore the graph:Battery Voltage in a new window

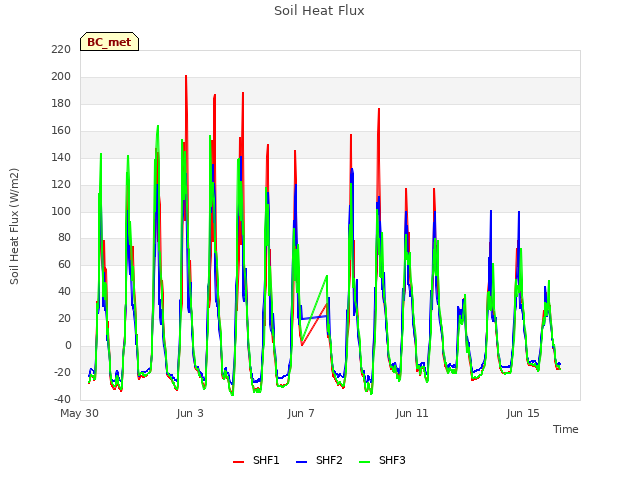

Explore the graph:Soil Heat Flux in a new window

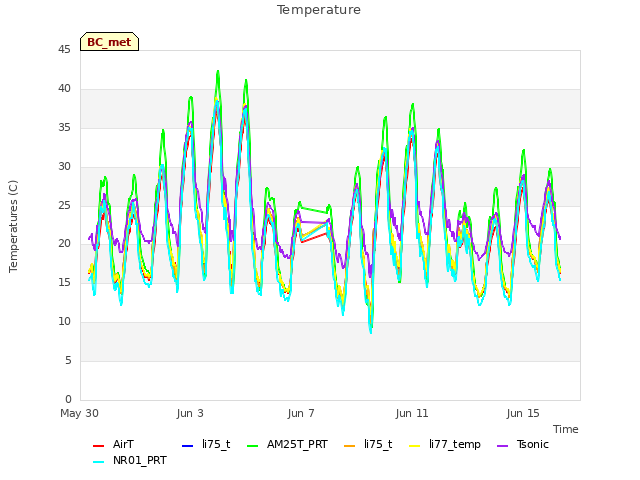

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

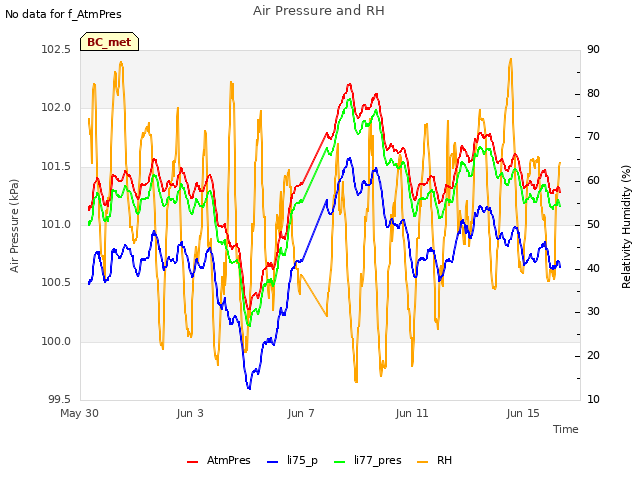

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

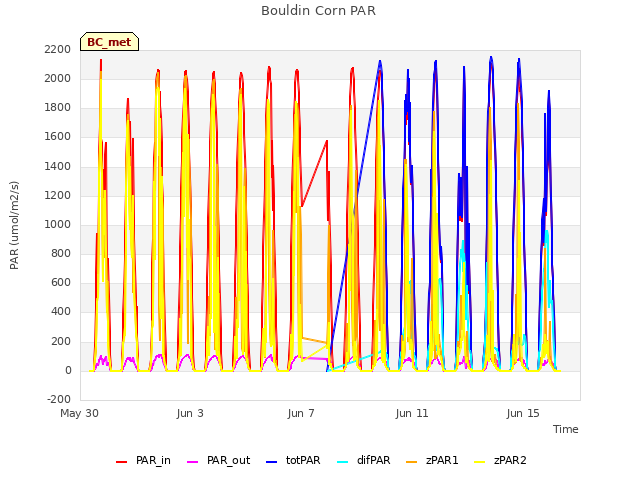

Explore the graph:Bouldin Corn PAR in a new window

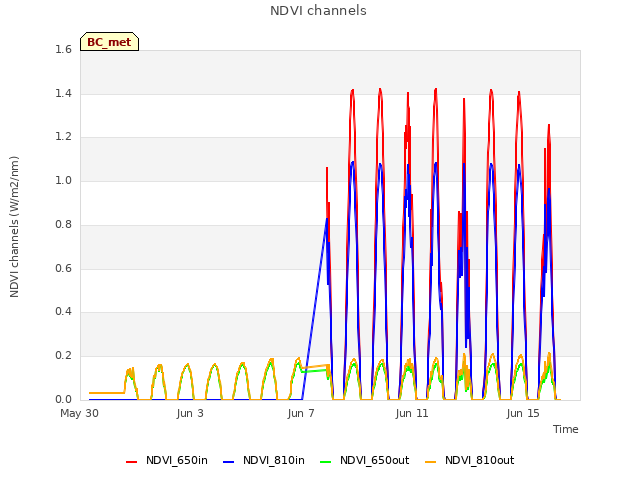

Explore the graph:NDVI channels in a new window

Explore the graph:PRI Channels in a new window

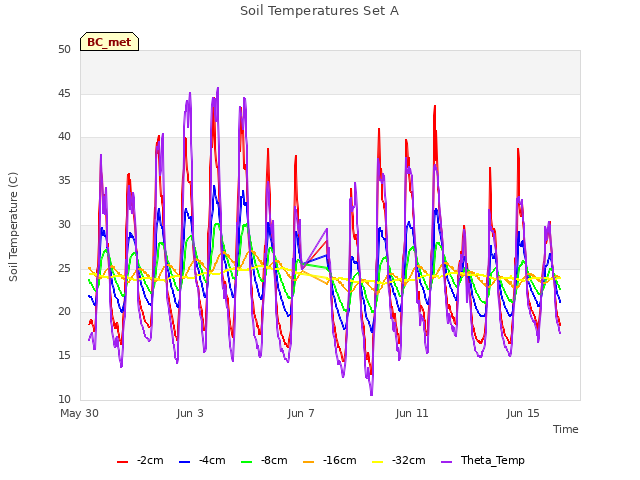

Explore the graph:Soil Temperatures Set A in a new window

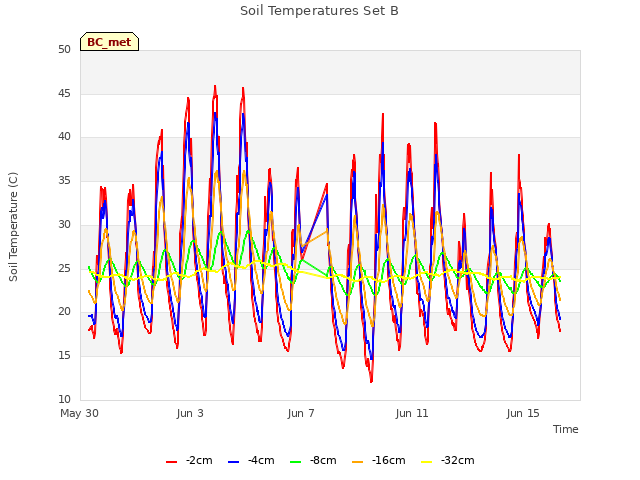

Explore the graph:Soil Temperatures Set B in a new window

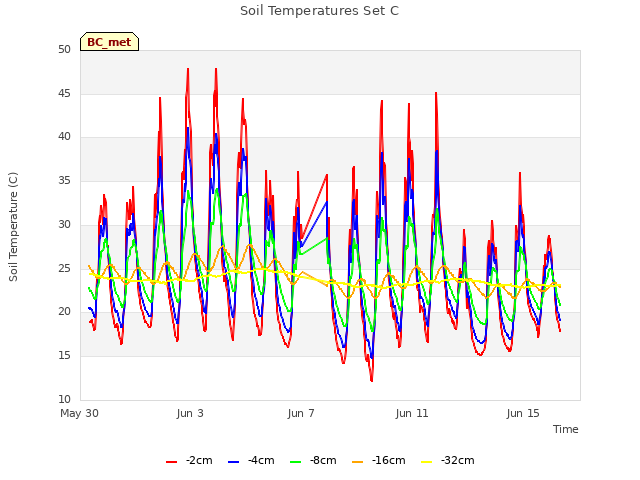

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:SRS NDVI and PRI in a new window

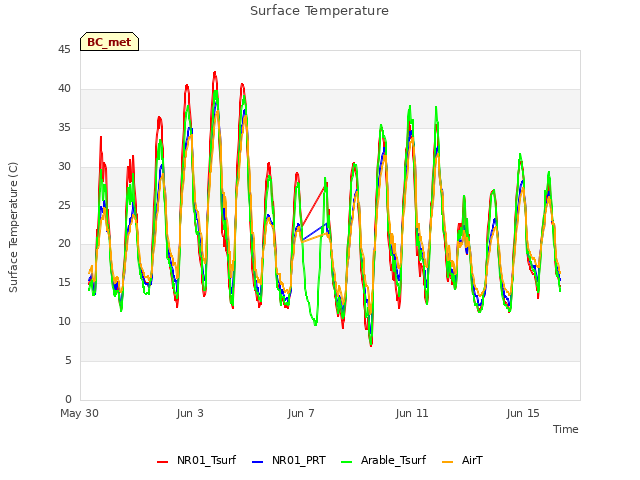

Explore the graph:Surface Temperature in a new window

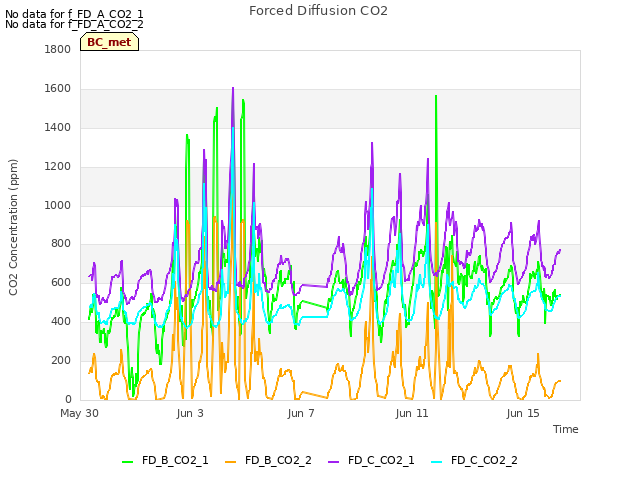

Explore the graph:Forced Diffusion CO2 in a new window

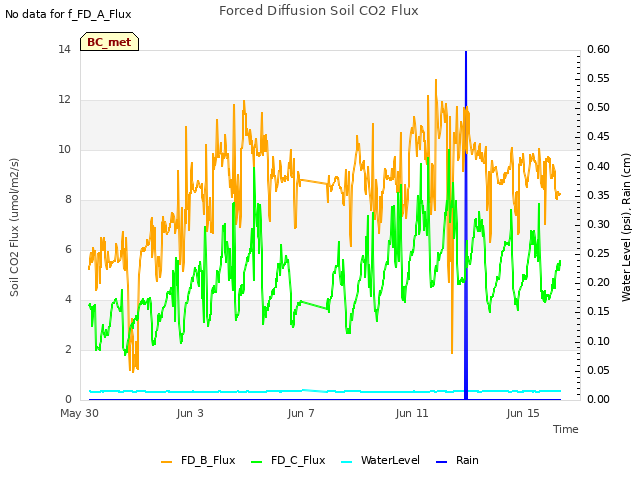

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

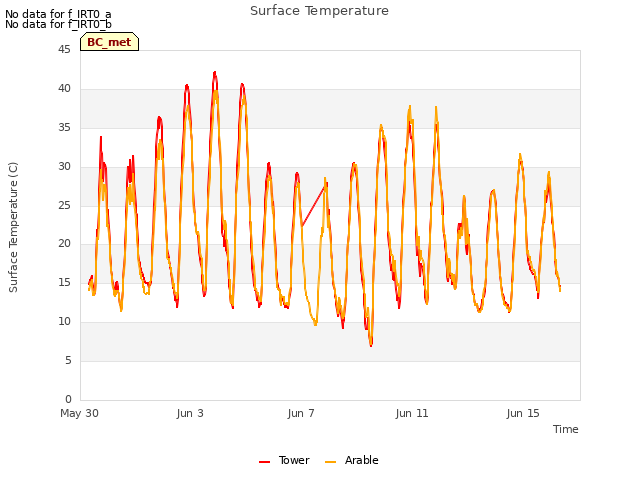

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

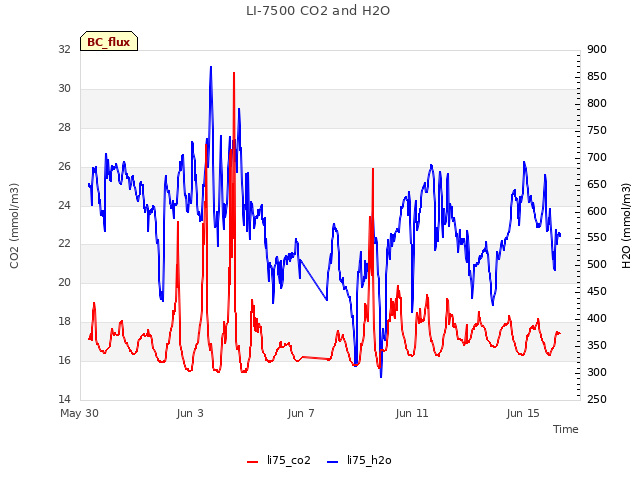

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

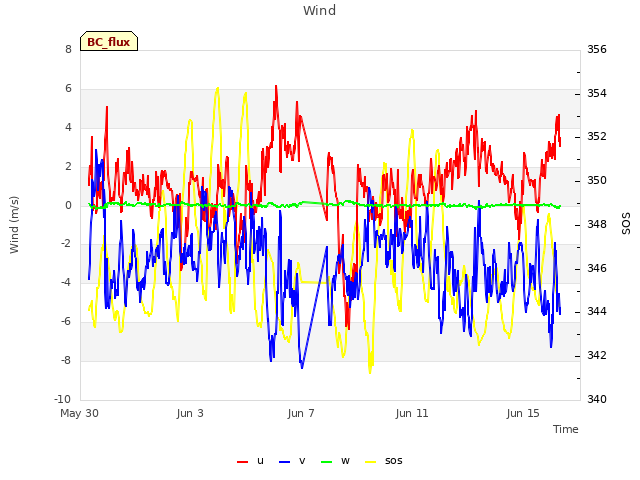

Explore the graph:Wind in a new window

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
No data found for BC_pa.
1 BC_arable graphs found

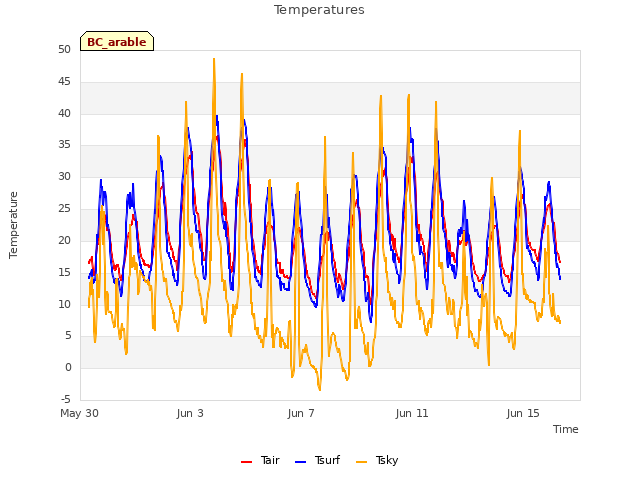

Explore the graph:Temperatures in a new window
