Bouldin Corn: 2020-04-03 10:30:00 (DOY 94)
Author: Daphne Szutu
Others: Mike

Summary: Regular data download/cleaning, field partly plowed, first site visit in a month

2020-04-03
Bouldin Corn

Mike and I arrived at 10:30 PDT. It was a sunny day with some cirrus clouds. It was cool and windy. It has been dry recently, but it’s expected to rain for 3 days starting tomorrow. This is the first site visit in a month. The Bay Area is on the third week of COVID-19 shelter-in-place orders, with at least 4 more weeks to go.

The red gate by the overpass was open, so we drove right up to the tower. The gate has a combo lock which was locked. The combo from last year did not work to open it, so I don’t know what the current combo is. Separately, Bruce in his yellow truck and the farmer in the red truck drove by and waved while we were there.

They have plowed most of our field. They plowed a section of our leftover-corn area, but other than that they made a wide berth around our tower and Tyler’s chambers. They were plowing the field to our N while we were there. Tyler texted Ben, who said they’ll be planting in “about three weeks.” Tyler and I will plan to go out at the end of next week (around April 17) to pull our chambers/ground sensors.

I downloaded met, camera, USB GHG, PA, and FD data. The FD chambers connected fine, although I think last time there were issues. When I got back to the lab, I realized I had skipped one chamber (downloaded one chamber twice). I did not clear any FD data, so all the data should be there next time in 2 weeks. I cleaned flux and met sensors. The wash reservoir was 4/5 full; we refilled it.

LI-7500 readings:
CO2 421ppm
H2O 300ppm
T 13.1C
P 101.2kPa
SS 101 --> 101 after cleaning
LI7700 readings:
CH4 2.07ppm
RSSI 43 -->78 after cleaning

We left at 11:15 PDT.

2 photos found

Our field was partially plowed yesterday.
Our field was partially plowed yesterday.

Tractor work on the field
Tractor work on the field

Graphs display:
6 sets found

17 BC_met graphs found

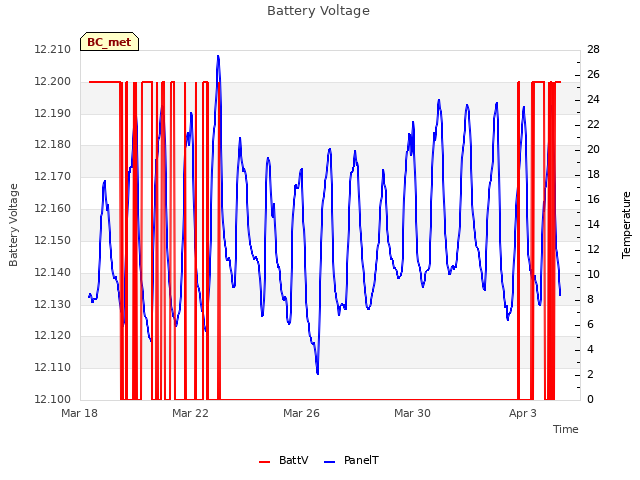

Explore the graph:Battery Voltage in a new window

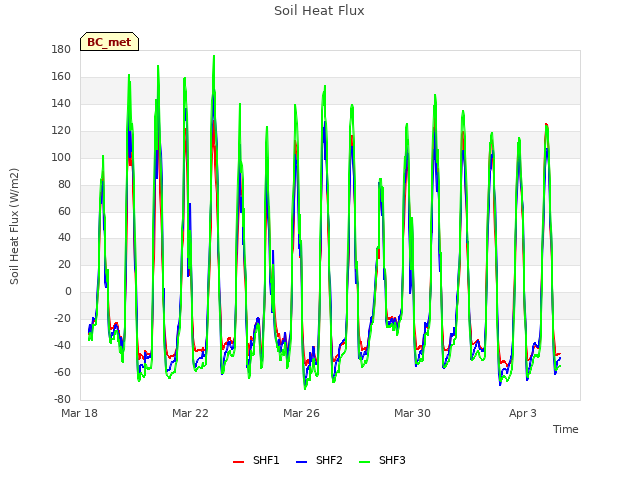

Explore the graph:Soil Heat Flux in a new window

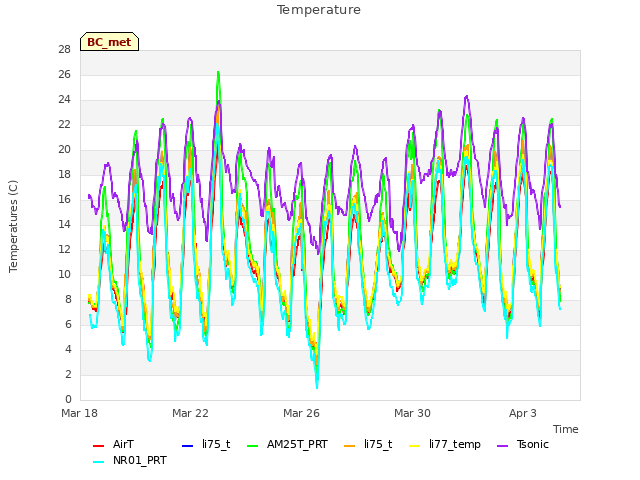

Explore the graph:Temperature in a new window

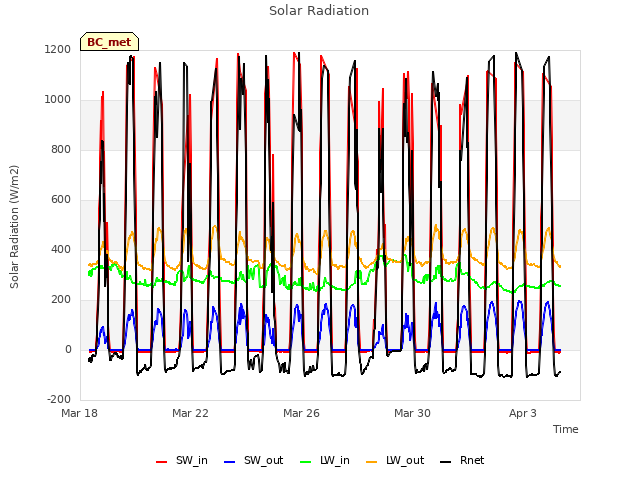

Explore the graph:Solar Radiation in a new window

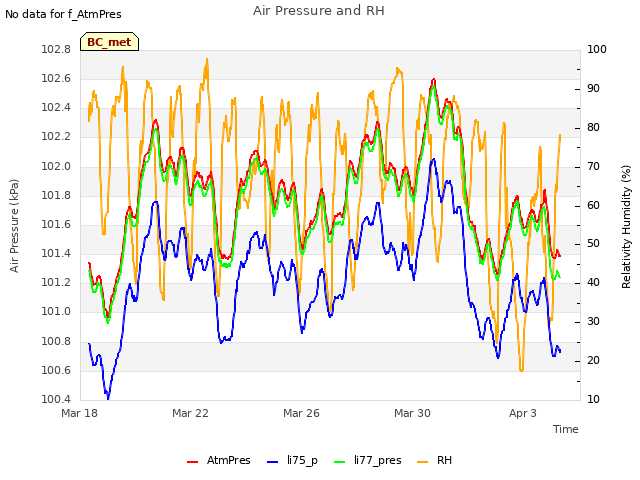

Explore the graph:Air Pressure and RH in a new window

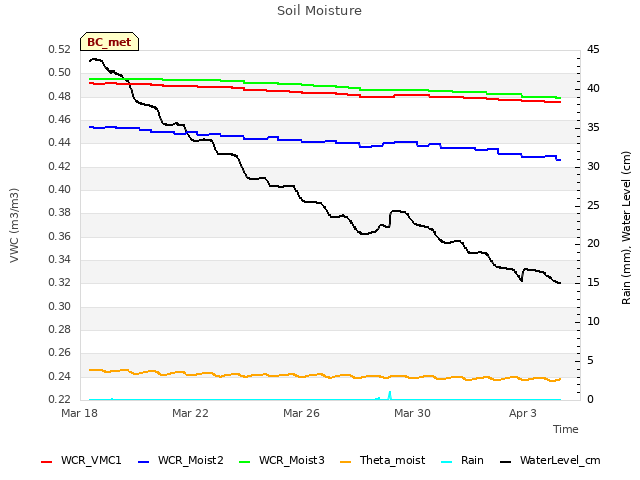

Explore the graph:Soil Moisture in a new window

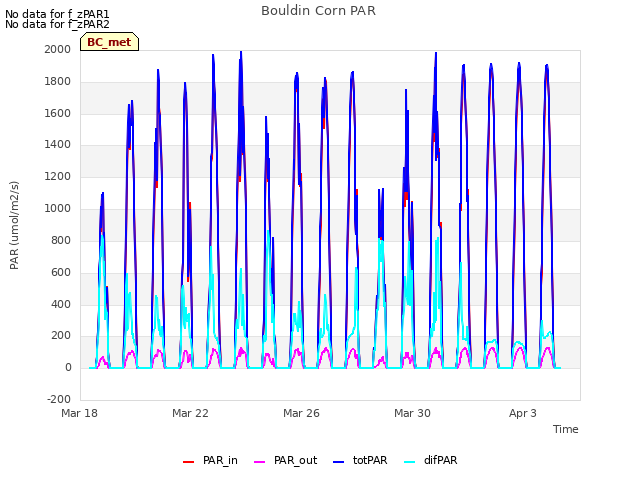

Explore the graph:Bouldin Corn PAR in a new window

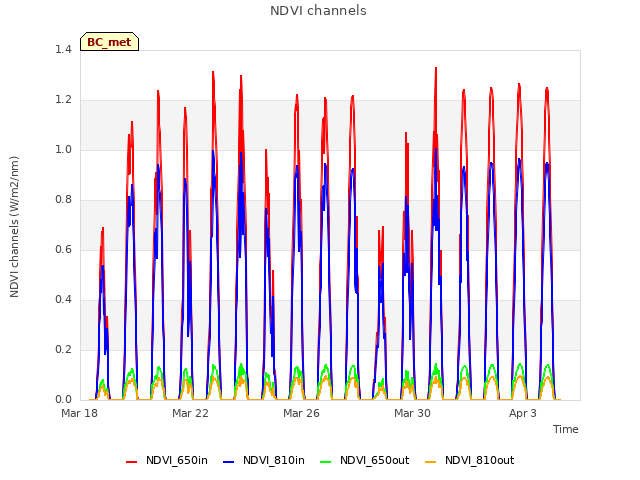

Explore the graph:NDVI channels in a new window

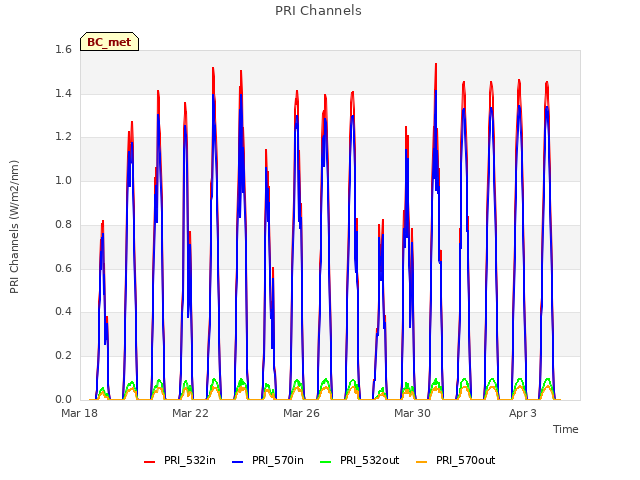

Explore the graph:PRI Channels in a new window

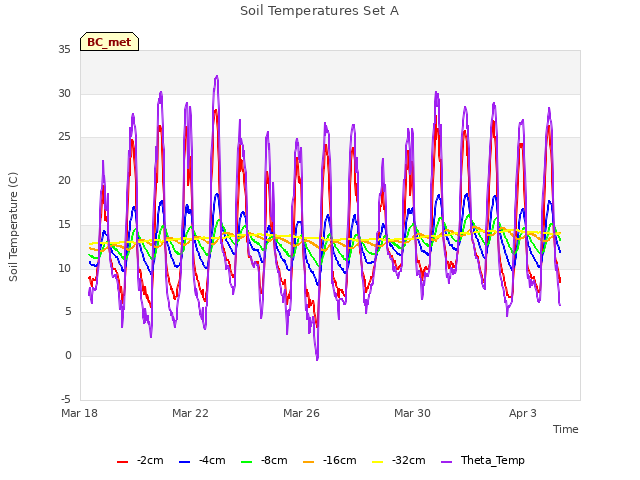

Explore the graph:Soil Temperatures Set A in a new window

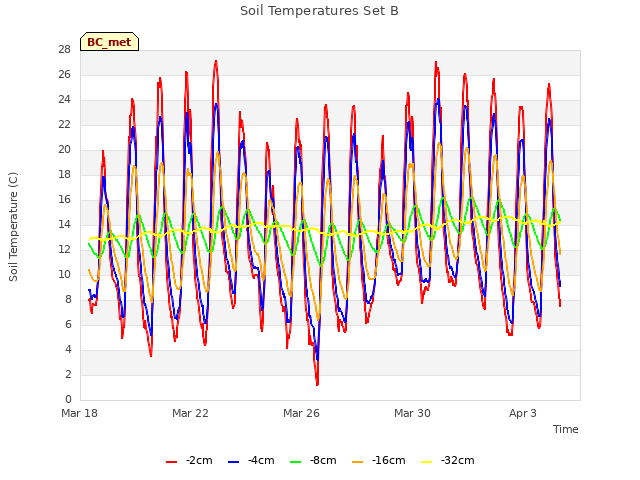

Explore the graph:Soil Temperatures Set B in a new window

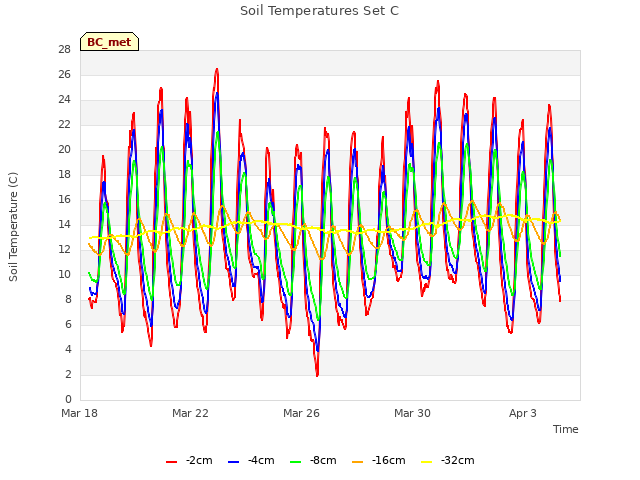

Explore the graph:Soil Temperatures Set C in a new window

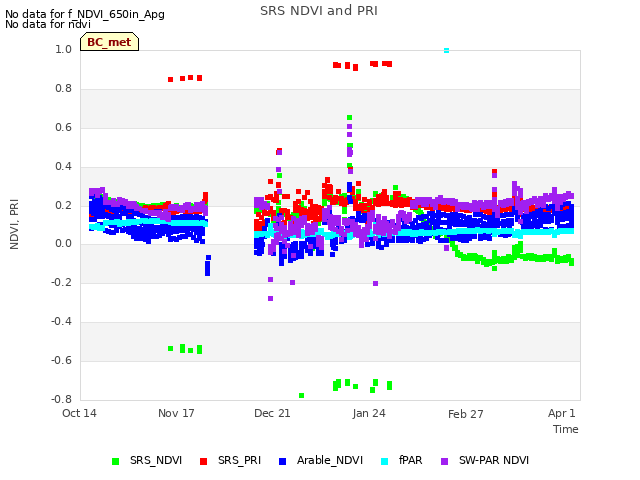

Explore the graph:SRS NDVI and PRI in a new window

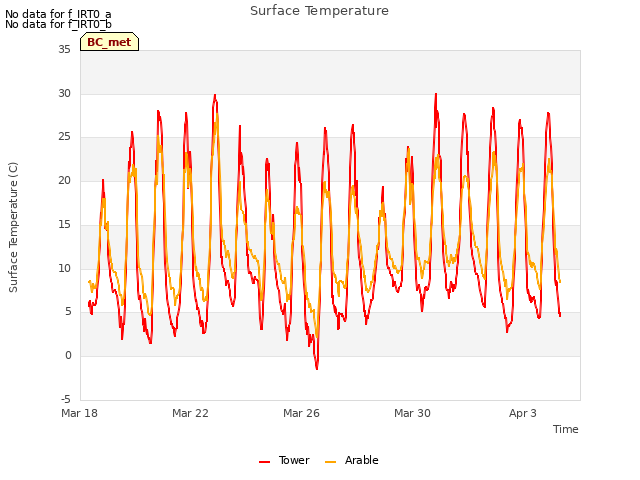

Explore the graph:Surface Temperature in a new window

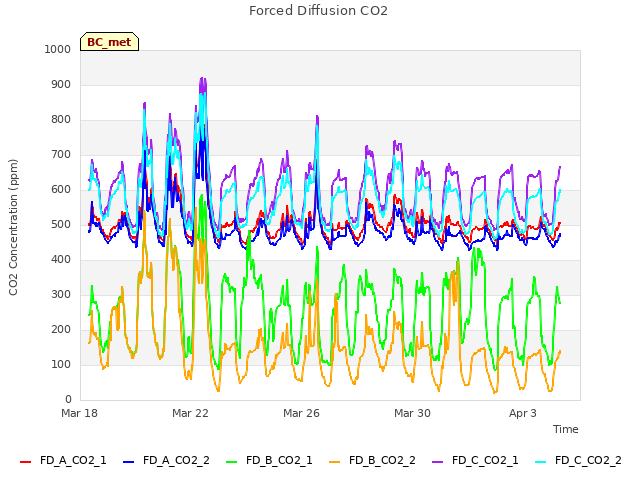

Explore the graph:Forced Diffusion CO2 in a new window

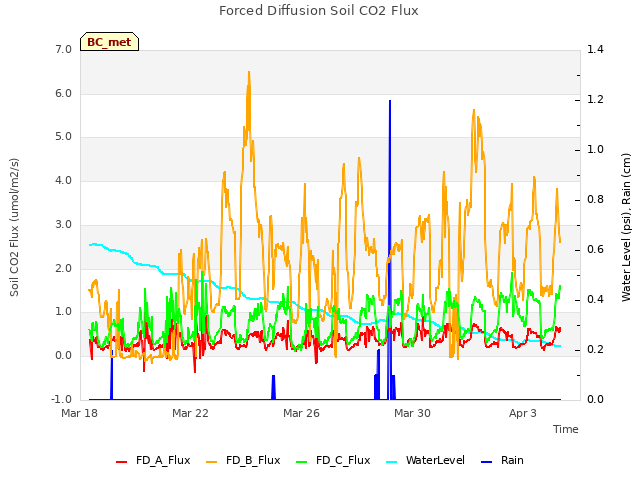

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

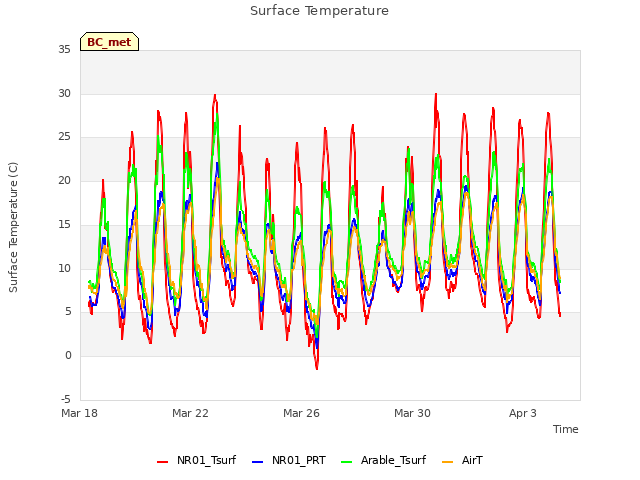

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

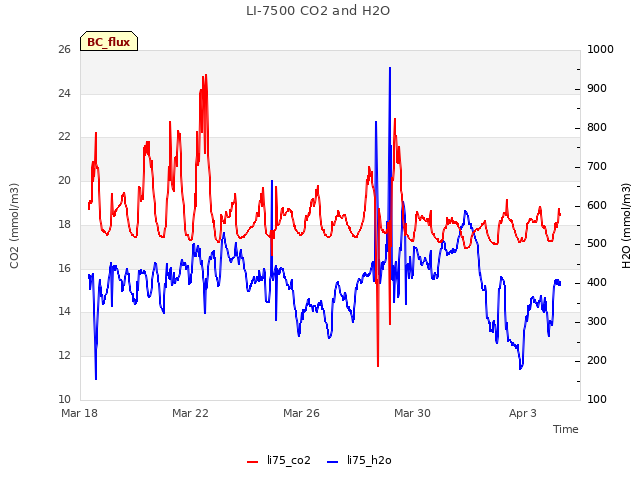

Explore the graph:LI-7500 CO2 and H2O in a new window

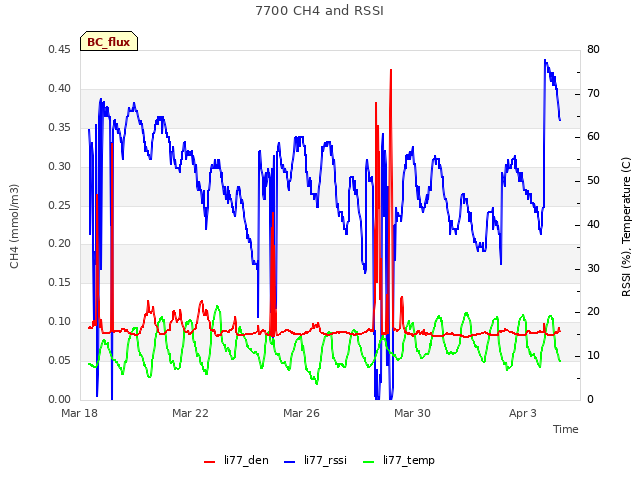

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Wind in a new window

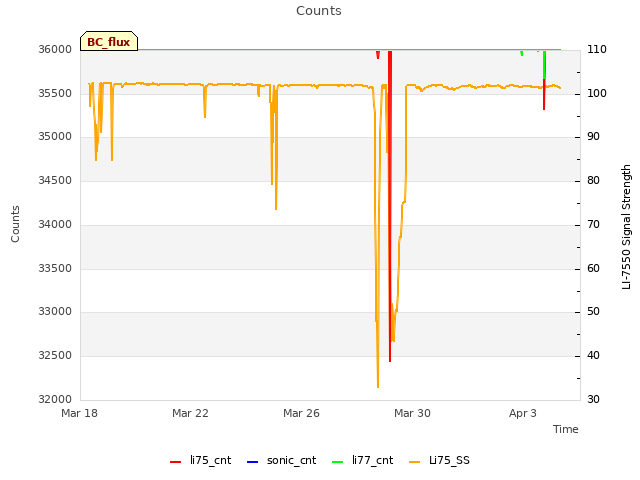

Explore the graph:Counts in a new window

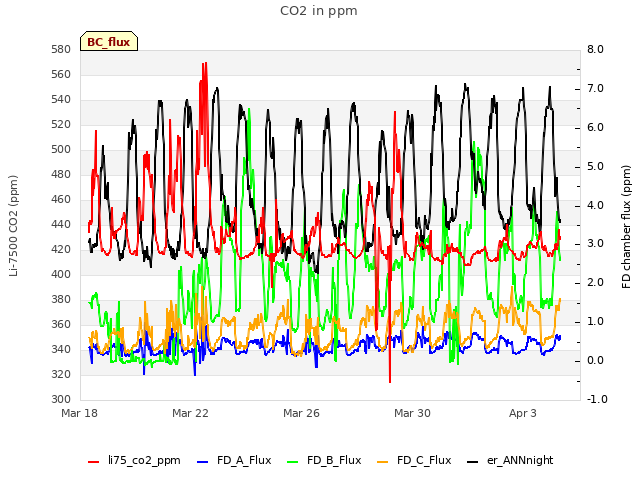

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BC_pa graphs found

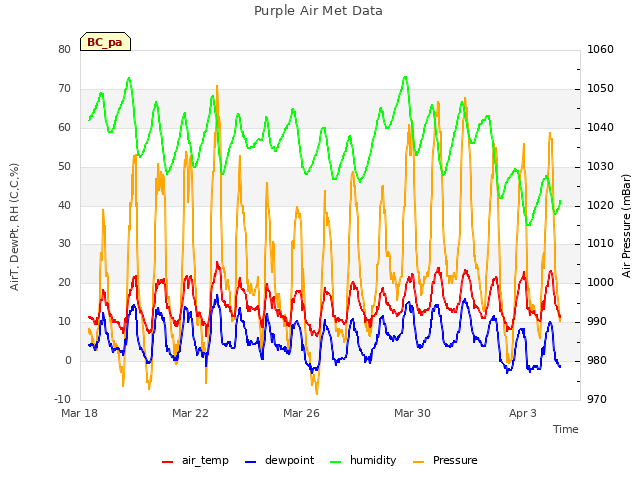

Explore the graph:Purple Air Met Data in a new window

Explore the graph:Purple Air Particulate Matter in a new window

1 BC_arable graphs found

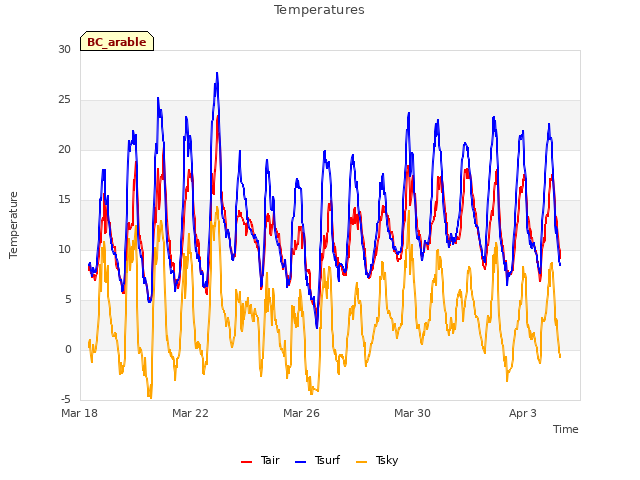

Explore the graph:Temperatures in a new window
