Field Notes

<--2019-11-07 10:00:00 | 2019-11-19 11:00:00-->
Other sites visited today: Bouldin Corn | Vaira | Tonzi
Phenocam link: Searching...

Tonzi: 2019-11-07 11:30:00 (DOY 311)
Author: Joe Verfaillie
Others: Dennis, Siyan

Summary: Visitors from LBNL, Standard data collection, tested two remaining tipping buckets, fixed unplugged Arable, Removed Floor 7500 head for use at Vaira

Tonzi
2019-11-07

Dennis, Siyan and I arrive at about 11:30. Jennifer Holm and Sebastian Fiedler, modelers from LBNL, joined us to see the sites they use in their modeling efforts. It was clear, sunny and warm with little to no wind. It is still very dry with no rain in the forecast. The trees are definitely brown here.

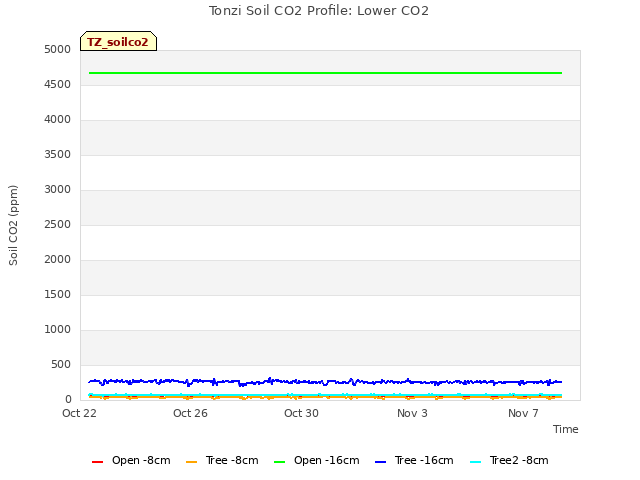

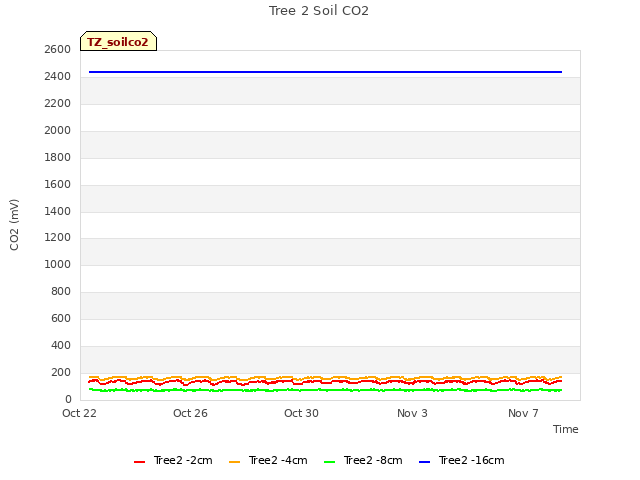

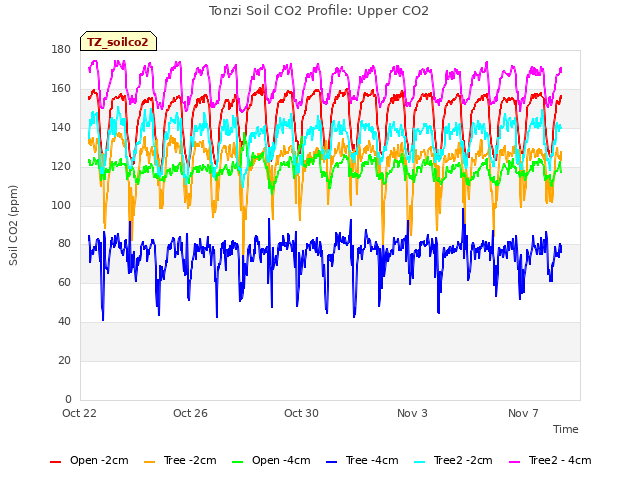

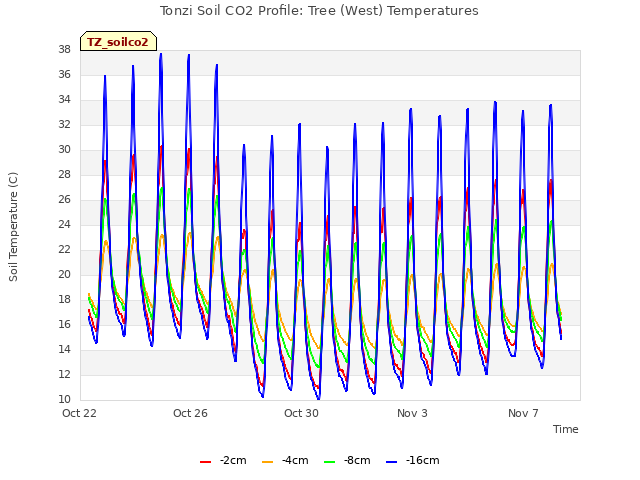

Dennis collected the soil moisture data. Siyan did the manual well measurements, DBH, collected data from the soil co2, IRT, and well data loggers and service z-cam 1 and 2.

I collected the eddy data, the FLIR cal panel data and serviced z-cam 3.

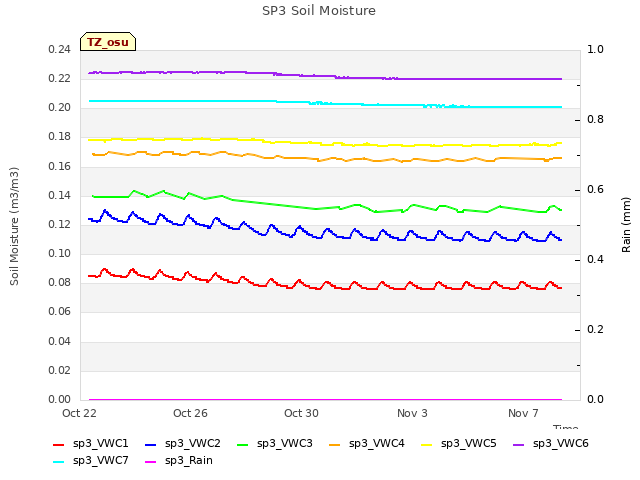

I also tested the tipping buckets at OSU SP2 sn 48132-611 and SP3 sn 48102-611. I added pluggable screw terminals to the wires to make it easier to disconnect from the data loggers and plug into the calibration CR23x. After connecting the bucket to the CR23x, I dripped 475ml of water through the bucket which should result in 100tips. Both buckets recorded 103 tips and I did not adjust them.

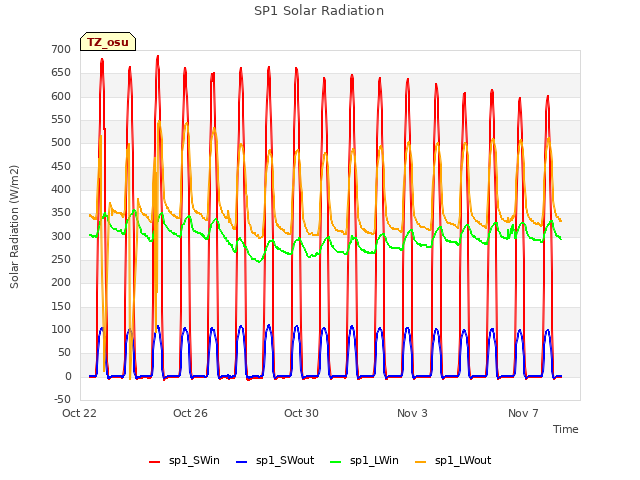

At the top of the tower I cleaned the radiometers and checked on the Arable which had not been reporting recently. The Arable was unplugged from its power cable. The dome on its built-in solar panel is so cloudy I guess it doesnâ€™t produce enough power. After plugging it in, it seems to boot and has reported to the Arable web site now.

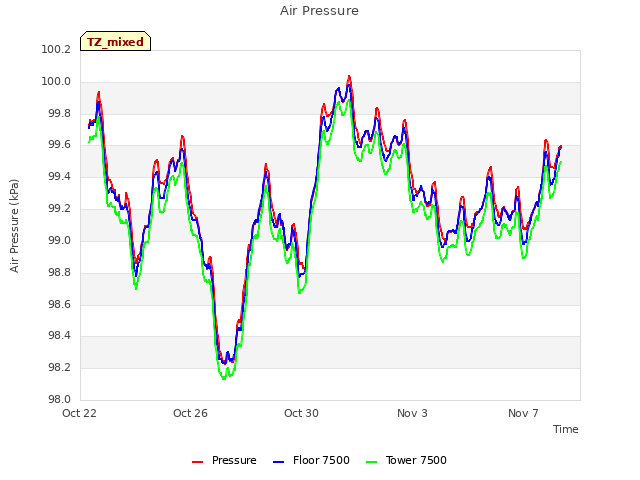

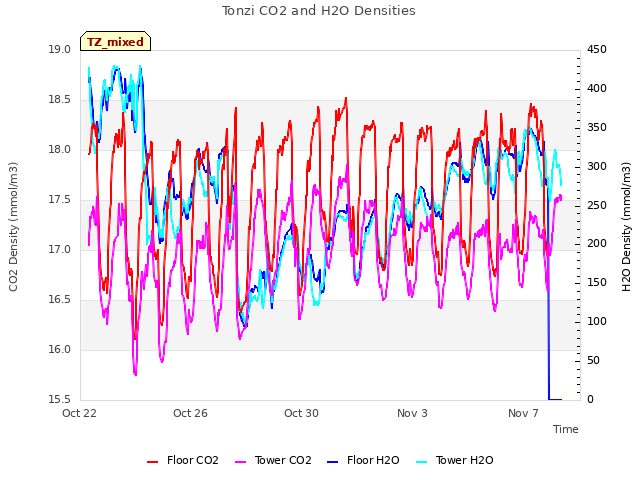

I removed the Floor Tower 7500 head sn 75H-2180 for use at Vaira because the 7500 there has failed probably with a bad source or detector.

The SMAP folks have been here again. Their METER Group mini weather station has been moved to the south side of the tower, but still looks like it might fall off.

Field Data

No tank data

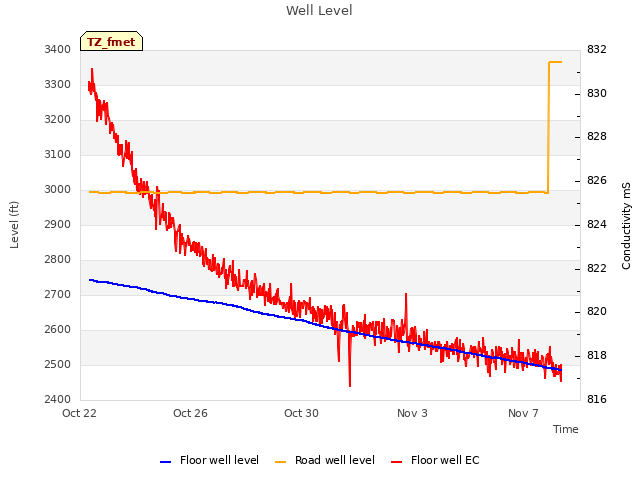

Well Depth

Date	Location	Depth (feet)
2019-11-07	VR_well	59.3
2019-11-07	TZ_floor	28
2019-11-07	TZ_tower	32.8
2019-11-07	TZ_road	36.8

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_2_1 [4] => Soil_Transect_1_1 [5] => SoilCO2_West_A_1 [6] => SoilCO2_West_B_1 [7] => SoilCO2_West_C_1 [8] => Tower_2 [9] => Floor_South_2 [10] => Floor_West_2 [11] => Soil_Transect_2_2 [12] => Soil_Transect_1_2 [13] => SoilCO2_West_A_2 [14] => SoilCO2_West_B_2 [15] => SoilCO2_West_C_2 [16] => Tower_3 [17] => Floor_South_3 [18] => Soil_Transect_2_3 [19] => Soil_Transect_1_3 [20] => SoilCO2_West_A_3 [21] => SoilCO2_West_B_3 [22] => SoilCO2_West_C_3 [23] => Tower_4 [24] => Floor_South_4 [25] => Soil_Transect_2_4 [26] => Soil_Transect_1_4 [27] => SoilCO2_West_A_4 [28] => SoilCO2_West_B_4 [29] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-11-07	311	0	nan	3.6	10	4.5	3	0.4	5.3	6.5	0.3	11.2	3.9	5.4	11.2	4.2	9	0.6	11.8	12.6	7.6	16.6	13.7	16.5	15.1	11.7	17.3	8.5	25.4	11.9	13.9	16.5	21.5
2019-11-07	311	1	nan	3.9	7.4	5	2.7	0.1	5	8.3	0.7	10.6	3.9	6.3	11.5	3.9	8.4	0.6	11.2	14	7.3	15.6	13.4	15.9	14.5	12	17	8.5	23.4	11.6	14.2	16.8	22.2
2019-11-07	311	2	nan	3.6	8.3	3.6	2.4	0.4	5.3	7.1	0.4	10.6	3.9	4.5	11.5	4.2	8.4	0.5	11.6	13.4	7.8	16.2	13.4	16.2	14.8	12.3	16.2	9	23.4	11.6	14.5	15.9	21.5
2019-11-07	311	Avg	0-15cm																															0
2019-11-07	311	Avg	15-30cm																															0
2019-11-07	311	Avg	30-45cm																															0
2019-11-07	311	Avg	45-60cm																															0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Solar_Panels_2 [3] => Flux_Tower_2 [4] => Biomass_Cage_2 [5] => Solar_Panels_3 [6] => Flux_Tower_3 [7] => Biomass_Cage_3 [8] => Solar_Panels_4 [9] => Flux_Tower_4 [10] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-11-07	311	0	nan	1.8	0.3	11.5	11.8	7.2	15.9	6.7	16.2	28.2	16.2	19.1
2019-11-07	311	1	nan	1.2	0.6	10	11.8	7.5	15.9	5.9	16.8	27.9	15.9	18.8
2019-11-07	311	2	nan	1.2	0.3	10.9	12.1	6.9	15.4	6.7	17.3	27.9	15.9	19.3
2019-11-07	311	Avg	0-15cm												0
2019-11-07	311	Avg	15-30cm												0
2019-11-07	311	Avg	30-45cm												0
2019-11-07	311	Avg	45-60cm												0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-11-07	1	19.0
2019-11-07	102	9.1
2019-11-07	2	12.8
2019-11-07	245	10.2
2019-11-07	3	18.7
2019-11-07	4	5.0
2019-11-07	5	15.4
2019-11-07	7	19.0
2019-11-07	72	3.5
2019-11-07	79	16.0
2019-11-07	8	7.1
